FIAC spa

Spare Parts for Pump Unit FIAC GM 243

SKU: Fiac GM243
€31.97
VAT included

Spare Parts for Pump Unit FIAC GM 243

Original Parts FIAC for piston Air Compressors and spare parts for to repair or replacement of components for direct driven lubricared pump unit GM 243 validity date - from 27/02/2003.
Spare Parts for Pump Unit FIAC GM 243
  • Spare Parts for Pump Unit FIAC GM 243
  • Spare Parts for Pump Unit FIAC GM 243
FIAC spa

Spare Parts for Pump Unit FIAC GM 243

SKU: Fiac GM243 Condition: New
€31.97
VAT included

Spare Parts for Pump Unit FIAC GM 243

Original Parts FIAC for piston Air Compressors and spare parts for to repair or replacement of components for direct driven lubricared pump unit GM 243 validity date - from 27/02/2003.
settings 42 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
40 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 7011220000 Screw M6X40 UNI-5737 €1.44
2
 photo_cameraImage coming soon 7084190000 Fitting "L" 3/8-1/2 MM €15.30
3
 Filter Plate for Pumping Uniti and Air Compressor Fiac 7458340000 Filter Plate for Pumping Uniti and Air Compressor Fiac €1.52
4
 Air Filter Element for Pumping Units Fiac VX - VS - GM 7210010000 Air Filter Element for Pumping Units Fiac VX - VS - GM €4.37
5
 Air Filter Cover for Pump Units FIAC Series VS - VX 7210430000 Air Filter Cover for Pump Units FIAC Series VS - VX €4.34
6
 photo_cameraImage coming soon 7012010000 Screw Ø3,9X19 UNI-6954 €1.48
7
 Start Valve M 3/8 " 1.5 bar for Pumping Unit Fiac CCS-GM-GMS 7196010000 Start Valve M 3/8 " 1.5 bar for Pumping Unit Fiac CCS-GM-GMS €10.13
10
 photo_cameraImage coming soon 7458020000 PLATE-holder D 50 ZINC €13.02
12
 Flap Valves Kit 10 pcs for Puming Units Fiac VX-GM 4081010000 Flap Valves Kit 10 pcs for Puming Units Fiac VX-GM €10.82
14
 Fiac GM242 Pump Unit Cylinder 7575070000 Fiac GM242 Pump Unit Cylinder €65.59
15
 photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
17
 Piston Rings for Pumping Units FIAC VX 194-254-402 4080020000 Piston Rings for Pumping Units FIAC VX 194-254-402 €26.02
18
 Piston D.50 MM for Pump Units FIAC Series VX - GM 7220020000 Piston D.50 MM for Pump Units FIAC Series VX - GM €26.96
19
 photo_cameraImage coming soon 7050020000 Pin Ø12 / 8X42 €5.60
20
 Circlip for Pumping Units Fiac VX 194-VX 214 7041010000 Circlip for Pumping Units Fiac VX 194-VX 214 €1.52
21
 Conrod for Pump Units FIAC GM-VX 5050150008 Conrod for Pump Units FIAC GM-VX €27.33
23
 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 7060060000 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 €17.31
24
 photo_cameraImage coming soon 5040790008 Crankshaft €58.84
26
 photo_cameraImage coming soon 7150421000 CASING GM-250-BLACK VERSION 96 €22.73
27
 Dipstick Level Oil for Pump Unit and Compressors Fiac GM-Vx-Colibrì 7181060000 Dipstick Level Oil for Pump Unit and Compressors Fiac GM-Vx-Colibrì €10.47
28
 photo_cameraImage coming soon 7650020000 crankcase cover €17.43
30
 photo_cameraImage coming soon 7012100000 Screw Ø3,9X16 €1.38
31
 Motor Cover Gasket for Pumping Units Fiac GM 110-242 7078460000 Motor Cover Gasket for Pumping Units Fiac GM 110-242 €5.16
32
 Oil Seal for Pumping Units FIAC GM 110-191-201-242 7071020000 Oil Seal for Pumping Units FIAC GM 110-191-201-242 €5.38
33
 photo_cameraImage coming soon 5070320008 Sump €60.63
34
 photo_cameraImage coming soon 7660240000 HARMATURE D.64,2X75 X AC1300 €48.70
35
 photo_cameraImage coming soon 4012050000 FIELD GM 243 V.230 / 50 +/- 5% €362.32
36
 photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €13.55
37
 photo_cameraImage coming soon 7170370000 BASE ENGINE GM190 €10.82
39
 photo_cameraImage coming soon 7012290000 Screw M5X20 TAP-TITE €24.21
40
 photo_cameraImage coming soon 7018010000 Screw M6x139 UNI-5737 €1.73
41
 Motor Fan for Pump Units GM 143-191 7201280000 Motor Fan for Pump Units GM 143-191 €15.06
42
 photo_cameraImage coming soon 7013060000 Screw M4X8 UNI-8112 €1.48
43
 Fiac Stud M.8X35X14X16 7015020000 Fiac Stud M.8X35X14X16 €1.52
44
 photo_cameraImage coming soon 5110061008 Cover €29.96
45
 Capacitor 30 mf for Air Compressors 7310320000 Capacitor 30 mf for Air Compressors €26.02
100
 Valves Plate Kit for Puming Units Fiac GM 191 4082670000 Valves Plate Kit for Puming Units Fiac GM 191 €31.97
101
 Conrod + Piston Kit for Air Compressors FIAC GM 191-192-243 4191020000 Conrod + Piston Kit for Air Compressors FIAC GM 191-192-243 €68.53
102
 photo_cameraImage coming soon 4280580000 CRANKCASE-CRANKSHAFT-ROTOR GM 241 "N" €190.94
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

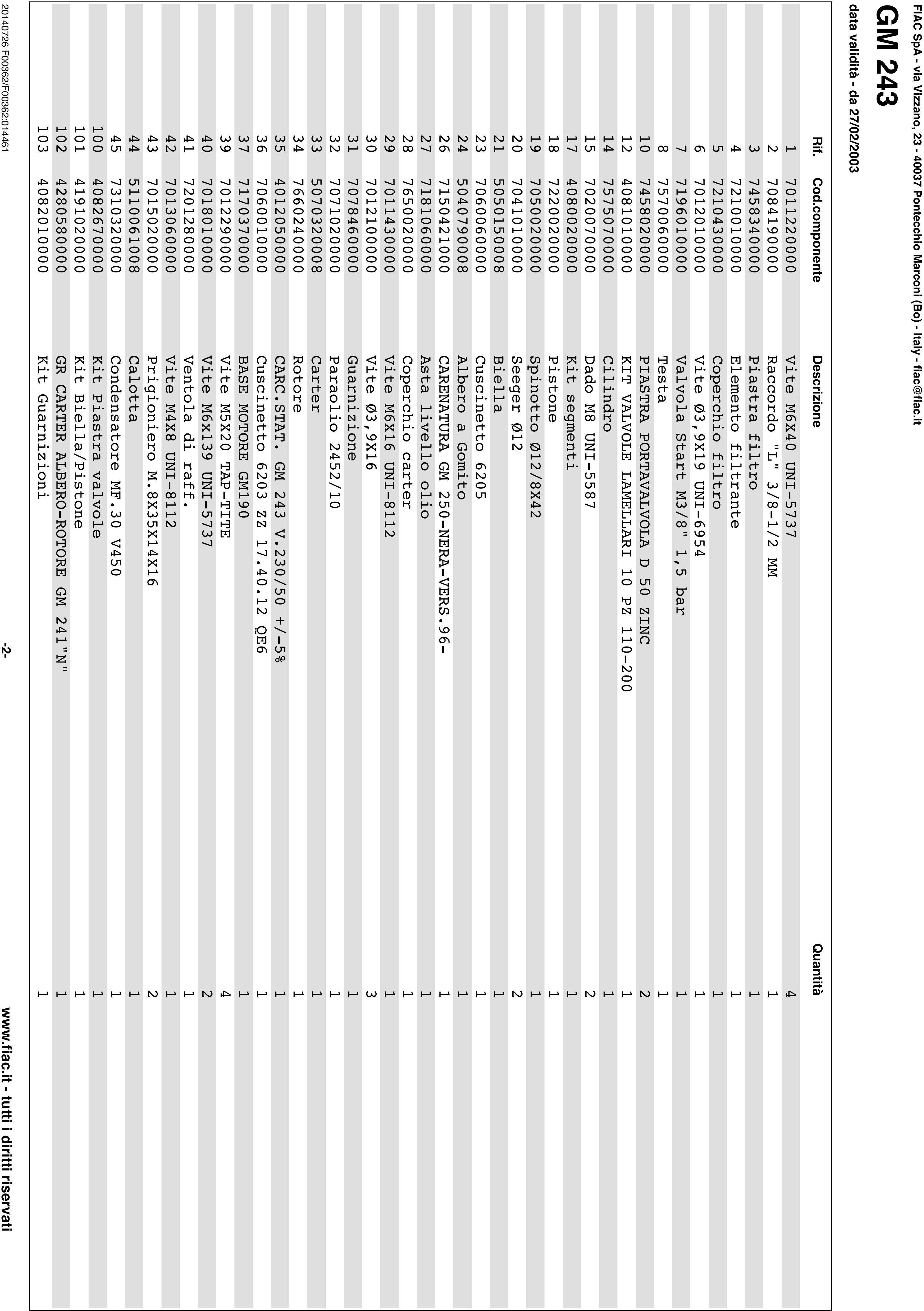

Esploso pagina 2
Pos. Item Price Buy
103
 Gasket kit for Pumping Units FIAC GM 110-191-201-243 4082010000 Gasket kit for Pumping Units FIAC GM 110-191-201-243 €18.27
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 3
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Spare Parts for Pump Unit FIAC GM 243

Original Parts FIAC

for piston Air Compressors and spare parts for to repair or replacement of components for direct driven lubricared pump unit GM 243 validity date - from 27/02/2003.

In the following table , look for the model of the Pumping Unit and the respective parts of the code .
Fiac GM 243 data - da 27/02/2003

GM 243 data validità - from 27/02/2003
# Part Num. Description
1 7011220000 Screw M6x40 UNI-5737
2 7084190000 Fitting "L" 3 / 8-1 / 2 MM
3 7458340000 filter plate
4 7210010000 filter element
5 7210430000 filter cover
6 7012010000 Screw Ø3,9X19 UNI-6954
7 7196010000 Start valve M3 / 8 "1.5 bar
8 7570060000 Head - DISCONTINUED
10 7458020000 PLATE-holder D 50 ZINC
12 4081010000 FLAP VALVE KIT 10 PCS 110-200
14 7575070000 Cylinder
15 7020070000 Nut M8 UNI-5587
17 4080020000 Piston Ring Set
18 7220020000 Piston
19 7050020000 Piston Pin Ø12 / 8X42
20 7041010000 Clip Ø12
21 5050150008 Connecting rod
23 7060060000 Ball bearing 6205
24 5040790008 Crankshaft
26 7150421000 CASING GM 250-BLACK-VERS.96-
27 7181060000 Dipstick
28 7650020000 crankcase cover
29 7011430000 Screw M6X16 UNI-8112
30 7012100000 screw Ø3,9X16
31 7078460000 gasket
32 7071020000 Oil seal 2452/10
33 5070320008 crankcase
34 7660240000 Rotor
35 4012050000 CARC.STAT. GM 243 V.230 / 50 +/- 5%
36 7060010000 Bearing 6203 ZZ 17:40:12 QE6
37 7170370000 BASE GM190
39 7012290000 Screw M5X20 TAP-TITE
40 7018010000 Screw M6x139 UNI-5737
41 7201280000 Fan
42 7013060000 Screw M4X8 UNI-8112
43 7015020000 Stud M.8X35X14X16
44 5110061008 cover
45 7310320000 Capacitor MF.30 V450
100 4082670000 Valve plate kit
101 4191020000 Kit Connecting rod / piston
102 4280580000 GR CARTER CRANKSHAFT-ROTOR GM 241 "N"
103 4082010000 Gasket Kit
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
