FIAC spa

Spare Parts for Pump Unit FIAC GM 202

SKU: Fiac GM 202
€28.25
VAT included

Spare Parts for Pump Unit FIAC GM 202

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for direct driven lubricared pump unit GM 202 data validità - from 31/01/2002
Spare Parts for Pump Unit FIAC GM 202
  • Spare Parts for Pump Unit FIAC GM 202
  • Spare Parts for Pump Unit FIAC GM 202
FIAC spa

Spare Parts for Pump Unit FIAC GM 202

SKU: Fiac GM 202 Condition: New
€28.25
VAT included

Spare Parts for Pump Unit FIAC GM 202

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for direct driven lubricared pump unit GM 202 data validità - from 31/01/2002
settings 33 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
  • 7650140000
  • 4082670000
  • 4190330000
  • 7041010000
  • 5050150008
  • 7011460000
  • 7012290000
  • 7018010000
  • 7060010000
  • 7071100000
  • 7150830000
  • 7220010000
  • 7575210000
  • 4080010000
  • 7660160000
  • 4083160000
  • 4280650000
  • 7310370000
  • 5070330008
  • 7012010000
  • 7013060000
  • 7020070000
  • 7060200000
  • 7084080000
  • 7181060000
  • 7458240000
  • 7640120000
  • 4081010000
  • 4085010000
  • 7458340000
  • 5040910008
  • 7011290000
  • 7012100000
  • 7015020000
  • 7050010000
  • 7070370000
  • 7150820000
  • 7201280000
  • 7570570000
  • 4012770000
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
31 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

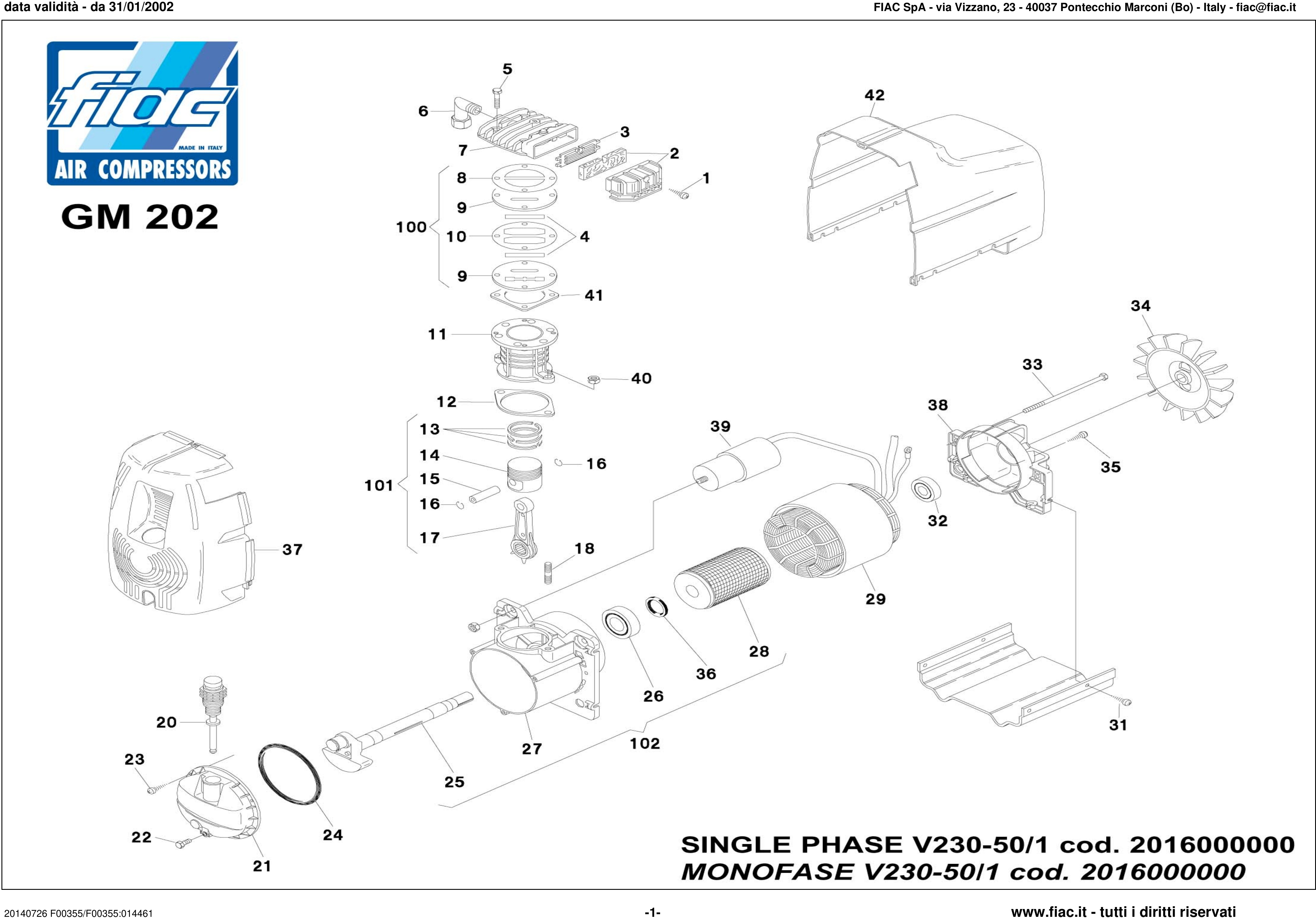

Esploso pagina 1

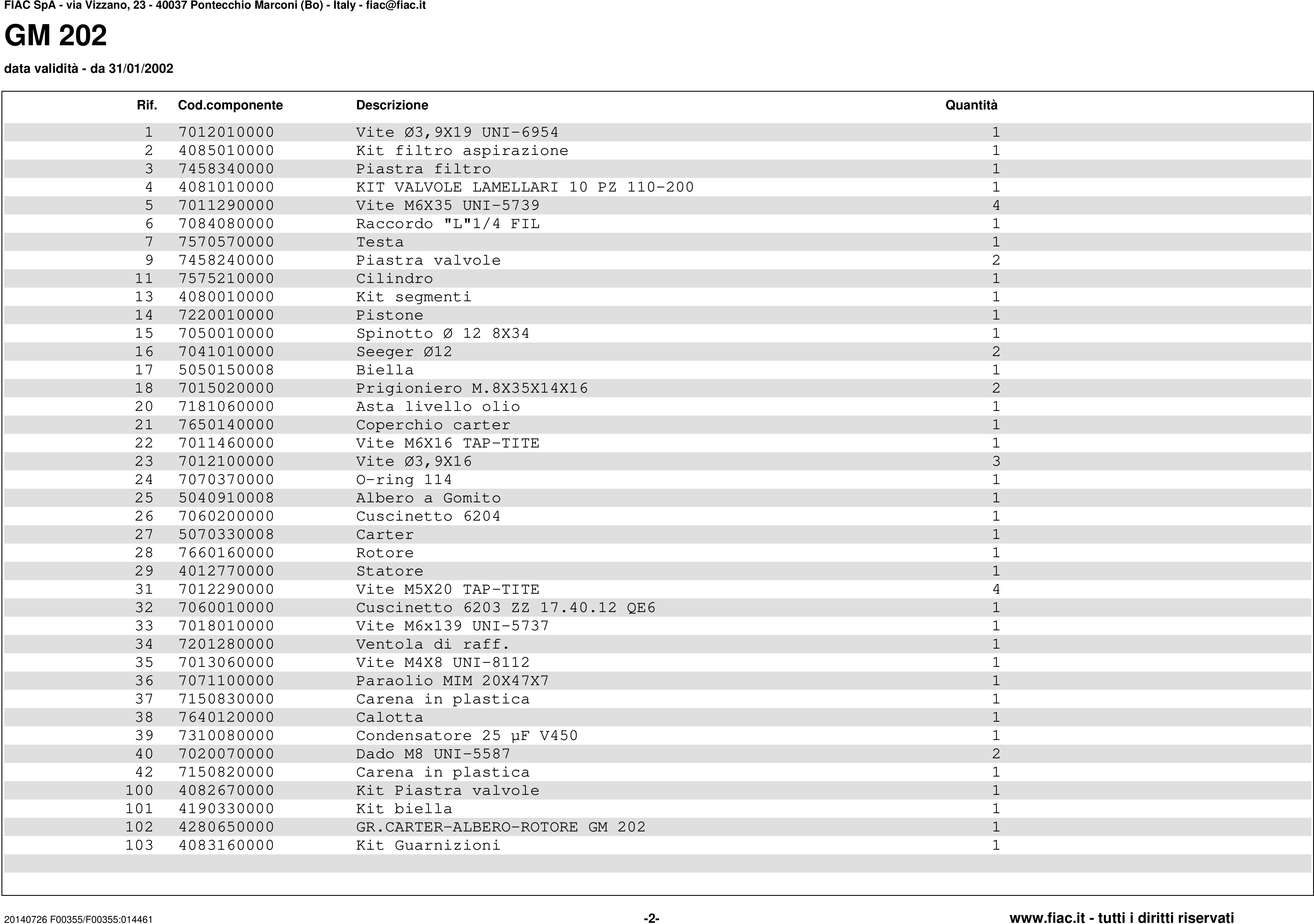

Esploso pagina 2
1 / 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 7012010000 Screw Ø3,9X19 UNI-6954 €1.48
2
 Set Intake Filter for Pumping Units FIAC GM 201-202-242 4085010000 Set Intake Filter for Pumping Units FIAC GM 201-202-242 €15.65
3
 Filter Plate for Pumping Uniti and Air Compressor Fiac 7458340000 Filter Plate for Pumping Uniti and Air Compressor Fiac €1.52
4
 Flap Valves Kit 10 pcs for Puming Units Fiac VX-GM 4081010000 Flap Valves Kit 10 pcs for Puming Units Fiac VX-GM €10.82
5
 photo_cameraImage coming soon 7011290000 Screw M6X35 UNI-5739 €1.38
6
 FIAC F204 Fitting L 1/4" 7084080000 FIAC F204 Fitting L 1/4" €10.17
7
 photo_cameraImage coming soon 7570570000 Head €20.46
9
 photo_cameraImage coming soon 7458240000 Valve plate €11.03
13
 Piston Rings for Pump Unit FIAC Series GM 4080010000 Piston Rings for Pump Unit FIAC Series GM €28.26
14
 photo_cameraImage coming soon 7220010000 Piston €22.47
15
 photo_cameraImage coming soon 7050010000 Plug Ø 12 8x34 €4.96
16
 Circlip for Pumping Units Fiac VX 194-VX 214 7041010000 Circlip for Pumping Units Fiac VX 194-VX 214 €1.52
17
 Conrod for Pump Units FIAC GM-VX 5050150008 Conrod for Pump Units FIAC GM-VX €27.33
18
 Fiac Stud M.8X35X14X16 7015020000 Fiac Stud M.8X35X14X16 €1.52
20
 Dipstick Level Oil for Pump Unit and Compressors Fiac GM-Vx-Colibrì 7181060000 Dipstick Level Oil for Pump Unit and Compressors Fiac GM-Vx-Colibrì €10.47
21
 photo_cameraImage coming soon 7650140000 crankcase cover €16.67
22
 photo_cameraImage coming soon 7011460000 Screw M6X16 TAP-TITE €1.48
23
 photo_cameraImage coming soon 7012100000 Screw Ø3,9X16 €1.38
26
 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 7060200000 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 €12.86
31
 photo_cameraImage coming soon 7012290000 Screw M5X20 TAP-TITE €24.21
32
 photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €13.55
33
 photo_cameraImage coming soon 7018010000 Screw M6x139 UNI-5737 €1.73
34
 Motor Fan for Pump Units GM 143-191 7201280000 Motor Fan for Pump Units GM 143-191 €15.06
35
 photo_cameraImage coming soon 7013060000 Screw M4X8 UNI-8112 €1.48
36
 photo_cameraImage coming soon 7071100000 MIM oil seal 20X47X7 €4.01
37
 photo_cameraImage coming soon 7150830000 plastic hull €11.77
39
 photo_cameraImage coming soon 7310370000 25 uF capacitor V450 €31.78
40
 photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
42
 photo_cameraImage coming soon 7150820000 plastic hull €14.91
100
 Valves Plate Kit for Puming Units Fiac GM 191 4082670000 Valves Plate Kit for Puming Units Fiac GM 191 €31.97
101
 Fiac Conrod-Piston Kit D.42MM 4190330000 Fiac Conrod-Piston Kit D.42MM €66.03

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Spare Parts for Pump Unit FIAC GM 202

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for direct driven lubricared pump unit GM 202 data validità - from 31/01/2002

In the following table , look for the model of the pumping unit and the respective parts of the code .
Fiac GM 202

GM 202 data validità - from 31/01/2002
1 7012010000 Screw Ø3,9X19 UNI-6954
2 4085010000 Suction filter kit
3 7458340000 filter plate
4 4081010000 FLAP VALVE KIT 10 PCS 110-200
5 7011290000 Screw M6X35 UNI-5739
6 7084080000 Fitting "L" 1/4 FIL
7 7570570000 Head
9 7458240000 valve plate
11 7575210000 Cylinder
13 4080010000 Kit segments
14 7220010000 Piston
15 7050010000 Pin Ø 12 8x34
16 7041010000 Seeger Ø12
17 5050150008 piston rod
18 7015020000 Stud M.8X35X14X16
20 7181060000 Dipstick
21 7650140000 crankcase cover
22 7011460000 Screw M6X16 TAP-TITE
23 7012100000 screw Ø3,9X16
24 7070370000 O-ring 114
25 5040910008 Tree in Elbow
26 7060200000 bearing 6204
27 5070330008 sump
28 7660160000 Rotor
29 4012770000 stator
31 7012290000 Screw M5X20 TAP-TITE
32 7060010000 Bearing 6203 ZZ 17:40:12 QE6
33 7018010000 Screw M6x139 UNI-5737
34 7201280000 Fan raff.
35 7013060000 Screw M4X8 UNI-8112
36 7071100000 Oil seal 20X47X7 MIM
37 7150830000 Plastic fairing
38 7640120000 cover
39 7310080000 25 uF capacitor V450
39 7310370000 25 uF capacitor V450
40 7020070000 Nut M8 UNI-5587
42 7150820000 Plastic fairing
100 4082670000 Valve plate kit
101 4190330000 Conrod-Piston kit
102 4280650000 GR.CARTER-CRANKSHAFT-ROTOR GM 202
103 4083160000 Gasket Kit
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac GM 202
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Fiac GM 202

Diagram Fiac GM 202

Download (299.33KB)
