Femi

Femi Spare Parts for Wood Mitre Saw 305 PRO-8436044

SKU: Femi 305 PRO 8436044
€3.26
VAT included

Femi Spare Parts for Wood Mitre Saw 305 PRO-8436044

FEMI Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Wood Mitre Saw 305 PRO - 8436044.
Femi Spare Parts for Miter Saw 305 PRO-8436044
  • Femi Spare Parts for Miter Saw 305 PRO-8436044
  • Femi Spare Parts for Miter Saw 305 PRO-8436044
Femi

Femi Spare Parts for Wood Mitre Saw 305 PRO-8436044

SKU: Femi 305 PRO 8436044 Condition: New
€3.26
VAT included

Femi Spare Parts for Wood Mitre Saw 305 PRO-8436044

FEMI Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Wood Mitre Saw 305 PRO - 8436044.
settings 92 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM CODE OR S/N FEMI:: FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
79 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

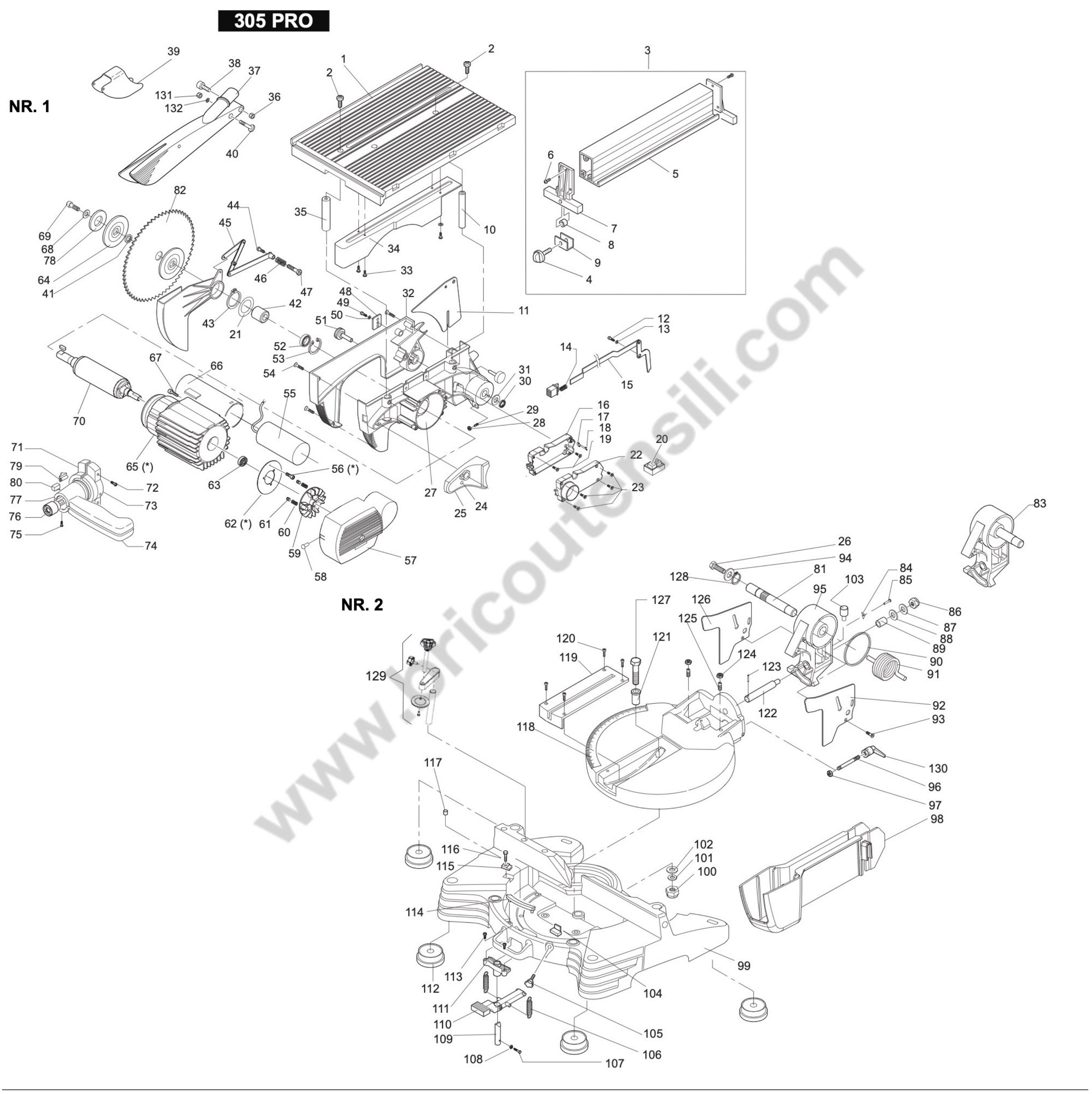

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 7130709 UPPER WORKTABLE GROUP €134.30
3
 Long Assembly Upper Guide for Miter Saw FEMI 911 7130657 Long Assembly Upper Guide for Miter Saw FEMI 911 €90.61
4
 Wing Bolt Tnp32 M8X20 for Miter Saw FEMI 911 0140103 Wing Bolt Tnp32 M8X20 for Miter Saw FEMI 911 €5.86
5
 photo_cameraImage coming soon 5130503 FENCE GUIDE €41.10
7
 Fence Guide for Miter Saws FEMI 911-911 EVO 5130480 Fence Guide for Miter Saws FEMI 911-911 EVO €9.63
9
 photo_cameraImage coming soon 5138019 Friction Plate €6.06
10
 photo_cameraImage coming soon 5130767 UPPER TABLE REAR GUIDE €8.97
11
 photo_cameraImage coming soon 5183067 RIVING KNIFE €20.29
13
 photo_cameraImage coming soon 5100143 SPACER €2.76
14
 Compression Spring for Miter Saws FEMI XXX-XXX2 5080130 Compression Spring for Miter Saws FEMI XXX-XXX2 €4.08
15
 Lever Group for Miter Saw Femi XXX - XXX2 - TR - 846 7130575 Lever Group for Miter Saw Femi XXX - XXX2 - TR - 846 €19.40
16
 photo_cameraImage coming soon 5182852 BOX COVER €6.95
17
 photo_cameraImage coming soon 5154501 CABLE LOCKING DEVICE €1.84
20
 Switch Start-Stop for Band Saws FEMI 780-782-783-785-787XL 0802606 Switch Start-Stop for Band Saws FEMI 780-782-783-785-787XL €23.00
22
 photo_cameraImage coming soon 5182589 BOX COVER €13.22
25
 photo_cameraImage coming soon 5182572 CABLE COVER €9.82
27
 Arm for Miter Saw FEMI XXX2 5042825 Arm for Miter Saw FEMI XXX2 €190.99
30
 Self-locking Nut for Miter Saws Femi XXX2-XXX2 ALU 0106115 Self-locking Nut for Miter Saws Femi XXX2-XXX2 ALU €6.97
32
 photo_cameraImage coming soon 5182862 ARM PROTECTION €64.26
34
 Upper Bench Lower Protection for Mitre Saws Femi XXX-XXX2 5181666 Upper Bench Lower Protection for Mitre Saws Femi XXX-XXX2 €12.42
37
 Upper Blade Protection for Miter Saws FEMI 911 EVO 5181888 Upper Blade Protection for Miter Saws FEMI 911 EVO €22.19
39
 photo_cameraImage coming soon 5181887 ADDITIONAL PROTECTION €8.91
40
 Upper Blade Protection Screw TTQS 6x45 for Miter Saw FEMI 911 EVO 0400645 Upper Blade Protection Screw TTQS 6x45 for Miter Saw FEMI 911 EVO €0.95
41
 Blade Bushing for Mitre Saws Femi XXX-XXX2 5061037 Blade Bushing for Mitre Saws Femi XXX-XXX2 €5.09
42
 photo_cameraImage coming soon 5120655 SPACER €6.02
44
 Disc Guard Lock Bolt for Miter Saws FEMI XXX-XXX2 5170001 Disc Guard Lock Bolt for Miter Saws FEMI XXX-XXX2 €13.81
45
 Blade Transparent Guard for Mitre Saw FEMI 911 EVO 7130706 Blade Transparent Guard for Mitre Saw FEMI 911 EVO €30.84
46
 Lifting Spring for Miter Saws FEMI XXX-XXX2 5080129 Lifting Spring for Miter Saws FEMI XXX-XXX2 €4.08
47
 Special Nut for Miter Saw Femi 5100147 Special Nut for Miter Saw Femi €4.70
48
 photo_cameraImage coming soon 5133008 RIVING KNIFE PLATE €3.53
51
 Knob D25 M8X30 Conical Tip for Mitre Saw FEMI TR 300 0140070 Knob D25 M8X30 Conical Tip for Mitre Saw FEMI TR 300 €8.19
52
 photo_cameraImage coming soon 0526203 BALL BEARING €12.68
55
 Femi XXX - XXX2 Capacitor MF20 0840028 Femi XXX - XXX2 Capacitor MF20 €19.50
57
 photo_cameraImage coming soon 5182850 MOTOR COVER €11.44
59
 Fan Motor for Miter Saws FEMI 911-TR-GOLD-XXX 5112027 Fan Motor for Miter Saws FEMI 911-TR-GOLD-XXX €10.59
61
 photo_cameraImage coming soon 5152066 BRAKE PIN €2.67
63
 photo_cameraImage coming soon 0536201 Ball Bearing €7.07
64
 photo_cameraImage coming soon 5190295 WHEEL FLANGE €14.34
65
 Femi 305 PRO Motor Body Cpl. 7801109 Femi 305 PRO Motor Body Cpl. €150.96
66
 photo_cameraImage coming soon 5182853 CAPACITOR COVER €14.24
69
 TCCE ZN M8X25 Left Bolt for Wood Miter Saws FEMI XXX - XXX Alu 0320826 TCCE ZN M8X25 Left Bolt for Wood Miter Saws FEMI XXX - XXX Alu €3.06
70
 photo_cameraImage coming soon 7013644 ARMATURE €121.36
71
 photo_cameraImage coming soon 5138007 LEFT HANDLE SUPPORT €4.59
73
 photo_cameraImage coming soon 5138006 RIGHT HANDLE SUPPORT €4.59
74
 photo_cameraImage coming soon 5050144 LEFT HANDLE €6.44
76
 photo_cameraImage coming soon 5143013 HEAD RELEASE BUTTON €4.75
77
 Right Half Grip for Mitre Saw Femi 305 PRO 5050143 Right Half Grip for Mitre Saw Femi 305 PRO €7.32
79
 photo_cameraImage coming soon 5143012 LOCKING BUTTON €4.13
80
 Switch for Miter Saw Femi XXX- XXX2 0802611 Switch for Miter Saw Femi XXX- XXX2 €11.16
81
 Joint Shaft for Mitre Saw FEMI 911 5001560 Joint Shaft for Mitre Saw FEMI 911 €24.15
83
 photo_cameraImage coming soon 7130624 Joint Group €76.67
84
 photo_cameraImage coming soon 5159506 Joint Index €4.62
88
 photo_cameraImage coming soon 0080256 Spring Washer €1.28
89
 photo_cameraImage coming soon 5063069 BUSHING €2.59
90
 Swivel Ring for Mitre Saw FEMI 911 5124051 Swivel Ring for Mitre Saw FEMI 911 €5.38
91
 Joint Spring for Wood Mitre Saws FEMI TR 300-305 PRO-745-846 5080135 Joint Spring for Wood Mitre Saws FEMI TR 300-305 PRO-745-846 €27.78
92
 photo_cameraImage coming soon 5181822 Fix Protection €33.06
95
 photo_cameraImage coming soon 5137872 Joint €65.70
96
 photo_cameraImage coming soon 0450880 Tie Rod €6.64
98
 photo_cameraImage coming soon 5181819 Lower Protection €10.39
99
 Mitre Saw FEMI 911 EVO Base Complete 5133789 Mitre Saw FEMI 911 EVO Base Complete €235.12
104
 photo_cameraImage coming soon 5137902 ANGULAR BRACKET €5.55
105
 photo_cameraImage coming soon 0140078 WING NUT €4.87
106
 photo_cameraImage coming soon 5081026 SPRING €2.43
109
 photo_cameraImage coming soon 5171077 Swivel Support Pin €9.78
110
 Release Lever for Mitre Saws FEMI TR-250 TR 300-842-846-911 5142096 Release Lever for Mitre Saws FEMI TR-250 TR 300-842-846-911 €9.63
111
 Sliding Bracket for Mitre Saw FEMI 911 5133003 Sliding Bracket for Mitre Saw FEMI 911 €15.20
112
 Foot Base for Wood Mitre Saw FEMI XXX2 5137793 Foot Base for Wood Mitre Saw FEMI XXX2 €2.40
114
 photo_cameraImage coming soon 5182900 Plastic Cover €1.82
118
 photo_cameraImage coming soon 5138002 SWIVEL SUPPORT €137.88
119
 Swivel Base Cover for Miter Saws FEMI 842-846-911-999 5182569 Swivel Base Cover for Miter Saws FEMI 842-846-911-999 €9.44
121
 photo_cameraImage coming soon 0063035 Bushing €3.08
122
 photo_cameraImage coming soon 5170530 Joint Pin €8.18
123
 Roll Pin mm 3x20 for Wood Mitre Saw Femi 742 0152319 Roll Pin mm 3x20 for Wood Mitre Saw Femi 742 €0.48
126
 photo_cameraImage coming soon 5181821 Fix Protection €24.30
129
 photo_cameraImage coming soon 7130701 VERTICAL CLAMP ASS'Y €40.37
130
 photo_cameraImage coming soon 0147006 Hand Lever €10.65
131
 Self-Locking Special Nut M 6 Low for Miter Saws Femi 280S - 305S 0101406 Self-Locking Special Nut M 6 Low for Miter Saws Femi 280S - 305S €0.31
132
 photo_cameraImage coming soon 0120106 SHOCK ABSORBER €1.46

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Femi Spare Parts for Wood Mitre Saw 305 PRO-8436044

FEMI Original spare parts

 at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Wood Mitre Saw 305 PRO - 8436044.

In the following table, look for the model of Miter Saw and the respective parts of the code.
Femi 305 PRO 8436044

Wood Miter Saw 305 PRO-8436044
# Part Num. Description
1 7130709 UPPER WORKTABLE GROUP
3 7130657 COMPLETE UPPER GUIDE
4 0140103 WING NUT
5 5130503 FENCE GUIDE
7 5130480 FENCE GUIDE
9 5138019 FRICTION PLATE
10 5130767 UPPER TABLE REAR GUIDE
11 5183067 RIVING KNIFE
13 5100143 SPACER
14 5080130 SPRING
15 7130575 LINKAGE ASS'Y
16 5182852 BOX COVER
17 5154501 CABLE LOCKING DEVICE
20 0802606 ON/OFF SWITCH
0155001 THICKNESS WASHER
21 0155004 SPRING RING
22 5182589 BOX COVER
25 5182572 CABLE COVER
27 5042825 MITRE SAW ARM
29 0410606 HEADLESS SCREW
30 0106115 SELF-LOCKING RING NUT
32 5182862 ARM PROTECTION
34 5181666 LOWER PROTECTION
37 5181888 UPPER PROTECTION
39 5181887 ADDITIONAL PROTECTION
40 0400645 SCREW TQST 6x45
41 5061037 BLADE BUSH
42 5120655 SPACER
44 5170001 PROTECTION LOCKING PIN
45 7130706 BLADE TRASP.PROTECTION WITH LEVERS
46 5080129 SPRING
47 5100147 NUT
48 5133008 RIVING KNIFE PLATE
50 0120206 WASHER
51 0140070 KNOB
52 0526203 BALL BEARING
55 0840028 CAPACITOR
57 5182850 MOTOR COVER
59 5112027 MOTOR FAN
60 5081041 SPRING
61 5152066 BRAKE PIN
63 0536201 BALL BEARING
64 5190295 WHEEL FLANGE
65 7801109 MOTOR BODY
66 5182853 CAPACITOR COVER
68 0120308 WASHER
69 0320826 SOCKET HEAD SCREW
70 7013644 ARMATURE
71 5138007 LEFT HANDLE SUPPORT
73 5138006 RIGHT HANDLE SUPPORT
74 5050144 LEFT HANDLE
76 5143013 HEAD RELEASE BUTTON
77 5050143 RIGHT HALF GRIP
78 0120714 FLAT WASHER
79 5143012 LOCKING BUTTON
80 0802611 SWITCH
81 5001560 JOINT SHAFT
83 7130624 JOINT ASSY
84 5159506 JOINT INDEX
88 0080256 SPRING WASHER
89 5063069 BUSHING
90 5124051 RING
91 5080135 SPRING
92 5181822 FIX PROTECTION
94 0120708 PLAIN WASHER
95 5137872 JOINT
96 0450880 TIE ROD
98 5181819 LOWER PROTECTION
99 5133789 MITRE SAW BASE
101 0080257 SPRING WASHER
102 0120708 PLAIN WASHER
104 5137902 ANGULAR BRACKET
105 0140078 WING NUT
106 5081026 SPRING
109 5171077 SWIVEL SUPPORT PIN
110 5142096 RELEASE LEVER
111 5133003 SLIDING BRACKET
112 5137793 REST FOOT
114 5182900 PLASTIC COVER
115 5159514 JOINT INDEX
117 5121552 SPACER
118 5138002 SWIVEL SUPPORT
119 5182569 SUPPORT COVER
121 0063035 BUSHING
122 5170530 JOINT PIN
123 0152319 SPRING PIN
126 5181821 FIX PROTECTION
128 0151116 SNAP RING
129 7130701 VERTICAL CLAMP ASS'Y
130 0147006 RATCHET HAND LEVER
131 0101406 SELF-LOCKING SPECIAL NUT M6
132 0120106 SHOCK ABSORBER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Femi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Femi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Femi 305 PRO 8436044
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM CODE OR S/N FEMI:
FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS

Specific References

New

Download

Diagram Femi 305 PRO

Diagram Femi 305 PRO

Download (472.39KB)

You might also like

Long Assembly Upper Guide for Miter Saw FEMI 911
Femi SKU: 7130657
Long Assembly Upper Guide for Miter Saw FEMI 911
Long Assembly Upper Guide for Miter Saw FEMI 911 Genuine part FEMI, Long Straight Edge Assembly Rule, to the upper bench of the miter saw FEMI 911 - 999 - XXX - 300 Special. Part for the following products: - Wood Saw Femi 911 -...
AVAILABLE €90.61
Details
Wing Bolt Tnp32 M8X20 for Miter Saw FEMI 911
Femi SKU: 0140103
Wing Bolt Tnp32 M8X20 for Miter Saw FEMI 911
Wing Bolt Tnp32 M8X20 for Miter Saw FEMI 911 Original Spare parts FEMI, Wing Head bolt for Miter Saw 911 - 911 EVO - 999 - 999 EVO 300 Special - 305 PRO. For the following items: - Miter Saw FEMI 911 - 8436028 - Miter Saw FEMI 999 -...
AVAILABLE €5.86
Details
Upper Bench Lower Protection for Mitre Saws Femi XXX-XXX2
Femi SKU: 5181666
Upper Bench Lower Protection for Mitre Saws Femi XXX-XXX2
Upper Bench Lower Protection for Mitre Saws Femi XXX-XXX2 Original spare part FEMI, Upper Bench Lower Protection for Mitre Saws Femi 305 PRO - 911 EVO - XXX - XXX2-XXX2 ALU - GOLD - TR 305 - 999 Parts for the following products: -...
AVAILABLE €12.42
Details
Knob D25 M8X30 Conical Tip for Mitre Saw FEMI TR 300
Femi SKU: 0140070
Knob D25 M8X30 Conical Tip for Mitre Saw FEMI TR 300
Knob D25 M8X30 Conical Tip for Mitre Saw FEMI TR 300 Genuine part FEMI, Knob D25 M8X30 Conical Tip 171-SPEC 60° for Wood Mitre Saws TR 300 - 300 Special - 305 PRO - 742 - 745 - 846 - 911 EVO - 999 Part for the following products: -...
AVAILABLE €8.19
Details
Fence Guide for Miter Saws FEMI 911-911 EVO
Femi SKU: 5130480
Fence Guide for Miter Saws FEMI 911-911 EVO
Fence Guide for Miter Saws FEMI 911-911 EVO Original replacement part FEMI, Fence Guide F.V.50% for Mitre Saws Femi 911 EVO - 999 EVO - XXX EVO - 305 PRO. Parts for the following products: - Wood Mitre Saw 911 - 8436028 - Wood Mitre...
Last items in stock €9.63
Details
Roll Pin mm 3x20 for Wood Mitre Saw Femi 742
Femi SKU: 0152319
Roll Pin mm 3x20 for Wood Mitre Saw Femi 742
Roll Pin mm 3x20 for Wood Mitre Saw Femi 742 Original replacement part FEMI, Roll Pin mm 3x20 for Wood Mitre Saws 742 - 911 - 846 - 300 Special - 842 - TR 300 - TR 250 - 305 PRO. Parts for the following products: - Wood Mitre Saw...
AVAILABLE €0.48
Details
Handle Grip for Rototiller Meccanica Benassi RL 40-50
MECCANICA BENASSI S.R.L. SKU: SI0147006
Handle Grip for Rototiller Meccanica Benassi RL 40-50
Handle Grip for Rototiller Meccanica Benassi RL 40-50 Genuine spare part Meccanica Benassi, Handle Grip for Petrol Roto-tiller RL 40 - 12/2016 - RL 50 - 02/2015 - RL 113. Part for the following Items: -  PETROL TILLER RL 40 da...
AVAILABLE €9.01
Details
Blade Transparent Guard for Mitre Saw FEMI 911 EVO
Femi SKU: 7130706
Blade Transparent Guard for Mitre Saw FEMI 911 EVO
Blade Transparent Guard for Mitre Saw FEMI 911 EVO Genuine part FEMI, Blade Transparent Guard Assembly with Lever for Wood Mitre Saws 911 EVO - 999 EVO - XXX EVO - 305 PRO. Parts for the following products:...
on 7/10 Business Days Approx. €30.84
Details
Arm for Miter Saw FEMI XXX2
Femi SKU: 5042825
Arm for Miter Saw FEMI XXX2
Arm for Miter Saw FEMI XXX2 Genuine spare part FEMI, Arm for Miter Saws FEMI, XXX2 - XXX2 Alluminium - XXX EVO - 846 - TR300 - 305 PRO - 746 - 736 ALU. Part for the following products: -  Miter Saw XXX2 - XXX2 Alluminium -  Miter Saw...
Last items in stock €190.99
Details
Swivel Ring for Mitre Saw FEMI 911
Femi SKU: 5124051
Swivel Ring for Mitre Saw FEMI 911
Swivel Ring for Mitre Saw FEMI 911 Original Spare Part FEMI, Swivel Ring for Miter Saws 911 - 999 - 999 EVO - 300 Special - TR300 - 305 PRO - 745. Part for the following products: -  Mitre Saw 911 - 8436028 -  Mitre Saw 999 - 8436025...
AVAILABLE €5.38
Details
Joint Shaft for Mitre Saw FEMI 911
Femi SKU: 5001560
Joint Shaft for Mitre Saw FEMI 911
Joint Shaft for Mitre Saw FEMI 911 Original Spare Part FEMI, Joint Shaft for Miter Saws 911 - 999 - 999 EVO - 300 Special - TR300 - 305 PRO - 745. Part for the following products: -  Mitre Saw 911 - 8436028 -  Mitre Saw 999 - 8436025...
Last items in stock €24.15
Details
Sliding Bracket for Mitre Saw FEMI 911
Femi SKU: 5133003
Sliding Bracket for Mitre Saw FEMI 911
Sliding Bracket for Mitre Saw FEMI 911 Original Spare Part FEMI, Sliding Bracket for Miter Saws 911 - 999 - 999 EVO - 300 Special - TR300 - 305 PRO - 745. Part for the following products: -  Mitre Saw 911 - 8436028 -  Mitre Saw 999 -...
Last items in stock €15.20
Details
Compression Spring for Miter Saws FEMI XXX-XXX2
Femi SKU: 5080130
Compression Spring for Miter Saws FEMI XXX-XXX2
Compression Spring for Miter Saws FEMI XXX-XXX2 Genuine spare part FEMI, Compression Spring for Miter Saws FEMI, XXX - XXX2 - XXX EVO - TR 305. Part for the following products: -  Mitre Saw XXX-8430021 - XXX Alu-8432021 -  Mitre Saw...
on 7/10 Business Days Approx €4.08
Details
Right Half Grip for Mitre Saw Femi 305 PRO
Femi SKU: 5050143
Right Half Grip for Mitre Saw Femi 305 PRO
Right Half Grip for Mitre Saw Femi 305 PRO Genuine spare part FEMI, Right Half Grip for Wood Miter Saws 305 PRO - 911 EVO - 999 EVO - XXX EVO Part for the following products: -  Mitre Saw Femi 305 PRO - 8436044 -  Mitre Saw Femi 911...
Last items in stock €7.32
Details
Mitre Saw FEMI 911 EVO Base Complete
Femi SKU: 5133789
Mitre Saw FEMI 911 EVO Base Complete
Mitre Saw FEMI 911 EVO Base Complete Genuine part FEMI, Mitre Saw Base Complete for Wood Mitre Saws 911 EVO - 999 EVO - 300 Special - 305 PRO. Parts for the following products: -  Wood...
Last items in stock €235.12
Details
Femi XXX - XXX2 Capacitor MF20
Femi SKU: 0840028
Femi XXX - XXX2 Capacitor MF20
Femi XXX - XXX2 Capacitor μF20 Original parts FEMI, Capacitor μF20 V450 S/COD. DOUBLE FASTON 6,35X0,8 for Mitre Saws XXX - XXX2. Parts for the following models: - FEMI XXX 8430021 - 8432021 - FEMI XXX2-XXX2 ALU 8430029 -...
Last items in stock €19.50
Details
Femi 305 PRO Motor Body Cpl.
Femi SKU: 7801109
Femi 305 PRO Motor Body Cpl.
Femi 305 PRO Motor Body Cpl. Genuine spare part FEMI, Motor Body Cpl. for Wood Miter Saw 305 PRO. Part for the following products: -  Mitre Saw Femi 305 PRO - 8436044 - Code : 7801110 ex 7801109
Last items in stock €150.96
Details
Comments (0)
