Femi Spare Parts for Wood Mitre Saw 745 - 8400722

SKU: Femi 745 - 8400722
€3.26
VAT included

Femi Spare Parts for Wood Mitre Saw 745 - 8400722

FEMI service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Wood Mitre Saw 745 - 8400722.
Femi Spare Parts for Mitre Saw 745-8400722
  • Femi Spare Parts for Mitre Saw 745-8400722
  • Femi Spare Parts for Mitre Saw 745-8400722
  • Femi Spare Parts for Mitre Saw 745-8400722

Femi Spare Parts for Wood Mitre Saw 745 - 8400722

SKU: Femi 745 - 8400722 Condition: New
€3.26
VAT included

Femi Spare Parts for Wood Mitre Saw 745 - 8400722

FEMI service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Wood Mitre Saw 745 - 8400722.
settings 86 spare parts

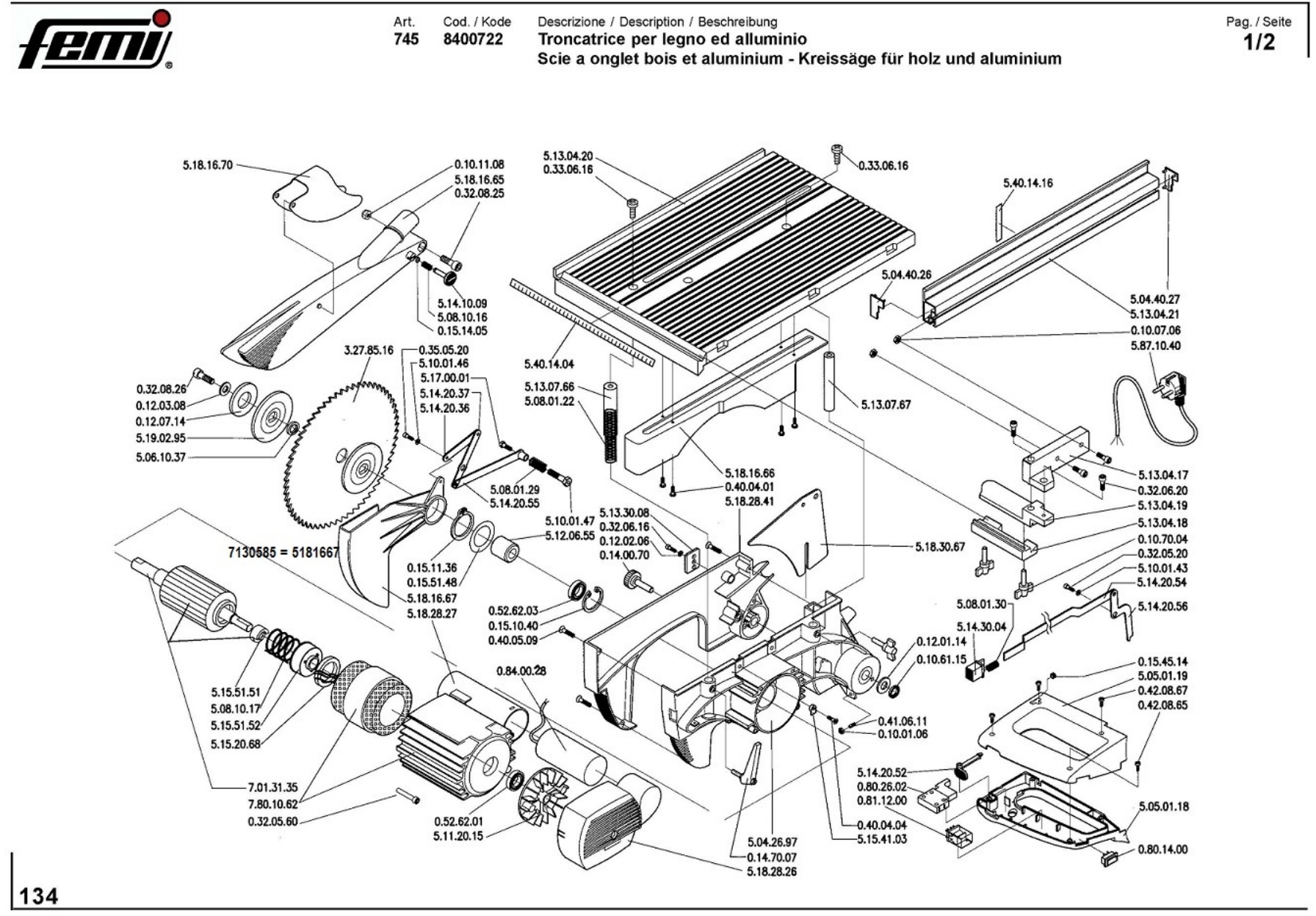

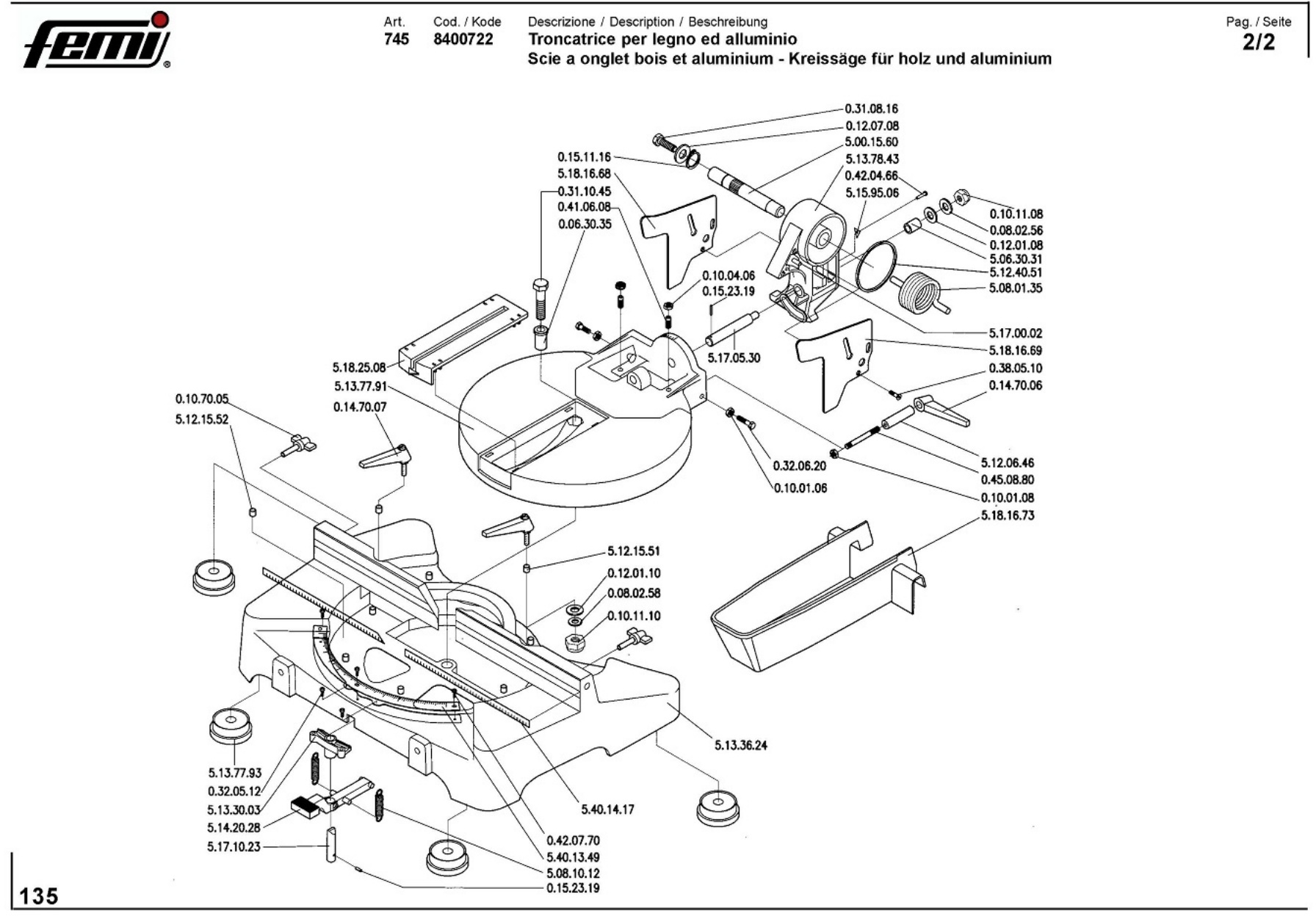

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM CODE OR S/N FEMI:: FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

86 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
photo_cameraImage coming soon 0063035 Bushing €2.35
photo_cameraImage coming soon 0080256 Spring Washer €0.90
photo_cameraImage coming soon 0080258 SPRING WASHER €4.35
Self-locking Nut for Miter Saws Femi XXX2-XXX2 ALU 0106115 Self-locking Nut for Miter Saws Femi XXX2-XXX2 ALU €6.97
Wing Bolt Male M6X25-G1/30/V for Miter Saw FEMI XXX2 0107004 Wing Bolt Male M6X25-G1/30/V for Miter Saw FEMI XXX2 €1.90
photo_cameraImage coming soon 0107005 WING NUT €2.43
photo_cameraImage coming soon 0120206 WASHER €0.63
photo_cameraImage coming soon 0120308 WASHER €0.37
photo_cameraImage coming soon 0120708 FLAT WASHER €0.63
photo_cameraImage coming soon 0120714 PLAIN WASHER €0.90
Knob D25 M8X30 Conical Tip for Mitre Saw FEMI TR 300 0140070 Knob D25 M8X30 Conical Tip for Mitre Saw FEMI TR 300 €5.71
photo_cameraImage coming soon 0147006 Hand Lever €7.43
Knob Lever M6x15 for Band Saws FEMI N215-216 XL 0147007 Knob Lever M6x15 for Band Saws FEMI N215-216 XL €9.07
photo_cameraImage coming soon 0151040 SNAP RING €1.77
photo_cameraImage coming soon 0151116 Snap Ring €0.63
photo_cameraImage coming soon 0151136 SNAP RING €1.35
Roll Pin mm 3x20 for Wood Mitre Saw Femi 742 0152319 Roll Pin mm 3x20 for Wood Mitre Saw Femi 742 €0.48
photo_cameraImage coming soon 0154514 FAIRLEAD €1.28
photo_cameraImage coming soon 0155148 THICKNESS WASHER €1.78
TCCE ZN M8X25 Left Bolt for Wood Miter Saws FEMI XXX - XXX Alu 0320826 TCCE ZN M8X25 Left Bolt for Wood Miter Saws FEMI XXX - XXX Alu €2.27
photo_cameraImage coming soon 0450880 Tie Rod €4.89
photo_cameraImage coming soon 0526201 BALL BEARING €11.14
photo_cameraImage coming soon 0526203 BALL BEARING €12.68
photo_cameraImage coming soon 0801400 SWITCH €2.76
photo_cameraImage coming soon 0802602 SWITCH €21.00
photo_cameraImage coming soon 0811200 RELAY €40.10
Femi XXX - XXX2 Capacitor MF20 0840028 Femi XXX - XXX2 Capacitor MF20 €19.03
Joint Shaft for Mitre Saw FEMI 911 5001560 Joint Shaft for Mitre Saw FEMI 911 €16.31
Right Side Cap for Mitre Saws FEMI XXX - XXX Alu 5044026 Right Side Cap for Mitre Saws FEMI XXX - XXX Alu €1.78
Left Side Cap for Mitre Saws FEMI XXX - XXX Alu. 5044027 Left Side Cap for Mitre Saws FEMI XXX - XXX Alu. €1.78
photo_cameraImage coming soon 5050118 LOWER HALF-HANDLE €15.92
photo_cameraImage coming soon 5050119 UPPER HALF-HANDLE €15.92
Blade Bushing for Mitre Saws Femi XXX-XXX2 5061037 Blade Bushing for Mitre Saws Femi XXX-XXX2 €3.54
photo_cameraImage coming soon 5063031 Bushing €3.08
Front Guide Spring for Wood Mitre Saws FEMI 742-745 5080122 Front Guide Spring for Wood Mitre Saws FEMI 742-745 €9.19 Not available for order
Lifting Spring for Miter Saws FEMI XXX-XXX2 5080129 Lifting Spring for Miter Saws FEMI XXX-XXX2 €2.81
Compression Spring for Miter Saws FEMI XXX-XXX2 5080130 Compression Spring for Miter Saws FEMI XXX-XXX2 €2.81
Joint Spring for Wood Mitre Saws FEMI TR 300-305 PRO-745-846 5080135 Joint Spring for Wood Mitre Saws FEMI TR 300-305 PRO-745-846 €27.78
Spring Release lever for Miter Saw FEMI XXX2 5081012 Spring Release lever for Miter Saw FEMI XXX2 €5.98
Protection Knob Spring for Miter Saws FEMI XXX-XXX2 5081016 Protection Knob Spring for Miter Saws FEMI XXX-XXX2 €4.72
Motor Brake Spring for Mitre Saw Femi 745 5081017 Motor Brake Spring for Mitre Saw Femi 745 €8.31
Special Nut for Miter Saw Femi 5100146 Special Nut for Miter Saw Femi €3.54
Special Nut for Miter Saw Femi 5100147 Special Nut for Miter Saw Femi €4.44
photo_cameraImage coming soon 5112015 MOTOR FAN €13.90
photo_cameraImage coming soon 5120646 Spacer €4.89
photo_cameraImage coming soon 5120655 SPACER €4.44
photo_cameraImage coming soon 5121551 SPACER €6.81
photo_cameraImage coming soon 5121552 Spacer €0.82
Swivel Ring for Mitre Saw FEMI 911 5124051 Swivel Ring for Mitre Saw FEMI 911 €3.81
Side Rule Guide Support for Mitre Saws FEMI XXX - XXX2 5130417 Side Rule Guide Support for Mitre Saws FEMI XXX - XXX2 €16.61
photo_cameraImage coming soon 5130418 BRACKET €6.87
photo_cameraImage coming soon 5130419 GUIDE €10.16
Upper Work Table for Mitre Saws Femi XXX-XXX Alu 5130420 Upper Work Table for Mitre Saws Femi XXX-XXX Alu €133.80
photo_cameraImage coming soon 5130421 SIDE FENCE 7130503 €38.20
photo_cameraImage coming soon 5130766 UPPER TABLE FRONT GUIDE €12.63
photo_cameraImage coming soon 5130767 UPPER TABLE REAR GUIDE €6.61
Sliding Bracket for Mitre Saw FEMI 911 5133003 Sliding Bracket for Mitre Saw FEMI 911 €7.53
photo_cameraImage coming soon 5133008 RIVING KNIFE PLATE €2.62
photo_cameraImage coming soon 5137791 SWIVEL SUPPORT €133.21
Foot Base for Wood Mitre Saw FEMI XXX2 5137793 Foot Base for Wood Mitre Saw FEMI XXX2 €1.35
Adjust Handweel for Mitre Saws Femi XXX 5141009 Adjust Handweel for Mitre Saws Femi XXX €4.50
photo_cameraImage coming soon 5142028 LEVER €11.09
photo_cameraImage coming soon 5142052 LEVER €1.77
Brake Lining Ring for Wood Mitre Saw Femi 745 5152068 Brake Lining Ring for Wood Mitre Saw Femi 745 €4.45
photo_cameraImage coming soon 5159506 Joint Index €3.44
Disc Guard Lock Bolt for Miter Saws FEMI XXX-XXX2 5170001 Disc Guard Lock Bolt for Miter Saws FEMI XXX-XXX2 €7.43
photo_cameraImage coming soon 5170002 RELEASE PIN €6.71
photo_cameraImage coming soon 5170530 Joint Pin €6.08
Holder Swivel Pin Lock for Miter Saws FEMI XXX-XXX2 5171023 Holder Swivel Pin Lock for Miter Saws FEMI XXX-XXX2 €15.60
photo_cameraImage coming soon 5181665 UPPER GUARD €21.83
Upper Bench Lower Protection for Mitre Saws Femi XXX-XXX2 5181666 Upper Bench Lower Protection for Mitre Saws Femi XXX-XXX2 €6.61
photo_cameraImage coming soon 5181668 LEFT PROTECTION €21.37
photo_cameraImage coming soon 5181669 RIGHT PROTECTION €29.12
Galvanized Extra Carter for Mitre Saws FEMI XXX-XXX2 5181670 Galvanized Extra Carter for Mitre Saws FEMI XXX-XXX2 €10.88
photo_cameraImage coming soon 5181673 PROTECTION €9.62
photo_cameraImage coming soon 5182508 SUPPORT COVER €6.71
photo_cameraImage coming soon 5182826 MOTOR COVER €9.99
photo_cameraImage coming soon 5182827 CONDENSATOR COVER €6.87
photo_cameraImage coming soon 5183067 RIVING KNIFE €15.41
photo_cameraImage coming soon 5190295 WHEEL FLANGE €14.34
photo_cameraImage coming soon 5401349 GRADUATE PLATE €9.91
Upper Table Graduate Plate for Mitre Saws FEMI XXX-XXX Alu 5401404 Upper Table Graduate Plate for Mitre Saws FEMI XXX-XXX Alu €6.87
photo_cameraImage coming soon 5401416 GRADUATE PLATE €5.77
Upper Bench Graduate Plate for Miter Saws FEMI XXX-XXX Alu 5401417 Upper Bench Graduate Plate for Miter Saws FEMI XXX-XXX Alu €5.71
photo_cameraImage coming soon 5871040 CABLE €13.14
Brake System Modification Kit for Mitre Saw Femi 745 7075075 Brake System Modification Kit for Mitre Saw Femi 745 €30.00

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Femi Spare Parts for Wood Mitre Saw 745 - 8400722

FEMI service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Wood Mitre Saw 745 - 8400722.

In the following table, look for the model of the Mitre Saw and the respective parts of the code.
Femi 745 - 8400722
Wood Mitre Saw 745-8400722
Part Num. Description
0063035 BUSHING
0080256 SPRING WASHER
0080258 SPRING WASHER
0106115 SELF-LOCKING RING NUT
0107004 WING NUT
0107005 WING NUT
0120206 WASHER
0120308 WASHER
0120708 PLAIN WASHER
0120714 PLAIN WASHER
0140070 KNOB
0147006 HAND LEVER
0147007 HAND LEVER
0151040 SNAP RING
0151116 SNAP RING
0151136 SNAP RING
0151405 SNAP RING
0152319 ELASTIC PIN
0154514 FAIRLEAD
0155148 THICKNESS WASHER
0320826 SOCKET HEAD SCREW
0450880 TIE ROD
0526201 BALL BEARING
0526203 BALL BEARING
0801400 SWITCH
0802602 SWITCH
0811200 RELAY
0840028 CAPACITOR
5001560 JOINT SHAFT
5042697 ARM PROTECTION ( NEW CODE 7075019 )
5044026 SIDE CAP
5044027 SIDE CAP
5050118 LOWER HALF-HANDLE
5050119 UPPER HALF-HANDLE
5061037 BLADE BUSH
5063031 BUSHING
5080122 SPRING
5080129 SPRING
5080130 SPRING
5080135 SPRING
5081012 SPRING
5081016 SPRING
5081017 MOTOR BRAKE SPRING
5100146 NUT
5100147 NUT
5112015 MOTOR FAN
5120646 SPACER
5120655 SPACER
5121551 SPACER
5121552 SPACER
5124051 RING
5130417 SQUARE
5130418 BRACKET
5130419 GUIDE
5130420 UPPER WORKING TABLE
5130421 SQUARE
5130766 UPPER TABLE FRONT GUIDE
5130767 UPPER TABLE REAR GUIDE
5133003 SLIDING BRACKET
5133008 RIVING KNIFE PLATE
5137791 SWIVEL SUPPORT
5137793 REST FOOT
5137843 JOINT
5141009 ADJUSTING HANDWHEEL
5142028 LEVER
5142052 LEVER
5143004 RELEASE BUTTON
5152068 BRAKE RING
5154103 CABLE LOCKING DEVICE
5155151 BRAKE BUSHING - DISCONTINUED
5155152 BRAKE DEVICE - BUY 7075075 MODIFICATION KIT
5159506 JOINT INDEX
5170001 PROTECTION LOCKING PIN
5170002 RELEASE PIN
5170530 JOINT PIN
5171023 SWIVEL SUPPORT PIN
5181665 UPPER PROTECTION
5181666 LOWER PROTECTION
5181668 LEFT PROTECTION
5181669 RIGHT PROTECTION
5181670 MOBILE PROTECTION
5181673 PROTECTION
5182508 SUPPORT COVER
5182826 MOTOR COVER
5182827 CONDENSATOR COVER
5183067 RIVING KNIFE
5190295 WHEEL FLANGE
5401349 GRADUATE PLATE
5401404 GRADUATE PLATE
5401416 GRADUATE PLATE
5401417 GRADUATE PLATE
5871040 CABLE
7013135 ARMATURE
7801062 MOTOR BODY
5181667 CARTER ASSEMBLY = 7130585
7075075 BRAKE SYSTEM MODIFICATION KIT
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Femi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.< We strongly recommend using the published information as a basic information subject to Femi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Femi 745 - 8400722
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM CODE OR S/N FEMI:
FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS

Specific References

New

Download

Diagram Femi 745-8400722

Diagram Femi 745-8400722

Download (665.3KB)

You might also like

Femi SKU: 5080129
Lifting Spring for Miter Saws FEMI XXX-XXX2 Original part FEMI, Cover Lifting Spring for Miter Saws XXX-XXX2 - TR 305 - Gold3 - TR 250 - TR 300 - 742 - 745 - 911. Parts for the following products: - Miter Saw Femi XXX-XXX Alu...
AVAILABLE €2.81
Femi SKU: 5181670
Galvanized Extra Carter for Mitre Saws FEMI XXX-XXX2 Genuine part FEMI, Galvanized Extra Carter for Mitre Saws XXX - XXX2 - XXX2 Alu - 846-742 -745 - 999 EVO - 300 Special - TR250. Parts for the following products: - Wood Mitre Saw...
AVAILABLE €10.88
Femi SKU: 5080135
Joint Spring for Wood Mitre Saws FEMI TR 300-305 PRO-745-846 Original spare part FEMI, Joint Spring for Wood Mitre Saws TR 300-8436124 - 305 PRO-8436044 - 745-8400722 - 846-8436027 Part for the following products: - Wood Mitre Saw...
on 7/10 Business Days Approx €27.78
Femi SKU: 5080122
Front Guide Spring for Wood Mitre Saws FEMI 742-745 Original parts FEMI, Front Guide Spring for Wood Mitre Saws 742 - 745 - TR 305 - 300 Special - XXX-8430021 - XXX Alu-8432021 Parts for the following products: - Wood Mitre Saw Femi...
AVAILABLE €9.19
Femi SKU: 5181666
Upper Bench Lower Protection for Mitre Saws Femi XXX-XXX2 Original spare part FEMI, Upper Bench Lower Protection for Mitre Saws Femi 305 PRO - 911 EVO - XXX - XXX2-XXX2 ALU - GOLD - TR 305 - 999 Parts for the following products: -...
AVAILABLE €6.61
Femi SKU: 0140070
Knob D25 M8X30 Conical Tip for Mitre Saw FEMI TR 300 Genuine part FEMI, Knob D25 M8X30 Conical Tip 171-SPEC 60° for Wood Mitre Saws TR 300 - 300 Special - 305 PRO - 742 - 745 - 846 - 911 EVO - 999 Part for the following products: -...
AVAILABLE €5.71
Femi SKU: 5401404
Upper Table Graduate Plate for Mitre Saws FEMI XXX-XXX Alu Genuine spare part FEMI, Upper Table Graduate Plate for Mitre Saws FEMI XXX-XXX Alu - FEMI XXX2-XXX2 ALU - GOLD - TR 305 - 742 - 745 - 842 - 846. Part for the following...
AVAILABLE €6.87
Femi SKU: 5044026
Right Side Cap for Mitre Saws FEMI XXX - XXX Alu Original replacement part FEMI, Right Side Cap for Mitre Saws XXX - XXX Alu. - XXX2 - XXX2 Alu. - TR305 - 846 - 842 - 742 - 745. Part for the following products: - Mitre Saws Femi...
AVAILABLE €1.78
Femi SKU: 5044027
Left Side Cap for Mitre Saws FEMI XXX - XXX Alu. Original replacement part FEMI, Left Side Cap for Mitre Saws XXX - XXX Alu. - XXX2 - XXX2 Alu. - TR305 - 846 - 842 - 742 - 745. Part for the following products: - Mitre Saws Femi...
AVAILABLE €1.78
Femi SKU: 0152319
Roll Pin mm 3x20 for Wood Mitre Saw Femi 742 Original replacement part FEMI, Roll Pin mm 3x20 for Wood Mitre Saws 742 - 911 - 846 - 300 Special - 842 - TR 300 - TR 250 - 305 PRO. Parts for the following products: - Wood Mitre Saw...
AVAILABLE €0.48
Femi SKU: 5152068
Brake Lining Ring for Wood Mitre Saw Femi 745 Original spare part FEMI, Brake Lining Ring for Wood Mitre Saw Femi 745-8400722. Part for the following products: -  Wood Mitre Saw Femi 745-8400722 - Code: 5152068
AVAILABLE €4.45
Femi SKU: 5130420
Upper Work Table for Mitre Saws Femi XXX-XXX Alu Genuine parts FEMI, Upper Work Table for Wood Mitre Saws  XXX-XXX Alu. - 745. Parts for the following products: -  Mitre Saw XXX - 8430021 - XXX...
Usually Ships in: 7/10 Business Days Approx. €133.80
Femi SKU: 5124051
Swivel Ring for Mitre Saw FEMI 911 Original Spare Part FEMI, Swivel Ring for Miter Saws 911 - 999 - 999 EVO - 300 Special - TR300 - 305 PRO - 745. Part for the following products: -  Mitre Saw 911 - 8436028 -  Mitre Saw 999 - 8436025...
AVAILABLE €3.81
Femi SKU: 5001560
Joint Shaft for Mitre Saw FEMI 911 Original Spare Part FEMI, Joint Shaft for Miter Saws 911 - 999 - 999 EVO - 300 Special - TR300 - 305 PRO - 745. Part for the following products: -  Mitre Saw 911 - 8436028 -  Mitre Saw 999 - 8436025...
on 7/10 Business Days Approx €16.31
Femi SKU: 5133003
Sliding Bracket for Mitre Saw FEMI 911 Original Spare Part FEMI, Sliding Bracket for Miter Saws 911 - 999 - 999 EVO - 300 Special - TR300 - 305 PRO - 745. Part for the following products: -  Mitre Saw 911 - 8436028 -  Mitre Saw 999 -...
on 7/10 Business Days Approx €7.53
Femi SKU: 5141009
Adjust Handweel for Mitre Saws Femi XXX Genuine part FEMI, Adjust Handwheel (HD Socket Hex Bolt 0320625 - Hex Nut 0100106)  for Wood Mitre Saws  XXX-XXX Alu. Parts for the following products: -  Mitre...
AVAILABLE €4.50
Femi SKU: 5080130
Compression Spring for Miter Saws FEMI XXX-XXX2 Genuine spare part FEMI, Compression Spring for Miter Saws FEMI, XXX - XXX2 - XXX EVO - TR 305. Part for the following products: -  Mitre Saw XXX-8430021 - XXX Alu-8432021 -  Mitre Saw...
on 7/10 Business Days Approx €2.81
Femi SKU: 7075075
Brake System Modification Kit for Mitre Saw Femi 745 Original spare part FEMI, Brake System Modification Kit (Conteins Assembly Instruction)  for Wood Mitre Saw Femi 745-8400722. Part for the following products: -  Wood Mitre Saw Femi...
AVAILABLE €30.00
Femi SKU: 5081017
Motor Brake Spring for Mitre Saw Femi 745 Original spare part FEMI, Motor Brake Spring for Wood Mitre Saw Femi 745-8400722. Part for the following products: -  Wood Mitre Saw Femi 745-8400722 - Code: 5081017
AVAILABLE €8.31
Femi SKU: 0840028
Femi XXX - XXX2 Capacitor μF20 Original parts FEMI, Capacitor μF20 V450 S/COD. DOUBLE FASTON 6,35X0,8 for Mitre Saws XXX - XXX2. Parts for the following models: - FEMI XXX 8430021 - 8432021 - FEMI XXX2-XXX2 ALU 8430029 -...
AVAILABLE €19.03
Comments (0)
