Femi Spare Parts for Mitre Saw for Wood TR 245-8426126

SKU: Femi TR245 - 8426126
€22.87
VAT included

Femi Spare Parts for Mitre Saw for Wood TR 245-8426126

Femi genuine spare parts or replacement parts for to fix Mitre Saw for Wood TR 245-8426126.

Made for the wide market of craftsmen and lovers of do it yourself, the TR 245 is light, handy, stable, this miter saw is ideal for cutting various types of wood with precision.
Femi Spare Parts for Mitre Saw for Wood TR 245-8426126
  • Femi Spare Parts for Mitre Saw for Wood TR 245-8426126
  • Femi Spare Parts for Mitre Saw for Wood TR 245-8426126
  • Femi Spare Parts for Mitre Saw for Wood TR 245-8426126

Femi Spare Parts for Mitre Saw for Wood TR 245-8426126

SKU: Femi TR245 - 8426126 Condition: New
€22.87
VAT included

Femi Spare Parts for Mitre Saw for Wood TR 245-8426126

Femi genuine spare parts or replacement parts for to fix Mitre Saw for Wood TR 245-8426126.

Made for the wide market of craftsmen and lovers of do it yourself, the TR 245 is light, handy, stable, this miter saw is ideal for cutting various types of wood with precision.
settings 78 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM CODE OR S/N FEMI:: FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

69 spare parts

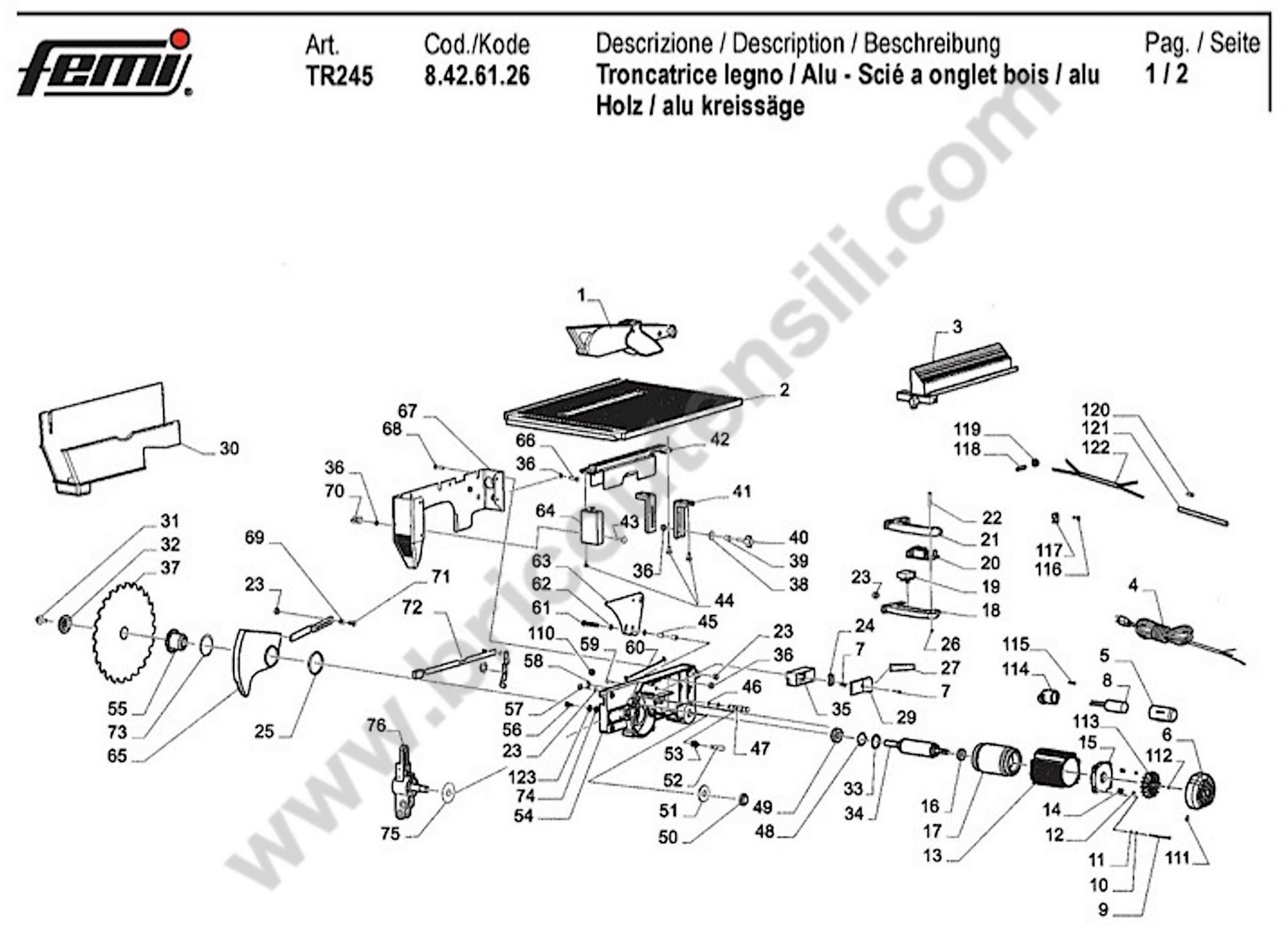

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 5181782 UPPER PROTECTION GROUP €22.87
2
Upper Bench Rectified for Miter Saws FEMI 732-733 5130462 Upper Bench Rectified for Miter Saws FEMI 732-733 €105.66
3
Upper Straight Edge Rule for Miter Saw FEMI 732-733-TR240-245 7130629 Upper Straight Edge Rule for Miter Saw FEMI 732-733-TR240-245 €44.90
4
photo_cameraImage coming soon 5871084 CABLE €22.95
5
photo_cameraImage coming soon 5182912 CONSENSATOR SUPPORT €4.79
6
photo_cameraImage coming soon 5182911 FAN COVER €9.47
8
photo_cameraImage coming soon 0840035 CONDENSATOR €19.00
12
Brake Spring for Miter Saws FEMI 733-TR245 5081000 Brake Spring for Miter Saws FEMI 733-TR245 €0.54
13
photo_cameraImage coming soon 5042824 MOTOR BODY €186.00
14
Brake Pin for Miter Saws FEMI 733-TR245 5152075 Brake Pin for Miter Saws FEMI 733-TR245 €8.23
15
photo_cameraImage coming soon 5182914 MOTOR BODY COVER €20.61
16
photo_cameraImage coming soon 0536201 Ball Bearing €7.07
17
photo_cameraImage coming soon 5024303 STATOR €60.70
18
Half Lower Handle for Wodd Mitre Saws TR 245 - 732 - 733 5050140 Half Lower Handle for Wodd Mitre Saws TR 245 - 732 - 733 €6.83
19
Switch for Miter Saws FEMI 732-733-TR240-245 0802622 Switch for Miter Saws FEMI 732-733-TR240-245 €10.38
20
Elettronic Board for Mitre Saws FEMI 733-TR245 7820126 Elettronic Board for Mitre Saws FEMI 733-TR245 €50.12
21
photo_cameraImage coming soon 5050139 HANDLE €6.82
27
photo_cameraImage coming soon 5181003 RUBBER PROTECTION €1.74
29
photo_cameraImage coming soon 5182562 BOX COVER €2.82
30
Lower Protection Group for Wood Mitre Saw Femi 732 5181784 Lower Protection Group for Wood Mitre Saw Femi 732 €15.21
31
M8 Left Flanged Bolt for Wood Miter Saws FEMI 732 TR-240-245 5100336 M8 Left Flanged Bolt for Wood Miter Saws FEMI 732 TR-240-245 €2.64
32
External Flange Disc Lock for Mitre Saws FEMI 733 TR-245 5190310 External Flange Disc Lock for Mitre Saws FEMI 733 TR-245 €11.02
33
photo_cameraImage coming soon 0151040 SNAP RING €1.77
34
photo_cameraImage coming soon 7013636 ROTOR €99.35
35
photo_cameraImage coming soon 5182883 ELECTRIC BOX €1.74
40
Wing Bolt Male M6X25  for Wood Mitre Saw FEMI 732 0107012 Wing Bolt Male M6X25 for Wood Mitre Saw FEMI 732 €3.06
41
photo_cameraImage coming soon 5130883 TABLE GUIDE €12.35
42
Upper Bench Lower Protection for Mitre Saws Femi 732-733 5181781 Upper Bench Lower Protection for Mitre Saws Femi 732-733 €9.63
45
Femi TR245 Spacer 5120673 Femi TR245 Spacer €2.01
46
O-Ring 106 for Mitre Saw Femi XXX - XXX Alu 0221106 O-Ring 106 for Mitre Saw Femi XXX - XXX Alu €0.68
47
Pin Lock Arm for Miter Saws FEMI 732-733-TR 240-245 5171072 Pin Lock Arm for Miter Saws FEMI 732-733-TR 240-245 €4.45
49
photo_cameraImage coming soon 0536203 Ball Bearing €10.26
50
photo_cameraImage coming soon 0106116 RING NUT €12.89
51
photo_cameraImage coming soon 5124085 WASHER €3.18
54
photo_cameraImage coming soon 5042823 MITRE SAW ARM €88.75
55
photo_cameraImage coming soon 5190311 BLADE FLANGE €19.90
63
photo_cameraImage coming soon 5183084 RIVING KNIFE €27.81
64
photo_cameraImage coming soon 5130882 TABLE GUIDE €6.41
65
photo_cameraImage coming soon 7130621 LEVER AND PROTECTION GROUP €16.60
67
photo_cameraImage coming soon 5182882 ARM COVER €26.91
70
Wing Nut Female M6 for Mitre Saw FEMI 732-733 0107013 Wing Nut Female M6 for Mitre Saw FEMI 732-733 €2.76
71
photo_cameraImage coming soon 5100337 SCREW €2.82
72
photo_cameraImage coming soon 7130648 LEVER GROUP  - NEW 7130625 €30.50
75
photo_cameraImage coming soon 5124084 WASHER €3.18
76
photo_cameraImage coming soon 7130630 JOINT-SHAFT GROUP €29.60
112
photo_cameraImage coming soon 0151512 ELASTIC RING €1.43
113
Motor Fan for Miter Saws FEMI 733-TR245 5112031 Motor Fan for Miter Saws FEMI 733-TR245 €6.83
114
photo_cameraImage coming soon 5182913 CONDENSATOR COVER €3.54
122
photo_cameraImage coming soon 5871083 CABLE €3.72

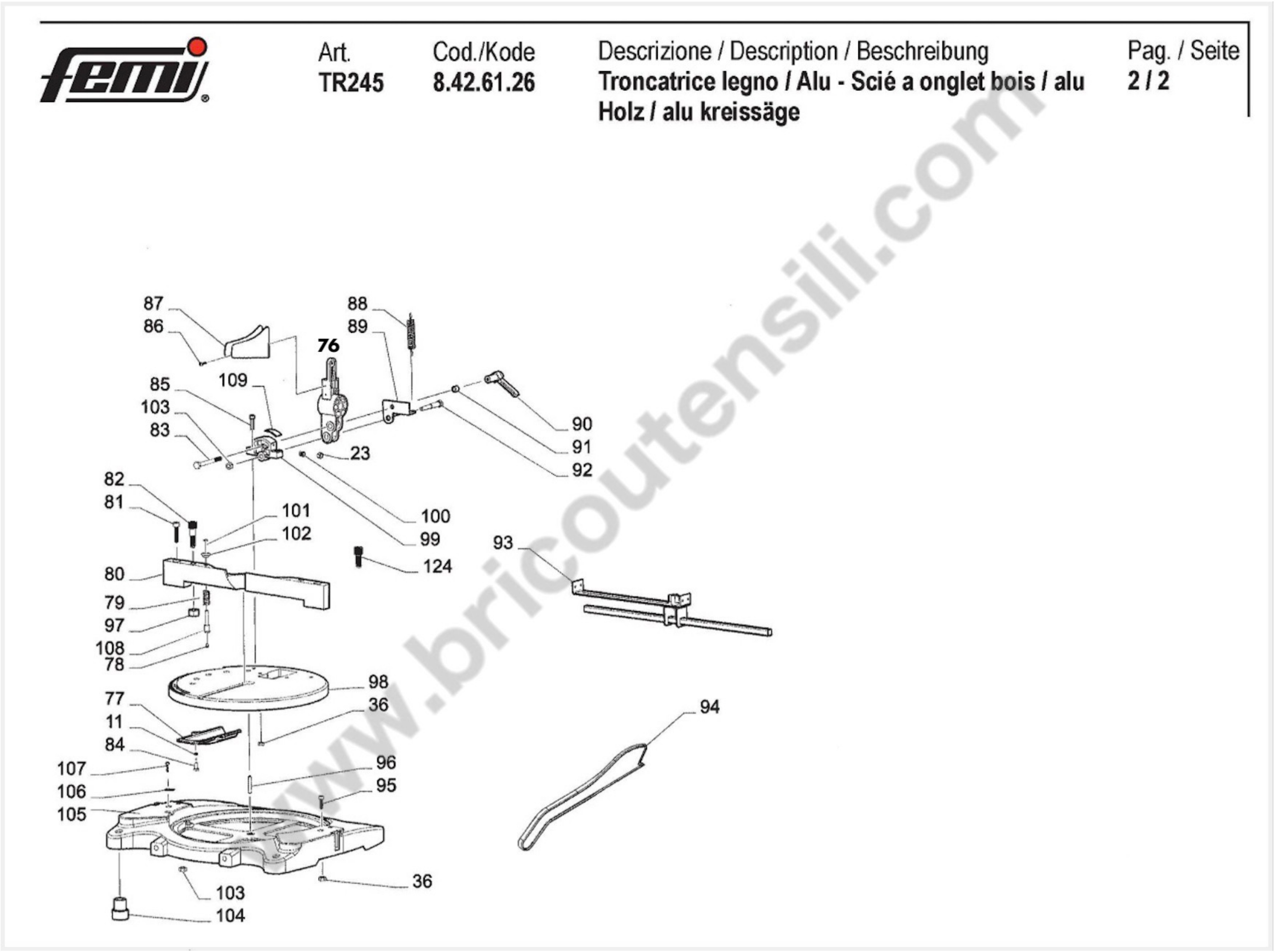

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
78
photo_cameraImage coming soon 5159013 SCREW CAP €7.49
79
Locking Pin Spring for Mitre Saws Femi 732 5080161 Locking Pin Spring for Mitre Saws Femi 732 €3.20
80
photo_cameraImage coming soon 5130918 SUPPORT BASE €38.10
82
Lock Block Swivel Base for Mitre Saw Femi 732 5100339 Lock Block Swivel Base for Mitre Saw Femi 732 €9.63
87
photo_cameraImage coming soon 5181783 BLADE PROTECTION €11.27
88
Arm Spring for Miter Saws FEMI 733-TR245 5081033 Arm Spring for Miter Saws FEMI 733-TR245 €3.37
89
photo_cameraImage coming soon 5138011 SPRING SUPPORT €12.17
90
Knob Lever for Wood Mitre Saws Femi 732-733 0147019 Knob Lever for Wood Mitre Saws Femi 732-733 €9.07
91
Knob Lever Spacer for Wood Mitre Saws Femi 732-733 5120674 Knob Lever Spacer for Wood Mitre Saws Femi 732-733 €1.57
92
photo_cameraImage coming soon 5100338 SCREW €6.05
93
photo_cameraImage coming soon 7130626 ROD STOP GROUP €19.18
94
photo_cameraImage coming soon 0142002 WOOD PUSHING DEVICE €9.11
98
photo_cameraImage coming soon 5137979 SWIVEL SUPPORT €80.30
99
Joint Support for Miter Saws FEMI 732-733-TR240-245 5130881 Joint Support for Miter Saws FEMI 732-733-TR240-245 €37.90
102
Locking Knob for Mitre Saws Femi 732 5140056 Locking Knob for Mitre Saws Femi 732 €6.13
104
Red Foot Base for Wood Mitre Saw FEMI 732 5137980 Red Foot Base for Wood Mitre Saw FEMI 732 €6.34
105
photo_cameraImage coming soon 5133720 BASE €126.68
106
Reference Base Index for Mitre Saw Femi 732 5159519 Reference Base Index for Mitre Saw Femi 732 €1.93
108
Locking Pin for Mitre Saws Femi 732 5170537 Locking Pin for Mitre Saws Femi 732 €9.76
109
Graduate Plate for Mitre Saw Femi 732 - 733 - TR240 - TR245 5402228 Graduate Plate for Mitre Saw Femi 732 - 733 - TR240 - TR245 €1.25

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Femi Spare Parts for Mitre Saw for Wood TR 245-8426126

Femi genuine spare parts or replacement parts for to fix Mitre Saw for Wood TR 245-8426126.

Made for the wide market of craftsmen and lovers of do it yourself, the TR 245 is light, handy, stable, this miter saw is ideal for cutting various types of wood with precision.

In the following table, look for the model of the Wood Mitre Saw and the respective parts of the code.
Femi TR 245 - 8426126

Wood Mitre Saw TR 245-8426126
# Part Num. Description
1 5181782 UPPER BLADE GUARD ASS'Y
2 5130462 UPPER WORKING TABLE
3 7130629 UPPER FENCE GROUP
4 5871084 CABLE
5 5182912 CONSENSATOR SUPPORT
6 5182911 FAN COVER
8 0840035 CAPACITOR
12 5081000 BRAKE SPRING
13 5042824 MOTOR BODY
14 5152075 BRAKE PIN
15 5182914 MOTOR BODY COVER
16 0536201 BALL BEARING
17 5024303 STATOR
18 5050140 HANDLE
19 0802622 SWITCH
20 7820126 ELECTRONIC CARD = 7075046 - 7820124
21 5050139 HANDLE
24 5153504 CABLE LOCKING DEVICE
25 5221021 RUBBER GASKET
27 5181003 RUBBER PROTECTION
29 5182562 BOX COVER
30 5181784 PROTECTION GROUP
31 5100336 BOLT M8 L.
32 5190310 BLADE FLANGE
33 0151040 SNAP RING
34 7013636 ROTOR
35 5182883 ELECTRIC BOX
39 5120672 SPACER
40 0107012 WING NUT
41 5130883 TABLE GUIDE
42 5181781 LOWER PROTECTION
45 5120673 SPACER
46 0221106 O-RING SEAL
47 5171072 LOCKING PIN
49 0536203 BALL BEARING
50 0106116 RING NUT
51 5124085 WASHER
52 5170003 LOCKING PIN
53 5080163 SPRING
54 5042823 MITRE SAW ARM
55 5190311 BLADE FLANGE
60 5080160 SPRING
63 5183084 RIVING KNIFE
64 5130882 TABLE GUIDE
65 7130621 LEVER AND PROTECTION GROUP
67 5182882 ARM COVER
69 5080162 SPRING
70 0107013 WING NUT
71 5100337 SCREW
72 7130648 LEVER GROUP
75 5124084 WASHER
76 7130630 JOINT-SHAFT GROUP
77 5181780 LOWER PROTECTION
78 5159013 SCREW CAP
79 5080161 SPRING
80 5130918 SUPPORT BASE
82 5100339 SCREW
87 5181783 BLADE PROTECTION
88 5081033 SPRING
89 5138011 SPRING SUPPORT
90 0147019 HAND LEVER
91 5120674 SPACER
92 5100338 SCREW
93 7130626 ROD STOP GROUP
94 0142002 WOOD PUSHING DEVICE
96 5171074 SUPPORT PIN
98 5137979 SWIVEL SUPPORT
99 5130881 JOINT SUPPORT
102 5140056 KNOB
104 5137980 RUBBER FOOT
105 5133720 BASE
106 5159519 INDEX
108 5170537 LOCKING PIN
109 5402228 GRADUATE PLATE
112 0151512 ELASTIC RING
113 5112031 MOTOR FAN
114 5182913 CAPACITOR COVER
122 5871083 CABLE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Femi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Femi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Femi TR245 - 8426126
10 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM CODE OR S/N FEMI:
FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS

Specific References

New

Download

Diagram Femi TR 245

Diagram Femi TR 245

Download (443.15KB)

You might also like

Femi SKU: 0802317
Switch for Band Saws FEMI 780-781-783-784-785 Genuine part FEMI, 8A Bipolar Switch with Button for Band Saws 780P - 781 - 785P - 783XL - ABS 105 - 780XL - 784XL - 785XL. Part for...
Usually Ships in: 7/10 Business Days Approx. €12.00
Femi SKU: 0802622
Switch for Miter Saws FEMI 732-733-TR240-245 Genuine part FEMI, Bipolar switch with stop button for miter saws FEMI 732-733-TR240-TR245. Part for the following products: -  Wood Mitre Saw FEMI 732-8420023 -  Wood Mitre Saw...
Usually Ships in: 7/10 Business Days Approx. €10.38
Femi SKU: 5130881
Joint Support for Miter Saws FEMI 732-733-TR240-245 Original spare part FEMI, Joint Support for Wood Miter Saws FEMI 732 - FEMI 733 - FEMI TR 240 - FEMI TR 245. Parts for the following products:...
Last items in stock €37.90
Femi SKU: 5171072
Pin Lock Arm for Miter Saws FEMI 732-733-TR 240-245 Original spare FEMI, Steel pin for lock arm, for FEMI Miter Saws 732-733-TR240-TR245. Parts for the following products: - Miter Saw 732-8420023 - Miter Saw 733-8420026 - Miter Saw...
AVAILABLE €4.45
Femi SKU: FEMI 5181782
Upper Protection Blade for Mitre Saws Femi TR 245-732-733 Original spare FEMI, Upper Protection Blade for Mitre Saws Femi TR 245 - 732 - 733 Parts for the following products: - Wood Mitre Saw Femi 732-8420023 - Wood Mitre Saw Femi...
Last items in stock €22.88
Femi SKU: 5081033
Arm Spring for Miter Saws FEMI 733-TR245 Genuine parts FEMI, Spring In Robust Steel, to Support Arm for Miter Saw Femi 733 - TR 245. Parts for the following products: -  Wood Miter Saw FEMI 733-8420026 -  Wood Miter Saw...
Usually Ships in: 7/10 Business Days Approx. €3.37
Femi SKU: Femi 7130621
Blade Carter with Lever for Mitre Saw Femi 732 Genuine spare part FEMI, Blade Carter with Lever for Mitre Saw Femi 732 - 733 - TR 245. Part for the following products: -  8420023 - Mitre Saw Femi 732 -  8420026 - Mitre Saw Femi 733...
AVAILABLE €16.61
Stayer SKU: 5170537
Locking Pin for Mitre Saws Femi 732 Genuine Spare Parts Femi, Locking Pin of the Swivel Base for Mitre Saws 732 - 733 - TR240 - TR245. Part for the following article : - Mitre Saws Femi 732 - 8420023 - Mitre Saws Femi 732 - 8420028 -...
Last items in stock €9.76
Stayer SKU: 5080161
Locking Pin Spring for Mitre Saws Femi 732 Genuine Spare Parts Femi, Locking Pin Spring of the Swivel Base for Mitre Saws 732 - 733 - TR240 - TR245. Part for the following article : - Mitre Saws Femi 732 - 8420023 - Mitre Saws Femi...
AVAILABLE €3.20
Femi SKU: 5140056
Locking Knob for Mitre Saws Femi 732 Genuine Spare Parts Femi, Locking Knob of the Swivel Base for Mitre Saws 732 - 733 - TR240 - TR245. Part for the following article : - Mitre Saws Femi 732 - 8420023 - Mitre Saws Femi 732 - 8420028...
AVAILABLE €6.13
Femi SKU: 5080161+5140056+5170537
Complete Locking Pin for Mitre Saws Femi 732 Genuine Spare Parts Femi, Locking Pin (Spring, Knob, Pin) of the Swivel Base for Mitre Saws 732 - 733 - TR240 - TR245. Part for the following article : - Mitre Saw Femi 732 - 8420023 -...
AVAILABLE €19.12
Femi SKU: 0107013
Wing Nut Female M6 for Mitre Saw FEMI 732-733 Genuine part FEMI, Wing Nut Female M6 Threaded, for Mitre Saws 732 - 733 - TR240 - TR245. Part for the following products : - Wood Mitre saw Femi 732-8420028 - Wood Mitre saw Femi...
AVAILABLE €2.76
Femi SKU: 7820126
Elettronic Board for Mitre Saws FEMI 733-TR245 Genuine part FEMI, Elettronic Board Assembly for Wood Mitre Saws FEMI 733 - 8420026 - TR 245-8426126 Part for the following items: - Wood Mitre Saw Femi 733 - 8420026 - Wood...
on 7/10 Business Days Approx €50.12
Femi SKU: 5130462
Upper Bench Rectified for Miter Saws FEMI 732-733 Genuine spare FEMI, upper bench entirely aluminum for Miter Saws FEMI FEMI 732-8420023 - 732-8420028 - 733-8420026 - TR240-8426123 - TR 245-8426126 Parts for the following products: -...
AVAILABLE €105.66
Femi SKU: 0147019
Knob Lever for Wood Mitre Saws Femi 732-733 Genuine spare part FEMI, Knob Lever Black for Wood Mitre Saws 254 mm 732-8420023 - 8420028 - 733-8420026 - TR240-8426123 - TR 245-8426126 Parts for...
AVAILABLE €9.07
Femi SKU: 5120674
Knob Lever Spacer for Wood Mitre Saws Femi 732-733 Genuine spare part FEMI, Knob Lever Spacer Black for Wood Mitre Saws 254 mm 732-8420023 - 8420028 - 733-8420026 - TR240-8426123 - TR 245-8426126 Parts for the following models: - Wood...
Last items in stock €1.57
Femi SKU: 5100339
Lock Block Swivel Base for Mitre Saw Femi 732 Original parts Femi, Lock Block Swivel Base for Mitre Saws 732-8420023 - 732-8420028 - 733-8420026 - TR240-8426123 - TR 245-8426126 Parts for the following models: - Wood Mitre Saw Femi...
AVAILABLE €9.63
Femi SKU: 5137980
Red Foot Base for Wood Mitre Saw FEMI 732 Genuine part FEMI, Sturdy Red Rubber Foot, for Wood Mitre Saws 732-8420023 - 733-8420026 - TR 245-8426126 Part for the following items: - Wood Mitre Saw 732-8420023 - Wood Mitre Saw...
Last items in stock €6.34
Femi SKU: 0107012
Wing Bolt Male M6X25  for Wood Mitre Saw FEMI 732 Genuine part Femi, Wing Head Bolt M6X25 for Wood Mitre Saw 732 - 733 - TR240 - TR245 Part for the following products: - Wood Mitre Saw 732-8420023 - Wood Mitre Saw 732-8420028 - Wood...
AVAILABLE €3.06
Femi SKU: 5181781
Upper Bench Lower Protection for Mitre Saws Femi 732-733 Original spare FEMI, Upper Bench Lower Protection for Mitre Saws Femi TR 245 - 732 - 733 Parts for the following products: - Wood Mitre Saw Femi 732-8420023 - Wood Mitre Saw...
AVAILABLE €9.63
Femi SKU: 5181784
Lower Protection Group for Wood Mitre Saw Femi 732 Genuine spare part FEMI, Lower Protection Group for Wood Mitre Saw Femi 732 - 733 - TR240 - TR245 Part for the following products: - Wood Mitre Saw Femi 732-8420023 - Wood Mitre Saw...
AVAILABLE €15.21
Femi SKU: 5081000
Brake Spring for Miter Saws FEMI 733-TR245 Genuine parts FEMI, Brake Spring for Miter Saws Femi 733-8420026 - TR 245-8426126 Parts for the following products: - Wood Miter Saw FEMI 733-8420026 - Wood Miter Saw FEMI TR 245-8426126 -...
AVAILABLE €0.54
Femi SKU: 5152075
Brake Pin for Miter Saws FEMI 733-TR245 Genuine parts FEMI, Brake Pin for Miter Saws Femi 733-8420026 - TR 245-8426126 Parts for the following products: - Wood Miter Saw FEMI 733-8420026 - Wood Miter Saw FEMI TR 245-8426126 - Code:...
AVAILABLE €8.23
Femi SKU: 5112031
Motor Fan for Miter Saws FEMI 733-TR245 Genuine replacement part FEMI, Motor Fan for Miter Saws Femi 733-8420026 - TR 245-8426126. Parts for the following products: - Wood Miter Saw FEMI 733-8420026 - Wood Miter Saw FEMI TR...
AVAILABLE €6.83
Femi SKU: 0221106
O-Ring 106 for Mitre Saw Femi XXX - XXX Alu Genuine part FEMI, O-Ring 106 for Mitre Saws TR305 - 305S - XXX - XXX Alu - XXX2 - XXX2 ALU - XXX EVO - GOLD - GOLD3 TR305 - 732. Part for the following products: - Mitre Saw Femi 305S -...
AVAILABLE €0.68
Femi SKU: 5120673
Femi TR245 Spacer Genuine spare part FEMI, Spacer for Mitre Saws FEMI. Part for the following products: - Femi TR245 - 8426126 - Femi 732 - 8420028 - Femi 732 - 8420023 - Femi 733 - 8420026 - Femi TR240 - 8426123 - Code :...
Last items in stock €2.01
Comments (0)
