Femi

Femi Spare Parts for Mitre Saws 305S - 8438022

SKU: Femi 305S - 8438022
€0.62
VAT included

Femi Spare Parts for Mitre Saw 305S - 8438022

Femi original spare parts for to replace broken parts for to fix Mitre Saw FEMI 305S - 8438022.

Fix Your Mitre Saw FEMI 305S. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

- ATTENTION!!!!
THIS SPARES ARE NOT PARTS FOR FELISATTI MITER SAWS
Femi Spare Parts for Mitre Saw 305S-8438022
  • Femi Spare Parts for Mitre Saw 305S-8438022
  • Femi Spare Parts for Mitre Saws 305S - 8438022
  • Femi Spare Parts for Mitre Saws 305S - 8438022
Femi

Femi Spare Parts for Mitre Saws 305S - 8438022

SKU: Femi 305S - 8438022 Condition: New
€0.62
VAT included

Femi Spare Parts for Mitre Saw 305S - 8438022

Femi original spare parts for to replace broken parts for to fix Mitre Saw FEMI 305S - 8438022.

Fix Your Mitre Saw FEMI 305S. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

- ATTENTION!!!!
THIS SPARES ARE NOT PARTS FOR FELISATTI MITER SAWS
settings 107 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: PLEASE PAY ATTENTION! FOR MACHINES FEMI SPA DISTRIBUTION ONLY
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM CODE OR S/N FEMI:: FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
96 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

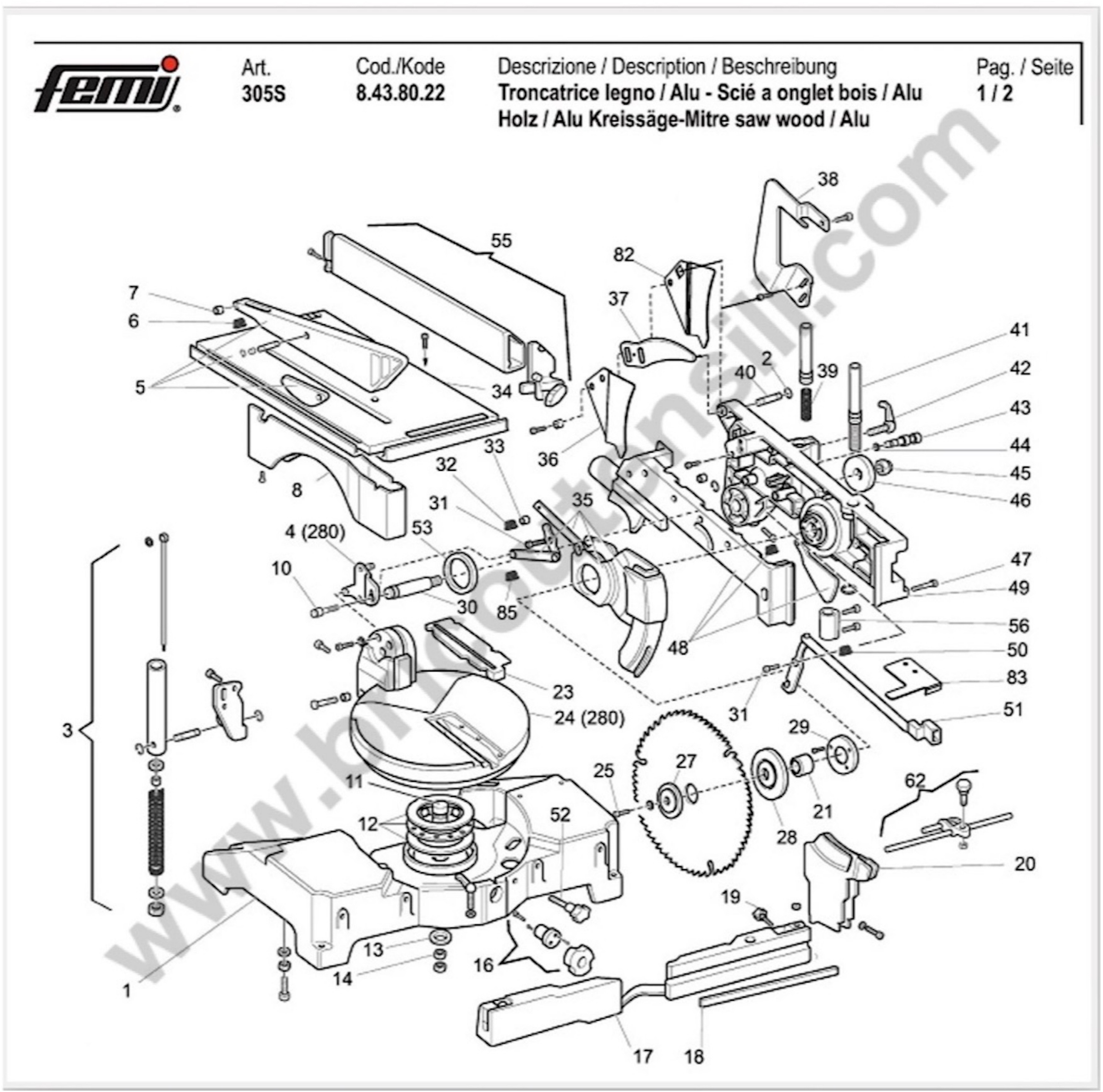

Esploso pagina 1
Pos. Item Price Buy
3
 photo_cameraImage coming soon 7130664 COMPLETE DAMPER GROUP €42.57
4
 photo_cameraImage coming soon 5130936 BRACKET €17.51
5
 Upper Blade Guard for Mitre Saws FEMI 280S-305S 7181523 Upper Blade Guard for Mitre Saws FEMI 280S-305S €25.12
6
 Upper Blade Guard Spring for Mitre Saws FEMI 280S-305S 5081036 Upper Blade Guard Spring for Mitre Saws FEMI 280S-305S €4.26
7
 Self-Locking Special Nut M 6 Low for Miter Saws Femi 280S - 305S 0101406 Self-Locking Special Nut M 6 Low for Miter Saws Femi 280S - 305S €0.31
8
 photo_cameraImage coming soon 5181849 LOWER PROTECTION €21.71
10
 photo_cameraImage coming soon 5171082 PROTECTION PIN €3.17
11
 photo_cameraImage coming soon 5171081 SWIVEL SUPPORT PIN €6.64
12
 photo_cameraImage coming soon 7130677 ROLLER BEARING GROUP €40.40
14
 photo_cameraImage coming soon 0100409 NUT €3.17
15
 Knob Lever M8x30 for Wood Miter Saws Femi 280-305S 0147026 Knob Lever M8x30 for Wood Miter Saws Femi 280-305S €12.42
16
 Turn Base Release Knob for Mitre Saw Femi 305S 7130666 Turn Base Release Knob for Mitre Saw Femi 305S €30.90
17
 photo_cameraImage coming soon 5130931 REST BASE €71.54
18
 photo_cameraImage coming soon 5402427 PLATE €3.75
19
 photo_cameraImage coming soon 0140111 KNOB €3.31
20
 photo_cameraImage coming soon 5181842 LOWER PROTECTION €20.70
21
 photo_cameraImage coming soon 5063065 BUSHING €2.59
22
 photo_cameraImage coming soon 5138034 SWIVEL SUPPORT €137.46
23
 photo_cameraImage coming soon 5182581 SWIVEL SUPPORT COVER €1.28
24
 photo_cameraImage coming soon 5138036 SWIVEL SUPPORT €137.46
27
 photo_cameraImage coming soon 5190315 BLADE FLANGE €14.47
28
 photo_cameraImage coming soon 5190314 BLADE FLANGE €11.57
29
 Disc Guard Lock Washer for Miter Saws Femi 280S - 305S 5191024 Disc Guard Lock Washer for Miter Saws Femi 280S - 305S €2.28
30
 photo_cameraImage coming soon 5001578 JOINT SHAFT €34.37
31
 photo_cameraImage coming soon 5171083 PROTECTION PIN €3.17
32
 photo_cameraImage coming soon 5081038 SPRING €1.28
33
 Safety Button for Miter Saws Femi 280S - 305S 5143022 Safety Button for Miter Saws Femi 280S - 305S €2.99
34
 photo_cameraImage coming soon 5130484 UPPER TABLE €89.80
35
 Blade Guard Ass'y for Miter Saws Femi 280S - 305S 7130681 Blade Guard Ass'y for Miter Saws Femi 280S - 305S €49.71
37
 photo_cameraImage coming soon 5183092 RIVING KNIFE €15.91
38
 Upper Blade Guard Bracket for Mitre Saws FEMI 280S-305S 5138032 Upper Blade Guard Bracket for Mitre Saws FEMI 280S-305S €13.16
39
 photo_cameraImage coming soon 5081039 SPRING €1.28
41
 photo_cameraImage coming soon 5130930 UPPER TABLE GUIDE €17.51
42
 photo_cameraImage coming soon 0147025 HAND LEVER €5.63
43
 photo_cameraImage coming soon 5171085 ARM LOCKING PIN €5.34
44
 O-Ring 106 for Mitre Saw Femi XXX - XXX Alu 0221106 O-Ring 106 for Mitre Saw Femi XXX - XXX Alu €0.68
46
 photo_cameraImage coming soon 0124036 PLAIN WASHER €1.28
48
 photo_cameraImage coming soon 7180502 ARM COVER GROUP €23.16
49
 photo_cameraImage coming soon 5042864 MITRE SAW ARM €130.80
50
 photo_cameraImage coming soon 5081037 SPRING €3.17
51
 photo_cameraImage coming soon 7130668 LEVER GROUP €22.87
52
 photo_cameraImage coming soon 0140112 KNOB €3.60
53
 photo_cameraImage coming soon 0100409 NUT €3.17
54
 photo_cameraImage coming soon 5050150 RIGHT HANDLE €5.92
56
 photo_cameraImage coming soon 5130483 SPRING GUIDE €1.28
57
 photo_cameraImage coming soon 5171086 SAFETY PIN €4.90
58
 photo_cameraImage coming soon 5138037 JOINT €63.87
59
 photo_cameraImage coming soon 5181084 CABLE PROTECTION €4.76
61
 photo_cameraImage coming soon 5130933 JOINT SUPPORT €17.51
62
 photo_cameraImage coming soon 7130669 ROD STOP GROUP €24.75
63
 photo_cameraImage coming soon 5871088 CABLE €17.51
64
 Capacitor MF15 M8x30 for Wood Miter Saws Femi 280-305S 0840037 Capacitor MF15 M8x30 for Wood Miter Saws Femi 280-305S €12.42
65
 photo_cameraImage coming soon 5182925 ELECTRIC BOX €4.33
66
 Stator (FIELD) for Brushless Motor for Mitre Saws FEMI 280S-305S 7801099 Stator (FIELD) for Brushless Motor for Mitre Saws FEMI 280S-305S €167.40
67
 photo_cameraImage coming soon 0526201 BALL BEARING €11.14
68
 photo_cameraImage coming soon 5182582 BOX COVER €1.72
69
 photo_cameraImage coming soon 5152076 BRAKE RING €4.06
70
 photo_cameraImage coming soon 5112034 MOTOR FAN €7.22
71
 Motor Cover for Miter Saws Femi 280S - 305S 5182924 Motor Cover for Miter Saws Femi 280S - 305S €11.15
73
 photo_cameraImage coming soon 0526202 BALL BEARING €8.78
74
 Armature for Brushless Motor for Mitre Saws FEMI 280S-305S 7013639 Armature for Brushless Motor for Mitre Saws FEMI 280S-305S €97.59
75
 Switch for Mitre Saws FEMI 280S-305S 0802626 Switch for Mitre Saws FEMI 280S-305S €18.00
76
 photo_cameraImage coming soon 5873593 CABLE €4.33
77
 photo_cameraImage coming soon 5152077 BRAKE DEVICE €7.08
78
 Switch Spring for Miter Saws Femi 280S - 305S 5080177 Switch Spring for Miter Saws Femi 280S - 305S €1.13
79
 Switch Knob for Wood Mitre Saws FEMI 280S - 305S 5143023 Switch Knob for Wood Mitre Saws FEMI 280S - 305S €2.64
80
 Elettronic Board for Miter Saws FEMI 732-TR240 7820118 Elettronic Board for Miter Saws FEMI 732-TR240 €48.90
81
 photo_cameraImage coming soon 5050149 LEFT HANDLE €5.92
84
 photo_cameraImage coming soon 5181855 LOWER PROTECTION €5.48
85
 photo_cameraImage coming soon 5081040 SPRING €3.17
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

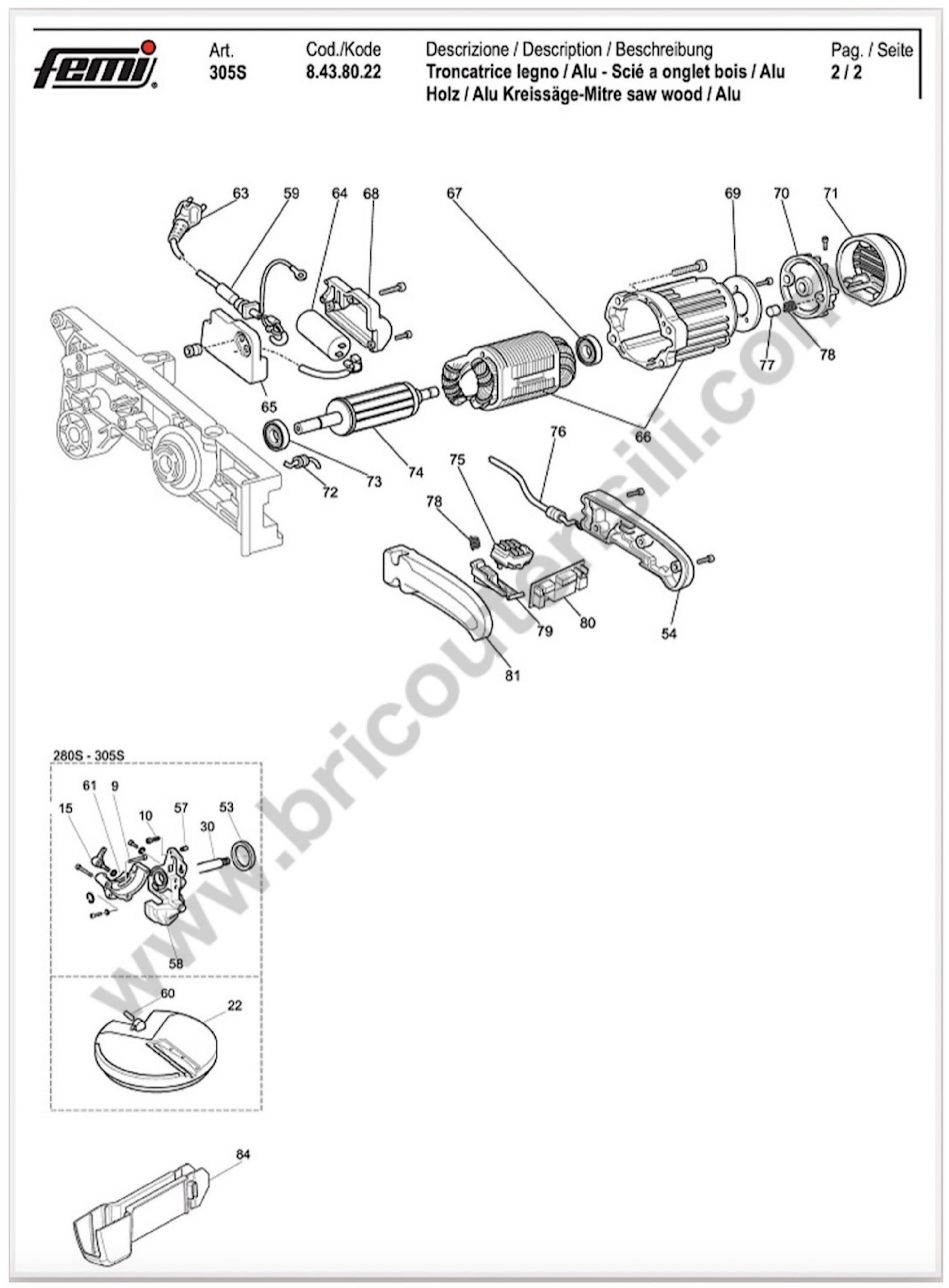

Esploso pagina 2
Pos. Item Price Buy
15
 Knob Lever M8x30 for Wood Miter Saws Femi 280-305S 0147026 Knob Lever M8x30 for Wood Miter Saws Femi 280-305S €12.42
22
 photo_cameraImage coming soon 5138034 SWIVEL SUPPORT €137.46
54
 photo_cameraImage coming soon 5050150 RIGHT HANDLE €5.92
57
 photo_cameraImage coming soon 5171086 SAFETY PIN €4.90
58
 photo_cameraImage coming soon 5138037 JOINT €63.87
59
 photo_cameraImage coming soon 5181084 CABLE PROTECTION €4.76
61
 photo_cameraImage coming soon 5130933 JOINT SUPPORT €17.51
63
 photo_cameraImage coming soon 5871088 CABLE €17.51
64
 Capacitor MF15 M8x30 for Wood Miter Saws Femi 280-305S 0840037 Capacitor MF15 M8x30 for Wood Miter Saws Femi 280-305S €12.42
65
 photo_cameraImage coming soon 5182925 ELECTRIC BOX €4.33
66
 Stator (FIELD) for Brushless Motor for Mitre Saws FEMI 280S-305S 7801099 Stator (FIELD) for Brushless Motor for Mitre Saws FEMI 280S-305S €167.40
67
 photo_cameraImage coming soon 0526201 BALL BEARING €11.14
68
 photo_cameraImage coming soon 5182582 BOX COVER €1.72
69
 photo_cameraImage coming soon 5152076 BRAKE RING €4.06
70
 photo_cameraImage coming soon 5112034 MOTOR FAN €7.22
71
 Motor Cover for Miter Saws Femi 280S - 305S 5182924 Motor Cover for Miter Saws Femi 280S - 305S €11.15
73
 photo_cameraImage coming soon 0526202 BALL BEARING €8.78
74
 Armature for Brushless Motor for Mitre Saws FEMI 280S-305S 7013639 Armature for Brushless Motor for Mitre Saws FEMI 280S-305S €97.59
75
 Switch for Mitre Saws FEMI 280S-305S 0802626 Switch for Mitre Saws FEMI 280S-305S €18.00
76
 photo_cameraImage coming soon 5873593 CABLE €4.33
77
 photo_cameraImage coming soon 5152077 BRAKE DEVICE €7.08
78
 Switch Spring for Miter Saws Femi 280S - 305S 5080177 Switch Spring for Miter Saws Femi 280S - 305S €1.13
79
 Switch Knob for Wood Mitre Saws FEMI 280S - 305S 5143023 Switch Knob for Wood Mitre Saws FEMI 280S - 305S €2.64
80
 Elettronic Board for Miter Saws FEMI TR250-300-305 7820118 Elettronic Board for Miter Saws FEMI TR250-300-305 €48.90
81
 photo_cameraImage coming soon 5050149 LEFT HANDLE €5.92
84
 photo_cameraImage coming soon 5181855 LOWER PROTECTION €5.48

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Femi Spare Parts for Mitre Saws 305S - 8438022

Fix Your Mitre Saw FEMI 305S - 8438022. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

- ATTENTION!!!!
THIS SPARE ARE NOT PARTS FOR FELISATTI MITER SAWS

In the following table, look for the model of Mitre Saws and the respective parts of the code.
Mitre Saw FEMI 305S - 8438022

Wood Mitre Saw FEMI 305S-8438022
# Part Num. Description
2 0151405 SNAP RING
3 7130664 COMPLETE DAMPER GROUP
4 5130936 BRACKET
5 7181523 UPPER BLADE GUARD
6 5081036 SPRING
7 0101406 SELF-LOCKING NUT
8 5181849 LOWER PROTECTION
10 5171082 PROTECTION PIN
11 5171081 SWIVEL SUPPORT PIN
12 7130677 ROLLER BEARING GROUP
13 0124037 PLAIN WASHER
14 0100409 NUT
15 0147026 HAND LEVER
16 7130666 TURN BASE RELEASE KNOB ASS'Y
17 5130931 REST BASE
18 5402427 PLATE
19 0140111 KNOB
20 5181842 LOWER PROTECTION
21 5063065 BUSHING
22 5138034 SWIVEL SUPPORT
23 5182581 SWIVEL SUPPORT COVER
24 5138036 SWIVEL SUPPORT
25 0320822 SOCKET HEAD SCREW
27 5190315 BLADE FLANGE
28 5190314 BLADE FLANGE
29 5191024 FLANGE
30 5001578 JOINT SHAFT
31 5171083 PROTECTION PIN
32 5081038 SPRING
33 5143022 SAFETY BUTTON
34 5130484 UPPER TABLE
35 7130681 BLADE GUARD WITH LEVER ASSY
37 5183092 RIVING KNIFE
38 5138032 BRACKET
39 5081039 SPRING
40 5151559 ARM PIVOTING SHAFT
40 5151559 ARM PIVOTING SHAFT
41 5130930 UPPER TABLE GUIDE
42 0147025 HAND LEVER
43 5171085 ARM LOCKING PIN
44 0221106 O-RING SEAL
45 0101416 NUT
46 0124036 PLAIN WASHER
47 0420776 SCREW
48 7180502 ARM COVER GROUP
49 5042864 MITRE SAW ARM
50 5081037 SPRING
51 7130668 LEVER GROUP
52 0140112 KNOB
53 0100409 THICKNESS WASHER
54 5050150 RIGHT HANDLE
55 7130665 UPPER SQUARE GROUP
56 5130483 SPRING GUIDE
57 5171086 SAFETY PIN
58 5138037 JOINT
59 5181084 CABLE PROTECTION
60 0150645 CYLINDRIC PIN
61 5130933 JOINT SUPPORT
62 7130669 ROD STOP GROUP
63 5871088 CABLE
64 0840037 CAPACITOR MF15
65 5182925 ELECTRIC BOX
66 7801099 MOTOR BODY
67 0526201 BALL BEARING
68 5182582 BOX COVER
69 5152076 BRAKE RING
70 5112034 MOTOR FAN
71 5182924 MOTOR COVER
72 0181029 CABLE LOCK
73 0526202 BALL BEARING
74 7013639 ROTOR
75 0802626 SWITCH
76 5873593 CABLE
77 5152077 BRAKE DEVICE
78 5080177 SWITCH SPRING
79 5143023 SAFETY BUTTON
80 7820118 ELECTRONIC CARD
81 5050149 LEFT HANDLE
84 5181855 LOWER PROTECTION
85 5081040 SPRING
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Femi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Femi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Femi 305S - 8438022
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
PLEASE PAY ATTENTION! FOR MACHINES FEMI SPA DISTRIBUTION ONLY
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM CODE OR S/N FEMI:
FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS

Specific References

New

Download

Diagram Femi 305S

Diagram Femi 305S

Download (787.26KB)

You might also like

Knob Lever M8x30 for Wood Miter Saws Femi 280-305S
Femi SKU: 0147026
Knob Lever M8x30 for Wood Miter Saws Femi 280-305S
Knob Lever M8x30 for Wood Miter Saws Femi 280-305S Original parts FEMI, Knob Lever M8x30 Red 3000 (523-65 BOT) for Wood Miter Saws 280S - 305S. Parts for the following models: - Wood Miter Saw 280S-8428021 - Wood Miter Saw...
Last items in stock €12.42
Details
Capacitor MF15 M8x30 for Wood Miter Saws Femi 280-305S
Femi SKU: 0840037
Capacitor MF15 M8x30 for Wood Miter Saws Femi 280-305S
Capacitor MF15 M8x30 for Wood Miter Saws Femi 280-305S Original parts FEMI, Capacitor MF15 (35x70) V450 S/COD.FAST.6.35x0.8 for Wood Miter Saws 280S - 305S. Parts for the following models: -  Wood Miter Saw 280S-8428021...
Last items in stock €12.42
Details
O-Ring 106 for Mitre Saw Femi XXX - XXX Alu
Femi SKU: 0221106
O-Ring 106 for Mitre Saw Femi XXX - XXX Alu
O-Ring 106 for Mitre Saw Femi XXX - XXX Alu Genuine part FEMI, O-Ring 106 for Mitre Saws TR305 - 305S - XXX - XXX Alu - XXX2 - XXX2 ALU - XXX EVO - GOLD - GOLD3 TR305 - 732. Part for the following products: - Mitre Saw Femi 305S -...
AVAILABLE €0.68
Details
Switch Knob for Wood Mitre Saws FEMI 280S - 305S
Femi SKU: 5143023
Switch Knob for Wood Mitre Saws FEMI 280S - 305S
Switch Knob for Wood Mitre Saws FEMI 280S - 305S Genuine replacement part FEMI, Switch Knob Ass'y for Wood Mitre Saws FEMI 280S - 8428021 - FEMI 305S - 8438022. Part for the following products: -  Wood Mitre Saw FEMI 280S-8428021 -...
Usually Ships in: 7/10 Business Days Approx. €2.64
Details
Armature for Brushless Motor for Miter Saws FEMI 280S-305S Sale
Femi SKU: 7013639
Armature for Brushless Motor for Mitre Saws FEMI 280S-305S
Armature for Brushless Motor for Mitre Saws FEMI 280S-305S Genuine replacement part FEMI, Armature for Brushless Motor for Mitre Saws FEMI 280S - 8428021 - FEMI 305S - 8438022. Part for the following products: - Wood Miter Saw FEMI...
Last items in stock €97.59
Details
Switch for Mitre Saws FEMI 280S-305S
Femi SKU: 0802626
Switch for Mitre Saws FEMI 280S-305S
Switch for Mitre Saws FEMI 280S-305S Genuine replacement part FEMI, 230V Switch for Mitre Saws FEMI 280S - 8428021 - FEMI 305S - 8438022. Part for the following products: -  Wood Miter Saw FEMI...
Last items in stock €18.00
Details
Upper Blade Guard for Mitre Saws FEMI 280S-305S
Femi SKU: 7181523
Upper Blade Guard for Mitre Saws FEMI 280S-305S
Upper Blade Guard for Mitre Saws FEMI 280S-305S Genuine replacement part FEMI, Upper Blade Guard for Mitre saws FEMI 280S - 8428021 - FEMI 305S - 8438022. Part for the following products: -  Wood Miter Saw FEMI 280S-8428021 -  Wood...
Last items in stock €25.12
Details
Upper Blade Guard Bracket for Mitre Saws FEMI 280S-305S
Femi SKU: 5138032
Upper Blade Guard Bracket for Mitre Saws FEMI 280S-305S
Upper Blade Guard Bracket for Mitre Saws FEMI 280S-305S Genuine replacement part FEMI, Upper Blade Guard Bracket for Mitre saws FEMI 280S - 8428021 - FEMI 305S - 8438022. Part for the following products: -  Wood Miter Saw FEMI...
Last items in stock €13.16
Details
Upper Blade Guard Spring for Mitre Saws FEMI 280S-305S
Femi SKU: 5081036
Upper Blade Guard Spring for Mitre Saws FEMI 280S-305S
Upper Blade Guard Spring for Mitre Saws FEMI 280S-305S Genuine replacement part FEMI, Upper Blade Guard Spring for Mitre saws FEMI 280S - 8428021 - FEMI 305S - 8438022. Part for the following products:...
Last items in stock €4.26
Details
Blade Guard Ass'y for Miter Saws Femi 280S - 305S
Femi SKU: 7130681
Blade Guard Ass'y for Miter Saws Femi 280S - 305S
Blade Guard Ass'y for Miter Saws Femi 280S - 305S Genuine part FEMI, Mobile Blade Guard Ass'y with Levers for Miter Saws 280S - 305S. Part for the following models: -  Wood Mitre Saw 280S-8428021 -  Wood Mitre Saw 305S-8438022 -...
Last items in stock €49.71
Details
Safety Button for Miter Saws Femi 280S - 305S
Femi SKU: 5143022
Safety Button for Miter Saws Femi 280S - 305S
Safety Button for Miter Saws Femi 280S - 305S Genuine part FEMI, Mobile Disc Guard Safety Button for Miter Saws 280S - 305S. Part for the following models: -  Wood Mitre Saw 280S-8428021 -  Wood Mitre Saw 305S-8438022 - Code : 5143022
on 7/10 Business Days Approx €2.99
Details
Switch Spring for Miter Saws Femi 280S - 305S
Femi SKU: 5080177
Switch Spring for Miter Saws Femi 280S - 305S
Switch Spring for Miter Saws Femi 280S - 305S Genuine part FEMI, Switch Spring for Miter Saws 280S - 305S. Part for the following models: -  Wood Mitre Saw 280S-8428021 -  Wood Mitre Saw 305S-8438022 - Code : 5080177
Last items in stock €1.13
Details
Disc Guard Lock Washer for Miter Saws Femi 280S - 305S
Femi SKU: 5191024
Disc Guard Lock Washer for Miter Saws Femi 280S - 305S
Disc Guard Lock Washer for Miter Saws Femi 280S - 305S Genuine part FEMI, Disc Guard Lock Washer for Miter Saws 280S - 305S. Part for the following models: -  Wood Mitre Saw 280S-8428021 -  Wood Mitre Saw 305S-8438022 - Code : 5191024
Last items in stock €2.28
Details
Motor Cover for Miter Saws Femi 280S - 305S
Femi SKU: 5182924
Motor Cover for Miter Saws Femi 280S - 305S
Motor Cover for Miter Saws Femi 280S - 305S Genuine part FEMI, Motor Cover with Levers for Miter Saws 280S - 305S. Part for the following models: -  Wood Mitre Saw 280S-8428021...
Last items in stock €11.15
Details
Turn Base Release Knob for Mitre Saw Femi 305S
Femi SKU: 7130666
Turn Base Release Knob for Mitre Saw Femi 305S
Turn Base Release Knob for Mitre Saw Femi 305S Genuine part FEMI, Turn Base Release Knob Ass'y for Mitre Saw 305S. Part for the following models: -  Wood Mitre Saw 305S-8438022 - Code : 7130666
Last items in stock €30.90
Details
Comments (0)
