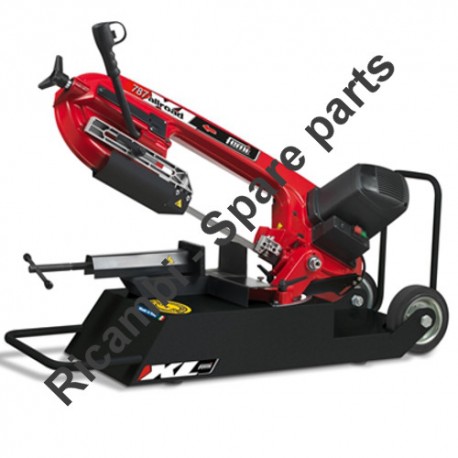

Femi Spare Parts for Transportable Bandsaw 787XL All Road-8487023

SKU: Femi 787XL All Road - 8487023
€14.68
VAT included

Femi Spare Parts for Transportable Band Saws 787XL All Road 8487023

Femi genuine replacement parts for to repair Transportable Band Saws 787XL All Road 8487023.

Transportable bandsaw with integrated wheel base
- Max cutting capacity mm 213x150
- Blade mm 2140x19x0.9
- Exclusive system "roto-translating" (patent pending)
- Maximum versatility
Femi Spare Parts for Transportable Bandsaw 787XL All Road-8487023
  • Femi Spare Parts for Transportable Bandsaw 787XL All Road-8487023
  • Femi Spare Parts for Transportable Bandsaw 787XL All Road-8487023
  • Femi Spare Parts for Transportable Bandsaw 787XL All Road-8487023

Femi Spare Parts for Transportable Bandsaw 787XL All Road-8487023

SKU: Femi 787XL All Road - 8487023 Condition: New
€14.68
VAT included

Femi Spare Parts for Transportable Band Saws 787XL All Road 8487023

Femi genuine replacement parts for to repair Transportable Band Saws 787XL All Road 8487023.

Transportable bandsaw with integrated wheel base
- Max cutting capacity mm 213x150
- Blade mm 2140x19x0.9
- Exclusive system "roto-translating" (patent pending)
- Maximum versatility
settings 85 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM CODE OR S/N FEMI:: FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

83 spare parts

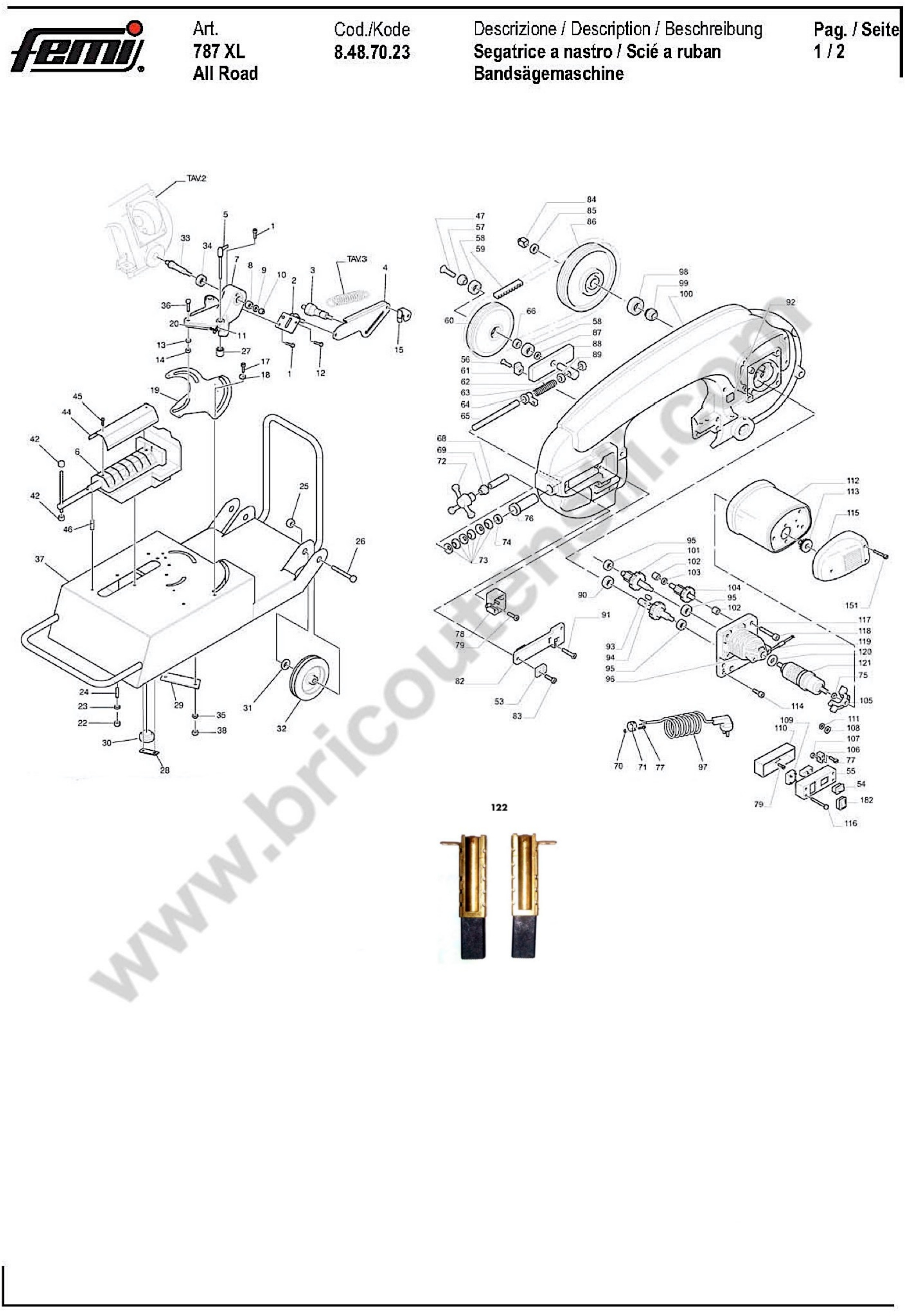

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 5134016 SPRING SUPPORT €14.68
3
photo_cameraImage coming soon 5171088 SPRING PIN €59.62
4
photo_cameraImage coming soon 5155160 LOWER POSITION LOCK €14.50
5
photo_cameraImage coming soon 0147010 HAND LEVER €8.03
7
photo_cameraImage coming soon 5138051 SWIVEL SUPPORT €56.03
8
photo_cameraImage coming soon 0606203 BALL BEARING €13.60
10
photo_cameraImage coming soon 0101716 SELF-LOCKING NUT €2.17
11
Angle Cut Index for Miter Saws FEMI 791 Analog-Digital 5159503 Angle Cut Index for Miter Saws FEMI 791 Analog-Digital €5.16
16
photo_cameraImage coming soon 5133018 LOWER POSITION LOCK €14.50
16
photo_cameraImage coming soon 5133771 BAND SAW BASE €523.06
18
Adjust Washer for Band Saw Femi 784XL 5124029 Adjust Washer for Band Saw Femi 784XL €2.47
19
photo_cameraImage coming soon 5138042 GRADUATE PLATE €37.93
25
photo_cameraImage coming soon 0101121 NUT €6.41
26
photo_cameraImage coming soon 0312000 EXAGONAL HEAD SCREW €9.29
28
photo_cameraImage coming soon 5142105 LEVER €14.04
29
photo_cameraImage coming soon 5137778 BRACKET €20.86
30
Foot Base for Wood Mitre Saw FEMI XXX2 5137793 Foot Base for Wood Mitre Saw FEMI XXX2 €2.40
32
photo_cameraImage coming soon 0138008 WHEEL €61.60
33
photo_cameraImage coming soon 5171039 JOINT PIN €26.19
34
photo_cameraImage coming soon 0606305 BALL BEARING €28.07
36
photo_cameraImage coming soon 5171087 JOINT PIN €9.82
42
photo_cameraImage coming soon 5140002 HANDLE €4.20
44
photo_cameraImage coming soon 5182828 VICE SCREW COVER €26.40
46
photo_cameraImage coming soon 0150701 Plug Cil.Intaglio Central 6x14 S80 €1.96
53
photo_cameraImage coming soon 5183066 BLADE TENSION INDEX COVER €5.50
54
Switch Start-Stop for Band Saws FEMI 780-782-783-785-787XL 0802606 Switch Start-Stop for Band Saws FEMI 780-782-783-785-787XL €23.00
55
photo_cameraImage coming soon 5182517 SWITCH COVER €6.73
57
Femi N265XL Closing Washer 5124060 Femi N265XL Closing Washer €6.08
61
photo_cameraImage coming soon 5130746 GUIDE €13.44
62
photo_cameraImage coming soon 5001562 SHAFT €25.51
63
photo_cameraImage coming soon 5081007 SPRING €2.64
64
photo_cameraImage coming soon 5142058 LEVER €2.78
65
photo_cameraImage coming soon 5100505 BLADE TENSIONING SCREW €13.75
66
photo_cameraImage coming soon 5120661 SPACER €5.61
66
photo_cameraImage coming soon 5214224 FREE WHEEL €87.57
68
photo_cameraImage coming soon 5122017 SPRING CONTEINER €4.19
69
photo_cameraImage coming soon 5124030 WASHER €6.38
72
photo_cameraImage coming soon 0140099 BLADE TENSIONING KNOB €25.11
73
Sping Washer D.16.3x31.5x1.75 for Band Saws Femi 0080260 Sping Washer D.16.3x31.5x1.75 for Band Saws Femi €2.16
76
photo_cameraImage coming soon 5066016 BUSHING €25.19
78
photo_cameraImage coming soon 5182842 SWITCH BOX €2.78
82
photo_cameraImage coming soon 5182584 PLASTIC COVER €3.18
84
photo_cameraImage coming soon 0106120 SELF-LOCKING RING NUT €5.77
86
Drive Wheel for Band Saws Femi N215XL - N216XL 5214026 Drive Wheel for Band Saws Femi N215XL - N216XL €97.59
87
photo_cameraImage coming soon 0155149 THICKNESS WASHER €1.37
88
photo_cameraImage coming soon 5130795 WHEEL SUPPORT €97.59
90
photo_cameraImage coming soon 0606204 BALL BEARING €17.98
92
photo_cameraImage coming soon 0130507 CABLE LOCKER €1.56
93
photo_cameraImage coming soon 7213006 GEAR ASSY €142.17
94
photo_cameraImage coming soon 0150139 FEATHER €1.37
95
Ball Bearing 6200 RS 10x30x9 for Band Saws Femi 0586200 Ball Bearing 6200 RS 10x30x9 for Band Saws Femi €7.67
96
Stator per Band Saws FEMI 785-787XL 5024112 Stator per Band Saws FEMI 785-787XL €69.66
97
photo_cameraImage coming soon 5871047 CABLE €16.71
98
photo_cameraImage coming soon 0606007 BALL BEARING €19.56
99
Femi N215XL Bearing Spacer 5124054 Femi N215XL Bearing Spacer €14.86
100
photo_cameraImage coming soon 5042868 BAND SAW ARM €620.13
101
Stright Gear Assy for Band Saw Femi 791 7213005 Stright Gear Assy for Band Saw Femi 791 €119.53
102
Needle Bearing HK1212 for Band Saw Femi 791 0731212 Needle Bearing HK1212 for Band Saw Femi 791 €13.14
103
Washer Thickness PS 12x18 for Band Saw Femi 780 0124026 Washer Thickness PS 12x18 for Band Saw Femi 780 €1.53
104
Helicoidal Gear Assy for Band Saw Femi 791 7213004 Helicoidal Gear Assy for Band Saw Femi 791 €92.94
105
Carbon Brushes Holder for Band Saws Femi 785P 5850006 Carbon Brushes Holder for Band Saws Femi 785P €18.00
106
photo_cameraImage coming soon 5154501 CABLE LOCKING DEVICE €1.84
109
Line Filter Nois Suppressor EMC for Band Saws Femi 0816004 Line Filter Nois Suppressor EMC for Band Saws Femi €27.92
110
Switch Box for Band Saw Femi 785P 5182823 Switch Box for Band Saw Femi 785P €8.81
111
photo_cameraImage coming soon 0181018 PASSACORDONE PVC 6235/6/5 BLACK €1.37
112
photo_cameraImage coming soon 5182843 MOTOR COVER €15.63
113
photo_cameraImage coming soon 5112021 FAN MOTOR D.65 €5.77
115
photo_cameraImage coming soon 5182583 MOTOR COVER €14.32
117
Motor 230V for Band Saws FEMI 785-787XL-791-2200XL 7801611 Motor 230V for Band Saws FEMI 785-787XL-791-2200XL €265.12
119
photo_cameraImage coming soon 0816005 REACTOR NOISE COD. 921642 €3.11
120
Bearing Rubber Protector Flange Side for Band Saw FEMI 785 5061041 Bearing Rubber Protector Flange Side for Band Saw FEMI 785 €3.37
121
Armature for Band Saw Femi 785 7013134 Armature for Band Saw Femi 785 €157.62
122
Carbon Brushes for Band Saws FEMI 785/791 5850110 Carbon Brushes for Band Saws FEMI 785/791 €19.40

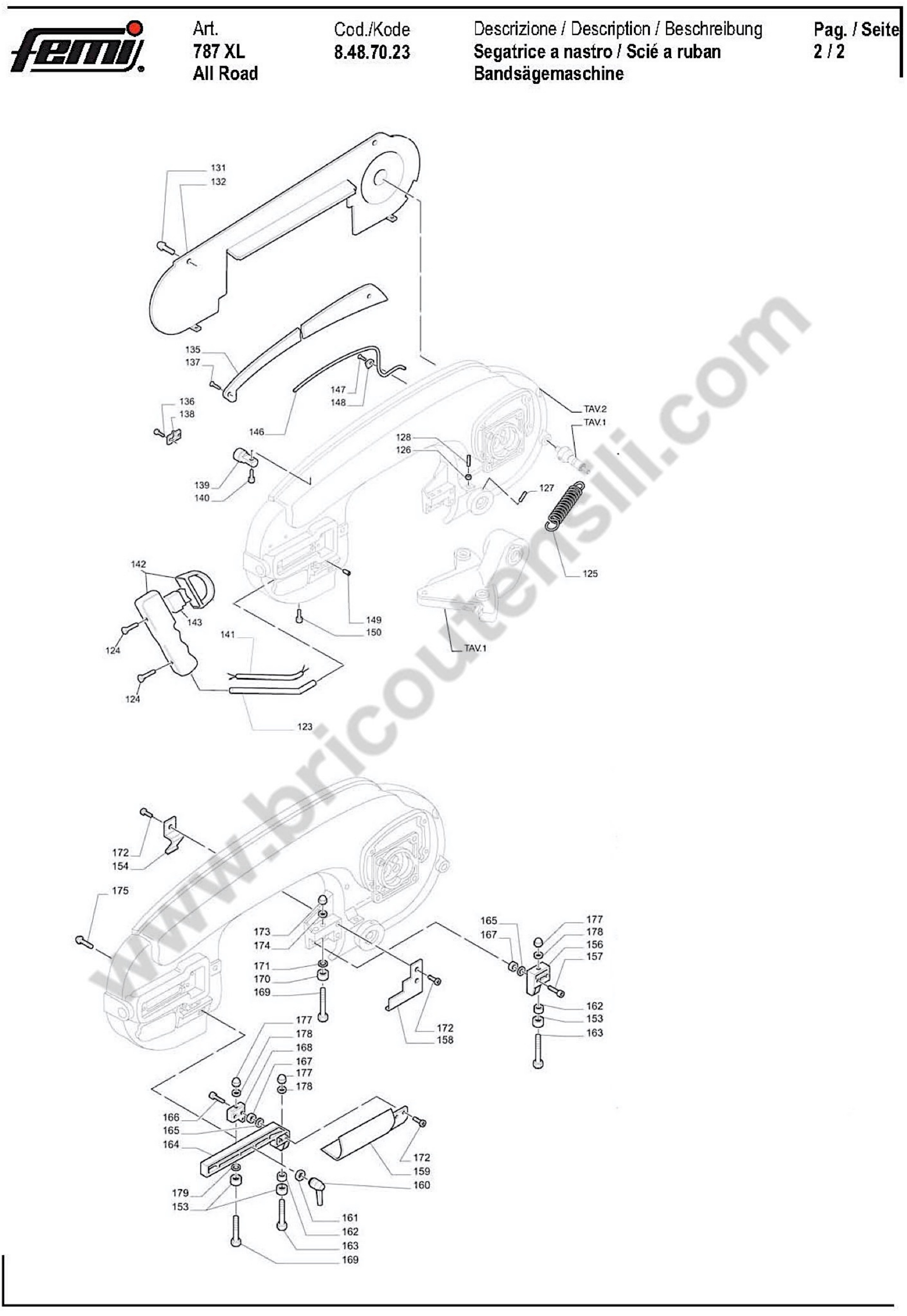

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
123
photo_cameraImage coming soon 5142069 LEVER €39.45
125
Lifting Spring for Band Saw FEMI 2200XL 5081009 Lifting Spring for Band Saw FEMI 2200XL €43.61
132
photo_cameraImage coming soon 5181856 BLADE PROTECTION €107.80
135
photo_cameraImage coming soon 5181688 CABLE PROTECTION €32.30
138
photo_cameraImage coming soon 5152596 PROTECTION FIXING DEVICE €6.38
139
photo_cameraImage coming soon 7130567 INTERNAL BEARING GROUP €33.49
141
photo_cameraImage coming soon 5871039 CABLE €15.48
142
Handle Control for Band Saws FEMI 780-785-787-791 5050117 Handle Control for Band Saws FEMI 780-785-787-791 €20.80
143
Switch for Band Saws FEMI 780-781-783-784-785 0802317 Switch for Band Saws FEMI 780-781-783-784-785 €12.00
163
photo_cameraImage coming soon 5100072 SCREW €13.02

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Femi Spare Parts for Transportable Band Saws 787XL All Road 8487023

Femi genuine replacement parts for to repair Transportable Band Saws 787XL All Road 8487023.

In the following table, look for the model of the Band Saw and the respective parts of the code.
Femi 787XL All Road - 8487023

Transportable Band Saw 787XL All Road - 8487023
# Part Num. Description
2 5134016 SPRING SUPPORT
3 5171088 SPRING PIN
4 5155160 LOWER POSITION LOCK
5 0147010 HAND LEVER
7 5138051 SWIVEL SUPPORT
8 0606203 BALL BEARING
10 0101716 SELF-LOCKING NUT
11 5159503 CUTTING ANGLE INDEX
13 0120718 PLAIN WASHER
16 5133018 LOWER POSITION LOCK
16 5133771 BAND SAW BASE
18 5124029 ECCENTRIC
19 5138042 GRADUATE PLATE
25 0101121 NUT
26 0312000 EXAGONAL HEAD SCREW
28 5142105 LEVER
29 5137778 BRACKET
30 5137793 REST FOOT
32 0138008 WHEEL
33 5171039 JOINT PIN
34 0606305 BALL BEARING
36 5171087 JOINT PIN
42 5140002 HANDLE
44 5182828 VICE SCREW COVER
46 0150701 CYLINDRIC PIN WITH SLOT
53 5183066 BLADE TENSION INDEX COVER
54 0802606 SWITCH
55 5182517 SWITCH COVER
57 5124060 WASHER
66 5214224 FREE WHEEL
61 5130746 GUIDE
62 5001562 SHAFT
63 5081007 SPRING
64 5142058 LEVER
65 5100505 BLADE TENSIONING SCREW
66 5120661 SPACER
68 5122017 SPRING CONTEINER
69 5124030 WASHER
72 0140099 BLADE TENSIONING KNOB
73 0080260 SPRING WASHER
76 5066016 BUSHING
78 5182842 SWITCH BOX
82 5182584 PLASTIC COVER
84 0106120 SELF-LOCKING RING NUT
86 5214026 DRIVING WHEEL
87 0155149 THICKNESS WASHER
88 5130795 WHEEL SUPPORT
90 0606204 BALL BEARING
92 0130507 CABLE LOCKER
93 7213006 GEAR GROUP
94 0150139 WOODRUFF
95 0586200 BALL BEARING
96 5024112 STATOR FIELD
97 5871047 CABLE
98 0606007 BALL BEARING
99 5124054 SPACER
100 5042868 BAND SAW ARM
101 7213005 GEAR ASSY
102 0731212 NEEDLE BEARING
103 0124026 THICKNESS WASHER
104 7213004 GEAR ASSY
105 5850006 CARBON BRUSHE HOLDER
106 5154501 CABLE LOCKING DEVICE
109 0816004 RADIO INTERFERENCE SUPPRESSOR
110 5182823 SWITCH BOX
111 0181018 CABLE SLEEVE
112 5182843 MOTOR COVER
113 5112021 MOTOR FAN
115 5182583 MOTOR COVER
117 7801611 MOTOR (Rif. 7801606)
119 0816005 RADIO INTERFERENCE SUPPRESSOR
120 5061041 RUBBER BUSHING
121 7013134 ARMATURE - ROTOR (Rif. 7013133)
122 5850110 CARBON BRUSH SET
123 5142069 LEVER
125 5081009 SPRING
132 5181856 BLADE PROTECTION
135 5181688 CABLE PROTECTION
138 5152596 PROTECTION FIXING DEVICE
139 7130567 INTERNAL BEARING GROUP
141 5871039 CABLE
142 5050117 HANDLE
143 0802317 SWITCH
148 5154103 CABLE LOCKING DEVICE
163 5100072 SCREW
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Femi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Femi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Femi 787XL All Road - 8487023
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM CODE OR S/N FEMI:
FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS

Specific References

New

Download

Diagram Femi 787XL All Road

Diagram Femi 787XL All Road

Download (637.01KB)

You might also like

Femi SKU: Femi 780 XL
Mitre Saw for Metal Femi 780 XL Portable band saw FEMI MOD. P 780 Dry cutting Practical and lightweight, suitable for any use. Technical Features: - Practical and lightweight, suitable for any use; - Cutting up: 0 ° Ø 105 mm - 105 x...
AVAILABLE €562.09
Disc and Belt Sander Valex LND150 Sale
Valex s.p.a. SKU: 1410153
Disc and Belt Sander Valex LND150 Switch with release coil to prevent accidental start to restore electricity - Preparation dust extraction. - Work hard tilt up to 45 ° - Equipped with protractor square. - Power: 375 W - Tape: 910x100...
Last items in stock €175.91
Felisatti SKU: Felisatti TP518-230
Rotary sander Felisatti TP518-230 Professional sander with water cooling. Technical Data: - Voltage and current 230 V - 1.6 A - Frequency (Hz) 50-60 - Power Consumption 300 W - No-load speed (rpm-minutes) 10000 - Load speed (r-min)...
Available in 7/10 days €322.82
Femi SKU: CPD45703
Steel Band for Band Saw Femi 785P Femi Steel Band for Band Saw 785P-XL - article 45703 Size: - 1735 x 13 x 0.9 mm - 6/10 Z/I " - 60/80 Mt / min - Codice : CPD45703
AVAILABLE €41.52
bricoutensili.com SKU: LAMEFERRO
Belt for Cutting Iron and Metals Blades and steel stradate Belt, carbon steel, for metal cutting. Used on iron and metal saws, belt fixed or mobile.
on 7/10 Business Days Approx. €21.71
Femi SKU: 5137793
Foot Base for Wood Mitre Saw FEMI XXX2 Genuine part FEMI, Sturdy rubber Foot, for Wood Mitre Saws XXX - XXX2. Part for the following items: - FEMI XXX - XXX2 - FEMI XXX-XXX Alu 8.43.00.21-8.43.20.21 - FEMI...
Usually Ships in: 7/10 Business Days Approx. €2.40
Femi SKU: 0802317
Switch for Band Saws FEMI 780-781-783-784-785 Genuine part FEMI, 8A Bipolar Switch with Button for Band Saws 780P - 781 - 785P - 783XL - ABS 105 - 780XL - 784XL - 785XL. Part for...
Usually Ships in: 7/10 Business Days Approx. €12.00
Femi SKU: 0730810
Needles Bearing HK0810 for Band Saws Femi Genuine Part Femi, Needle Bearing for Straight Gear, for Band Saws FEMI 780P - 781 - 782XL - 783XL - SN105XL - SN205XL - 785XL Part for the following items: - FEMI 780P-8484320 - FEMI...
AVAILABLE €11.86
Femi SKU: 5850110
Carbon Brushes for Band Saws FEMI 785/791 Genuine spare part FEMI, Carbon Brushe Set with Copper Protection for Band Saws FEMI, 785-791 Part for the following products: -  Band Saw Femi 791/8482222 Digitale -  Band...
on 7/10 Business Days Approxox €19.40
Femi SKU: 0802606
Switch Start-Stop for Band Saws FEMI 780-782-783-785-787XL Genuine spare part FEMI, switch 230V 50/60 Hz Start/Stop button model KJD20-2 for Band Saws 780-782-783-785-787-SN105-205. Part for the following items: - Band Saw FEMI...
Last items in stock €23.00
Femi SKU: 5024112
Stator per Band Saws FEMI 785-787XL Genuine part FEMI, Stator 220-240 V for Band Saws FEMI 787XL All Road - 2200 XL - 785. Part for the following article: - Band Saw FEMI 787XL All Road-8487023 - Band Saw FEMI 2200 XL-8487022 - Band...
Last items in stock €69.66
Femi SKU: 5050117
Handle Control for Band Saws FEMI 780-785-787-791 Original replacement part FEMI, Handle Control for Band Saws machines FEMI 780P - 781 - 780XL - 785P - 791-2200 XL - 787 XL - SN105 - SN105XL - SN205XL. Part for the following...
Last items in stock €20.80
Femi SKU: 5159503
Angle Cut Index for Miter Saws FEMI 791 Analog-Digital Original parts FEMI, Angle Cut Index for Wood Mier Saws FEMI, 791 Analog - Digital. Part for the following products: -  FEMI 791/8482222 Analog -  FEMI Digital 791/8482222 -...
AVAILABLE €5.16
Femi SKU: 7801611
Motor 230V for Band Saws FEMI 785-787XL-791-2200XL Genuine part FEMI, Motor 93 H 50230 Hz 50 C/K FEMI 100864 (Ref. 7801606) for Band Saws 785 - 791-2200 XL - 787XL All Road - 2200 Special Parts for the following products: - Band...
Last items in stock €265.12
Femi SKU: 5850006
Carbon Brushes Holder for Band Saws Femi 785P Genuine Parts Femi, Carbon Brushes Holder, for Transportable Band Saws 785 - 785P - 787XL  - N216XL - N215 XL - 2200 XL - NG 201...
Last items in stock €18.00
Femi SKU: 0124026
Washer Thickness PS 12x18 for Band Saw Femi 780 Origianl Spare Part FEMI, Washer Thickness 1 PS 12x18 for Band Saw Femi 780 - 780P - 781 - 782 - 785 - 785 Analog - 785 Digital - N216XL - NG 201 - SN105 - 2200 XL - N215 XL - 787XL All...
AVAILABLE €1.53
Femi SKU: 7013134
Armature for Band Saw Femi 785 Genuine part FEMI, Armature 220-240V for Motor D.93 H.50 "201442" for Band Saws 785 - 791 - 200 XL - 787XL All Road. Parts for the following products: -...
Last items in stock €157.62
Femi SKU: 5214026
Drive Wheel for Band Saws Femi N215XL - N216XL Genuine Part Femi, Drive Wheel for Band Saws N215XL - N216XL - 2200XL - NG 201 - 792 - 787XL All Road Part for the following items: - Band Saw...
Last items in stock €97.59
Femi SKU: 0586200
Ball Bearing 6200 RS 10x30x9 for Band Saws Femi Genuine spare part FEMI, Ball Bearing 624 4x13x5 ZZ for Band Saws Femi Part for the following products: - Band Saw N216XL-8487021 - Band Saw ABS NG160-8486080 - Band Saw NG200 - NG201 -...
AVAILABLE €7.67
Femi SKU: 7213004
Helicoidal Gear Assy for Band Saw Femi 791 Genuine Part Femi, Helicoidal Gear Assy, for Band Saws FEMI 785P - 791 - 2200 XL - 787XL - ABS NG160 - NG200 - NG201 Part for the following items: -  Band Saw 785P - 8486022 -  Band Saw...
on 10 Business Days Approx €92.94
Femi SKU: 7213005
Stright Gear Assy for Band Saw Femi 791 Genuine Part Femi, Stright Gear Assy, for Band Saws FEMI 785P - 791 - 2200 XL - 787XL - ABS NG160 - NG200 - NG201 Part for the following items: -  Band Saw 785P - 8486022 -  Band Saw...
on 10 Business Days Approx €119.53
Femi SKU: 0731212
Needle Bearing HK1212 for Band Saw Femi 791 Genuine Part Femi, Needle Bearing HK1212, for Band Saws FEMI 785P - 791 - 2200 XL - 787XL - ABS NG160 - NG200 - NG201 Part for the...
Usually Ships in: 10 Business Days Approx. €13.14
Femi SKU: 5182823
Switch Box for Band Saw Femi 785P Original spare part Femi, Switch Box for Band Saw 785P - 787XL - 791 - 785XL - 2200 XL - NG160 Part for the following products: -  Band Saw 785P - 8486022 -  Band Saw 785P - 8486024 -  Band Saw...
Last items in stock €8.81
Femi SKU: 0080260
Sping Washer D.16.3x31.5x1.75 for Band Saws Femi Genuine part FEMI, Spring Washer D.16.3x31.5x1.75 for Band Saws Femi.  Parts for the following models: -  MITRE SAW XXX-8430021 - XXX ALU-8432021 -  MITRE SAW FEMI XXX2-XXX2 ALU...
AVAILABLE €2.16
Femi SKU: 5124054
Femi N215XL Bearing Spacer Genuine Part Femi, Ball Bearing Setting Spacer for Band Saws N215XL - N216XL - 2200XL - NG 201 - 792 - 787XL All Road Part for the following items: - FEMI N216XL - 8487021 -...
AVAILABLE €14.86
Femi SKU: 5124060
Femi N265XL Closing Washer Genuine spare part FEMI, Closing Washer for Femi Band Saw N265XL - N266XL - N266DA XL. Part for the following products: - FEMI N266DA XL - 8488028 - FEMI N266 XL - 8488027 - FEMI N265 XL - 8488026...
Last items in stock €6.08
Comments (0)
