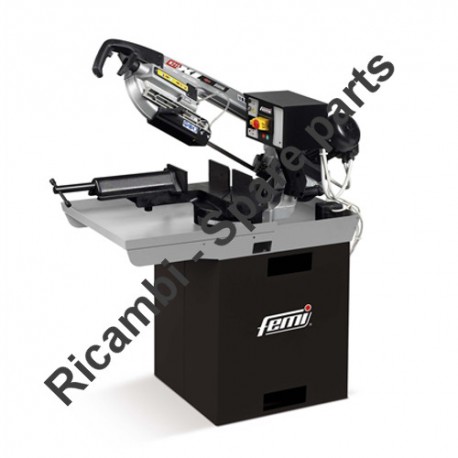

Femi Spare Parts for Stationary Band Saws N215XL-8487020

SKU: Femi N215 XL - 8487020
€136.60
VAT included

Femi Spare Parts for Stationary Band Saws N215 XL-8487020

Femi Genuine spare parts or replacement parts for to repair Stationary Band Saws N215 XL - 8487020.

Manual, single phase with induction motor
- Max cutting capacity Ø 175 mm - 200x75 mm
- Weight Kg 150
- Bandsaw blade mm. 2140 x19 x 0,9
- Ultra-low tension control panel 24 Volt
Femi Spare Parts for Stationary Band Saws N215XL-8487020
  • Femi Spare Parts for Stationary Band Saws N215XL-8487020
  • Femi Spare Parts for Stationary Band Saws N215XL-8487020
  • Femi Spare Parts for Stationary Band Saws N215XL-8487020
  • Femi Spare Parts for Stationary Band Saws N215XL-8487020
  • Femi Spare Parts for Stationary Band Saws N215XL-8487020
Femi

Femi Spare Parts for Stationary Band Saws N215XL-8487020

SKU: Femi N215 XL - 8487020 Condition: New
€136.60
VAT included

Femi Spare Parts for Stationary Band Saws N215 XL-8487020

Femi Genuine spare parts or replacement parts for to repair Stationary Band Saws N215 XL - 8487020.

Manual, single phase with induction motor
- Max cutting capacity Ø 175 mm - 200x75 mm
- Weight Kg 150
- Bandsaw blade mm. 2140 x19 x 0,9
- Ultra-low tension control panel 24 Volt
settings 241 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM CODE OR S/N FEMI:: FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
234 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

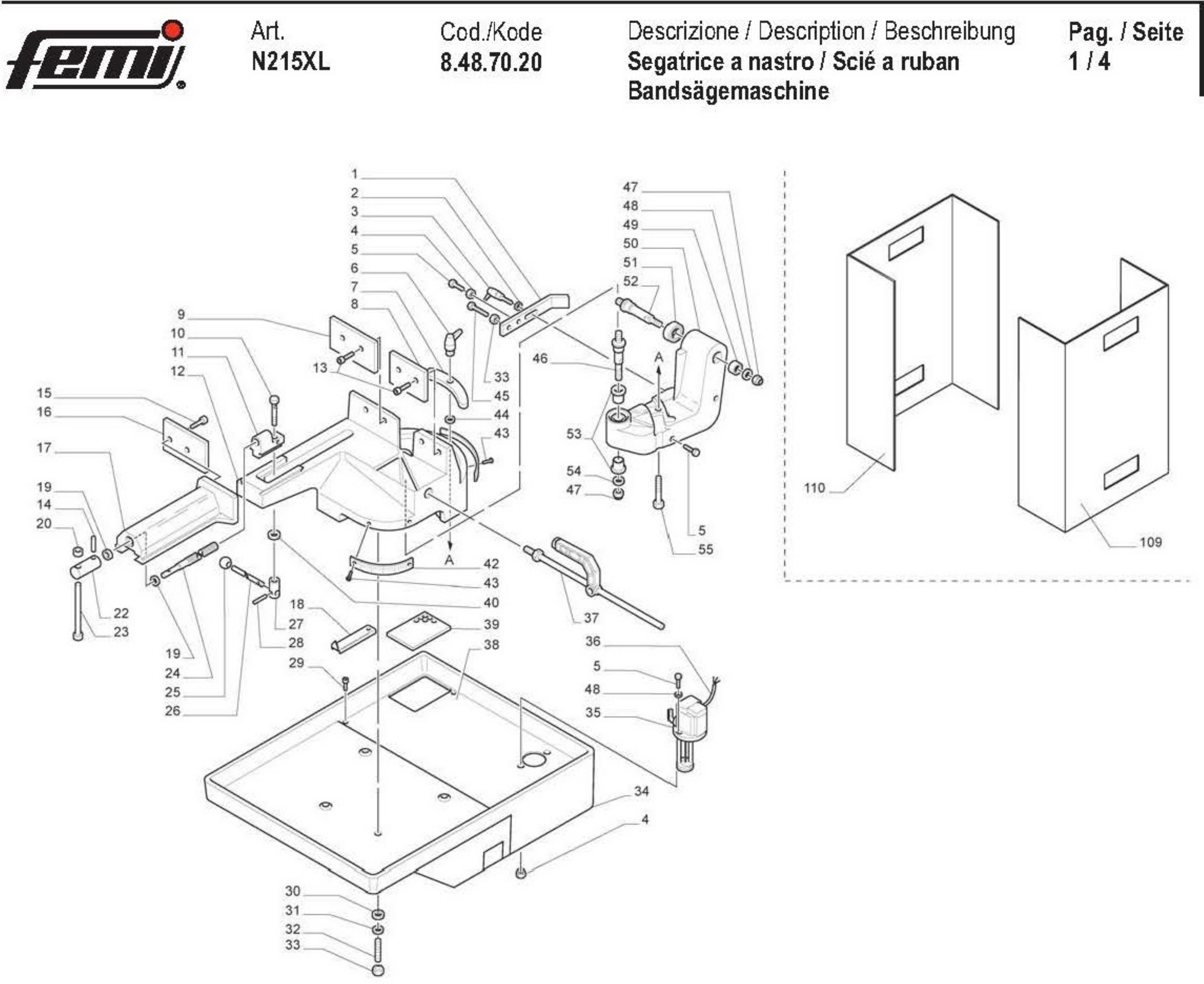

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5130796 STOP PLATE €128.77
3
 Knob Lever M6x15 for Band Saws FEMI N215-216 XL 0147007 Knob Lever M6x15 for Band Saws FEMI N215-216 XL €9.07
6
 photo_cameraImage coming soon 0147017 HAND LEVER €12.16
7
 photo_cameraImage coming soon 5182532 COVER €12.53
8
 photo_cameraImage coming soon 5152594 VICE JAW €72.37
9
 photo_cameraImage coming soon 5152593 VICE JAW €59.89
11
 photo_cameraImage coming soon 5130864 VICE SCREW SUPPORT €76.54
14
 photo_cameraImage coming soon 0152630 ELASTIC PIN €1.59
16
 photo_cameraImage coming soon 5152611 VICE JAW €72.65
17
 photo_cameraImage coming soon 5130863 MOBILE VICE €133.99
18
 photo_cameraImage coming soon 5159517 INDEX €14.36
20
 photo_cameraImage coming soon 0140059 LEVER COVER €1.84
22
 photo_cameraImage coming soon 5171040 PIN €45.57
25
 Pression Handle for Stationary Band Saw Femi 792 0140073 Pression Handle for Stationary Band Saw Femi 792 €11.02
26
 photo_cameraImage coming soon 5142057 LEVER €14.16
27
 photo_cameraImage coming soon 5171035 BUSHING €37.19
30
 photo_cameraImage coming soon 5124033 WASHER €2.17
34
 photo_cameraImage coming soon 5133703 TANK BASE €362.57
35
 Water Pump for Band Saws FEMI NG201-N215-216-265-266XL 7113524 Water Pump for Band Saws FEMI NG201-N215-216-265-266XL €113.30
37
 photo_cameraImage coming soon 7130536 ROD STOP GROUP €44.78
38
 photo_cameraImage coming soon 5182533 PUMP SUPPORT €62.97
39
 photo_cameraImage coming soon 5182534 TANK FILTER €14.91
40
 photo_cameraImage coming soon 5124056 WASHER €12.50
43
 photo_cameraImage coming soon 0402905 RIVET €1.32
44
 photo_cameraImage coming soon 0124032 PLAIN WASHER €1.75
46
 photo_cameraImage coming soon 5171038 VICE PIN €22.31
47
 photo_cameraImage coming soon 0101716 SELF-LOCKING NUT €2.17
49
 photo_cameraImage coming soon 0606203 BALL BEARING €13.60
50
 Swivel Support for Band Saws Femi N215XL - N216XL 5137964 Swivel Support for Band Saws Femi N215XL - N216XL €134.78
51
 photo_cameraImage coming soon 0606306 BALL BEARING €24.50
52
 photo_cameraImage coming soon 5171039 JOINT PIN €26.19
53
 Swivel Support Bushing for Stationary Band Saw Femi 792 5063036 Swivel Support Bushing for Stationary Band Saw Femi 792 €6.83
60
 photo_cameraImage coming soon 5214224 FREE WHEEL €87.57
61
 photo_cameraImage coming soon 5130746 GUIDE €13.44
62
 photo_cameraImage coming soon 5001562 SHAFT €25.51
63
 photo_cameraImage coming soon 5081007 SPRING €2.64
64
 photo_cameraImage coming soon 5142058 LEVER €2.78
65
 photo_cameraImage coming soon 5100505 BLADE TENSIONING SCREW €13.75
66
 photo_cameraImage coming soon 5120661 SPACER €5.61
68
 photo_cameraImage coming soon 5122017 SPRING CONTEINER €4.19
69
 photo_cameraImage coming soon 5124030 WASHER €6.38
70
 photo_cameraImage coming soon 0064002 BEARING FIFTH WHEEL €3.81
71
 Cage Bearing AXK 1528 for Band Saws FEMI 0711528 Cage Bearing AXK 1528 for Band Saws FEMI €10.93
72
 photo_cameraImage coming soon 0140099 BLADE TENSIONING KNOB €25.11
73
 Sping Washer D.16.3x31.5x1.75 for Band Saws Femi 0080260 Sping Washer D.16.3x31.5x1.75 for Band Saws Femi €2.16
75
 photo_cameraImage coming soon 5222009 SPRING DUST PROTECTION €1.53
76
 photo_cameraImage coming soon 5066016 BUSHING €25.19
77
 Microswitch for Stationary Band Saw Femi 792 0801101 Microswitch for Stationary Band Saw Femi 792 €10.18
78
 photo_cameraImage coming soon 5182842 SWITCH BOX €2.78
80
 photo_cameraImage coming soon 5143005 MICROSWITCH BUTTON €2.64
81
 photo_cameraImage coming soon 5142059 LEVER €5.91
82
 photo_cameraImage coming soon 5182531 PLASTIC COVER €7.48
84
 photo_cameraImage coming soon 0106120 SELF-LOCKING RING NUT €5.77
86
 Drive Wheel for Band Saws Femi N215XL - N216XL 5214026 Drive Wheel for Band Saws Femi N215XL - N216XL €97.59
87
 photo_cameraImage coming soon 0155149 THICKNESS WASHER €1.37
88
 photo_cameraImage coming soon 5130795 WHEEL SUPPORT €97.59
90
 photo_cameraImage coming soon 0606204 BALL BEARING €17.98
93
 photo_cameraImage coming soon 7213006 GEAR ASSY €142.17
94
 photo_cameraImage coming soon 0150139 FEATHER €1.37
95
 Ball Bearing 6200 RS 10x30x9 for Band Saws Femi 0586200 Ball Bearing 6200 RS 10x30x9 for Band Saws Femi €7.67
96
 photo_cameraImage coming soon 5024118 STATOR €83.70
98
 photo_cameraImage coming soon 0606007 BALL BEARING €19.56
99
 Femi N215XL Bearing Spacer 5124054 Femi N215XL Bearing Spacer €14.86
100
 photo_cameraImage coming soon 5042810 BAND SAW BODY €636.45
101
 photo_cameraImage coming soon 7213010 GEAR GROUP €155.06
102
 Needle Bearing HK1212 for Band Saw Femi 791 0731212 Needle Bearing HK1212 for Band Saw Femi 791 €13.14
103
 Washer Thickness PS 12x18 for Band Saw Femi 780 0124026 Washer Thickness PS 12x18 for Band Saw Femi 780 €1.53
105
 Carbon Brushes Holder for Band Saws Femi 785P 5850006 Carbon Brushes Holder for Band Saws Femi 785P €18.00
106
 photo_cameraImage coming soon 1180304 MICROSWITCH LEVER €7.02
108
 photo_cameraImage coming soon 0168515 PLASTIC CAP €1.30
109
 photo_cameraImage coming soon 5133772 COLUMN RIGHT €197.37
110
 photo_cameraImage coming soon 5133773 COLUMN LEFT €197.37
113
 Fan Motor with Magnetic Core for Band Saws FEMI 5850111 Fan Motor with Magnetic Core for Band Saws FEMI €10.50
131
 Wing Knob Male M6x16 for Stationary Band Saw Femi 792 0140077 Wing Knob Male M6x16 for Stationary Band Saw Femi 792 €4.72
132
 photo_cameraImage coming soon 5181858 BLADE PROTECTION €98.08
133
 Rubber Washer D.5x18 SP.5 for Band Saw Femi 792 0123315 Rubber Washer D.5x18 SP.5 for Band Saw Femi 792 €1.76
134
 photo_cameraImage coming soon 1855803 COOLING LIQUID PIPE €4.19
135
 photo_cameraImage coming soon 5181688 CABLE PROTECTION €32.30
138
 photo_cameraImage coming soon 5152596 PROTECTION FIXING DEVICE €6.38
139
 photo_cameraImage coming soon 7130567 INTERNAL BEARING GROUP €33.49
141
 photo_cameraImage coming soon 5050137 HANDLE €12.63
143
 photo_cameraImage coming soon 5050136 HANDLE €12.63
144
 Bipolar Switch for Band Saws FEMI N215-N216-N266 0802324 Bipolar Switch for Band Saws FEMI N215-N216-N266 €12.00
145
 Femi N216XL - L Pipe Fitting 0241367 Femi N216XL - L Pipe Fitting €8.27
146
 photo_cameraImage coming soon 5871058 CABLE €7.33
150
 photo_cameraImage coming soon 5171037 PROTECTION PIN €4.28
153
 photo_cameraImage coming soon 0241443 PIPE FITTING €9.68
154
 photo_cameraImage coming soon 1855805 COOLING LIQUID PIPE €10.00
156
 photo_cameraImage coming soon 5142030 LEVER €6.27
159
 Damper Fulcrum for Stationary Band Saw Femi 792 5151506 Damper Fulcrum for Stationary Band Saw Femi 792 €5.35
161
 photo_cameraImage coming soon 5171041 DAMPER PIN €27.54
165
 Damper Tie Rod for Stationary Band Saw Femi 792 5173027 Damper Tie Rod for Stationary Band Saw Femi 792 €16.28
166
 Damper for Stationary Band Saw Femi 792 5155155 Damper for Stationary Band Saw Femi 792 €9.72
167
 photo_cameraImage coming soon 5040010 DAMPER BODY €31.24
168
 Spring Lock Washer for Stationary Band Saw Femi 792 5124061 Spring Lock Washer for Stationary Band Saw Femi 792 €9.72
169
 Compression Spring for Stationary Band Saw Femi N215XL 5080139 Compression Spring for Stationary Band Saw Femi N215XL €31.58
170
 Spring Guide Washer for Stationary Band Saw Femi 792 5124038 Spring Guide Washer for Stationary Band Saw Femi 792 €10.82
171
 photo_cameraImage coming soon 7130572 COMPLETE DAMPER GROUP €87.67
176
 Femi Band Saw N216XL Pipe Fitting 0241442 Femi Band Saw N216XL Pipe Fitting €8.27
179
 photo_cameraImage coming soon 5120638 Bearing Spacer For D.6x12 H.1,5 €1.53
180
 Ball Bearing 607 7x19x 6 2RS for Band Saws Femi 0600607 Ball Bearing 607 7x19x 6 2RS for Band Saws Femi €7.67
181
 photo_cameraImage coming soon 5100070 SCREW €16.73
182
 photo_cameraImage coming soon 5130943 BLADE GUIDE SUPPORT €32.15
183
 photo_cameraImage coming soon 0600626 BALL BEARING €9.37
185
 Washer D.6X12x1 for Band Saws Femi 785-791 0124027 Washer D.6X12x1 for Band Saws Femi 785-791 €0.84
186
 Sliding Guide for Band Saws FEMI 2200 XL-N215 XL-N216XL 5130942 Sliding Guide for Band Saws FEMI 2200 XL-N215 XL-N216XL €80.83
187
 photo_cameraImage coming soon 5100069 SCREW €16.73
188
 Spacer D.6x10xH10 mm for Stationary Band Saw Femi 792 0063025 Spacer D.6x10xH10 mm for Stationary Band Saw Femi 792 €3.05
190
 Knob Lever M10 for Band Saws FEMI 780 0147002 Knob Lever M10 for Band Saws FEMI 780 €9.00
191
 Left Sliding Protection for Band Saw Femi 792 5181683 Left Sliding Protection for Band Saw Femi 792 €54.96
192
 Clean Blade Felt "TYPE B" for Band Saw Femi 792 5181018 Clean Blade Felt "TYPE B" for Band Saw Femi 792 €2.77
193
 Esternal Felt Protection for Stationary Band Saw Femi 792 5181628 Esternal Felt Protection for Stationary Band Saw Femi 792 €15.24
195
 photo_cameraImage coming soon 5130747 SUPPORT €35.70
197
 Internal Felt Protection for Stationary Band Saw Femi 792 5181627 Internal Felt Protection for Stationary Band Saw Femi 792 €15.24
198
 Clean Blade Felt "TYPE A" for Stationary Band Saw Femi 792 5181017 Clean Blade Felt "TYPE A" for Stationary Band Saw Femi 792 €1.79
200
 photo_cameraImage coming soon 5401964 CONTROL PANEL PLATE €54.59
201
 Speed Commutator for Band Saws Femi 795 - 796 0820010 Speed Commutator for Band Saws Femi 795 - 796 €102.29
202
 photo_cameraImage coming soon 5137908 CONTROL PANEL BASE €78.27
203
 photo_cameraImage coming soon 5070002 CONTROL PANEL SUPPORT €146.39
204
 photo_cameraImage coming soon 0806007 PUSH BUTTON WITH LOCK €63.19
205
 photo_cameraImage coming soon 7213012 GEAR GROUP €114.15
207
 photo_cameraImage coming soon 5090119 WHEEL GEAR €43.55
210
 photo_cameraImage coming soon 0168513 PLASTIC CAP €1.23
211
 photo_cameraImage coming soon 5182545 GEAR COVER €181.05
213
 photo_cameraImage coming soon 7013626 ROTOR €130.02
214
 photo_cameraImage coming soon 5182866 SWITCH BOX €6.62
215
 photo_cameraImage coming soon 5081008 SPRING €2.47
218
 photo_cameraImage coming soon 7801103 MOTOR BODY €322.26
219
 photo_cameraImage coming soon 0112014 MOTOR FAN €19.47
220
 photo_cameraImage coming soon 5182849 FAN COVER €24.06
221
 photo_cameraImage coming soon 5182546 SWITCH COVER €5.29
223
 photo_cameraImage coming soon 0806027 VOLTAGE COIL €61.80
225
 Blade Tens. Device Cover + Led for Band Saws FEMI N215-216 XL 7820110 Blade Tens. Device Cover + Led for Band Saws FEMI N215-216 XL €15.00
226
 photo_cameraImage coming soon 0840202 TRANSFORMER €88.30
227
 photo_cameraImage coming soon 0810003 MAGNETOTHERMIC SWITCH €195.69
228
 photo_cameraImage coming soon 5137950 CONTROL PANEL BASE €80.34
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

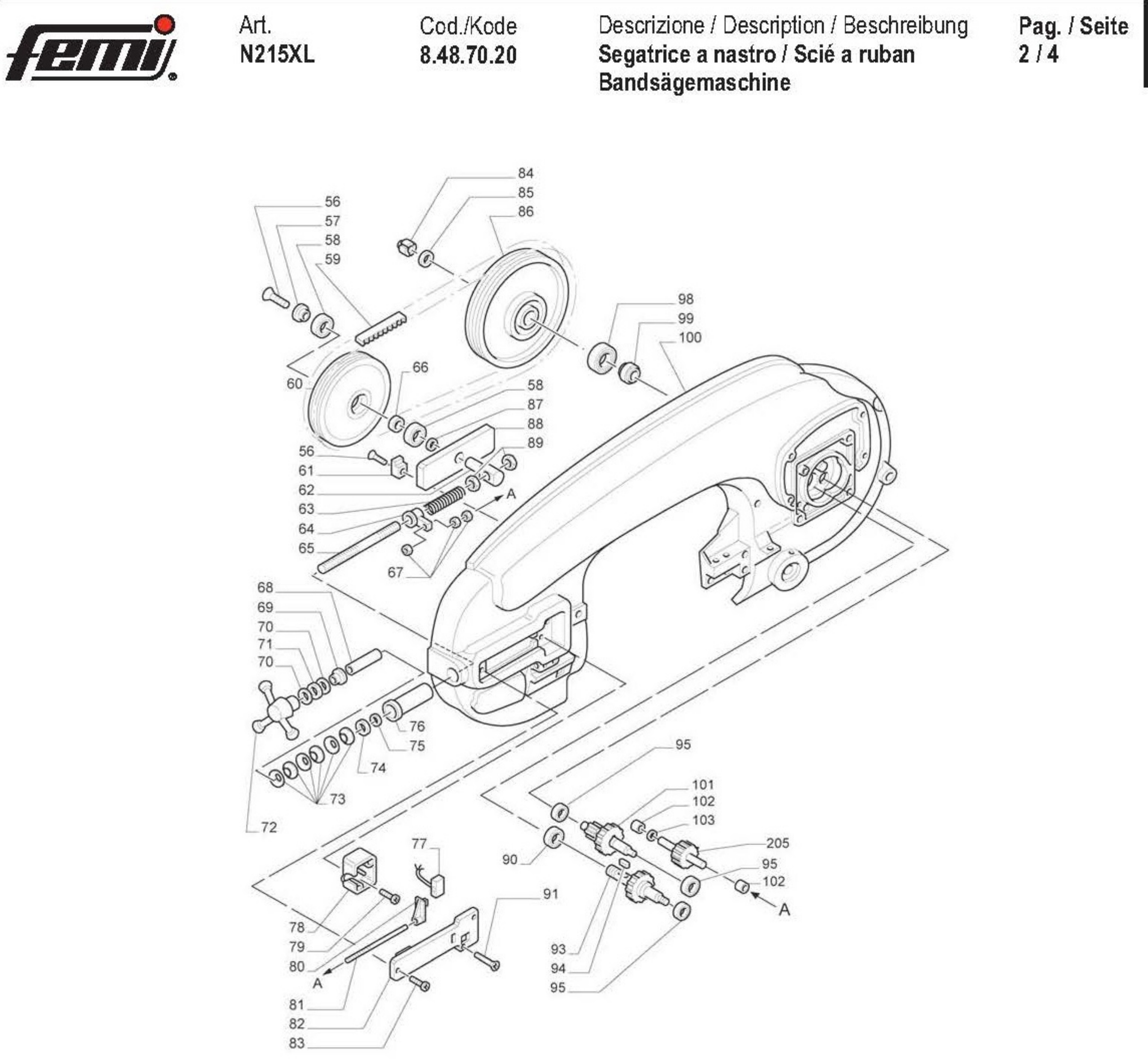

Esploso pagina 2
Pos. Item Price Buy
60
 photo_cameraImage coming soon 5214224 FREE WHEEL €87.57
61
 photo_cameraImage coming soon 5130746 GUIDE €13.44
62
 photo_cameraImage coming soon 5001562 SHAFT €25.51
63
 photo_cameraImage coming soon 5081007 SPRING €2.64
64
 photo_cameraImage coming soon 5142058 LEVER €2.78
65
 photo_cameraImage coming soon 5100505 BLADE TENSIONING SCREW €13.75
66
 photo_cameraImage coming soon 5120661 SPACER €5.61
68
 photo_cameraImage coming soon 5122017 SPRING CONTEINER €4.19
69
 photo_cameraImage coming soon 5124030 WASHER €6.38
70
 photo_cameraImage coming soon 0064002 BEARING FIFTH WHEEL €3.81
71
 Cage Bearing AXK 1528 for Band Saws FEMI 0711528 Cage Bearing AXK 1528 for Band Saws FEMI €10.93
72
 photo_cameraImage coming soon 0140099 BLADE TENSIONING KNOB €25.11
73
 Sping Washer D.16.3x31.5x1.75 for Band Saws Femi 0080260 Sping Washer D.16.3x31.5x1.75 for Band Saws Femi €2.16
75
 photo_cameraImage coming soon 5222009 SPRING DUST PROTECTION €1.53
76
 photo_cameraImage coming soon 5066016 BUSHING €25.19
77
 Microswitch for Stationary Band Saw Femi 792 0801101 Microswitch for Stationary Band Saw Femi 792 €10.18
78
 photo_cameraImage coming soon 5182842 SWITCH BOX €2.78
80
 photo_cameraImage coming soon 5143005 MICROSWITCH BUTTON €2.64
81
 photo_cameraImage coming soon 5142059 LEVER €5.91
82
 photo_cameraImage coming soon 5182531 PLASTIC COVER €7.48
84
 photo_cameraImage coming soon 0106120 SELF-LOCKING RING NUT €5.77
86
 Drive Wheel for Band Saws Femi N215XL - N216XL 5214026 Drive Wheel for Band Saws Femi N215XL - N216XL €97.59
87
 photo_cameraImage coming soon 0155149 THICKNESS WASHER €1.37
88
 photo_cameraImage coming soon 5130795 WHEEL SUPPORT €97.59
90
 photo_cameraImage coming soon 0606204 BALL BEARING €17.98
93
 photo_cameraImage coming soon 7213006 GEAR ASSY €142.17
94
 photo_cameraImage coming soon 0150139 FEATHER €1.37
95
 Ball Bearing 6200 RS 10x30x9 for Band Saws Femi 0586200 Ball Bearing 6200 RS 10x30x9 for Band Saws Femi €7.67
98
 photo_cameraImage coming soon 0606007 BALL BEARING €19.56
99
 Femi N215XL Bearing Spacer 5124054 Femi N215XL Bearing Spacer €14.86
100
 photo_cameraImage coming soon 5042810 BAND SAW BODY €636.45
101
 photo_cameraImage coming soon 7213010 GEAR GROUP €155.06
102
 Needle Bearing HK1212 for Band Saw Femi 791 0731212 Needle Bearing HK1212 for Band Saw Femi 791 €13.14
103
 Washer Thickness PS 12x18 for Band Saw Femi 780 0124026 Washer Thickness PS 12x18 for Band Saw Femi 780 €1.53
205
 photo_cameraImage coming soon 7213012 GEAR GROUP €114.15
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

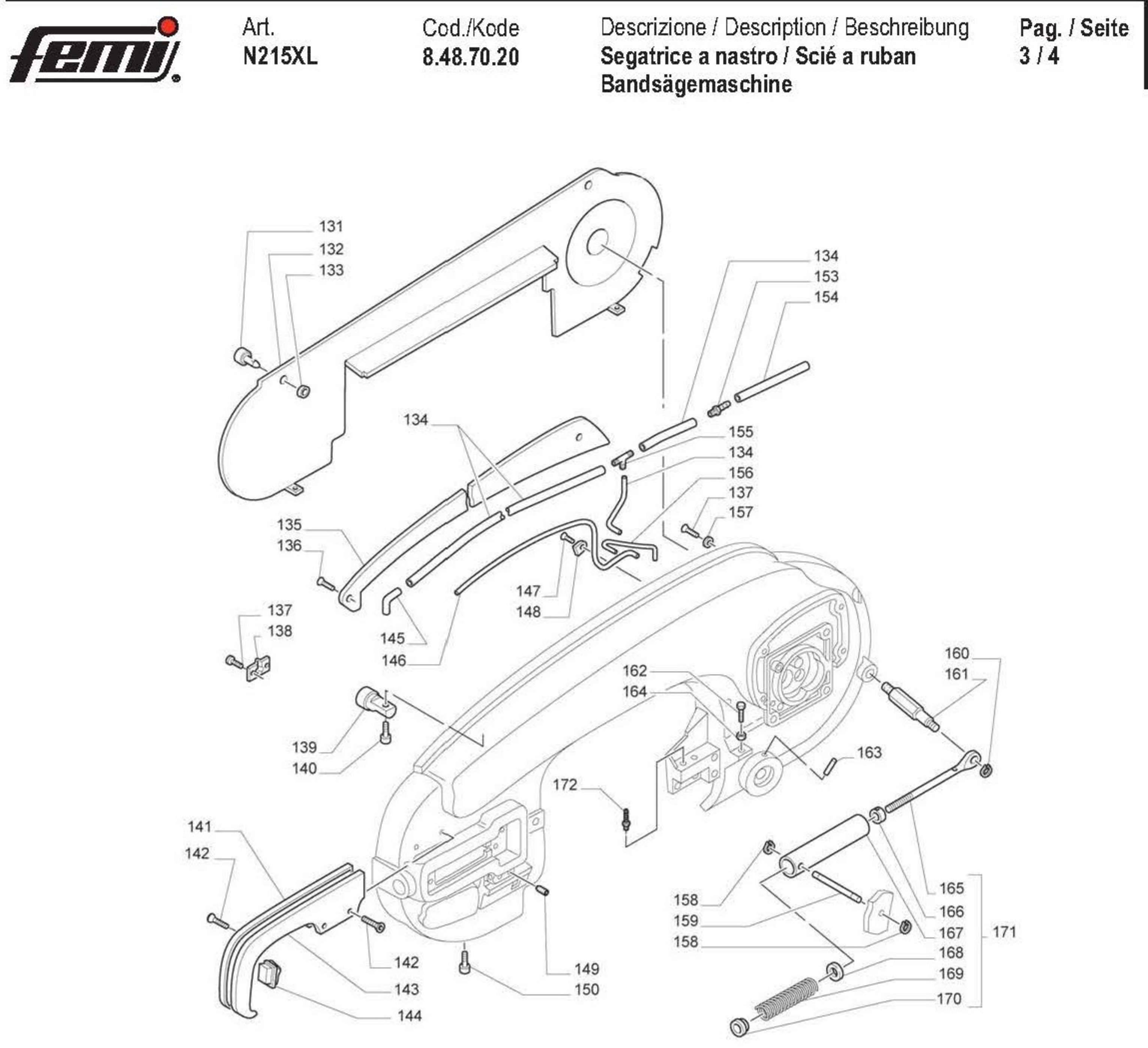

Esploso pagina 3
Pos. Item Price Buy
131
 Wing Knob Male M6x16 for Stationary Band Saw Femi 792 0140077 Wing Knob Male M6x16 for Stationary Band Saw Femi 792 €4.72
132
 photo_cameraImage coming soon 5181858 BLADE PROTECTION €98.08
133
 Rubber Washer D.5x18 SP.5 for Band Saw Femi 792 0123315 Rubber Washer D.5x18 SP.5 for Band Saw Femi 792 €1.76
134
 photo_cameraImage coming soon 1855803 COOLING LIQUID PIPE €4.19
135
 photo_cameraImage coming soon 5181688 CABLE PROTECTION €32.30
138
 photo_cameraImage coming soon 5152596 PROTECTION FIXING DEVICE €6.38
139
 photo_cameraImage coming soon 7130567 INTERNAL BEARING GROUP €33.49
141
 photo_cameraImage coming soon 5050137 HANDLE €12.63
143
 photo_cameraImage coming soon 5050136 HANDLE €12.63
144
 Bipolar Switch for Band Saws FEMI N215-N216-N266 0802324 Bipolar Switch for Band Saws FEMI N215-N216-N266 €12.00
145
 Femi N216XL - L Pipe Fitting 0241367 Femi N216XL - L Pipe Fitting €8.27
146
 photo_cameraImage coming soon 5871058 CABLE €7.33
150
 photo_cameraImage coming soon 5171037 PROTECTION PIN €4.28
153
 photo_cameraImage coming soon 0241443 PIPE FITTING €9.68
154
 photo_cameraImage coming soon 1855805 COOLING LIQUID PIPE €10.00
156
 photo_cameraImage coming soon 5142030 LEVER €6.27
159
 Damper Fulcrum for Stationary Band Saw Femi 792 5151506 Damper Fulcrum for Stationary Band Saw Femi 792 €5.35
161
 photo_cameraImage coming soon 5171041 DAMPER PIN €27.54
165
 Damper Tie Rod for Stationary Band Saw Femi 792 5173027 Damper Tie Rod for Stationary Band Saw Femi 792 €16.28
166
 Damper for Stationary Band Saw Femi 792 5155155 Damper for Stationary Band Saw Femi 792 €9.72
167
 photo_cameraImage coming soon 5040010 DAMPER BODY €31.24
168
 Spring Lock Washer for Stationary Band Saw Femi 792 5124061 Spring Lock Washer for Stationary Band Saw Femi 792 €9.72
169
 Compression Spring for Stationary Band Saw Femi N215XL 5080139 Compression Spring for Stationary Band Saw Femi N215XL €31.58
170
 Spring Guide Washer for Stationary Band Saw Femi 792 5124038 Spring Guide Washer for Stationary Band Saw Femi 792 €10.82
171
 photo_cameraImage coming soon 7130572 COMPLETE DAMPER GROUP €87.67
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

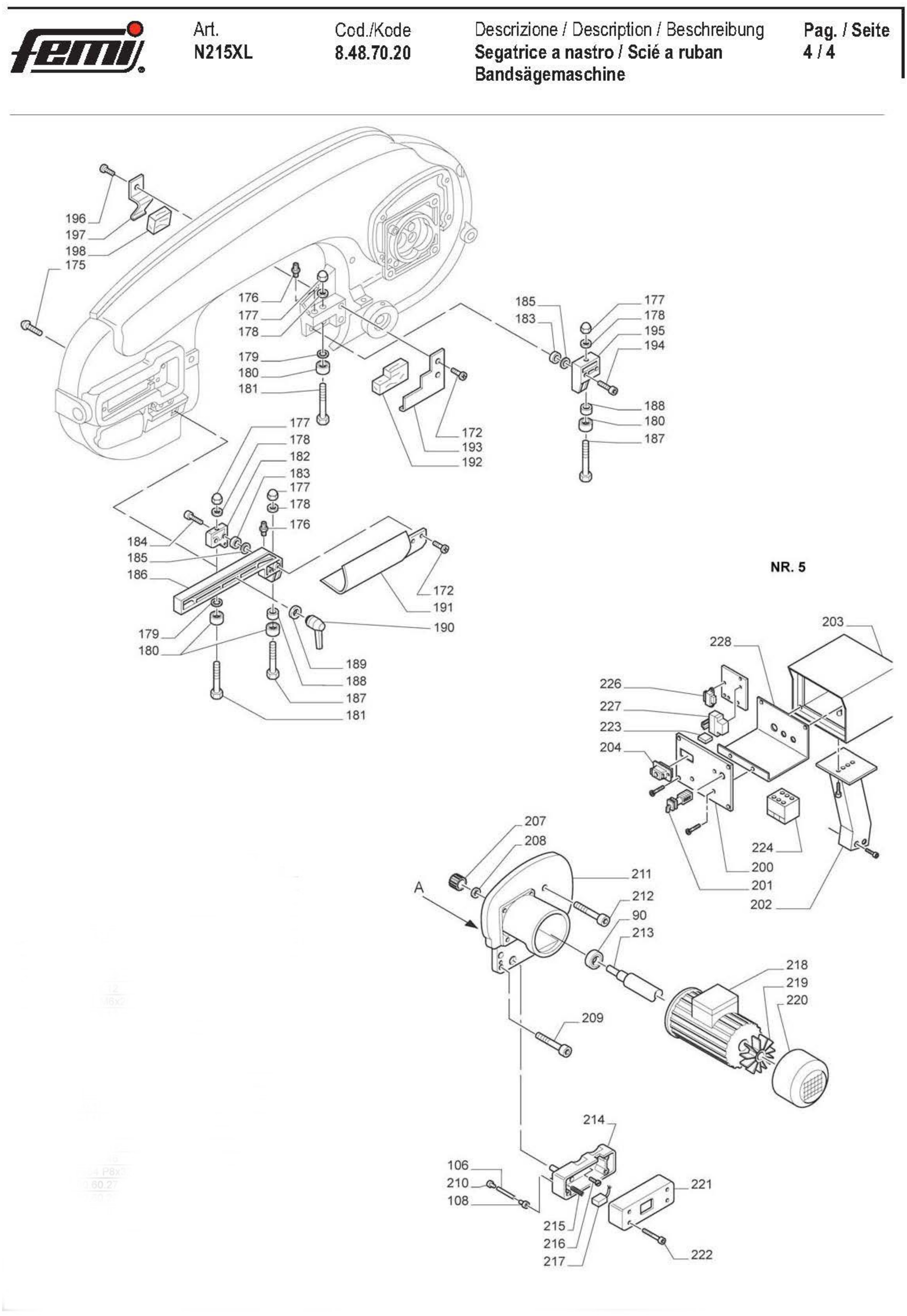

Esploso pagina 4
Pos. Item Price Buy
106
 photo_cameraImage coming soon 1180304 MICROSWITCH LEVER €7.02
108
 photo_cameraImage coming soon 0168515 PLASTIC CAP €1.30
176
 Femi Band Saw N216XL Pipe Fitting 0241442 Femi Band Saw N216XL Pipe Fitting €8.27
179
 photo_cameraImage coming soon 5120638 Bearing Spacer For D.6x12 H.1,5 €1.53
180
 Ball Bearing 607 7x19x 6 2RS for Band Saws Femi 0600607 Ball Bearing 607 7x19x 6 2RS for Band Saws Femi €7.67
181
 photo_cameraImage coming soon 5100070 SCREW €16.73
182
 photo_cameraImage coming soon 5130943 BLADE GUIDE SUPPORT €32.15
183
 photo_cameraImage coming soon 0600626 BALL BEARING €9.37
185
 Washer D.6X12x1 for Band Saws Femi 785-791 0124027 Washer D.6X12x1 for Band Saws Femi 785-791 €0.84
186
 Sliding Guide for Band Saws FEMI 2200 XL-N215 XL-N216XL 5130942 Sliding Guide for Band Saws FEMI 2200 XL-N215 XL-N216XL €80.83
187
 photo_cameraImage coming soon 5100069 SCREW €16.73
188
 Spacer D.6x10xH10 mm for Stationary Band Saw Femi 792 0063025 Spacer D.6x10xH10 mm for Stationary Band Saw Femi 792 €3.05
190
 Knob Lever M10 for Band Saws FEMI 780 0147002 Knob Lever M10 for Band Saws FEMI 780 €9.00
191
 Left Sliding Protection for Band Saw Femi 792 5181683 Left Sliding Protection for Band Saw Femi 792 €54.96
192
 Clean Blade Felt "TYPE B" for Band Saw Femi 792 5181018 Clean Blade Felt "TYPE B" for Band Saw Femi 792 €2.77
193
 Esternal Felt Protection for Stationary Band Saw Femi 792 5181628 Esternal Felt Protection for Stationary Band Saw Femi 792 €15.24
195
 photo_cameraImage coming soon 5130747 SUPPORT €35.70
197
 Internal Felt Protection for Stationary Band Saw Femi 792 5181627 Internal Felt Protection for Stationary Band Saw Femi 792 €15.24
198
 Clean Blade Felt "TYPE A" for Stationary Band Saw Femi 792 5181017 Clean Blade Felt "TYPE A" for Stationary Band Saw Femi 792 €1.79
200
 photo_cameraImage coming soon 5401964 CONTROL PANEL PLATE €54.59
201
 Speed Commutator for Band Saws Femi 795 - 796 0820010 Speed Commutator for Band Saws Femi 795 - 796 €102.29
202
 photo_cameraImage coming soon 5137908 CONTROL PANEL BASE €78.27
203
 photo_cameraImage coming soon 5070002 CONTROL PANEL SUPPORT €146.39
204
 photo_cameraImage coming soon 0806007 PUSH BUTTON WITH LOCK €63.19
207
 photo_cameraImage coming soon 5090119 WHEEL GEAR €43.55
210
 photo_cameraImage coming soon 0168513 PLASTIC CAP €1.23
211
 photo_cameraImage coming soon 5182545 GEAR COVER €181.05
213
 photo_cameraImage coming soon 7013626 ROTOR €130.02
214
 photo_cameraImage coming soon 5182866 SWITCH BOX €6.62
215
 photo_cameraImage coming soon 5081008 SPRING €2.47
218
 photo_cameraImage coming soon 7801103 MOTOR BODY €322.26
219
 photo_cameraImage coming soon 0112014 MOTOR FAN €19.47
220
 photo_cameraImage coming soon 5182849 FAN COVER €24.06
221
 photo_cameraImage coming soon 5182546 SWITCH COVER €5.29
223
 photo_cameraImage coming soon 0806027 VOLTAGE COIL €61.80
226
 photo_cameraImage coming soon 0840202 TRANSFORMER €88.30
227
 photo_cameraImage coming soon 0810003 MAGNETOTHERMIC SWITCH €195.69
228
 photo_cameraImage coming soon 5137950 CONTROL PANEL BASE €80.34

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Femi Spare Parts for Stationary Band Saws N215 XL-8487020

Femi Genuine spare parts or replacement parts for to repair Stationary Band Saws N215 XL - 8487020.

In the following table, look for the model of the Band Saw and the respective parts of the code.
Femi N215 XL - 8487020

Band Saws N215 XL-8487020
# Part Num. Description
1 5130796 STOP PLATE
3 0147007 HAND LEVER
6 0147017 HAND LEVER
7 5182532 COVER
8 5152594 VICE JAW
9 5152593 VICE JAW
11 5130864 VICE SCREW SUPPORT
14 0152630 ELASTIC PIN
16 5152611 VICE JAW
17 5130863 MOBILE VICE
18 5159517 INDEX
20 0140059 LEVER COVER
22 5171040 PIN
25 0140073 HANDGRIP
26 5142057 LEVER
27 5171035 BUSHING
30 5124033 WASHER
31 0120708 PLAIN WASHER
34 5133703 TANK BASE
35 7113524 ELECTRIC PUMP
37 7130536 ROD STOP GROUP
38 5182533 PUMP SUPPORT
39 5182534 TANK FILTER
40 5124056 WASHER
43 0402905 RIVET
44 0124032 PLAIN WASHER
46 5171038 VICE PIN
47 0101716 SELF-LOCKING NUT
49 0606203 BALL BEARING
50 5137964 SWIVEL SUPPORT
51 0606306 BALL BEARING
52 5171039 JOINT PIN
53 5063036 BUSHING
60 5214224 FREE WHEEL
61 5130746 GUIDE
62 5001562 SHAFT
63 5081007 SPRING
64 5142058 LEVER
65 5100505 BLADE TENSIONING SCREW
66 5120661 SPACER
68 5122017 SPRING CONTEINER
69 5124030 WASHER
70 0064002 BEARING FIFTH WHEEL
71 0711528 CAGE BEARING
72 0140099 BLADE TENSIONING KNOB
73 0080260 SPRING WASHER
75 5222009 SPRING DUST PROTECTION
76 5066016 BUSHING
77 0801101 MICROSWITCH
78 5182842 SWITCH BOX
80 5143005 MICROSWITCH BUTTON
81 5142059 LEVER
82 5182531 PLASTIC COVER
84 0106120 SELF-LOCKING RING NUT
86 5214026 DRIVING WHEEL
87 0155149 THICKNESS WASHER
88 5130795 WHEEL SUPPORT
90 0606204 BALL BEARING
93 7213006 GEAR GROUP
94 0150139 FEATHER
95 0586200 BALL BEARING
96 5024118 STATOR
98 0606007 BALL BEARING
99 5124054 SPACER
100 5042810 BAND SAW BODY
101 7213010 GEAR GROUP
102 0731212 CAGE BEARING
103 0124026 THICKNESS WASHER
105 5850006 BRUSHES SUPPORT
106 1180304 MICROSWITCH LEVER
108 0168515 PLASTIC CAP
109 5133772 COLUMN RIGHT
110 5133773 COLUMN LEFT
113 5850111 FAN WITH MAGNETIC RING
131 0140077 WING NUT
132 5181858 BLADE PROTECTION
133 0123315 RUBBER WASHER
134 1855803 COOLING LIQUID PIPE
135 5181688 CABLE PROTECTION
138 5152596 PROTECTION FIXING DEVICE
139 7130567 INTERNAL BEARING GROUP
141 5050137 HANDLE
143 5050136 HANDLE
144 0802324 SWITCH
145 0241367 PIPE FITTING
146 5871058 CABLE
148 5154103 CABLE LOCKING DEVICE
150 5171037 PROTECTION PIN
153 0241443 PIPE FITTING
154 1855805 COOLING LIQUID PIPE
156 5142030 LEVER
159 5151506 DAMPER FULCRUM
161 5171041 DAMPER PIN
165 5173027 TIE ROD
166 5155155 DAMPER
167 5040010 DAMPER BODY
168 5124061 WASHER
169 5080139 COMPRESSION SPRING
170 5124038 WASHER
171 7130572 COMPLETE DAMPER GROUP
176 0241442 PIPE FITTING
179 5120638 SPACER
180 0600607 BALL BEARING
181 5100070 SCREW
182 5130943 BLADE GUIDE SUPPORT
183 0600626 BALL BEARING
185 0124027 THICKNESS WASHER
186 5130942 MOBILE BLADE GUIDE
187 5100069 SCREW
188 0063025 BUSHING
189 0124029 PLAIN WASHER
190 0147002 HAND LEVER
191 5181683 SLIDING PROTECTION
192 5181018 BLADE CLEANER
193 5181628 PROTECTION
195 5130747 SUPPORT
197 5181627 PROTECTION
198 5181017 BLADE CLEANER
200 5401964 CONTROL PANEL PLATE
201 0820010 SPEED COMMUTATOR
202 5137908 CONTROL PANEL BASE
203 5070002 CONTROL PANEL SUPPORT
204 0806007 PUSH BUTTON WITH LOCK
205 7213012 GEAR GROUP
207 5090119 WHEEL GEAR
210 0168513 PLASTIC CAP
211 5182545 GEAR COVER
213 7013626 ROTOR
214 5182866 SWITCH BOX
215 5081008 SPRING
218 7801103 MOTOR BODY
219 0112014 MOTOR FAN
220 5182849 FAN COVER
221 5182546 SWITCH COVER
223 0806027 VOLTAGE COIL
224 0811001 MINI-CONTACTOR
225 7820110 BLADE TENSIONING DEVICE COVER
226 0840202 TRANSFORMER
227 0810003 MAGNETOTHERMIC SWITCH
228 5137950 CONTROL PANEL BASE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Femi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Femi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Femi N215 XL - 8487020
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM CODE OR S/N FEMI:
FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS

Specific References

New

Download

Diagram Femi N215 XL

Diagram Femi N215 XL

Download (912.65KB)

You might also like

Steel Tape for Femi 785P
Femi SKU: CPD45703
Steel Band for Band Saw Femi 785P
Steel Band for Band Saw Femi 785P Femi Steel Band for Band Saw 785P-XL - article 45703 Size: - 1735 x 13 x 0.9 mm - 6/10 Z/I " - 60/80 Mt / min - Codice : CPD45703
AVAILABLE €41.52
Details
Belt for Cutting Iron and Metals
bricoutensili.com SKU: LAMEFERRO
Belt for Cutting Iron and Metals
Belt for Cutting Iron and Metals Blades and steel stradate Belt, carbon steel, for metal cutting. Used on iron and metal saws, belt fixed or mobile.
on 7/10 Business Days Approx. €21.71
Details
Switch for Band Saws FEMI 780-781-783-784-785
Femi SKU: 0802317
Switch for Band Saws FEMI 780-781-783-784-785
Switch for Band Saws FEMI 780-781-783-784-785 Genuine part FEMI, 8A Bipolar Switch with Button for Band Saws 780P - 781 - 785P - 783XL - ABS 105 - 780XL - 784XL - 785XL. Part for...
Usually Ships in: 7/10 Business Days Approx. €12.00
Details
Knob Lever M10 for Band Saws FEMI 780
Femi SKU: 0147002
Knob Lever M10 for Band Saws FEMI 780
Knob Lever M10 for Band Saws FEMI 780 Genuine spare part FEMI, Knob Lever Black - ART.522-83-M 10 for Band Saws FEMI, 780 / 781-780P-ABS NG 160-780XL-782XL-783XL-SN105XL . Part for the following products: - FEMI 791/848222...
Last items in stock €9.00
Details
Fan Motor with Magnetic Core for Band Saws FEMI
Femi SKU: 5850111
Fan Motor with Magnetic Core for Band Saws FEMI
Fan Motor with Magnetic Core for Band Saws FEMI Original part FEMI, Fan motor with built-in magnetic core for Band Saws, 780/781 - 782 - 783XL - 784XL - 785-791 - NG120XL - NG160 - N215 - N216XL - 2200 XL. Part for the following...
Last items in stock €10.50
Details
Water Pump for Band Saws FEMI NG201-N215-216-265-266XL
Femi SKU: 7113524
Water Pump for Band Saws FEMI NG201-N215-216-265-266XL
Water Pump for Band Saws FEMI NG201-N215-216-265-266XL Genuine part FEMI, Water Pump for FEMI Band Saws, N215 XL - 2200 XL - NG 201 - N216XL - N265 XL - N266 XL - N266DA XL. Part for the following models: -  Stationary Band Saw...
on 7/10 Business Days Approx €113.30
Details
Knob Lever M6x15 for Band Saws FEMI N215-216 XL
Femi SKU: 0147007
Knob Lever M6x15 for Band Saws FEMI N215-216 XL
Knob Lever M6x15 for Band Saws FEMI N215-216 XL Genuine spare part FEMI, Knob Lever Black - Art. 523-43 M 6X15 for Band Saws FEMI, N216 XL-8487021 - N215 XL-8487020 - 2200 XL-8487022 - NG 201-8482022. Parts for the following models: -...
AVAILABLE €9.07
Details
Carbon Brushes Holder for Band Saws Femi 785P
Femi SKU: 5850006
Carbon Brushes Holder for Band Saws Femi 785P
Carbon Brushes Holder for Band Saws Femi 785P Genuine Parts Femi, Carbon Brushes Holder, for Transportable Band Saws 785 - 785P - 787XL  - N216XL - N215 XL - 2200 XL - NG 201...
Last items in stock €18.00
Details
Washer Thickness PS 12x18 for Band Saw Femi 780
Femi SKU: 0124026
Washer Thickness PS 12x18 for Band Saw Femi 780
Washer Thickness PS 12x18 for Band Saw Femi 780 Origianl Spare Part FEMI, Washer Thickness 1 PS 12x18 for Band Saw Femi 780 - 780P - 781 - 782 - 785 - 785 Analog - 785 Digital - N216XL - NG 201 - SN105 - 2200 XL - N215 XL - 787XL All...
AVAILABLE €1.53
Details
Bipolar Switch for Band Saws FEMI N215-N216-N266
Femi SKU: 0802324
Bipolar Switch for Band Saws FEMI N215-N216-N266
Bipolar Switch for Band Saws FEMI N215-N216-N266 Genuine part FEMI, Bipolar Switch for Band Saws N215 XL - N216XL - N265 XL - XL N266DA - NG 201 - ABS NG160 - NG160 - NG120XL. Part for the following items: - Stationary Band...
AVAILABLE €12.00
Details
Washer D.6X12x1 for Band Saws Femi 785-791 Sale
Femi SKU: 0124027
Washer D.6X12x1 for Band Saws Femi 785-791
Washer D.6X12x1 for Band Saws Femi 785-791 Genuine part FEMI,Washer D.6X12x1 mm for Band Saws Femi NG 201 - 785 - 791 - N215 XL - 2200 XL Parts for the following products: - Band Saw Femi NG 201-8482022 - Band Saw Femi 785-8486020 -...
AVAILABLE €0.84
Details
Drive Wheel for Band Saws Femi N215XL - N216XL
Femi SKU: 5214026
Drive Wheel for Band Saws Femi N215XL - N216XL
Drive Wheel for Band Saws Femi N215XL - N216XL Genuine Part Femi, Drive Wheel for Band Saws N215XL - N216XL - 2200XL - NG 201 - 792 - 787XL All Road Part for the following items: - Band Saw...
Last items in stock €97.59
Details
Microswitch for Stationary Band Saw Femi 792
Femi SKU: 0801101
Microswitch for Stationary Band Saw Femi 792
Microswitch for Stationary Band Saw Femi 792 Genuine part Femi, Microswitch V16-1A6(R) for Stationary Band Saws 792 - N266DA XL - N266 XL - NG 201 - N216XL - 1750 XL - N215 XL. Part for the following items: - Stationary Band Saw...
AVAILABLE €10.18
Details
Pression Handle for Stationary Band Saw Femi 792
Femi SKU: 0140073
Pression Handle for Stationary Band Saw Femi 792
Pression Handle for Stationary Band Saw Femi 792 Genuine part Femi, Pression Handle ART. 135-83 d1/12 for Stationary Band Saws 792 - N266DA XL - N266 XL - N265 XL - N216XL - N215 XL. Part for the following items: - Stationary Band...
AVAILABLE €11.02
Details
Single Phase Water Pump for Band Saws FEMI
Femi SKU: 7113523
Single Phase Water Pump for Band Saws FEMI
Single Phase Water Pump for Band Saws FEMI Genuine part FEMI, Single Phase Water Pump for FEMI Band Saws, N215 XL - 2200 XL - NG 201 - N216XL - N265 XL - N266 XL - N266DA XL. Parts for the following models: - Stationary Band Saw FEMI...
Last items in stock €125.51
Details
Swivel Support Bushing for Stationary Band Saw Femi 792
Femi SKU: 5063036
Swivel Support Bushing for Stationary Band Saw Femi 792
Swivel Support Bushing for Stationary Band Saw Femi 792 Genuine part Femi, Swivel Support Bushing for Band Saws 792 - N215 XL - N216XL - 2200 XL - NG 201. Part for the following items: - Stationary Band Saw 792 - 8482020 - Stationary...
AVAILABLE €6.83
Details
Wing Knob Male M6x16 for Stationary Band Saw Femi 792
Femi SKU: 0140077
Wing Knob Male M6x16 for Stationary Band Saw Femi 792
Wing Bolt Male M6x16 for Stationary Band Saw Femi 792 Genuine part Femi, Wing Knob Male M6x16 for Stationary Band Saws 792 N266DA XL - N266 XL - N265 XL -  N216XL - N215 XL - NG200 - NG 201. Part for the following items: - Band Saw...
AVAILABLE €4.72
Details
Esternal Felt Protection for Stationary Band Saw Femi 792
Femi SKU: 5181628
Esternal Felt Protection for Stationary Band Saw Femi 792
Esternal Felt Protection for Stationary Band Saw Femi 792 Genuine part Femi, Esternal Felt Protection for Stationary Band Saws N216XL - NG200 - NG 201 - 791 - 792. Part for the following items: - Band Saw 792 - 8482020 - Band Saw...
AVAILABLE €15.24
Details
Internal Felt Protection for Stationary Band Saw Femi 792
Femi SKU: 5181627
Internal Felt Protection for Stationary Band Saw Femi 792
Internal Felt Protection for Stationary Band Saw Femi 792 Genuine part Femi, Internal Felt Protection for Stationary Band Saws N216XL - NG200 - NG 201 - 791 - 792. Part for the following items: - Band Saw 792 - 8482020 - Band Saw...
AVAILABLE €15.24
Details
Clean Blade Felt "TYPE A" for Stationary Band Saw Femi 792
Femi SKU: 5181017
Clean Blade Felt "TYPE A" for Stationary Band Saw Femi 792
Clean Blade Felt "TYPE A" for Stationary Band Saw Femi 792 Genuine part Femi, Clean Blade Felt "TYPE A" for Stationary Band Saws N215 XL - N216XL - NG200 - NG 201 - 791 - 792. Part for the following items: - Band Saw 792 - 8482020 -...
AVAILABLE €1.79
Details
Clean Blade Felt "TYPE B" for Band Saw Femi 792
Femi SKU: 5181018
Clean Blade Felt "TYPE B" for Band Saw Femi 792
Clean Blade Felt "TYPE B" for Band Saw Femi 792 Genuine replacement part Femi, Clean Blade Felt "TYPE B" for Stationary Band Saws N215 XL - N216XL - NG200 - NG 201 - 791 - 792. Part for the following items: - Band Saw 792 - 8482020 -...
AVAILABLE €2.77
Details
Rubber Washer D.5x18 SP.5 for Band Saw Femi 792
Femi SKU: 0123315
Rubber Washer D.5x18 SP.5 for Band Saw Femi 792
Rubber Washer D.5x18 SP.5 for Band Saw Femi 792 Genuine part Femi, Rubber Washer D.5x18 SP.5 for Stationary Band Saws 792 N266DA XL - N266 XL - N265 XL -  N216XL - N215 XL - NG200 - NG 201. Part for the following items: - Band Saw...
AVAILABLE €1.76
Details
Left Sliding Protection for Band Saw Femi 792
Femi SKU: 5181683
Left Sliding Protection for Band Saw Femi 792
Left Sliding Protection for Band Saw Femi 792 Genuine replacement part Femi, Left Sliding Protection for Stationary Band Saws 792 - N215 XL - N216 XL - 2200 XL - NG 200 - NG 201. Part for the following items: - Band Saw 792 - 8482020...
AVAILABLE €54.96
Details
Ball Bearing 6200 RS 10x30x9 for Band Saws Femi
Femi SKU: 0586200
Ball Bearing 6200 RS 10x30x9 for Band Saws Femi
Ball Bearing 6200 RS 10x30x9 for Band Saws Femi Genuine spare part FEMI, Ball Bearing 624 4x13x5 ZZ for Band Saws Femi Part for the following products: - Band Saw N216XL-8487021 - Band Saw ABS NG160-8486080 - Band Saw NG200 - NG201 -...
AVAILABLE €7.67
Details
Swivel Support for Band Saws Femi N215XL - N216XL
Femi SKU: 5137964
Swivel Support for Band Saws Femi N215XL - N216XL
Swivel Support for Band Saws Femi N215XL - N216XL Original Replacement Part Femi, Swivel Support Ral 7000 for Band Saws N215XL - N216XL - NG200 - NG201. Part for the following items: - Band Saw N215XL - 8487020 - Band Saw N216XL -...
Last items in stock €134.78
Details
Sping Washer D.16.3x31.5x1.75 for Band Saws Femi
Femi SKU: 0080260
Sping Washer D.16.3x31.5x1.75 for Band Saws Femi
Sping Washer D.16.3x31.5x1.75 for Band Saws Femi Genuine part FEMI, Spring Washer D.16.3x31.5x1.75 for Band Saws Femi.  Parts for the following models: -  MITRE SAW XXX-8430021 - XXX ALU-8432021 -  MITRE SAW FEMI XXX2-XXX2 ALU...
AVAILABLE €2.16
Details
Speed Commutator for Band Saws Femi 795 - 796
Femi SKU: 0820010
Speed Commutator for Band Saws Femi 795 - 796
Speed Commutator for Band Saws Femi 795 - 796 Genuine Part Femi, Speed Commutator for Band Saws 795 8488020 - 796 8488021. Part for the following items: -  Band Saw 795 8488020 -  Band Saw 796 8488021 -  Band Saw N215 XL - 8487020...
Last items in stock €102.29
Details
Damper for Stationary Band Saw Femi 792
Femi SKU: 5155155
Damper for Stationary Band Saw Femi 792
Damper for Stationary Band Saw Femi 792 Genuine part Femi, Damper for Stationary Band Saws 792 N266DA XL - N266 XL - N265 XL -  N216XL - N215 XL - NG200 - NG 201....
AVAILABLE €9.72
Details
Damper Tie Rod for Stationary Band Saw Femi 792
Femi SKU: 5173027
Damper Tie Rod for Stationary Band Saw Femi 792
Damper Tie Rod for Stationary Band Saw Femi 792 Genuine part Femi, Damper Tie Rod for Stationary Band Saws 792 N266DA XL - N266 XL - N265 XL -  N216XL - N215 XL - NG200...
Last items in stock €16.28
Details
Damper Fulcrum for Stationary Band Saw Femi 792
Femi SKU: 5151506
Damper Fulcrum for Stationary Band Saw Femi 792
Damper Fulcrum for Stationary Band Saw Femi 792 Genuine part Femi, Damper Fulcrum for Stationary Band Saws 792 N266DA XL - N266 XL - N265 XL -  N216XL - N215 XL - NG200...
Last items in stock €5.35
Details
Femi N215XL Bearing Spacer
Femi SKU: 5124054
Femi N215XL Bearing Spacer
Femi N215XL Bearing Spacer Genuine Part Femi, Ball Bearing Setting Spacer for Band Saws N215XL - N216XL - 2200XL - NG 201 - 792 - 787XL All Road Part for the following items: - FEMI N216XL - 8487021 -...
AVAILABLE €14.86
Details
Femi Band Saw N216XL Pipe Fitting
Femi SKU: 0241442
Femi Band Saw N216XL Pipe Fitting
Femi Band Saw N216XL Pipe Fitting Genuine spare part FEMI, Pipe Fitting for Band Saw N216XL. Part for the following products: - Femi N216XL - 8487021 - Femi NG200 NG201 8482021 2022 - Femi 2200DA XL - 8487024 - Femi 791 -...
Last items in stock €8.27
Details
Femi N216XL - L Pipe Fitting
Femi SKU: 0241367
Femi N216XL - L Pipe Fitting
Femi Band Saw N216XL - L Pipe Fitting Genuine spare part FEMI, Pipe Fitting for Band Saw N216XL. Part for the following products: - Femi N216XL - 8487021 - Femi NG200 NG201 8482021 2022 - Femi 2200DA XL - 8487024 - Femi...
AVAILABLE €8.27
Details
Comments (0)
