Femi Spare Parts for Belt Sanders 510-511

SKU: Femi 510-511
€44.88
VAT included

Femi Spare Parts for Belt Sanders 510-511

Femi genuine spare parts or replacemtents parts for to repair Belt Sander 510 - 8266031 - 511 - 8266021.
Femi Spare Parts for Belt Sanders 510-511
  • Femi Spare Parts for Belt Sanders 510-511
  • Femi Spare Parts for Belt Sanders 510-511

Femi Spare Parts for Belt Sanders 510-511

SKU: Femi 510-511 Condition: New
€44.88
VAT included

Femi Spare Parts for Belt Sanders 510-511

Femi genuine spare parts or replacemtents parts for to repair Belt Sander 510 - 8266031 - 511 - 8266021.
settings 31 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Last items in stock

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM CODE OR S/N FEMI:: FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

31 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 5181720 SLIDING PROTECTION €24.46
2
photo_cameraImage coming soon 0140063 HANDWHEEL €3.25
3
photo_cameraImage coming soon 0107002 WING NUT €1.93
9
photo_cameraImage coming soon 0106125 SELF-LOCKING RING NUT €8.19
12
photo_cameraImage coming soon 0140044 HANDWHEEL €3.86
13
photo_cameraImage coming soon 7801812 MOTOR €301.40
13
photo_cameraImage coming soon 7801813 MOTOR €301.40
19
photo_cameraImage coming soon 5130372 SQUARE €20.60
20
photo_cameraImage coming soon 0802617 SWITCH €40.74
20
Three Phase 380V Switch for Belt Sanders Femi 510 - 511 0803617 Three Phase 380V Switch for Belt Sanders Femi 510 - 511 €41.74
21
photo_cameraImage coming soon 5182861 SWITCH BOX €11.58
22
photo_cameraImage coming soon 5130365 REST PLATE €2.57
23
photo_cameraImage coming soon 0152640 ELASTIC PIN €1.93
26
Femi Graphite Cloth Sheet for Belt Sander 510-511 5130726 Femi Graphite Cloth Sheet for Belt Sander 510-511 €28.34
27
photo_cameraImage coming soon 5130706 PULLEY GUIDE €18.02
29
photo_cameraImage coming soon 5137898 HONING MACHINE BASE €191.45
33
photo_cameraImage coming soon 5142021 LEVER €11.07
35
photo_cameraImage coming soon 5041005 To cap Rubber Foot €4.73
36
photo_cameraImage coming soon 5133605 Rubber foot €3.19
38
photo_cameraImage coming soon 5181721 PROTECTION €37.21
41
photo_cameraImage coming soon 5080113 SPRING €6.43
43
photo_cameraImage coming soon 5137764 SQUARE €5.79
44
photo_cameraImage coming soon 5173018 TIE ROD €22.53
46
photo_cameraImage coming soon 5214014 DRIVING WHEEL €92.57
51
photo_cameraImage coming soon 0107001 WING NUT €2.57
54
photo_cameraImage coming soon 5214217 FREE WHEEL €51.37
56
photo_cameraImage coming soon 0526202 BALL BEARING €8.78
58
photo_cameraImage coming soon 5130725 BLADE TENSIONING PLATE €2.57
59
photo_cameraImage coming soon 5002053 SHAFT €32.18
500
photo_cameraImage coming soon 3239920 PZ 10 SANDING BELTS 100x1000 GR.50 €129.93
501
photo_cameraImage coming soon 3239921 PZ 10 SANDING BELTS 100x1000 GR.80 €129.93

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Femi Spare Parts for Belt Sanders 510-511

Femi genuine spare parts or replacemtents parts for to repair Belt Sander 510 - 8266031 - 511 - 8266021.

In the following table, look for the model of Belt Sander and the respective parts of the code.
Femi 510-511

 Belt Sander 510-511
# Part Num. Description
1 5181720 SLIDING PROTECTION
2 0140063 HANDWHEEL
3 0107002 WING NUT
9 0106125 SELF-LOCKING RING NUT
12 0140044 HANDWHEEL
13 7801812 MOTOR
13 7801813 MOTOR
19 5130372 SQUARE
20 0802617 SWITCH
20 0803617 SWITCH
21 5182861 SWITCH BOX
22 5130365 REST PLATE
23 0152640 ELASTIC PIN
26 5130726 GRAPHITE CLOTH PLATE
27 5130706 PULLEY GUIDE
29 5137898 HONING MACHINE BASE
30 0120206 WASHER
33 5142021 LEVER
34 0120710 PLAIN WASHER
35 5041005 RUBBER FOOT COVER
36 5133605 RUBBER FOOT
38 5181721 PROTECTION
41 5080113 SPRING
43 5137764 SQUARE
44 5173018 TIE ROD
46 5214014 DRIVING WHEEL
51 0107001 WING NUT
53 0120806 PLAIN WASHER
54 5214217 FREE WHEEL
55 0151115 SNAP RING
56 0526202 BALL BEARING
58 5130725 BLADE TENSIONING PLATE
59 5002053 SHAFT
61 0124029 PLAIN WASHER
500 3239920 PZ 10 SANDING BELTS 100x1000 GR.50
501 3239921 PZ 10 SANDING BELTS 100x1000 GR.80
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s FEMI websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to FEMI brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Femi 510-511
3 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM CODE OR S/N FEMI:
FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS

Specific References

New

Download

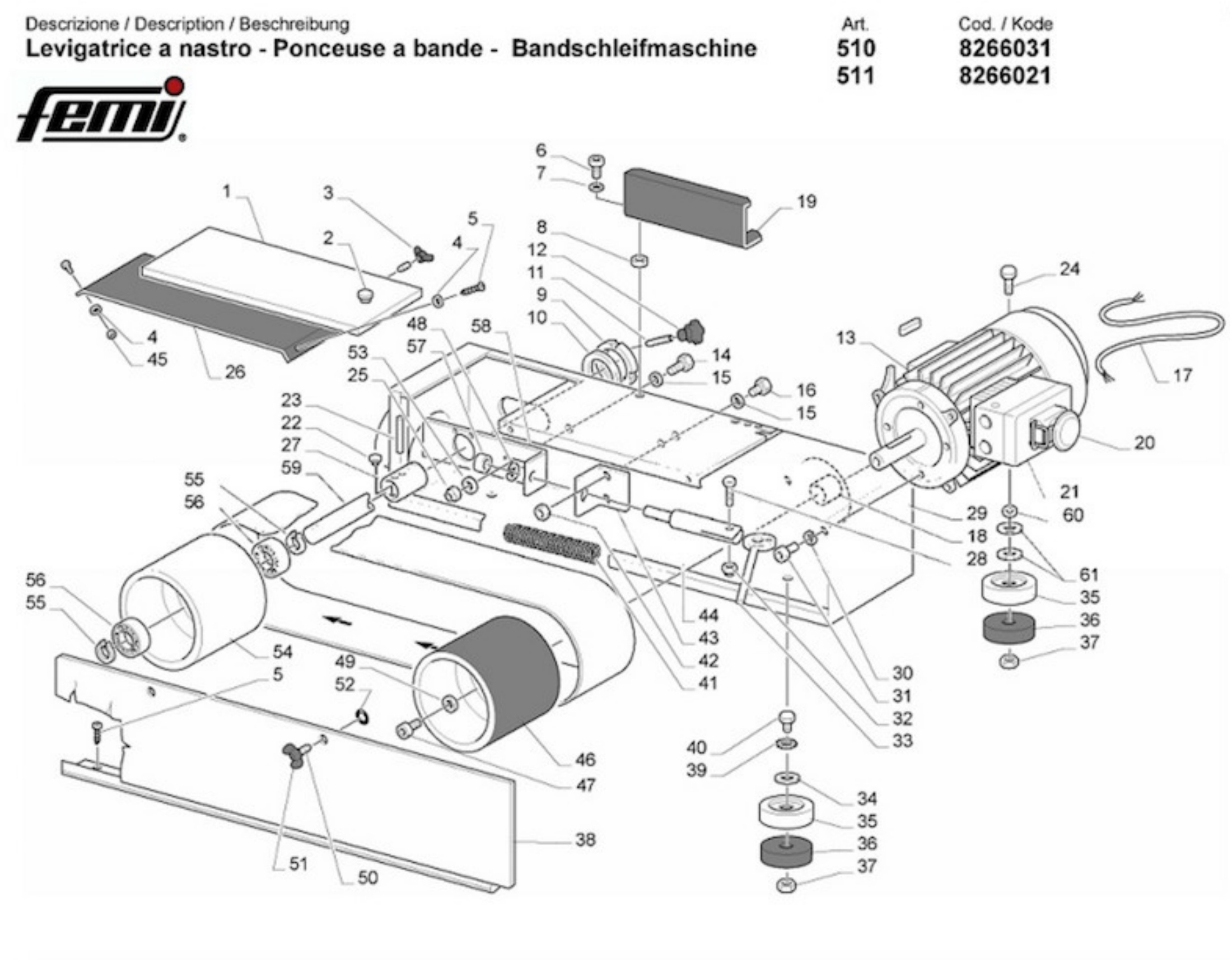

Diagram Belt Sander Femi 510-511

Diagram Belt Sander Femi 510-511

Download (245.94KB)
