Femi Spare Parts for Band Saw 780P - 8484320

Name: Femi Spare Parts for Band Saw 780P - 8484320
Brand: Femi
SKU: Femi 780P - 8484320
Availability: InStock

SKU: Femi 780P - 8484320

€18.11

VAT included

Femi Spare Parts for Band Saw 780P - 8484320

FEMI Genuine spare parts or replacement parts for to repair Electric Band Saw 780P - 8484320.

Fix Your Electric Band Saw 780P. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

79 spare parts

Page 1 View exploded Usually Ships in: 10 BUSYNESS DAYS

1 / 2

	Item	Price
	0063027 Sintered Iron Bushing for Band Saws FEMI	€3.61
	0063042 Sleeve FE 5x8x16 for Band Saw FEMI 780P	€1.98
Image coming soon	0080261 SPRING CUP D.5 X 10 X 0.5	€2.27
Image coming soon	0102106 Blind nut M 6 Zn Uni 5721	€1.22
Image coming soon	0102110 Blind nut M 10 Iron Zn	€2.12
	0120706 Washer D.6,5X18 SP.1,5 ZN for Band Saw Femi 780P-785P	€0.49
	0124026 Washer Thickness PS 12x18 for Band Saw Femi 780	€1.53
	0129004 Washer D.4,3x8x0,5 for Band Saw Femi 780P-785P	€0.48
	0140074 Handwheel mm 60 for Band Saws FEMI 780P-780XL-782-783XL-SN105	€8.31
	0140076 Handwheel THF D.25 M8 for Band Saws FEMI 780P	€3.37
	0147000 Knob Lever M6 for Band Saws FEMI 780	€8.31
	0147002 Knob Lever M10 for Band Saws FEMI 780	€9.00
Image coming soon	0150701 Plug Cil.Intaglio Central 6x14 S80	€1.96
Image coming soon	0155013 Elastic in Ond.Lmkas 22 Spess.0,3	€1.50
	0155136 Washer D.11x8,2x0,5 for Mitre Saw and Band Saw Femi	€1.25
	0155140 Ring 10 D.9,8X6,2 S.0,5 mm for Band Saws Femi	€1.08
	0155142 Ring 21,8x14x0,5 mm for Band Saws FEMI 780-782-783	€1.36
	0155143 Washer D.45x55x0,5 mm for Band Saws Femi 70-782	€1.75
	0155152 Ring 21,8x15x1 mm for Band Saws FEMI 780-782-783	€1.36
Image coming soon	0179901 Roll D.10x10	€2.12
	0311080 Special Bolt TE M 10X80 ZN for Band Saw Femi 780P	€1.57
Image coming soon	0401001 TTQ ZN SCREW M10x40 UNI 5732	€1.44
Image coming soon	0402905 RIVET	€1.32
	0590624 Ball Bearing 624 4x13x5 ZZ for Band Saws Femi	€7.67
Image coming soon	0596002 BALL BEARING	€7.24
	0606202 Ball Bearing 6202 RS 15x35x11 for Band Saws Femi	€8.37
	0730609 Needles Bearing HK0609B for Band Saws Femi	€10.46
	0730810 Needles Bearing HK0810 for Band Saws Femi	€11.86
	0802314 Single Pole Switch for Band Saws FEMI 780-781-783-785	€5.50
	0802317 Switch for Band Saws FEMI 780-781-783-784-785	€12.00
	0802606 Switch Start-Stop for Band Saws FEMI 780-782-783-785-787XL	€23.00
	0816004 Line Filter Nois Suppressor EMC for Band Saws Femi	€27.92
Image coming soon	0816005 REACTOR NOISE COD. 921642	€3.11
Image coming soon	5001564 (included into code 5001572)	€49.88
	5024111 Stator for Band Saw Femi 785P	€60.11
Image coming soon	5042844 BAND SAW BODY	€174.29
	5050117 Handle Control for Band Saws FEMI 780-785-787-791	€20.80
	5061038 Bearing Rubber Protector Collector Side for Band Saw FEMI 785	€3.01
	5061039 Bearing Rubber Protector Flange Side for Band Saw FEMI 780XL	€3.37
Image coming soon	5080116 Spring joint	€33.17
	5081005 Band Tensioning Spring for Band Saws FEMI 780-781-782	€3.48
	5100064 Screw Locking Bearing for Band Saw Femi 782 - 785	€8.23
	5100065 Screw Setting Bearing for Band Saw Femi 782 - 785	€11.02
Image coming soon	5100506 (included into code 5100507)	€7.86
	5112024 Fan Motor for Band Saws FEMI 780P-780XL-SN105-SN105XL	€7.52
Image coming soon	5120638 Bearing Spacer For D.6x12 H.1,5	€1.53
Image coming soon	5120663 RING	€3.00
	5124029 Adjust Washer for Band Saw Femi 784XL	€2.47
Image coming soon	5124062 SEALING WASHER	€4.26
	5130733 Bearing Bracket for Band Saws FEMI 780P-782-783	€7.72
Image coming soon	5130734 Holder Pulley Guide	€2.73
Image coming soon	5133637 ANGULAR PLASTIC FOOT	€1.84
Image coming soon	5137869 (included into code 5137914)	€7.85
Image coming soon	5142070 LEVER	€15.33
Image coming soon	5154501 CABLE LOCKING DEVICE	€1.84
Image coming soon	5171043 LOCKING PIN	€6.11
	5181016 Felt Clean Blade for Band Saws FEMI	€1.83
Image coming soon	5181622 Protection Sliding Black	€11.64
	5181623 Carter Black Protection for Band Saws FEMI 780-782-783-SN105	€41.74
Image coming soon	5182520 SWITCH COVER	€5.50
	5182522 Gear Box Cover for Band Saw FEMI 780P-780XL-782XL	€13.81
	5182816 Motor Housing for Band Saw FEMI 780P-XL	€15.90
Image coming soon	5182840 SWITCH BOX	€3.81
	5214019 Rubberized Drive Wheel for Band Saws Femi 780-782-783 XL	€44.90
	5214225 Free Wheel for Band Saws Femi 780-782-783 XL	€41.74
	5401319 Degrees Label 0-45° for Band Saw FEMI 780P	€3.00
	5850005 Carbon Brushes Holder for Band Saws Femi 780	€15.21
	5850109 Carbon Brushes for Band Saws FEMI 780	€18.90
Image coming soon	5870843 Ca.H05 3xo, 75x1800 C / Punt.Sp / EUR.2 / Earth	€13.94
Image coming soon	5870847 PVC cable H05 VV-F 2x0,75x910 C / Pun. + Fst.	€6.89
	7013130 Armature for Band Saw FEMI 780-781-782-783-785	€104.57
Image coming soon	7130535 Stop Bar Complete for Segatr. 1330	€36.52
Image coming soon	7132518 COMPLETE FRONT BLADE GUIDE	€57.25
	7133603 Swivel Holder Assembly for Band Saws FEMI 780-782-783	€96.60
	7213001 Helicoidal Gear Assy for Band Saws Femi 780-781-782-783	€49.90
	7213003 Primary Gear for Band Saws Femi 780-781-782-783	€54.30
	7213007 Straight Gear for Band Saws Femi 780-781-782-783	€37.90
	7801612 Motor 230V for Band Saws FEMI 780P-782-SN105	€186.00
	7890101 Terminal Block with Wire and Diode for Band Saws FEMI 780/781	€18.00

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Femi Spare Parts for Band Saw 780P - 8484320

Fix Your Electric Band Saw 780P - 8484320. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Parts and reference codes.

Band Saw 780P-8484320
Part Num.	Description
0063027	BUSHING
0063042	SLEEVE
0080261	SPRING WASHER
0102106	CAP NUT
0102110	CAP NUT
0120206	WASHER
0120706	PLAIN WASHER
0120710	PLAIN WASHER
0124026	THICKNESS WASHER
0129004	INOX STEEL WASHER
0140074	HANDWHEEL
0140076	HANDWHEEL
0147000	HAND LEVER
0147002	HAND LEVER
0150701	CYLINDRIC PIN WITH SLOT
0151409	SNAP RING
0155013	ELASTIC RING
0155136	THICKNESS WASHER
0155140	THICKNESS WASHER
0155142	THICKNESS WASHER
0155143	THICKNESS WASHER
0155152	THICKNESS WASHER
0174022	NEEDLE
0179901	NEEDLE
0222021	O-RING SEAL
0311080	EXAGONAL HEAD SCREW
0400604	SCREW
0401001	SCREW
0402905	RIVET
0590624	BALL BEARING
0596002	BALL BEARING
0063027	BALL BEARING
0606202	BALL BEARING
0730609	NEEDLE CAGE BEARING
0730810	NEEDLE CAGE BEARING
0802314	SWITCH
0802317	SWITCH
0802606	SWITCH
0816004	RADIO INTERFERENCE SUPPRESSOR
0816005	RADIO INTERFERENCE SUPPRESSOR
5001564	(included into code 5001572)
5024111	STATOR - FIELD
5042844	BAND SAW BODY
5050117	HANDLE
5061038	RUBBER BUSHING
5061039	RUBBER BUSHING
5080116	SPRING
5081005	SPRING
5081021	(included into code 0080256x12)
5100064	SCREW
5100065	SCREW
5100506	(included into code 5100507)
5112024	MOTOR FAN
5120638	SPACER
5120663	SPACER
5124029	ECCENTRIC
5124062	WASHER
5130732	BLADE GUIDE -- > 7132502 - DISCONTINUED
5130733	BRACKET
5130734	WHEEL GUIDE
5133637	ANGULAR PLASTIC FOOT
5137845	(included into code 5138040)
5137869	(included into code 5137914)
5142070	LEVER
5154103	CABLE LOCKING DEVICE
5154501	CABLE LOCKING DEVICE
5171043	LOCKING PIN
5181016	BLADE CLEANER
5181622	SLIDING PROTECTION
5181623	PROTECTION
5182520	SWITCH COVER
5182522	GEAR COVER
5182816	MOTOR COVER
5182840	SWITCH BOX
5214016	Included in code 5214019
5214019	DRIVING WHEEL
5214225	FREE WHEEL
5401319	GRADUATE PLATE
5850005	CARBON BRUSHE SUPPORT
5850109	CARBON BRUSHE SET
5870843	CABLE
5870847	CABLE
7013130	ARMATURE
7130527	(included into code 7130673)
7130535	ROD STOP GROUP
7132518	COMPLETE FRONT BLADE GUIDE
7213001	GEAR GROUP
7213003	FIRST GEAR GROUP
7213007	GEAR GROUP, STRAIGHT
7801612	MOTOR ASSY 230V
7890101	CLAMP GROUP
7133603	SWIVEL SUPPORT GROUP
5042719	Included into code 5042844+7132518

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Femi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Femi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Femi 780P - 8484320

Available 12 Items

Data sheet

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM CODE OR S/N FEMI:: FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS

Specific References

Condition New

Download

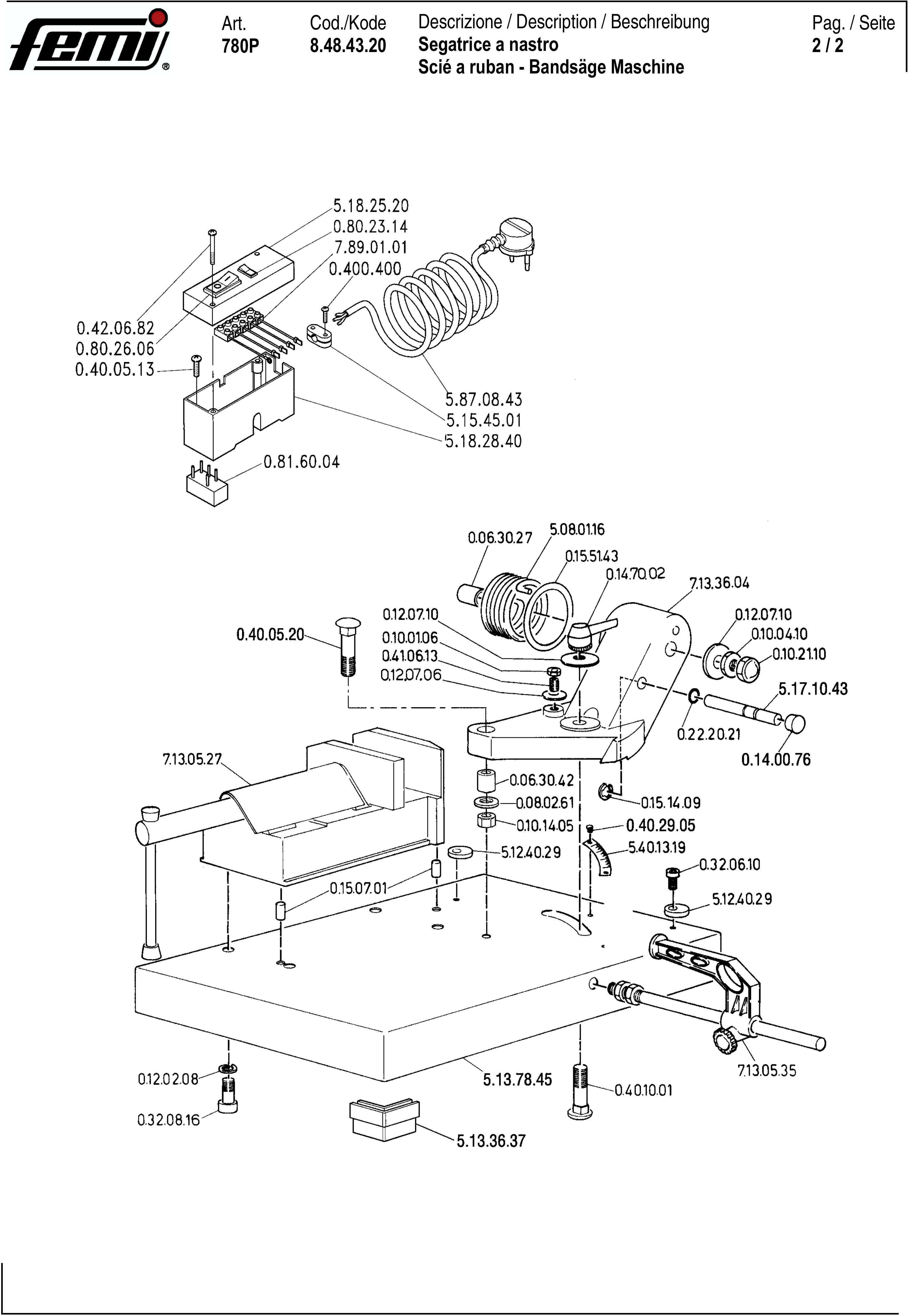

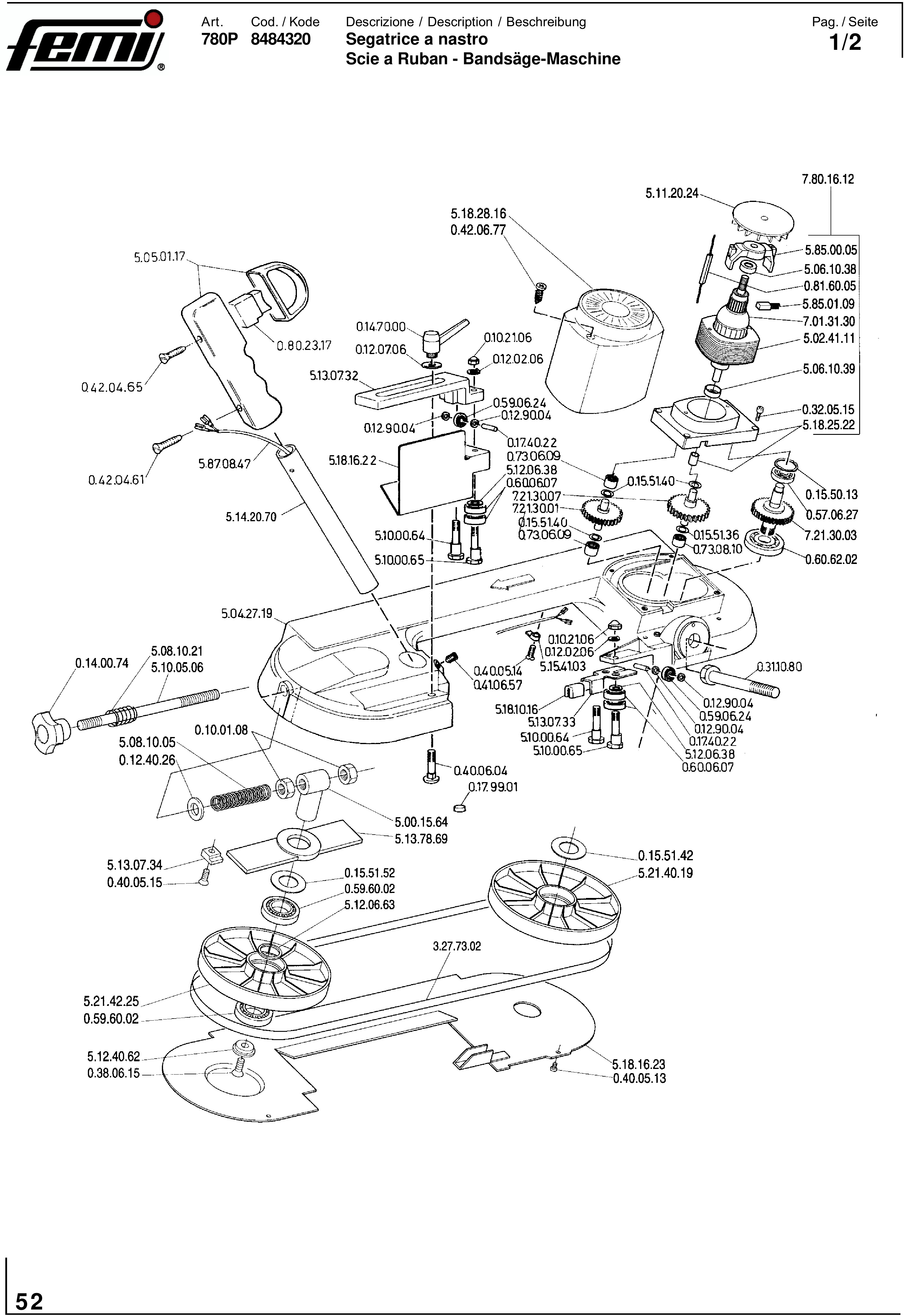

Diagram Femi 780P - 8484320

Download (200.87KB)
