FEMI VB28-191 Vertical Band Saw Spare Parts
We have the original Spares FEMI Spare Parts for

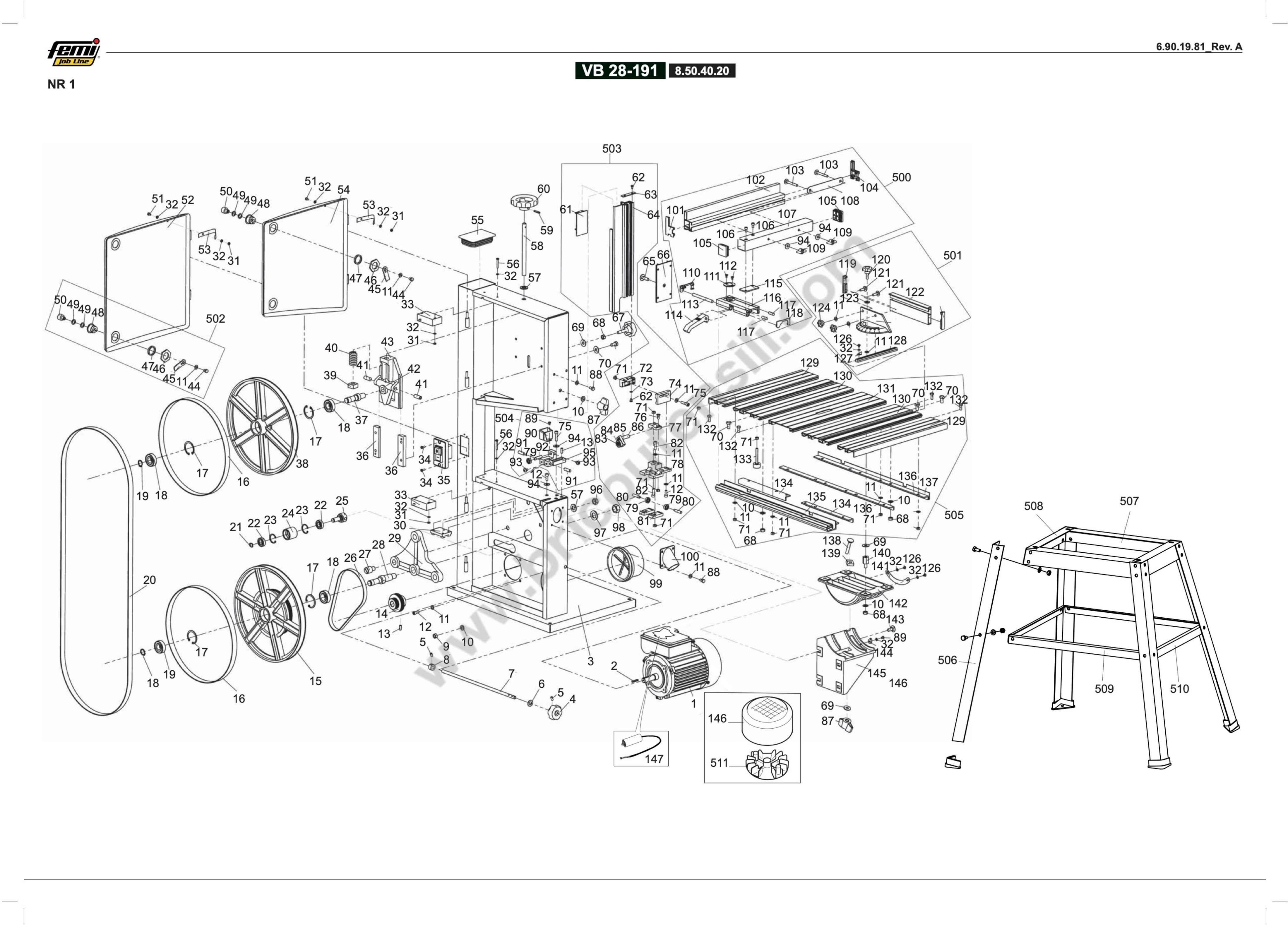

FEMI VB28-191 Vertical Band Saw H 170 mm - 8504020 the diagram, parts list and tool repair that help you need to get your tools running like new again.
Fix Your
FEMI VB28-191 Vertical Band Saw H 170 mm - 8504020. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of Drill Pressand the respective parts of the code.
| FEMI VB 28-191 Vertical Band Saw H 170 mm - 8504020 Spare Parts |
| # |
Part NUm. |
Description |
| 1 |
8504020-1 |
COMPLETE MOTOR |
| 4 |
8504020-4 |
LOCKING KNOB |
| 7 |
8504020-7 |
LOCKING BRACKET |
| 14 |
8504020-14 |
PULLEY |
| 15 |
8504020-15 |
DRIVING PULLEY |
| 16 |
8504020-16 |
PULLEYS PROTECTION RING |
| 18 |
8504020-18 |
BEARING |
| 22 |
8504020-22 |
BEARING |
| 24 |
8504020-24 |
COVER |
| 25 |
8504020-25 |
SHAFT |
| 26 |
8504020-26 |
BELT |
| 27 |
8504020-27 |
SPECIAL SCREW |
| 28 |
8504020-28 |
SHAFT |
| 29 |
8504020-29 |
PULLEY SUPPORT |
| 30 |
8504020-30 |
FIXING PLATE |
| 33 |
8504020-33 |
MICRO SWITCH |
| 35 |
8504020-35 |
SWITCH |
| 36 |
8504020-36 |
TENSIONING GUIDE |
| 37 |
8504020-37 |
FREE PULLEY SHAFT |
| 38 |
8504020-38 |
FREE PULLEY |
| 39 |
8504020-39 |
NUT |
| 40 |
8504020-40 |
SPRING |
| 42 |
8504020-42 |
BRACKET LOCKER |
| 43 |
8504020-43 |
TENSIONING SLIDING PLATE |
| 52 |
8504020-52 |
LOWER COVER |
| 53 |
8504020-53 |
MICROSWITCH PLATE |
| 54 |
8504020-54 |
UPPER COVER |
| 55 |
8504020-55 |
CAP |
| 58 |
8504020-58 |
TENSIONING SCREW |
| 60 |
8504020-60 |
TENSIONING KNOB |
| 66 |
8504020-66 |
UPPER PLATE |
| 67 |
8504020-67 |
ADJUSTING KNOB |
| 87 |
8504020-87 |
KNOB |
| 100 |
8504020-100 |
DUST ATTACHMENT |
| 139 |
8504020-139 |
SLIDING BRACKET |
| 140 |
8504020-140 |
SUPPORT SCREW |
| 141 |
8504020-141 |
GRADUATE SCALE |
| 142 |
8504020-142 |
TABLE SUPPORT |
| 144 |
8504020-144 |
INDEX |
| 145 |
8504020-145 |
TABLE SUPPORT |
| 146 |
8504020-146 |
MOTOR FAN COVER |
| 147 |
8504020-147 |
CONDENSATOR |
| 500 |
8504020-500 |
UPPER FENCE GROUP |
| 501 |
8504020-501 |
COMPLETE GONIOMETER |
| 502 |
8504020-502 |
DOOR CLOSING SET |
| 503 |
8504020-503 |
UPPER BLADE GUIDE GROUP |
| 504 |
8504020-504 |
LOWER BLADE GUIDE GROUP |
| 505 |
8504020-505 |
WORKTABLE GROUP |
| 506 |
8504020-506 |
BASE BRACKET |
