FEMI VB28-182 Vertical Band Saw Spare Parts

SKU: Femi VB28-182
€42.14
VAT included

FEMI VB28-182 Vertical Band Saw Spare Parts

We have the original Spares FEMI Spare Parts for FFEMI VB28-182 Vertical Band Saw H 80 mm - 8502020 the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your FEMI VB28-182 Vertical Band Saw H 80 mm - 8502020. All Spares are original and can be supplied at Low and discounted prices.
FEMI VB28-182 Vertical Band Saw Spare Parts
  • FEMI VB28-182 Vertical Band Saw Spare Parts
  • FEMI VB28-182 Vertical Band Saw Spare Parts - Drawing

FEMI VB28-182 Vertical Band Saw Spare Parts

SKU: Femi VB28-182 Condition: New
€42.14
VAT included

FEMI VB28-182 Vertical Band Saw Spare Parts

We have the original Spares FEMI Spare Parts for FFEMI VB28-182 Vertical Band Saw H 80 mm - 8502020 the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your FEMI VB28-182 Vertical Band Saw H 80 mm - 8502020. All Spares are original and can be supplied at Low and discounted prices.
settings 51 spare parts

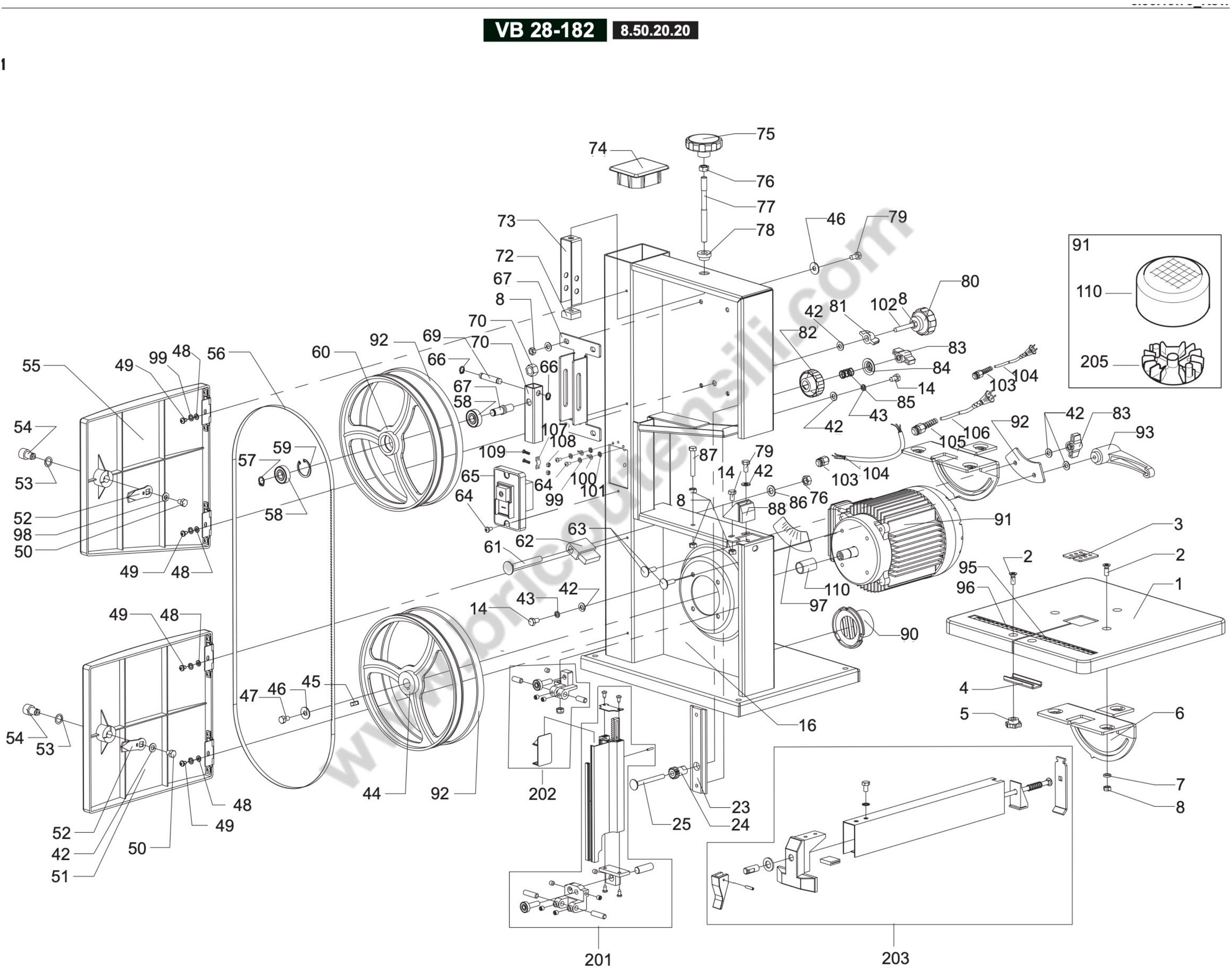

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM CODE OR S/N FEMI:: FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

51 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 8502020-001 WORKTABLE €40.92
3
FEMI VB28-182 Table Insert 8502020-003 FEMI VB28-182 Table Insert €1.80
5
photo_cameraImage coming soon 8502020-005 TABLE GUIDE €8.47
6
photo_cameraImage coming soon 8502020-006 SCALE €1.74
7
photo_cameraImage coming soon 8502020-007 HANDLE €4.56
10
photo_cameraImage coming soon 8502020-010 CLAMP €4.56
13
photo_cameraImage coming soon 8502020-013 FASTEN PLATE €5.51
16
photo_cameraImage coming soon 8502020-016 FRAME €171.11
20
photo_cameraImage coming soon 8502020-020 TABLE SUPPORT €19.78
22
photo_cameraImage coming soon 8502020-022 ROTATION PLATE €1.74
23
photo_cameraImage coming soon 8502020-023 LOCKING LEVER €5.51
24
photo_cameraImage coming soon 8502020-024 GEAR €1.74
25
photo_cameraImage coming soon 8502020-025 SCREW €1.74
36
photo_cameraImage coming soon 8502020-036 BEARING €4.71
37
photo_cameraImage coming soon 8502020-037 LOWER BLADE GUIDE SUPPORT €5.11
44
FEMI Band Saw VB28-182 Driving Pulley 8502020-044 FEMI Band Saw VB28-182 Driving Pulley €30.74
51
photo_cameraImage coming soon 8502020-051 PULLEY PROTECTION €15.60
52
photo_cameraImage coming soon 8502020-052 PANEL COVER €1.74
54
photo_cameraImage coming soon 8502020-054 COVER FRAME €4.56
55
photo_cameraImage coming soon 8502020-055 PULLEY PROTECTION €15.60
58
photo_cameraImage coming soon 8502020-058 BEARING €10.76
60
photo_cameraImage coming soon 8502020-060 FREE PULLEY €21.97
62
photo_cameraImage coming soon 8502020-062 BRUSH €2.82
65
photo_cameraImage coming soon 8502020-065 SWITCH €16.82
67
photo_cameraImage coming soon 8502020-067 PULLEY SHAFT €7.26
68
photo_cameraImage coming soon 8502020-068 PIN €1.74
69
photo_cameraImage coming soon 8502020-069 SHAFT SUPPORT €4.56
71
photo_cameraImage coming soon 8502020-071 PULLEY GUIDE €8.47
73
photo_cameraImage coming soon 8502020-073 ROD GUIDE €3.22
74
photo_cameraImage coming soon 8502020-074 COVER €3.22
75
photo_cameraImage coming soon 8502020-075 TENSIONING HANDWHEEL €3.22
77
photo_cameraImage coming soon 8502020-077 TENSIONING ROD €4.29
78
photo_cameraImage coming soon 8502020-078 BUSHING €2.69
80
photo_cameraImage coming soon 8502020-080 BLADE HANDWHEEL €3.22
81
photo_cameraImage coming soon 8502020-081 LEVER HANDWHEEL €1.74
82
photo_cameraImage coming soon 8502020-082 LOCKING HANDWHEEL €3.22
83
photo_cameraImage coming soon 8502020-083 LOCKING LEVER €1.74
84
photo_cameraImage coming soon 8502020-084 HANDWHEEL COVER €1.74
85
photo_cameraImage coming soon 8502020-085 HANDWHEEL SPRING €1.74
88
photo_cameraImage coming soon 8502020-088 LOWER PROTECTION €3.22
90
photo_cameraImage coming soon 8502020-090 AIR INLET ADAPTER €4.56
91
Femi Band Saw VB28-182 Electric Motor 8502020-091 Femi Band Saw VB28-182 Electric Motor €133.80
92
FEMI Band Saw VB28-182 Pulley Rubber Tire 8502020-092 FEMI Band Saw VB28-182 Pulley Rubber Tire €16.59
93
photo_cameraImage coming soon 8502020-093 TABLE LEVER €8.34
110
photo_cameraImage coming soon 8502020-110 MOTOR FAN COVER €10.76
111
photo_cameraImage coming soon 8502020-111 CONDENSATOR €7.53
200
photo_cameraImage coming soon 8502020-200 COMPLETE GONIOMETER €20.46
201
photo_cameraImage coming soon 8502020-201 UPPER BLADE GUIDE GROUP €45.76
202
photo_cameraImage coming soon 8502020-202 LOWER BLADE GUIDE GROUP €32.70
203
photo_cameraImage coming soon 8502020-203 COMPLETE FENCE €26.24
204
photo_cameraImage coming soon 8502020-204 PROTECTION CLOSING €8.34

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FEMI VB28-182 Vertical Band Saw Spare Parts

Fix Your FEMI VB28-182 Vertical Band Saw H 80 mm - 8502020. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Drill Pressand the respective parts of the code.
FEMI VB28-182 Vertical Band Saw H 80 mm - 8502020

FEMI VB28-182 Vertical Band Saw H 80 mm - 8502020 Spare Parts
# Part Num. Description
1 8502020-001 WORKTABLE
3 8502020-003 TABLE INSERT
5 8502020-005 TABLE GUIDE
6 8502020-006 SCALE
7 8502020-007 HANDLE
10 8502020-010 CLAMP
13 8502020-013 FASTEN PLATE
16 8502020-016 FRAME
20 8502020-020 TABLE SUPPORT
22 8502020-022 ROTATION PLATE
23 8502020-023 LOCKING LEVER
24 8502020-024 GEAR
25 8502020-025 SCREW
36 8502020-036 BEARING
37 8502020-037 LOWER BLADE GUIDE SUPPORT
44 8502020-044 DRIVING PULLEY
51 8502020-051 PULLEY PROTECTION
52 8502020-052 PANEL COVER
54 8502020-054 COVER FRAME
55 8502020-055 PULLEY PROTECTION
58 8502020-058 BEARING
60 8502020-060 FREE PULLEY
62 8502020-062 BRUSH
65 8502020-065 SWITCH
67 8502020-067 PULLEY SHAFT
68 8502020-068 PIN
69 8502020-069 SHAFT SUPPORT
71 8502020-071 PULLEY GUIDE
73 8502020-073 ROD GUIDE
74 8502020-074 COVER
75 8502020-075 TENSIONING HANDWHEEL
77 8502020-077 TENSIONING ROD
78 8502020-078 BUSHING
80 8502020-080 BLADE HANDWHEEL
81 8502020-081 LEVER HANDWHEEL
82 8502020-082 LOCKING HANDWHEEL
83 8502020-083 LOCKING LEVER
84 8502020-084 HANDWHEEL COVER
85 8502020-085 HANDWHEEL SPRING
88 8502020-088 LOWER PROTECTION
90 8502020-090 AIR INLET ADAPTER
91 8502020-091 COMPLETE MOTOR
92 8502020-092 PROTECTION RING
93 8502020-093 TABLE LEVER
110 8502020-110 MOTOR FAN COVER
111 8502020-111 CONDENSATOR
200 8502020-200 COMPLETE GONIOMETER
201 8502020-201 UPPER BLADE GUIDE GROUP
202 8502020-202 LOWER BLADE GUIDE GROUP
203 8502020-203 COMPLETE FENCE
204 8502020-204 PROTECTION CLOSING
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Femi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Femi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Femi VB28-182
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM CODE OR S/N FEMI:
FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS

Specific References

New

Download

Femi VB28-182 Drawing

Femi VB28-182 Drawing

Download (558.93KB)
