Femi Spare Parts for Miter Saw for Wood TR090 - 8436128

SKU: Femi TR090 - 8436128
€106.02
VAT included

Femi Spare Parts for Miter Saw for Wood TR090 - 8436128

We are Dealers of FEMI original spare parts at low at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Miter Saw for Wood TR090 - 8436128.
Femi Spare Parts for Miter Saw for Wood TR090 - 8436128
  • Femi Spare Parts for Miter Saw for Wood TR090 - 8436128
  • Femi Spare Parts for Miter Saw for Wood TR090 - 8436128
Femi

Femi Spare Parts for Miter Saw for Wood TR090 - 8436128

SKU: Femi TR090 - 8436128 Condition: New
€106.02
VAT included

Femi Spare Parts for Miter Saw for Wood TR090 - 8436128

We are Dealers of FEMI original spare parts at low at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Miter Saw for Wood TR090 - 8436128.
settings 70 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM CODE OR S/N FEMI:: FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
70 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

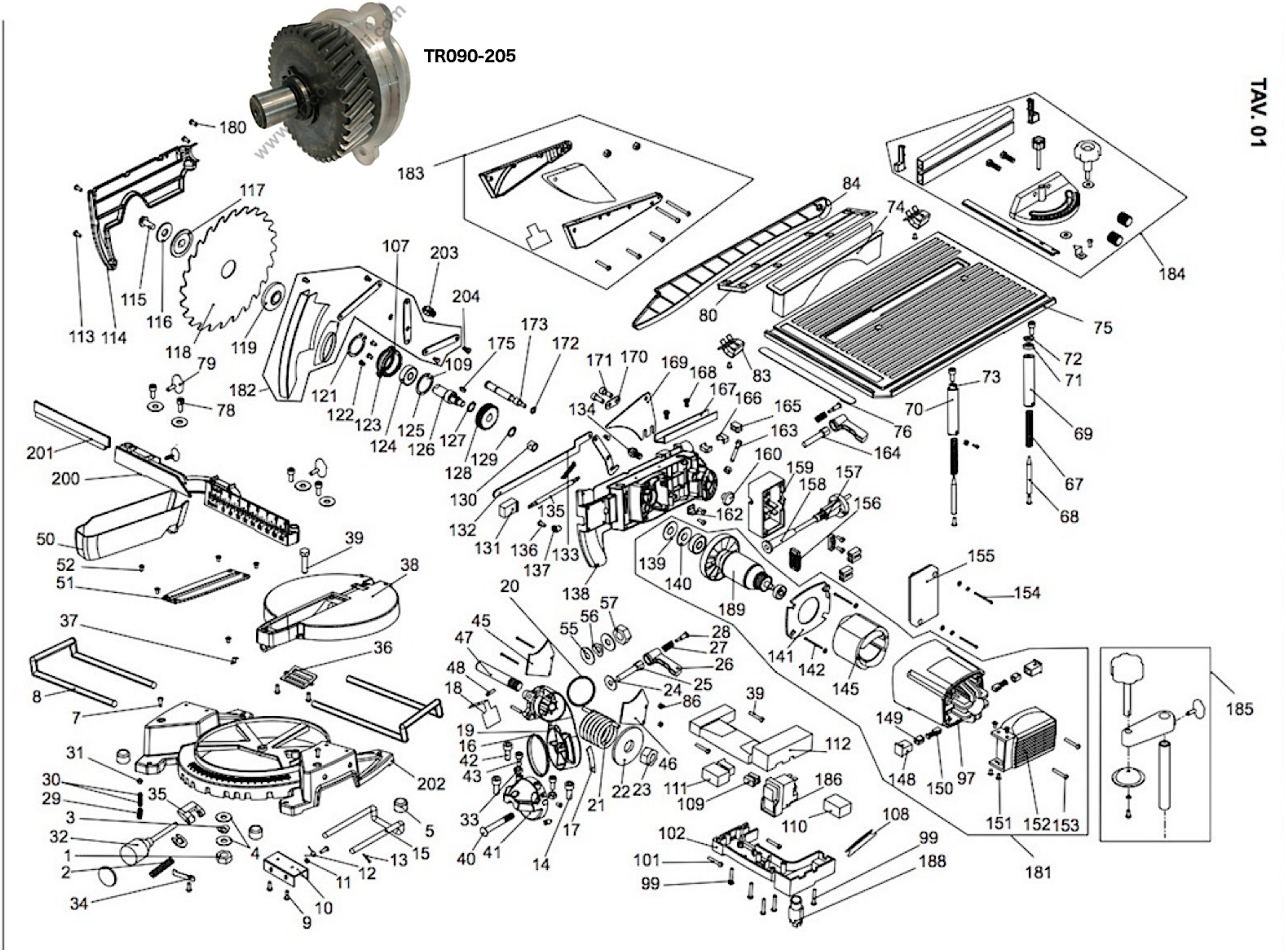

Esploso pagina 1
Pos. Item Price Buy
6
 photo_cameraImage coming soon F36090-006 ANTIVIBRATION Ø40X30 MF M8X25 65SH €106.02
19
 photo_cameraImage coming soon F36090-019 JOINT  €22.02
21
 photo_cameraImage coming soon F36090-021 JOINT SPRING €12.22
26
 photo_cameraImage coming soon F36090-026 LOCKING LEVER €6.66
27
 photo_cameraImage coming soon F36090-027 LEVER SPRING €4.86
32
 Swivel Table Handle for Miter Saw Fox F36-090 F36090-032 Swivel Table Handle for Miter Saw Fox F36-090 €16.42
34
 photo_cameraImage coming soon F36090-034 SPRING €2.90
35
 Swivel Table Handle Fork for Miter Saw Fox F36-090 F36090-035 Swivel Table Handle Fork for Miter Saw Fox F36-090 €5.79
38
 photo_cameraImage coming soon F36090-038 SWIVEL SUPPORT €84.94
41
 photo_cameraImage coming soon F36090-041 SHORT PIN €4.04
51
 photo_cameraImage coming soon F36090-051 TURNING TABLE COVER €6.66
61
 photo_cameraImage coming soon F36090-061 ELECTRIC BOX €6.82
68
 photo_cameraImage coming soon F36090-068 SPRING GUIDE €6.82
71
 photo_cameraImage coming soon F36090-071 CONIC WASHER €6.82
72
 photo_cameraImage coming soon F36090-072 SPHERE WASHER €6.82
74
 photo_cameraImage coming soon F36090-074 TABLE LOWER PROTECTION €12.54
75
 photo_cameraImage coming soon F36090-075 UPPER WORK TABLE €121.54
76
 photo_cameraImage coming soon F36090-076 UPPER TABLE PLATE €4.86
77
 Rip Fence for Miter Saw Fox F36-090 F36090-077 Rip Fence for Miter Saw Fox F36-090 €34.30
80
 Upper Table Cover for Miter Saw Fox F36-090 F36090-080 Upper Table Cover for Miter Saw Fox F36-090 €16.75
102
 photo_cameraImage coming soon F36090-102 LOWER HANDLE €14.50
103
 Electronic Board for Mitre Saws Fox F36-090 F36090-103 Electronic Board for Mitre Saws Fox F36-090 €68.12
104
 photo_cameraImage coming soon F36090-104 PANEL €4.86
109
 photo_cameraImage coming soon F36090-109 PIN €8.95
111
 Switch for Mitre Saw Fox F36-090 F36090-111 Switch for Mitre Saw Fox F36-090 €20.50
112
 photo_cameraImage coming soon F36090-112 UPPER HANDLE €14.50
114
 photo_cameraImage coming soon F36090-114 ARM COVER €13.85
115
 photo_cameraImage coming soon F36090-115 BLADE FIXING SCREW €2.41
116
 photo_cameraImage coming soon F36090-116 BLADE FIXING WASHER €1.27
117
 Upper Clamping Plate for Mitre Saw Fox F36-090 F36090-117 Upper Clamping Plate for Mitre Saw Fox F36-090 €16.46
119
 Lower Clamping Plate for Mitre Saw Fox F36-090 F36090-119 Lower Clamping Plate for Mitre Saw Fox F36-090 €16.46
124
 photo_cameraImage coming soon F36090-124 BALL BEARING €16.46
126
 Blade Shaft for Miter Saw Fox F36-090 F36090-126 Blade Shaft for Miter Saw Fox F36-090 €17.08
128
 Gear Wheel Toothed for Mitre Saw Fox F36-090 F36090-128 Gear Wheel Toothed for Mitre Saw Fox F36-090 €28.57
130
 photo_cameraImage coming soon F36090-130 NEEDLE BEARING €10.83
131
 photo_cameraImage coming soon F36090-131 RELEASE BUTTON €6.17
132
 FEMI Relese Lever for TR090 F36090-132 FEMI Relese Lever for TR090 €13.85
134
 photo_cameraImage coming soon F36090-134 SCREW €5.68
138
 photo_cameraImage coming soon F36090-138 SA WARM €92.62
145
 Field for Wood Mitre Saw Fox F36-090 F36090-145 Field for Wood Mitre Saw Fox F36-090 €95.54
148
 Carbon Brushes Holder for Miter Saw Fox F36-090 F36090-148 Carbon Brushes Holder for Miter Saw Fox F36-090 €6.83
149
 Carbon Brushes Holder Protection for Miter Saw Fox Silver F36-090 F36090-149 Carbon Brushes Holder Protection for Miter Saw Fox Silver F36-090 €5.57
150
 Carbon Brushes for Miter Saw Fox F36-090 F36090-150 Carbon Brushes for Miter Saw Fox F36-090 €21.11
157
 photo_cameraImage coming soon F36090-157 CABLE €15.48
159
 photo_cameraImage coming soon F36090-159 ELECTRIC BOX €5.68
160
 Arm Lock Pin Knob for Miter Saw Fox F36-090 F36090-160 Arm Lock Pin Knob for Miter Saw Fox F36-090 €3.42
162
 photo_cameraImage coming soon F36090-162 DUST PROTECTION CAP €2.41
164
 photo_cameraImage coming soon F36090-164 COLUMN SCREW €5.19
165
 photo_cameraImage coming soon F36090-165 SQUARE NUT €2.74
166
 photo_cameraImage coming soon F36090-166 COLUMN LOCKING €3.23
167
 photo_cameraImage coming soon F36090-167 LOCKING SLIDER €6.82
169
 photo_cameraImage coming soon F36090-169 RIVING KNIFE €6.66
172
 Arm Lock Pin O-RING for Miter Saw Fox F36-090 F36090-172 Arm Lock Pin O-RING for Miter Saw Fox F36-090 €2.94
173
 Arm Lock Pin for Miter Saw Fox F36-090 F36090-173 Arm Lock Pin for Miter Saw Fox F36-090 €14.06
179
 photo_cameraImage coming soon F36090-179 DUS TBAG €7.15
181
 Motor Assembly for Mitre Saw Fox F36-090 F36090-181 Motor Assembly for Mitre Saw Fox F36-090 €201.57
182
 photo_cameraImage coming soon F36090-182 COMPLETE BLADE PROTECTION €32.69
183
 photo_cameraImage coming soon F36090-183 COMPLETE UPPER PROTECTION €24.14
184
 photo_cameraImage coming soon F36090-184 COMPLETE GONIOMETER GROUP €33.43
185
 photo_cameraImage coming soon F36090-185 COMPLETE VICE GROUP €35.91
186
 ON/OFF Switch for Mitre Saw Fox F36-090 F36090-186 ON/OFF Switch for Mitre Saw Fox F36-090 €39.22
187
 photo_cameraImage coming soon F36090-187 ADDITIONAL BASE €19.57
188
 Thermal Protection for Mitre Saw Fox F36-090 F36090-188 Thermal Protection for Mitre Saw Fox F36-090 €25.70
189
 Armature for Wood Mitre Saw Fox F36-090 F36090-189 Armature for Wood Mitre Saw Fox F36-090 €95.48
200
 Rip Fence for Wood Mitre Saw TR090 - 8436128 TR090-200 Rip Fence for Wood Mitre Saw TR090 - 8436128 €54.49
201
 photo_cameraImage coming soon TR090-201 BASE EXTENDER €25.01
202
 photo_cameraImage coming soon TR090-202 ANTIVIBRATION Ø40X30 MF M8X25 65SH €85.88
203
 photo_cameraImage coming soon TR090-203 BUSHING €8.95
205
 Head Gears Assembly for Wood Mitre Saw TR090 - 8436128 TR090-205 Head Gears Assembly for Wood Mitre Saw TR090 - 8436128 €41.10
300
 FEMI TR090 Main-Switch 0/I TR090-300 FEMI TR090 Main-Switch 0/I €38.01

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Femi Spare Parts for Miter Saw for Wood TR090 - 8436128

We are Dealers of FEMI original spare parts at low at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Miter Saw for Wood TR090 - 8436128.

In the following table, look for the model of Miter Saw and the respective parts of the code.
Femi TR090 - 8436128

Miter Saw TR090 - 8436128
# Part Num. Description
6 F36090-006 BASE
19 F36090-019 JOINT
21 F36090-021 JOINT SPRING
26 F36090-026 LOCKING LEVER
27 F36090-027 LEVER SPRING
32 F36090-032 SWIVEL TABLE HANDLE
34 F36090-034 SPRING
35 F36090-035 FORK
38 F36090-038 SWIVEL SUPPORT
41 F36090-041 SHORT PIN
51 F36090-051 TURNING TABLE COVER
61 F36090-061 ELECTRIC BOX
68 F36090-068 SPRING GUIDE
71 F36090-071 CONIC WASHER
72 F36090-072 SPHERE WASHER
73 F36090-073 FLAT WASHER
74 F36090-074 TABLE LOWER PROTECTION
75 F36090-075 UPPER WORKTABLE
76 F36090-076 UPPER TABLE PLATE
77 F36090-077 RIP FENCE
80 F36090-080 UPPER TABLE COVER
102 F36090-102 LOWER HANDLE
103 F36090-103 ELECTRONIC CARD
104 F36090-104 PANEL
109 F36090-109 PIN
111 F36090-111 SWITCH
112 F36090-112 UPPER HANDLE
114 F36090-114 ARM COVER
115 F36090-115 BLADE FIXING SCREW
116 F36090-116 BLADE FIXING WASHER
117 F36090-117 CLAMPING WASHER
119 F36090-119 RECIEVE WASHER
124 F36090-124 BALL BEARING
126 F36090-126 BLADE SHAFT
128 F36090-128 WHEEL GEAR
130 F36090-128 BEARING
131 F36090-131 RELEASE BUTTON
132 F36090-132 RELEASE LEVER
134 F36090-134 SCREW
138 F36090-138 SAW ARM
145 F36090-145 FIELD - STATOR
148 F36090-148 BRUSHE HOLDER
149 F36090-149 COPPER TUBE
150 F36090-150 CARBON BRUSHE SET
157 F36090-157 CABLE
159 F36090-159 ELECTRIC BOX
160 F36090-160 ARM LOCK PIN KNOB
162 F36090-162 DUST PROTECTION CAP
164 F36090-164 COLUMN SCREW
165 F36090-165 SQUARE NUT
166 F36090-166 COLUMN LOCKING
167 F36090-167 LOCKING SLIDER
169 F36090-169 RIVING KNIFE
172 F36090-172 O-RING
173 F36090-173 ARM LOCK PIN
179 F36090-179 DUST BAG
181 F36090-181 MOTOR ASSEMBLY
182 F36090-182 COMPLETE BLADE PROTECTION
183 F36090-183 COMPLETE UPPER PROTECTION
184 F36090-184 COMPLETE GONIOMETER GROUP
185 F36090-185 COMPLETE VICE GROUP
186 F36090-186 MAIN SWITCH
187 F36090-187 ADDITIONAL BASE
188 F36090-188 THERMIC PROTECTION
189 F36090-189 ARMATURE ASS'Y
200 TR090-200 RIP FENCE
201 TR090-201 BASE EXTENDER
202 TR090-202 BASE
203 TR090-203 BUSHING
205 TR090-205 HEAD GEARS ASS'Y
300 TR090-300 MAIN 0-1 SWITCH
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Femi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Femi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
