Femi Spare Parts for Belt/Disk Sander 539B

SKU: Femi 539B - 8286232
€59.28
VAT included

Femi Spare Parts for Belt/Disk Sander 539B

Femi genuine spare parts or replacemtents parts for to fix Belt/Disk Sander 539B - 8286232.
Femi Spare Parts for Belt/Disk Sander 539B
  • On sale!
  • Femi Spare Parts for Belt/Disk Sander 539B
  • Femi Spare Parts for Belt/Disk Sander 539B

Femi Spare Parts for Belt/Disk Sander 539B

SKU: Femi 539B - 8286232 Condition: New
€59.28
VAT included

Femi Spare Parts for Belt/Disk Sander 539B

Femi genuine spare parts or replacemtents parts for to fix Belt/Disk Sander 539B - 8286232.
settings 27 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM CODE OR S/N FEMI:: FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

27 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 5181713 SLIDING PROTECTION €49.31
2
photo_cameraImage coming soon 0140063 HANDWHEEL €3.25
3
photo_cameraImage coming soon 0140064 HANDWHEEL €4.89
4
photo_cameraImage coming soon 0102106 Blind nut M 6 Zn Uni 5721 €1.22
5
photo_cameraImage coming soon 0120206 WASHER €0.63
10
photo_cameraImage coming soon 7800224 CONTROL PANEL €420.37
12
photo_cameraImage coming soon 5130809 DISC PROTECTION BRACKET €56.89
13
photo_cameraImage coming soon 0112011 MOTOR FAN €19.91
17
photo_cameraImage coming soon 0526205 BALL BEARING €17.56
18
photo_cameraImage coming soon 7801073 MOTOR BODY €371.51
19
photo_cameraImage coming soon 7013616 ROTOR €169.84
23
photo_cameraImage coming soon 0107005 WING NUT €2.43
25
photo_cameraImage coming soon 5182276 DUST CONVEYOR €124.50
28
photo_cameraImage coming soon 5181710 FIX PROTECTION €195.23
30
photo_cameraImage coming soon 5182275 DUST CONVEYOR €167.97
33
photo_cameraImage coming soon 5137896 COMPLETE ARM €264.00
37
photo_cameraImage coming soon 5214011 DRIVING WHEEL €493.49
44
photo_cameraImage coming soon 5122014 SPACER €11.48
47
photo_cameraImage coming soon 5214214 FREE WHEEL €277.98
49
photo_cameraImage coming soon 5002050 SHAFT €62.47
50
photo_cameraImage coming soon 5130699 SHAFT SUPPORT €82.87
52
photo_cameraImage coming soon 5140024 HANDWHEEL €28.26
54
photo_cameraImage coming soon 5181718 MOBILE PROTECTION €41.09
56
photo_cameraImage coming soon 0150611 CYLINDRIC PIN €4.89
57
photo_cameraImage coming soon 0106135 SELF-LOCKING RING NUT €11.31
58
photo_cameraImage coming soon 0140040 HANDWHEEL €5.06
60
photo_cameraImage coming soon 5080111 SPRING €11.48

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Femi Spare Parts for Belt/Disk Sander 539B

Femi genuine spare parts or replacemtents parts for to fix Belt/Disk Sander 539B - 8286232.

In the following table, look for the model of Belt/Disk Sander and the respective parts of the code.
Belt/Disk Sander 539B - 8286232
Belt/Disk Sander 539B-8286232
# Part Num. Description
1 5181713 SLIDING PROTECTION
2 0140063 HANDWHEEL
3 0140064 HANDWHEEL
4 0102106 CAP NUT
5 0120206 WASHER
10 7800224 CONTROL PANEL
12 5130809 DISC PROTECTION BRACKET
13 0112011 MOTOR FAN
17 0526205 BALL BEARING
18 7801073 MOTOR BODY
19 7013616 ROTOR
23 0107005 WING NUT
24 0120806 PLAIN WASHER
25 5182276 DUST CONVEYOR
28 5181710 FIX PROTECTION
29 0120710 PLAIN WASHER
30 5182275 DUST CONVEYOR
33 5137896 COMPLETE ARM
37 5214011 DRIVING WHEEL
43 0151117 SNAP RING
44 5122014 SPACER
47 5214214 FREE WHEEL
49 5002050 SHAFT
50 5130699 SHAFT SUPPORT
52 5140024 HANDWHEEL
54 5181718 MOBILE PROTECTION
55 0151115 SNAP RING
56 0150611 CYLINDRIC PIN
57 0106135 SELF-LOCKING RING NUT
58 0140040 HANDWHEEL
60 5080111 SPRING

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Femi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Femi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Femi 539B - 8286232
10 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM CODE OR S/N FEMI:
FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS

Specific References

New

Download

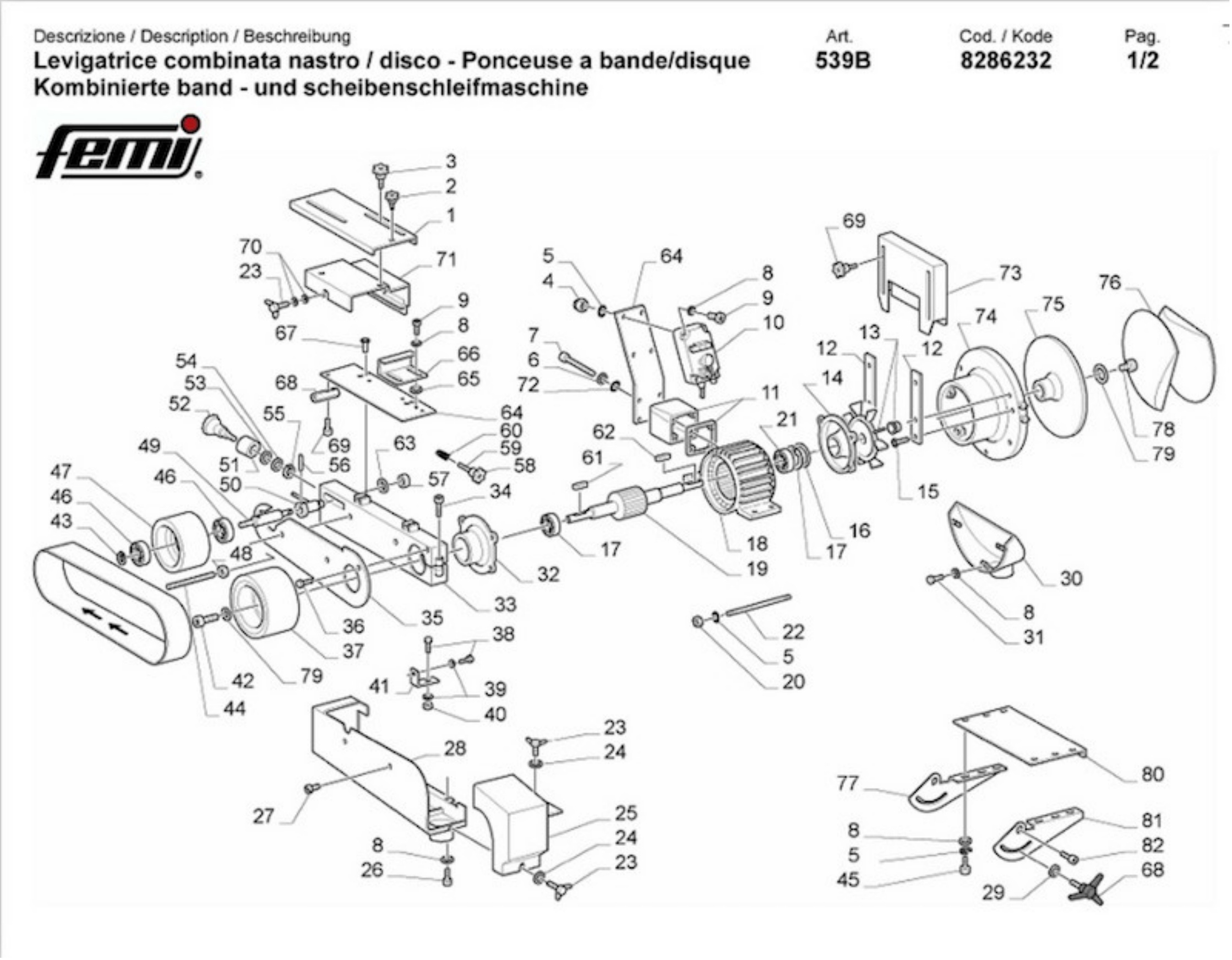

Diagram Belt Sander Femi 539B

Diagram Belt Sander Femi 539B

Download (252.22KB)
