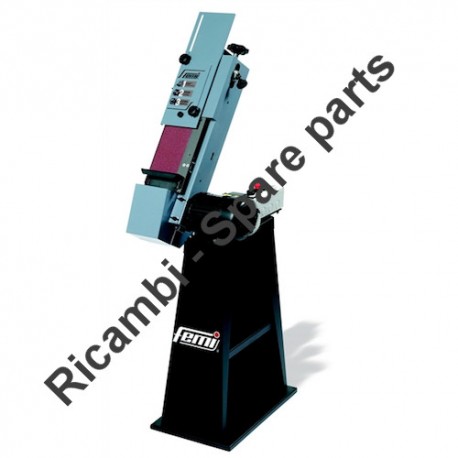

Femi Spare Parts for Belt Sander 504B

SKU: Femi 504B - 8266132
€2.64
VAT included

Femi Spare Parts for Belt Sander 504B

Femi genuine spare parts or replacemtents parts for to fix Belt Sander 504B - 8266132.
Femi Spare Parts for Belt Sander 504B
  • Femi Spare Parts for Belt Sander 504B
  • Femi Spare Parts for Belt Sander 504B

Femi Spare Parts for Belt Sander 504B

SKU: Femi 504B - 8266132 Condition: New
€2.64
VAT included

Femi Spare Parts for Belt Sander 504B

Femi genuine spare parts or replacemtents parts for to fix Belt Sander 504B - 8266132.
settings 21 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM CODE OR S/N FEMI:: FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

21 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 5181719 SLIDING PROTECTION €22.99
2
photo_cameraImage coming soon 0140063 HANDWHEEL €3.25
3
photo_cameraImage coming soon 0140064 HANDWHEEL €4.89
4
photo_cameraImage coming soon 0102106 Blind nut M 6 Zn Uni 5721 €1.22
10
photo_cameraImage coming soon 7800223 CONTROL PANEL €427.52
11
photo_cameraImage coming soon 7801802 MOTOR €553.54
13
photo_cameraImage coming soon 0106125 SELF-LOCKING RING NUT €8.19
17
Work Plate for Belt Sander FEMI 504B 5130356 Work Plate for Belt Sander FEMI 504B €107.81
19
photo_cameraImage coming soon 5130353 TOOL REST €32.86
22
photo_cameraImage coming soon 5140023 HANDWHEEL €41.09
23
photo_cameraImage coming soon 0107005 WING NUT €2.43
25
photo_cameraImage coming soon 5182277 DUST CONVEYOR €74.32
28
photo_cameraImage coming soon 5181716 FIX PROTECTION €128.28
29
photo_cameraImage coming soon 0121117 BRASS WASHER €2.43
31
photo_cameraImage coming soon 5181718 MOBILE PROTECTION €41.09
33
photo_cameraImage coming soon 5137897 COMPLETE ARM €191.45
37
photo_cameraImage coming soon 5214010 DRIVING WHEEL €229.62
45
photo_cameraImage coming soon 5214213 FREE WHEEL €137.66
46
photo_cameraImage coming soon 5002048 SHAFT €41.09
47
photo_cameraImage coming soon 5130698 SHAFT SUPPORT €59.18
49
photo_cameraImage coming soon 5120614 SPACER €2.43

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Femi Spare Parts for Belt Sander 504B

Femi genuine spare parts or replacemtents parts for to fix Belt Sander 504B - 8266132.

In the following table, look for the model of Belt Sander and the respective parts of the code.
Belt Sander 504B - 8266132

Belt Sander 504
# Part Num. Description
1 5181719 SLIDING PROTECTION
2 0140063 HANDWHEEL
3 0140064 HANDWHEEL
4 0102106 CAP NUT
5 0120206 WASHER
10 7800223 CONTROL PANEL
11 7801802 MOTOR
13 0106125 SELF-LOCKING RING NUT
17 5130356 WORK PLATE
18 0120713 PLAIN WASHER
19 5130353 TOOL REST
20 5137783 ELECTRIC BOX SUPPORT
22 5140023 HANDWHEEL
23 0107005 WING NUT
24 0120806 PLAIN WASHER
25 5182277 DUST CONVEYOR
28 5181716 FIX PROTECTION
29 0121117 BRASS WASHER
31 5181718 MOBILE PROTECTION
33 5137897 COMPLETE ARM
37 5214010 DRIVING WHEEL
43 0151117 SNAP RING
45 5214213 FREE WHEEL
46 5002048 SHAFT
47 5130698 SHAFT SUPPORT
48 0151115 SNAP RING
49 5120614 SPACER

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s FEMI websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to FEMI brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Femi 504B - 8266132
10 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM CODE OR S/N FEMI:
FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS

Specific References

New

Download

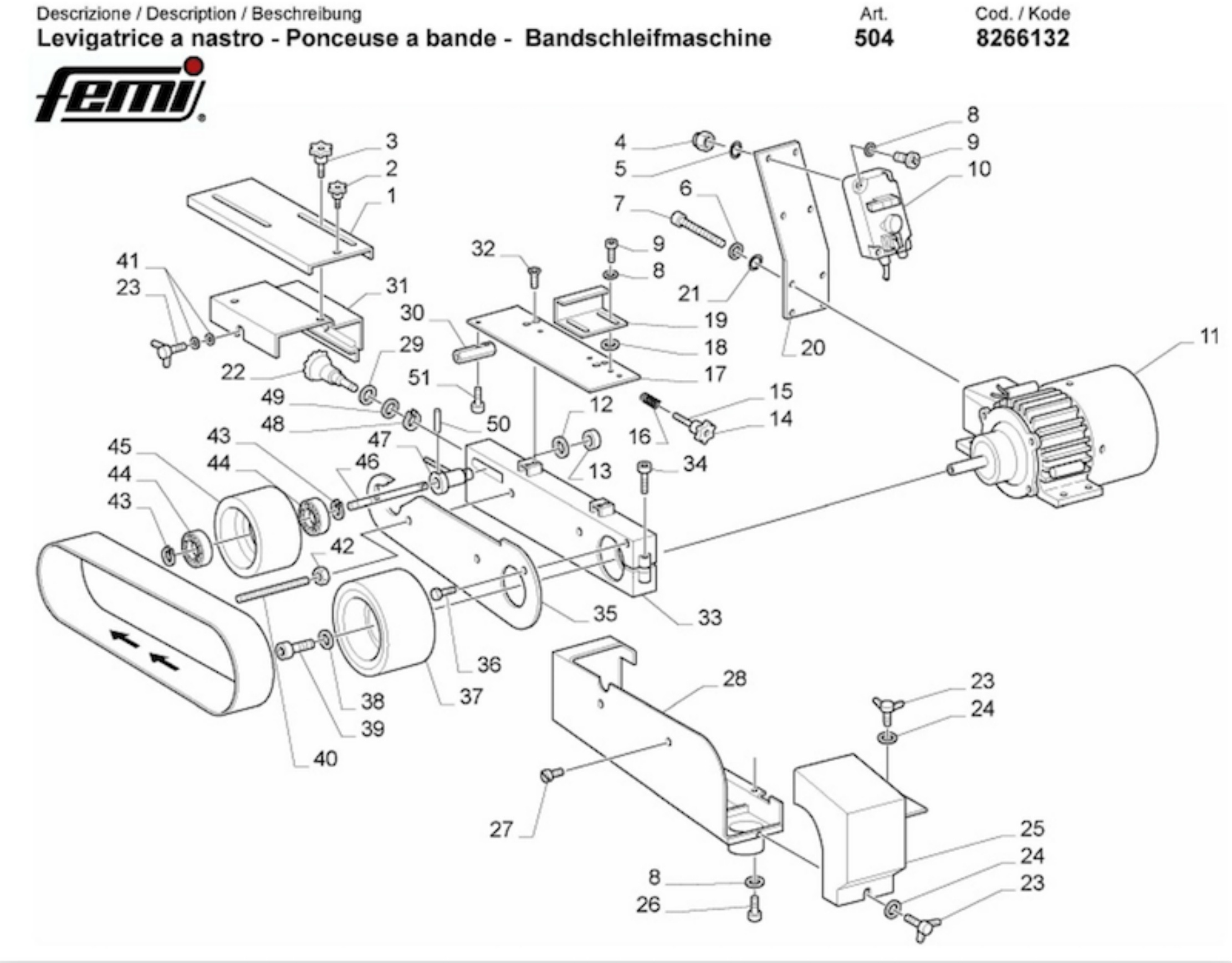

Diagram Belt Sander Femi 504B

Diagram Belt Sander Femi 504B

Download (219.27KB)
