Lavorwash S.p.A.

EINHELL Original Parts for Pressure Cleaner BT-HP 1900

SKU: EINHELL BT-HP 1900 4140531
€30.08
VAT included

EINHELL Original Parts for Pressure Cleaner BT-HP 1900

Lavor original spare parts for to replace broken parts for to fix Pressure Cleaner BT-HP 1900 8.065.0626 - IDRO BT-HP 1900 (LI19ES) 230/950 BLU - TS EU 4140531 EINHELL.
EINHELL Original Parts for Pressure Cleaner BT-HP 1900
  • EINHELL Original Parts for Pressure Cleaner BT-HP 1900
  • EINHELL Original Parts for Pressure Cleaner BT-HP 1900 - Drawing
  • EINHELL Original Parts for Pressure Cleaner BT-HP 1900 - Drawing - 1
Lavorwash S.p.A.

EINHELL Original Parts for Pressure Cleaner BT-HP 1900

SKU: EINHELL BT-HP 1900 4140531 Condition: New
€30.08
VAT included

EINHELL Original Parts for Pressure Cleaner BT-HP 1900

Lavor original spare parts for to replace broken parts for to fix Pressure Cleaner BT-HP 1900 8.065.0626 - IDRO BT-HP 1900 (LI19ES) 230/950 BLU - TS EU 4140531 EINHELL.
settings 35 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
34 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
001
 photo_cameraImage coming soon 4.008.1056 COBRA HANDLE FOR H.P.HOSE COILER €29.21
003
 photo_cameraImage coming soon 4.012.0174 CABLE H05VV-F 2X1 MT.5,4 F/F SCHUKO PLUG €22.92
004
 photo_cameraImage coming soon 6.005.0231 KIT 214 LW €28.91
005
 photo_cameraImage coming soon 6.005.0317 HOSE REEL KIT €43.92
006
 photo_cameraImage coming soon 4.008.1065 FRONT SUPPORT FOR COBRA €3.23
007
 photo_cameraImage coming soon 5.009.0213 EXT SWITCH WITH PROTECTION 12(10) €6.72
008
 photo_cameraImage coming soon 4.008.1172 AIR CONVEYOR FOR U76 €14.87
009
 Trigger Gun S'09 6.001.0076 for Pressure Washers Cold Water Lavor 6.001.0076 Trigger Gun S'09 6.001.0076 for Pressure Washers Cold Water Lavor €20.60
010
 H.P. Hose 4.018.0095 6 m for Quick Coupling Trigger Gun Lavor S’09 4.018.0095 H.P. Hose 4.018.0095 6 m for Quick Coupling Trigger Gun Lavor S’09 €20.60
011
 photo_cameraImage coming soon 6.002.0209C FIXED LANCE S'99 1,05 L=46cm. (GREY) €14.22
012
 Turbo Lance Ø 1.025 6.002.0329 for Pressure Washers Lavor 6.002.0329 Turbo Lance Ø 1.025 6.002.0329 for Pressure Washers Lavor €11.82
013
 Quick Coupling 3/4F for High Pressure Washers Lavor 3.100.0082 Quick Coupling 3/4F for High Pressure Washers Lavor €1.63
014
 Foam Lance + Bottle for High Pressure Washers Lavor 6.002.0358 Foam Lance + Bottle for High Pressure Washers Lavor €13.09
015
 photo_cameraImage coming soon 4.008.0803 TANK FOR FOAM SPRAYER -WHITE TRANSPARENT- €5.78
016
 photo_cameraImage coming soon 4.008.1125 GREY COVER FOR COBRA (P80.0432) €3.27
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
Pos. Item Price Buy
000
 Motorpump Ass'y for Pressure Cleaner Lavor Tomcat 5.001.I841C Motorpump Ass'y for Pressure Cleaner Lavor Tomcat €120.09
001
 photo_cameraImage coming soon 5.009.0741 UNIV.MOTOR 230/50+PINION CABLE L=600 WITH CAPACITOR (7645PF) €54.17
002
 Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145 6.005.0311 Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145 €7.56
003
 Pin 10x70 for Pressure Washer Lavor Predator 160 WPS 4.007.0205 Pin 10x70 for Pressure Washer Lavor Predator 160 WPS €7.68
004
 Plate Assembly with Crown for Pressure Washer Lavor ENDURO 145 5.009.0726 Plate Assembly with Crown for Pressure Washer Lavor ENDURO 145 €7.46
005
 photo_cameraImage coming soon 4.007.0328 THRUST BEARING 35X55X12 PT'03 €15.13
006
 Kit 167 LW 3 Pistons + Springs for Pressurte Washer Lavor BEST 24 6.005.0181 Kit 167 LW 3 Pistons + Springs for Pressurte Washer Lavor BEST 24 €25.98
007
 Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24 6.005.0226 Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24 €11.43
008
 Kit 170 LW Intake-Delivery Valve for Pressurte Washer Lavor BEST 24 6.005.0184 Kit 170 LW Intake-Delivery Valve for Pressurte Washer Lavor BEST 24 €15.19
009
 photo_cameraImage coming soon 4.005.0210 '03 PARTNER HEAD €12.51
010
 Kit 124 Water Seal Partner for Pressurte Washer Lavor BEST 24 6.005.0133 Kit 124 Water Seal Partner for Pressurte Washer Lavor BEST 24 €14.54
011
 Kit 125 LW Rings Holding Brass Seal for Pressurte Washer Lavor BEST 24 6.005.0134 Kit 125 LW Rings Holding Brass Seal for Pressurte Washer Lavor BEST 24 €15.18
012
 Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 6.005.0079 Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 €14.50
13A
 Kit 256 Check Valve for Washer Lavor Predator 160 6.005.0281 Kit 256 Check Valve for Washer Lavor Predator 160 €15.93
014
 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 4.008.0031 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 €2.07
015
 photo_cameraImage coming soon 5.009.0676 ASSEMBLY BODY GUIDE WITHOUT SUCTION €31.48
016
 TSS Valve Ass'y for Pressure Cleaner Lavor SIERRA 110 5.009.0680 TSS Valve Ass'y for Pressure Cleaner Lavor SIERRA 110 €18.46
017
 photo_cameraImage coming soon 5.007.0192C BODY GUIDE PT'03 WITH TS/COMP.VALVE/SPRING 13KG WITHOUT SUCTION €50.00
018
 Head PT'03 D.12 for Pressure Washer Lavor GIANT 24 5.008.0182C Head PT'03 D.12 for Pressure Washer Lavor GIANT 24 €32.89

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

EINHELL Original Parts for Pressure Cleaner BT-HP 1900

Lavor original spare parts for to replace broken parts for to fix Pressure Cleaner BT-HP 1900 8.065.0626 - IDRO BT-HP 1900 (LI19ES) 230/950 BLU - TS EU 4140531 EINHELL.

Fix Your BT-HP 1900 8.065.0626 - IDRO BT-HP 1900 (LI19ES) 230/950 BLU - TS EU 4140531 EINHELL. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
IDRO BT-HP 1900 EINHELL

Prewssure Cleaner BT-HP 1900 8.065.0626 - IDRO BT-HP 1900 (LI19ES) 230/950 BLU - TS EU 4140531 EINHELL

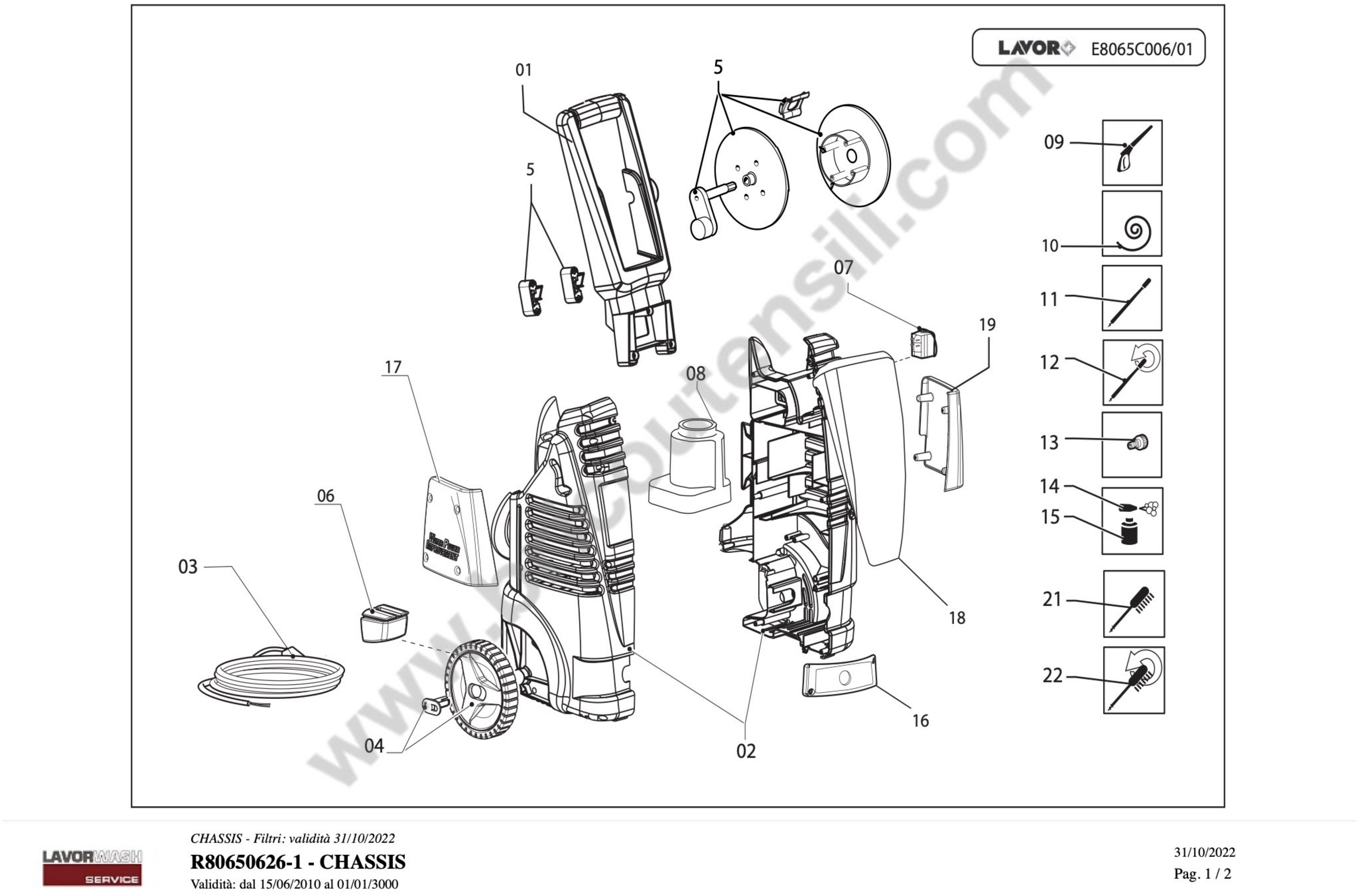

80650626-1 - CHASSIS Pag.1
# Part Num. Description
001 4.008.1056 COBRA HANDLE FOR H.P.HOSE COILER
002 4.013.0593 BLUE COVER (LEFT+RIGHT)
003 4.012.0174 CABLE H05VV-F 2X1 MT.5,4 F/F SCHUKO PLUG
004 6.005.0231 KIT 214 LW
005 6.005.0317 HOSE REEL KIT
006 4.008.1065 FRONT SUPPORT FOR COBRA
007 5.009.0213 SWITCH WITH PROTECTION 12(10)
008 4.008.1172 AIR CONVEYOR FOR U76
009 6.001.0076 GUN S'09 WITH INTEGRAL QUICK JOINT
010 4.018.0095 HOSE 1/4 180BAR L=6000 M22x1,5 D.15-RAPID FIX
011 6.002.0209C FIXED LANCE S'99 0,95 L=46cm. (ORANGE)
012 6.002.0329 ROTOX LANCE S01 CONICAL HEAD 1,025 (BLACK) L=470
013 3.100.0082 QUICK COUPLING INLET CONNECTOR (THREAD=11.5)
014 6.002.0358 FOAM SPRAYER (D.4) W/TRANSPARENT TANK
015 4.008.0803 TANK FOR FOAM SPRAYER -WHITE TRANSPARENT-
016 4.008.1125 GREY COVER FOR COBRA (P80.0432)

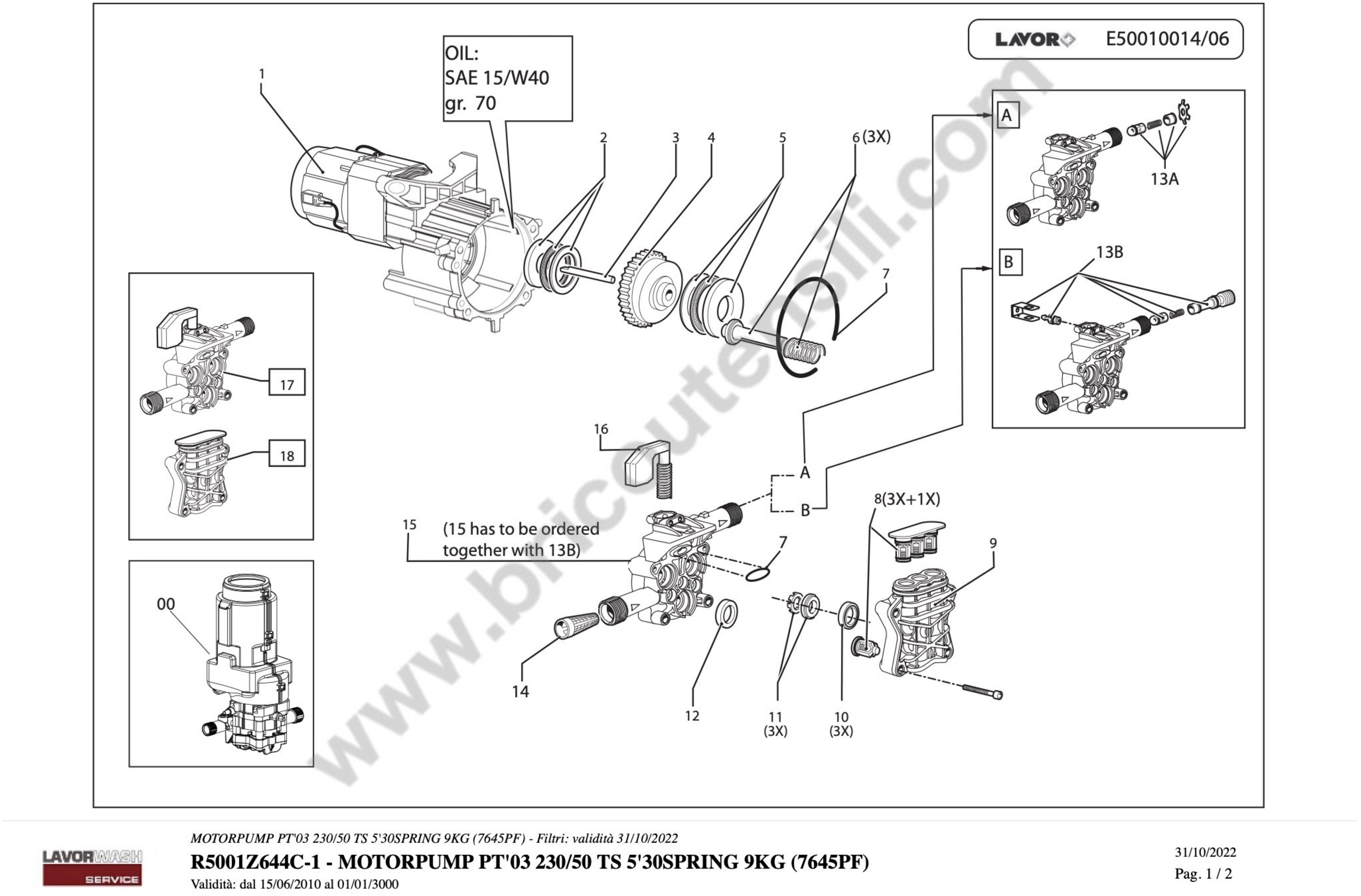

5001Z644C-1 - MOTORPUMP PT'03 230/50 TS 5'30SPRING 9KG (7645PF) Pag.2
000 5.001.I841C MOTORPUMP PT'03 230/50 TS 5'30 SPRING 13KG (7645PF-AL)
001 5.009.0741 UNIV.MOTOR 230/50+PINION CABLE L=600 WITH CAPACITOR (7645PF)
002 6.005.0311 THRUST RING KIT (PT'03 U76)
003 4.007.0205 PIN 10X70
004 5.009.0726 5'30 WOBBLE PLATE ASSEMBLY W/CROWN Z 62 (PT'03)
005 4.007.0328 THRUST BEARING 35X55X12 PT'03
006 6.005.0181 KIT 167 LW PISTON
007 6.005.0226 KIT 209 O-RING
008 6.005.0184 KIT 170 LW HEAD VALVE KIT
009 4.005.0210 '03 PARTNER HEAD
010 6.005.0133 KIT 124 O-RING WATER SEAL PARTNER D.12
011 6.005.0134 KIT 125 O-RING SEAL
012 6.005.0079 KIT 79 LW OIL SEALS
014 4.008.0031 INLET WATER FILTER H2O D.16 CONICAL
015 5.009.0676 ASSEMBLY BODY GUIDE WITHOUT SUCTION
016 5.009.0680 COMPLETED VALVE TS PT'03 CABLE L=530 SPRING 9KG (BLACK FASTON COVER)
017 5.007.0192C GUIDE BODY PARTNER'03 PISTON D.12 W/TS-WOUT/VACUUM-COMP.VAL
018 5.008.0182C '03 PARTNER HEAD D.12
13A 6.005.0281 KIT 256 VALVE GUIDE RID. W/O SUCTION PT'03C

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

EINHELL BT-HP 1900 4140531
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Drawing EINHELL BT-HP 1900

Drawing EINHELL BT-HP 1900

Download (577.65KB)
