Lavorwash S.p.A.

EINHELL Original Parts for Pressure Cleaner RT-HP 1545

SKU: EINHELL RT-HP 1545 4140530
€30.08
VAT included

EINHELL Original Parts for Pressure Cleaner RT-HP 1545

Lavor original spare parts for to replace broken parts for to fix Pressure Cleaner RT-HP 1545 - 8.065.0615 IDRO (LI21ES) 230/50 R-TS EU 4140530 EINHELL.
EINHELL Original Parts for Pressure Cleaner RT-HP 1545
  • EINHELL Original Parts for Pressure Cleaner RT-HP 1545
  • EINHELL Original Parts for Pressure Cleaner RT-HP 1545 - Drawing
  • EINHELL Original Parts for Pressure Cleaner RT-HP 1545 - Drawing - 1
Lavorwash S.p.A.

EINHELL Original Parts for Pressure Cleaner RT-HP 1545

SKU: EINHELL RT-HP 1545 4140530 Condition: New
€30.08
VAT included

EINHELL Original Parts for Pressure Cleaner RT-HP 1545

Lavor original spare parts for to replace broken parts for to fix Pressure Cleaner RT-HP 1545 - 8.065.0615 IDRO (LI21ES) 230/50 R-TS EU 4140530 EINHELL.
settings 35 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
34 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

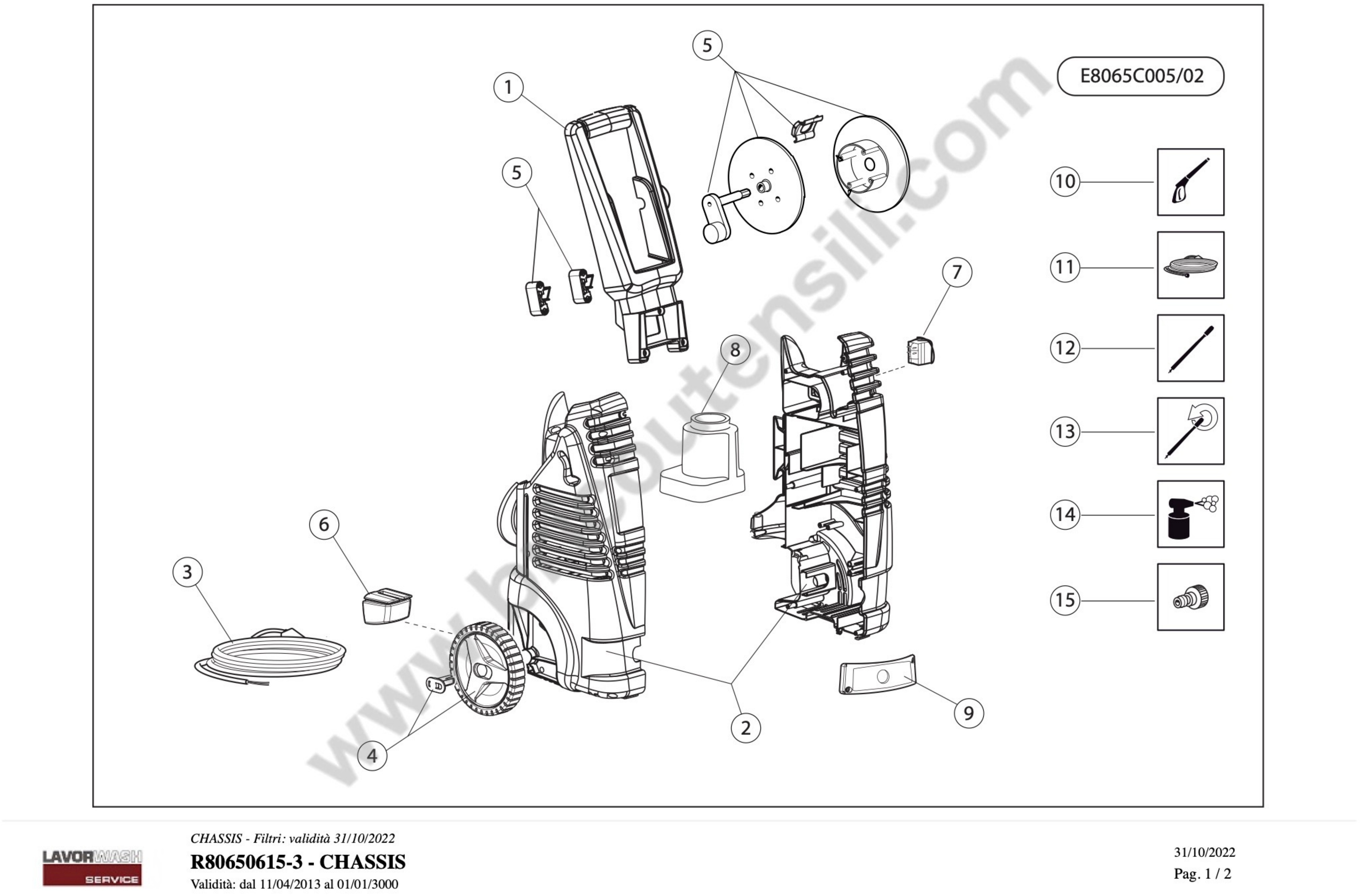

Esploso pagina 1
Pos. Item Price Buy
001
 photo_cameraImage coming soon 4.008.1056 COBRA HANDLE FOR H.P.HOSE COILER €29.21
002
 photo_cameraImage coming soon 4.013.0547 CHASSIS DX-SX COBRA €60.67
003
 photo_cameraImage coming soon 4.012.0174 CABLE H05VV-F 2X1 MT.5,4 F/F SCHUKO PLUG €22.92
004
 photo_cameraImage coming soon 6.005.0231 KIT 214 LW €28.91
005
 photo_cameraImage coming soon 6.005.0317 HOSE REEL KIT €43.92
006
 photo_cameraImage coming soon 4.008.1065 FRONT SUPPORT FOR COBRA €3.23
007
 photo_cameraImage coming soon 5.009.0213 EXT SWITCH WITH PROTECTION 12(10) €6.72
009
 photo_cameraImage coming soon 4.008.1125 GREY COVER FOR COBRA (P80.0432) €3.27
010
 photo_cameraImage coming soon 6.001.0084 GUN S'09 WITH INTEGRAL QUICK JOINT (BLACK TRIGGER) €31.72
011
 H.P. Hose 4.018.0095 6 m for Quick Coupling Trigger Gun Lavor S’09 4.018.0095 H.P. Hose 4.018.0095 6 m for Quick Coupling Trigger Gun Lavor S’09 €20.60
012
 photo_cameraImage coming soon 6.002.0209C FIXED LANCE S'99 1,05 L=46cm. (GREY) €14.22
013
 photo_cameraImage coming soon 6.002.0327 ROTOX LANCE S99 1.10 GREEN €12.72
014
 Foam Lance + Bottle for High Pressure Washers Lavor 6.002.0358 Foam Lance + Bottle for High Pressure Washers Lavor €13.09
015
 Quick Coupling 3/4F for High Pressure Washers Lavor 3.100.0082 Quick Coupling 3/4F for High Pressure Washers Lavor €1.63
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

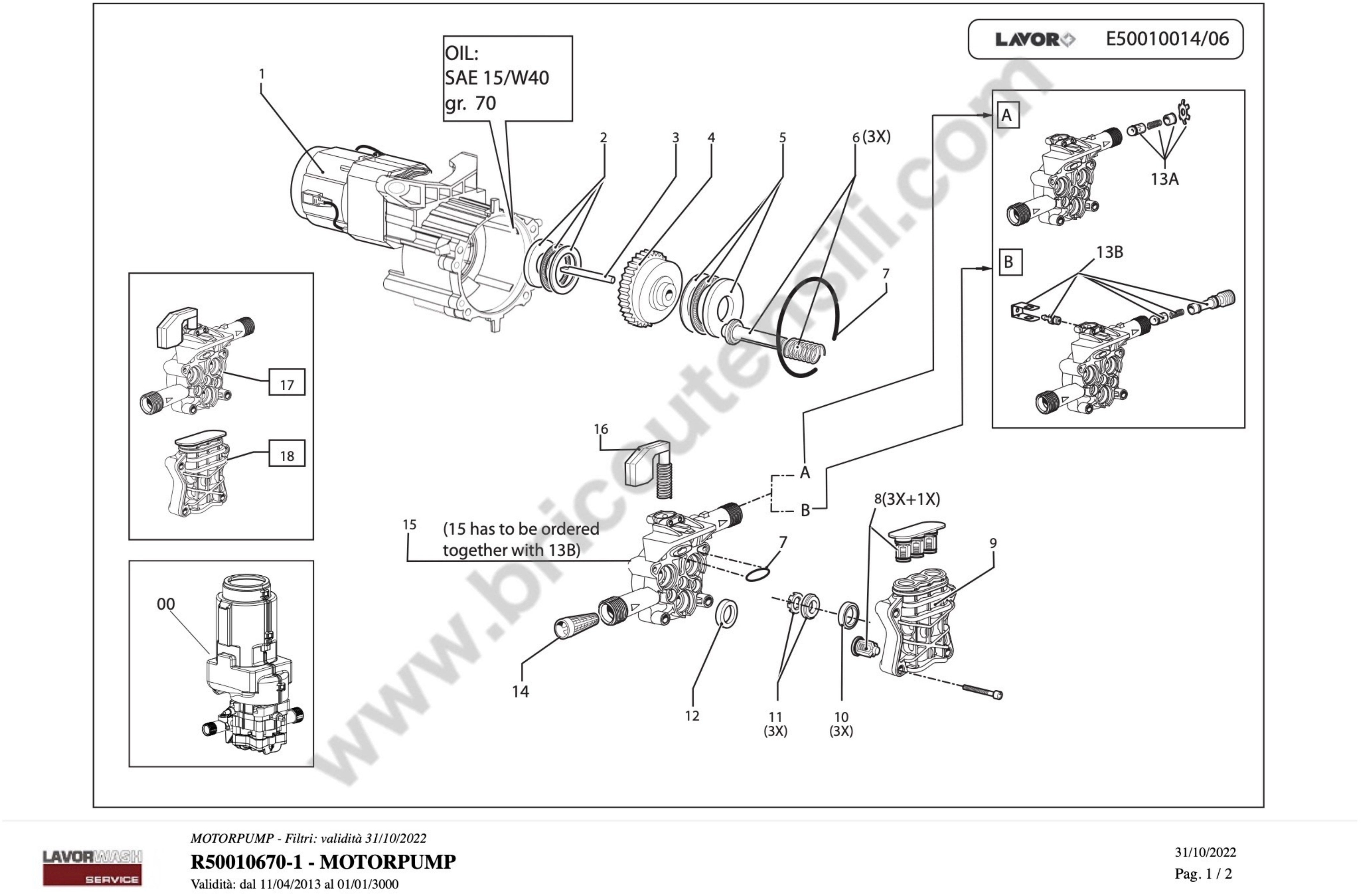

Esploso pagina 2
Pos. Item Price Buy
000
 photo_cameraImage coming soon 5.001.0670 MOTORPUMP PT'03 230/50 COMP.VALVE 7'10 TS W/OUT SUCT. M.13KG (9350) €180.25
001
 photo_cameraImage coming soon 5.009.0761 MOTOR ASSEMBLY '03 230/50 L=600 (9350) €167.06
002
 Kit 166 Footstep Bearing for Pressure Washer Lavor Predator 160 WPS 6.005.0180 Kit 166 Footstep Bearing for Pressure Washer Lavor Predator 160 WPS €13.79
003
 Pin 10x70 for Pressure Washer Lavor Predator 160 WPS 4.007.0205 Pin 10x70 for Pressure Washer Lavor Predator 160 WPS €7.68
004
 photo_cameraImage coming soon 5.009.0657 7'30 PLATE ASSEMBLY WITH Z 50 CROWN €8.31
005
 photo_cameraImage coming soon 4.007.0328 THRUST BEARING 35X55X12 PT'03 €15.13
006
 Kit 167 LW 3 Pistons + Springs for Pressurte Washer Lavor BEST 24 6.005.0181 Kit 167 LW 3 Pistons + Springs for Pressurte Washer Lavor BEST 24 €25.98
007
 Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24 6.005.0226 Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24 €11.43
008
 Kit 170 LW Intake-Delivery Valve for Pressurte Washer Lavor BEST 24 6.005.0184 Kit 170 LW Intake-Delivery Valve for Pressurte Washer Lavor BEST 24 €15.19
009
 photo_cameraImage coming soon 4.005.0210 '03 PARTNER HEAD €12.51
010
 Kit 124 Water Seal Partner for Pressurte Washer Lavor BEST 24 6.005.0133 Kit 124 Water Seal Partner for Pressurte Washer Lavor BEST 24 €14.54
011
 Kit 257 LW Rings Support + Spacers for Washer Lavor ENDURO 145 6.005.0282 Kit 257 LW Rings Support + Spacers for Washer Lavor ENDURO 145 €14.54
012
 Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 6.005.0079 Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 €14.50
13B
 photo_cameraImage coming soon 6.005.0210 KIT 193 LW VALVE GUIDE RID.+ PO RTAG.PT'03 €16.64
13A
 Kit 256 Check Valve for Washer Lavor Predator 160 6.005.0281 Kit 256 Check Valve for Washer Lavor Predator 160 €15.93
014
 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 4.008.0031 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 €2.07
015
 photo_cameraImage coming soon 4.005.0234 PISTON BODY GUIDE PT'03 WITHOUT HOLE FOR SUCTION €14.80
016
 Kit Valve Total-Stop Automatic Stop System for Washers Lavor ARMY 110 5.009.0716 Kit Valve Total-Stop Automatic Stop System for Washers Lavor ARMY 110 €27.86
017
 photo_cameraImage coming soon 5.007.0192C BODY GUIDE PT'03 WITH TS/COMP.VALVE/SPRING 13KG WITHOUT SUCTION €50.00
018
 Head PT'03 D.12 for Pressure Washer Lavor GIANT 24 5.008.0182C Head PT'03 D.12 for Pressure Washer Lavor GIANT 24 €32.89

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

EINHELL Original Parts for Pressure Cleaner RT-HP 1545

Fix Your Pressure Cleaner RT-HP 1545 - 8.065.0615 IDRO (LI21ES) 230/50 R-TS EU 4140530 EINHELL. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
RT-HP 1545 EINHELL
Pressure Cleaner RT-HP 1545 - 8.065.0615 IDRO (LI21ES) 230/50 R-TS EU 4140530 EINHELL
80650615-3 - CHASSIS Pag.1
# Part Num. Description
001 4.008.1056 COBRA HANDLE FOR H.P.HOSE COILER
002 4.013.0547 CHASSIS DX-SX COBRA
003 4.012.0174 CABLE H05VV-F 2X1 MT.5,4 F/F SCHUKO PLUG
004 6.005.0231 KIT 214 LW
005 6.005.0317 HOSE REEL KIT
006 4.008.1065 FRONT SUPPORT FOR COBRA
007 5.009.0213 SWITCH WITH PROTECTION 12(10)
008 4.008.1255 RIGHT+LEFT CONVEYOR MOTOR 96 STANDARD FAN
009 4.008.1125 GREY COVER FOR COBRA (P80.0432)
010 6.001.0084 GUN S'09 WITH INTEGRAL QUICK JOINT (BLACK TRIGGER)
011 4.018.0095 HOSE 1/4 180BAR L=6000 M22x1,5 D.15-RAPID FIX
012 6.002.0209C FIXED LANCE S'99 0,95 L=46cm. (ORANGE)
013 6.002.0327 TURBO NOZZLE S'01 CONICAL HEAD D.1,10 GREEN L.470
014 6.002.0358 FOAM SPRAYER (D.4) W/TRANSPARENT TANK
015 3.100.0082 QUICK COUPLING INLET CONNECTOR (THREAD=11.5)
50010670-1 - MOTORPUMP Pag.2
000 5.001.0670 MOTORPUMP PT'03 230/50 COMP.VALVE 7'10 TS W/OUT SUCT. M.13KG (9350)
001 5.009.0761 MOTOR ASSEMBLY '03 230/50 L=600 (9350)
002 6.005.0180 KIT 166 FOOTSTEP BEARING 3047 PT' 03-SD
003 4.007.0205 PIN 10X70
004 5.009.0657 7'30 PLATE ASSEMBLY W/CROWNZ 50
005 4.007.0328 THRUST BEARING 35X55X12 PT'03
006 6.005.0181 KIT 167 LW PISTON
007 6.005.0226 KIT 209 O-RING
008 6.005.0184 KIT 170 LW HEAD VALVE KIT
009 4.005.0210 '03 PARTNER HEAD
010 6.005.0133 KIT 124 O-RING WATER SEAL PARTNER D.12
011 6.005.0282 KIT 257 O-RING SEAL
012 6.005.0079 KIT 79 LW OIL SEALS
014 4.008.0031 INLET WATER FILTER H2O D.16 CONICAL
015 4.005.0234 PISTON BODY GUIDE PT'03 WITHOUT HOLE FOR SUCTION
016 5.009.0716 COMPLETED VALVE TS PT'03 CABLE L=530 SPRING 13KG (WHITE FASTON COVER)
017 5.007.0192C GUIDE BODY PARTNER'03 PISTON D.12 W/TS-WOUT/VACUUM-COMP.VAL
018 5.008.0182C '03 PARTNER HEAD D.12
13A 6.005.0281 KIT 256 VALVE GUIDE RID. W/O SUCTION PT'03C
13B 6.005.0210 KIT 193 LW VALVE GUIDE RID.+ PO RTAG.PT'03
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
EINHELL RT-HP 1545 4140530
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Drawing EINHELL RT-HP 1545

Drawing EINHELL RT-HP 1545

Download (547.66KB)
