Lavorwash S.p.A.

EINHELL Original Parts for Pressure Cleaner RT-HP 1648 TR

SKU: EINHELL RT-HP 1648 TR 4140540
€3.32
VAT included

EINHELL Original Parts for Pressure Cleaner RT-HP 1648 TR

Lavor original spare parts for to replace broken parts for to fix Pressure Cleaner RT-HP 1648 TR (RUNNER 2300) 230V-50HZ R-TS EU 4140540 EINHELL.
Lavor Original Parts for Pressure Cleaner RT-HP 1648 TR
  • Lavor Original Parts for Pressure Cleaner RT-HP 1648 TR
  • Lavor Original Parts for Pressure Cleaner RT-HP 1648 TR - Drawing - 1
  • Lavor Original Parts for Pressure Cleaner RT-HP 1648 TR - Drawing - 2
  • Lavor Original Parts for Pressure Cleaner RT-HP 1648 TR - Drawing - 3
Lavorwash S.p.A.

EINHELL Original Parts for Pressure Cleaner RT-HP 1648 TR

SKU: EINHELL RT-HP 1648 TR 4140540 Condition: New
€3.32
VAT included

EINHELL Original Parts for Pressure Cleaner RT-HP 1648 TR

Lavor original spare parts for to replace broken parts for to fix Pressure Cleaner RT-HP 1648 TR (RUNNER 2300) 230V-50HZ R-TS EU 4140540 EINHELL.
settings 47 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
47 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.013.0551 UPPER SILVER PLASTIC COVER FOR RUNNER €3.23
2
 photo_cameraImage coming soon 4.013.0550 FRONT CHASSIS RUNNER €31.43
3
 photo_cameraImage coming soon 4.007.0356 PUMP HOLDER STRIP 00 €3.23
4
 photo_cameraImage coming soon 6.005.0235 KIT 128 LW ACCESSORIES HOLDER FOR MACH/MHR/RUNNER €28.91
5
 photo_cameraImage coming soon 5.009.0213 EXT SWITCH WITH PROTECTION 12(10) €6.72
6
 photo_cameraImage coming soon 6.005.0237 220 HANDLE RUNNER €39.31
7
 photo_cameraImage coming soon 6.005.0255 KIT 238 SEMIWINDER R-L+HANDLE FOR COILER FOR LI ECO €31.57
8
 photo_cameraImage coming soon 5.011.0086 DETERGENT TANK €28.64
9
 photo_cameraImage coming soon 4.012.0174 CABLE H05VV-F 2X1 MT.5,4 F/F SCHUKO PLUG €22.92
10
 Einhell Wheel Kit for Pressure Cleaner RT-HP 1648 TR 6.005.0285 Einhell Wheel Kit for Pressure Cleaner RT-HP 1648 TR €27.71
11
 photo_cameraImage coming soon 4.007.0290 FIXING AXLE FOR WHEEL €3.32
12
 photo_cameraImage coming soon 4.008.1026 MOTOR CONVEYER RIGHT+LEFT 2100W €7.98
13
 photo_cameraImage coming soon 4.018.0076 H.P. HOSE 1/4 L6000 €25.98
14
 Trigger Gun S'09C 6.001.0083 for Pressure Washers Cold Water Lavor 6.001.0083 Trigger Gun S'09C 6.001.0083 for Pressure Washers Cold Water Lavor €30.48
15
 Adjustable Lance 6.002.0191C S'99 High/Low Pressure Ø 1.1 6.002.0191C Adjustable Lance 6.002.0191C S'99 High/Low Pressure Ø 1.1 €16.28
16
 photo_cameraImage coming soon 6.002.0327 ROTOX LANCE S99 1.10 GREEN €12.72
17
 Quick Coupling 3/4F for High Pressure Washers Lavor 3.100.0082 Quick Coupling 3/4F for High Pressure Washers Lavor €1.63
18
 Fixed Brush 3.601.0033 for Cold Water Pressure Washers Lavor 3.601.0033 Fixed Brush 3.601.0033 for Cold Water Pressure Washers Lavor €16.28
19
 photo_cameraImage coming soon 4.008.1060 BACK COVER MACH €40.60
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
001
 photo_cameraImage coming soon 6.005.0390 MOTOR U9650 230V50HZ'03 C/FL. INT.+PIGN.THREADS LENGH=600 €94.13
002
 Kit 166 Footstep Bearing for Pressure Washer Lavor Predator 160 WPS 6.005.0180 Kit 166 Footstep Bearing for Pressure Washer Lavor Predator 160 WPS €13.79
003
 Pin 10x70 for Pressure Washer Lavor Predator 160 WPS 4.007.0205 Pin 10x70 for Pressure Washer Lavor Predator 160 WPS €7.68
004
 photo_cameraImage coming soon 5.009.0657 7'30 PLATE ASSEMBLY WITH Z 50 CROWN €8.31
005
 photo_cameraImage coming soon 4.007.0328 THRUST BEARING 35X55X12 PT'03 €15.13
006
 Kit 167 LW 3 Pistons + Springs for Pressurte Washer Lavor BEST 24 6.005.0181 Kit 167 LW 3 Pistons + Springs for Pressurte Washer Lavor BEST 24 €25.98
007
 Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24 6.005.0226 Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24 €11.43
008
 Kit 170 LW Intake-Delivery Valve for Pressurte Washer Lavor BEST 24 6.005.0184 Kit 170 LW Intake-Delivery Valve for Pressurte Washer Lavor BEST 24 €15.19
009
 photo_cameraImage coming soon 4.005.0210 '03 PARTNER HEAD €12.51
010
 Kit 124 Water Seal Partner for Pressurte Washer Lavor BEST 24 6.005.0133 Kit 124 Water Seal Partner for Pressurte Washer Lavor BEST 24 €14.54
011
 Kit 125 LW Rings Holding Brass Seal for Pressurte Washer Lavor BEST 24 6.005.0134 Kit 125 LW Rings Holding Brass Seal for Pressurte Washer Lavor BEST 24 €15.18
012
 Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 6.005.0079 Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 €14.50
013
 Kit 169 LW Injector D. 1.7 for Washers Lavor GIANT 20 - PASCAL 20 6.005.0183 Kit 169 LW Injector D. 1.7 for Washers Lavor GIANT 20 - PASCAL 20 €14.50
014
 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 4.008.0031 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 €2.07
015
 Kit Valve Total-Stop Automatic Stop System for Washers Lavor ARMY 110 5.009.0716 Kit Valve Total-Stop Automatic Stop System for Washers Lavor ARMY 110 €16.00
016
 Body Guide PT'03 for Pressure Washer Lavor RIO 1108 5.007.0187C Body Guide PT'03 for Pressure Washer Lavor RIO 1108 €57.11
017
 Head PT'03 D.12 for Pressure Washer Lavor GIANT 24 5.008.0182C Head PT'03 D.12 for Pressure Washer Lavor GIANT 24 €32.89
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
001
 photo_cameraImage coming soon 4.008.1135 SPLASH GUARD FOR SLIDER €15.33
1
 photo_cameraImage coming soon 4.013.0551 UPPER SILVER PLASTIC COVER FOR RUNNER €3.23
2
 photo_cameraImage coming soon 4.013.0550 FRONT CHASSIS RUNNER €31.43
002
 photo_cameraImage coming soon 4.208.0426 HANDLE FOR UPPER HEAD GB €3.23
3
 photo_cameraImage coming soon 4.007.0356 PUMP HOLDER STRIP 00 €3.23
003
 photo_cameraImage coming soon 4.008.0998 ROUND BRUSH WITH BRISTLES FOR SLIDER €29.21
004
 photo_cameraImage coming soon 5.009.0623 ASSEMBLY OF ROTOR+BUSH+NOZZLES (DIAMETER = 0,95) FOR SLIDER €27.30
4
 photo_cameraImage coming soon 6.005.0235 KIT 128 LW ACCESSORIES HOLDER FOR MACH/MHR/RUNNER €28.91
5
 photo_cameraImage coming soon 5.009.0213 EXT SWITCH WITH PROTECTION 12(10) €6.72
005
 photo_cameraImage coming soon 6.005.0188 KIT 174 LW SURFER O-RING €28.09
006
 photo_cameraImage coming soon 4.006.0285 ROTOR PIN €8.25
6
 photo_cameraImage coming soon 6.005.0237 220 HANDLE RUNNER €39.31
007
 photo_cameraImage coming soon 4.008.0865 MAINTENANCE KEY €3.23
7
 photo_cameraImage coming soon 6.005.0255 KIT 238 SEMIWINDER R-L+HANDLE FOR COILER FOR LI ECO €31.57
8
 photo_cameraImage coming soon 5.011.0086 DETERGENT TANK €28.64
008
 photo_cameraImage coming soon 6.005.0189 KIT 175 LW SURFER COMPLETE PIVOT €28.09
9
 photo_cameraImage coming soon 4.012.0174 CABLE H05VV-F 2X1 MT.5,4 F/F SCHUKO PLUG €22.92
009
 photo_cameraImage coming soon 6.003.0064 THREADED EXTENSION ASSEMBLED WITH O-RINGS €12.81
010
 photo_cameraImage coming soon 6.003.0049 REINFORCED EXTENSION LANCE S'93 €12.83
011
 photo_cameraImage coming soon 6.005.0195 KIT 181 N.2 NOZZLE €9.23

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

EINHELL Original Parts for Pressure Cleaner RT-HP 1648 TR

Lavor original spare parts for to replace broken parts for to fix Pressure Cleaner RT-HP 1648 TR (RUNNER 2300) 230V-50HZ R-TS EU 4140540 EINHELL.

Fix Your RT-HP 1648 TR (RUNNER 2300) 230V-50HZ R-TS EU 4140540 EINHELL. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
RT-HP 1648 TR EINHELL
PRESSURE CLEANER RT-HP 1648 TR (RUNNER 2300) 230V-50HZ R-TS EU 4140540 - EINHELL

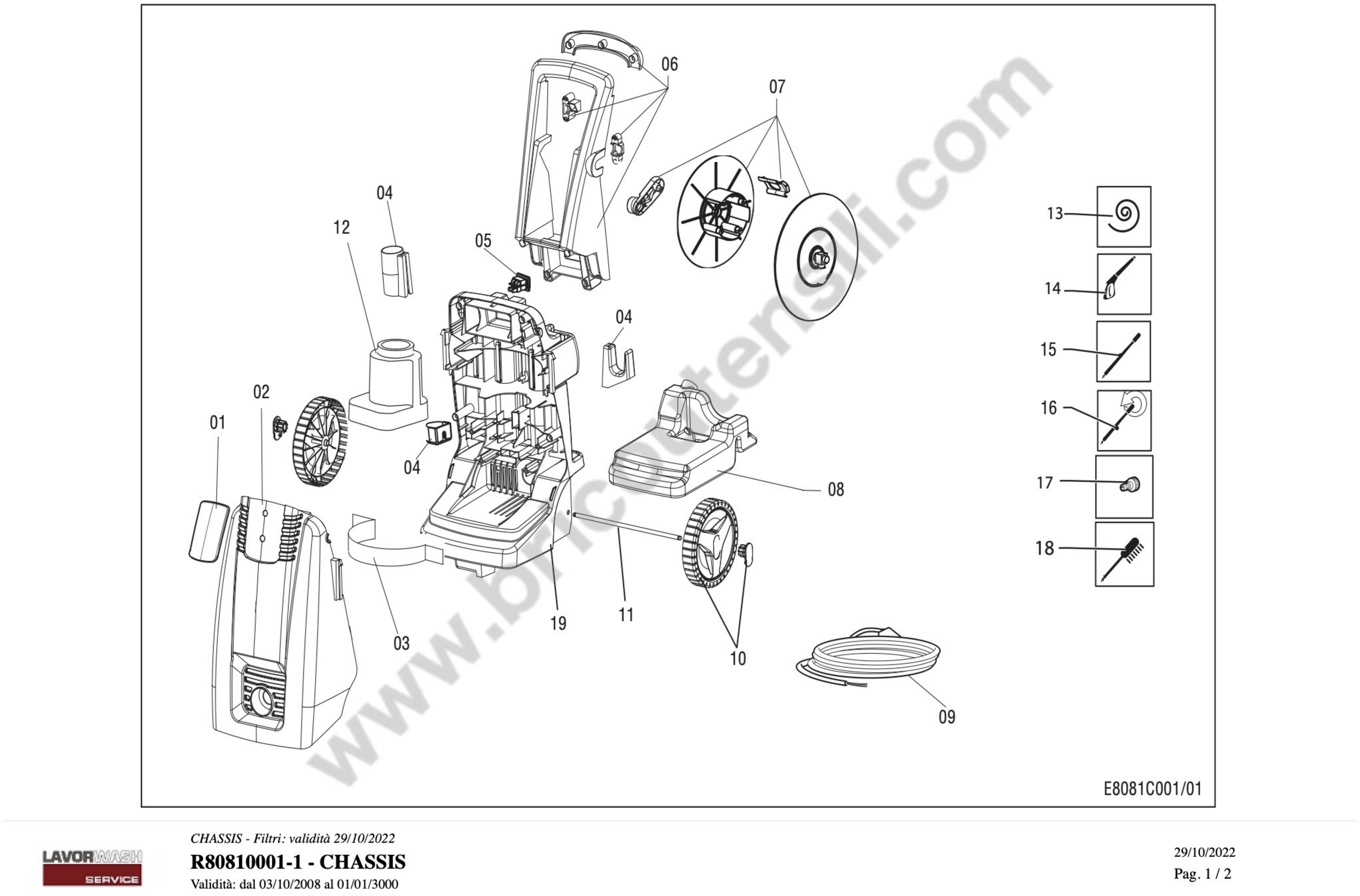

80810001-1 - CHASSIS Pag.1
# Part Num. Description
1 4.013.0551 UPPER SILVER PLASTIC COVER FOR RUNNER
2 4.013.0550 FRONT CHASSIS RUNNER
3 4.007.0356 PUMP HOLDER STRIP 00
4 6.005.0235 KIT 128 LW ACCESSORIES HOLDER FOR MACH/MHR/RUNNER
5 5.009.0213 SWITCH WITH PROTECTOR 16(8) 12(10)
6 6.005.0237 KIT 220 HANDLE RUNNER
7 6.005.0255 KIT 238 SEMIWINDER R-L+HANDLE FOR COILER FOR LI ECO
8 5.011.0086 DETERGENT TANK
9 4.012.0174 CABLE H05VV-F 2X1 MT.5,4 F/F SCHUKO PLUG
10 6.005.0285 KIT 260 WHEEL TEMPESTA/RUNNER
11 4.007.0290 FIXING AXLE FOR WHEEL
12 4.008.1026 MOTOR CONVEYER
13 4.018.0076 H.P. HOSE 1/4 L6000
14 6.001.0083 GUN S'01-EU-INTERM.SECURITY PI N BLACK
15 6.002.0191C HI/LO LANCE S'99 1,0 MM (BLACK)
16 6.002.0327 ROTOX LANCE S01 1,10 (GREEN)
17 3.100.0082 QUICK COUPLING INLET CONNECTOR (THREAD=11.5)
18 3.601.0033 FIX BRUSH AND ADAPT.REINFORCED COGETIL
19 4.008.1060 BACK COVER MACH

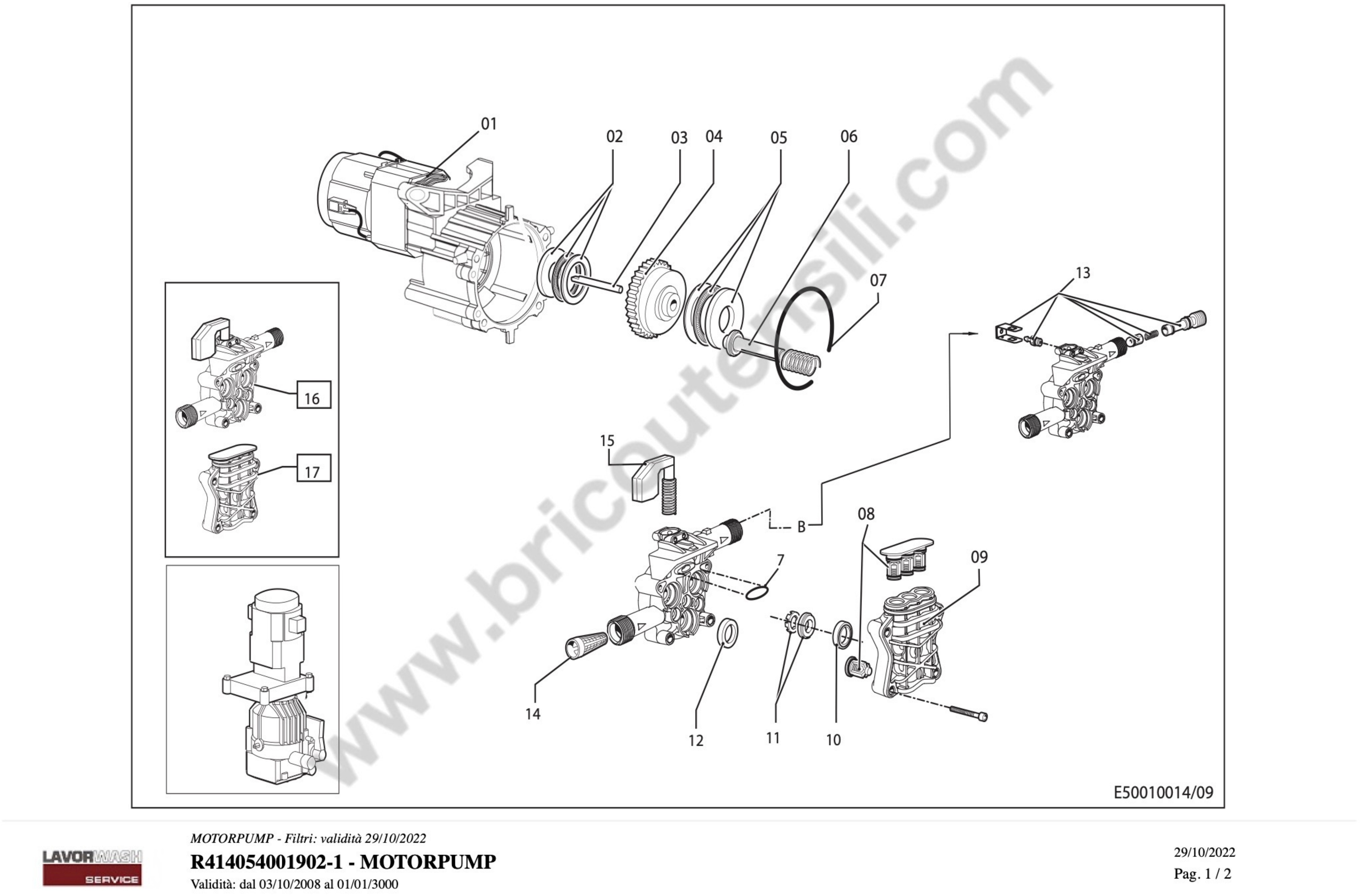

414054001902-1 - MOTORPUMP Pag.2
001 6.005.0390 MOTOR U9650 230V50HZ'03 C/FL. INT.+PIGN.THREADS LENGH=600
002 6.005.0180 KIT 166 FOOTSTEP BEARING 3047 PT' 03-SD
003 4.007.0205 PIN 10X70
004 5.009.0657 7'10 PLATE ASSEMBLY W/CROWN Z 50
005 4.007.0328 THRUST HOUSING
006 6.005.0181 KIT 167 LW PISTON
007 6.005.0226 KIT 209 O-RING
008 6.005.0184 KIT 170 LW HEAD VALVE KIT
009 4.005.0210 '03 PARTNER HEAD
010 6.005.0133 KIT 124 O-RING WATER SEAL PARTNER D.12
011 6.005.0134 KIT 125 O-RING SEAL
012 6.005.0079 KIT 79 LW OIL SEALS
013 6.005.0183 KIT 169 LW INJECTOR 1,7
014 4.008.0031 INLET WATER FILTER H2O D.16 CONICAL
015 5.009.0716 KIT VALVE TOTAL STOP AUTOMATIC STOP SYSTEM FOR '03 HEAD
016 5.007.0187C BODY GUIDE PT'03 PISTONS D.12 W/ASS,DETERG.SUCTION
017 5.008.0182C '03 PARTNER HEAD D.12

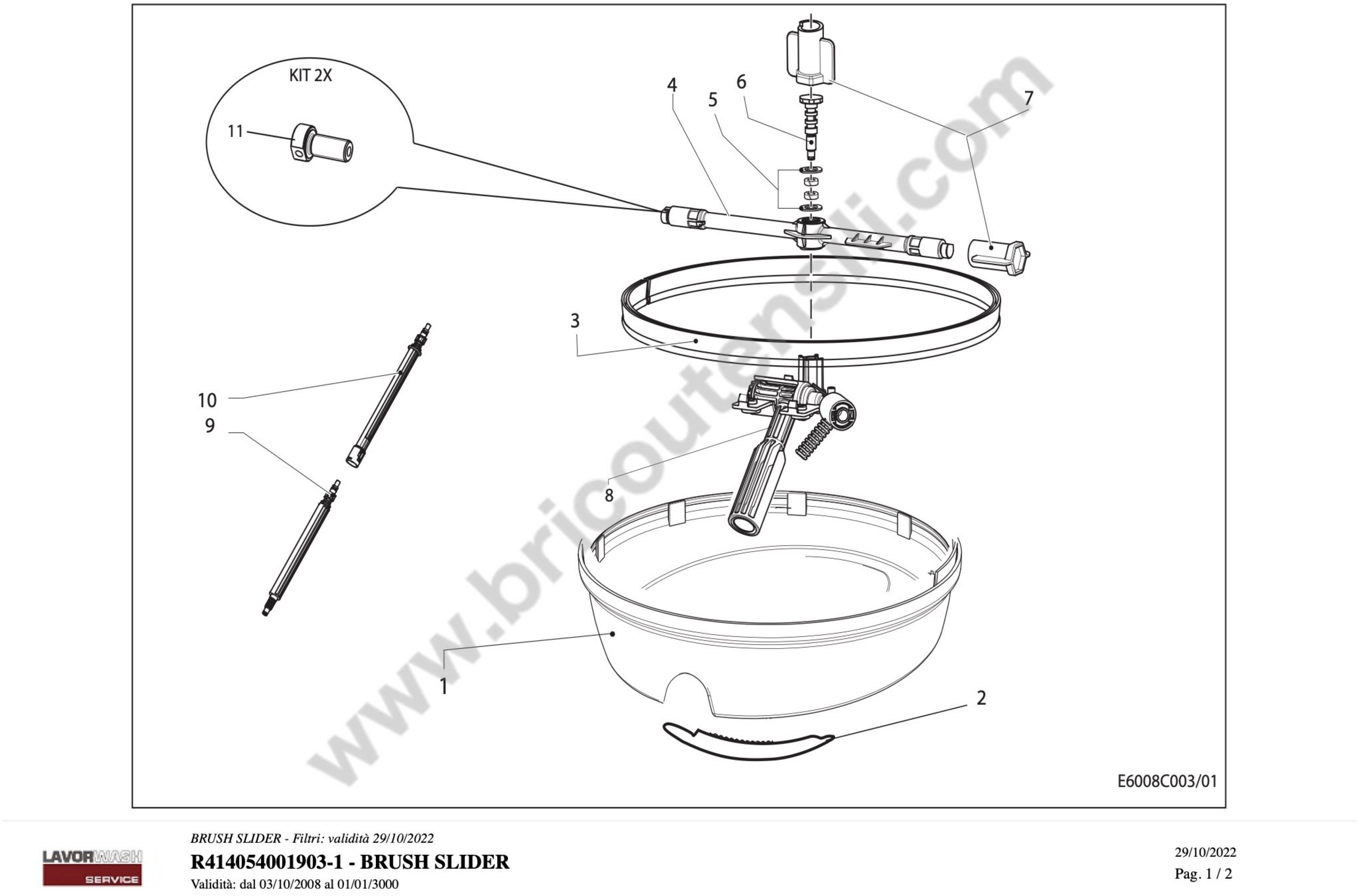

414054001903-1 - BRUSH SLIDER Pag.3
001 4.008.1135 SPLASH GUARD FOR SLIDER
002 4.208.0426 HANDLE FOR UPPER HEAD GB
003 4.008.0998 ROUND BRUSH WITH BRISTLES FOR SLIDER
004 5.009.0623 ASSEMBLY OF ROTOR+BUSH+NOZZLES (DIAMETER = 0,95) FOR SLIDER
005 6.005.0188 KIT 174 LW SURFER O-RING
006 4.006.0285 ROTOR PIN
007 4.008.0865 MAINTENANCE KEY
008 6.005.0189 KIT 175 LW SURFER COMPLETE PIVOT
009 6.003.0064 THREADED EXTENSION ASSEMBLED WITH O-RINGS
010 6.003.0049 GUN UL'99 EXTENSION LEN.370 + SPRING + OR
011 6.005.0195 KIT 181 N.2 NOZZLE

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

EINHELL RT-HP 1648 TR 4140540
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Drawing Einhell RT-HP 1648 TR

Drawing Einhell RT-HP 1648 TR

Download (689.85KB)

You might also like

Adjustable Lance 6.002.0191C S'99 High/Low Pressure Ø 1.1
Lavorwash S.p.A. SKU: 6.002.0191C
Adjustable Lance 6.002.0191C S'99 High/Low Pressure Ø 1.1
Adjustable Lance 6.002.0191C S'99 High/Low Pressure Ø 1.1 Genuine Replacement part Lavor, Adjustable Lance S'99 High/Low Pressure Ø 1.1 for Pressure Washers Predator 160 WPS - Tuono 20 - Rhino 150. Part suitable for the following high...
AVAILABLE €16.28
Details
Quick Coupling 3/4F for High Pressure Washers Lavor
Lavorwash S.p.A. SKU: 3.100.0082
Quick Coupling 3/4F for High Pressure Washers Lavor
Quick Coupling 3/4F  for High Pressure Washers Lavor Genuine Replacement part Lavor, Quick Coupling 3/4F 3.100.0082 for Cold Water High Pressure Washers Fury 110 - Ride 110 - Race 125...
AVAILABLE €1.63
Details
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 4.008.0031
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Inlet Water Filter H20 D.16 Conical for Pressurte Washers STORM II 17 - STORM II PLUS 21 - BEST 24.  Part for the following products: -...
AVAILABLE €2.07
Details
Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 6.005.0079
Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24
Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Kit 79 LW Oil Seal for Partner D.12/Fibra per Pressure Washers ARMY 110 - MARINE 125 - NAVY 140 - ENDURO 145 COMP. Part for the following...
Usually Shipped on: 7/10 Business Days Approx. €14.50
Details
Kit 170 LW Intake-Delivery Valve for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 6.005.0184
Kit 170 LW Intake-Delivery Valve for Pressurte Washer Lavor BEST 24
Kit 170 LW Intake-Delivery Valve for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Kit 170 LW Intake-Delivery Valve PT' 03 per Pressure Washers ARMY 110 - MARINE 125 - NAVY 140 - ENDURO 145 COMP. Part for the...
Usually Shipped on: 10/15 Business Days Approx. €15.19
Details
Kit 125 LW Rings Holding Brass Seal for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 6.005.0134
Kit 125 LW Rings Holding Brass Seal for Pressurte Washer Lavor BEST 24
Kit 125 LW Rings Holding Brass Seal for Pressurte Washer Lavor BEST 24 Original spare part Lavor, Kit 125 LW Rings Holding Brass Seal + Spacers PT D.12 per Pressure Washers GIANT 24 - TEMPESTA 24 - BEST 24. Part for the following...
Usually Ships in: 7/10 Business Days Approx. €15.18
Details
Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 6.005.0226
Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24
Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Kit 209 O-Ring for PT'03 per Pressure Washers ARMY 110 - MARINE 125 - NAVY 140 - ENDURO 145 - BEST 24. Part for the following products: -...
Usually Ships in: 7/10 Business Days Approx. €11.43
Details
Kit Valve Total-Stop Automatic Stop System for Washers Lavor ARMY 110
Lavorwash S.p.A. SKU: 5.009.0716
Kit Valve Total-Stop Automatic Stop System for Washers Lavor ARMY 110
Kit Valve Total-Stop Automatic Stop System for Washers Lavor ARMY 110 Original replacement part Lavor, Kit Valvola Total-Stop Automatic Stop System PT'03 Cable L=530 Spring 13KG for ARMY 110 - MARINE 125 - NAVY 140. Part for the...
Usually Ships in: 7/10 Business Days Approx. €16.00
Details
Pin 10x70 for Pressure Washer Lavor Predator 160 WPS
Lavorwash S.p.A. SKU: 4.007.0205
Pin 10x70 for Pressure Washer Lavor Predator 160 WPS
Pin 10x70 for Pressure Washer Lavor Predator 160 WPS Genuine replacement part Lavor, Pin 10x70 for Drive Wooble Plate Assembly with Crown for Pressure Washer Predator 160 WPS 220-240~50/60 -V/N- TS EU C/AVV. LWS 8.101.0012. Part for...
AVAILABLE €7.68
Details
Kit 218 Accessories Holder for Washer Lavor Superwash 160
Lavorwash S.p.A. SKU: 4.008.0987
Kit 218 Accessories Holder for Washer Lavor Superwash 160
Kit 218 Accessories Holder for Washer Lavor Superwash 160 Original replacement part Lavor, Kit 218 LW Accessories Holder for Pressure Washers MACH-MHR-RUNNER - Superwash 160 - 80620908. Part for the following products: -  8.062.0908 -...
AVAILABLE €28.98
Details
Head PT'03 D.12 for Pressure Washer Lavor GIANT 24
Lavorwash S.p.A. SKU: 5.008.0182C
Head PT'03 D.12 for Pressure Washer Lavor GIANT 24
Head PT'03 D.12 for Pressure Washer Lavor GIANT 24 Original replacement part Lavor, Head PT'03 D.12 for Pressure Washers GIANT 24 - Pascal 20 - TEMPESTA 24 - Giant 20 - Tuono 20....
Last items in stock €32.89
Details
Body Guide PT'03 for Pressure Washer Lavor RIO 1108
Lavorwash S.p.A. SKU: 5.007.0187C
Body Guide PT'03 for Pressure Washer Lavor RIO 1108
Body Guide PT'03 for Pressure Washer Lavor RIO 1108 Genuine part Lavor, Body Guide PT'03 Pistons D.12 with ASS Detergent Suction for Pressure Washers RIO 1108 - MEK 1108 Part for the following products: -  Pressure Cleaner RIO 1108 -...
on 10 Business Days Approx €57.11
Details
Einhell Wheel Kit for Pressure Cleaner RT-HP 1648 TR
Einhell Italia s.r.l. SKU: 6.005.0285
Einhell Wheel Kit for Pressure Cleaner RT-HP 1648 TR
Einhell Wheel Kit for Pressure Cleaner RT-HP 1648 TR Original replacement part Einhell, Wheel Kit + Lock for Pressure Cleaners EINHELL RT-HP 1648 TR - RT-HP 1750TR. 1013LP. Part for the following products: -  Pressure...
Last items in stock €27.71
Details
Lavor Head for Pressure Washer Pascal 20
Lavorwash S.p.A. SKU: 00027-00688 ex 4.005.0210C
Lavor Head for Pressure Washer Pascal 20
Lavor Head for Pressure Washer Pascal 20 Genuine replacement part Lavor, Head Pt'03 for Pressure Washer Pascal 20 - Giant 20. Part for the following products: -  Pressure Washer FASA EXXEL20 - 8.062.0815...
Usually Ships in: 10/15 Business Days Approx. €12.88
Details
Comments (0)
