Makita

Dolmar Spare Parts for Auger PD520

SKU: Dolmar PD520 Condition: New
€1.44
VAT included

Dolmar Spare Parts for Auger PD520

DOLMAR Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Auger PD520.
settings 153 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
147 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

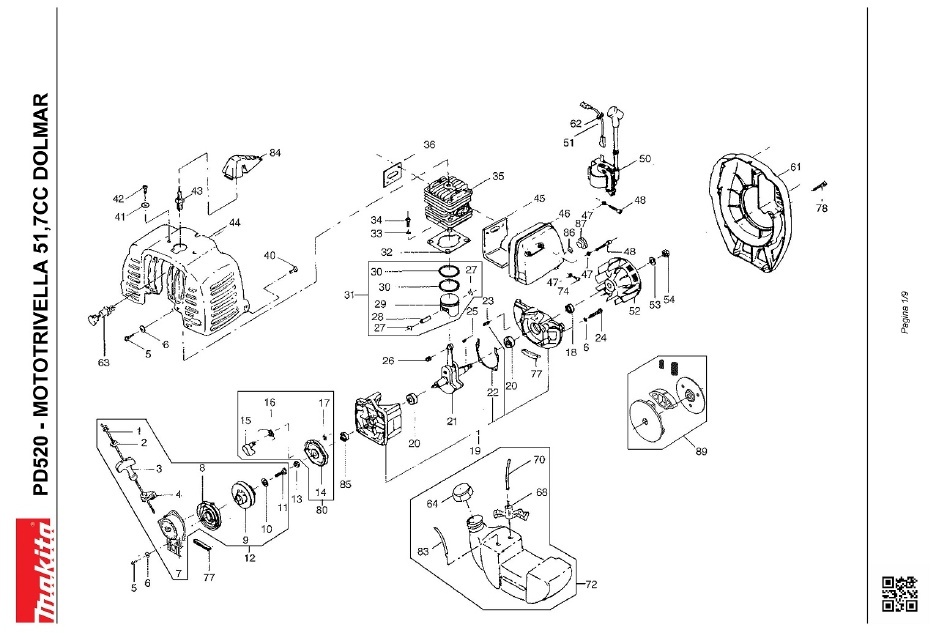

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon BB630070 STARTING ROPE €2.68
2
 photo_cameraImage coming soon BB510190 PLATE STOP ROPE €1.41
3
 photo_cameraImage coming soon BB540120 HANDLE STARTER €14.11
4
 photo_cameraImage coming soon BB541310 BUSH GUIDE FUNIC. €7.28
5
 photo_cameraImage coming soon BB030210 TCB SCREW M 5 X 16 €1.35
6
 photo_cameraImage coming soon BB090150 LOCK WASHER 5,1 €1.41
7
 photo_cameraImage coming soon BB480650 CARTER STARTING €40.18
8
 photo_cameraImage coming soon BB180240 SPRING STARTING €9.90
9
 Starter Pulley for Brushcutter Makita BBC5700 BB541320 Starter Pulley for Brushcutter Makita BBC5700 €20.50 Not available for order
10
 photo_cameraImage coming soon BB090720 FLAT WASHER D.4,3 X 16 €1.41
11
 photo_cameraImage coming soon BB030140 TCB SCREW M 4 X 10 €1.35
12
 Recoil Starter Assy for Auger Makita BBA520 BB721420/NE Recoil Starter Assy for Auger Makita BBA520 €52.09
13
 photo_cameraImage coming soon BB060370 NUT M 9 X 25.1 €2.68
14
 photo_cameraImage coming soon BB480900 RATCHET HOLDER €14.11
15
 Starter Pawl for Brushcutter Makita BBC451 BB541330 Starter Pawl for Brushcutter Makita BBC451 €3.50
16
 photo_cameraImage coming soon BB180200 RATCHET SPRING €2.68
18
 photo_cameraImage coming soon BB240030 SEALING RING 15X26X7 €7.58
19
 photo_cameraImage coming soon BB721430 CARTER MOTOR ASSEMBLY €155.11
20
 photo_cameraImage coming soon BB270070 6202 BEARING €11.08
21
 photo_cameraImage coming soon BB751600 CRANKSHAFT €174.93
22
 photo_cameraImage coming soon BB240260 SEAL CARTER €2.08
23
 photo_cameraImage coming soon BB420200 PLUG CENTRING CARTER D.8X10 €1.41
24
 photo_cameraImage coming soon BB030620 SCREW TCEI M 5 X 35 €1.41
25
 photo_cameraImage coming soon BB420030 TAB AMERICAN 10X3,7X3 €2.08
26
 Needle Bearing for Brushcutter Makita BBC5700 BB270050 Needle Bearing for Brushcutter Makita BBC5700 €12.65
27
 photo_cameraImage coming soon BB150040 PIN LOCKING RING D.10 €4.43
28
 photo_cameraImage coming soon BB420040 PISTON PIN D.10X30 €5.14
29
 photo_cameraImage coming soon BB480720 PISTON DIAMETER 44 €69.39
30
 photo_cameraImage coming soon BB150250 RING PISTON D.44 €12.27
31
 photo_cameraImage coming soon BB721360 PISTON COMPLETE D.44 €69.39
32
 Cylinder Gasket for Brushcutter Dolmar MS4520B BB240270 Cylinder Gasket for Brushcutter Dolmar MS4520B €2.20
33
 photo_cameraImage coming soon BB090620 WASHER SCHNORR D.6,4 €1.41
34
 photo_cameraImage coming soon BB030630 SCREW TCEI M 6 X 25 €1.41
35
 photo_cameraImage coming soon BB480640 CYLINDER DIAMETER 44 €218.38
36
 Intake Manifold Gasket for Brushcutter Makita BBC5700 BB240290 Intake Manifold Gasket for Brushcutter Makita BBC5700 €2.20
40
 photo_cameraImage coming soon BB030800 TCB SCREW M 4 X 10 €1.41
41
 photo_cameraImage coming soon BB090840 WAVY WASHER D. 4.3 €1.35
42
 photo_cameraImage coming soon BB030610 TCB SCREW M 4 X 16 €1.35
43
 photo_cameraImage coming soon BB451060 RCJ4 CANDLE €6.64
45
 photo_cameraImage coming soon BB240430 SEAL INSULATION X MUFFLER €7.28
46
 photo_cameraImage coming soon BB750860 MUFFLER N39 / 45/52 €85.45
47
 photo_cameraImage coming soon BB090830 WAVY WASHER D. 5,3 €1.41
48
 photo_cameraImage coming soon BB030410 SCREW TCEI M 5 X 18 €1.41
50
 Capacitive Ignition Coil for Brushcutter Makita BBC5700 BB450930 Capacitive Ignition Coil for Brushcutter Makita BBC5700 €95.37
51
 photo_cameraImage coming soon BB450340 CABLE MASS X COIL €5.14
52
 photo_cameraImage coming soon BB450280 FLYWHEEL FOR N39 / 57 €85.18
53
 photo_cameraImage coming soon BB091000 WAVY WASHER D.10,5 €1.41
54
 photo_cameraImage coming soon BB060300 NUT M 8 X 10 €1.41
61
 photo_cameraImage coming soon BB480680/RO FLYWHEEL COVER €103.88
62
 photo_cameraImage coming soon BB541510 X WIRE CABLE MASS €1.41
63
 Engine Decompresso for Brushcutter Makita BBC5700 BB752340 Engine Decompresso for Brushcutter Makita BBC5700 €21.88
64
 photo_cameraImage coming soon BB723730 FUEL TANK COMPL. €12.27
68
 photo_cameraImage coming soon BB330820 FILTER MIX PESCANTE €5.94
70
 photo_cameraImage coming soon BB542460 FUEL HOSE €6.19
72
 Fuel Tank Ass'y for Auger Dolmar PD520 BB723340 Fuel Tank Ass'y for Auger Dolmar PD520 €57.08 Not available for order
74
 photo_cameraImage coming soon BB030680 SCREW TCEI M 5 X 14 €1.41
77
 photo_cameraImage coming soon BB541340 RUBBER TANK €1.41
78
 photo_cameraImage coming soon BB030350 SCREW TCEI M 5 X 25 €1.35
80
 Starter Cup Assembly for Brushcutter Makita BBC5700 BB722460 Starter Cup Assembly for Brushcutter Makita BBC5700 €28.10
83
 photo_cameraImage coming soon BB542520 PIPE RECOVERY €6.19
84
 photo_cameraImage coming soon BB542030/RO COPRICANDELAN25 / 31EN 39/52 €7.28
85
 photo_cameraImage coming soon BB240370 SEALING RING 15X26X7 €14.34
86
 photo_cameraImage coming soon BB511000 WASHER €1.35
87
 photo_cameraImage coming soon BB091330 NUT MUFFLER €4.13
89
 photo_cameraImage coming soon BB721390 CLUTCH FULL SINT. €56.04
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

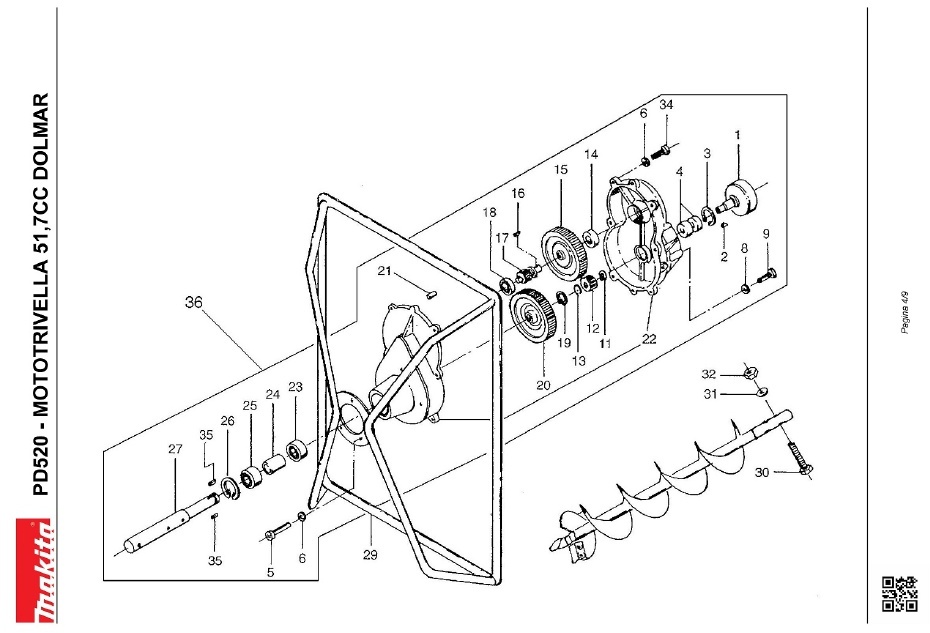

Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon BB750150 CLUTCH NEA €116.00
3
 photo_cameraImage coming soon BB120070 RING SEEGER 32I UNI 7437 €1.41
4
 photo_cameraImage coming soon BB270060 6002-ZZ BEARING €11.08
5
 photo_cameraImage coming soon BB030090 SCREW TCEI M 6 X 20 €1.35
6
 photo_cameraImage coming soon BB090010 LOCK WASHER 6,1 D. €1.41
11
 photo_cameraImage coming soon BB120050 RING SEEGER 15E UNI 7435-75 €1.41
12
 photo_cameraImage coming soon BB360270 PINION 1A REDUCTION X NEA MOD.1.5 €85.45
13
 photo_cameraImage coming soon BB120090 RING SEEGER 10E UNI 7435-75 €2.14
15
 photo_cameraImage coming soon BB360280 CORONA 1A REDUCTION X NEA MOD.1.5 €218.38
16
 photo_cameraImage coming soon BB420090 TAB DISC 4X5X13 €3.33
17
 photo_cameraImage coming soon BB360300 PINION 2A REDUCTION X NEA MOD.1.5 €69.39
18
 photo_cameraImage coming soon BB270130 6200 BEARING €31.77
19
 photo_cameraImage coming soon BB120260 RING SEEGER 20E UNI 7435 €2.14
20
 photo_cameraImage coming soon BB360290 CORONA 2A REDUCTION X NEA MOD.1.5 €116.00
21
 photo_cameraImage coming soon BB420070 PLUG CENTR.CARTER UNI 1707 €2.14
23
 photo_cameraImage coming soon BB270140 30204 BEARING €50.44
24
 photo_cameraImage coming soon BB090100 SPACER FOR BEARING €4.13
25
 photo_cameraImage coming soon BB270150 BEARING 6204-Z €50.44
26
 photo_cameraImage coming soon BB120110 RING SEEGER 47I UNI 7437 €2.94
27
 photo_cameraImage coming soon BB390110 OUTPUT SHAFT RIDUTT. NEA €50.44
29
 photo_cameraImage coming soon BB754140 HANDLE FOR NEA 39/52 C / IMPUG €142.05
30
 photo_cameraImage coming soon BB030270 SCREW M 8 X 50 €1.35
31
 photo_cameraImage coming soon BB090080 LOCK WASHER 8,1 D. €1.35
32
 photo_cameraImage coming soon BB060030 NUT M 8 X 5 €1.35
35
 photo_cameraImage coming soon BB420210 TAB B 5X5X14 H9 €3.33
36
 photo_cameraImage coming soon BB721270 COMPLETE GEAR €1,263.22
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

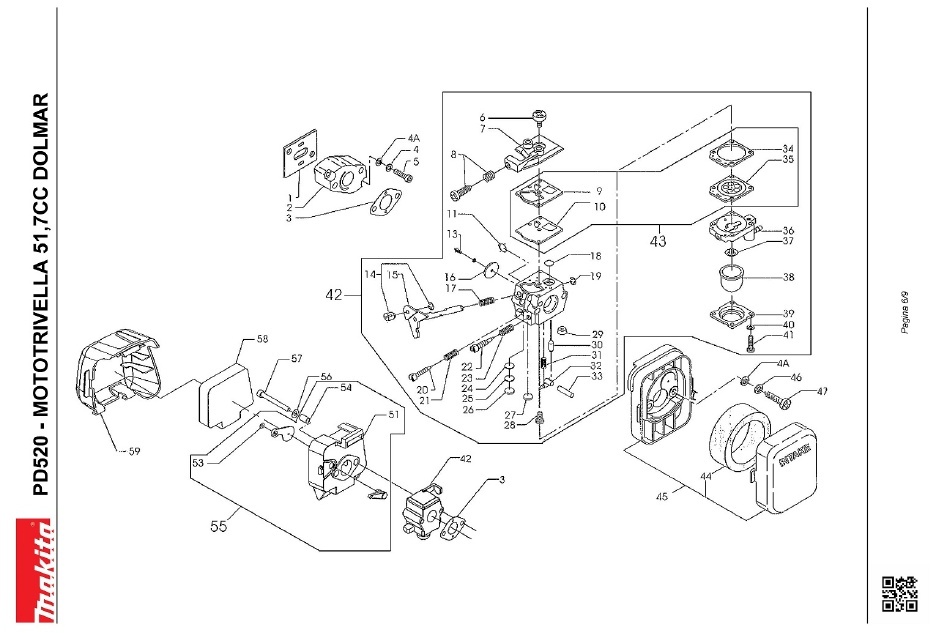

Esploso pagina 3
Pos. Item Price Buy
2
 photo_cameraImage coming soon BB541270 COLLECTOR CARB.WT €12.70
3
 photo_cameraImage coming soon BB240130 SEAL CARBURETOR €1.41
4A
 photo_cameraImage coming soon BB090780 FLAT WASHER 5.3 X 10 X 1 €1.41
4
 photo_cameraImage coming soon BB090800 WASHER SCHNORR D.5,3 €1.41
5
 photo_cameraImage coming soon BB030070 SCREW TE M 5 X 30 €1.41
6
 photo_cameraImage coming soon BB96-166 SCREW COP. PUMP WT €1.41
7
 photo_cameraImage coming soon BB21-353 COVER PUMP WT €6.64
8
 photo_cameraImage coming soon BB96-647 SCREW SPRING + X ADJUST. MINIMUM €1.41
9
 photo_cameraImage coming soon BB92-225 SEAL PUMP MIXTURE €2.68
10
 photo_cameraImage coming soon BB95-118 MEMBRANE PUMP WT €4.43
11
 photo_cameraImage coming soon BB88-131 STOPPER €1.41
13
 photo_cameraImage coming soon BB96-142 BUTTERFLY VALVE SCREW WT €1.41
14
 photo_cameraImage coming soon BB52-548 PIN WT101 €3.85
15
 photo_cameraImage coming soon BB30-1140 BUTTERFLY SHAFT €12.70
16
 photo_cameraImage coming soon BB34-158 THROTTLE €3.85
17
 photo_cameraImage coming soon BB98-234 VALVE SPRING RECALL €2.08
18
 photo_cameraImage coming soon BB140-70 FUEL FILTER INPUT €2.08
19
 photo_cameraImage coming soon BB16-71 RING SECURITY €2.68
20
 photo_cameraImage coming soon BB102-330 SCREW ADJUSTMENT MINIMUM WT €5.14
21
 photo_cameraImage coming soon BB98-404 SPRING ADJUSTMENT MINIMUM €2.08
22
 photo_cameraImage coming soon BB102-3066 SCREW ADJUSTMENT MAXIMUM WT €50.23
23
 photo_cameraImage coming soon BB98-405 SPRING ADJUSTMENT MAXIMUM €2.08
24
 photo_cameraImage coming soon BB140-69 SCREEN WASHER VALVE €1.41
25
 photo_cameraImage coming soon BB16-42 RETAINING RING €2.08
26
 photo_cameraImage coming soon BB88-119 STOPPER €1.41
27
 photo_cameraImage coming soon BB88-171 PLUG CIRCUIT MINIMUM €1.41
28
 photo_cameraImage coming soon BB96-156 SCREW AXIS ROCKER €1.41
29
 photo_cameraImage coming soon BB84-613 VALVE SEAT €5.14
30
 photo_cameraImage coming soon BB82-75 NEEDLE VALVE €5.14
31
 photo_cameraImage coming soon BB98-387 METER SPRING €2.08
32
 photo_cameraImage coming soon BB166-48 ROCKER €2.08
33
 photo_cameraImage coming soon BB144-77 ROCKER SHAFT €1.41
34
 photo_cameraImage coming soon BB92-251 GASKET WT €2.68
35
 Diaphragm for Brushcutter Dolmar MS4520B BB95-526 Diaphragm for Brushcutter Dolmar MS4520B €7.81
36
 photo_cameraImage coming soon BB5-2694 AIR FILTER HOUSING €3.85
37
 photo_cameraImage coming soon BB176-64 CONTROL VALVE €3.14
38
 photo_cameraImage coming soon BB188-12 SEAL €7.58
39
 photo_cameraImage coming soon BB21-404 PUMP COVER PRIMER €8.62
40
 photo_cameraImage coming soon BB090190 LOCK WASHER D.3,1 €1.41
41
 photo_cameraImage coming soon BB96-578 COVER SCREW DIAPHRAGM €2.08
44
 Walbro Carburator Air Filter for Brushcutter Makita BBC5700 BB332100 Walbro Carburator Air Filter for Brushcutter Makita BBC5700 €6.36
45
 photo_cameraImage coming soon BB331480 AIR GROUP €27.27
47
 photo_cameraImage coming soon BB030330 SCREW TCEI M 5 X 50 €1.35
51
 photo_cameraImage coming soon BB725350 GROUP AIR COMPL. €15.97
53
 Ring for Auger Makita BBA520 BB120270 Ring for Auger Makita BBA520 €1.30
54
 photo_cameraImage coming soon BB091630 BUSHING €1.41
57
 photo_cameraImage coming soon BB031350 SCREW HOLDER FILTER €1.35
59
 photo_cameraImage coming soon BB543910 AIR CLEANER COVER €5.57

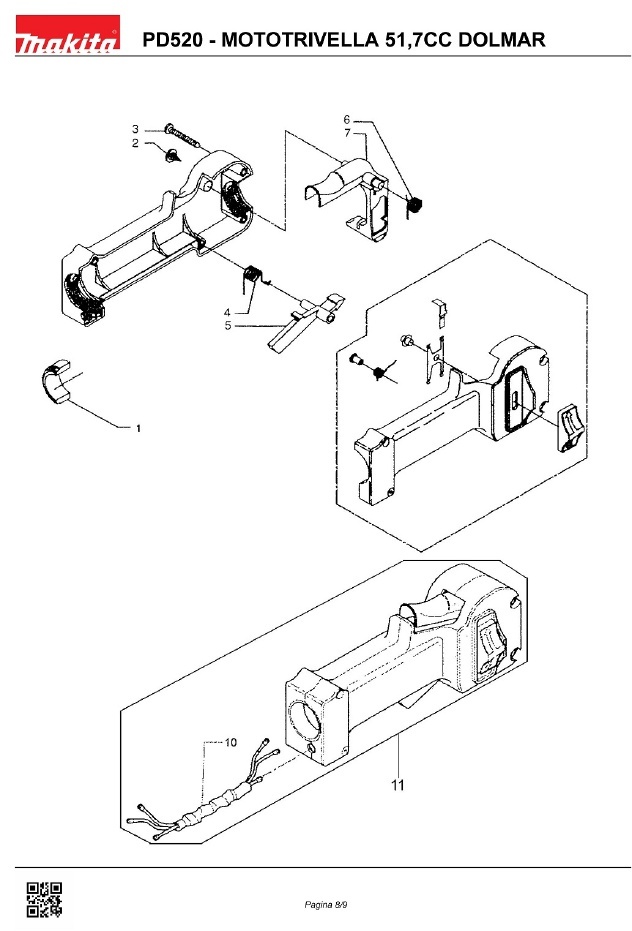

Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 4
Pos. Item Price Buy
2
 photo_cameraImage coming soon BB030650 SCREW 4 X 20 €1.25
3
 photo_cameraImage coming soon BB030860 SCREW 3.5 X 25 €1.40
4
 photo_cameraImage coming soon BB180230 SPRING FOR SAFETY LEVER €1.40
5
 photo_cameraImage coming soon BB541410 CONTROL GAS SAFETY LEVER €2.08
6
 photo_cameraImage coming soon BB180220 GAS SPRING LEVER €1.40
7
 photo_cameraImage coming soon BB541400 GAS CONTROL LEVER €2.08
10
 photo_cameraImage coming soon BB752040 GAS CABLE CONTROL GROUP €18.70
11
 photo_cameraImage coming soon BB723090 HANDLE €32.37

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Dolmar Spare Parts for Auger PD520

DOLMAR Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Auger PD520.

In the following table, look for the model of the Auger and the respective parts of the code.
Dolmar PD520

Auger PD520 Pag.1
# Part Num. Description
1 BB630070 STARTING ROPE
2 BB510190 PLATE STOP ROPE
3 BB540120 HANDLE STARTER
4 BB541310 BUSH GUIDE FUNIC.
5 BB030210 TCB SCREW M 5 X 16
6 BB090150 LOCK WASHER 5,1
7 BB480650 CARTER STARTING
8 BB180240 SPRING STARTING
9 BB541320 STARTING PULLEY
10 BB090720 FLAT WASHER D.4,3 X 16
11 BB030140 TCB SCREW M 4 X 10
12 BB721420/NE STARTER COMPLETE N25 / 31EN
13 BB060370 NUT M 9 X 25.1
14 BB480900 RATCHET HOLDER
15 BB541330 RATCHET STARTER
16 BB180200 RATCHET SPRING
17 BB120160 CIRCLIP D4
18 BB240030 SEALING RING 15X26X7
19 BB721430 CARTER MOTOR ASSEMBLY
20 BB270070 6202 BEARING
21 BB751600 CRANKSHAFT
22 BB240260 SEAL CARTER
23 BB420200 PLUG CENTRING CARTER D.8X10
24 BB030620 SCREW TCEI M 5 X 35
25 BB420030 TAB AMERICAN 10X3,7X3
26 BB270050 CAGE K10X14X13FKI PB-V1
27 BB150040 PIN LOCKING RING D.10
28 BB420040 PISTON PIN D.10X30
29 BB480720 PISTON DIAMETER 44
30 BB150250 RING PISTON D.44
31 BB721360 PISTON COMPLETE D.44
32 BB240270 SEAL CYLINDER
33 BB090620 WASHER SCHNORR D.6,4
34 BB030630 SCREW TCEI M 6 X 25
35 BB480640 CYLINDER DIAMETER 44
36 BB240290 SEAL COLLECTOR
40 BB030800 TCB SCREW M 4 X 10
41 BB090840 WAVY WASHER D. 4.3
42 BB030610 TCB SCREW M 4 X 16
43 BB451060 RCJ4 CANDLE
44 BB480670/RO CYLINDER PROTECTION
45 BB240430 SEAL INSULATION X MUFFLER
46 BB750860 MUFFLER N39 / 45/52
47 BB090830 WAVY WASHER D. 5,3
48 BB030410 SCREW TCEI M 5 X 18
50 BB450930 REEL FOR CAPACITIVE N39 / 57
51 BB450340 CABLE MASS X COIL
52 BB450280 FLYWHEEL FOR N39 / 57
53 BB091000 WAVY WASHER D.10,5
54 BB060300 NUT M 8 X 10
61 BB480680/RO FLYWHEEL COVER
62 BB541510 X WIRE CABLE MASS
63 BB752340 DECOMPRESSOR X ENGINES N39 / 57E
64 BB723730 FUEL TANK COMPL.
68 BB330820 FILTER MIX PESCANTE
70 BB542460 FUEL HOSE
72 BB723340 FUEL TANK ASS'Y 25/57
74 BB030680 SCREW TCEI M 5 X 14
77 BB541340 RUBBER TANK
78 BB030350 SCREW TCEI M 5 X 25
80 BB722460 POWLS GROUP
83 BB542520 PIPE RECOVERY
84 BB542030/RO COPRICANDELAN25 / 31EN 39/52
85 BB240370 SEALING RING 15X26X7
86 BB511000 WASHER
87 BB091330 NUT MUFFLER
89 BB721390 CLUTCH FULL SINT.
Pag.2
1 BB750150 CLUTCH NEA
2 BB420030 TAB AMERICAN 10X3,7X3
3 BB120070 RING SEEGER 32I UNI 7437
4 BB270060 6002-ZZ BEARING
5 BB030090 SCREW TCEI M 6 X 20
6 BB090010 LOCK WASHER 6,1 D.
8 BB090830 WAVY WASHER D. 5,3
9 BB030350 SCREW TCEI M 5 X 25
11 BB120050 RING SEEGER 15E UNI 7435-75
12 BB360270 PINION 1A REDUCTION X NEA MOD.1.5
13 BB120090 RING SEEGER 10E UNI 7435-75
14 BB270070 6202 BEARING
15 BB360280 CORONA 1A REDUCTION X NEA MOD.1.5
16 BB420090 TAB DISC 4X5X13
17 BB360300 PINION 2A REDUCTION X NEA MOD.1.5
18 BB270130 6200 BEARING
19 BB120260 RING SEEGER 20E UNI 7435
20 BB360290 CORONA 2A REDUCTION X NEA MOD.1.5
21 BB420070 PLUG CENTR.CARTER UNI 1707
22 BB726430 CARTER COMPLETE PD520
23 BB270140 30204 BEARING
24 BB090100 SPACER FOR BEARING
25 BB270150 BEARING 6204-Z
26 BB120110 RING SEEGER 47I UNI 7437
27 BB390110 OUTPUT SHAFT RIDUTT. NEA
29 BB754140 HANDLE FOR NEA 39/52 C / IMPUG
30 BB030270 SCREW M 8 X 50
31 BB090080 LOCK WASHER 8,1 D.
32 BB060030 NUT M 8 X 5
34 BB030630 SCREW TCEI M 6 X 25
35 BB420210 TAB B 5X5X14 H9
36 BB721270 COMPLETE GEAR
Pag.3
1 BB240290 SEAL COLLECTOR
2 BB541270 COLLECTOR CARB.WT
3 BB240130 SEAL CARBURETOR
4 BB090800 WASHER SCHNORR D.5,3
4A BB090780 FLAT WASHER 5.3 X 10 X 1
5 BB030070 SCREW TE M 5 X 30
6 BB96-166 SCREW COP. PUMP WT
7 BB21-353 COVER PUMP WT
8 BB96-647 SCREW SPRING + X ADJUST. MINIMUM
9 BB92-225 SEAL PUMP MIXTURE
10 BB95-118 MEMBRANE PUMP WT
11 BB88-131 STOPPER
13 BB96-142 BUTTERFLY VALVE SCREW WT
14 BB52-548 PIN WT101
15 BB30-1140 BUTTERFLY SHAFT
16 BB34-158 THROTTLE
17 BB98-234 VALVE SPRING RECALL
18 BB140-70 FUEL FILTER INPUT
19 BB16-71 RING SECURITY
20 BB102-330 SCREW ADJUSTMENT MINIMUM WT
21 BB98-404 SPRING ADJUSTMENT MINIMUM
22 BB102-3066 SCREW ADJUSTMENT MAXIMUM WT
23 BB98-405 SPRING ADJUSTMENT MAXIMUM
24 BB140-69 SCREEN WASHER VALVE
25 BB16-42 RETAINING RING
26 BB88-119 STOPPER
27 BB88-171 PLUG CIRCUIT MINIMUM
28 BB96-156 SCREW AXIS ROCKER
29 BB84-613 VALVE SEAT
30 BB82-75 NEEDLE VALVE
31 BB98-387 METER SPRING
32 BB166-48 ROCKER
33 BB144-77 ROCKER SHAFT
34 BB92-251 GASKET WT
35 BB95-526 DIAPHRAGM
36 BB5-2694 AIR FILTER HOUSING
37 BB176-64 CONTROL VALVE
38 BB188-12 SEAL
39 BB21-404 PUMP COVER PRIMER
40 BB090190 LOCK WASHER D.3,1
41 BB96-578 COVER SCREW DIAPHRAGM
42 BB331650A CARBURETOR FOR BBK4500
43 BBD10-WAT MEMBRANE KIT X WT 362,364,397
44 BB332100 AIR X CARBURETOR WALBRO
45 BB331480 AIR GROUP
46 BB090830 WAVY WASHER D. 5,3
47 BB030330 SCREW TCEI M 5 X 50
51 BB725350 GROUP AIR COMPL.
53 BB120270 RING
54 BB091630 BUSHING
55 BB725350 AIR FILTER HOUSING
56 BB090830 WAVY WASHER D. 5,3
57 BB031350 SCREW HOLDER FILTER
58 BB332120 AIR X CAP P-27 P-36
59 BB543910 AIR CLEANER COVER
Pag.4
2 BB030650 SCREW 4 X 20
3 BB030860 SCREW 3.5 X 25
4 BB180230 SPRING FOR SAFETY LEVER
5 BB541410 CONTROL GAS SAFETY LEVER
6 BB180220 GAS SPRING LEVER
7 BB541400 GAS CONTROL LEVER
10 BB752040 GAS CABLE CONTROL GROUP
11 BB723090 HANDLE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Dolmar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Dolmar PD520
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Dolmar PD520

Diagram Dolmar PD520

Download (1002.7KB)

You might also like

Recoil Starter Assy for Auger Makita BBA520
Makita SKU: BB721420/NE
Recoil Starter Assy for Auger Makita BBA520
Recoil Starter Assy for Auger Makita BBA520 Original replacement part Makita, Recoil Starter Assy for Auger BBA520 - Dolmar PD520. Part for the following products: -  BBA520 - PETROL AUGER 51,7CC MAKITA -  PD520 - PETROL AUGER 51,7CC...
Last items in stock €52.09
Details
Cylinder Gasket for Brushcutter Dolmar MS4520B
Makita SKU: BB240270
Cylinder Gasket for Brushcutter Dolmar MS4520B
Cylinder Gasket for Brushcutter Dolmar MS4520B Genuine replacement part Dolmar, Cylinder Gasket Diameter mm 41 for Brushcutters N45E - MS4520B - MS4520C - MS4520U - Makita BBC4510...
Last items in stock €2.20
Details
Starter Pawl for Brushcutter Makita BBC451
Makita SKU: BB541330
Starter Pawl for Brushcutter Makita BBC451
Starter Pawl for Brushcutter Makita BBC4510 Genuine replacement part Makita, Starter Pawl for Brushcutters BBC4510 - BBC5700 - BBC5710 - Dolmar MS4520B - MS4520C - MS5700B. Part for the...
AVAILABLE €3.50
Details
Starter Cup Assembly for Brushcutter Makita BBC5700
Makita SKU: BB722460
Starter Cup Assembly for Brushcutter Makita BBC5700
Starter Cup Assembly for Brushcutter Makita BBC5700 Genuine spare part Makita, Starter Cup Assembly (for Brushcutters Before 2017) for Brushcutters BBC5700 - Dolmar MS4520U - MS5700C- MS5700U. Part for the following products: -...
Out-of-Stock €28.10
Details
Starter Pulley for Brushcutter Makita BBC5700
Makita SKU: BB541320
Starter Pulley for Brushcutter Makita BBC5700
Starter Pulley for Brushcutter Makita BBC5700 Genuine spare part Makita, Starter Pulley (for Brushcutters Before 2017) for Brushcutters BBC5700 - Dolmar MS4520U - MS5700C-...
Available in 7/10 days €20.50
Details
Needle Bearing for Brushcutter Makita BBC5700
Makita SKU: BB270050
Needle Bearing for Brushcutter Makita BBC5700
Needle Bearing for Brushcutter Makita BBC5700 Genuine replacement part Makita, Needle Bearing PB K10X14X13FKI-V1 for Brushcutters BBC4510 - BBC5700 - Dolmar MS4520B - MS4520C - MS4520U. Part for the following products: - BBC4510 -...
AVAILABLE €12.65
Details
Intake Manifold Gasket for Brushcutter Makita BBC5700
Makita SKU: BB240290
Intake Manifold Gasket for Brushcutter Makita BBC5700
Intake Manifold Gasket for Brushcutter Makita BBC5700 Genuine replacement part Makita, Intake Manifold Gasket for Brushcutters BBC4510 - BBC5700 - Dolmar MS4520B - MS4520C - MS4520U. Part for the following products: - BBC4510 -...
on 7/10 Business Days Approx. €2.20
Details
Ring for Auger Makita BBA520
Makita SKU: BB120270
Ring for Auger Makita BBA520
Ring for Auger Makita BBA520 Original replacement part Makita, Ring for Auger BBA520 - Dolmar PD520 - Brushcutters BBC4510 - BBC5700 - BBC5710 - BBK4500 - BBK5700. Part for the following products: -  BBA520 - PETROL AUGER 51,7CC...
on 7/10 Business Days Approx €1.30
Details
Diaphragm for Brushcutter Dolmar MS4520B
Makita SKU: BB95-526
Diaphragm for Brushcutter Dolmar MS4520B
Diaphragm for Brushcutter Dolmar MS4520B Genuine replacement part Dolmar, Diaphragm for Brushcutters MS4520B - MS4520C - MS4520U - Makita BBC4510 - BBK4500. Part for the following products: -  MS4520C - BRUSHCUTTER DOLMAR 45CC IS -...
on 7/10 Business Days Approx. €7.81
Details
Fuel Tank Ass'y for Auger Dolmar PD520
Makita SKU: BB723340
Fuel Tank Ass'y for Auger Dolmar PD520
Fuel Tank Ass'y for Auger Dolmar PD520 Genuine part Dolmar, Fuel Tank Assembly for Augers Dolmar PD520 - Makita BBA520. Part for the following products: -  BBA520 - AUGER 51,7CC...
Available in 7/10 days €57.08
Details
Comments (0)
