Dolmar Spare Parts for Brush Cutter MS-27C
DOLMAR Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Brush Cutter MS-27C.
In the following table, look for the model of the Brush Cutter and the respective parts of the code.

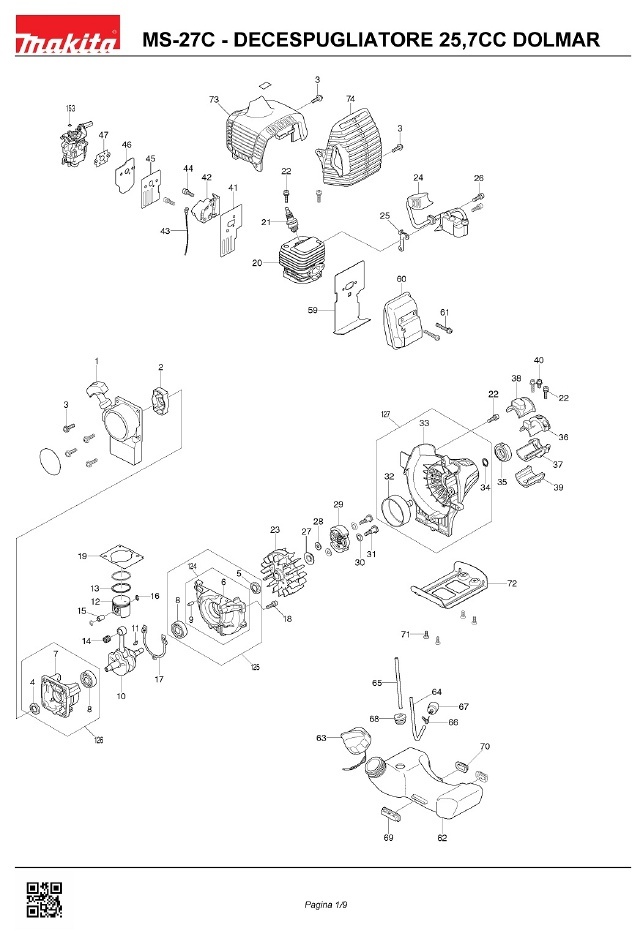

| Brush Cutter MS-27C - pag.1 |
| # |
Part Num. |
Description |
| 1 |
DA00000379 |
RECOIL STARTER ASS'Y |
| 2 |
DA00000380 |
STARTER PULLEY |
| 3 |
DA00000096 |
SCREW |
| 4 |
DA00000064 |
SEAL OIL |
| 5 |
DA00000381 |
SEAL OIL |
| 6 |
DA00000382 |
CARTER 1 |
| 7 |
DA00000383 |
CARTER 2 |
| 8 |
DA00000384 |
BEARING |
| 9 |
DA00000385 |
PIN |
| 10 |
DA00000386 |
ECCENTRIC SHAFT |
| 11 |
DA00000077 |
KEY |
| 12 |
DA00000387 |
PISTON |
| 13 |
DA00000388 |
PISTON RING |
| 14 |
DA00000073 |
CAGE ROLLER 8 |
| 15 |
DA00000389 |
PISTON PIN |
| 16 |
DA00000071 |
RING PISTON PIN |
| 17 |
DA00000390 |
SEAL CARTER |
| 18 |
DA00000134 |
SCREW M5x30 |
| 19 |
DA00000391 |
SEAL CYLINDER |
| 20 |
DA00000392 |
CYLINDER |
| 22 |
DA00000080 |
M5X20 SCREW |
| 23 |
DA00000393 |
FLYWHEEL |
| 24 |
DA00000394 |
IGNITION COIL |
| 25 |
DA00000395 |
COIL HOLDER |
| 26 |
DA00000396 |
SCREW M4 |
| 27 |
DA00000397 |
NUT M6 |
| 28 |
DA00000398 |
WASHER |
| 29 |
DA00000399 |
CLUTCH |
| 30 |
DA00000400 |
WASHER |
| 31 |
DA00000401 |
SCREW CLUTCH |
| 32 |
DA00000402 |
CLUTCH DRUM |
| 33 |
DA00000404 |
CLUTCH HOUSING |
| 34 |
DA00000092 |
ELASTIC RING |
| 35 |
DA00000405 |
RUBBER RING |
| 36 |
DA00000406 |
UPPER HOLDER |
| 37 |
DA00000407 |
LOWER HOLDER |
| 38 |
DA00000408 |
SPACER HIGHER |
| 39 |
DA00000409 |
SPACER LOWER |
| 40 |
DA00000410 |
SCREW M5x12 |
| 41 |
DA00000411 |
INSULATING PLATE |
| 42 |
DA00000412 |
INTAKE MANIFOLD |
| 43 |
DA00000413 |
CABLE MASS |
| 44 |
DA00000137 |
SCREW M5x25 |
| 45 |
DA00000414 |
SEAL CARBURETOR |
| 46 |
DA00000415 |
INSULATING PLATE |
| 47 |
DA00000416 |
SEAL CARBURETOR |
| 59 |
DA00000425 |
SEAL MUFFLER |
| 60 |
DA00000426 |
MUFFLER |
| 61 |
DA00000427 |
SCREW M5x50 |
| 62 |
DA00000428 |
FUEL TANK |
| 63 |
DA00000122 |
TANK CAP |
| 64 |
DA00000117 |
PIPE L |
| 65 |
DA00000116 |
TUBE S |
| 66 |
DA00000120 |
CLAMP |
| 67 |
DA00000523 |
FUEL FILTER |
| 68 |
DA00000118 |
CARBURETOR HOSE GROMMET |
| 69 |
DA00000429 |
RUBBER FOOT |
| 70 |
DA00000430 |
RUBBER FOOT |
| 71 |
DA00000432 |
TAPPING SCREW 4X12 |
| 72 |
DA00000431 |
HOLDER |
| 73 |
DA00000434 |
COVER CYLINDER |
| 74 |
DA00000435 |
MUFFLER COVER |
| 124 |
DA00000447 |
CARTER 1 + PIN |
| 125 |
DA00000448 |
CARTER 1 COMPLETE |
| 126 |
DA00000449 |
CARTER 2 COMPLETE |
| 127 |
DA00000451 |
CLUTCH HOUSING MS27C |
| 153 |
DA00000459 |
RETAINING |
| Brush Cutter MS-27C - pag.2 |
| 3 |
DA00000096 |
SCREW |
| 48 |
DA00000417 |
CARBURETOR |
| 49 |
DA00000418 |
SEAL CARBURETOR |
| 50 |
DA00000419 |
LEVER AIR |
| 51 |
DA00000420 |
PLATE FILTER |
| 52 |
DA00000421 |
PLATE LEVER AIR |
| 53 |
DA00000422 |
3X10 SCREW |
| 54 |
DA00000106 |
PLATE |
| 55 |
DA00000107 |
M5X63 SCREW |
| 56 |
DA00000198 |
WASHER |
| 57 |
DA00000423 |
AIR FILTER |
| 58 |
DA00000424 |
AIR CLEANER COVER |
| 128 |
DA00000452 |
PLATE AIR FILTER COMPLETE |
| 137 |
5246001210 |
SCREW ADJUST X DBC260U |
| 138 |
413140-9 |
WASHER EBH341U |
| 139 |
5266009020 |
SCREW X DBC260U |
| 140 |
257964-1 |
RETAINING RING E3 EBH341U |
| 141 |
5266009030 |
HOLDER CABLE X DBC260U |
| 143 |
442155-9 |
SEAL PUMP EBH341U |
| 144 |
168575-6 |
DIAPHRAGM PUMP EBH341U |
| 145 |
5266002010 |
BODY PUMP X DBC260U |
| 146 |
352010-6 |
EBH252L FILTER |
| 147 |
442154-1 |
SEAL DIAPHRAGM EBH341U |
| 148 |
168620-7 |
DIAPHRAGM FOR BHX2501 |
| 149 |
140988-3 |
BODY BREATHER RBC2510 |
| 150 |
424314-7 |
PUMP PRIMING EBH341 |
| 151 |
346270-0 |
PUMP COVER EBH341U |
| 152 |
266582-4 |
SCREW 3x24 EBH341U |
| Brush Cutter MS-27C - pag.3 |
| 3 |
DA00000096 |
SCREW |
| 44 |
DA00000137 |
SCREW M5x25 |
| 75 |
DA00000436 |
TRASMISSION SHAFT |
| 77 |
DA00000129 |
TIE ROD |
| 78 |
DA00000130 |
NUT M5 |
| 79 |
DA00000131 |
HOOK SUSPENDER |
| 80 |
DA00000437 |
ROD |
| 81 |
DA00000374 |
HANDLE |
| 82 |
DA00000438 |
HANDLE HOLDER |
| 83 |
DA00000439 |
LEVER CONTROLS |
| 90 |
DA00000144 |
FLANGE PROTECTION |
| 91 |
DA00000525 |
SUPERIOR PROTECTION |
| 92 |
DA00000142 |
M6X23 SCREW |
| 93 |
DA00000143 |
SCREW M4x14 |
| 95 |
DA00000146 |
SCREW M5x40 |
| 96 |
DA00000148 |
BLADE |
| 97 |
DA00000149 |
SCREW M5x25 |
| 98 |
DA00000150 |
ELASTIC RING |
| 99 |
DA00000151 |
ELASTIC RING |
| 100 |
DA00000152 |
BEARING 609ZZ |
| 102 |
DA00000154 |
SCREW M6x8 |
| 103 |
DA00000155 |
GEAR CASE |
| 104 |
DA00000156 |
HEAD PROTECTION |
| 105 |
DA00000157 |
M6X25 SCREW |
| 106 |
DA00000158 |
BEARING 626ZZ |
| 108 |
DA00000160 |
6000DDU BEARING |
| 109 |
DA00000161 |
ELASTIC RING |
| 110 |
DA00000162 |
FLANGE |
| 111 |
DA00000163 |
HEAD COVER |
| 112 |
DA00000164 |
WASHER HEAD |
| 113 |
DA00000165 |
HEAD SPRING |
| 114 |
DA00000166 |
REEL HEAD |
| 115 |
DA00000167 |
NYLON |
| 116 |
DA00000168 |
HEAD BASE |
| 118 |
DA00000170 |
FLANGE |
| 119 |
DA00000171 |
WASHER |
| 120 |
DA00000172 |
NUT |
| 129 |
DA00000453 |
HEAD ANGLE COMPLETE |
| 130 |
122979-6 |
HEAD TAP & GO M8X1,25 100MM DIAM. 2,4MM |
| 171 |
DA00000378 |
GEAR CPL |
| Brush Cutter MS-27C - pag.4 |
| 93 |
DA00000143 |
SCREW M4x14 |
| 154 |
DA00000460 |
HOUSING SX |
| 155 |
DA00000461 |
PIN |
| 156 |
DA00000462 |
SPRING BAND |
| 157 |
DA00000463 |
LEVER SWITCH |
| 158 |
DA00000464 |
COVER SWITCH |
| 159 |
DA00000465 |
3X16 SCREW |
| 160 |
DA00000466 |
TORSION SPRING |
| 161 |
DA00000467 |
ACCELERATOR LEVER |
| 162 |
DA00000468 |
TORSION SPRING |
| 163 |
DA00000469 |
LOCKOUT LEVER |
| 164 |
DA00000470 |
CLAMP 24 |
| 165 |
DA00000471 |
CABLE HARNESS 1 |
| 166 |
DA00000472 |
CABLE WIRING 2 |
| 167 |
DA00000473 |
CONTROL CABLE |
| 168 |
DA00000474 |
TUBE |
| 169 |
DA00000475 |
HOUSING DX |
| 170 |
DA00000476 |
SCREW 4x18 |
