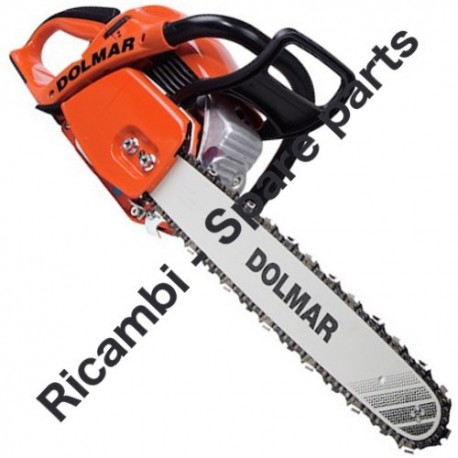

Dolmar Chainsaw PS460 Parts

Name: Dolmar Chainsaw PS460 Parts
Brand: Makita
SKU: Dolmar PS460
Availability: InStock

SKU: Dolmar PS460

€178.37

VAT included

Dolmar Spare Parts for Chainsaw PS460

DOLMAR Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Chainsaw PS460.

236 spare parts

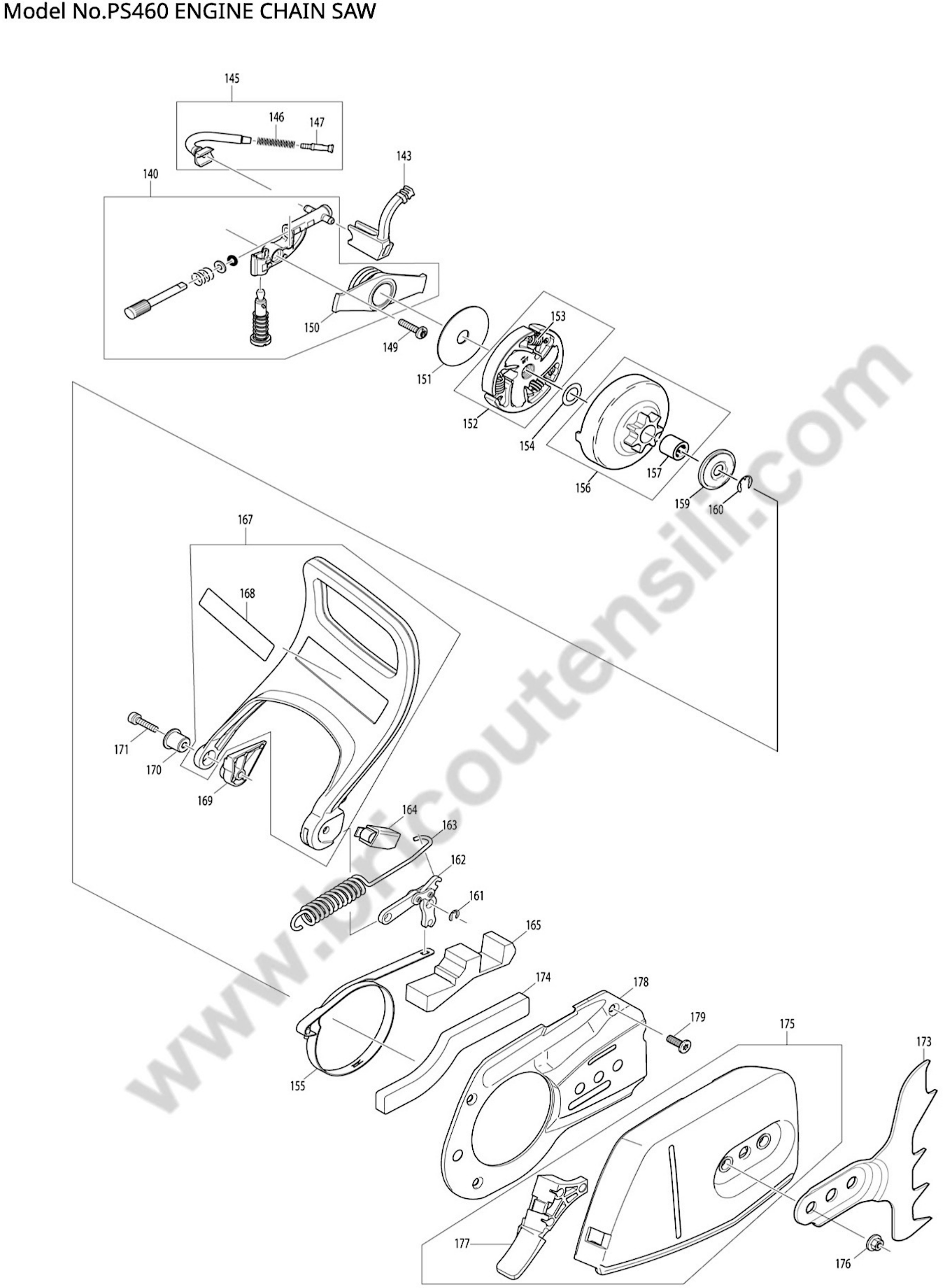

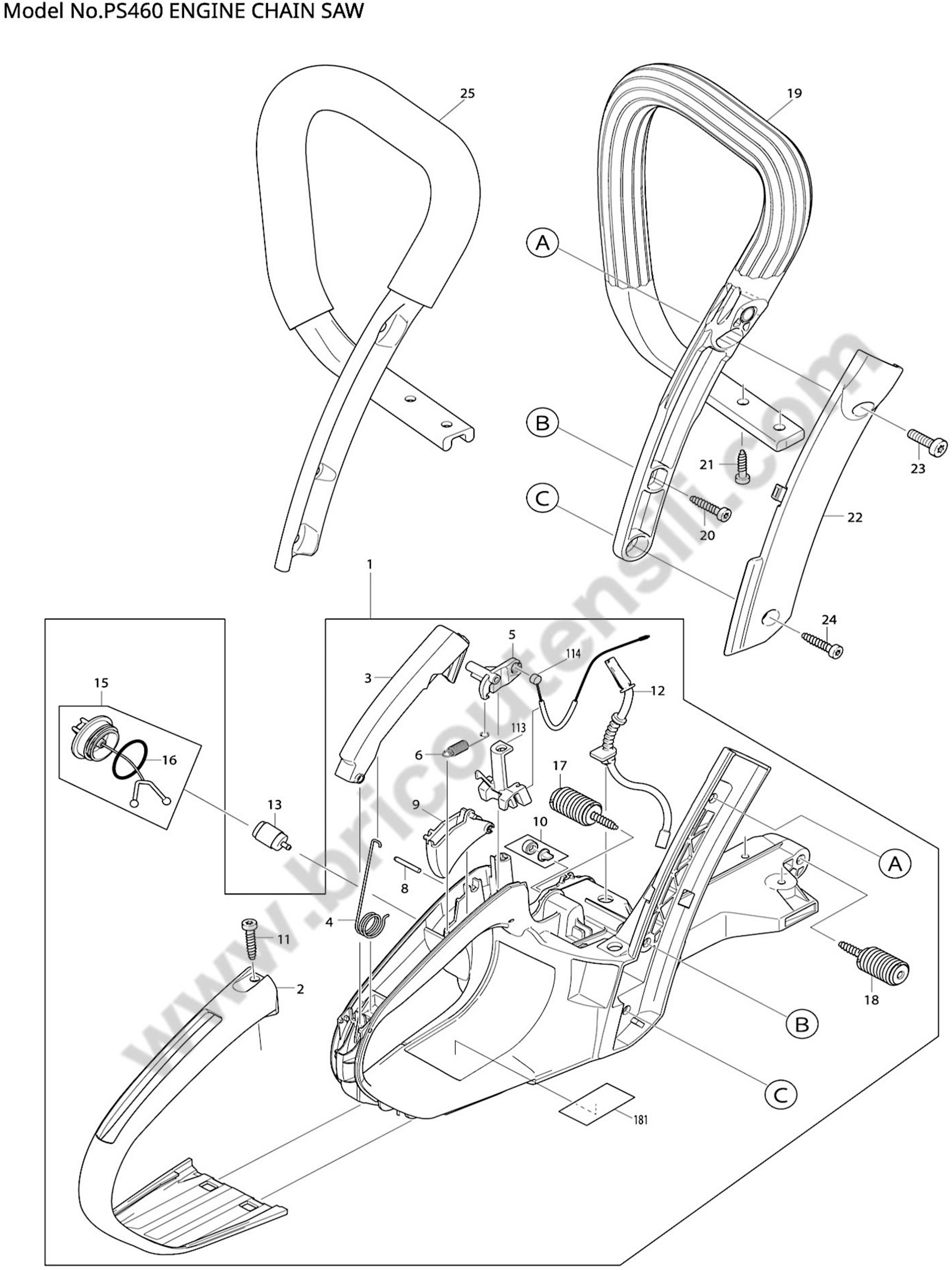

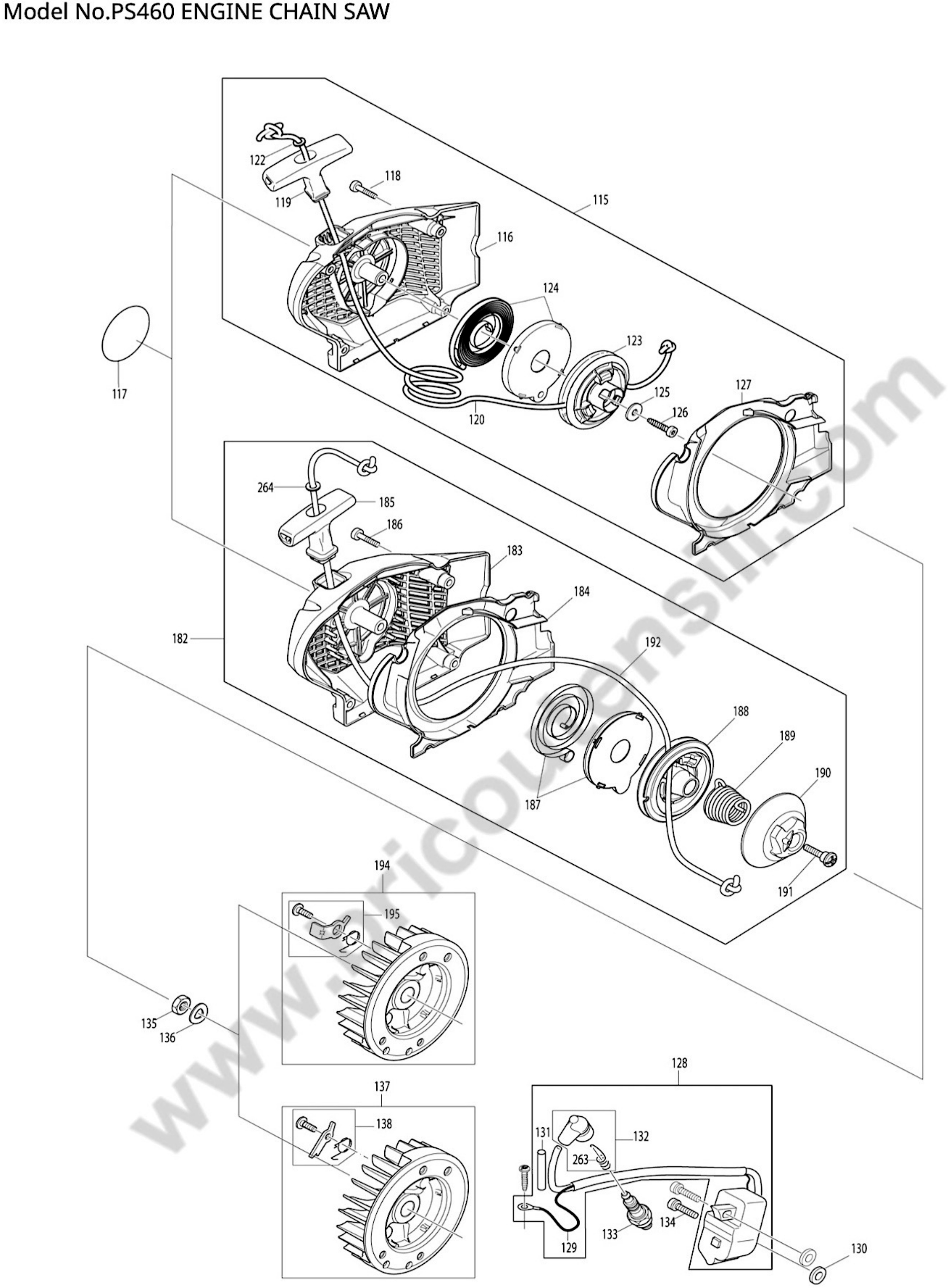

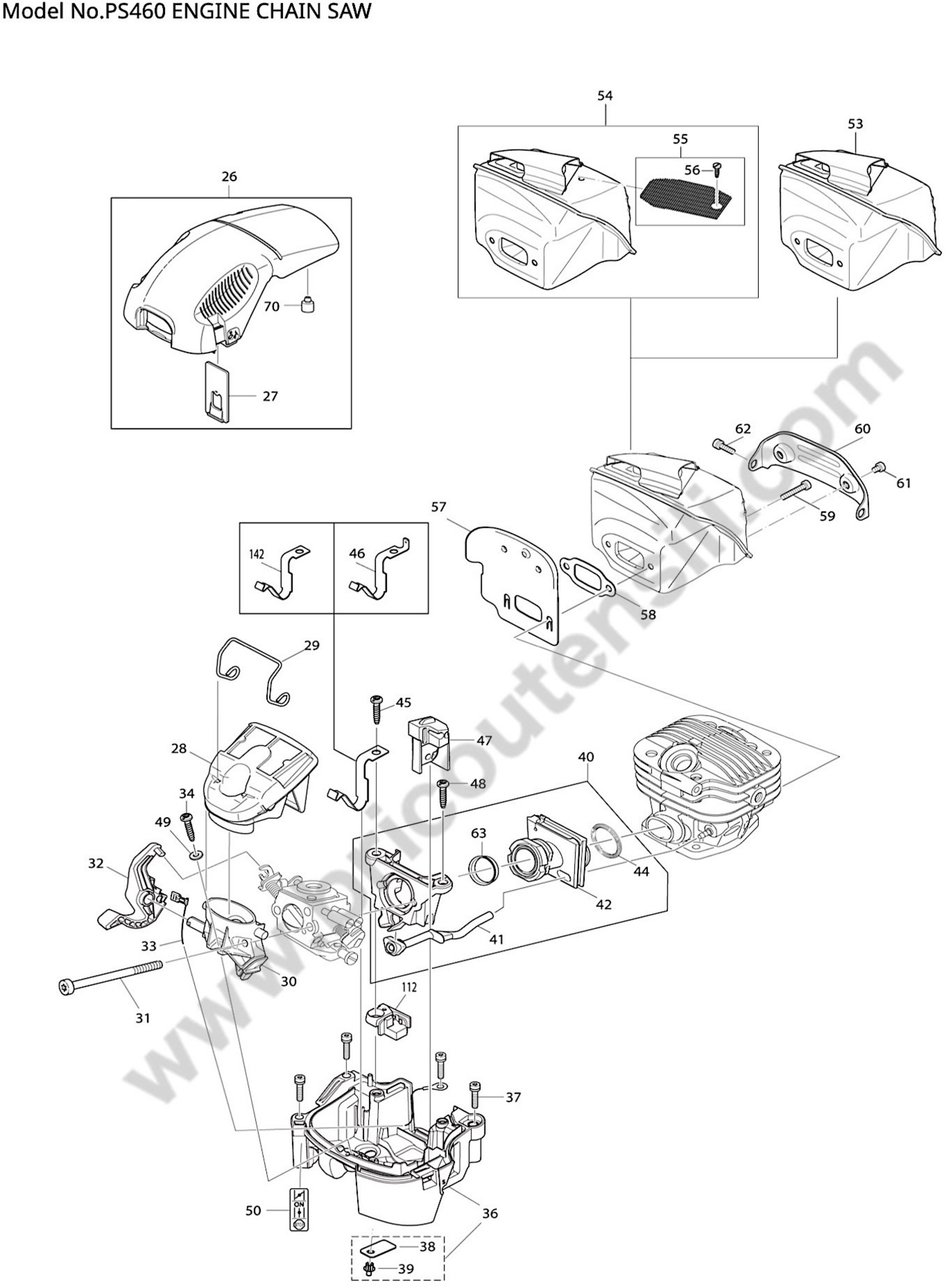

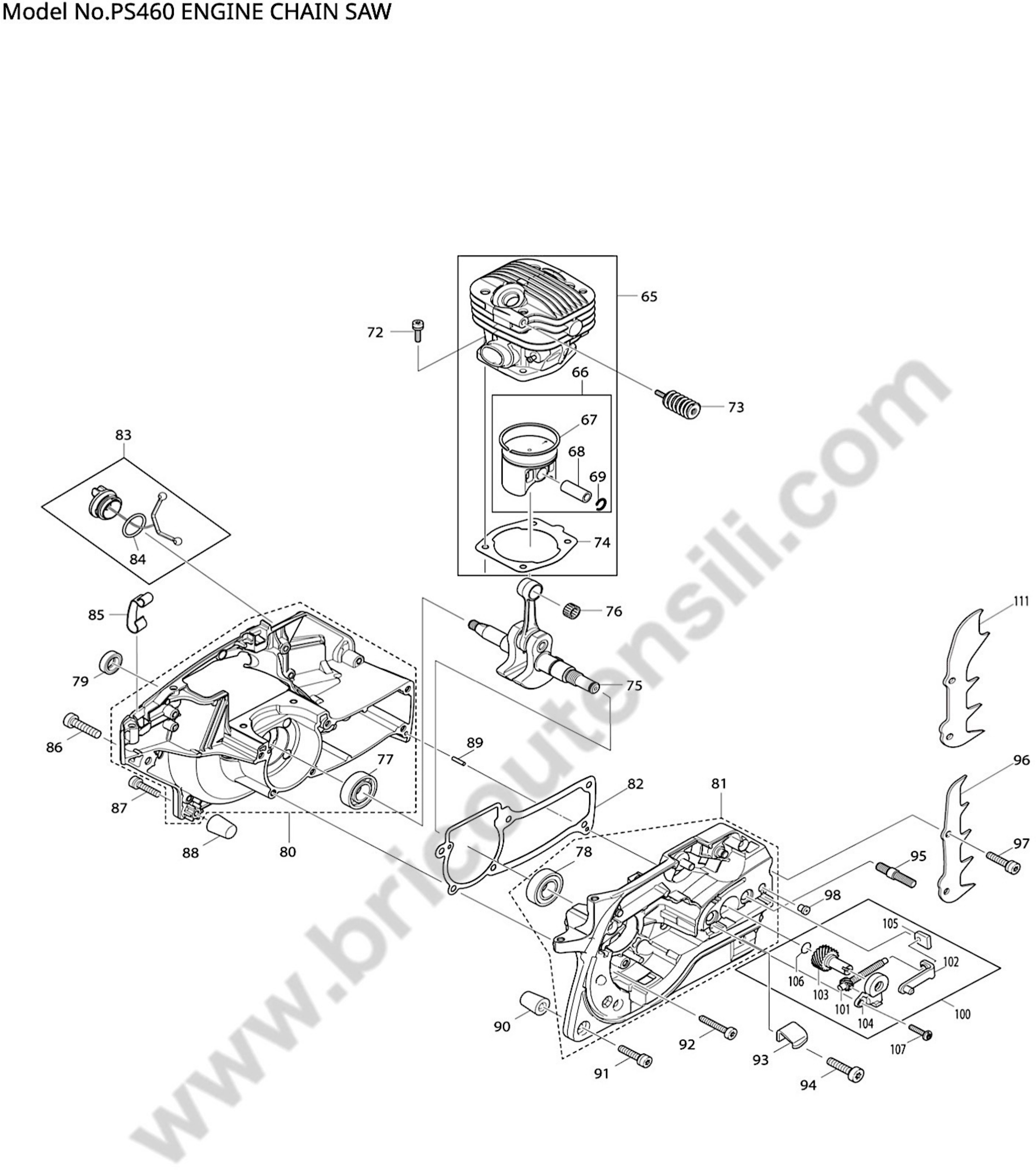

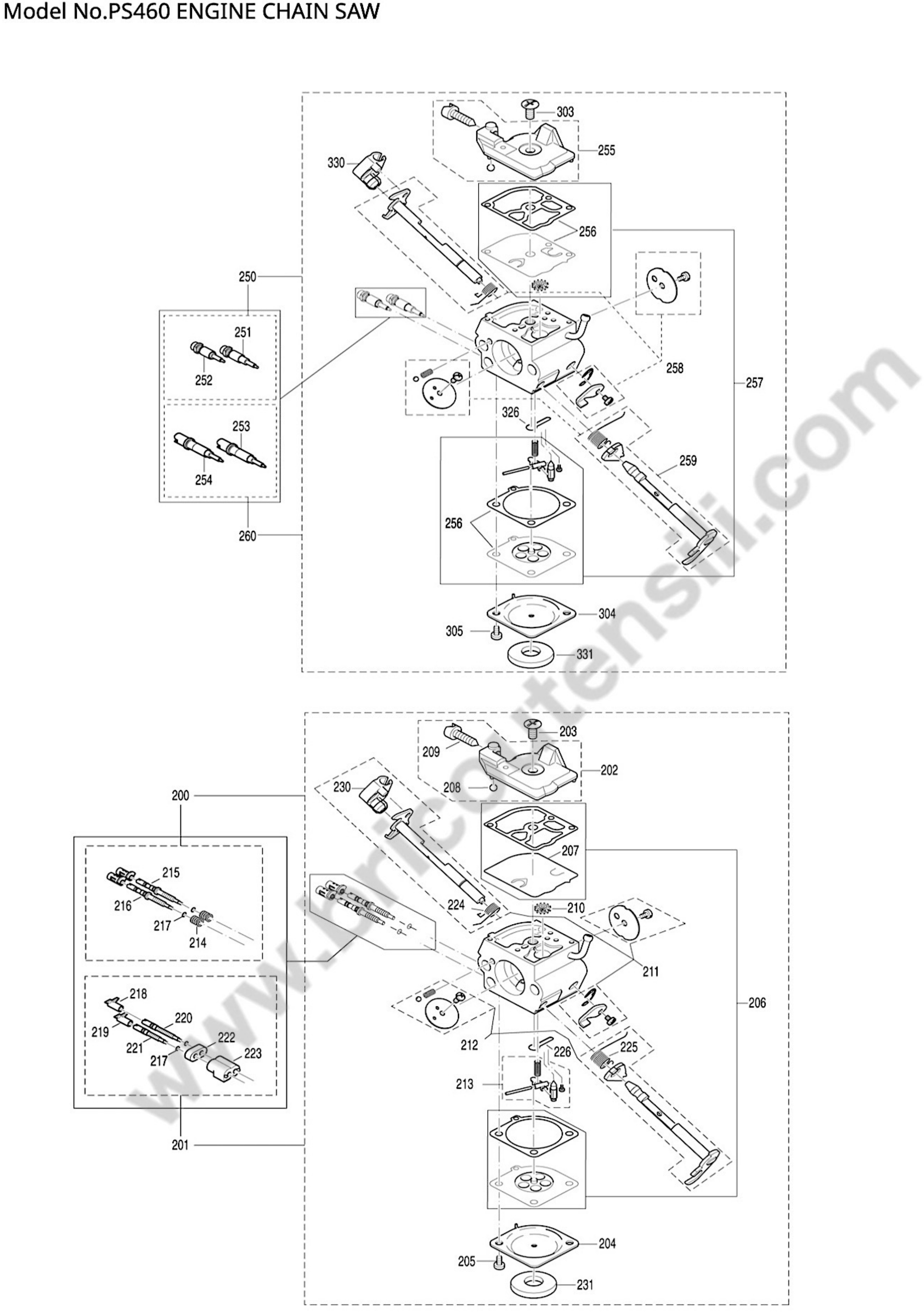

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

1 / 6

Pos.		Item	Price	Buy
C10		010114020 Makita EK8100WS Repair Kit Filter	€39.14
A44-1	Image coming soon	782025-3 TORX KEY	€2.18
A43	Image coming soon	782033-4 UNIVERSAL WRENCH 13/19	€4.23
A44	Image coming soon	940827000 ANGLED SCREW DRIVER	€4.48
A42	Image coming soon	944500795 CYLINDER FIN CLEANER	€5.11
A46	Image coming soon	950004002 PLASTIK BAG	€3.31
A41	Image coming soon	957004011 TOOL CPL. 40 cm (neutral)	€30.02
C10	Image coming soon	962900065 RADIAL RING	€9.01
1		181114111 Dolmar PS460 Fuel Tank Red	€178.36
2	Image coming soon	181117050 REAR HANDLE DCS4600S / 5000	€17.65
3	Image coming soon	181117132 CATCH LEVER PS4605-5105	€6.29
4	Image coming soon	181117031 SPRING FOR PS-460/500	€3.31
5	Image coming soon	181117081 X JOINT LEVER FOR PS-460/500	€6.29
6	Image coming soon	181117111 SPRING X PLATE	€1.47
8-1	Image coming soon	268233-5 PIN 3	€2.84
8	Image coming soon	935930240 CYLINDRICAL PIN 3X24 DCS4630/5	€2.84
9	Image coming soon	181117120 THROTTLE LEVER	€6.29
9-1	Image coming soon	181117121 THROTTLE LEVER	€6.29
10	Image coming soon	957114061 VALVE KIT X DCS6401	€9.01
11-1	Image coming soon	266475-5 SCREW 5,5X20	€1.47
11		913455204 Screw 5,5X20 (TORX) for Chainsaw Dolmar PS4600S	€2.15
12	Image coming soon	181114065 FUEL LINE DCS4600S / 5000	€17.65
13-1	Image coming soon	010114200 FILTER	€8.03
13	Image coming soon	163499-1 SUCTION HEAD	€11.74
15-1	Image coming soon	168507-3 TANK CAP COMPLETE	€2.86
15	Image coming soon	181114202 TANK CAP DCS4600S / 5000	€10.48
16	Image coming soon	213080-9 RING 29.5 PS32CTLC	€5.43
17	Image coming soon	181114301 DAMPER PS4605 / 5105	€20.12
19	Image coming soon	181310200 HANDLE TUBE DCS4600S	€77.36
21-1	Image coming soon	266478-9 SCREW 5,5X16 (TORX)	€1.47
21	Image coming soon	913455164 SELF-CUTTING SCREW 5,5X16 DCS4	€1.47
22	Image coming soon	181114051 COVER FRONT HANDLE RED	€20.12
23	Image coming soon	908006205 M6X20 SCREW	€2.20
26-1	Image coming soon	181118241 AIR FILTER ELEMENT COVER	€59.42
26-2	Image coming soon	181118242 AIR FILTER ELEMENT COVER	€59.42
26	Image coming soon	181118261 FILTER COVER RED PS500C	€59.42
27	Image coming soon	181118060 PLATE LOCKING DCS4600S	€4.06
28	Image coming soon	181173090 AIR FILTER NYLON PS5000 / 5105	€30.02
028B_	Image coming soon	181173190 AIR DCS4600S / 5000	€30.02
28A_	Image coming soon	181173240 AIR FILTER NYLON END	€30.02
31-1	Image coming soon	266480-2 SCREW	€1.47
31	Image coming soon	908505555 H.L. SOCKET HEAD BOLT M5x55	€2.84
32	Image coming soon	181155020 STARTER DCS4600S / 5000	€5.43
32-1	Image coming soon	181155070 CHOKE ON/OFF SWITCH	€2.84
33	Image coming soon	970311550 CABLE MASS DCS4600S-5000	€7.02
33-1	Image coming soon	970311580 EARTH CABLE Stahl, Steel	€4.06
36-1	Image coming soon	181131160 BOTTOM RED PS4605-5105-5105D	€53.26
37-1	Image coming soon	266472-1 SCREW	€2.20
37	Image coming soon	908805205 SCREW M5 + WASHER PS6400 / 7300	€34.71
38	Image coming soon	038118110 RUBBER FLAP DCS64/79 PS64/79	€2.84
39	Image coming soon	938650062 RIVET DCS6400/7900 PS6400/790	€1.47
40	Image coming soon	181171150 INTERMEDIATE FLANGE DCS4600S	€65.36
40-1	Image coming soon	181171160 FLANGE KPL. PS4605-5105	€65.36
41	Image coming soon	181131090 PIPE DCS4600S-5000	€17.65
42		181131040 Intake Manifold for Chainsaw Dolmar PS4600S	€41.64
42-1	Image coming soon	181131041 INTAKE HOSE	€42.85
44	Image coming soon	181131070 RING DCS4600S-5000	€4.06
44-1	Image coming soon	233971-8 CIRCLIP PS32CTLC	€2.20
46	Image coming soon	181155010 CONTACT PLATE	€7.02
47	Image coming soon	181155030 GUIDE DCS4600S-5000	€5.43
49-1	Image coming soon	267821-5 SPRING WASHER 5	€1.47
49	Image coming soon	928405000 SPRING WASHER	€5.43
50	Image coming soon	980115961 LABEL	€4.06
53	Image coming soon	181174102 MUFFLER PS-460/500	€73.02
57	Image coming soon	181174062 COOLING PLATE PS4605-5105	€2.84
58		181174050 Muffler Gasket for Chainsaws Dolmar PS4600S-5000	€3.99
59-1	Image coming soon	266476-3 SCREW M5X20 (TORX)	€1.47
59	Image coming soon	908005205 TORX HEAD SCREW M5X20 DCS4630/	€2.20
60	Image coming soon	181174091 MUFFLER HOLDER	€9.01
61-1	Image coming soon	266474-7 SCREW M5X8 (TORX)	€1.47
61	Image coming soon	908005095 FILLISTER HEAD SCREW (TORX) M5	€1.47
63	Image coming soon	346413-4 SOCKET 17 PS32CTLC	€1.47
65		179130215 Cylinder - Piston Set for Chainsaw Dolmar PS500C/45	€237.67
66		181132064 Piston Cpl for Chainsaw Dolmar PS5000/45	€104.93
67	Image coming soon	180132080 PISTON RING DIAM 43	€24.70
68	Image coming soon	181132090 PISTON PIN PS4605-5105	€30.02
69	Image coming soon	181132050 RING PIN 12X1	€2.20
70	Image coming soon	181118070 DAMPER PAD DCS4600S	€5.43
70-1		424173-9 Damper for Chainsaw Dolmar PS32CTLC	€2.18
72-1	Image coming soon	266473-9 SCREW M5X23 PS4605-5105-5105D	€1.47
72	Image coming soon	908805235 SCREW M5X23 PS4605-5105-5105D	€2.34
73	Image coming soon	181114401 DAMPER PS4605-5105	€20.12
74	Image coming soon	181131131 CYLINDER GASKET	€4.70
74-1		181131133 Cylinder Gasket for Chainsaw Dolmar PS500C/45	€3.67
74-2	Image coming soon	181131134 GASKET	€3.31
75	Image coming soon	181120100 CRANKSHAFT DCS4600S / 5000	€370.83
75-1	Image coming soon	185120200 CRANKSHAFT CPL. DCS4600S / 5000	€370.83
76		962210103 Conrod Needle Bearing for Chainsaw Dolmar PS500C/45	€6.56
77	Image coming soon	211154-0 BALL BEARING 6202	€6.29
78		960123159 Ball Bearing 6203 C3 for Chainsaws Dolmar PS-460/500	€36.47
79-1	Image coming soon	213141-5 SEAL	€6.29
79	Image coming soon	962900156 SEAL 12 / 20X4,5 DCS4600S	€9.01
80	Image coming soon	179111153 CRANKCASE ASSY LEFT RED	€164.46
80-1	Image coming soon	181111155 CRANKCASE ASSY LEFT RED	€232.41
81	Image coming soon	179111141 CRANKCASE ASSY RIGHT RED	€185.47
81-1	Image coming soon	181111142 CRANKC. CL. SIDE RED	€232.41
82		181111061 Crankcase Gasket for Chainsaws Dolmar PS-460/500	€5.24
83-1	Image coming soon	168508-1 TANK CAP A3600F	€4.06
83	Image coming soon	170114100 TANK CAP COMPLETE PS4605-5105	€10.48
84-1	Image coming soon	213355-6 O-RING 25 EA3601F/DUC353	€2.77
84	Image coming soon	963225030 RING X PS3400 / 3400TH	€2.84
85	Image coming soon	181118050 PLATE FIXING DCS4600S	€4.06
88	Image coming soon	181111230 IMPACT PROTECTION	€5.43
89-1	Image coming soon	258038-1 CLAMPING PIN	€1.47
89	Image coming soon	936430160 PIN 3X16 PS350C-420C	€2.20
93		181111050 Chain Catch for Chainsaws Dolmar PS4600S/38-45	€7.19
95	Image coming soon	905808210 PRISONER M8X21 PS-460/500	€6.29
96	Image coming soon	181250011 HOOK FOR PS-460/500	€20.12
98	Image coming soon	010245030 VENT VALVE	€8.03
98-1		168504-9 Venting Valve for Chainsaw Dolmar PS32CTLC	€3.70
100	Image coming soon	181213300 CHAIN TENSIONER DCS4600S-5000	€42.85
101	Image coming soon	181213230 X SCREW TENSIONER DCS4600S	€22.84
101-1	Image coming soon	227743-1 GEAR 11	€22.84
102	Image coming soon	181213240 SLED DCS4600S-5000	€11.29
102-1	Image coming soon	181213241 TENSION SLIDE	€11.74
103	Image coming soon	181213250 PINION DCS4600S-500	€20.12
103-1	Image coming soon	227744-9 GEAR 18	€20.12
104	Image coming soon	452667-4 COVER	€9.01
105	Image coming soon	181213260 NUT DCS4600S-5000	€2.69
106	Image coming soon	963207020 SEAL 7	€2.84
107-1	Image coming soon	266484-4 H.L SOCKET HEAD BOLT M5X12	€1.47
107	Image coming soon	908705125 SCREW M5X12	€1.47
112	Image coming soon	181131140 RUBBER BUSH PS4605-5105	€2.73
115	Image coming soon	181160101 STARTER CPL RED PS4600S	€94.94
116	Image coming soon	181112021 STARTER CARTER RED PS4605-5105	€97.73
119	Image coming soon	001161020 STARTER WHEEL DPC7311	€7.80
120	Image coming soon	108164020 STARTER ROPE 38-1/2"	€8.03
123	Image coming soon	181162150 REEL FOR ROPE DCS4600S	€22.19
124	Image coming soon	181163020 REWINDING SPRING DCS4600S	€22.84
125	Image coming soon	924605510 WASHER 5.5/18X1.6	€13.46
127	Image coming soon	181118041 BAFFLE DCS4600S-5000	€9.01
128	Image coming soon	181143204 ELECTRONIC COIL (RED)	€9.01
128-1	Image coming soon	181143206 COIL PS460-PS500	€133.57
128-2		181143212 Electronic Coil Assy for Chainsaws Dolmar PS4605 - PS5105	€140.45
128-3	Image coming soon	181143213 IGNITION COIL, CPL., BLACK PS4605-5105	€152.55
128-4	Image coming soon	181143214 IGNITION COIL COMPLETE	€148.40
129	Image coming soon	181147050 CABLE REEL DCS4600S / 5000	€148.40
130	Image coming soon	195143031 ISOLATING WASHER	€9.01
130-1	Image coming soon	451462-9 INSULATING WASHER	€2.84
131	Image coming soon	970502110 INSULATING HOSE M DCS4630/5030	€6.76
131-1	Image coming soon	970502120 INSULATING TUBE	€7.02
132	Image coming soon	957604260 SPARK PLUG CAP CPL.	€4.51
133	Image coming soon	168648-5 SPARK PLUG X RBC350-RBC420-PB500R	€6.05
135-1	Image coming soon	264107-8 HEXAGONAL NUT M8	€2.20
135	Image coming soon	920208024 NUT X DCS6401	€2.08
136-1	Image coming soon	267822-3 WASHER 8 PS32CTLC	€1.47
136	Image coming soon	926208001 SPRING WASHER 8	€1.47
137	Image coming soon	181141104 FLYWHEEL DCS4600S-5000	€193.46
138	Image coming soon	181166050 NOTTOLINO STARTING COMPL.	€205.23
140	Image coming soon	181245251 OIL PUMP DCS4600S-5000	€104.92
142	Image coming soon	181155011 CONTACT SPRING	€109.11
142-1	Image coming soon	181155060 CONTACT SPRING PS4605	€6.76
143	Image coming soon	181245120 PIPE OIL DCS4600S	€19.92
143-1	Image coming soon	424178-9 PRESSURE LINE DCS4600S	€20.12
145	Image coming soon	144274-4 TUBE COMPLETE	€12.92
146	Image coming soon	231975-4 SPRING TUBE OIL X DCS230T	€1.47
147	Image coming soon	001245020 HOSE STEM	€1.47
150	Image coming soon	181245090 WORM SCREW DCS4600S-5000 - 450956-1	€20.38
150-1		450956-1 Worm Screw for Chainsaw Dolmar PS4600S-5000	€18.99
151	Image coming soon	267389-1 FLAT WASHER 12 PS350C / 4200	€4.06
152-1	Image coming soon	127443-2 CLUTCH ASSEMBLY	€25.82
152	Image coming soon	181180300 CLUTCH ASSY.	€47.56
153	Image coming soon	232352-3 TENSION SPRING	€2.84
154	Image coming soon	181224090 SHIM PS4605-5105-5105D	€1.47
155	Image coming soon	181213011 SPRING BRAKE DRUM	€20.12
155-1	Image coming soon	346029-5 BRAKE BAND SPRING	€20.12
156-1	Image coming soon	158927-9 CLUTCH DRUM COMPLETE	€37.93
156	Image coming soon	181223312 DRUM CLUTCH 325 "Z = 7	€37.93
157-1	Image coming soon	212082-2 NEEDLE BEARING 1012	€11.74
157	Image coming soon	962300009 ROLLER BEARING DCS4600S	€11.29
159	Image coming soon	181224081 DISC THICKNESS PS350C-420C	€8.03
159-1		267820-7 Washer 29 for Chainsaw Dolmar PS6100/45	€7.53	Not available for order
160-1	Image coming soon	259045-7 DISC X DCS6401	€1.47
160	Image coming soon	927408000 WASHER DCS4630/5030/5031/DCS64	€1.47
161-1	Image coming soon	257934-0 RETAINING RING E-4 X UH6580	€1.47
161	Image coming soon	927304000 E'CLIP DCS4630/5030/5031/DCS46	€1.47
162	Image coming soon	185213100 LINK PLATE COMPLETE 185213100	€9.01
163	Image coming soon	181213023 SPRING TENSION X PS6100	€2.20
163-1	Image coming soon	231870-8 TENSION SPRING 10	€1.47
164	Image coming soon	181213170 X PROTECTION GUIDE DCS4600S	€20.12
164-1	Image coming soon	450926-0 STOPPER CASE	€20.12
165		181213371 Foam Sponge for Chainsaws Dolmar PS-460/500	€7.83
167	Image coming soon	181213161 HAND PROTECTION DCS4600S-5000	€42.85
167-1	Image coming soon	181213162 HAND GUARD CPL. DCS4600S-5000	€42.85
168	Image coming soon	810449-4 LABEL	€1.47
169	Image coming soon	181213310 SPACER DCS4600S-5000	€4.06
170	Image coming soon	181213320 SOCKET DCS4600S-5000	€5.43
170-1	Image coming soon	325604-0 BUSHING DCS4600S-5000	€18.98
174		181213400 Foam Sponge Insert for Chainsaws Dolmar PS-460/500	€6.23
175		957213200 Sprocket Guard for Chaisaw Dolmar PS460/45	€32.09
176-1		252145-2 Hex Nut M 8 Collared for Chainsaw Makita DCS230T	€1.40
176	Image coming soon	923208004 NUT	€2.20
177		957213220 Splinterguard for Chainsaw Dolmar PS-460/500	€10.40
178		181213191 Sprocket Cover for Chainsaws Dolmar PS4600S-5000	€14.24
179-1		266477-1 Torx C.S. Head Screw M5X12 for Chainsaw Makita DCS4301/38	€2.12
179	Image coming soon	908105126 SCREW M.5X12 X UH4520-5520-7020	€2.20
182	Image coming soon	181160155 STARTING CPL RED	€109.11
182-1	Image coming soon	181160201 STARTER ASSY. RED	€109.11
183	Image coming soon	181112060 STARTER RED CARTER	€73.02
184-1	Image coming soon	181118120 AIR GUIDE PLATE	€4.58
185	Image coming soon	181164010 KNOB STARTER	€4.06
185-1		452458-3 Makita EK8100 Starter Grip	€5.20
187	Image coming soon	140587-1 REWIND SPRING COMPLETE	€13.46
188	Image coming soon	181162020 REEL FOR ROPE	€22.84
188-1	Image coming soon	452224-8 CABLE DRUM	€5.43
189	Image coming soon	234193-3 SPRING EASY-START	€13.46
190	Image coming soon	181163090 GUIDE FOR EASY START	€4.06
190-1	Image coming soon	452227-2 DRIVER EASY START	€4.06
191	Image coming soon	181163095 SCREW	€1.61
191-1	Image coming soon	266616-3 SCREW X EASY START	€1.85
194	Image coming soon	143331-5 FLYWHEEL COMPLETE	€30.02
195	Image coming soon	181166100 STARTER PAWL CPL	€30.02
200	Image coming soon	181153100 CARBURETOR	€185.47
202	Image coming soon	181153030 TOP COVER DCS4600S	€34.71
203	Image coming soon	038153360 SCREW DCS4630/5030/5031/4600/5	€4.06
204	Image coming soon	181153040 COVER DIAPHRAGM DCSS4600S	€20.12
205	Image coming soon	ZJ00000014 SCREW (WITH SERRATION)	€2.20
206	Image coming soon	181153020 KIT seal DCS4600S-5000	€37.93
207	Image coming soon	181153050 IRIS DCS4600S-5000	€9.01
208	Image coming soon	038153210 FRICTION BALL DCS4630/5030/31/	€4.06
209	Image coming soon	181153070 SCREW X DCS4600S S-5000	€10.48
210	Image coming soon	036153040 SCREEN X PS 34	€5.43
211	Image coming soon	957153090 THROTTLE VALVE	€42.85
212	Image coming soon	957153080 SHAFT THROTTLE DCS4600S	€47.56
213	Image coming soon	957153070 CONTROL PARTS DCS4630/5030/503	€42.85
214	Image coming soon	028153480 SPRING FOR PS-460/500	€4.06
215	Image coming soon	181153180 SCREW DCS4600S L-5000	€30.02
216	Image coming soon	181153190 SCREW DCS4600S H-5000	€30.02
217	Image coming soon	181153220 WASHER FOR PS-460/500	€4.70
224	Image coming soon	181153110 VALVE SPRING THROTTLE	€4.06
225	Image coming soon	181153160 VALVE SPRING SHAFT ACCEL.	€4.70
226	Image coming soon	181153210 PLATE CARBURETOR DCS4600S	€4.06
230	Image coming soon	038155012 RETAINING CLIP PS4605-5105-5105D	€2.84
231	Image coming soon	965402995 SEAL DCS4600S-5000	€2.84
263-1	Image coming soon	234358-7 TERMINAL SPRING	€1.47
263	Image coming soon	965604180 SPRING DCS330S/390/430/520/430	€2.20

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Dolmar Spare Parts for Chainsaw PS460

DOLMAR Original spare parts

at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Chainsaw PS460.

In the following table, look for the model of Chainsaw and the respective parts of the code.

PS460 - ENGINECHAINSAW
Pag.1
#	Part Num.	Description
1	181114111	FUEL TANK ASSY RED
D10		INC. 2-6,8-12,15,17,18
2	181117050	GRIP OUTER SHELL
2-1	450851-5	GRIP OUTER SHELL
3	181117132	CATCH LEVER
4	181117031	SPRING
5	181117081	ROCKER
6	181117111	SPRING
8	935930240	CYLINDRICAL PIN 3X24
8-1	268233-5	PIN 3
9	181117120	THROTTLE LEVER
9-1	181117121	THROTTLE LEVER
10	957114061	AIR VALVE CPL.
11	913455204	H.L.TAPPING SCREW 5.5X20
11-1	266475-5	H.L.TAPPING SCREW 5.5X20
12	181114065	FUEL LINE
13	163499-1	SUCTION HEAD
C10	010114020	REP.KIT, FILTER(FELT ELEMENT)
13-1	010114200	FUEL FILTER ASSY
15	181114202	TANK CAP CPL.
D10		INC. 16
15-1	168507-3	TANK CAP COMPLETE
D10		INC. 16
16	213080-9	O RING 29.5
17	181114301	DAMPING SPRING, CPL.
18	181114301	DAMPING SPRING, CPL.
19	181310200	FRONT HANDLE
20	913455204	H.L.TAPPING SCREW 5.5X20
20-1	266475-5	H.L.TAPPING SCREW 5.5X20
21	913455164	H.L. TAPPING SCREW 5.5X16
21-1	266478-9	H.L.TAPPING SCREW 5.5X16
22	181114051	HANDLE COVER DOLMAR RED
23	908006205	H.L. SOCKET HEAD BOLT M6X20
23-1	266479-7	H.L. SOCKET HEAD BOLT M6X20
24	913455204	H.L.TAPPING SCREW 5.5X20
24-1	266475-5	H.L.TAPPING SCREW 5.5X20
26	181118261	AIR FILTER ELEMENT COVER
D10		INC. 27
26-1	181118241	AIR FILTER ELEMENT COVER
D10		INC. 27,70
26-2	181118242	AIR FILTER ELEMENT COVER
D10		INC. 27,70
27	181118060	ANTI ICING PLATE SUMMER
28	181173090	AIR FILTER ELEMENT NYLON ME SH
28A_	181173240	AIR FILTER ELEMENT FINE NYLO N
028B_	181173190	AIR FILTER ELEMENT FLEECE
29	325593-9	CLIP
30	181171011	AIR SUCTION PIPE
31	908505555	H.L. SOCKET HEAD BOLT M5X55
31-1	266480-2	H.L. SOCKET HEAD BOLT M5X55
32	181155020	ENGINE STOP / CHOKE LEVER
32-1	181155070	ENGINE STOP / CHOKE LEVER
33	970311550	EARTH CABLE
33-1	970311580	EARTH CABLE
34	913455164	H.L. TAPPING SCREW 5.5X16
34-1	266478-9	H.L.TAPPING SCREW 5.5X16
36	181131103	CARBURETOR HOUSING ASSY RED
D10
36-1	181131160	CARBURETOR HOUSING ASSY RED
37	908805205	H.L. SOCKET HEAD BOLT M5X20
37-1	266472-1	TORX SOCKET HEAD BOLT M5X20
38	038118110	RUBBER FLAP
39	938650062	RIVET
40	181171150	INTAKE MANIFOLD SET
D10
40-1	181171160	INTAKE MANIFOLD SET
D10
41	181131090	OIL RESISTANT HOSE
42	181131040	INTAKE MANIFOLD
42-1	181131041	INTAKE HOSE
44	181131070	RING SPRING
44-1	233971-8	RING SPRING
45	913455164	H.L. TAPPING SCREW 5.5X16
45-1	266478-9	H.L.TAPPING SCREW 5.5X16
46	181155010	CONTACT SPRING
47	181155030	ADJUSTING GUIDE
47-1	181155080	ADJUSTING GUIDE
48	913455164	H.L. TAPPING SCREW 5.5X16
48-1	266478-9	H.L.TAPPING SCREW 5.5X16
49	928405000	SPRING WASHER 5
49-1	267821-5	SPRING WASHER 5
50	980115961	LABEL
50-1	816917-5	INDICATION LABEL
53	181174102	MUFFLER
57	181174062	HEAT INSULATION PLATE
58	181174050	GASKET DCS4600S-5000
59	908005205	H.L. SOCKET HEAD BOLT M5X20
59-1	266476-3	H.L. SOCKET HEAD BOLT M5X20
60	181174091	MUFFLER COVER
61	908005095	H.L. SOCKET HEAD BOLT M5X9
61-1	266474-7	H.L. SOCKET HEAD BOLT M5X9
62	908805205	H.L. SOCKET HEAD BOLT M5X20
62-1	266472-1	TORX SOCKET HEAD BOLT M5X20
63	346413-4	BUSH 17
65	179130215	CYLINDER/PISTON SET FOR DEC
D10		INC. 66,74
66	181132064
D10		INC. 67-69
67	180132080	PISTON RING 43MM
68	181132090	PISTON PIN
69	181132050	CIRCLIP 10
69-1	181132050	CIRCLIP 10
70	181118070	RUBBER DAMPING PLUG
70-1	424173-9	DAMPING PLUG
72	908805235	H.L. SOCKET HEAD BOLT M5X23
72-1	266473-9	H.L. SOCKET HEAD BOLT M5X23
73	181114401	DAMPING SPRING,CPL.
74	181131131	CYLINDER GASKET
74-1	181131133	CYLINDER GASKET
74-2	181131134	CYLINDER GASKET
75	181120100	CRANKSHAFT CPL.
75-1	185120200	CRANKSHAFT CPL.
75-2	143395-9	CRANKSHAFT CPL.
76	962210103	NEEDLE BEARING 10X13X12.5CAGE
77	211154-0	BALL BEARING 6202
78	960123159	BALL BEARING 6203 C3
C10	962900065	OIL SEAL
78-1	211250-4	BALL BEARING 1514
79	962900156	OIL SEAL
79-1	213141-5	OIL SEAL 12
80	179111153	CRANKCASE ASSY LEFT RED
D10
80-1	181111155	CRANKCASE ASSY LEFT RED
D10
81	179111141	CRANKCASE ASSY RIGHT RED
D10
81-1	181111142	CRANKCASE ASSY RIGHT RED
D10
82	181111061	CRANKCASE GASKET FOR PS-460/500
83	170114100	TANK CAP COMPLETE
D10
83-1	168508-1	TANK CAP COMPLETE
D10
84	963225030	O RING
84-1	213355-6	O-RING 25
85	181118050	STEELCLIP
86	908006205	H.L. SOCKET HEAD BOLT M6X20
86-1	266479-7	H.L. SOCKET HEAD BOLT M6X20
87	908805205	H.L. SOCKET HEAD BOLT M5X20
87-1	266472-1	TORX SOCKET HEAD BOLT M5X20
88	181111230	RUBBER BUFFER
89	936430160	PIN 3X16
89-1	258038-1	CLAMPING PIN
90	181111230	RUBBER BUFFER
91	908805205	H.L. SOCKET HEAD BOLT M5X20
91-1	266472-1	TORX SOCKET HEAD BOLT M5X20
92	908005205	H.L. SOCKET HEAD BOLT M5X20
92-1	266476-3	H.L. SOCKET HEAD BOLT M5X20
93	181111050	CHAIN CATCH
93-1	181111051	CHAIN CATCH
94	908006205	H.L. SOCKET HEAD BOLT M6X20
94-1	266479-7	H.L. SOCKET HEAD BOLT M6X20
95	905808210	GUIDE BAR BOLT M8X21
96	181250011	SPIKE BAR
97	908805205	H.L. SOCKET HEAD BOLT M5X20
97-1	266472-1	TORX SOCKET HEAD BOLT M5X20
98	010245030	VENT VALVE
98-1	168504-9	VENT VALVE
100	181213300	CHAIN TENSIONER CPL.
D10
101	181213230	TESIONING SCREW
101-1	227743-1	HELICAL GEAR 11
102	181213240	TENSION SLIDE
102-1	181213241	TENSION SLIDE
103	181213250	ADJUSTING SCREW
103-1	227744-9	HELICAL GEAR 18
104	452667-4	GEAR COVER PROFESSIONAL
105	181213260	TENSIONING SCREW BEARING
106	963207020	O RING
107	908705125	H.L. SOCKET HEAD BOLT M5X12
107-1	266484-4	H.L SOCKET HEAD BOLT M5X12
112	181131140	RUBBER BUSH
113	181117094	RETAINING CLIP
114	181117041	THROTTLE CONTROL CABLE
115	181160101	STARTER ASSY RED
D10
116	181112021	STARTER HOUSING RED
117	980115190	LABEL PS-460
118	908805205	H.L. SOCKET HEAD BOLT M5X20
119	001161020	STARTER GRIP
120	108164020	STARTER ROPE 3.5MM (L=0.98M)
122	928405000	SPRING WASHER 5
123	181162150	CABLE DRUM
124	181163020	REWIND SPRING IN HOUSING
125	924605510	WASHER 5.5/18X1.6
126	913455204	H.L.TAPPING SCREW 5.5X20
127	181118041	AIR GUIDE PLATE
128	181143204	IGNITION COIL COMPLETE
D10
128-1	181143206	IGNITION COIL COMPLETE
D10
128-2	181143212	IGNITION COIL COMPLETE
D10
128-3	181143213	IGNITION COIL COMPLETE
D10		INC. 129,131,132
128-4	181143214	IGNITION COIL COMPLETE
D10
129	181147050	IGNITION CABLE
130	195143031	ISOLATION WASHER
130-1	451462-9	ISOLATING WASHER
131	970502110	INSULATING TUBE 6 L=1M
131-1	970502120	INSULATING TUBE
132	957604260	PLUG CAP COMPLETE
D10
133	168648-5	SPARK PLUG (BPMR7A)
134	908805205	H.L. SOCKET HEAD BOLT M5X20
134-1	266472-1	TORX SOCKET HEAD BOLT M5X20
135	920208024	HEX. NUT M8X1(FINE THREAD)
135-1	264107-8	HEXAGONAL NUT M8
136	926208001	SPRING WASHER 8
136-1	267822-3	SPRING WASHER 8
137	181141104	FLYWHEEL ASSY.
D10		INC. 138
138	181166050	STARTER RATCHET CP
140	181245251	OIL PUMP CPL.
D10		INC. 150
142	181155011	CONTACT SPRING
142-1	181155060	CONTACT SPRING
143	181245120	OIL LINE
143-1	424178-9	OIL TUBE
145	144274-4	TUBE COMPLETE
D10		INC. 146,147
146	231975-4	SPRING
147	001245020	HOSE STEM
149	908705125	H.L. SOCKET HEAD BOLT M5X12
149-1	266484-4	H.L SOCKET HEAD BOLT M5X12
150	181245090	PUMP DRIVE
150-1	450956-1	PUMP DRIVE
151	267389-1	FLAT WASHER 12
152	181180300	CLUTCH ASSY
D10		INC. 153
152-1	127443-2	CLUTCH ASSEMBLY
D10		INC. 153
153	232352-3	TENSION SPRING 6
153-1	232352-3	TENSION SPRING 6
154	181224090	FLAT WASHER 10
155	181213011	BRAKE BAND
155-1	346029-5	BRAKE BAND
156	181223312	CLUTCH DRUM CPL. .325", Z=7
D10		INC. 157
156-1	158927-9	CLUTCH DRUM COMPLETE
D10		INC. 157
157	962300009	NEEDLE BEARING
157-1	212082-2	NEEDLE BEARING 1012
159	181224081	WASHER 29
159-1	267820-7	WASHER 29
160	927408000	STOP RING E-8
160-1	259045-7	STOP RING E-8
161	927304000	STOP RING E-4
161-1	257934-0	STOP RING E-4
162	185213100	BREAK LINK PLATE COMPLETE
163	181213023	TENSION SPRING
163-1	231870-8	TENSION SPRING 10
164	181213170	HANDGUARD GUIDE,CPL.
164-1	450926-0	STOPPER CASE
165	181213371	FOAM SPONGE
167	181213161	HAND GUARD CPL.
D10
167-1	181213162	HAND GUARD CPL.
167-2	181213163	HAND GUARD CPL.
168	810449-4	CAUTION LABEL
169	181213310	SPACER
170	181213320	BUSHING
170-1	325604-0	BUSH
171	908805205	H.L. SOCKET HEAD BOLT M5X20
171-1	266472-1	TORX SOCKET HEAD BOLT M5X20
174	181213400	FOAM SPONGE
175	957213200	SPROCKET GUARD COMPLETE RED
D10
176	923208004	HEX. FLANGE NUT M8(BAR NUT)
176-1	252145-2	COLLARED HEX NUT M8
177	957213220	CHIP GUIDE
178	181213191	SPROCKET COVER DCS4600S-5000
179	908105126	H.L.S. FLAT HEAD BOLT M5X12
179-1	266477-1	H.L. C.S. HEAD SCREW M5X12
182	181160155	STARTER ASSY RED
D10
182-1	181160201	STARTER ASSY RED
D10
182-2	123560-6	STARTING DEVICE RED
D10
183	181112060	STARTER HOUSING RED
183-1	140732-8	FAN HOUSING COMPLETE
184	181118041	AIR GUIDE PLATE
184-1	181118120	AIR GUIDE PLATE
184-2	456685-4	AIR GUIDE PLATE
185	181164010	STARTER GRIP
185-1	452458-3	STARTER GRIP
186	266942-0	H.L. SOCKET HEAD BOLT M5X20
187	140587-1	REWIND SPRING COMPLETE
188	181162020	CABLE DRUM
188-1	452224-8	CABLE DRUM
189	234193-3	SPRING EASY START
190	181163090	STARTER WHEEL
190-1	452227-2	DRIVER EASY START
191	181163095	STEPPED TAPPING SCREW 5X16.5
191-1	266616-3	SCREW
192	108164020	STARTER ROPE 3.5MM (L=0.98M)
194	143331-5	FLYWHEEL COMPLETE
D10
195	181166100	STARTER RATCHET CP
200	181153100	CARBURETOR
D10
202	181153030	PUMP COVER
D10
203	038153360	SCREW
204	181153040	DIAPHRAGM COVER
205	ZJ00000014	SCREW (WITH SERRATION)
206	181153020	SET DAIPHRAGM/GASKETS
D10
207	181153050	PUMP DIAPHRAGM TEFLON
208	038153210	LOCKING BALL
209	181153070	IDLE STOP SCREW
210	036153040	SCREEN
211	957153090	KIT THROTTLE SHAFT
D10
212	957153080	KIT CHOKE SHAFT
D10
213	957153070	CONTROL PARTS
214	028153480	SPRING
215	181153180	IDLE ADJUSTMENT SCREW
216	181153190	MAIN ADJUSTMENT SCREW
217	181153220	WASHER
224	181153110	SPRING
225	181153160	SPRING
226	181153210	PLUG-WELCH
230	038155012	RETAINING CLIP
231	965402995	GASKET
250	181153301	CARBURETOR (REGULATED MARKET)
D10
D20
251	181153261	IDLE ADJUSTMENT SCREW L (DD)
252	181153271	MAIN ADJUSTMENT SCREW H (DD)
255	181153031	PUMP COVER
256	181153021	DIAPHRAGM & GASKETS
257	181153560	REBUILD KIT
D10
258	181153570	KIT THROTTLE SHAFT
259	181153580	KIT CHOKE SHAFT
263	965604180	PLUG CAP SPRING
263-1	234358-7	TERMINAL SPRING
264	928405000	SPRING WASHER 5
264-1	267821-5	SPRING WASHER 5
303	038153360	SCREW
304	181153040	DIAPHRAGM COVER
305	ZJ00000014	SCREW (WITH SERRATION)
326	181153210	PLUG-WELCH
330	038155012	RETAINING CLIP
331	965402995	GASKET
A41	957004011	TOOL CPL.
D10
A42	944500795	CYLINDER FIN CLEANER
A43	782033-4	UNIVERSAL WRENCH 13/19
A44	940827000	HEXALOBULAR ANGLED DRIVER T27
A44-1	782025-3	HEXALOBULAR WRENCH 27
A45	783012-5	SCREWDRIVER
A46	950004002	PLASTIC BAG
A46-1	831340-3	TOOL BAG
156	181223322	CLUTCH DRUM CPL. 3/8", Z=7

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Domar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Dolmar PS460

Available 6 Items

Data sheet

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]

Specific References

Condition New

Download

Dolmar PS460 Parts Diagram

Download (1.81MB)

Covcer Pinion Carter for Chainsaws Dolmar PS4600S-5000

Makita SKU: 181213191

Sprocket Cover for Chainsaws Dolmar PS4600S-5000

Sprocket Cover for Chainsaws Dolmar PS4600S-5000 Genuine parts Dolmar, Sprocket Cover for Chainsaws Dolmar PS4600S-5000 - PS460/45 - PS4600S/38 - PS5000/45 - Makita DCS5000/38 - DCS5000/45 Part for the following products: - PS460/45 -...

AVAILABLE €14.24

Cart (0)

Subcategories

Subcategories

Subcategories

Power Tools Spare Parts

Garden Spare Parts

Air Compressor Spare Parts

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

Dolmar Chainsaw PS460 Parts

Dolmar Spare Parts for Chainsaw PS460

Dolmar Chainsaw PS460 Parts

Dolmar Spare Parts for Chainsaw PS460

Dolmar Spare Parts for Chainsaw PS460

Data sheet

Specific References

Download

Dolmar PS460 Parts Diagram

You might also like
