Makita

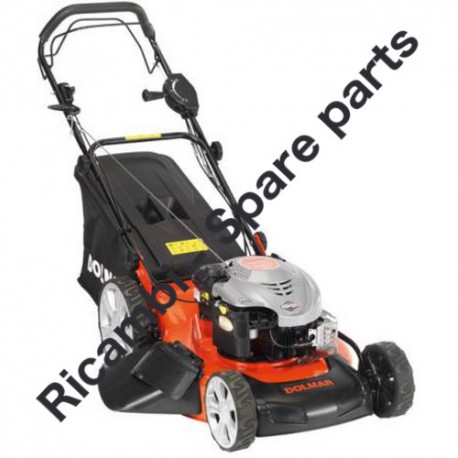

Dolmar Lawnmower PM5101S3 Parts

SKU: Dolmar PM5101S3
€13.45
VAT included

Dolmar Spare Parts for Lawn Mower PM5101S3

We are DOLMAR original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawn Mower PM5101S3.
Dolmar Lawn Mower PM5101S3 Parts
  • Dolmar Lawn Mower PM5101S3 Parts
  • Dolmar Lawn Mower PM5101S3 Parts Drawing
  • Dolmar Lawn Mower PM5101S3 Parts Drawing - 1
  • Dolmar Lawn Mower PM5101S3 Parts Drawing - 2
  • Dolmar Lawn Mower PM5101S3 Parts Drawing - 3
Makita

Dolmar Lawnmower PM5101S3 Parts

SKU: Dolmar PM5101S3 Condition: New
€13.45
VAT included

Dolmar Spare Parts for Lawn Mower PM5101S3

We are DOLMAR original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawn Mower PM5101S3.
settings 137 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
137 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

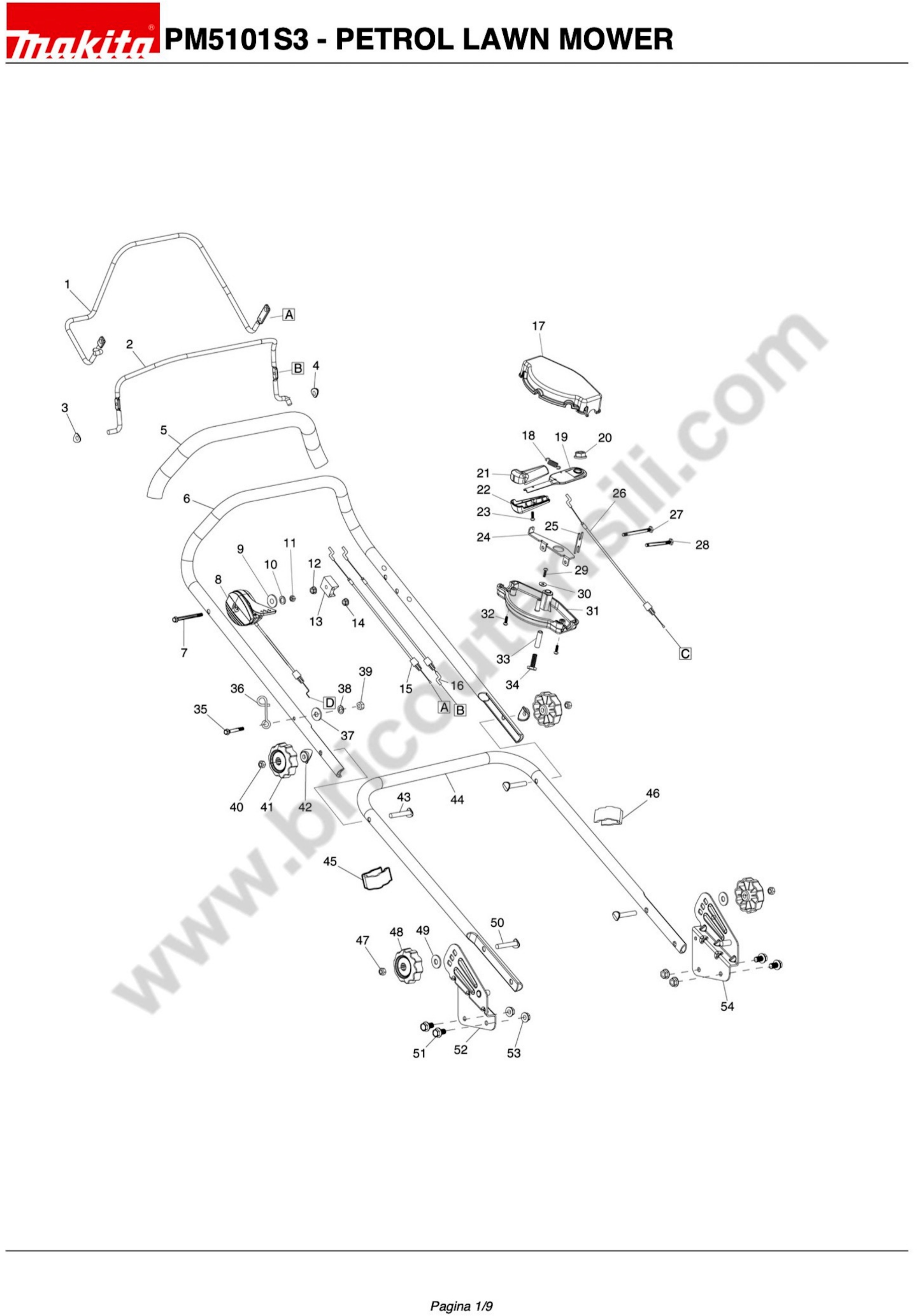

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon DA00000964 DRIVE LEVER €13.06
2
 photo_cameraImage coming soon DA00000961 DRIVE LEVER €13.06
3
 photo_cameraImage coming soon 671001524 PRESSURE PLATE PM5100S3 €2.14
4
 photo_cameraImage coming soon 671001524 PRESSURE PLATE PM5100S3 €2.14
5
 photo_cameraImage coming soon 671001029 HANDLE €7.84
6
 photo_cameraImage coming soon DA00000963 UPPER HANDLE €53.16
7
 photo_cameraImage coming soon 671006082 SCREW €1.43
8
 photo_cameraImage coming soon 671001150 PM5100S3 ACCELERATOR CABLE €50.73
9
 photo_cameraImage coming soon DA00000574 WASHER €1.64
10
 photo_cameraImage coming soon DA00000576 ELASTIC WASHER €1.44
11
 photo_cameraImage coming soon DA00000575 NUT M6 €1.64
12
 photo_cameraImage coming soon DA00000543 NUT €1.64
13
 photo_cameraImage coming soon DA00000573 PLATE €2.14
14
 photo_cameraImage coming soon DA00000543 NUT €1.64
15
 photo_cameraImage coming soon DA00000977 TRACTION CABLE PM5100S3 €11.39
16
 photo_cameraImage coming soon 671001151 ENGINE BRAKE CABLE PM5100S3 €57.65
17
 photo_cameraImage coming soon 671470002 HOUSING DX PM5100S3 €7.79
18
 photo_cameraImage coming soon 671011123 SPRING €2.14
19
 photo_cameraImage coming soon DA00000972 SETTING BOX €5.28
20
 photo_cameraImage coming soon DA00000543 NUT €1.64
21
 photo_cameraImage coming soon DA00000869 DRIVE SPEED ADJUST GRIP UPPER €2.46
22
 photo_cameraImage coming soon DA00000870 LOWER SPEED ADJUSTMENT LEVER €2.46
23
 photo_cameraImage coming soon DA00000873 SCREWw M4,2X15 ELM 3310-3710 €2.14
24
 photo_cameraImage coming soon 671001514 CONTACT PM5100S3 €3.95
25
 photo_cameraImage coming soon 671001511 SCREW M6X60 €2.14
26
 photo_cameraImage coming soon 671001191 SPEED CHANGE CABLE €66.41
27
 photo_cameraImage coming soon 671006063 SCREW M6X40 €2.14
28
 photo_cameraImage coming soon DA00000577 SCREW €1.64
29
 photo_cameraImage coming soon DA00000603 SCREW €1.64
30
 photo_cameraImage coming soon 671002075 WASHER 12/4 €2.21
31
 photo_cameraImage coming soon 671470001 HOUSING SX PM5100S3 €7.79
32
 photo_cameraImage coming soon 671010630 SCREW 2X25 €1.43
33
 photo_cameraImage coming soon 671001513 BUSSOL 9X32 €2.76
34
 photo_cameraImage coming soon 671006063 SCREW M6X40 €2.14
35
 photo_cameraImage coming soon DA00000577 SCREW €1.64
36
 photo_cameraImage coming soon DA00000579 HOOK €3.95
37
 photo_cameraImage coming soon DA00000574 WASHER €1.64
38
 photo_cameraImage coming soon DA00000576 ELASTIC WASHER €1.44
39
 photo_cameraImage coming soon DA00000575 NUT M6 €1.64
40
 photo_cameraImage coming soon DA00000563 HEX NUT €1.64
41
 photo_cameraImage coming soon DA00000564 KNOB €2.14
42
 Dolmar Gasket for Lawnmower PM5120SR DA00000924 Dolmar Gasket for Lawnmower PM5120SR €1.50
43
 photo_cameraImage coming soon DA00000569 SCREW €3.16
44
 photo_cameraImage coming soon 671001453 LOWER HANDLE PLM4110-4610-4611 €50.44
45
 photo_cameraImage coming soon 671611001 CABLE SUPPORT €2.14
46
 photo_cameraImage coming soon 671611001 CABLE SUPPORT €2.14
47
 photo_cameraImage coming soon DA00000563 HEX NUT €1.64
48
 photo_cameraImage coming soon DA00000564 KNOB €2.14
49
 photo_cameraImage coming soon 671007007 WASHERELM €1.47
50
 photo_cameraImage coming soon DA00000880 FLAT HEAD BOLT €2.76
51
 photo_cameraImage coming soon DA00000562 FLANGE NUT €1.64
52
 photo_cameraImage coming soon 671001356 BRACKET HANDLE, PLM €33.68
53
 photo_cameraImage coming soon DA00000537 FLANGE €1.44
54
 photo_cameraImage coming soon 671001355 BRACKET HANDLE, PLM €29.13
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

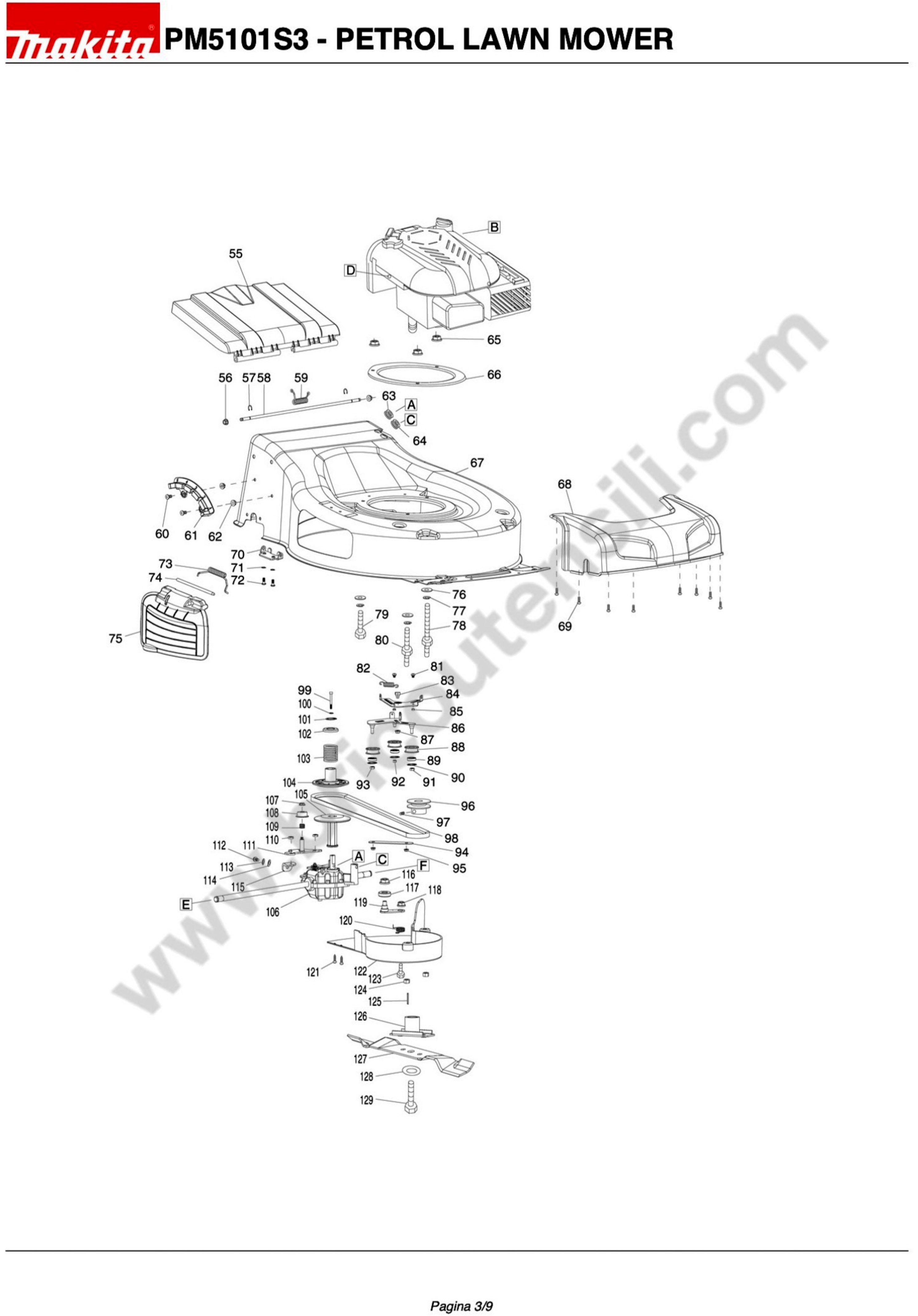

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
55
 photo_cameraImage coming soon 671468001 COVER PLM4110-4610-4611 €47.57
56
 photo_cameraImage coming soon DA00000543 NUT €1.64
57
 photo_cameraImage coming soon 671009017 BRAKE RING ELM4110 €2.21
58
 photo_cameraImage coming soon 671001518 SUPPORT PLM4110-4610-4611 €7.02
59
 photo_cameraImage coming soon 671011101 ELM4110 SPRING €2.85
60
 photo_cameraImage coming soon 671002019 TRIGGER BOLTPLM €2.21
61
 photo_cameraImage coming soon 671010280 ADJUSTABLE PLATE HEIGHT €6.81
62
 photo_cameraImage coming soon DA00000543 NUT €1.64
63
 photo_cameraImage coming soon 671800104 CORD PROTECTING X PLM5600 €1.44
64
 photo_cameraImage coming soon 671800104 CORD PROTECTING X PLM5600 €1.44
65
 photo_cameraImage coming soon DA00000537 FLANGE €1.44
66
 photo_cameraImage coming soon 671144701 RUBBER RING PM5100S3 €5.73
67
 photo_cameraImage coming soon 671001344 COVER PLM €284.21
68
 photo_cameraImage coming soon 671513001 FRONT PANEL PM5100S3 €58.19
69
 photo_cameraImage coming soon DA00000911 SCREW 4,2X10 €1.43
70
 photo_cameraImage coming soon 671001571 PLATE PM5100S3 €5.73
71
 photo_cameraImage coming soon DA00000198 WASHER €1.64
72
 photo_cameraImage coming soon 671201501 SCREW PM5100S3 €2.20
73
 photo_cameraImage coming soon 671111300 TORSION SPRING €3.23
74
 photo_cameraImage coming soon 671001019 ROOD PM5100S3 €5.28
75
 photo_cameraImage coming soon 671514001 PM5100S3 SIDE DOOR COVER €32.71
76
 photo_cameraImage coming soon 671007007 WASHERELM €1.47
77
 photo_cameraImage coming soon DA00000832 ELASTIC WASHER €1.43
78
 photo_cameraImage coming soon 671003024 SCREW M8X60X17 PLM4110-4610-11 €7.79
79
 photo_cameraImage coming soon DA00000586 SCREW €1.64
80
 photo_cameraImage coming soon DA00000617 SCREW €2.46
81
 photo_cameraImage coming soon 671002019 TRIGGER BOLTPLM €2.21
82
 photo_cameraImage coming soon 671011021 SPRING PM5100S3 €1.43
83
 photo_cameraImage coming soon 671003042 SCREW €3.23
84
 photo_cameraImage coming soon DA00000971 PLATE €17.13
85
 photo_cameraImage coming soon DA00000549 NUT €1.44
86
 photo_cameraImage coming soon 671001455 SUPPORT PM5100S3 €19.37
87
 photo_cameraImage coming soon DA00000537 FLANGE €1.44
88
 photo_cameraImage coming soon 671001056 PULLEY €21.97
89
 photo_cameraImage coming soon 671004015 6001RS BEARING €18.62
90
 photo_cameraImage coming soon 671009021 RING 28 €2.14
91
 photo_cameraImage coming soon DA00000563 HEX NUT €1.64
92
 photo_cameraImage coming soon 671005008 NUT M8 PLM4110-4610-4611 €2.21
93
 photo_cameraImage coming soon DA00000563 HEX NUT €1.64
94
 photo_cameraImage coming soon 671001533 PRESSURE PLATE €2.14
95
 photo_cameraImage coming soon DA00000537 FLANGE €1.44
96
 photo_cameraImage coming soon 671004013 PULLEY PM5100S3 €28.09
97
 photo_cameraImage coming soon DA00000598 SCREW €1.44
98
 Rubber Belt for Lawnmower Makita PLM5113 DA00000968 Rubber Belt for Lawnmower Makita PLM5113 €16.47
99
 photo_cameraImage coming soon 671006123 SCREW M5X55 €2.14
100
 photo_cameraImage coming soon DA00000198 WASHER €1.64
101
 photo_cameraImage coming soon 671009020 RING 19 PM5100S3 €4.56
102
 photo_cameraImage coming soon 671001457 PROTECTION PLATE €2.14
103
 photo_cameraImage coming soon 671011122 SCREW PM5100S3 €3.95
104
 Makita PLM5113 Upper Pulley 671010540 Makita PLM5113 Upper Pulley €22.87
105
 Makita PLM5113 Lower Pulley 671001082 Makita PLM5113 Lower Pulley €22.87
106
 photo_cameraImage coming soon 671501031 TRACTION PM5100S3 €203.24
107
 photo_cameraImage coming soon DA00000543 NUT €1.64
108
 photo_cameraImage coming soon 671002038 COVER PM5100S3 €2.76
109
 photo_cameraImage coming soon 671011156 SPRING PM5100S3 €2.76
110
 photo_cameraImage coming soon 671005011 HEXAGONAL LOCKINGPLM €2.21
111
 photo_cameraImage coming soon 671001717 PLATE €6.11
112
 photo_cameraImage coming soon DA00000562 FLANGE NUT €1.64
113
 photo_cameraImage coming soon DA00000832 ELASTIC WASHER €1.43
114
 photo_cameraImage coming soon 671007007 WASHERELM €1.47
115
 photo_cameraImage coming soon DA00000915 FIXING PLATE 2 €4.56
116
 photo_cameraImage coming soon DA00000537 FLANGE €1.44
117
 photo_cameraImage coming soon 671004015 6001RS BEARING €18.62
118
 photo_cameraImage coming soon DA00000543 NUT €1.64
119
 photo_cameraImage coming soon DA00000974 FIXING PLATE €3.95
120
 photo_cameraImage coming soon 671011136 SPRING PM5100S3 €2.14
121
 photo_cameraImage coming soon DA00000873 SCREWw M4,2X15 ELM 3310-3710 €2.14
122
 Rubber Belt Cover for Lawnmower Makita PLM5113 671522001 Rubber Belt Cover for Lawnmower Makita PLM5113 €22.41
123
 photo_cameraImage coming soon 671006066 SCREW PM5100S3 €2.14
124
 photo_cameraImage coming soon 671005008 NUT M8 PLM4110-4610-4611 €2.21
125
 photo_cameraImage coming soon DA00000535 WOODRUFF €1.43
126
 Blade Hub for Lawnmover Makita PLM5113 671015252 Blade Hub for Lawnmover Makita PLM5113 €27.21
127
 photo_cameraImage coming soon DA00000973 BLADE 510MM €53.16
128
 photo_cameraImage coming soon DA00000529 WASHER €3.25
129
 photo_cameraImage coming soon 671006065 SCREW 3 / 8X30 €14.76
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

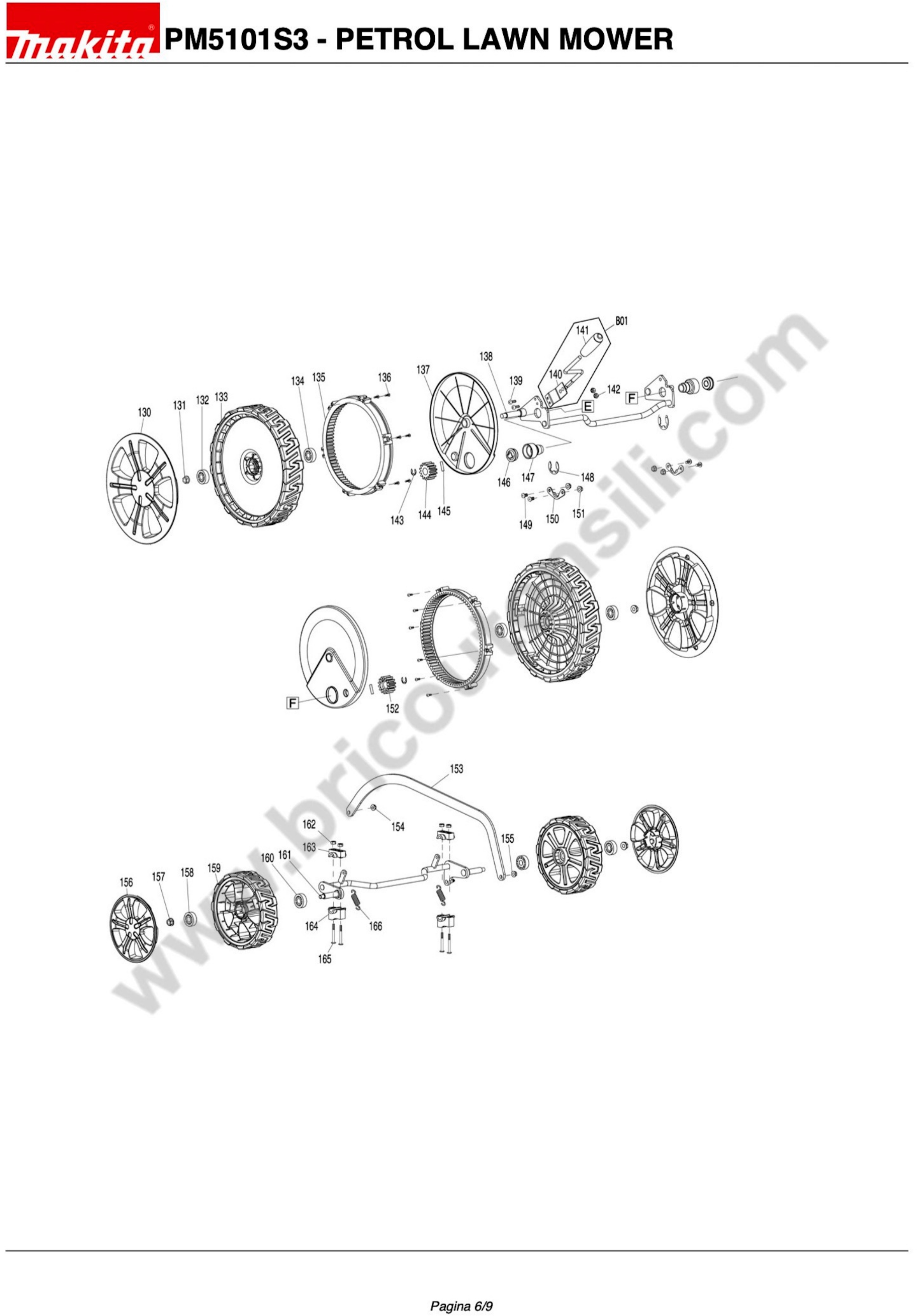

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
130
 photo_cameraImage coming soon 671001322 COVER HUB PM5100S3 €14.76
131
 photo_cameraImage coming soon DA00000537 FLANGE €1.44
132
 photo_cameraImage coming soon DA00000538 BEARING €7.02
133
 photo_cameraImage coming soon 671002021 REAR WHEEL PM5100S3 €51.67
134
 photo_cameraImage coming soon DA00000538 BEARING €7.02
135
 Gear for Lawnmover Makita PLM5113 671200010 Gear for Lawnmover Makita PLM5113 €22.41
136
 photo_cameraImage coming soon DA00000603 SCREW €1.64
137
 photo_cameraImage coming soon 671251800 INNER WHEEL COVER X PLM5600 €10.18
138
 photo_cameraImage coming soon 671001574 REAR BACKPACK PM5100S3 €119.47
139
 photo_cameraImage coming soon 671002030 SCREW PM5100S3 €2.14
140
 photo_cameraImage coming soon 671001570 HEIGHT ADJUSTMENT LEVER ASSY PLM5113N2 €16.98
141
 photo_cameraImage coming soon DA00001058 KNOB €6.05
142
 photo_cameraImage coming soon DA00000549 NUT €1.44
143
 photo_cameraImage coming soon DA00000604 RETAINING RING €1.64
144
 photo_cameraImage coming soon DA00001091 PINION DX PLM4611 €12.63
145
 photo_cameraImage coming soon DA00000597 PIN €1.44
146
 photo_cameraImage coming soon DA00001029 CUSHION FOR ELM4611 €5.28
147
 photo_cameraImage coming soon 671002024 BOX BEARING PLM4611 €14.76
148
 photo_cameraImage coming soon DA00000612 RING €1.64
149
 photo_cameraImage coming soon 671002019 TRIGGER BOLTPLM €2.21
150
 photo_cameraImage coming soon DA00000542 SUPPORT €1.64
151
 photo_cameraImage coming soon DA00000543 NUT €1.64
152
 photo_cameraImage coming soon DA00001090 PINION SX PLM4110-4610-4611 €12.63
153
 photo_cameraImage coming soon 671001575 LINK ROD PLM 5102 €14.09
154
 photo_cameraImage coming soon DA00000549 NUT €1.44
155
 photo_cameraImage coming soon DA00000549 NUT €1.44
156
 photo_cameraImage coming soon DA00000536 WHEEL COVER 7 INCH €5.23
157
 photo_cameraImage coming soon DA00000537 FLANGE €1.44
158
 photo_cameraImage coming soon DA00000538 BEARING €7.02
159
 photo_cameraImage coming soon 671020160 WHEEL 200 PLM4110-4610-4611 €29.13
160
 photo_cameraImage coming soon DA00000538 BEARING €7.02
161
 photo_cameraImage coming soon 671001573 FRONT PANEL PM5100S3 €79.88
162
 photo_cameraImage coming soon DA00000549 NUT €1.44
163
 photo_cameraImage coming soon 671445001 BUSH ELM4110 €2.85
164
 photo_cameraImage coming soon 671418001 BUSH ELM4110 €3.31
165
 photo_cameraImage coming soon 671002028 TRIGGER BOLTPLM €2.21
166
 photo_cameraImage coming soon 671011142 SPRING PM5100S3 €5.73

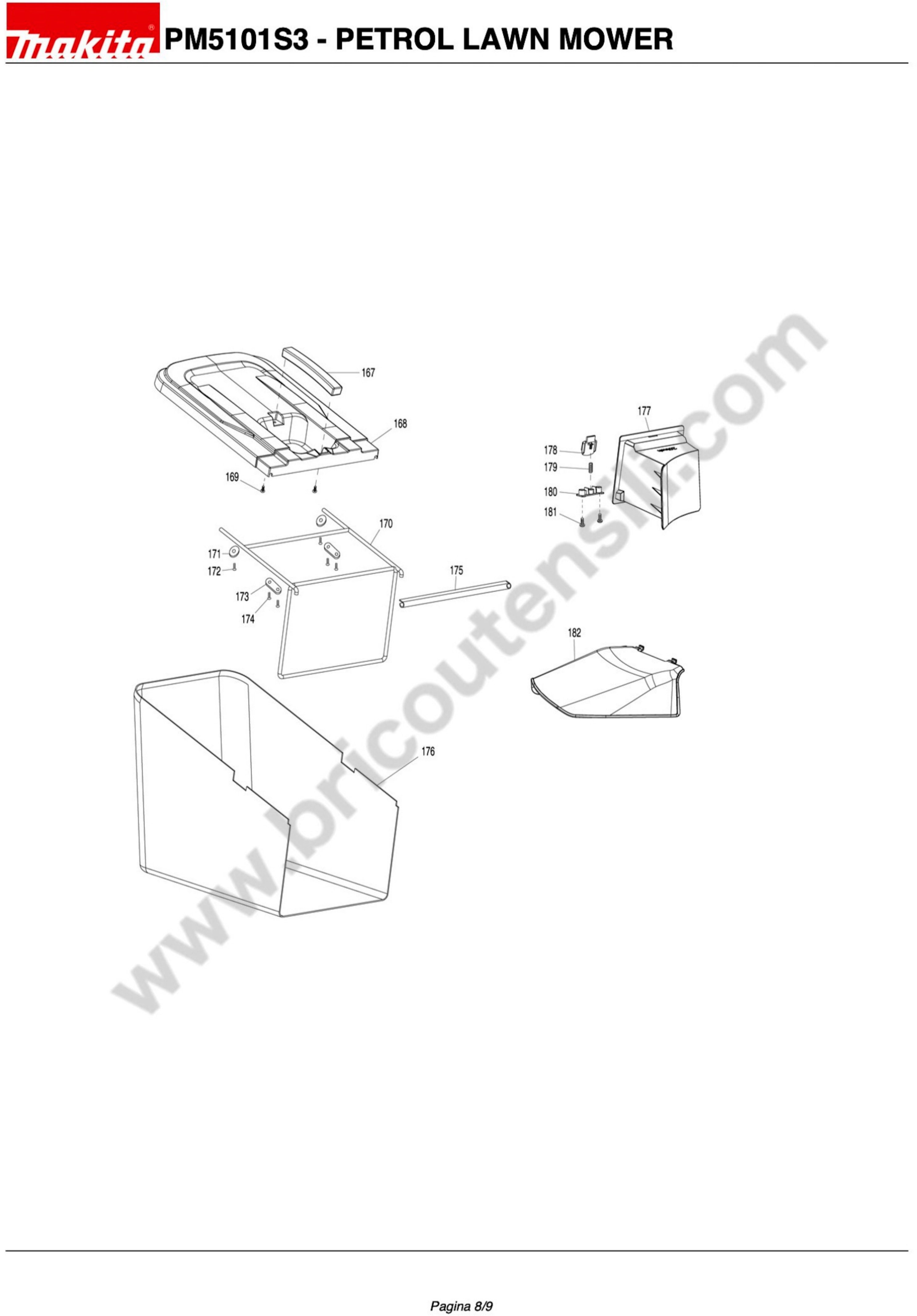

Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
167
 photo_cameraImage coming soon 671454001 HANDLE BAG ELM4410 €5.43
168
 photo_cameraImage coming soon 671521001 COVER BASKET PM5100S3 €58.19
169
 photo_cameraImage coming soon DA00000326 SCREW 5X16 €1.43
170
 photo_cameraImage coming soon 671001443 FRAME BAG PLM4110-4610-4611 €53.25
171
 photo_cameraImage coming soon DA00000025 WASHER UR3000 €1.64
172
 photo_cameraImage coming soon DA00000888 SCREW 5X12 €1.43
173
 photo_cameraImage coming soon DA00000335 FLANGE €1.43
174
 photo_cameraImage coming soon DA00000888 SCREW 5X12 €1.43
175
 photo_cameraImage coming soon 671001353 PLATE PLM4110-4610-4611 €3.31
176
 photo_cameraImage coming soon DA00000967 BAG GRASS M5100S3 €34.42
177
 photo_cameraImage coming soon 671509001 MULCHING CAP PM5100S3 €28.80
178
 photo_cameraImage coming soon 671316004 UTTON PLM4110-4610- €2.21
179
 photo_cameraImage coming soon 671011005 SCREW PLM4110-4610-4611 €1.47
180
 photo_cameraImage coming soon 671317001 PLATE PLM4110-4610-4611 €2.21
181
 photo_cameraImage coming soon DA00000603 SCREW €1.64
182
 photo_cameraImage coming soon DA00000969 PROTECTION PM5100S3 €21.87

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Dolmar Spare Parts for Lawn Mower PM5101S3

We are DOLMAR original spare parts Worldwide Dealers

at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawn Mower PM5101S3.

In the following table, look for the model of the Lawn Mower and the respective parts of the code.
Dolmar PM5101S3

DOLMAR PM5101S3 - PETROL LAWN MOWER Parts List
Pag.1
# Part Num Decription
1 DA00000964 OPERATION LEVER
2 DA00000961 OPERATION LEVER
3 671001524 PM5100S3 PRESSURE PLATE
4 671001524 PM5100S3 PRESSURE PLATE
5 671001029 GRIP
6 DA00000963 UPPER HANDLE
7 671006082 SCREW
8 671001150 PM5100S3 THROTTLE CABLE
9 DA00000574 WASHER
10 DA00000576 SPRING WASHER
11 DA00000575 M6 NUT
12 DA00000543 NUT
13 DA00000573 PLATE
14 DA00000543 NUT
15 DA00000977 PM5100S3 TRACTION CABLE
16 671001151 PM5100S3 MOTOR BRAKE CABLE
17 671470002 PM5100S3 RH CASE
18 671011123 SPRING
19 DA00000972 ADJUSTMENT BOX
20 DA00000543 NUT
21 DA00000869 UPPER SPEED ADJUSTMENT LEVER
22 DA00000870 LOWER SPEED ADJUSTMENT LEVER
23 DA00000873 M4.2X15 SCREW ELM 3310-3710
24 671001514 PM5100S3 CONTACT
25 671001511 M6X60 SCREW
26 671001191 GEAR CABLE
27 671006063 SCREW M6X40
28 DA00000577 SCREW
29 DA00000603 SCREW
30 671002075 WASHER 12/4
31 671470001 LEFT HOUSING PM5100S3
32 671010630 SCREW 2X25
33 671001513 SOCKET 9X32
34 671006063 SCREW M6X40
35 DA00000577 SCREW
36 DA00000579 HOOK
37 DA00000574 WASHER
38 DA00000576 SPRING WASHER
39 DA00000575 NUT M6
40 DA00000563 HEXAGONAL NUT
41 DA00000564 KNOB
42 DA00000924 SEAL
43 DA00000569 SCREW
44 671001453 LOWER HANDLE PLM4110-4610-4611
45 671611001 CABLE SUPPORT
46 671611001 CABLE SUPPORT
47 DA00000563 HEXAGONAL NUT
48 DA00000564 KNOB
49 671007007 WASHER 8 ELM3310-3710
50 DA00000880 SCREW M8X35 ELM4410
51 DA00000562 FLANGED NUT
52 671001356 RH SUPPORT PM5100S3
53 DA00000537 FLANGED NUT
54 671001355 RH SUPPORT PM5100S3
Pag.2
55 671468001 COVER PLM4110-4610-4611
56 DA00000543 NUT
57 671009017 BRAKE RING ELM4110
58 671001518 SUPPORT PLM4110-4610-4611
59 671011101 SPRING ELM4110
60 671002019 SCREW M6X12 ELM4110
61 671010280 ADJUSTABLE HEIGHT PLATE
62 DA00000543 NUT
63 671800104 CABLE GROOVE FOR PLM5600
64 671800104 CABLE GROOVE FOR PLM5600
65 DA00000537 FLANGE NUT
66 671144701 RUBBER RING PM5100S3
67 671001344 FRAME PM5100S3
68 671513001 FRONT PANEL PM5100S3
69 DA00000911 SCREW 4.2X10
70 671001571 PLATE PM5100S3
71 DA00000198 SPRING WASHER
72 671201501 SCREW PM5100S3
73 671111300 TORSION SPRING
74 671001019 ROD PM5100S3
75 671514001 SIDE EXHAUST COVER PM5100S3
76 671007007 WASHER 8 ELM3310-3710
77 DA00000832 SPRING WASHER
78 671003024 SCREW M8X60X17 PLM4110-4610-11
79 DA00000586 SCREW
80 DA00000617 SCREW
81 671002019 SCREW M6X12 ELM4110
82 671011021 SPRING PM5100S3
83 671003042 SCREW
84 DA00000971 PLATE
85 DA00000549 NUT
86 671001455 SUPPORT PM5100S3
87 DA00000537 FLANGED NUT
88 671001056 PULLEY
89 671004015 BEARING 6001RS
90 671009021 RING 28
91 DA00000563 HEXAGONAL NUT
92 671005008 NUT M8 PLM4110-4610-4611
93 DA00000563 HEXAGONAL NUT
94 671001533 PRESSURE PLATE
95 DA00000537 FLANGED NUT
96 671004013 PULLEY PM5100S3
97 DA00000598 SCREW
98 DA00000968 BELT PM5100S3
99 671006123 SCREW M5X55
100 DA00000198 SPRING WASHER
101 671009020 RING 19 PM5100S3
102 671001457 PROTECTION PLATE
103 671011122 SPRING PM5100S3
104 671010540 UPPER PULLEY
105 671001082 LOWER PULLEY
106 671501031 TRACTION PM5100S3
107 DA00000543 NUT
108 671002038 COVER PM5100S3
109 671011156 SPRING PM5100S3
110 671005011 NUT M5 ELM4110
111 671001717 PLATE
112 DA00000562 FLANGED NUT
113 DA00000832 SPRING WASHER
114 671007007 WASHER 8 ELM3310-3710
115 DA00000915 FIXING PLATE 2
116 DA00000537 FLANGED NUT
117 671004015 BEARING 6001RS
118 DA00000543 NUT
119 DA00000974 FIXING PLATE
120 671011136 SPRING PM5100S3
121 DA00000873 SCREW M4.2X15 ELM 3310-3710
122 671522001 BELT COVER PM5100S3
123 671006066 SCREW PM5100S3
124 671005008 NUT M8 PLM4110-4610-4611
125 DA00000535 KEY
126 671015252 HUB BLADE PM5100S3
127 DA00000973 BLADE 510MM
128 DA00000529 WASHER
129 671006065 SCREW 3/8X30
Pag.3
130 671001322 HUB CAP PM5100S3
131 DA00000537 FLANGE NUT
132 DA00000538 BEARING
133 671002021 REAR WHEEL PM5100S3
134 DA00000538 BEARING
135 671200010 GEAR PM5120-5120S
136 DA00000603 SCREW
137 671251800 INNER HUB COVER FOR PLM5600
138 671001574 REAR AXLE PM5100S3
139 671002030 SCREW PM5100S3
140 671001570 DEPTH LEVER PLM5113N2
141 DA00001058 KNOB
142 DA00000549 NUT
143 DA00000604 RETAINING RING
144 DA00001091 RIGHT PINION PLM4611
145 DA00000597 PIN
146 DA00001029 BEARING FOR ELM4611
147 671002024 BEARING BOX PLM4611
148 DA00000612 STOP RING
149 671002019 SCREW M6X12 ELM4110
150 DA00000542 SUPPORT
151 DA00000543 NUT
152 DA00001090 LEFT PINION PLM4110-4610-4611
153 671001575 BARROW PM5100S3
154 DA00000549 NUT
155 DA00000549 NUT
156 DA00000536 REAR HUB CAP
157 DA00000537 FLANGED NUT
158 DA00000538 BEARING
159 671020160 WHEEL 200 PLM4110-4610-4611
160 DA00000538 BEARING
161 671001573 FRONT AXLE PM5100S3
162 DA00000549 NUT
163 671445001 BUSHING ELM4110
164 671418001 BUSHING ELM4110
165 671002028 SCREW M6X45 ELM4110
166 671011142 SPRING PM5100S3
Pag.4
167 671454001 BAG HANDLE ELM4410
168 671521001 BASKET COVER PM5100S3
169 DA00000326 SCREW 5X16
170 671001443 BAG FRAME PLM4110-4610-4611
171 DA00000025 WASHER UR3000
172 DA00000888 SCREW 5X12
173 DA00000335 FRONT AXLE FLANGE
174 DA00000888 SCREW 5X12
175 671001353 PLATE PLM4110-4610-4611
176 DA00000967 GRASS COLLECTOR BAG PM5100S3
177 671509001 MULCHING CAP PM5100S3
178 671316004 LOCK BUTTON PLM4110-4610-
179 671011005 SPRING PLM4110-4610-4611
180 671317001 PLATE PLM4110-4610-4611
181 DA00000603 SCREW
182 DA00000969 PM5100S3 PROTECTION
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Dolmar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Dolmar PM5101S3
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Dolmar PM5101S3 Parts Drawing

Dolmar PM5101S3 Parts Drawing

Download (815.03KB)

You might also like

Electric Lawn Mower Makita 1400W ELM3800 -10% Sale
Makita SKU: ELM3800
Electric Lawn Mower Makita 1400W ELM3800
Electric Lawn Mower Makita 1400W ELM3800 Features: - Innovative Makita Design. - Polypropylene shell with UV and weather resistance. - Easy drainage of the picking basket provided already assembled. - Integrated transport handle. -...
Out-of-Stock €172.32 €191.47
Details
Blade Hub for Lawnmover Makita PLM5113
Makita SKU: 671015252
Blade Hub for Lawnmover Makita PLM5113
Blade Hub for Lawnmover Makita PLM5113 Genuine replacement part Makita, Blade Hub for Lawnmovers PLM5113 - PLM5600 - PLM5113N2 - Dolmar PM411 - PM460. Part for the...
on 7/10 Business Days Approx €27.21
Details
Gear for Lawnmover Makita PLM5113
Makita SKU: 671200010
Gear for Lawnmover Makita PLM5113
Gear for Lawnmover Makita PLM5113 Genuine replacement part Makita, Gear for Lawnmovers PLM5113 - PLM5600 - PLM5113N2 - Dolmar PM411 - PM460. Part for the following products: - PLM4110 - LAWNMOVER MAKITA 41CM 2,8HP - PLM4120N -...
Last items in stock €22.41
Details
Rubber Belt for Lawnmower Makita PLM5113
Makita SKU: DA00000968
Rubber Belt for Lawnmower Makita PLM5113
Rubber Belt for Lawnmower Makita PLM5113 Genuine replacement part Makita, Rubber Belt V10x885 for Lawnmowers PLM5113 - PLM5113N2 - PM5100S3 - Dolmar PM5101S3. Part for the following products:...
Last items in stock €16.47
Details
Rubber Belt Cover for Lawnmower Makita PLM5113
Makita SKU: 671522001
Rubber Belt Cover for Lawnmower Makita PLM5113
Rubber Belt Cover for Lawnmower Makita PLM5113 Genuine replacement part Makita, Rubber Belt Protective Cover for Lawnmowers PLM5113 - PLM5113N2 - PM5100S3 - Dolmar PM5101S3. Part for the following...
Last items in stock €22.41
Details
Blade for Lawnmower Dolmar PM-46SBC
Makita SKU: 671014610
Blade for Lawnmower Dolmar PM-46SBC
Blade for Lawnmower Dolmar PM-46SBC Genuine replacement part Dolmar, Blade for Lawnmowers PM-46SB - PM-46SBC - PM-46NB - PM-46NBC. Part for the following products: -  PM-46SBC - LAWNMOWER 140CC 46CM DOLMAR - PM-46NB - RASAERBA 140CC...
Last items in stock €30.10
Details
Rubber Belt 762MM for Lawnmower Makita ELM4611
Makita SKU: 671002043
Rubber Belt 762MM for Lawnmower Makita ELM4611
Rubber Belt 762MM for Lawnmower Makita ELM4611 Genuine part Makita, Rubber Belt 762MM V10X790 FOR Lawnmower Makita ELM4611 - PLM4611 - PLM4621 - Dolmar PM4600S...
Last items in stock €19.79
Details
Blade Tighten Screw for Lawnmover Makita PLM5113
Makita SKU: 671006062
Blade Tighten Screw for Lawnmover Makita PLM5113
Blade Tighten Screw for Lawnmover Makita PLM5113 Genuine replacement part Makita, Blade Tighten Screw 3/8X1.57" for Lawnmovers PLM5113 - PLM5600 - PLM5113N2 -...
Usually Ships in: 7/10 Business Days Approx. €7.54
Details
Makita PLM5113 Upper Pulley
Makita SKU: 671010540
Makita PLM5113 Upper Pulley
Makita Lawnmower PLM5113 Upper Pulley Genuine replacement part Makita Dolmar, Variable Speed ​​Upper Pulley for Lawnmower PLM5113 - PLM5113N2. Part for the following products: -  Lawnmower Dolmar PM5100S3 -  Lawnmower...
Last items in stock €22.87
Details
Makita PLM5113 Lower Pulley
Makita SKU: 671001082
Makita PLM5113 Lower Pulley
Makita Lawnmower PLM5113 Lower Pulley Genuine replacement part Makita Dolmar, Variable Speed ​​Lower Pulley for Lawnmower PLM5113 - PLM5113N2. Part for the following products: -  Lawnmower Dolmar PM5100S3 - ...
Last items in stock €22.87
Details
Dolmar Gasket for Lawnmower PM5120SR
Makita SKU: DA00000924
Dolmar Gasket for Lawnmower PM5120SR
Dolmar Gasket for Lawnmower PM5120SR Original part Makita, Handle Washer for Lawnmower PM5120SR - PLM5113N2. Part for the following products: -  Lawnmower Dolmar PM5120SR - ...
Last items in stock €1.50
Details
Comments (0)
