Dolmar ME246.4 Parts

Name: Dolmar ME246.4 Parts
Brand: Makita
SKU: Dolmar ME246.4
Availability: InStock

SKU: Dolmar ME246.4

€47.56

VAT included

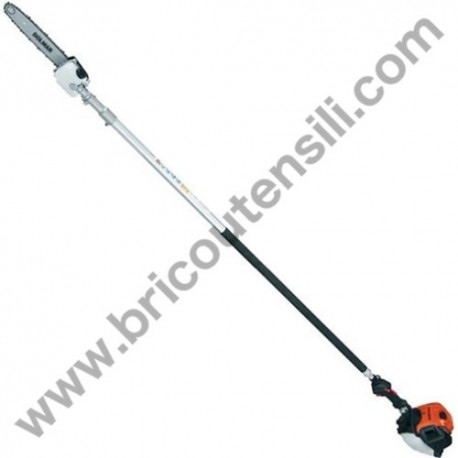

Dolmar ME246.4 Telescopic Petrol Pole Saw Parts

We are DOLMAR original spare parts Dealers at low at unbeatable prices and a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for DOLMAR Telescopic Petrol Pole Saw ME246.4

213 spare parts

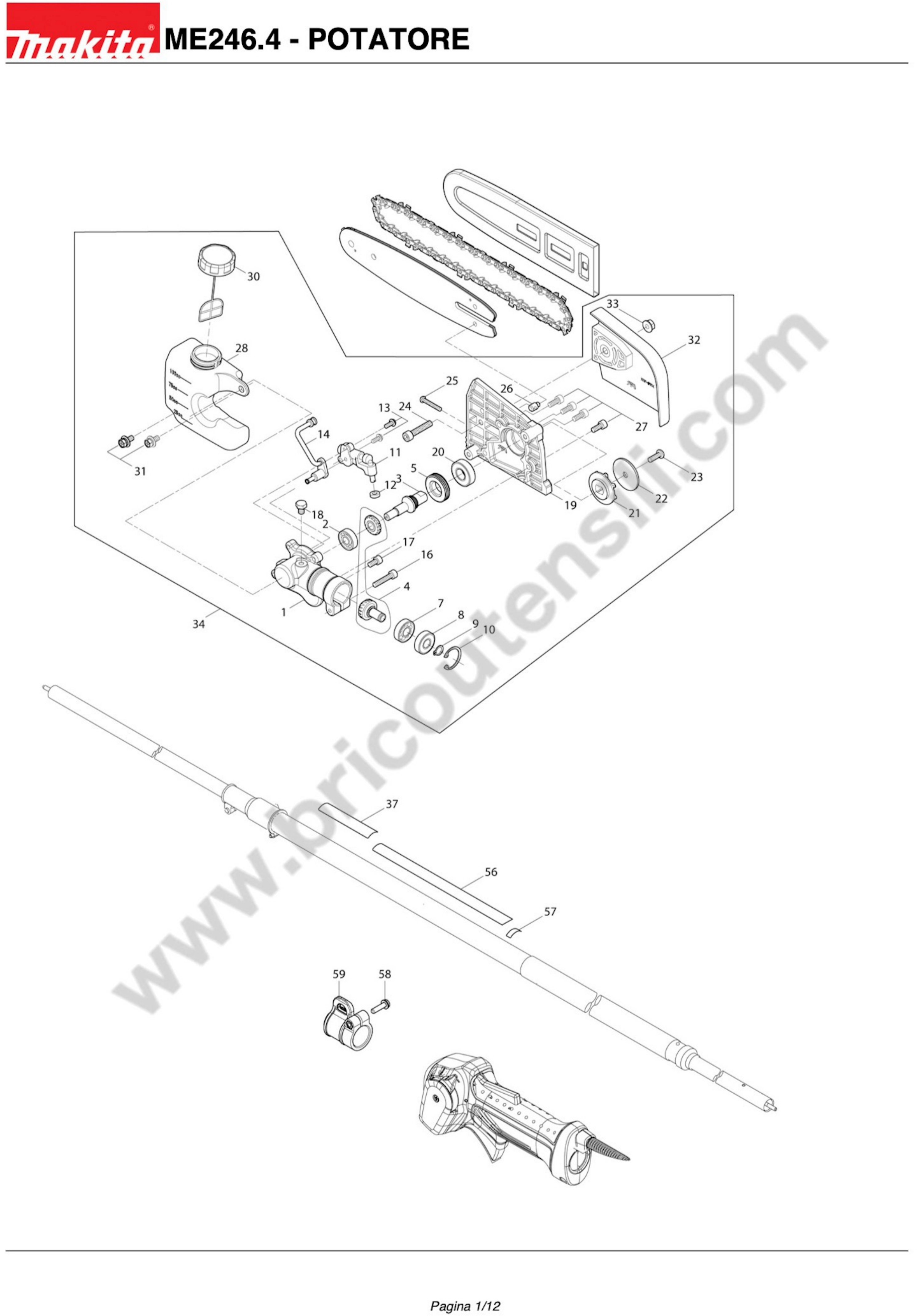

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
1	Image coming soon	XTM0000029 GEAR CASE A	€46.18
2	Image coming soon	XTM0000002 BALL BEARING 608	€4.56
3	Image coming soon	XTM0000003 SPINDLE	€22.18
4	Image coming soon	XTM0000028 GEAR SHAFT	€33.70
5	Image coming soon	XTM0000005 WORM WHEEL	€8.75
7	Image coming soon	XTM0000006 BALL BEARING 609	€5.28
8	Image coming soon	XTM0000007 BALL BEARING 609Z	€6.11
9	Image coming soon	961005-4 RETAINING RING S9	€2.34
10	Image coming soon	962103-7 R-24 GN900SE RETAINIG RING	€1.61
11	Image coming soon	XTM0000025 OIL PUMP	€25.07
12	Image coming soon	XTM0000009 SEAL	€2.14
13	Image coming soon	911111-5 HEAD SCREW CILIND. M4X10	€3.76
14	Image coming soon	XTM0000010 OIL PIPE ASS'Y	€8.75
16	Image coming soon	922242-5 HEX. SOCKET HEAD BOLT M5X25	€1.44
17	Image coming soon	922206-9 SCREW ESAG. IN CASE. M5x10	€1.44
18	Image coming soon	XTM0000011 HB BOLT 6X8	€1.44
19	Image coming soon	XTM0000027 GEAR CASE B	€33.70
20	Image coming soon	XTM0000013 BALL BEARING 6001DDW	€11.40
21	Image coming soon	XTM0000014 SPROCKET	€6.11
22	Image coming soon	XTM0000015 SPROCKET WASHER	€2.77
23	Image coming soon	XTM0000032 RETAINING RING E	€1.44
24	Image coming soon	922352-8 SCREW M6X30	€1.44
25	Image coming soon	XTM0000017 ADJUSTER SCREW M4X30	€1.44
26	Image coming soon	XTM0000018 ADJUSTER	€2.77
27	Image coming soon	922212-4 SCREW M5x12	€1.44
28	Image coming soon	XTM0000019 CHAIN OIL TANK ASS'Y	€16.92
30	Image coming soon	XTM0000020 TANK CAP ASS'Y	€7.81
31	Image coming soon	XTM0000021 SCREW M5X12	€1.44
32	Image coming soon	XTM0000022 CHAIN COVER X ME246.4	€11.40
33	Image coming soon	XTM0000023 FLANGE NUT M6	€1.44
34	Image coming soon	127300-4 POLE SAW HEAD COMPLETE	€319.92
58	Image coming soon	911233-1 HEAD SCREW M5X20 3600H	€1.46
59	Image coming soon	168478-4 HOOK BBC231U	€5.28

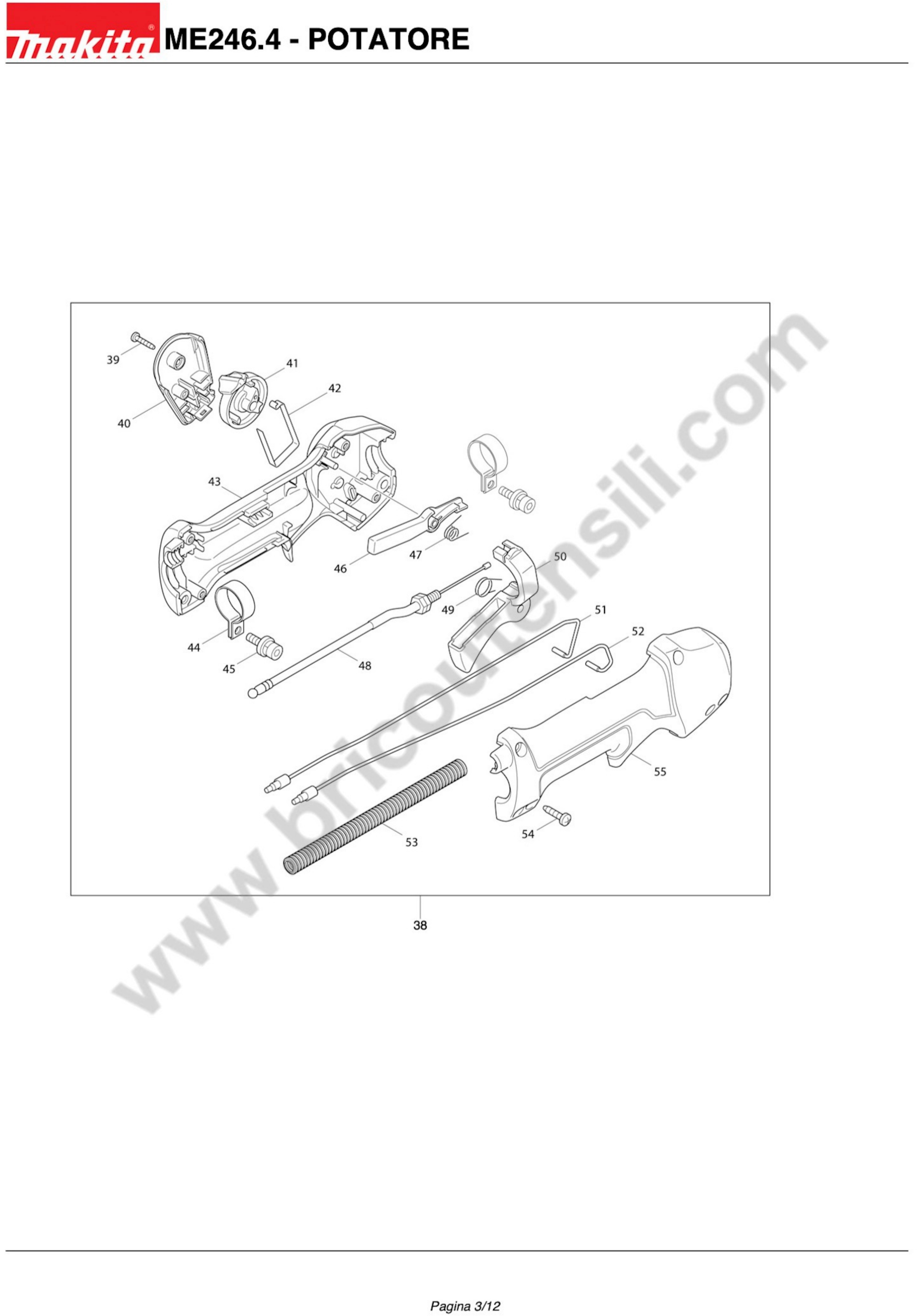

Page 2 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
39	Image coming soon	266130-9 SCREW 3X16 X 6203/13 / 6313DW	€1.46
40	Image coming soon	451595-0 SWITCH COVER MS335.4C	€2.18
41	Image coming soon	451594-2 SWITCH LEVER MS335.4C	€2.18
42	Image coming soon	232251-9 LEAF SPRING EBH341U/EM2651LH	€1.46
43	Image coming soon	188832-6 HOUSING CONTROL LEVER EX2650LH	€17.14
44	Image coming soon	346248-3 CLAMP 24 EX2650LH	€1.44
45	Image coming soon	922218-2 SCREW M5x14 EBH341U	€1.53
46	Image coming soon	451593-4 BLOCK LEVER MS335.4C	€2.18
47	Image coming soon	233541-3 TORSION SPRING 7 EBH341U	€2.18
48	Image coming soon	168571-4 CABLE EX2650LH	€3.95
49	Image coming soon	233540-5 SPRING TWIST 11 EBH341U	€1.46
50	Image coming soon	455313-8 THROTTLE LEVER	€3.95
51	Image coming soon	638714-7 WIRE EX2650LH	€2.14
52	Image coming soon	638713-9 WIRE EX2650LH	€2.14
53	Image coming soon	452071-7 SHEATH EX2650LH	€2.77
54		265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C	€1.46

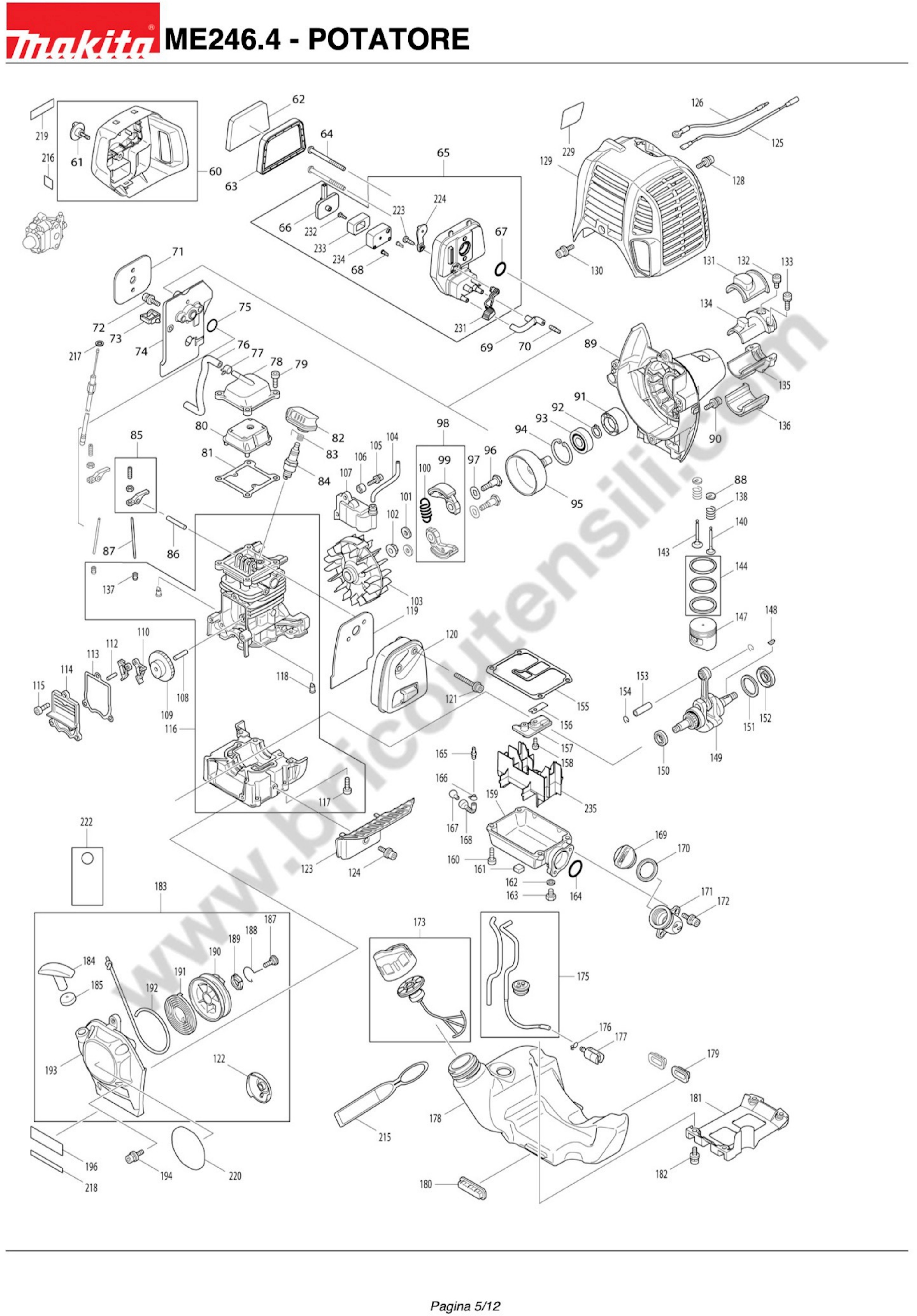

Page 3 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
60	Image coming soon	126202-1 AIR FILTER CASE EX2650LH	€8.75
61	Image coming soon	265791-2 SCREW M4 X EH7500S	€1.44
62	Image coming soon	443171-4 AIR FILTER EX2650LH	€2.14
63	Image coming soon	443169-1 AIR FILTER EX2650LH	€10.18
64	Image coming soon	266618-9 SCREW M5X60 EX2650LH	€1.44
65	Image coming soon	123501-2 FILTER PLATE	€36.83
66	Image coming soon	162346-3 SEPARATOR EX2650LH	€11.40
67	Image coming soon	213540-1 O RING 15 EM2651LH/EBH253L/341	€1.46
68	Image coming soon	424316-3 VALVE EBH341U	€5.38
69	Image coming soon	422099-9 BREATHER TUBE EX2650LH	€3.22
70	Image coming soon	325665-0 FITTING EX2650LH	€1.44
71	Image coming soon	442153-3 CARBURETTOR GASKET EX2650	€1.44
72	Image coming soon	266787-6 SCREW M5X18 EX2650LH	€1.44
73	Image coming soon	451825-9 CLAMP EX2650LH	€1.44
74	Image coming soon	451729-5 INSULATING PLATE EX2650LH	€3.22
75	Image coming soon	213547-7 RING 12 EX2650LH	€1.44
76	Image coming soon	422109-2 EBREATHER TUBE X2650LH	€10.18
77	Image coming soon	345918-1 CLAMP EBH341U	€1.46
78	Image coming soon	318745-9 COVER HEAD CIL EX2650LH	€8.75
79	Image coming soon	922222-1 SCREW M5X16	€1.46
80	Image coming soon	453860-3 CYLINDER HEAD EX2650LH	€1.44
81	Image coming soon	162304-9 GASKET HEAD CIL EX2650LH	€2.14
82	Image coming soon	424302-4 SPARK CAP EH7500S	€3.22
83		324891-8 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U	€1.62
84	Image coming soon	168534-0 SPARK PLUG EM2651LH/EBH341U/25	€12.23
85	Image coming soon	125554-7 ROCKET ARM ASSY EM2651LH/EBH34	€6.22
86	Image coming soon	256200-2 PIN 5 PER 2704	€1.46
87	Image coming soon	256865-0 ROD 2,5 EBH252L	€1.46
88	Image coming soon	325668-4 SPRING BLOCK EBH252L VALVE	€2.82
89	Image coming soon	451735-0 EXTRACTION CARCASS EX2650LH	€14.77
90	Image coming soon	922228-9 SCREW M5X18 EBH341U	€1.44
91	Image coming soon	450569-8 SPACER EBH252L	€1.46
92		961052-5 Retaining Ring S12 for Power Tools Makita	€1.40
93	Image coming soon	210111-5 BEARING 6201LLU EBH252L	€6.95
94		962151-6 Retaining Ring R32 for Powertools Makita	€1.43
95	Image coming soon	165747-4 CLUTCH DRUM COMPLETE	€17.14
96	Image coming soon	266864-4 SHOULDER HEX. BOLT M6X25	€2.14
97	Image coming soon	267817-6 WASHER 8 EBH252L	€1.46
98	Image coming soon	126135-0 CLUTCH CPL EX2650LH	€10.18
99	Image coming soon	161332-1 CLUTCH GEAR X MH-246.4DF	€6.95
100	Image coming soon	231881-3 TENSION SPRING 7 EX2650LH	€4.56
101	Image coming soon	267812-6 WASHER 6 EBH252L	€1.46
102	Image coming soon	264039-9 FLANGED NUT EX2650LH	€1.44
103	Image coming soon	318569-3 FLYER EX2650LH	€22.18
104	Image coming soon	444021-6 GROMMET EX2650LH	€1.44
105	Image coming soon	266602-4 SCREW M4X20 EX2650LH	€1.44
106	Image coming soon	452049-0 SPACER EX2650LH	€1.44
107	Image coming soon	161483-0 IGNITION COIL	€51.71
108	Image coming soon	268238-5 PIN 5 EBH341U	€1.44
109	Image coming soon	125552-1 CAM GEAR ASSY EM2651LH/EBH341/	€17.46
110	Image coming soon	313169-4 CAM LIFTER EM2651LH/EBH251L	€4.64
112	Image coming soon	268239-3 PIN 4 EM2651LH/EBH	€1.46
113		162274-2 Cam Gear Cover Gasket for Brushcutter Makita EBH341L	€2.76
114	Image coming soon	318443-5 CAM GEAR COVER EM2651LH/EBH251	€5.38
116	Image coming soon	135478-9 CYLINDER EX2650LH	€159.68
118	Image coming soon	424201-0 CONTROL VALVE EBH341U	€3.28
119	Image coming soon	346331-6 MUFFLER GASKET EX2650LH	€5.28
120	Image coming soon	168554-4 MUFFLER EX2650LH	€10.18
121	Image coming soon	266440-4 HEX SOCKET HD BOLT M5X40 EM265	€1.46
122	Image coming soon	168483-1 STARTER PULLEY EBH252L	€2.18
123	Image coming soon	451731-8 PROTECTION EX2650LH	€2.14
125	Image coming soon	638707-4 WIRE EX2650LH	€2.14
126	Image coming soon	638708-2 GROUND WIRE EX2650LH	€2.77
129	Image coming soon	453569-7 CYLINDER COVER CS246.4C	€13.07
131	Image coming soon	424082-2 UPPER SPACER DBC260U	€2.77
132	Image coming soon	922211-6 SCREW 5 X 12 X AN250HC	€1.46
133	Image coming soon	922226-3 SCREW M 5 X 18 X 4341FCT	€3.76
134	Image coming soon	318249-1 SEMI UPPER CASE X DBC260U	€3.95
135	Image coming soon	318250-6 SEMI LOWER CASE X DBC260U	€3.95
136	Image coming soon	424083-0 LOWER SPACER X DBC260U	€2.77
137	Image coming soon	424200-2 SPACKER EM2651LH/EBH251L/341U	€1.46
138	Image coming soon	234108-0 COMPRESSION SPRING 9 EBH252L	€1.83
140	Image coming soon	326366-3 EBH252L DISCHARGE VALVE	€7.94
143	Image coming soon	326367-1 SUCTION VALVE EBH252L	€7.94
144	Image coming soon	195145-8 EBH252L PISTON RING	€22.58
147		197453-3 Dolmar Blower PB252.4 Piston Set	€21.97
148	Image coming soon	254040-2 WOODRUFF KEY 3 EM2651LH/EBH341	€4.02
149	Image coming soon	123774-7 CRANKSHAFT	€63.46
150		213769-9 Oil Seal 10 for Brushcutter Dolmar MS335.4C	€3.20
151	Image coming soon	267400-9 WASHER 23	€1.46
152	Image coming soon	213089-1 SEAL 12 EBH252L	€4.02
153	Image coming soon	257781-9 PISTON PIN EBH252L	€1.46
154		233976-8 Piston Pin Circlip for Brushcutter Makita RBC310	€6.01
155	Image coming soon	162345-5 GASKET OIL CUP EX2650L	€3.22
156	Image coming soon	346083-9 PLATE EBH341U	€2.82
157	Image coming soon	318910-0 CHECK PLATE EX2650LH	€2.77
158	Image coming soon	922112-8 SCREW M4X10 BPT350	€1.46
159	Image coming soon	318588-9 OIL CUP EX2650LH	€33.70
161	Image coming soon	424344-8 DAMPER EBH2650LH	€1.44
162	Image coming soon	346305-7 GASKET EX2650LH	€1.44
163	Image coming soon	266611-3 SCREW M6X8 EX2650LH	€1.44
164	Image coming soon	213548-5 RING 20 EX2650LH	€1.44
166	Image coming soon	282020-8 HOSE CLAMP EM2651LH/EBH251L/	€1.44
167	Image coming soon	325666-8 OIL WEIGHT EM2651LH/EBH253L	€2.14
168	Image coming soon	424301-6 OIL TUBE EX2650LH	€4.56
169	Image coming soon	452047-4 OIL TANK CAP BHX2501	€2.14
170	Image coming soon	424343-0 GASKET X BHX2501	€1.44
171	Image coming soon	452048-2 OIL FITTING EX2650LH	€2.14
173	Image coming soon	127112-5 FUEL TANK CAP	€19.54
175	Image coming soon	168755-4 FUEL TUBE EX2650LH	€7.81
177	Image coming soon	163518-3 FUEL FILTER EX2650LH	€5.28
178		451736-8 Makita Tank for Brushcutter EM2651UH	€18.02
179		424080-6 Makita Rubber for Brushcutter EM2651UH	€1.65
180	Image coming soon	424081-4 GROMMET X DBC260U	€1.44
181	Image coming soon	451737-6 TANK PROTECTION EX2650LH	€3.22
183	Image coming soon	195308-6 RECOIL STARTER CPL EX2650LH	€29.16
184	Image coming soon	424319-7 STARTER KNOB EBH252L	€3.28
185	Image coming soon	424359-5 RUBBER RING EX2650LH	€1.44
187	Image coming soon	266585-8 SCREW 5X12 EBH252L	€2.18
188	Image coming soon	325923-4 SWING ARM EBH252L	€1.46
189	Image coming soon	451938-6 COLLAR EBH252L	€1.46
190	Image coming soon	451937-8 STARTER SPRING EBH252L	€6.95
191	Image coming soon	232258-5 SPRING AVVIAMENTO EBH252L	€10.36
192	Image coming soon	444023-2 STARTER ROPE EX2650LH	€13.07
193	Image coming soon	451733-4 STARTER CASE EX2650LH	€33.70
194	Image coming soon	922223-9 SCREW M5X16 EBH341U EX2650LH	€1.46
196	Image coming soon	891121-7 Spare Part 891121-7	€2.14
215	Image coming soon	810455-9 CAUTION PLATE EM2651LH/EBH253L	€2.18
217	Image coming soon	941151-9 WASHER 6 X HM1303	€3.66
218	Image coming soon	816567-6 Spare Part 816567-6	€1.44
223	Image coming soon	266427-6 SCREW 4X12 MT923	€1.46
224	Image coming soon	452219-1 AIR LEVER PLATE EX2650LH	€2.14
231	Image coming soon	452220-6 AIR LEVER EX2650LH	€2.77
232		266007-8 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030	€2.07
233	Image coming soon	352020-3 SEPARATOR EX2650LH	€6.11
234	Image coming soon	453865-3 SEPARATOR BOX EX2650LH	€3.95
235	Image coming soon	453862-9 OIL CUP EX2650LH	€2.77

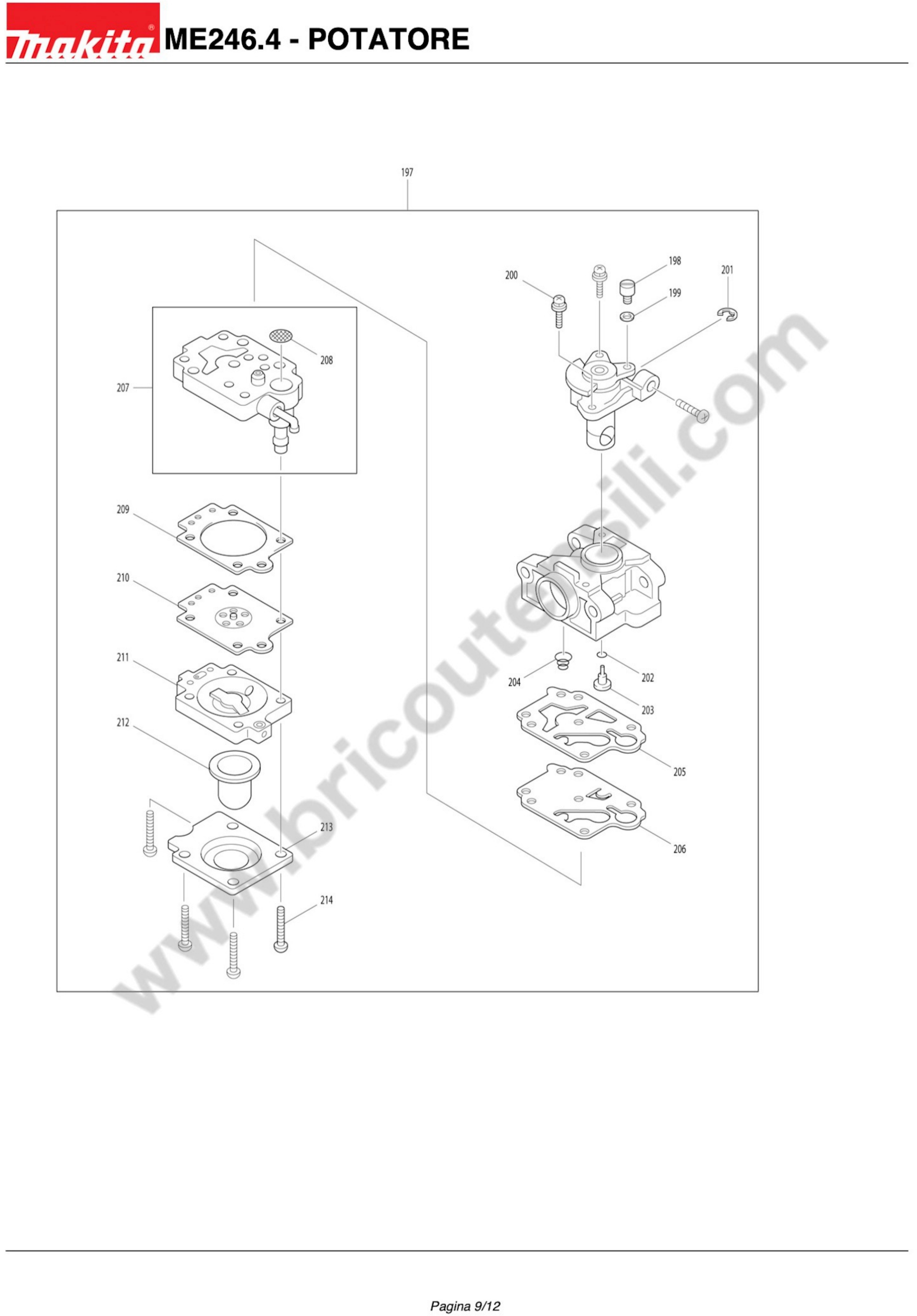

Page 4 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
197	Image coming soon	168762-7 CARBURATOR EX2650LH CS246.4C	€78.10
198	Image coming soon	325922-6 SCREW CARBURATOR EBH341U	€6.95
199	Image coming soon	413140-9 WASHER EBH341U	€2.18
200	Image coming soon	266581-6 SCREW M3X8 EBH341U	€2.18
201	Image coming soon	257964-1 RETAINING RING E3 EBH341U	€4.02
202	Image coming soon	213538-8 RING 2 EBH341U	€4.02
203	Image coming soon	325985-2 JET EX2650LH	€11.40
204	Image coming soon	234183-6 SPRING 65-9 EBH341U	€4.02
205		442155-9 Makita EBH341U Pump Gasket	€4.06
206	Image coming soon	WJ00009599 PUMP DIAPHRAGM DCS230T	€13.50
207	Image coming soon	141737-1 PUMP BODY EX2650LH CS246.4C	€22.18
208	Image coming soon	352021-1 CARBURETOR INLET SCREEN	€2.14
209	Image coming soon	442154-1 SEAL IRIS EBH341U	€4.64
210		168620-7 Makita Diaphragm for EM2651UH	€23.70
211	Image coming soon	140438-8 CAM GEAR COVER GASKET EM2651LH	€19.90
212		424314-7 Primer Bulb for Blower Makita BHX2501	€6.90
213	Image coming soon	346270-0 PUMP COVER EBH341U	€6.22
214	Image coming soon	266582-4 SCREW 3x24 EBH341U	€2.18

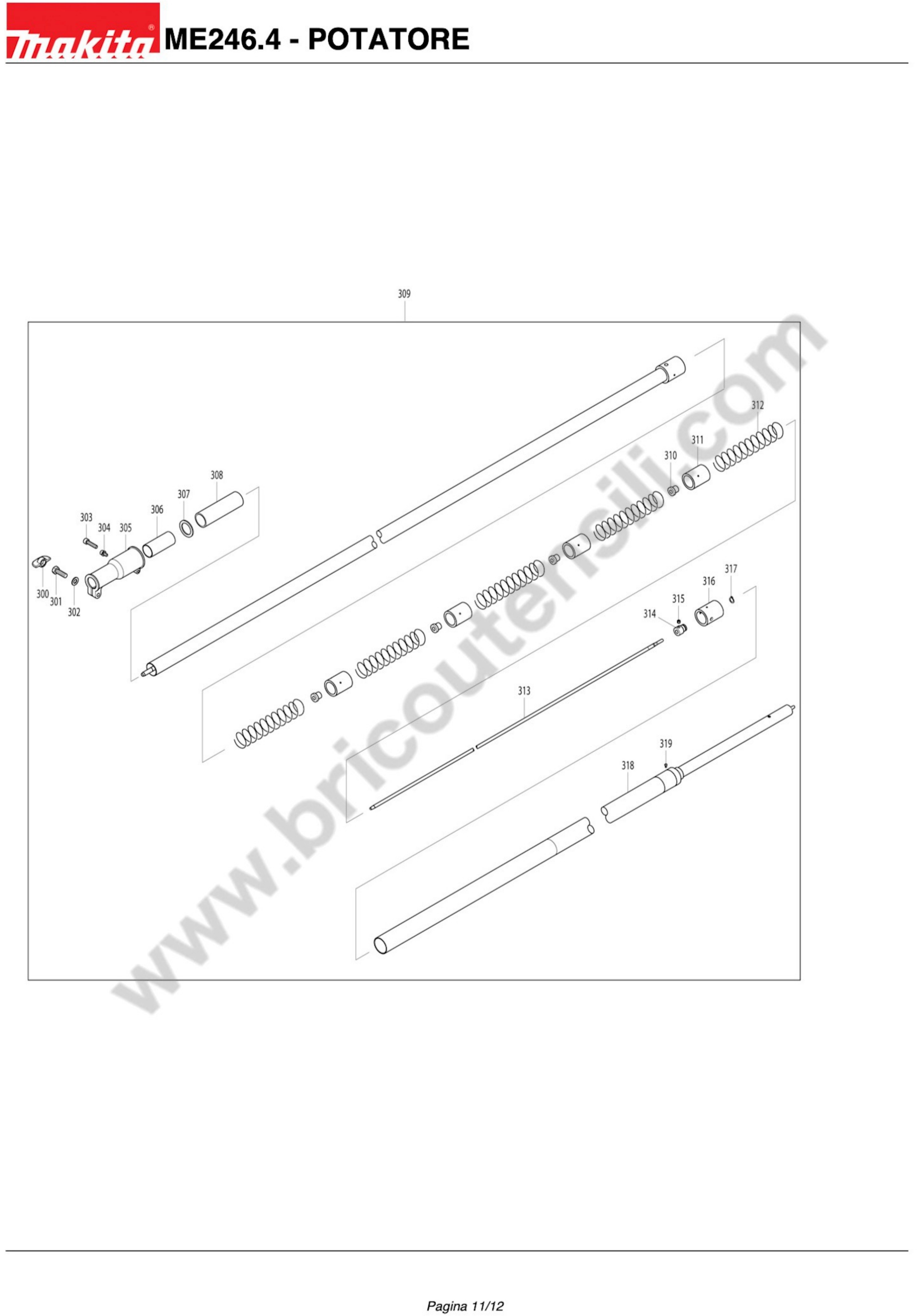

Page 5 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
300	Image coming soon	TF6116068B KNOB	€2.77
301	Image coming soon	TF119F0840 HEX.BOLT	€3.22
302	Image coming soon	TF411M0800 FLAT WASHER	€2.14
303	Image coming soon	TF120S0625 HEX.SOCKET HEAD BOLT (M6X25)	€2.77
304	Image coming soon	TF120S0510 HEX.SOCKET HEAD BOLT (M5X10)	€2.14
305	Image coming soon	TF2616001A SLIDE HOLDER	€13.07
306	Image coming soon	TF6126008A SLEEVE	€3.22
307	Image coming soon	TF3651008A SLIDE HOLDER WASHER	€3.22
308	Image coming soon	TF6362070A CUSHION TUBE	€6.83
309	Image coming soon	TF3312328A MAIN ROD	€144.08
310	Image coming soon	TF6126009A DRIVE BUSH	€3.22
311	Image coming soon	TF6126010A BUSH HOLDER	€8.75
312	Image coming soon	TF5313012A SPRING	€5.28
313	Image coming soon	TF4117027A DRIVE SHAFT	€94.89
314	Image coming soon	TF4613005B SET COLLAR	€5.28
315	Image coming soon	TF290Q0506 HEX.SOCKET HEAD SET SCREW	€2.14
317	Image coming soon	TF480J1200 SNAP RING (S-12)	€2.14
318	Image coming soon	TF3318145B GUIDE PIPE ASSY	€180.07
319	Image coming soon	TF244F0408 SCREW	€2.14

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Dolmar ME246.4 Telescopic Petrol Pole Saw Parts

DOLMAR Telescopic Petrol Pole Saw ME246.4 - Parts List
Pag.1
#	Part Num	Description
1	XTM0000029	GEAR BOX
2	XTM0000002	BEARING 608
3	XTM0000003	SHAFT
4	XTM0000028	GEAR
5	XTM0000005	WORM
7	XTM0000006	BEARING 609
8	XTM0000007	BEARING 609Z
9	961005-4	RETAINING RING S9
10	962103-7	RETAINING RING R-24 GN900SE
11	XTM0000025	OIL PUMP
12	XTM0000009	SEAL
13	911111-5	CYLINDER HEAD SCREW M4X10
14	XTM0000010	OIL PIPE
16	922242-5	BOLT M5X25
17	922206-9	HEX. SOCKET SCREW M5X10
18	XTM0000011	SCREW 6X8
19	XTM0000027	GEARBOX B
20	XTM0000013	BEARING 6001DDW
21	XTM0000014	PINION
22	XTM0000015	WASHER
23	XTM0000032	RETAINING RING E
24	922352-8	SCREW M6X30
25	XTM0000017	SCREW M4X30
26	XTM0000018	PIVON
27	922212-4	SCREW M5X12
28	XTM0000019	CHAIN OIL TANK
30	XTM0000020	TANK CAP
31	XTM0000021	SCREW M5X12
32	XTM0000022	PINION HOUSING FOR ME246.4
33	XTM0000023	NUT M6
34	127300-4	PRUNER CPL
37	893388-3
56	803K87-5
57	801D19-4
58	911233-1	SCREW HEAD M5X20 3600H
59	168478-4	HOOK FOR BBC231U
Pag.2
39	266130-9	SCREW 3X16 X 6203/13/6313DW
40	451595-0	SWITCH COVER MS335.4C
41	451594-2	SWITCH LEVER MS335.4C
42	232251-9	PLATE SPRING EBH341U
43	188832-6	CONTROL LEVER CASE EX2650LH
44	346248-3	CLAMP 24 EX2650LH
45	922218-2	SCREW M5X14 EBH341U
46	451593-4	LOCK LEVER MS335.4C
47	233541-3	TORSION SPRING 7 EBH341U
48	168571-4	CABLE EX2650LH
49	233540-5	TORSION SPRING 11 EBH341U
50	455313-8	ACCELERATOR LEVER
51	638714-7	CABLE EX2650LH
52	638713-9	CABLE EX2650LH
53	452071-7	SHIELD EX2650LH
54	265995-6	M4X18 SCREW
55	188832-6	CONTROL LEVER CASE EX2650LH
Pag.3
60	126202-1	AIR FILTER CASE EX2650LH
61	265791-2	SCREW M4 X EH7500S
62	443171-4	AIR FILTER EX2650LH
63	443169-1	AIR FILTER EX2650LH
64	266618-9	SCREW M5X60 EX2650LH
65	123501-2	FILTER PLATE
66	162346-3	SEPARATOR EX2650LH
67	213540-1	RING 15 EBH341U
68	424316-3	CHECK VALVE EBH341U
69	422099-9	BREATHER PIPE EX2650LH
70	325665-0	FITTING EX2650LH
71	442153-3	CARBURETOR GASKET EX2650
72	266787-6	SCREW M5X18 EX2650LH
73	451825-9	CLAMP EX2650LH
74	451729-5	INSULATING PLATE EX2650LH
75	213547-7	RING 12 EX2650LH
76	422109-2	BREATHER PIPE EX2650LH CS246.4C
77	345918-1	CLAMP EBH341U
78	318745-9	HEAD COVER CYL EX2650LH
79	922222-1	SCREW M5X16
80	453860-3	CYLINDER HEAD EX2650LH
81	162304-9	CYL HEAD GASKET EX2650LH
82	424302-4	SPARE PLUG CAP EH7500S
83	324891-8	SPARE PLUG CAP SPRING EBH341
84	168534-0	SPARE PLUG NGKCMR4A EBH341U
85	125554-7	BALANCE ARM EBH341U
86	256200-2	PIN 5 FOR 2704
87	256865-0	ROD 2.5 EBH252L
88	325668-4	VALVE SPRING BLOCK EBH252L
89	451735-0	CLUTCH CASING EX2650LH
90	922228-9	SCREW M5X18 EBH341U
91	450569-8	SPACER EBH252L
92	961052-5	RETAINING RING S12
93	210111-5	BEARING 6201LLU EBH252L
94	962151-6	RETAINING RING R32
95	165747-4	CLUTCH DRUM
96	266864-4	SCREW M6X25
97	267817-6	WASHER 8 EBH252L
98	126135-0	CLUTCH CPL EX2650LH
99	161332-1	CLUTCH SHOES X MH-246.4DF
100	231881-3	TENSION SPRING 7 EX2650LH
101	267812-6	WASHER 6 EBH252L
102	264039-9	FLANGED NUT EX2650LH
103	318569-3	FLYWHEEL EX2650LH
104	444021-6	TUBE EX2650LH
105	266602-4	SCREW M4X20 EX2650LH
106	452049-0	SPACER EX2650LH
107	161483-0	COIL
108	268238-5	PIN 5 EBH341U
109	125552-1	CAM GEAR EBH341U
110	313169-4	CAM BALANCE GEAR EBH341U
112	268239-3	PIN 4 EBH341U
113	162274-2	SIDE COVER GASKET EBH341
114	318443-5	SIDE COVER EBH341U
115	922222-1	SCREW M5X16
116	135478-9	CYLINDER EX2650LH
117	922222-1	SCREW M5X16
118	424201-0	CHECK VALVE EBH341U
119	346331-6	MUFFLER GASKET EX2650LH
120	168554-4	MUFFLER EX2650LH
121	266440-4	SCREW M5X40 EBH341U
122	168483-1	STARTER PULLEY EBH252L
123	451731-8	GUARD EX2650LH
124	922218-2	SCREW M5X14 EBH341U
125	638707-4	CABLE EX2650LH
126	638708-2	GROUND CABLE EX2650LH
128	922218-2	SCREW M5X14 EBH341U
129	453569-7	CYLINDER COVER CS246.4C
130	922218-2	SCREW M5X14 EBH341U
131	424082-2	UPPER SPACER DBC260U
132	922211-6	SCREW 5 X 12 X AN250HC
133	922226-3	SCREW M 5 X 18 X 4341FCT
134	318249-1	UPPER HALF-SHELL X DBC260U
135	318250-6	LOWER HALF-SHELL X DBC260U
136	424083-0	LOWER SPACER X DBC260U
137	424200-2	SPACER EBH341U
138	234108-0	COMPRESSION SPRING 9 EBH252L
140	326366-3	EXHAUST VALVE EBH252L
143	326367-1	INTAKE VALVE EBH252L
144	195145-8	FASCIA
147	197453-3	PISTON CPL
148	254040-2	KEY 3 EBH341U
149	123774-7	CRANKSHAFT
150	213769-9	SEAL 10
151	267400-9	WASHER 23
152	213089-1	SEAL 12 EBH252L
153	257781-9	PISTON PIN EBH252L
154	233976-8	PIN RING EBH252L
155	162345-5	OIL PAN GASKET EX2650L
156	346083-9	PLATE EBH341U
157	318910-0	RETAINING PLATE EX2650LH
158	922112-8	SCREW M4X10 BPT350
159	318588-9	OIL PAN EX2650LH
160	922222-1	SCREW M5X16
161	424344-8	SHOCK ABSORBER EBH2650LH
162	346305-7	GASKET EX2650LH
163	266611-3	SCREW M6X8 EX2650LH
164	213548-5	RING 20 EX2650LH
165	325665-0	FITTING EX2650LH
166	282020-8	CLIP EBH341U
167	325666-8	FITTING EBH341U
168	424301-6	OIL PIPE EX2650LH
169	452047-4	OIL TANK CAP X BHX2501
170	424343-0	GASKET X BHX2501
171	452048-2	OIL FITTING EX2650LH
172	922218-2	SCREW M5X14 EBH341U
173	127112-5	FUEL TANK CAP
175	168755-4	FUEL PIPE EX2650LH
176	282020-8	CLIP EBH341U
177	163518-3	FUEL FILTER EX2650LH
178	451736-8	FUEL TANK EX2650LH
179	424080-6	RUBBER X DBC260U
180	424081-4	RUBBER X DBC260U
181	451737-6	PROTECTION TANK EX2650LH
182	922218-2	SCREW M5X14 EBH341U
183	195308-6	STARTER CPL EX2650LH
184	424319-7	STARTER KNOB EBH252L
185	424359-5	RUBBER RING EX2650LH
187	266585-8	SCREW 5X12 EBH252L
188	325923-4	OSCILLATOR EBH252L
189	451938-6	FLANGE EBH252L
190	451937-8	STARTER SPOOL EBH252L
191	232258-5	STARTER SPRING EBH252L
192	444023-2	STARTER CABLE EX2650LH
193	451733-4	STARTER CASE EX2650LH
194	922223-9	SCREW M5X16 EBH341U EX2650LH
196	891121-7
215	810455-9	COLLAR PLATE EBH341U
216	800F73-7
217	941151-9	WASHER 6 X HM1303
218	816567-6
220	803K91-4
222	819430-2
223	266427-6	SCREW 4X12 MT923
224	452219-1	CHOKE LEVER PLATE EX2650LH
229	801P53-6
231	452220-6	CHOKE LEVER EX2650LH
232	266007-8	SCREW M3 X10 HP2030
233	352020-3	SEPARATOR EX2650LH
234	453865-3	SEPARATOR BOX EX2650LH
235	453862-9	OIL PAN PLATE EX2650LH
Pag.4
197	168762-7	CARBURETOR EX2650LH CS246.4C
198	325922-6	CARBURETOR SCREW EBH341U
199	413140-9	WASHER EBH341U
200	266581-6	SCREW M3X8 EBH341U
201	257964-1	STOP RING E3 EBH341U
202	213538-8	RING 2 EBH341U
203	325985-2	JET EX2650LH
204	234183-6	SPRING 65-9 EBH341U
205	442155-9	PUMP GASKET EBH341U
206	WJ00009599	PUMP DIAPHRAGM X DCS230T
207	141737-1	PUMP BODY EX2650LH CS246.4C
208	352021-1	CARBURETOR FILTER
209	442154-1	DIAPHRAGM GASKET EBH341U
210	168620-7	DIAPHRAGM FOR BHX2501
211	140438-8	BODY EBH341U
212	424314-7	PRIMING PUMP EBH341
213	346270-0	PUMP COVER EBH341U
214	266582-4	SCREW 3X24 EBH341U
Pag.5
300	TF6116068B	WING NUT
301	TF119F0840	SCREW
302	TF411M0800	WASHER
303	TF120S0625	SCREW M6X25
304	TF120S0510	SCREW M5X10
305	TF2616001A	ROD SUPPORT
306	TF6126008A	BUSH
307	TF3651008A	WASHER
308	TF6362070A	DAMPER
309	TF3312328A	MAIN ROD
310	TF6126009A	GUIDE BUSH
311	TF6126010A	SUPPORT
312	TF5313012A	SPRING
313	TF4117027A	SHAFT
314	TF4613005B	COLLAR
315	TF290Q0506	SCREW
316	TF6126010A	SUPPORT
317	TF480J1200	RING S12
318	TF3318145B	ROD
319	TF244F0408	SCREW

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Dolmar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Dolmar ME246.4

Available 5 Items

Data sheet

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]

Specific References

Condition New

Download

Dolmar ME246.4 Parts Diagram

Download (1.18MB)

Makita SKU: 163447-0

Gasoline Filter for Chainsaw Makita DCS230T

Gasoline Filter for Chainsaw Makita DCS230T Genuine part for Makita, Gasoline Filter for Chainsaws DCS230T - DCS230TC -DCS231T - DCS231TC - DCS232TC Part for the following...

Last items in stock €4.49

Details

Makita SKU: 0610089990

Piston Pin Needle Bearing for Brushcutter Makita RBC310

Piston Pin Needle Bearing for Brushcutter Makita RBC310 Genuine spare part Makita, Piston Pin Needle Bearing for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 -...

AVAILABLE €7.60

Details

Makita SKU: 233976-8

Piston Pin Circlip for Brushcutter Makita RBC310

Piston Pin Circlip for Brushcutter Makita RBC310 Genuine spare part Makita, Piston Pin Circlip for Brushcutters RBC310 - RBC311 - RBC3110 - RBC320 - RBC321 - RBC3210 - Dolmar MS3201C...

AVAILABLE €6.01

Details

Makita SKU: 424314-7

Primer Bulb for Blower Makita BHX2501

Primer Bulb for Blower Makita BHX2501 Genuine replacement part Makita, Primer Bulb for Brushcutters, Hedge Trimmers, Blowers, Engine Pump, Mist Blowers. Part for the following...

AVAILABLE €6.90

Details

Makita SKU: 961052-5

Retaining Ring S12 for Power Tools Makita

Retaining Ring S12 for Power Tools Makita Genuine replacement part Makita, Retaining Ring S12 for Power Tools Makita. Part for the following products: - 2012 12" PLANER - 2030 12" PLANER-JOINTER - 2030N 12-1/2" PLANER-JOINTER WITH...

AVAILABLE €1.40

Details

Makita SKU: 443167-5

Air Cleaner Element for Brushcutter Makita RBC2510

Air Cleaner Element for Brushcutter Makita RBC2510 Genuine part Makita, Air Cleaner Sponge Element for Brushcutters RBC2510 - RBC225-255 - MS2501 - MS2810. Part for the following products: - MS254C...

AVAILABLE €3.03

Details

Makita SKU: 162274-2

Cam Gear Cover Gasket for Brushcutter Makita EBH341L

Cam Gear Cover Gasket for Brushcutter Makita EBH341L Genuine spare part Makita, Cam Gear Cover Gasket for Brushcutters 4 STOKE EBH341L - EBH341U - Dolmar MS335.4C - MS335.4U. Part for the following products: - EBH341L - BRUSHCUTTER...

on 7/10 Business Days Approx €2.76

Details

Makita SKU: 197453-3

Dolmar Blower PB252.4 Piston Set

Dolmar Blower PB252.4 Piston Set Genuine replacement part Dolmar, Piston Set for Blower 4T PB252.4. Part for the following products: - PB252.4 - BLOWER 24,5CC 4T DOLMAR - EY2650H25H - POLE SAW 4T 25,4CC - Code :...

Last items in stock €21.97

Details

Makita SKU: 442155-9

Makita EBH341U Pump Gasket

Makita Gasket for Brushcutter EBH341U Genuine spare part Makita, Pump Gasket for Brushcutters EBH341U - DBC260L - MS350.4C - EX2650LHRH. Part for the following products: - MS350.4C – 34CC-4T BRUSHCUTTER DOLMAR - PB7650.4...

Last items in stock €4.06

Details

Makita SKU: 451736-8

Makita Tank for Brushcutter EM2651UH

Makita Tank for Brushcutter EM2651UH Genuine replacement part Makita Dolmar, Fuel Tank for Brushcutter EM2651UH - EY2650H25H. Part for the following products: - Brushcutter Makita...

Last items in stock €18.03

Details

Makita SKU: 424080-6

Makita Rubber for Brushcutter EM2651UH

Makita Rubber for Brushcutter EM2651UH Genuine replacement part Makita Dolmar, Fuel Tank Buffer Rubber for Brushcutter EM2651UH - DBC260L. Part for the following products: - Brushcutter Makita EM2651UH - Trimmer Makita...

Last items in stock €1.65

Details

Comments (0)

Cart (0)

Subcategories

Subcategories

Subcategories

Power Tools Spare Parts

Garden Spare Parts

Air Compressor Spare Parts

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

Dolmar ME246.4 Parts

Dolmar ME246.4 Telescopic Petrol Pole Saw Parts

Dolmar ME246.4 Parts

Dolmar ME246.4 Telescopic Petrol Pole Saw Parts

Dolmar ME246.4 Telescopic Petrol Pole Saw Parts

Data sheet

Specific References

Download

Dolmar ME246.4 Parts Diagram

You might also like

Products

News

Notes

Our company
