Dolmar PB252.4 Engine Blower Spare Parts

SKU: Dolmar PB252.4
€2.41
VAT included

Dolmar PB252.4 Engine Blower Spare Parts

We are DOLMAR original spare parts Dealers at low at unbeatable prices and a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for PB252.4 24,5CC 4T Engine Blower.
Dolmar PB252.4 Engine Blower Spare Parts
  • Dolmar PB252.4 Engine Blower Spare Parts
  • Dolmar PB252.4 Engine Blower Spare Parts - Drawing
  • Dolmar PB252.4 Engine Blower Spare Parts - Drawing - 1
  • Dolmar PB252.4 Engine Blower Spare Parts - Drawing 2
  • Dolmar PB252.4 Engine Blower Spare Parts - Drawing - 3
  • Dolmar PB252.4 Engine Blower Spare Parts - Drawing - 4
  • Dolmar PB252.4 Engine Blower Spare Parts - Drawing - 5
  • Dolmar PB252.4 Engine Blower Spare Parts - Drawing - 6
  • Dolmar PB252.4 Engine Blower Spare Parts - Drawing - 7
  • Dolmar PB252.4 Engine Blower Spare Parts - Drawing - 8
  • Dolmar PB252.4 Engine Blower Spare Parts - Drawing - 9
Makita

Dolmar PB252.4 Engine Blower Spare Parts

SKU: Dolmar PB252.4 Condition: New
€2.41
VAT included

Dolmar PB252.4 Engine Blower Spare Parts

We are DOLMAR original spare parts Dealers at low at unbeatable prices and a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for PB252.4 24,5CC 4T Engine Blower.
settings 152 spare parts
description 10 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
152 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

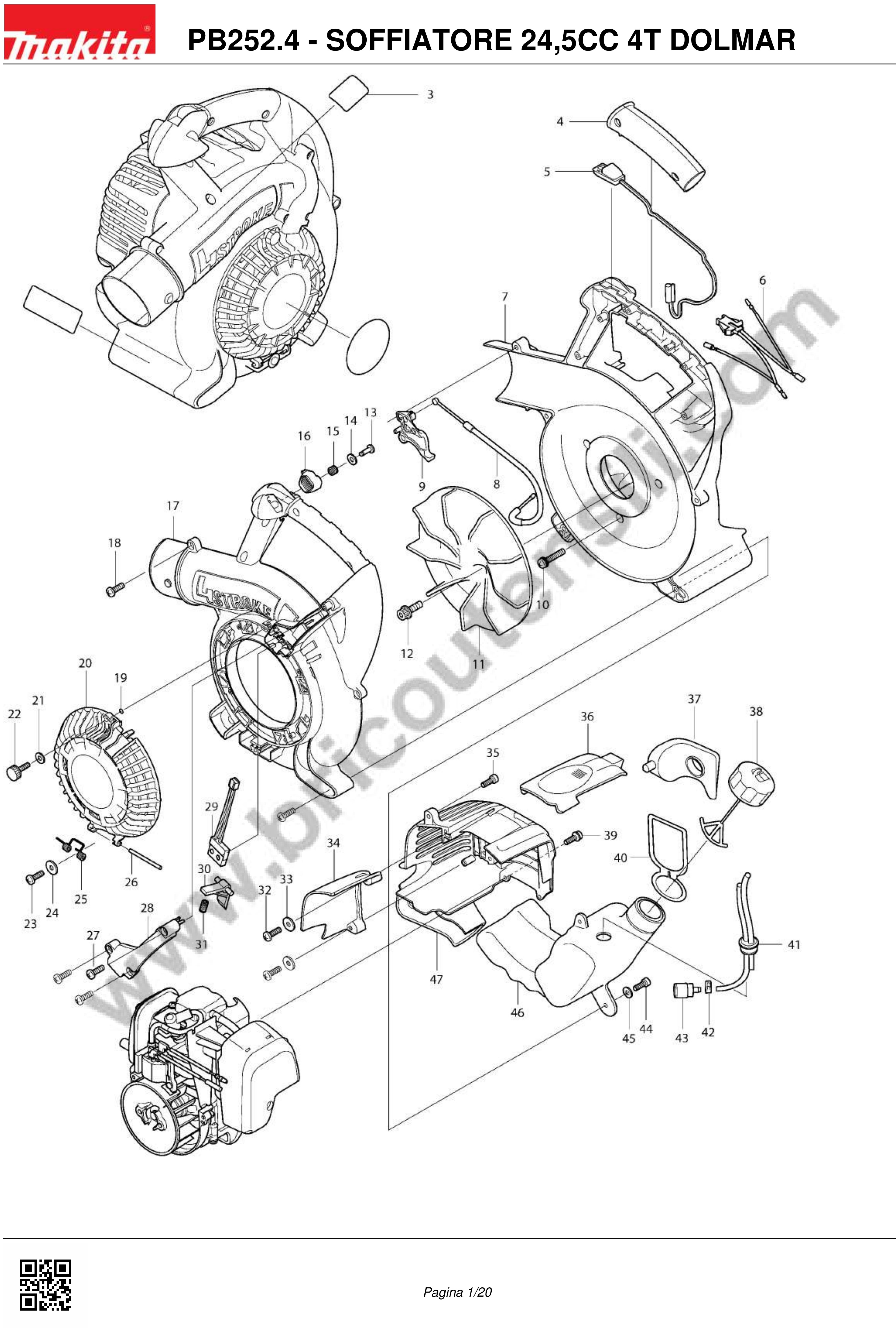

Esploso pagina 1
Pos. Item Price Buy
3
 photo_cameraImage coming soon 810450-9 SAFETY LABEL BHX2501 €2.34
4
 photo_cameraImage coming soon 273665-3 HANDLE X BHX2501 €8.53
5
 photo_cameraImage coming soon 638640-0 SWITCH X BHX2501 €6.05
6
 photo_cameraImage coming soon 638758-7 CABLES BHX2501 €16.17
7
 photo_cameraImage coming soon 455202-7 HOUSING FAN €28.55
8
 Makita BHX2500 Throttle Cable 168518-8 Makita BHX2500 Throttle Cable €8.79
9
 photo_cameraImage coming soon 456960-8 THROTTLE LEVER €8.36
10
 photo_cameraImage coming soon 911253-5 SCREW M 5 X 30 X JR3030T €1.42
11
 photo_cameraImage coming soon 240113-7 FAN 180 X BHX2501 €21.44
12
 photo_cameraImage coming soon 265584-7 SCREW M6 X 20 X BHX2501 €1.57
13
 photo_cameraImage coming soon 0150059760 TAPPING SCREW 5X16BHX2500/PB-250.4 €18.84
14
 photo_cameraImage coming soon 253874-0 FLAT WASHER 4 €2.74
15
 photo_cameraImage coming soon 231025-5 COMPRESION SPRING 8 X 8411DW €1.50
16
 photo_cameraImage coming soon 452608-0 BLOCK BUTTON BHX2501 €8.53
17
 photo_cameraImage coming soon 123708-0 HOUSING FAN €45.66
19
 photo_cameraImage coming soon 213022-3 SEAL 3 X5014 / 16NB €1.36
20
 photo_cameraImage coming soon 452604-8 GUARD X BHX2501 €21.44
21
 photo_cameraImage coming soon 424180-2 WASHER X BHX2501 €1.57
22
 photo_cameraImage coming soon 265782-3 SCREW M4 X BHX2501 €2.34
24
 photo_cameraImage coming soon 267394-8 WASHER 5 X BHX2501 €1.57
25
 photo_cameraImage coming soon 233536-6 TORSION SPRING 5 X BHX2501 €1.57
26
 photo_cameraImage coming soon 268230-1 PIN 4 X BHX2501 €1.57
28
 photo_cameraImage coming soon 452606-4 BHX2501 SWITCH COVER €9.59
29
 photo_cameraImage coming soon 638759-5 BHX2501 SWITCH CIRCUIT €27.49
30
 photo_cameraImage coming soon 452609-8 SWITCH LEVER X BHX2501 €6.70
31
 photo_cameraImage coming soon 233133-8 SPRING COMP.4 X BHX2501 €1.57
33
 photo_cameraImage coming soon 941051-3 FLAT WASHER 4 €1.38
34
 photo_cameraImage coming soon 452605-6 INNER COVER X BHX2501 €24.33
36
 photo_cameraImage coming soon 450964-2 CAP SPARK PLUG BHX2501 €2.16
37
 photo_cameraImage coming soon 424395-1 OIL GUARD X BHX2501 €8.53
38
 photo_cameraImage coming soon 127108-6 FUEL TANK CAP /PM7650H/EBH252L €13.75
39
 photo_cameraImage coming soon 911526-6 SCREW M4 X 14 X HR2420 €3.18
40
 photo_cameraImage coming soon 810455-9 CAUTION PLATE EM2651LH/EBH253L €2.18
41
 photo_cameraImage coming soon 158911-4 SUPPLY PIPE X BHX2501 €6.70
42
 photo_cameraImage coming soon 345920-4 CLAMP EBH341U €1.44
43
 Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
46
 photo_cameraImage coming soon 450988-8 FUEL TANK BHX2501 €18.80
47
 photo_cameraImage coming soon 452671-3 ENGINE COVER PB252.4 PB7600.4 €16.49
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

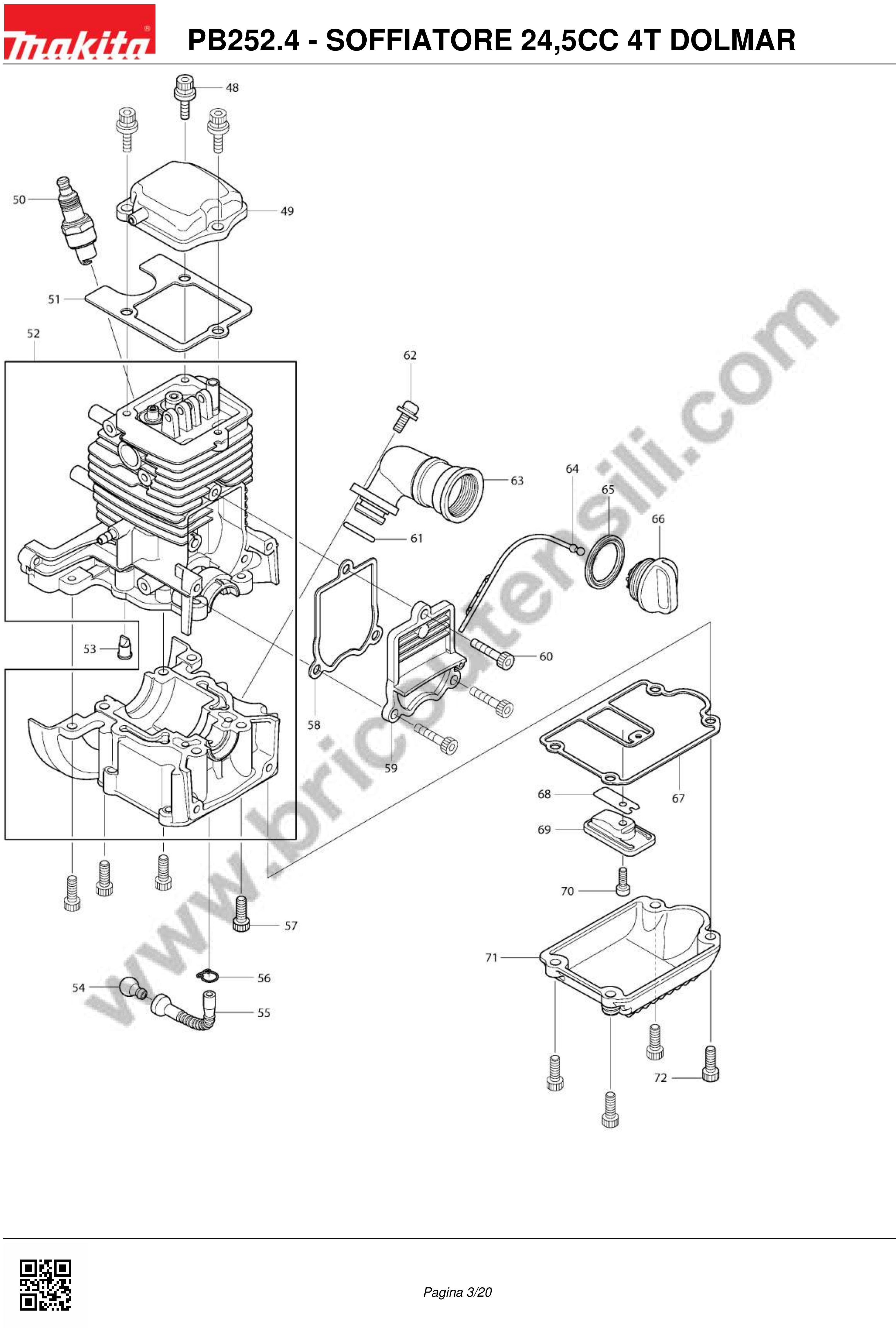

Esploso pagina 2
Pos. Item Price Buy
48
 photo_cameraImage coming soon 922223-9 SCREW M5X16 EBH341U EX2650LH €1.46
49
 photo_cameraImage coming soon 140B46-7 ROCKER COVER €9.82
50
 photo_cameraImage coming soon 0650109950-10 SPARK PLUG CMR6A X MS251.A €102.53
51
 photo_cameraImage coming soon 162275-0 COVER GASKET EBH252L €3.11
52
 photo_cameraImage coming soon 125914-3 CYLINDER + BASE BHX2501 €96.19
53
 photo_cameraImage coming soon 424201-0 CONTROL VALVE EBH341U €3.28
54
 photo_cameraImage coming soon 5926500300 FITTING X MS251.4 €4.30
55
 photo_cameraImage coming soon 424202-8 OIL TUBE EBH251L/341U €4.89
56
 photo_cameraImage coming soon 282020-8 HOSE CLAMP EM2651LH/EBH251L/ €1.44
57
 photo_cameraImage coming soon 922217-4 SCREW M5X14 EBH341U €1.53
58
 Cam Gear Cover Gasket for Brushcutter Makita EBH341L 162274-2 Cam Gear Cover Gasket for Brushcutter Makita EBH341L €2.76
59
 photo_cameraImage coming soon 318443-5 CAM GEAR COVER EM2651LH/EBH251 €5.38
61
 photo_cameraImage coming soon 213591-4 RING 14 BHX2501 €2.34
62
 photo_cameraImage coming soon 922213-2 HEX BOLT M5X12 EBH253L/341U €1.51
63
 photo_cameraImage coming soon 140813-8 OIL TUBE X BHX2501 €5.77
64
 photo_cameraImage coming soon 452610-3 OIL GAUGE FOR BHX2501 €3.54
65
 photo_cameraImage coming soon 424343-0 GASKET X BHX2501 €1.44
66
 photo_cameraImage coming soon 452047-4 OIL TANK CAP BHX2501 €2.14
67
 photo_cameraImage coming soon 162276-8 GASKET OIL CUP EBH252L €4.46
68
 photo_cameraImage coming soon 346083-9 PLATE EBH341U €2.82
69
 photo_cameraImage coming soon 318440-1 RETAINER PLATE EBH251L/341U €2.97
70
 photo_cameraImage coming soon 922112-8 SCREW M4X10 BPT350 €1.46
71
 photo_cameraImage coming soon 318442-7 OIL CUP EBH252L €9.87
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

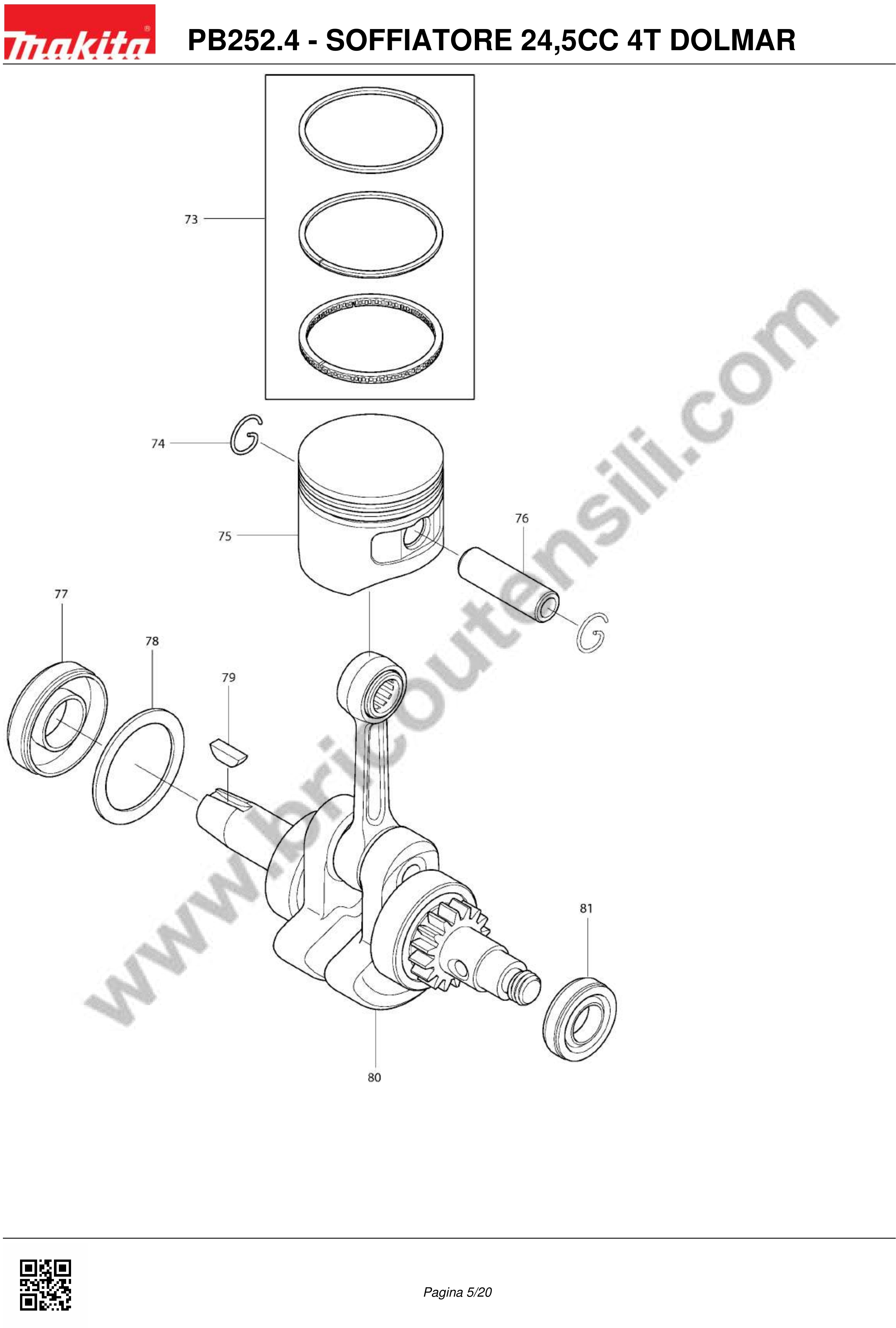

Esploso pagina 3
Pos. Item Price Buy
73
 photo_cameraImage coming soon 195145-8 EBH252L PISTON RING €22.58
74
 Piston Pin Circlip for Brushcutter Makita RBC310 233976-8 Piston Pin Circlip for Brushcutter Makita RBC310 €6.01
75
 Dolmar Blower PB252.4 Piston Set 197453-3 Dolmar Blower PB252.4 Piston Set €21.97
76
 photo_cameraImage coming soon 257781-9 PISTON PIN EBH252L €1.46
77
 photo_cameraImage coming soon 213089-1 SEAL 12 EBH252L €4.02
78
 photo_cameraImage coming soon 267400-9 WASHER 23 €1.46
79
 photo_cameraImage coming soon 254040-2 WOODRUFF KEY 3 EM2651LH/EBH341 €4.02
80
 Crank Shaft Ass'y for 4-Stroke Petrol Blower Makita BHX2501 188608-1 Crank Shaft Ass'y for 4-Stroke Petrol Blower Makita BHX2501 €99.09
81
 Oil Seal 10 for Brushcutter Dolmar MS335.4C 213769-9 Oil Seal 10 for Brushcutter Dolmar MS335.4C €3.20
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

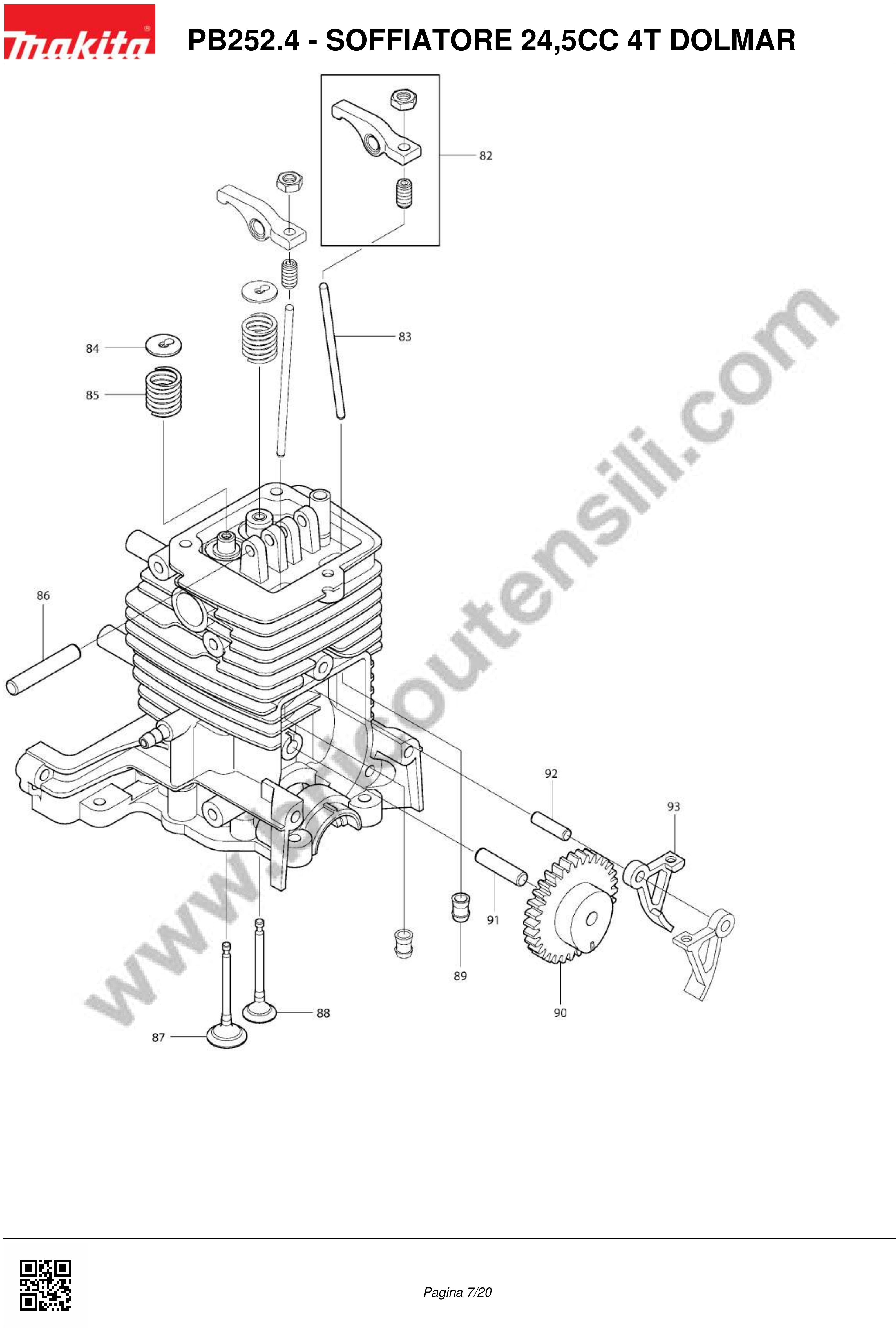

Esploso pagina 4
Pos. Item Price Buy
82
 photo_cameraImage coming soon 125554-7 ROCKET ARM ASSY EM2651LH/EBH34 €6.22
83
 photo_cameraImage coming soon 256865-0 ROD 2,5 EBH252L €1.46
84
 photo_cameraImage coming soon 325668-4 SPRING BLOCK EBH252L VALVE €2.82
85
 photo_cameraImage coming soon 234108-0 COMPRESSION SPRING 9 EBH252L €1.83
86
 photo_cameraImage coming soon 256200-2 PIN 5 PER 2704 €1.46
87
 photo_cameraImage coming soon 326367-1 SUCTION VALVE EBH252L €7.94
88
 photo_cameraImage coming soon 326366-3 EBH252L DISCHARGE VALVE €7.94
89
 photo_cameraImage coming soon 424200-2 SPACKER EM2651LH/EBH251L/341U €1.46
90
 photo_cameraImage coming soon 125552-1 CAM GEAR ASSY EM2651LH/EBH341/ €17.46
91
 photo_cameraImage coming soon 268238-5 PIN 5 EBH341U €1.44
92
 photo_cameraImage coming soon 268239-3 PIN 4 EM2651LH/EBH €1.46
93
 photo_cameraImage coming soon 313169-4 CAM LIFTER EM2651LH/EBH251L €4.64
Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

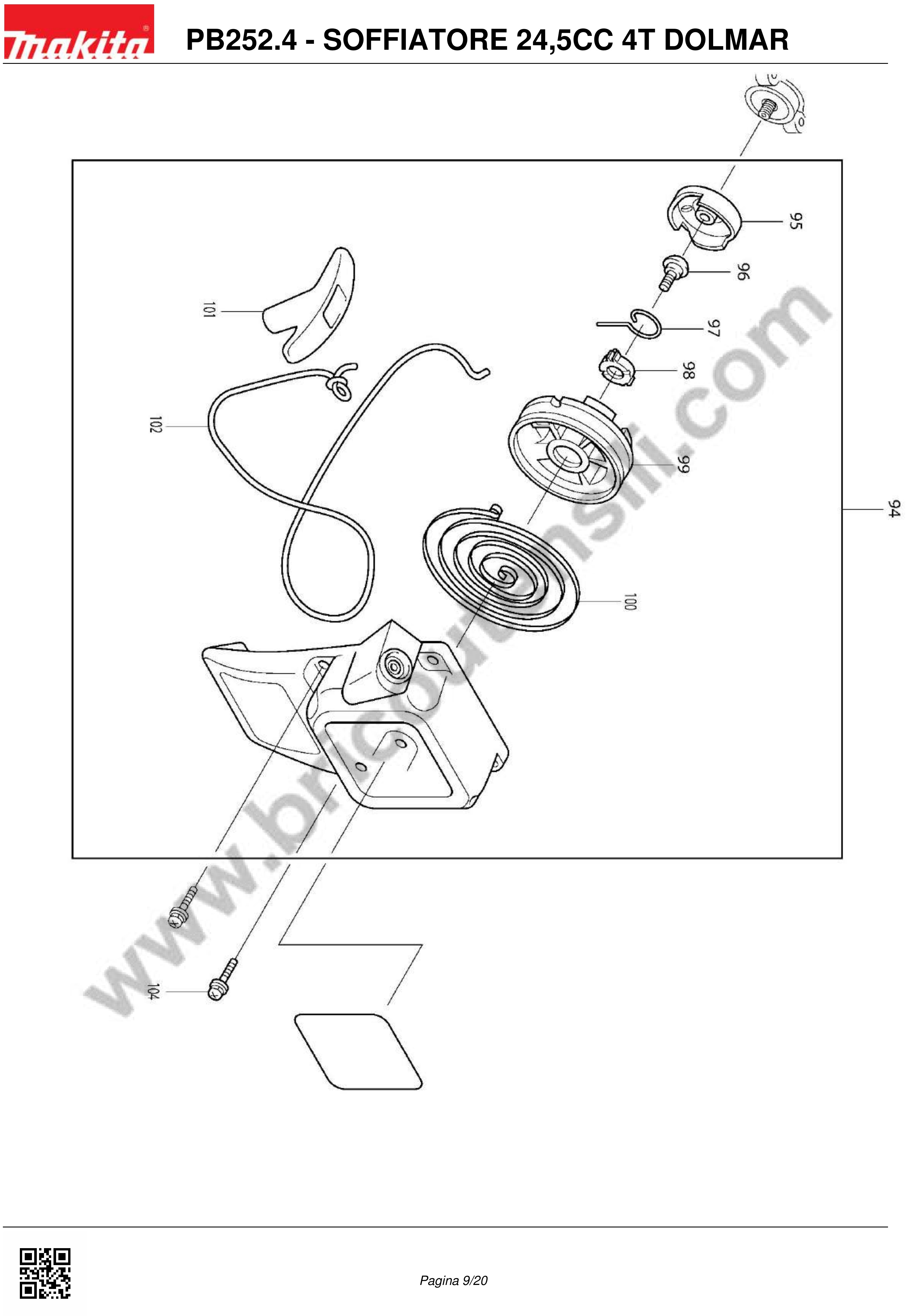

Esploso pagina 5
Pos. Item Price Buy
94
 Recoil Starter Assy for Petrol Blower Makita BHX2500 125917-7 Recoil Starter Assy for Petrol Blower Makita BHX2500 €22.10
95
 photo_cameraImage coming soon 168483-1 STARTER PULLEY EBH252L €2.18
96
 photo_cameraImage coming soon 266585-8 SCREW 5X12 EBH252L €2.18
97
 photo_cameraImage coming soon 325923-4 SWING ARM EBH252L €1.46
98
 photo_cameraImage coming soon 451938-6 COLLAR EBH252L €1.46
99
 photo_cameraImage coming soon 451937-8 STARTER SPRING EBH252L €6.95
100
 photo_cameraImage coming soon 232258-5 SPRING AVVIAMENTO EBH252L €10.36
101
 photo_cameraImage coming soon 424319-7 STARTER KNOB EBH252L €3.28
102
 Starter Rope for Brushcutter Makita EBH252L 444019-3 Starter Rope for Brushcutter Makita EBH252L €3.10
Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 6
Pos. Item Price Buy
105
 photo_cameraImage coming soon 324961-3 SUCTION TUBE EBH252L €3.64
106
 photo_cameraImage coming soon 413120-5 INSULATOR GASKET EBH251L/341U €1.44
107
 photo_cameraImage coming soon 213078-6 RING 10 EBH341U €1.61
108
 photo_cameraImage coming soon 125916-9 INSULATING PLATE X BHX2501 €14.32
109
 photo_cameraImage coming soon 325934-9 ADJUST SCREW M6X16 EPH1000/EM2501 €1.38
110
 photo_cameraImage coming soon 922228-9 SCREW M5X18 EBH341U €1.44
111
 photo_cameraImage coming soon 413138-6 CARBURETOR GASKET EBH341U €2.14
113
 Carburator for Blower Makita BHX2500 168641-9 Carburator for Blower Makita BHX2500 €88.24
114
 photo_cameraImage coming soon 140808-1 PUMP BODY X BHX2501 €36.96
115
 photo_cameraImage coming soon 352010-6 EBH252L FILTER €2.82
116
 photo_cameraImage coming soon 442154-1 SEAL IRIS EBH341U €4.64
117
 Makita Diaphragm for EM2651UH 168620-7 Makita Diaphragm for EM2651UH €23.70
118
 photo_cameraImage coming soon 140438-8 CAM GEAR COVER GASKET EM2651LH €19.90
119
 Primer Bulb for Blower Makita BHX2501 424314-7 Primer Bulb for Blower Makita BHX2501 €6.90
120
 photo_cameraImage coming soon 346270-0 PUMP COVER EBH341U €6.22
121
 photo_cameraImage coming soon 266582-4 SCREW 3x24 EBH341U €2.18
122
 photo_cameraImage coming soon 266581-6 SCREW M3X8 EBH341U €2.18
123
 photo_cameraImage coming soon 325922-6 SCREW CARBURATOR EBH341U €6.95
124
 photo_cameraImage coming soon 413140-9 WASHER EBH341U €2.18
125
 photo_cameraImage coming soon 257964-1 RETAINING RING E3 EBH341U €4.02
126
 photo_cameraImage coming soon 234183-6 SPRING 65-9 EBH341U €4.02
127
 photo_cameraImage coming soon 213538-8 RING 2 EBH341U €4.02
128
 photo_cameraImage coming soon 326027-5 JET X BHX2501 €11.18
129
 Makita EBH341U Pump Gasket 442155-9 Makita EBH341U Pump Gasket €4.06
130
 photo_cameraImage coming soon WJ00009599 PUMP DIAPHRAGM DCS230T €13.50
Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

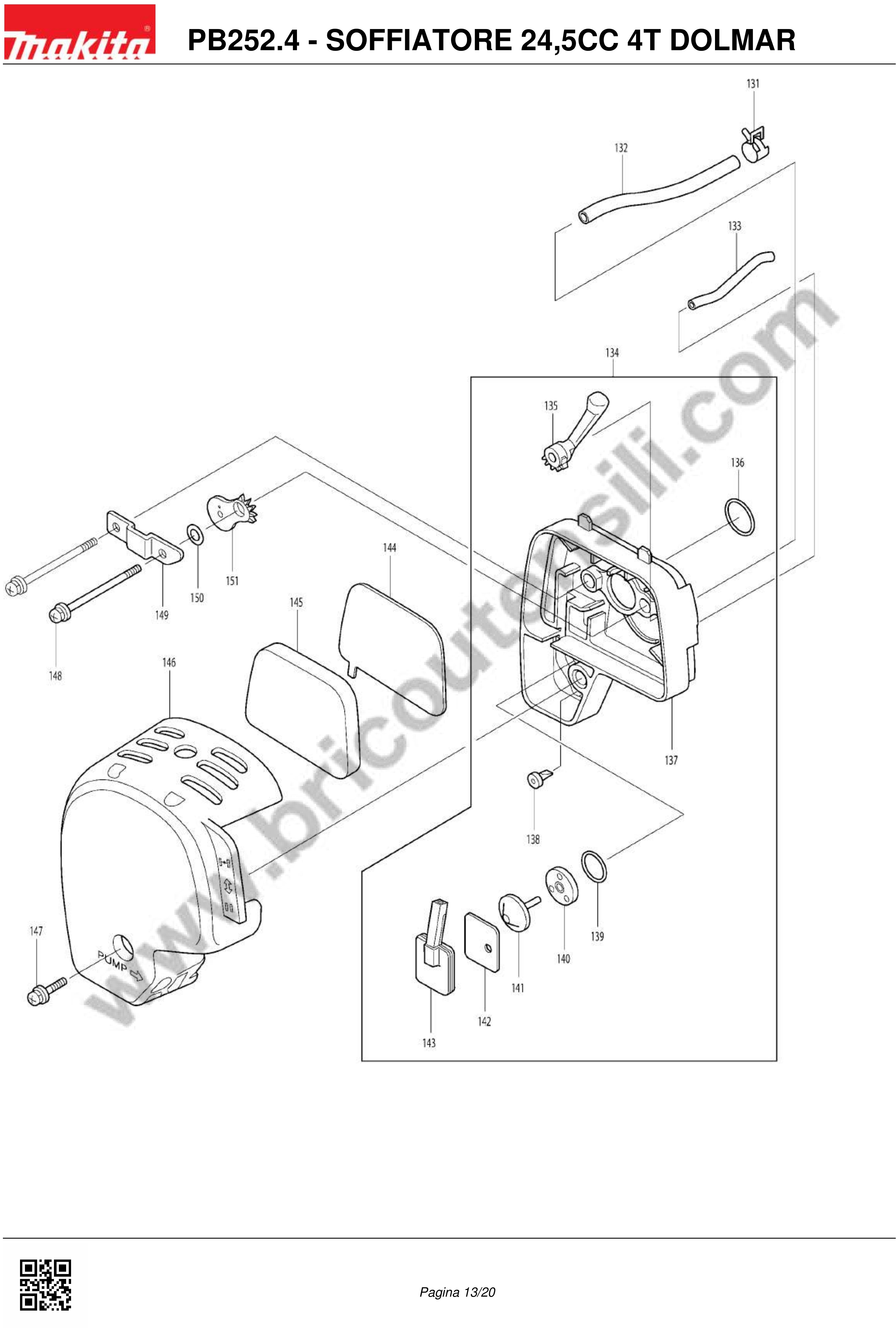

Esploso pagina 7
Pos. Item Price Buy
131
 photo_cameraImage coming soon 345918-1 CLAMP EBH341U €1.46
132
 photo_cameraImage coming soon 422041-0 BREATHER TUBE EBH252L €2.41
133
 photo_cameraImage coming soon 422070-3 PIPE X BHX2501 €1.57
134
 Cleaner Plate Assy for Petrol Blower Makita BHX2500 125468-0 Cleaner Plate Assy for Petrol Blower Makita BHX2500 €21.00
135
 Choke Lever for Brushcutter Makita EBH341L 451925-5 Choke Lever for Brushcutter Makita EBH341L €2.33
136
 photo_cameraImage coming soon 213540-1 O RING 15 EM2651LH/EBH253L/341 €1.46
137
 photo_cameraImage coming soon 140814-6 AIR FILTER PLATE X BHX2501 €7.48
138
 photo_cameraImage coming soon 424316-3 VALVE EBH341U €5.38
139
 photo_cameraImage coming soon 213539-6 O RING 14 EBH253L/EBH341U €1.53
140
 photo_cameraImage coming soon 451924-7 CHECK VALVE PLATE EBH253L €1.44
141
 photo_cameraImage coming soon 424315-5 CHECK VALVE EBH251L/341U €1.44
142
 Separator Gasket for Blower Makita BHX2501 168577-2 Separator Gasket for Blower Makita BHX2501 €1.62
143
 photo_cameraImage coming soon 168576-4 SEPARATOR PLATE EBH253L/341U €10.72
144
 Air Cleaner Element for Petrol Blower Makita BHX2500 443140-5 Air Cleaner Element for Petrol Blower Makita BHX2500 €2.14
145
 Air Cleaner Element Sponge for Petrol Blower Makita BHX2500 443141-3 Air Cleaner Element Sponge for Petrol Blower Makita BHX2500 €2.23
146
 photo_cameraImage coming soon 450561-4 AIR CLEANER COVER EBH251L/341U €4.59
147
 photo_cameraImage coming soon 911218-7 HEAD SCREW CILIND. M5x14 €1.54
148
 photo_cameraImage coming soon 265188-5 PAN HD SCREW M5X68 EB €1.44
149
 photo_cameraImage coming soon 345919-9 PLATE EBH253L/EBH341U €1.47
150
 photo_cameraImage coming soon 423376-2 GASKET EBH251L/341U €1.47
151
 photo_cameraImage coming soon 450560-6 CHOKE PLATE EBH251L/341U €1.44
Page 8 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

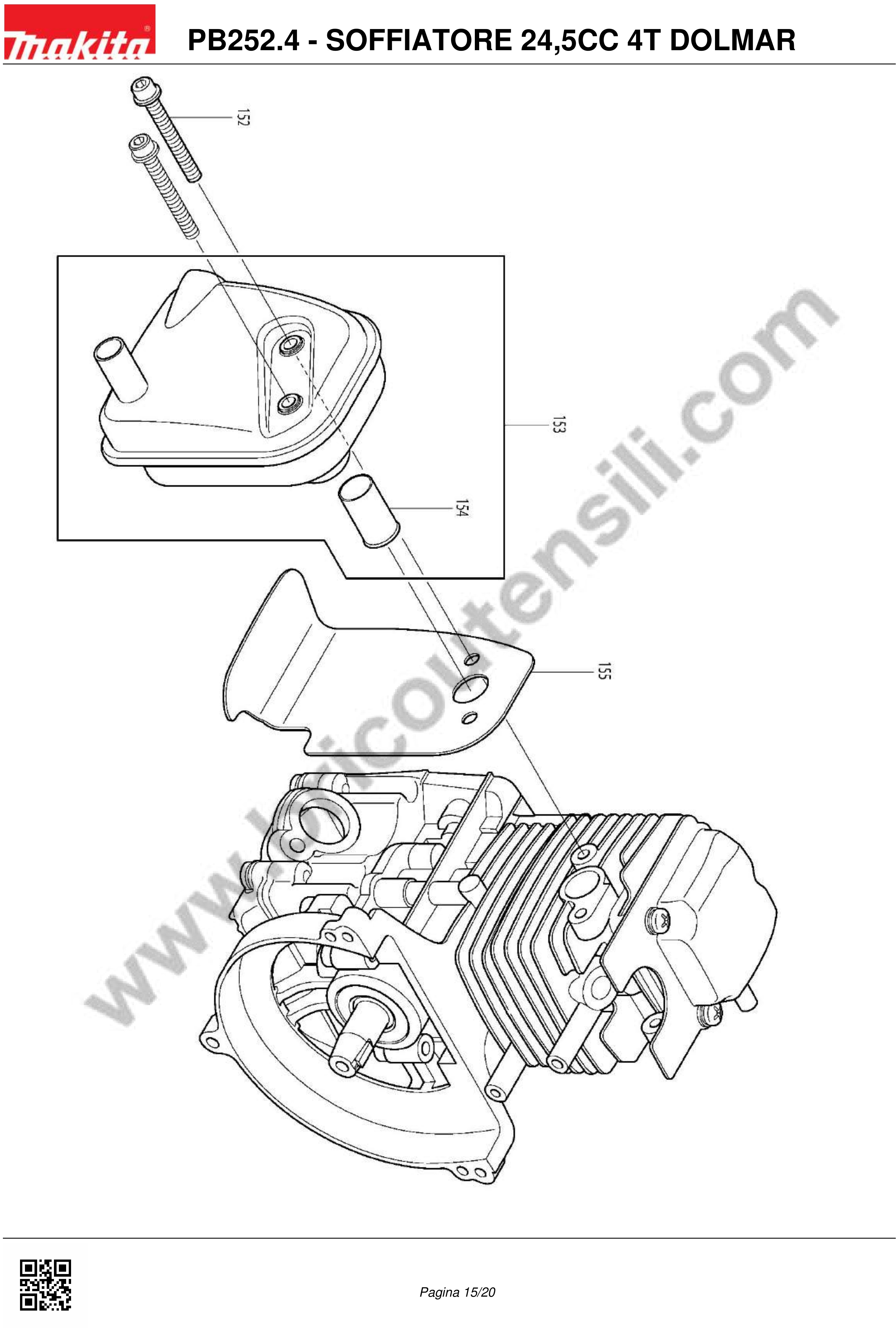

Esploso pagina 8
Pos. Item Price Buy
152
 photo_cameraImage coming soon 266440-4 HEX SOCKET HD BOLT M5X40 EM265 €1.46
153
 photo_cameraImage coming soon 168643-5 MUFFLER X BHX2501 €11.18
154
 photo_cameraImage coming soon 324980-9 SPARK ARRESTER EBH253L/EBH341U €2.30
155
 photo_cameraImage coming soon 168593-4 MUFFLER GASKET X BHX2501 €8.15
Page 9 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

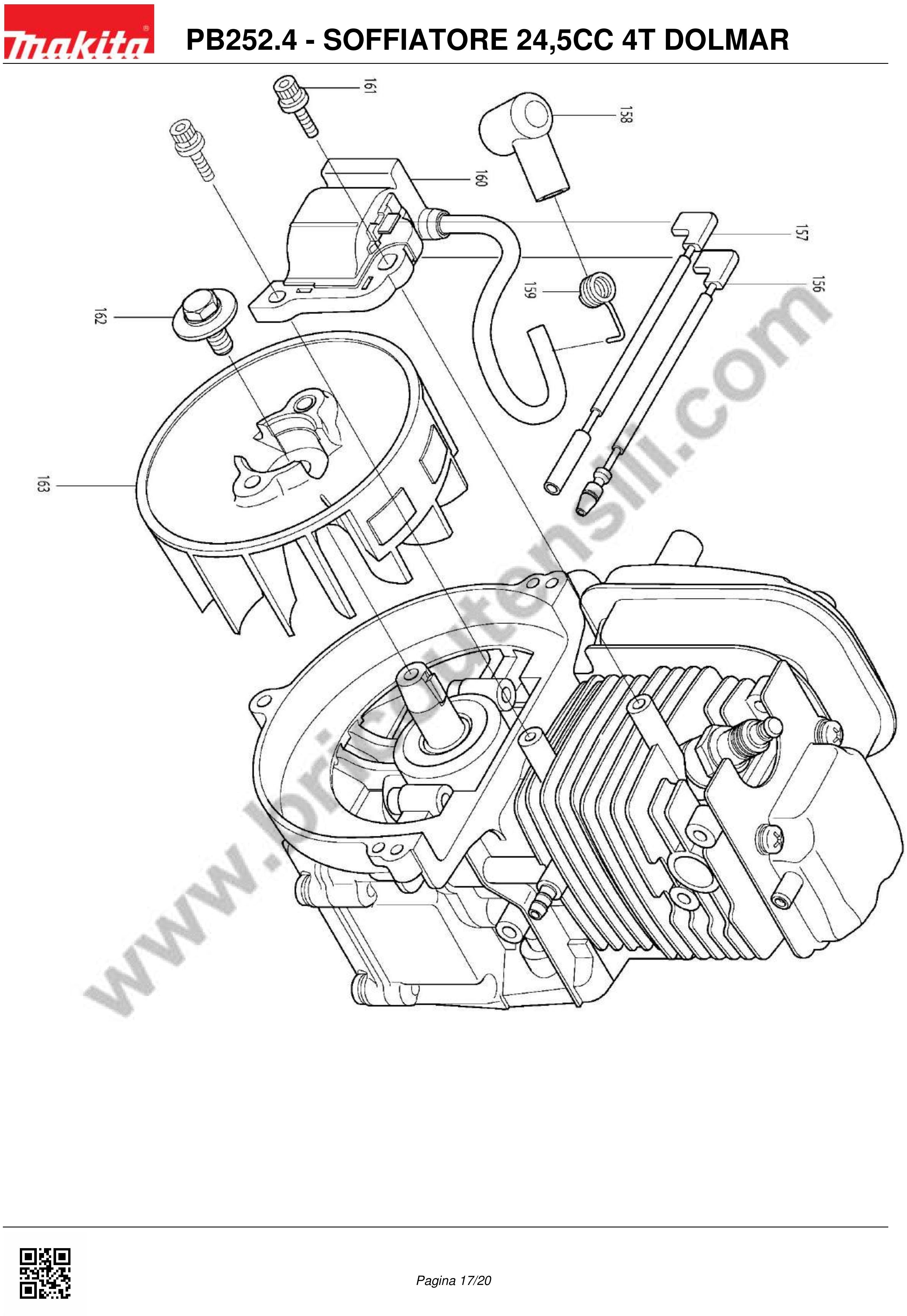

Esploso pagina 9
Pos. Item Price Buy
156
 photo_cameraImage coming soon 638709-0 COIL CABLE (1) X BHX2501 €1.57
157
 photo_cameraImage coming soon 632F45-2 LEAD WIRE €2.16
158
 Spark Plug Cap for Brushcutter Makita EBH341U 424105-6 Spark Plug Cap for Brushcutter Makita EBH341U €1.62
159
 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U 324891-8 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U €1.62
160
 Electronic Coil for Brushcutter Makita EBH341U 168816-0 Electronic Coil for Brushcutter Makita EBH341U €28.06
161
 photo_cameraImage coming soon 922138-0 HS H BOLT M4X20 EBH341U/253L €9.01
162
 photo_cameraImage coming soon 265577-4 HEX HD BOLT M6X16 EBH €1.53
163
 photo_cameraImage coming soon 318702-7 FLYWHEEL X BHX2501 €36.96
Page 10 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

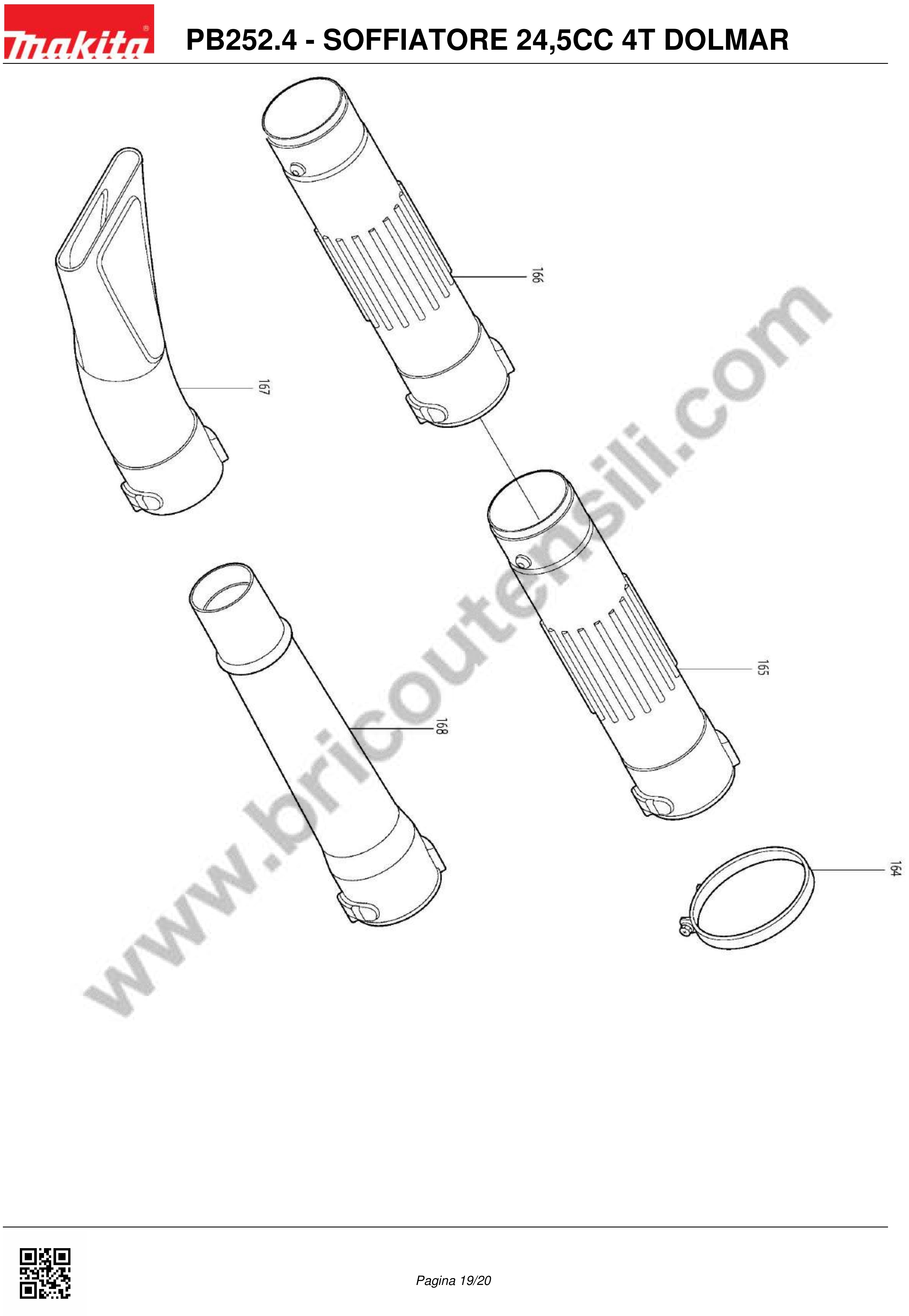

Esploso pagina 10
Pos. Item Price Buy
164
 photo_cameraImage coming soon 140352-8 CLAMP X BHX2501 €24.33
165
 Tube for Blower Makita BHX2501 451752-0 Tube for Blower Makita BHX2501 €12.88
168
 photo_cameraImage coming soon 6609512200 SECOND NOZZLE BLOWER €21.33

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Dolmar PB252.4 Engine Blower Spare Parts

We are DOLMAR original spare parts Dealers at low at unbeatable prices and a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for PB252.4 24,5CC 4T Engine Blower.

In the following table, look for the model of the Cordless Blower and the respective parts of the code.
Dolmar PB252.4 24,5CC 4T Engine Blower

DOLMAR PB252.4 24,5CC 4T Engine Blower Spare Parts pag.1
# Part Num. Description
3 810450-9 LABEL/CAUTION BHX25012500
4 273665-3 GRIP BHX2501/BHX2500
5 638640-0 SWITCH COMP BHX2501
6 638758-7 LEAD UNIT BHX2501
7 455202-7 FAN CASING - CT30-2
8 168518-8 CONTROL CABLE BHX2501
9 456960-8 THROTTLE LEVER - CT30-2
10 911253-5 PAN HD SCREW M5X30 W/CP WASHER
11 240113-7 FAN 180 X BHX2501
12 265584-7 HEX SOCKET HD BOLT M6X20 BHX2
13 0150059760 SCREW M5X16 FOR BHX2500
14 253874-0 LARGE BLUE WASHER 4 PS32TLC
15 231025-5 COMPRESSION SPRING 8 X 8411DW
16 452608-0 LOCK BUTTON BHX2501
17 123708-0 FAN CASING - CT30-2
18 0150059760 SCREW M5X16 FOR BHX2500
19 213022-3 O RING 3 MT361/RBL25/RP1801
20 452604-8 PROTECTOR X BHX2501
21 424180-2 GUSKET BHX2501
22 265782-3 THUMB SCREW M4 BHX2501
23 0150059760 SCREW M5X16 FOR BHX2500
24 267394-8 WASHER 5 X BHX2501
25 233536-6 TORSION SPRING 5 X BHX2501
26 268230-1 ROD 4 BHX2501
27 0150059760 SCREW M5X16 FOR BHX2500
28 452606-4 SWITCH COVER BHX2501
29 638759-5 SWITCH UNIT BHX2501
30 452609-8 SWITCH LEVER BHX2501
31 233133-8 COMPRESSION SPRING 4 BHX2501
32 0150059760 SCREW M5X16 FOR BHX2500
33 941051-3 FLAT WASHER 4 DIN125 - B BHX2
34 452605-6 INNER COVER X BHX2501
35 0150059760 SCREW M5X16 FOR BHX2500
36 450964-2 SPARK PLUG COVER BHX2501
37 424395-1 OIL LEVEL GUARD BHX2501
38 127108-6 FUEL TANK ASSY ER2550/EBH253
39 911526-6 PAN HEAD SCREW M4X16 BHX2501 HR2420
40 810455-9 CAUTION PLATE EBH341U
41 158911-4 TUBE COMPLETE BHX2501
42 345920-4 HOSE CLAMP ER2550/EBH251L/341 EBH341U
43 163447-0 GASOLIN FILTER X DCS230T
44 0150059760 TAP SCREW 5X16 TRILOBULAR BHX
45 267394-8 FLAT WASHER 5 BHX2501
46 450988-8 FUEL TANK BHX2501
47 452671-3 ENGINE COVER PB252.4 PB7600.4
DOLMAR PB252.4 24,5CC 4T Engine Blower Spare Parts pag.2
48 922223-9 HSH BOLT M5X16 BHX2501/EBH251
49 140B46-7 ROCKER COVER COMP ER2550/EBH2501
50 0650109950-10 SPARK PLUG CMR6A EB7650TH
51 162275-0 ROCKER COVER GASKET ER2550/EBH252L
52 125914-3 CYLINDER BLOCK SET BHX2501
53 424201-0 CHECK VALVE ER2650LH/EBH251L
54 5926500300 OIL WEIGHT ER2650LH/EBH253L MS251.4
55 424202-8 OIL TUBE ER2550/EBH251L/341U EBH341U
56 282020-8 HOSE CLAMP ER26/EM26/EA3601 EBH341U
57 922217-4 SCREW M5X14 EBH341U
58 162274-2 CAM GEAR COVER GASKET ER2650L EBH341
59 318443-5 CAMGEAR COVER ER2550/ER2650LH EBH341U
60 922217-4 SCREW M5X14 EBH341U
61 213591-4 O RING 14 BHX2501
62 922213-2 SCREW M5X12 EBH341U
63 140813-8 OIL PIPE COMP BHX2501
64 452610-3 OIL GAUGE BHX2501
65 424343-0 GASKET ER2650LH/EM2651LH/BHX2
66 452047-4 OIL CAP ER2650/EM2651/EN4951
67 162276-8 CASE GASKET ER2550/EBH253L
68 346083-9 LEAD VALVE ER2650LH/EM2651LH EBH341U
69 318440-1 RETAINER PLATE ER2550/EBH251L EBH341U
70 922112-8 CAP HD SCREW M4X10 BHX2501/ BPT350
71 318442-7 OIL CASE ER2550/EBH253L/BHX25
72 922217-4 HEX SOCKET HD BOLT M5X14 BHX2501 EBH341U
DOLMAR PB252.4 24,5CC 4T Engine Blower Spare Parts pag.3
73 195145-8 PISTON RING SET EN4951/CS246.4
74 233976-8 CLIP ER2650LH/EM2651LH/EBH253 EBH252L
75 197453-3 PISTON ER2650/EM2651//EN4951
76 257781-9 PISTON PIN EBH252L
77 213089-1 OIL SEAL 12 BHX2500,2501 EBH252L
78 267400-9 FLAT WASHER 23 ER2650LH/EM265
79 254040-2 WOODRUFF KEY 3 ER2650LH/EM265 EBH341U
80 188608-1 CRANKSHAFT ASSY BHX2501
81 213769-9 OIL SEAL 10 BHX2500,2501
DOLMAR PB252.4 24,5CC 4T Engine Blower Spare Parts pag.4
82 125554-7 ROCKET ARM ASSY ER2550LH/EBH341U
83 256865-0 ROD 2,5 EBH252L
84 325668-4 SPRING RETAINER ER2650L/EBH252L
85 234108-0 COMPRESSION SPRING 9 EBH252L
86 256200-2 PIN 5 FOR 2704
87 326367-1 INTAKE VALVE EBH252L
88 326366-3 EXHAUST VALVE EBH252L
89 424200-2 SPACER EBH341U
90 125552-1 CAM GEAR EBH341U
91 268238-5 PIN 5 EBH341U
92 268239-3 PIN 4 EBH341U
93 313169-4 CAM LIFTER EBH341U
DOLMAR PB252.4 24,5CC 4T Engine Blower Spare Parts pag.5
94 125917-7 STARTER COVER ASSY BHX2501
95 168483-1 STARTER PULLEY EBH252L
96 266585-8 TAPPING SCREW M5X12 ER2650LH EBH252L
97 325923-4 SWING ARM ER2650/ER2550/CS246 EBH252L
98 451938-6 COLLAR ER2650LH/ER2550/EY2650 EBH252L
99 451937-8 REEL ER2550/BHX2501/ER2650LH
100 232258-5 SPRIAL SPRING EBH252L
101 424319-7 STARTER KNOB EBH252L
102 444019-3 STARTER ROPE ER2550/BHX2501
104 911526-6 SCREW M4 X 14 X HR2420
DOLMAR PB252.4 24,5CC 4T Engine Blower Spare Parts pag.6
105 324961-3 INTAKE PIPE ER2550/EBH253L EBH252L
106 413120-5 NSULATOR GASKET ER2550/EBH25
107 213078-6 O-RING 10 ER2550/EBH253/EM2511
108 125916-9 INSULATOR ASSY BHX2501
109 325934-9 ADJUST SCREW M6X16 EPH1000/EM2501
110 922228-9 HEX BOLT M5X18 DUR188L EBH341U
111 413138-6 CARBURETOR GASKET EBH341U EBH341
112 922213-2 HEX BOLT M5X12 BHX2501/EBH253 EBH341U
113 168641-9 CARBURETOR X BHX2501
114 140808-1 BODY PUMP ASSY BHX2501
115 352010-6 INLET SCREEN ER2650LH/BHX250 EBH252L
116 442154-1 DIAPHRAGM GASKET EBH341U P07
117 168620-7 METERING DIAPHRAGM GASKET BHX2501
118 140438-8 CAM GEAR COVER GASKET ER2650L EBH341U
119 424314-7 PRIMER PUMP ER2650LH/BHX2501 EBH341
120 346270-0 PRIMER PUMP COVER ER265/EM2511 EBH341U
121 266582-4 TAPPING SREW M3X24 ER2550/ EBH341U
122 266581-6 PAN HD SCREW M3X8 ER2650LH/EBH341U
123 325922-6 SWIVEL ER2650LH/341U/BHX2501 EBH341U
124 413140-9 WASHER EBH341U
125 257964-1 STOP RING E-3 ER2650LH/BHX250 EBH341U
126 234183-6 CONICAL COMP SPRING 65-9 EBH341U
127 213538-8 O RING 2 ER2650LH/EBH253L/ EBH341U
128 326027-5 JET X BHX2501
129 442155-9 PUMP GASKET ER2650LH/BHX2501 EBH341U
130 WJ00009599 PUMP DIAPHRAGM ER2650LH/ DCS230T
DOLMAR PB252.4 24,5CC 4T Engine Blower Spare Parts pag.7
131 345918-1 HOSE CLAMP ER2550/2650/EM2511 EBH341U
132 422041-0 BREATHER PIPE ER2550/BHX2501 EBH252L
133 422070-3 PIPE BHX2501
134 125468-0 CLEANER PLATE ASS ER2550 EBH341U
135 451925-5 CHOKE LEVER EBH341U
136 213540-1 O RING 15 ER2550/BHX2501/ EBH341U
137 140814-6 AIR CLEANER PLATE COMP ER2550 BHX2501
138 424316-3 CHECK VALVE EBH341U
139 213539-6 O RING 14 ER2550/EBH341/EM2511 EBH341U
140 451924-7 CHECK VALVE PLATE
141 424315-5 CHECK VALVE ER2550/EBH251L/EBH341U
142 168577-2 SEPARATOR GASKET ER2550/EBH341U
143 168576-4 SEPARATOR PLATE ER2550/EBH253 EBH341U
144 443140-5 AIR CLEANER ELEMENT ER2550 EBH341U
145 443141-3 AIR CLEANER ELEMENT ER2550 EBH341U
146 450561-4 AIR CLEANER COVER ER2550/EBH EBH341U
147 911218-7 PAN HD SCREW M5X14 BHX2501
148 265188-5 PAN HD SCREW M5X68 BHX2501/E EBH341U
149 345919-9 PLATE EBH341U
150 423376-2 GASKET ER2550/341U/BHX2501 EBH341U
151 450560-6 CHOKE PLATE EBH341U
DOLMAR PB252.4 24,5CC 4T Engine Blower Spare Parts pag.8
152 266440-4 HEX SOCKET HD BOLT M5X40 EBH341U
153 168643-5 MUFFLER EXHAUST BHX2500/BHX2501
154 324980-9 SPARK ARRESTER ER2550/EBH253L EBH341U
155 168593-4 MUFFLER GASKET X BHX2501
DOLMAR PB252.4 24,5CC 4T Engine Blower Spare Parts pag.9
156 638709-0 LEAD WIRE 1 BHX2501
157 632F45-2 LEAD WIRE 2 BHX2501
158 424105-6 PLUG CAP ER2550/341U/BHX2501 EBH252L
159 324891-8 PLUG CAP SPRING ER2650LH/BHX2 EBH341
160 168816-0 IGNITION COIL EBH341U
161 922138-0 HS H BOLT M4X20 BHX2501/EBH34
162 265577-4 HEX HD BOLT M6X16 EBH/BHX2501 EBH341U
163 318702-7 FLYWHEEL X BHX2501
DOLMAR PB252.4 24,5CC 4T Engine Blower Spare Parts pag.10
164 140352-8 CLAMP HOSE BHX2501
165 451752-0 NOZZLE BHX2501
166 451752-0 NOZZLE BHX2501
168 6609512200 SECOND NOZZLE BLOWER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Dolmar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Dolmar PB252.4
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Dolmar PB252.4 Drawing

Dolmar PB252.4 Drawing

Download (1014KB)

Tech Info CT30-2

Tech Info CT30-2

Download (320.18KB)

You might also like

Broom Adjustable for Leaves Hit 118149
HIT Professional Tools SKU: 118149
Broom Adjustable for Leaves Hit 118149
Broom Adjustable for Leaves Hit 118149 Broom Adjustable for Leaves with fixed handle  Product Code: 118149 EAN: 8010623181491 Regulatory purposes with fixed handle
Last items in stock €13.08
Details
Blue Glove Sleeve sz 10
NT Safety SRL SKU: Nitrile Manichetta 10
Heavy Nitril Gloves sz 10
Heavy Nitril Gloves sz 10 Cotton lining - Resistant to cuts, acids and abrasion - EN 388 - With hose - Class 1 - Protection against detrimental actions of minor - Back and fully coated knit wrist - Color: white/blue - Excellent...
AVAILABLE €3.52
Details
Heavy Nitril Gloves with Knitted Cuff sz 10
NT Safety SRL SKU: DES97688
Heavy Nitril Gloves sz 10
Heavy Nitril Gloves sz 10 Cotton lining - Resistant to cuts, acids and abrasion - EN 388 - With hose - Class 1 - Protection against detrimental actions of minor Glove jersey fabric impregnated with NBR - Back and fully coated knit...
AVAILABLE €3.52
Details
NBR Coated Gloves Yellow Size 8
Axel Group SKU: NBR Tg 8
NBR Coated Gloves Yellow Size 8
NBR Coated Gloves Yellow Size 8   Cotton canvas glove coated latex Cut-resistant interior supported in jersey, Ventilated back Wrist in Color: yellow/beige
AVAILABLE €2.22
Details
NBR Coated Gloves Yellow Size 9
Capaldo s.p.a SKU: NBR Tg 9
NBR Coated Gloves Yellow Size 9
NBR Coated Gloves Yellow Size 9 Cotton canvas glove coated latex Cut-resistant interior supported in jersey, Ventilated back Wrist in Color: yellow / beige
AVAILABLE €2.22
Details
Leather Gloves White Flower Sz. 8
Seba s.r.l. SKU: Guanti Pelle Tg. 8
Leather Gloves Sz. 8
Leather Gloves Sz. 8 Protective gloves in bloom calf cuff edged with white. - Soft and durable, suitable for work with risk of injury. - Thickness from 0.9 to 1.1 - Color White - Internal elastic wristbands - edged - Category 2...
AVAILABLE €6.91
Details
Blacks Polyurethane Gloves Sz 9
NT Safety SRL SKU: Poliuretano Tg 9
Blacks Polyurethane Gloves Sz 9
Blacks Polyurethane Gloves Size 9 Nitrile gloves and extra stretch nylon mesh, seamless. - Seamless - Breathable - 100% nylon - Palm impregnated NBR.
AVAILABLE €1.46
Details
Blacks Polyurethane Gloves Sz 10
NT Safety SRL SKU: Poliuretano Tg 10
Blacks Polyurethane Gloves Sz 10
Blacks Polyurethane Gloves Size 10 Gloves Polyurethane and Nylon mesh extra stretch - Seamless - Breathable. - 100% nylon glove - Polyurethane coated palm.
AVAILABLE €1.46
Details
Safety Work Gloves Grip-Flex Size 10
Axel Group SKU: DES98901
Safety Work Gloves Grip-Flex Size 10
Safety Work Gloves Grip-Flex Size 10 Work gloves are an important personal protection device to protect hands from various types of risks: mechanical risks, electrical risks, chemical and microbiological risks, risks from cold, risks...
AVAILABLE €2.91
Details
Adjustable Lawn Rake Without Handle
Capaldo s.p.a SKU: DE83595
Adjustable Lawn Rake Without Handle
Adjustable Lawn Rake Without Handle Adjustable lawn rake, with opening adjustment teeth, clamp connection. - Supplied without handle - Weight 0.500 kg
AVAILABLE €8.54
Details
Cleaner Plate Assy for Petrol Blower Makita BHX2500
Makita SKU: 125468-0
Cleaner Plate Assy for Petrol Blower Makita BHX2500
Cleaner Plate Assy for Petrol Blower Makita BHX2500 Original replacement part Makita, Cleaner Plate Assy for Petrol Blower BHX2500 - BHX2501 - Dolmar PB250.4 - PB252.4. Part for...
on 10 Business Days Approx €21.00
Details
Ignition Coil for Blower Dolmar PB7600.4
Makita SKU: 161837-1
Ignition Coil for Blower Dolmar PB7600.4
Ignition Coil for Blower Dolmar PB7600.4 Original replacement part Dolmar, Ignition Coil for Blowers 75,6CC 4T - PB7600.4 -  PB7650.4 - Makita BBX7600. Part for the following products:...
Last items in stock €33.85
Details
Cover-Metering Diaphragm for Chainsaw Makita DCS230T
Makita SKU: WJ00021158
Cover-Metering Diaphragm for Chainsaw Makita DCS230T
Cover-Metering Diaphragm for Chainsaw Makita DCS230T Genuine part Makita, Cover-Metering Diaphragm for Chainsaws DCS230T - DCS231T - DCS232T - Dolmar PS220TH - PS221TH - PS222TH. Part for the following products: -  DCS231T - CHAINSAW...
Last items in stock €3.04
Details
Cover Screw for Chainsaw Makita DCS230T
Makita SKU: WJ00096325
Cover Screw for Chainsaw Makita DCS230T
Cover-Metering Diaphragm Screw for Chainsaw Makita DCS230T Genuine part Makita, Cover-Metering Diaphragm Screw, for Chainsaws DCS230T - DCS231T - DCS232T - Dolmar PS220TH - PS221TH - PS222TH. Part for the following products: -...
Last items in stock €2.59
Details
Head Ass'y for Blower Dolmar PB7600.4
Makita SKU: 126943-9
Head Ass'y for Blower Dolmar PB7600.4
Head Ass'y for Blower Dolmar PB7600.4 Original replacement part Dolmar, Head Ass'y for Blowers 75,6CC 4T - PB7600.4 -  PB7650.4 - Makita BBX7600. Part for the following products: -  PB7600.4 - BLOWER 75,6CC 4T DOLMAR -  BBX7600 -...
Last items in stock €153.26
Details
Muffler Gasket for Blower Dolmar PB7650.4
Makita SKU: 346772-6
Muffler Gasket for Blower Dolmar PB7650.4
Muffler Gasket for Blower Dolmar PB7650.4 Genuine part Dolmar, Muffler Gasket for Blower 75,6CC DOLMAR PB7650.4. Part for the following products: - EB7650TH - BLOWER 75,6CC 4T MAKITA -  PB7650.4 - BLOWER 75,6CC DOLMAR - Code : 346772-6
Last items in stock €4.56
Details
Dolmar Blower PB252.4 Piston Set
Makita SKU: 197453-3
Dolmar Blower PB252.4 Piston Set
Dolmar Blower PB252.4 Piston Set Genuine replacement part Dolmar, Piston Set for Blower 4T PB252.4. Part for the following products: - PB252.4 - BLOWER 24,5CC 4T DOLMAR - EY2650H25H - POLE SAW 4T 25,4CC - Code :...
Last items in stock €21.97
Details
Makita EBH341U Gasket
Makita SKU: 442155-9
Makita EBH341U Pump Gasket
Makita Gasket for Brushcutter EBH341U Genuine spare part Makita, Pump Gasket for Brushcutters EBH341U - DBC260L - MS350.4C - EX2650LHRH. Part for the following products: - MS350.4C – 34CC-4T BRUSHCUTTER DOLMAR - PB7650.4...
Last items in stock €4.06
Details
Makita BHX2500 Throttle Cable
Makita SKU: 168518-8
Makita BHX2500 Throttle Cable
Makita Throttle Cable for Petrol Blower BHX2500 Genuine parts Makita, Throttle Cable for Petrol Blower BHX2500 - BHX2501 - PB252.4. Part for the following Items: - Makita Petrol Blower BHX2500 - Makita Petrol Blower BHX2501 -...
Last items in stock €8.79
Details
Comments (0)
