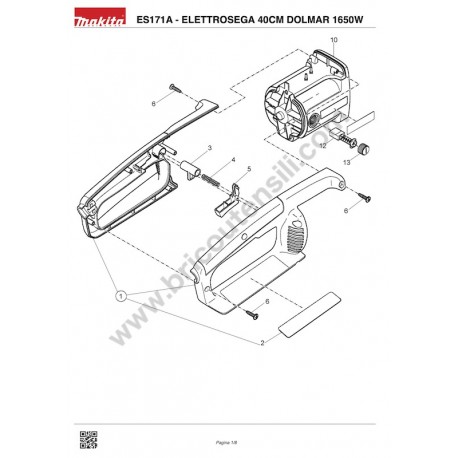

  • Dolmar Spare Parts for Electric Chainsaw ES171A - Drawing 1
  • Dolmar Spare Parts for Electric Chainsaw ES171A - Drawing 2
  • Dolmar Spare Parts for Electric Chainsaw ES171A - Drawing 3
Makita

Dolmar Spare Parts for Electric Chainsaw ES171A

SKU: Dolmar ES171A Condition: New
€21.81
VAT included

Dolmar Spare Parts for Electric Chainsaw ES171A

Dolmar service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Electric Chainsaw ES171A 1650W 40CM DOLMAR.
settings 60 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
57 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

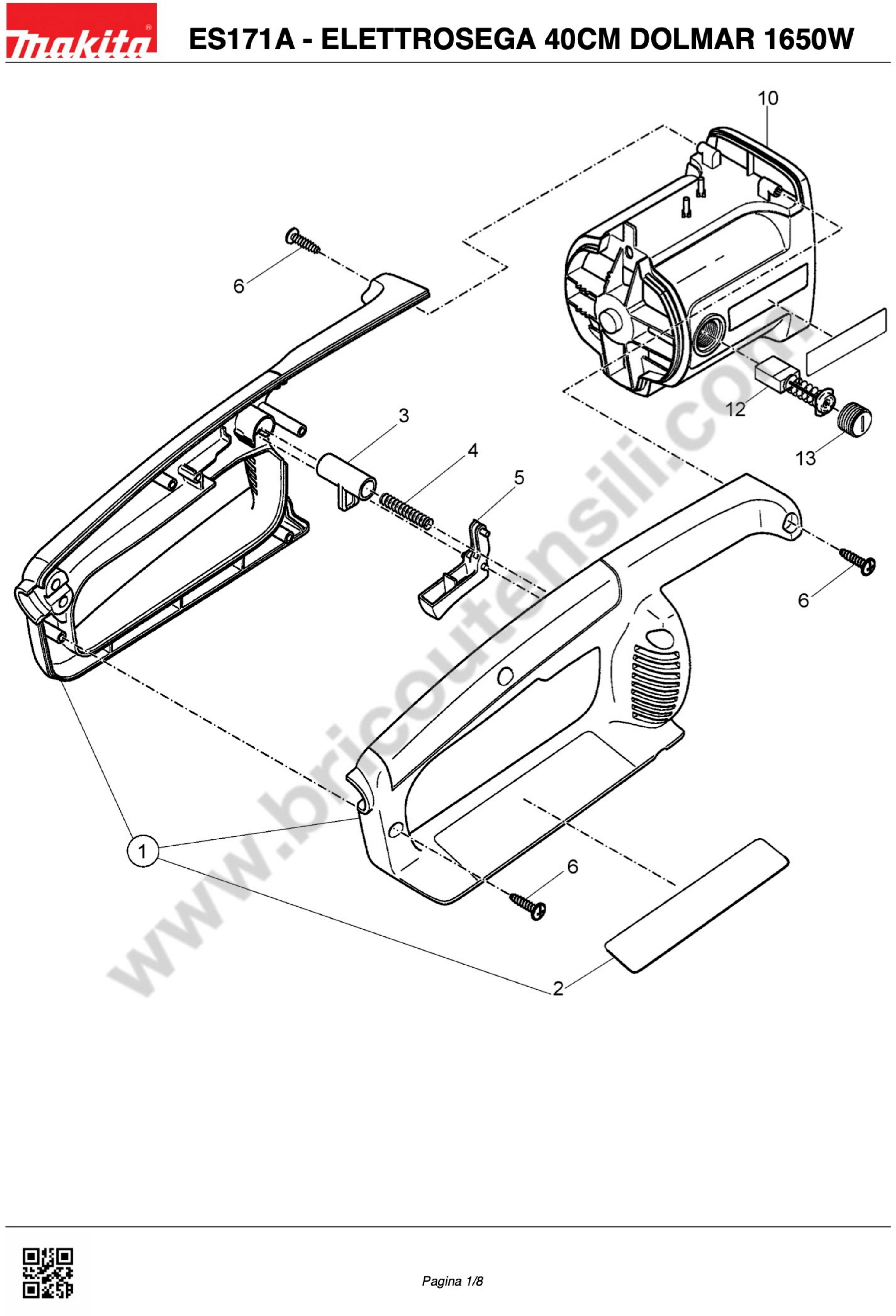

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 225310110 HANDLE COMPLETE ES-151 €19.03
2
 photo_cameraImage coming soon 980114181 ES-31A LABEL €3.84
3
 photo_cameraImage coming soon 416178-3 RESET BUTTON X UC3020A €1.47
4
 photo_cameraImage coming soon 233173-6 SPRING FOR COMPR.4 UC3020A €1.47
6
 photo_cameraImage coming soon 913540185 SCREW 4X18 UC3000-3500-4000A €1.42
10
 photo_cameraImage coming soon 225111110 MOTOR CASE ES-151 €12.95
12
 Carbon Brushes CB-303 for Belt Sander Makita 9920X 191963-2 Carbon Brushes CB-303 for Belt Sander Makita 9920X €9.96
13
 photo_cameraImage coming soon 643755-0 CAP BRUSH HOLDER X UB1101 €2.14
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

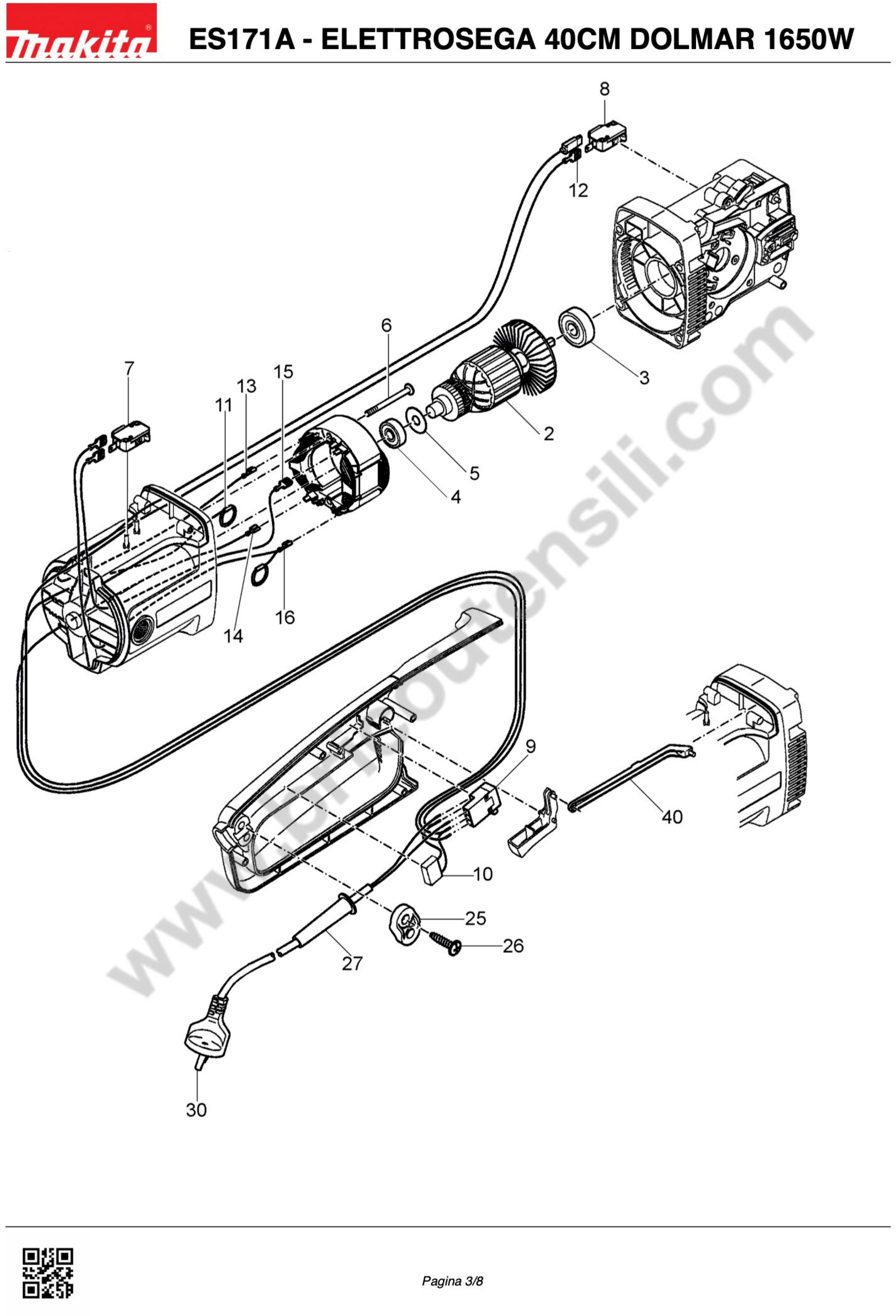

Esploso pagina 2
Pos. Item Price Buy
3
 photo_cameraImage coming soon 211111-8 BEARING 6301 X UC €5.67
4
 photo_cameraImage coming soon 211057-8 BEARING 629 X UC €4.89
5
 photo_cameraImage coming soon 970802610 SPACER X UC3000-3500-40 €1.43
6
 photo_cameraImage coming soon 913550555 SCREW 5X55 UC3000-3500-4000A €1.42
7
 photo_cameraImage coming soon 970001180 SWITCH DES380 €10.13
8
 Micro Switch for Electric Chainsaws Makita UC3000A - UC3500A 970001200 Micro Switch for Electric Chainsaws Makita UC3000A - UC3500A €5.18 Not available for order
9
 Switch TG70B for Electric Chainsaws Makita UC3530A - UC4030A 651923-1 Switch TG70B for Electric Chainsaws Makita UC3530A - UC4030A €14.89
10
 photo_cameraImage coming soon 970109810 CAPACITOR XUC3000-3500-4000 €2.75
11
 photo_cameraImage coming soon 632681-8 CABLE (ORANGE) XUC3000-3500 €2.14
14
 photo_cameraImage coming soon 970311330 CABLE (YELLOW) X UC3000-3500 €1.43
15
 photo_cameraImage coming soon 632685-0 POWER CORD (PURPLE ) X UC3000-3500- €1.25
16
 photo_cameraImage coming soon 632686-8 CABLE BLACK / WHITE UC3000-3500 €2.75
27
 photo_cameraImage coming soon 682574-9 CABLE SLEEVE 10-90 PC5000C €1.47
30
 photo_cameraImage coming soon 970102110 COMPLETE CABLE X DES380 €19.17
40
 photo_cameraImage coming soon 416179-1 SWITCH ROD UC3000-3500-4000A €2.14
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

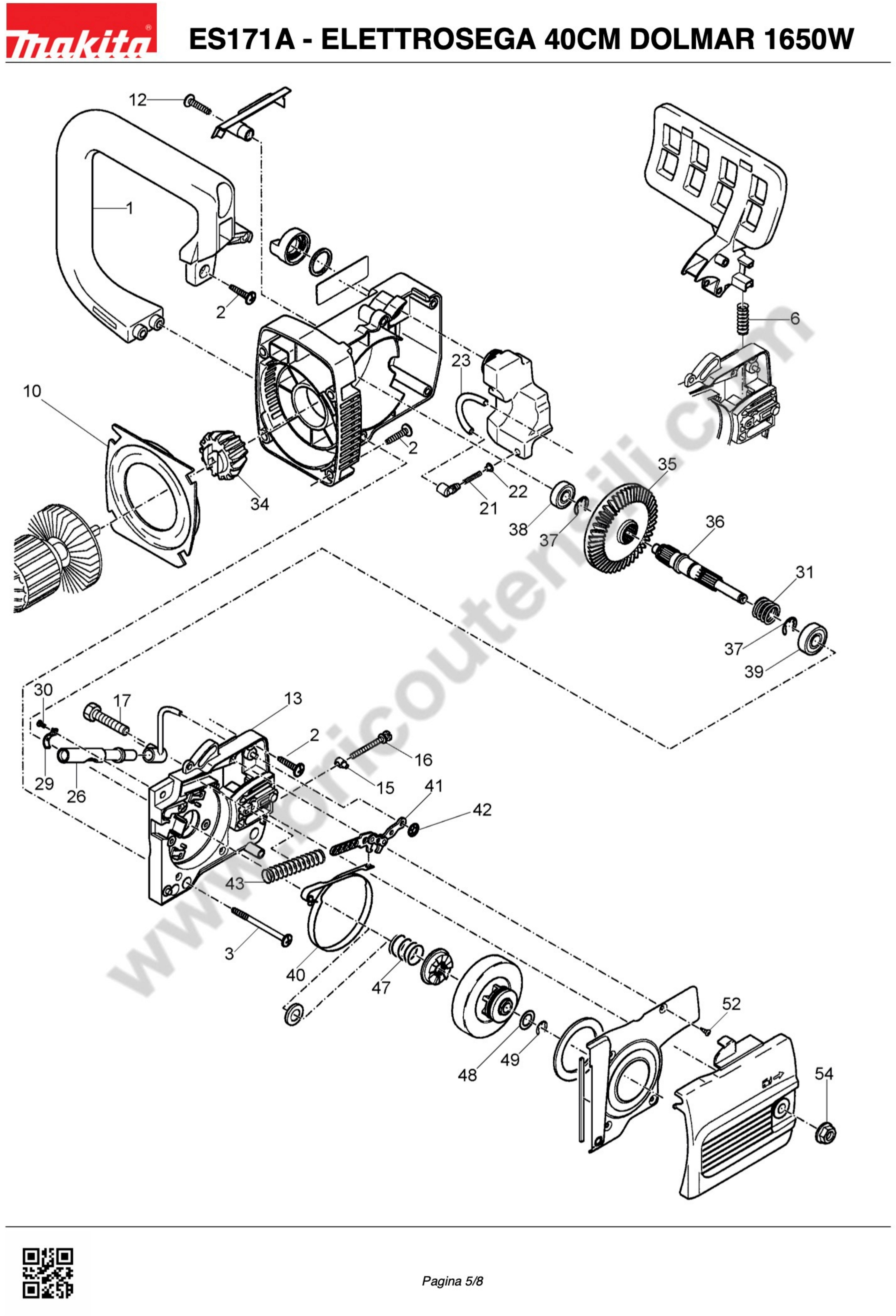

Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 416173-3 TUBULAR HANDLE UC3000-3500- €8.74
2
 photo_cameraImage coming soon 913550255 SCREW 5X25 X UC €1.43
6
 photo_cameraImage coming soon 233174-4 SPRING LOCK. X UC €1.54
10
 photo_cameraImage coming soon 225118010 GUIDE PLATE X UC €1.86
13
 photo_cameraImage coming soon 316875-0 GEAR HOUSING €19.42
15
 photo_cameraImage coming soon 001213042 PIN TENSIONER X PS 34 €5.13
16
 photo_cameraImage coming soon 901505354 SCREW M5X35 X UC €1.40
17
 photo_cameraImage coming soon 921452-1 BOLT 8X30 €1.58
21
 photo_cameraImage coming soon 231975-4 SPRING TUBE OIL X DCS230T €1.47
22
 photo_cameraImage coming soon 416274-7 PLUG OIL PIPE X DCS230T €1.47
23
 photo_cameraImage coming soon 965452382 FUEL TUBE 1mt Diam. 3/5 €12.56
26
 Oil Pump for Electric Chainsaw Makita UC3500A 021245007 Oil Pump for Electric Chainsaw Makita UC3500A €38.40
29
 photo_cameraImage coming soon 203245002 HOLDER OIL PUMP X DES €2.78
30
 photo_cameraImage coming soon 266150-3 SCREW 3.5 X 9.5 €1.40
31
 photo_cameraImage coming soon 021245040 WORM €2.37
34
 photo_cameraImage coming soon 226743-8 PINION UC3000-3500-4000A €4.89
35
 photo_cameraImage coming soon 226741-2 CPL GEARGE UC €4.24
37
 photo_cameraImage coming soon 259034-2 SAFETY WASHER X UC €1.54
38
 photo_cameraImage coming soon 960101084 BEARING 608Z X UC €5.25
39
 photo_cameraImage coming soon 211107-9 BEARING 6201 €9.40
40
 photo_cameraImage coming soon 225213050 BRAKE SPRING X UC €4.53
41
 photo_cameraImage coming soon 158044-5 RETAINING SPRING BRAKE X UC €6.61
42
 photo_cameraImage coming soon 259032-6 CLAMP WASHER X UC €1.25
43
 photo_cameraImage coming soon 028213521 SPRING X UC3000-3500-4000A €1.40
47
 photo_cameraImage coming soon 225184012 PRESSURE SPRING UC3000-3500 €1.25
48
 Flat Washer 8 for Rotary Hammer Makita HR4003C 253215-0 Flat Washer 8 for Rotary Hammer Makita HR4003C €1.41
49
 photo_cameraImage coming soon 259033-4 LOCKWASHER X UC €1.47
52
 photo_cameraImage coming soon 266149-8 SCREW 3,5X9,5 UC €1.25
54
 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 264055-1 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 €1.48
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

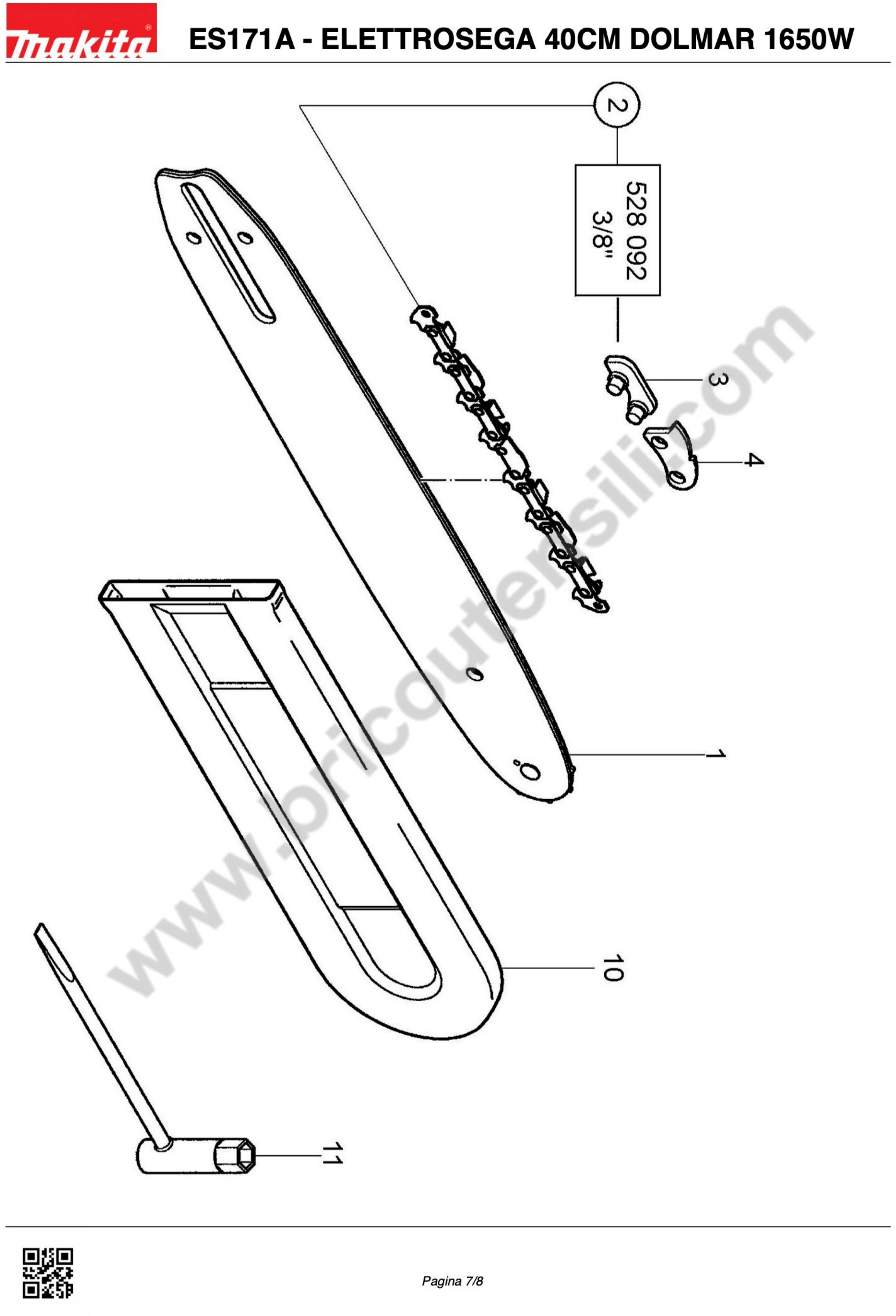

Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 165428-0 CHAIN BAR 40 CM €23.78
2
 photo_cameraImage coming soon 511492756 CHAINLOOP 3/8"-56 LINK sp.1,3 .0.50 €22.86
3
 photo_cameraImage coming soon 558092010 TIE STRAP WITH RIVETS 3/8" .050" €1.61
10
 photo_cameraImage coming soon 952010140 CHAIN PROTECTION 40 cm €6.17
11
 photo_cameraImage coming soon 941713001 UNIVERSAL KEY X DES380 €4.23

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Dolmar Spare Parts for Electric Chainsaw ES171A

Dolmar service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Electric Chainsaw ES171A 1650W 40CM DOLMAR.

In the following table, look for the model of the Electric Chainsaw and the respective parts of the code.
Electric Chainsaw ES171A

ES171A - ELECTRIC SAW 40CM DOLMAR 1650W pag.1
# Part Num. Description
1 225310110 HANDLE COMPLETE ES-151
2 980114181 LABEL ES-31A
3 416178-3 LOCK-OFF BUTTON X UC3020A
4 233173-6 COMPRESSION SPRING 4 UC3020A
6 913540185 SCREW 4X18 UC3000-3500-4000A
10 225111110 MOTOR CASE ES-151
12 191963-2 CARBON BRUSH SET CB-303
13 643755-0 BRUSH HOLDER CAP X UB1101
ES171A - ELECTRIC SAW 40CM DOLMAR 1650W pag.2
2 616733-3 ARMATURE X UC3000-3500-4000A
3 211111-8 BALL BEARING 6301 X UC
4 211057-8 BALL BEARING 629 X UC
5 970802610 DISTANCE PIECE UC3000-3500-40
6 913550555 SCREW 5X55 UC3000-3500-4000A
7 970001180 SWITCH X DES380
8 970001200 SWITCH X UC3000-3500-4000A
9 651923-1 SWITCH TG70B X 5903R
10 970109810 CAPACITOR XUC3000-3500-4000
11 632681-8 POWER CORD (ORANGE) XUC3000-3500-
14 970311330 POWER CORD (YELLOW) X UC3000-3500-
15 632685-0 POWER CORD (PURPLE ) X UC3000-3500-
16 632686-8 BLACK/WHITE CORD UC3000-3500 -
26 913540185 SCREW 4X18 UC3000-3500-4000A
27 682574-9 CORD ARMOR 10-90 PC5000C
30 970102110 CORD ASSEMBLY X DES380
40 416179-1 SWITCH ROD UC3000-3500-4000A
ES171A - ELECTRIC SAW 40CM DOLMAR 1650W pag.3
1 416173-3 TUBULAR HANDLE UC3000-3500-
2 913550255 SCREW 5X25 X UC
3 913550555 SCREW 5X55 UC3000-3500-4000A
6 233174-4 COMPRESSION SPRING 6 UC
10 225118010 AIR GUIDE PLATE UC
12 913540185 SCREW 4X18 UC3000-3500-4000A
13 316875-0 GEAR HOUSING BLACK RH
15 001213042 NUT WITH PIVOT PS 34
16 901505354 SCREW M5X35 X UC
17 921452-1 HEX BOLT 8X30
21 231975-4 OIL PIPE SPRING X DCS230T
22 416274-7 OIL PIPE CAP X DCS230T
23 965452382 FUEL LINE 1mt Diam.3/5,5
26 021245007 METAL OIL PUMP - CT10-2
29 203245002 OIL PUMP HOLDER DES
30 266150-3 SCREW 3.5 X 9.5
31 021245040 WORM SCREW
34 226743-8 STRAIGHT BEVEL GEAR 14 UC3000-3500-4000A
35 226741-2 STRAIGHT BEVEL GEAR 43 CPL X UC
36 225221030 SHAFT X UC3000-3500-4000A - DISCONTINUED
37 259034-2 RETAINING RING E TYPE 10 X UC
38 960101084 BALL BEARING 608Z X UC
39 211107-9 BALL BEARING 6201 X 9524NB
40 225213050 BRAKE SPRING X UC
41 158044-5 LINK PLATE COMPLETE X UC
42 259032-6 CLAMP WASHER X UC
43 028213521 SPRING X UC3000-3500-4000A
47 225184012 PRESSURE SPRING UC3000-3500-
48 253215-0 THIN WASHER 8 6510PBL/LVR
49 259033-4 RETAINING RING E TYPE 6 X UC
52 266149-8 SCREW 3,5X9,5 UC
54 264055-1 NUT M8
ES171A - ELECTRIC SAW 40CM DOLMAR 1650W pag.4
1 165428-0 SPROCKET NOSE BAR 40CM 3/8" ES42A
2 511492756 EXTRA GUARD SAW CHAAIN 16" 40 CM LINK 56 CHAIN
3 558092010 TIE STRIP WITH RIVETS
4 558092000 SAFETY LINK
10 952010140 CHIAN PROTECTION COVER 12/14 ES31A
11 941713001 UNIVERSAL WRENCH SW13 X DES380
