Makita

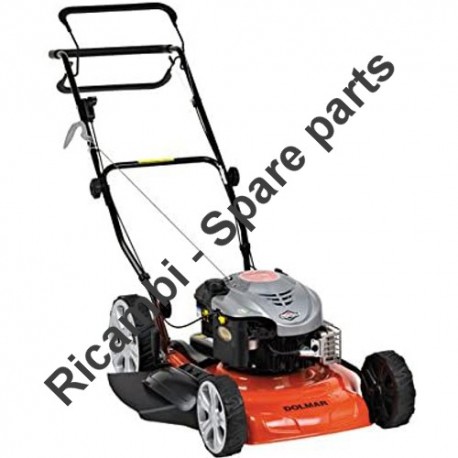

Dolmar Spare Parts for Lawn Mower PM5120S

SKU: Dolmar PM5120S
€8.23
VAT included

Dolmar Spare Parts for Lawn Mower PM5120S

We are DOLMAR original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawn Mower PM5120S.
Dolmar Spare Parts for Lawn Mower PM5120S
  • Dolmar Spare Parts for Lawn Mower PM5120S
  • Dolmar Spare Parts for Lawn Mower PM5120S - Diagram
Makita

Dolmar Spare Parts for Lawn Mower PM5120S

SKU: Dolmar PM5120S Condition: New
€8.23
VAT included

Dolmar Spare Parts for Lawn Mower PM5120S

We are DOLMAR original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawn Mower PM5120S.
settings 84 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
84 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

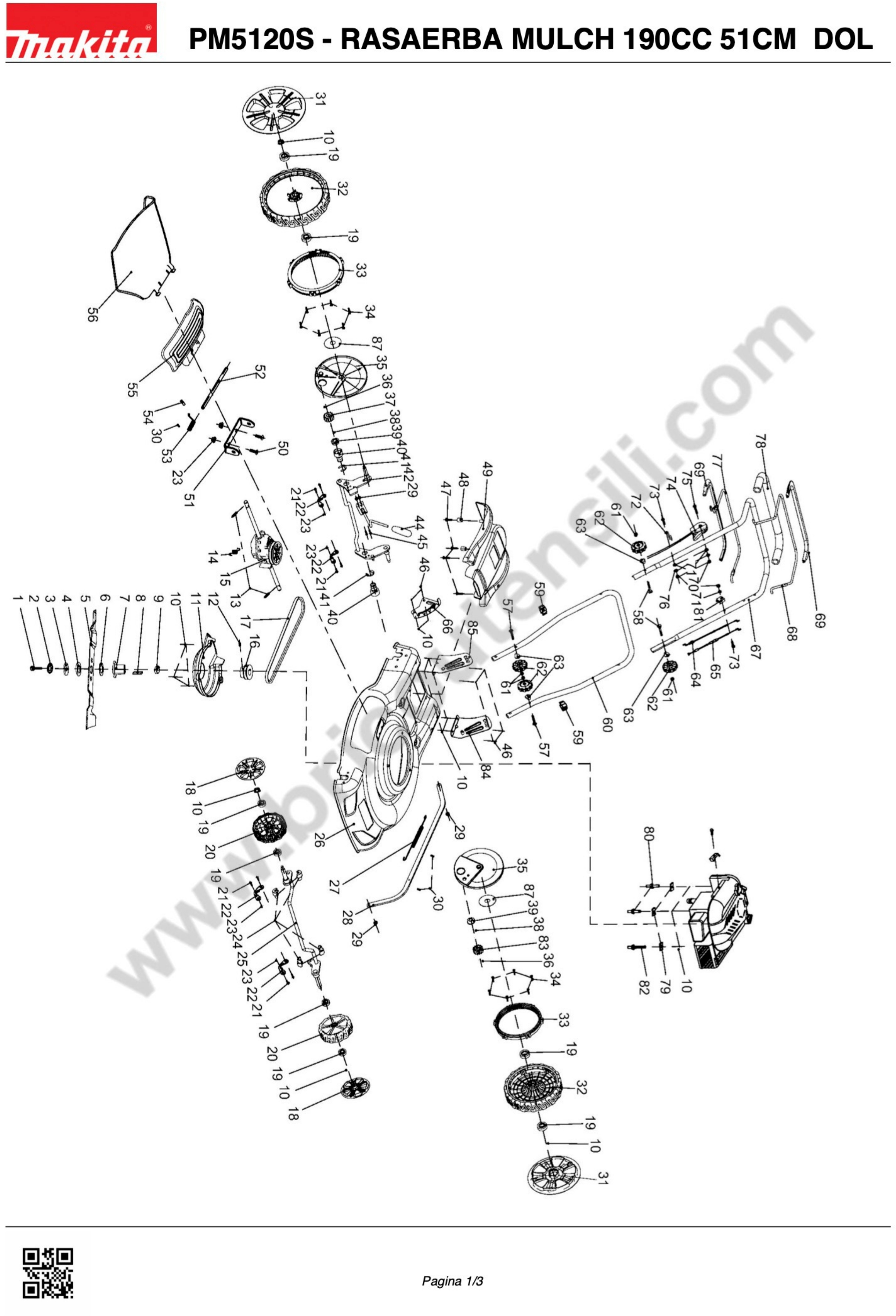

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 671006141 SCREW 3 / 8X55 PM5120-5120S €8.50
2
 photo_cameraImage coming soon 671010730 WASHER D.44,5 / 10,2X2,5 €3.22
3
 photo_cameraImage coming soon 671002050 WASHER PM5120-5120S €3.75
4
 photo_cameraImage coming soon DA00000531 LOWER WASHER PM5120S €2.08
5
 photo_cameraImage coming soon DA00000944 BLADE 510MM PM5120S €29.53
6
 photo_cameraImage coming soon 671160010 UPPER WASHER PM5120S €1.79
7
 Blade Boss for Lawnmower Dolmar PM5120S 671002049 Blade Boss for Lawnmower Dolmar PM5120S €33.09
8
 photo_cameraImage coming soon 671090002 WOODRUF PLM4110-4610-4611 €2.08
9
 photo_cameraImage coming soon 671319001 WASHER 12 PM5120-5120S €2.69
10
 photo_cameraImage coming soon 671005028 HEXAGONAL LOCKINGPLM €2.15
11
 photo_cameraImage coming soon 671688001 BELT COVER PM5120S-5120 €14.08
12
 photo_cameraImage coming soon 671030050 SCREW M6X8 PM5120-5120S €1.79
13
 photo_cameraImage coming soon DA00000597 PIN €1.44
14
 photo_cameraImage coming soon 671011173 RETURN SPRING PM5120-S €5.13
15
 photo_cameraImage coming soon 671502015 TRACTION GROUP PM5120-5120S €139.89
16
 photo_cameraImage coming soon 671004016 PULLEY PM5120-5120S €20.58
17
 photo_cameraImage coming soon 671020380 BELT 813MM PM5120-5120S €18.98
18
 photo_cameraImage coming soon 671001177 COVER HUB 200 ELM4110 €11.40
19
 photo_cameraImage coming soon 671004012 BEARING 6201Z ELM4110 €13.07
20
 photo_cameraImage coming soon 671020160 WHEEL 200 PLM4110-4610-4611 €29.13
21
 photo_cameraImage coming soon 671002019 TRIGGER BOLTPLM €2.21
22
 photo_cameraImage coming soon 671001244 ELM4110 PLATE €2.15
23
 photo_cameraImage coming soon 671005024 HEXAGONAL LOCKINGPLM €2.15
24
 photo_cameraImage coming soon 671353001 SLEEVE €2.62
25
 photo_cameraImage coming soon 671001811 FRONT AXLE PM5120S €56.02
26
 photo_cameraImage coming soon 671001602 RED DECK PM5120-5120S €139.89
27
 photo_cameraImage coming soon 671011039 SPRING PM5120S €6.41
28
 photo_cameraImage coming soon 671001813 CONNECTION BAR PM5120S €21.54
29
 photo_cameraImage coming soon 671005005 LOCKING NUTPLM €2.15
31
 photo_cameraImage coming soon 671001322 COVER HUB PM5100S3 €14.76
32
 photo_cameraImage coming soon 671002021 REAR WHEEL PM5100S3 €51.67
33
 Gear for Lawnmover Makita PLM5113 671200010 Gear for Lawnmover Makita PLM5113 €22.41
34
 photo_cameraImage coming soon 671001005 SELF-TAPPING SCREWELM €2.15
35
 photo_cameraImage coming soon 671180010 DUST SEAL PM5120-5120S €9.36
36
 photo_cameraImage coming soon 671090020 WASHER PLM4110-4610-4611 €2.06
37
 photo_cameraImage coming soon DA00001091 PINION DX PLM4611 €12.63
38
 photo_cameraImage coming soon 671007059 WASHER 12.8 PM5120-5120S €1.40
39
 photo_cameraImage coming soon DA00001029 CUSHION FOR ELM4611 €5.28
40
 photo_cameraImage coming soon 671002035 BEARING BOX PM5120-S €13.39
41
 photo_cameraImage coming soon 671009003 WASHER D.19X1.5 PLM4611 €2.06
42
 photo_cameraImage coming soon 671001812 REAR AXLE PM5120-5120S €85.14
44
 photo_cameraImage coming soon 671010450 KNOB PM5120-5120S €9.36
45
 photo_cameraImage coming soon 671002030 SCREW PM5100S3 €2.14
46
 photo_cameraImage coming soon 671006064 HEXAGON HEAD BOLTPLM €2.15
47
 photo_cameraImage coming soon 671001046 SCREW M8X19 PM5120-5120S €1.79
48
 photo_cameraImage coming soon 671314001 SLEEVE PM5120-5120S €2.08
49
 photo_cameraImage coming soon 671689001 TRACTION GROUP COVER €40.40
50
 photo_cameraImage coming soon 671002020 SCREW M6X16 €1.79
51
 photo_cameraImage coming soon 671002233 PLATE PM5120S €3.26
52
 photo_cameraImage coming soon 671010300 PIN PM5120S €2.67
53
 photo_cameraImage coming soon 671011135 SPRING 2.8 PM5120S €2.67
54
 photo_cameraImage coming soon 671003003 TUBE DIAM.6MM PM5120S €1.79
55
 photo_cameraImage coming soon 671497001 SIDE COVER PM5120S €16.05
56
 photo_cameraImage coming soon 671254600 PROTECTION COVER PM5120S €20.58
57
 photo_cameraImage coming soon 671006091 SCREW M8X40 PM5120-5120S €1.79
58
 photo_cameraImage coming soon 671006004 FLAT HEAD BOLTPLM €2.77
59
 photo_cameraImage coming soon 671611001 CABLE SUPPORT €2.14
60
 photo_cameraImage coming soon DA00000951 LOWER HANDLE PM5120-5120S €50.21
61
 photo_cameraImage coming soon 671005023 HEXAGONAL NUT €2.06
62
 photo_cameraImage coming soon 671530010 PLM5600 KNOB €3.11
63
 Dolmar Gasket for Lawnmower PM5120SR DA00000924 Dolmar Gasket for Lawnmower PM5120SR €1.50
64
 photo_cameraImage coming soon 671012160 MOTOR BRAKE CABLE PM5120-5120S €37.90
65
 photo_cameraImage coming soon DA00000952 TENSION CABLE PM5120-5120S €44.84
66
 photo_cameraImage coming soon 671001710 GRADUATED SCALE PM5120-5120S €12.69
67
 photo_cameraImage coming soon 671001814 UPPER HANDLE PM5120-5120S €61.62
68
 photo_cameraImage coming soon 671001816 PM5120-5120S ENGINE BRAKE LEVER €16.05
69
 photo_cameraImage coming soon 671687001 HANDLE PM5120-5120S €2.69
70
 photo_cameraImage coming soon DA00000575 NUT M6 €1.64
71
 photo_cameraImage coming soon 671007008 WASHER PLM4110-4610-4611 €2.06
72
 photo_cameraImage coming soon 671001647 CABLE HOOK PM5100S3 €5.09
73
 photo_cameraImage coming soon 671006077 SCREW M6X35 PM5120-5120S €1.39
74
 photo_cameraImage coming soon 671010620 THROTTLE LEVER PM5120S-5120 €34.15
75
 photo_cameraImage coming soon 671006059 SCREW M6x50 PLM4110-4610-4611 €2.14
76
 photo_cameraImage coming soon 671008003 WASHER PLM4110-4610-4611 €2.06
77
 photo_cameraImage coming soon 671001817 LEVER PM5120-5120S €18.21
78
 photo_cameraImage coming soon 671101901 RUBBER HOSE PM5120-5120S €9.36
79
 photo_cameraImage coming soon 671002106 GASKET PM5120-5120S €1.95
80
 photo_cameraImage coming soon 671003044 SCREW M8X17X35 PLM4110-4610-11 €2.77
81
 photo_cameraImage coming soon 671336001 HOLDER PLM4110-4610-4611 €2.06
82
 photo_cameraImage coming soon 671003024 SCREW M8X60X17 PLM4110-4610-11 €7.79
83
 photo_cameraImage coming soon DA00001090 PINION SX PLM4110-4610-4611 €12.63
84
 photo_cameraImage coming soon 671001599 LEFT SUPPORT RED PM5120-5120S €20.58
85
 photo_cameraImage coming soon 671001600 RED DX SUPPORT PM5120-5120S €20.58
87
 photo_cameraImage coming soon 671007065 WASHER 20 PM5120-5120S €3.13

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Dolmar Spare Parts for Lawn Mower PM5120S

We are DOLMAR original spare parts Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawn Mower PM5120S.

In the following table, look for the model of the Lawn Mower and the respective parts of the code.

PM5120S MULCHING LAWNMOWER 190CC 51CM DOLMAR
# Part Num. Description
1 671006141 SCREW 3 / 8X55 PM5120-5120S
2 671010730 WASHER D.44.5 / 10.2X2.5
3 671002050 WASHER PM5120-5120S
4 DA00000531 LOWER WASHER PM5120S
5 DA00000944 BLADE 510MM PM5120S
6 671160010 UPPER WASHER PM5120S
7 671002049 BLADE BOSS PM5120-5120S
8 671090002 FLAT KEY PLM4110-4610-4611
9 671319001 WASHER 12 PM5120-5120S
10 671005028 NUT M8 ELM4110
11 671688001 BELT COVER PM5120S-5120
12 671030050 SCREW M6X8 PM5120-5120S
13 DA00000597 PIN
14 671011173 RETURN SPRING PM5120-S
15 671502015 TRACTION GROUP PM5120-5120S
16 671004016 PULLEY PM5120-5120S
17 671020380 BELT 813MM PM5120-5120S
18 671001177 HUB COVER 200 ELM4110
19 671004012 BALL BEARING 6201Z ELM4110
20 671020160 WHEEL 200 PLM4110-4610-4611
21 671002019 SCREW M6X12 ELM4110
22 671001244 PLATE ELM4110
23 671005024 NUT M6 ELM4110
24 671353001 SLEEVE
25 671001811 FRONT AXLE PM5120S
26 671001602 RED DECK PM5120-5120S
27 671011039 SPRING PM5120S
28 671001813 CONNECTION BAR PM5120S
29 671005005 NUT M6 ELM4110
30 671300101 TUBE 3mm.PM5120S
31 671001322 HUB COVER PM5100S3
32 671002021 REAR WHEEL PM5100S3
33 671200010 GEAR PM5120-5120S
34 671001005 SCREW M4X16 ELM3310-3710
35 671180010 DUST SEAL PM5120-5120S
36 671090020 WASHER PLM4110-4610-4611
37 DA00001091 RIGHT PINION PLM4611
38 671007059 WASHER 12.8 PM5120-5120S
39 DA00001029 BALL BEARING FOR ELM4611
40 671002035 BEARING BOX PM5120-S
41 671009003 WASHER D.19X1.5 PLM4611
42 671001812 REAR AXLE PM5120-5120S
44 671010450 KNOB PM5120-5120S
45 671002030 SCREW PM5100S3
46 671006064 SCREW M8X6 ELM4110
47 671001046 SCREW M8X19 PM5120-5120S
48 671314001 SLEEVE PM5120-5120S
49 671689001 TRACTION GROUP COVER
50 671002020 SCREW M6X16
51 671002233 PLATE PM5120S
52 671010300 PIN PM5120S
53 671011135 SPRING 2.8 PM5120S
54 671003003 TUBE DIAM.6MM PM5120S
55 671497001 SIDE COVER PM5120S
56 671254600 PROTECTION COVER PM5120S
57 671006091 SCREW M8X40 PM5120-5120S
58 671006004 SCREW M8X52
59 671611001 CABLE SUPPORT
60 DA00000951 LOWER HANDLE PM5120-5120S
61 671005023 NUT M8
62 671530010 KNOB PLM5600
63 DA00000924 GASKET
64 671012160 MOTOR BRAKE CABLE PM5120-5120S
65 DA00000952 TENSION CABLE PM5120-5120S
66 671001710 GRADUATED SCALE PM5120-5120S
67 671001814 UPPER HANDLE PM5120-5120S
68 671001816 PM5120-5120S ENGINE BRAKE LEVER
69 671687001 HANDLE PM5120-5120S
70 DA00000575 NUT M6
71 671007008 WASHER PLM4110-4610-4611
72 671001647 STOP PM5100S3
73 671006077 SCREW M6X35 PM5120-5120S
74 671010620 THROTTLE LEVER PM5120S-5120
75 671006059 SCREW M6X50 PLM4110-4610-4611
76 671008003 WASHER PLM4110-4610-4611
77 671001817 LEVER PM5120-5120S
78 671101901 RUBBER HOSE PM5120-5120S
79 671002106 GASKET PM5120-5120S
80 671003044 SCREW M8X17X35 PLM4110-4610-11
81 671336001 SUPPORT PLM4110-4610-4611
82 671003024 SCREW M8X60X17 PLM4110-4610-11
83 DA00001090 LEFT PINION PLM4110-4610-4611
84 671001599 LEFT SUPPORT RED PM5120-5120S
85 671001600 RED DX SUPPORT PM5120-5120S
87 671007065 WASHER 20 PM5120-5120S
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Dolmar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Dolmar PM5120S
10 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Dolmar PM5120S

Diagram Dolmar PM5120S

Download (326.05KB)

You might also like

Electric Lawn Mower Makita 1400W ELM3800 -10% Sale
Makita SKU: ELM3800
Electric Lawn Mower Makita 1400W ELM3800
Electric Lawn Mower Makita 1400W ELM3800 Features: - Innovative Makita Design. - Polypropylene shell with UV and weather resistance. - Easy drainage of the picking basket provided already assembled. - Integrated transport handle. -...
Out-of-Stock €172.32 €191.47
Details
Blade Hub for Lawnmover Makita PLM5113
Makita SKU: 671015252
Blade Hub for Lawnmover Makita PLM5113
Blade Hub for Lawnmover Makita PLM5113 Genuine replacement part Makita, Blade Hub for Lawnmovers PLM5113 - PLM5600 - PLM5113N2 - Dolmar PM411 - PM460. Part for the...
on 7/10 Business Days Approx €27.21
Details
Gear for Lawnmover Makita PLM5113
Makita SKU: 671200010
Gear for Lawnmover Makita PLM5113
Gear for Lawnmover Makita PLM5113 Genuine replacement part Makita, Gear for Lawnmovers PLM5113 - PLM5600 - PLM5113N2 - Dolmar PM411 - PM460. Part for the following products: - PLM4110 - LAWNMOVER MAKITA 41CM 2,8HP - PLM4120N -...
Last items in stock €22.41
Details
Rubber Belt for Lawnmower Makita PLM5113
Makita SKU: DA00000968
Rubber Belt for Lawnmower Makita PLM5113
Rubber Belt for Lawnmower Makita PLM5113 Genuine replacement part Makita, Rubber Belt V10x885 for Lawnmowers PLM5113 - PLM5113N2 - PM5100S3 - Dolmar PM5101S3. Part for the following products:...
Last items in stock €16.47
Details
Rubber Belt Cover for Lawnmower Makita PLM5113
Makita SKU: 671522001
Rubber Belt Cover for Lawnmower Makita PLM5113
Rubber Belt Cover for Lawnmower Makita PLM5113 Genuine replacement part Makita, Rubber Belt Protective Cover for Lawnmowers PLM5113 - PLM5113N2 - PM5100S3 - Dolmar PM5101S3. Part for the following...
Last items in stock €22.41
Details
Blade for Lawnmower Dolmar PM-46SBC
Makita SKU: 671014610
Blade for Lawnmower Dolmar PM-46SBC
Blade for Lawnmower Dolmar PM-46SBC Genuine replacement part Dolmar, Blade for Lawnmowers PM-46SB - PM-46SBC - PM-46NB - PM-46NBC. Part for the following products: -  PM-46SBC - LAWNMOWER 140CC 46CM DOLMAR - PM-46NB - RASAERBA 140CC...
Last items in stock €30.10
Details
Dolmar Gasket for Lawnmower PM5120SR
Makita SKU: DA00000924
Dolmar Gasket for Lawnmower PM5120SR
Dolmar Gasket for Lawnmower PM5120SR Original part Makita, Handle Washer for Lawnmower PM5120SR - PLM5113N2. Part for the following products: -  Lawnmower Dolmar PM5120SR - ...
Last items in stock €1.50
Details
Comments (0)
