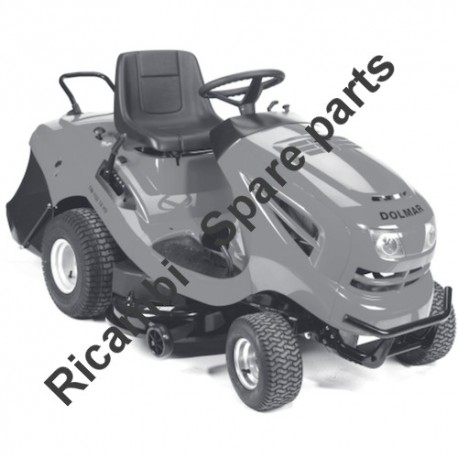

Dolmar Spare Parts for Lawn Tractor TM102.17H

SKU: Dolmar TM102.17H
€1.36
VAT included

Dolmar Spare Parts for Lawn Tractor TM102.17H

We are DOLMAR original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawn Tractor TM102.17H.
Dolmar Spare Parts for Lawn Tractor TM102.17H
  • Online only
  • Dolmar Spare Parts for Lawn Tractor TM102.17H
  • Dolmar Spare Parts for Lawn Tractor TM102.17H - Diagram
  • Dolmar Spare Parts for Lawn Tractor TM102.17H - Diagram 1
  • Dolmar Spare Parts for Lawn Tractor TM102.17H - Diagram 2
  • Dolmar Spare Parts for Lawn Tractor TM102.17H - Diagram 3
  • Dolmar Spare Parts for Lawn Tractor TM102.17H - Diagram 4
  • Dolmar Spare Parts for Lawn Tractor TM102.17H
  • Dolmar Spare Parts for Lawn Tractor TM102.17H - Diagram 6
  • Dolmar Spare Parts for Lawn Tractor TM102.17H - Diagram 7
Makita

Dolmar Spare Parts for Lawn Tractor TM102.17H

SKU: Dolmar TM102.17H Condition: New
€1.36
VAT included

Dolmar Spare Parts for Lawn Tractor TM102.17H

We are DOLMAR original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawn Tractor TM102.17H.
settings 157 spare parts
description 8 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: CALL US FOR AVAILABILITY AND SHIPPING TIMES
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
157 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
3
 photo_cameraImage coming soon 663700426 WASHER 4.3 X PM 4645 €1.26
4
 photo_cameraImage coming soon 663700664 PLUG BLOCK 8 X 16 €1.87
5
 photo_cameraImage coming soon 663514013 TRACTOR STEERING WHEEL €44.75
6
 photo_cameraImage coming soon 663514252 BULB HOLDER FOR TRACTOR €12.78
7
 photo_cameraImage coming soon 663514251 HALOGEN BULB FOR TRACTORS €14.85
8
 photo_cameraImage coming soon 663702710 COUNTERSUNK HEAD SCREW M 4 X 16 €1.26
9
 photo_cameraImage coming soon 66352152601 PROJECTOR 2 6W / 12 RAL9005 €58.43
12
 photo_cameraImage coming soon 663703005 WASHER 0.4 PM4645S-SE4650HS €1.33
13
 photo_cameraImage coming soon 663521084 COMMAND CONSOLE €36.01
14
 photo_cameraImage coming soon 663514419 ELASTIC STEEL WIRE €1.26
15
 photo_cameraImage coming soon 924806400 WASHER X DPC7000 / 7001/9500/9 €1.33
16
 photo_cameraImage coming soon 663510177 SCREW PT-KB 60 X 14 €1.26
17
 photo_cameraImage coming soon 663348947 SCREW PT-KB 60 X 20 €1.33
18
 photo_cameraImage coming soon 66352120530 ANGULAR BRACKET COF. ENGINE 2 €5.92
19
 photo_cameraImage coming soon 920406000 HEXAGON NUT OF SICUR. M6 €1.33
21
 photo_cameraImage coming soon 66351400222 COVER €44.75
23
 photo_cameraImage coming soon 66351400422 COVER €61.35
26
 photo_cameraImage coming soon 66352142502 REAR MIDDLE CONSOLE €75.86
33
 photo_cameraImage coming soon 663514167 TRACTOR SEAT €195.20
Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
12
 photo_cameraImage coming soon 663703005 WASHER 0.4 PM4645S-SE4650HS €1.33
15
 photo_cameraImage coming soon 924806400 WASHER X DPC7000 / 7001/9500/9 €1.33
19
 photo_cameraImage coming soon 920406000 HEXAGON NUT OF SICUR. M6 €1.33
37
 photo_cameraImage coming soon 663702724 SAFETY WASHER 15 €1.33
38
 photo_cameraImage coming soon 663700719 WASHER 21 €1.97
40
 photo_cameraImage coming soon 663521171 RH AXLE SUPPORT €21.70
41
 photo_cameraImage coming soon 920410000 HEXAGONAL NUT M10 €1.97
42
 photo_cameraImage coming soon 663521170 LH AXLE SUPPORT €21.70
43
 photo_cameraImage coming soon 663523134 SCREW SFS-TAPTITE M 6 X 12 €1.33
44
 photo_cameraImage coming soon 663514701 ARTICULATION ANG. CS-16-M10 €9.88
46
 photo_cameraImage coming soon 66351404130 GALVANIZED TRANSVERSAL TIE ROD €5.92
47
 photo_cameraImage coming soon 663702812 SCREW X PM 4645 €1.87
49
 photo_cameraImage coming soon 663514042 BRONZINA SPINDLE TM €9.88
50
 photo_cameraImage coming soon 663701011 SCREW HEAD HEX. M 8 X 50 €1.26
52
 photo_cameraImage coming soon 663700121 NUT X EM-4113 €1.33
55
 photo_cameraImage coming soon 663514386 RIGHT TORSION SPRING €2.81
56
 photo_cameraImage coming soon 663510566 FIXED WASHER RAPID DIAM. €1.26
58
 photo_cameraImage coming soon 66351442430 GALVANIZED PEDAL SUPPORT PIN €3.43
60
 photo_cameraImage coming soon 663514396 FORK €1.87
61
 photo_cameraImage coming soon 663514327 EUROCLASS SECURITY INTERRUPTION €30.88
70
 photo_cameraImage coming soon 663348988 NUT M8 WITH SIC. INTERMEDIATE €1.33
71
 photo_cameraImage coming soon 66351468530 GALVANIZED TIE ROD TM102.13 €3.43
72
 photo_cameraImage coming soon 663700739 ARTICULATED HEAD 10 X 40 €6.76
73
 photo_cameraImage coming soon 663702381 SCREW M 8 X 30 €1.26
74
 photo_cameraImage coming soon 663521123 WASHER DIAM. 50 €3.43
76
 photo_cameraImage coming soon 66351438730 GALVANIZED SPACER BUSH €1.87
77
 photo_cameraImage coming soon 663702893 EM 4016 ELASTIC RING €1.26
78
 photo_cameraImage coming soon 663702574 SHAVING 14 X 20 X 1 €1.87
79
 photo_cameraImage coming soon 663704540 WASHER 13 €1.26
81
 photo_cameraImage coming soon 66351468830 GALVANIZED STEERING SEGMENT €39.97
82
 photo_cameraImage coming soon 663704739 PIN B DIAMETER 10H 11 X 30 €2.81
83
 photo_cameraImage coming soon 663700139 WASHER 10.5 X PM 4645 €1.33
84
 photo_cameraImage coming soon 663700209 PIN 3.2 X 16 €1.26
97
 photo_cameraImage coming soon 663700201 WASHER 8.4 EM-3309 €1.97
103
 photo_cameraImage coming soon 663701006 SCREW M 8 X 20 EM 4016 €1.33
104
 photo_cameraImage coming soon 663700150 WASHER 8.4 EM-3309 €1.33
108
 photo_cameraImage coming soon 663514224 COMPLETE LEVER HEIGHT ADJUSTMENT €44.75
110
 photo_cameraImage coming soon 663625877 SEGMENT €4.59
113
 photo_cameraImage coming soon 663204285 BUTTON €2.81
118
 photo_cameraImage coming soon 663521361 RELAY 100A FOR TM. €36.01
325
 photo_cameraImage coming soon 66352104640 FRONT WHEEL 13 "X 6.5 €78.18
326
 photo_cameraImage coming soon 663521075 PAINTED OSCILLATING AXLE €64.36
331
 photo_cameraImage coming soon 663513010 QUICK FIXING WASHER DIAMETER 16 €1.79
Page 3 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
15
 photo_cameraImage coming soon 924806400 WASHER X DPC7000 / 7001/9500/9 €1.33
19
 photo_cameraImage coming soon 920406000 HEXAGON NUT OF SICUR. M6 €1.33
37
 photo_cameraImage coming soon 663702724 SAFETY WASHER 15 €1.33
38
 photo_cameraImage coming soon 663700719 WASHER 21 €1.97
50
 photo_cameraImage coming soon 663701011 SCREW HEAD HEX. M 8 X 50 €1.26
52
 photo_cameraImage coming soon 663700121 NUT X EM-4113 €1.33
61
 photo_cameraImage coming soon 663514327 EUROCLASS SECURITY INTERRUPTION €30.88
86
 photo_cameraImage coming soon 662700137 WASHER 6.4 €1.33
103
 photo_cameraImage coming soon 663701006 SCREW M 8 X 20 EM 4016 €1.33
104
 photo_cameraImage coming soon 663700150 WASHER 8.4 EM-3309 €1.33
121
 photo_cameraImage coming soon 663704263 SHAVING WASHER €1.26
123
 photo_cameraImage coming soon 663514313 TAB 3/16 "X3 / 16" X2-1 / 4 " €1.26
125
 photo_cameraImage coming soon 663514081 VERTICAL BEARING €25.24
127
 photo_cameraImage coming soon 663701704 HEXAGONAL HEAD SCREW €1.87
128
 photo_cameraImage coming soon 663514157 SELF PROPELLED BRAKE CABLE T9-75-85 €43.62
130
 photo_cameraImage coming soon 663700138 WASHER X EM 4016 €1.33
132
 photo_cameraImage coming soon 663514605 SPRING RECALL BRAKE LEVER €3.43
138
 photo_cameraImage coming soon 663700656 WASHER 28 X 10 X PM 4645 €1.33
141
 photo_cameraImage coming soon 663514174 LEVER KNOB €5.92
143
 photo_cameraImage coming soon 663514682 LONG INSERTION LEVER TM102 €5.30
144
 photo_cameraImage coming soon 663526521 RAPID FASTENING WASHER DIAM. 3MM €1.26
145
 photo_cameraImage coming soon 663514329 BUZZER MICROSWITCH LEVEL €14.85
147
 photo_cameraImage coming soon 663521339 SIGNAL FULL BASKET CPL X TM €31.87
149
 photo_cameraImage coming soon 663703892 HEXAGONAL HEAD SCREW M 8 X 5 €1.33
156
 photo_cameraImage coming soon 663500073 NUT X PM 4040 €1.33
157
 photo_cameraImage coming soon 663514239 ANGLED ARTICULATION €5.30
160
 photo_cameraImage coming soon 663701672 ROUND FLAT HEAD SCREW €1.33
165
 photo_cameraImage coming soon 663514337 COVER COVER FOR SWITCH €3.43
167
 photo_cameraImage coming soon 663511693 PT-KB SCREW €1.26
173
 photo_cameraImage coming soon 900208354 SCREW M8 X 35 €1.87
176
 photo_cameraImage coming soon 663514728 HYDRO TRANSMISSION TM102.17H-85.13H €1,077.36
184
 photo_cameraImage coming soon 663514772 BYPASS BLOCK €7.23
187
 photo_cameraImage coming soon 663700303 SCREW X PM 4645 €1.87
224
 photo_cameraImage coming soon 663700702 HEXAGONAL HEAD SCREW M 6 X 25 €1.26
292
 photo_cameraImage coming soon 663321126 CAGE NUT M6 €1.87
335
 photo_cameraImage coming soon 663514942 LOCKING HEAD TM102 €3.78
336
 photo_cameraImage coming soon 66346128830 COMPLETE LOCK TM102 €38.07
337
 photo_cameraImage coming soon 663521042 SPRING X BODY LOCK TM102 €8.41
338
 photo_cameraImage coming soon 663511249 FAST WASHER TM102 €2.30
346
 photo_cameraImage coming soon 66351493630 WELDED BODY BLOCK TM102 €16.12
347
 photo_cameraImage coming soon 663317280 CABLE CLAMP €1.79
Page 4 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
15
 photo_cameraImage coming soon 924806400 WASHER X DPC7000 / 7001/9500/9 €1.33
19
 photo_cameraImage coming soon 920406000 HEXAGON NUT OF SICUR. M6 €1.33
43
 photo_cameraImage coming soon 663523134 SCREW SFS-TAPTITE M 6 X 12 €1.33
50
 photo_cameraImage coming soon 663701011 SCREW HEAD HEX. M 8 X 50 €1.26
52
 photo_cameraImage coming soon 663700121 NUT X EM-4113 €1.33
70
 photo_cameraImage coming soon 663348988 NUT M8 WITH SIC. INTERMEDIATE €1.33
86
 photo_cameraImage coming soon 662700137 WASHER 6.4 €1.33
97
 photo_cameraImage coming soon 663700201 WASHER 8.4 EM-3309 €1.97
103
 photo_cameraImage coming soon 663701006 SCREW M 8 X 20 EM 4016 €1.33
104
 photo_cameraImage coming soon 663700150 WASHER 8.4 EM-3309 €1.33
130
 photo_cameraImage coming soon 663700138 WASHER X EM 4016 €1.33
138
 photo_cameraImage coming soon 663700656 WASHER 28 X 10 X PM 4645 €1.33
149
 photo_cameraImage coming soon 663703892 HEXAGONAL HEAD SCREW M 8 X 5 €1.33
156
 photo_cameraImage coming soon 663500073 NUT X PM 4040 €1.33
173
 photo_cameraImage coming soon 900208354 SCREW M8 X 35 €1.87
194
 photo_cameraImage coming soon 663514070 TRACTION INSERTION CABLE €36.12
196
 photo_cameraImage coming soon 663701171 HEXAGONAL HEAD SCREW M8 X 30 €1.26
197
 photo_cameraImage coming soon 66370108310 WASHER 8.4 DETECTOR-FLAT €1.26
199
 photo_cameraImage coming soon 66352109630 TENSIONER ARM DIAMETER 16 GALVANIZED €31.87
200
 photo_cameraImage coming soon 66351480430 GALVANIZED ARM SPACER BUSH €2.41
202
 photo_cameraImage coming soon 663514398 MIDDLE BELT GUIDE EYE €2.81
236
 photo_cameraImage coming soon 66351421630 GALVANIZED CENTERING BUSH €2.41
237
 photo_cameraImage coming soon 663514394 Pulley €6.76
353
 photo_cameraImage coming soon 66351485730 CLUTCH OPERATION SEGMENT - BLADE BRAKE €34.30
354
 photo_cameraImage coming soon 663514876 CLUTCH-BRAKE BLADE €266.76
355
 photo_cameraImage coming soon 663514944 SCREW UNF 7/16 "X 3" 10.9 €8.41
362
 photo_cameraImage coming soon 663514987 FLANGE GASKET €3.28
366
 photo_cameraImage coming soon 663700201 WASHER 8.4 EM-3309 €1.97
371
 photo_cameraImage coming soon 66352127201 RIGHT BELT GUIDE SHEET €12.18
Page 5 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
19
 photo_cameraImage coming soon 920406000 HEXAGON NUT OF SICUR. M6 €1.33
41
 photo_cameraImage coming soon 920410000 HEXAGONAL NUT M10 €1.97
50
 photo_cameraImage coming soon 663701011 SCREW HEAD HEX. M 8 X 50 €1.26
52
 photo_cameraImage coming soon 663700121 NUT X EM-4113 €1.33
83
 photo_cameraImage coming soon 663700139 WASHER 10.5 X PM 4645 €1.33
97
 photo_cameraImage coming soon 663700201 WASHER 8.4 EM-3309 €1.97
107
 photo_cameraImage coming soon 663700151 WASHER 10.5 €1.33
127
 photo_cameraImage coming soon 663701704 HEXAGONAL HEAD SCREW €1.87
130
 photo_cameraImage coming soon 663700138 WASHER X EM 4016 €1.33
146
 photo_cameraImage coming soon 663700147 WASHER 5.3 €1.26
156
 photo_cameraImage coming soon 663500073 NUT X PM 4040 €1.33
196
 photo_cameraImage coming soon 663701171 HEXAGONAL HEAD SCREW M8 X 30 €1.26
208
 photo_cameraImage coming soon 66346113601 PAINTED HEIGHT ADJUSTMENT BRACKET €21.70
209
 photo_cameraImage coming soon 663700704 BOLT FOR BLADE 10X30 €2.41
211
 photo_cameraImage coming soon 663514159 SPACER WASHER €1.87
212
 photo_cameraImage coming soon 663701626 ELASTIC PIN 2,5 €2.41
213
 photo_cameraImage coming soon 66351425330 GALVANIZED ROTATION PIN €11.32
214
 photo_cameraImage coming soon 663321182 WASHING NOZZLE R 1/2 " €2.41
216
 photo_cameraImage coming soon 663321347 FITTING R 1/2 " €5.30
217
 photo_cameraImage coming soon 663522575 RING OR DIAMETER 10.78 X 2.62 €1.26
224
 photo_cameraImage coming soon 663700702 HEXAGONAL HEAD SCREW M 6 X 25 €1.26
228
 photo_cameraImage coming soon 663700232 HEXAGON NUT M 16 €2.41
233
 photo_cameraImage coming soon 663700119 HEXAGON NUT M 5 €1.33
236
 photo_cameraImage coming soon 66351421630 GALVANIZED CENTERING BUSH €2.41
238
 photo_cameraImage coming soon 66351422030 SPACER WASHER €3.43
246
 photo_cameraImage coming soon 663700137 WASHER A 6.4 €1.26
250
 photo_cameraImage coming soon 663700503 BEARING 6205-2RS €31.87
257
 photo_cameraImage coming soon 663514094 SPACER BUSH - 1 €2.41
258
 photo_cameraImage coming soon 663701595 KEY 8X7X20 €5.92
260
 photo_cameraImage coming soon 663514176 BLADE SUPPORT T9-11-12-13 €21.70
263
 photo_cameraImage coming soon 663702254 WASHER €1.87
377
 photo_cameraImage coming soon 663521451 GALVANIZED WELDED PULLEY €34.30
380
 photo_cameraImage coming soon 521208 BLADE DS X TM102.13 / TM102. 17H €20.86
381
 photo_cameraImage coming soon 66351489701 LEFT BLADE DRIVE COVER €3.28
382
 photo_cameraImage coming soon 663521110 WHEEL PIN €4.37
383
 photo_cameraImage coming soon 663514887 WHEEL 125 €9.41
384
 photo_cameraImage coming soon 663514877 BELT BLADE T102 €118.71
385
 photo_cameraImage coming soon 6632088890005 SPHERICAL HEAD SCREW €2.30
388
 photo_cameraImage coming soon 663514861 FLAT SUSPENSION CABLE T102 €10.79
Page 6 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
15
 photo_cameraImage coming soon 924806400 WASHER X DPC7000 / 7001/9500/9 €1.33
19
 photo_cameraImage coming soon 920406000 HEXAGON NUT OF SICUR. M6 €1.33
37
 photo_cameraImage coming soon 663702724 SAFETY WASHER 15 €1.33
38
 photo_cameraImage coming soon 663700719 WASHER 21 €1.97
52
 photo_cameraImage coming soon 663700121 NUT X EM-4113 €1.33
97
 photo_cameraImage coming soon 663700201 WASHER 8.4 EM-3309 €1.97
233
 photo_cameraImage coming soon 663700119 HEXAGON NUT M 5 €1.33
265
 photo_cameraImage coming soon 663451000 12V / 17AH BATTERY FOR TRACTORS €124.64
266
 photo_cameraImage coming soon 663451001 BATTERY TERMINAL HOOD €2.97
267
 photo_cameraImage coming soon 663451001 BATTERY TERMINAL HOOD €2.97
272
 photo_cameraImage coming soon 663544600 COMPLETE TANK COVER €5.30
273
 photo_cameraImage coming soon 663514839 GAS TANK €49.92
277
 photo_cameraImage coming soon 663514335 IGNITION LOCK FIXING NUT €1.26
278
 photo_cameraImage coming soon 663514336 IGNITION LOCK ROTATION SAFETY €3.96
279
 photo_cameraImage coming soon 663525315 STARTING BLOCK T9-11-12 €31.87
286
 photo_cameraImage coming soon 663514382 REMOTE CONTROL ACC. €16.92
287
 photo_cameraImage coming soon 663701296 SAFETY RING 25 X 1.2 €1.26
289
 photo_cameraImage coming soon 663514328 BILICO SWITCH ILL. €8.83
290
 photo_cameraImage coming soon 663514197 COLLAR BUSHING EP €1.87
292
 photo_cameraImage coming soon 663321126 CAGE NUT M6 €1.87
293
 photo_cameraImage coming soon 663514416 LOCKING SHEET €4.59
297
 photo_cameraImage coming soon 663703191 SCREW X EM-4113 €1.87
Page 7 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 7
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
12
 photo_cameraImage coming soon 663703005 WASHER 0.4 PM4645S-SE4650HS €1.33
17
 photo_cameraImage coming soon 663348947 SCREW PT-KB 60 X 20 €1.33
19
 photo_cameraImage coming soon 920406000 HEXAGON NUT OF SICUR. M6 €1.33
86
 photo_cameraImage coming soon 662700137 WASHER 6.4 €1.33
104
 photo_cameraImage coming soon 663700150 WASHER 8.4 EM-3309 €1.33
130
 photo_cameraImage coming soon 663700138 WASHER X EM 4016 €1.33
309
 photo_cameraImage coming soon 663703363 HEXAGONAL HEAD SCREW M 6 X 35 €1.26
314
 photo_cameraImage coming soon 663514183 TRANSVERSE AUCTION SHELL €9.88
316
 photo_cameraImage coming soon 663703563 HEXAGONAL HEAD SCREW M 6 X 45 €1.26
366
 photo_cameraImage coming soon 663700201 WASHER 8.4 EM-3309 €1.97
391
 photo_cameraImage coming soon 66352105601 LEFT UPPER €7.23
393
 photo_cameraImage coming soon 66352105701 LEFT UPPER €7.23
395
 photo_cameraImage coming soon 66352104101 CLOSING CAP €1.79
397
 photo_cameraImage coming soon 66351499401 TUBE BODY 102 PAINT. €52.30
398
 photo_cameraImage coming soon 66351489530 STRUT BODY TRACTOR 102 Z. €5.64
399
 photo_cameraImage coming soon 663514884 LOWER BODY TUBE €27.79
400
 photo_cameraImage coming soon 66351499330 GALVANIZED BODY SPACER BUSH €4.37
401
 photo_cameraImage coming soon 663514885 T102 BASKET SHOCK ABSORBER €64.36
Page 8 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 8
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
118
 photo_cameraImage coming soon 663521361 RELAY 100A FOR TM. €36.01
320
 photo_cameraImage coming soon 663521353 DIODE 5A €5.92
322
 photo_cameraImage coming soon 663521365 CABLE 10 MM2 MASS CABLE €11.32

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Dolmar Spare Parts for Lawn Tractor TM102.17H

Fix Your Lawn Tractor TM102.17H. All Spares are Ready For Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Motor Pump and the respective parts of the code.
Dolmar TM102.17H

TM102.17H - LAWNTRACTOR RIDE-ON DOLMAR 102CM pag.1
# Part Num. Description
3 663700426 WASHER 4.3 X PM 4645
4 663700664 PLUG LOCK 8 X 16
5 663514013 TRACTOR STEERING WHEEL
6 663514252 BULB HOLDER X TRACTOR
7 663514251 HALOGEN BULB X TRACTORS
8 663702710 COUNTERSUNK SCREW M 4 X 16
9 66352152601 PROJECTOR 2 6W / 12 RAL9005
12 663703005 WASHER 0.4 PM4645S-SE4650HS
13 663521084 CONSOLE
14 663514419 ELASTIC STEEL WIRE
15 924806400 WASHER X DPC7000 / 7001/9500/9
16 663510177 SCREW PT-KB 60 X 14
17 663348947 SCREW PT-KB 60 X 20
18 66352120530 CORNER BRACKET COF. ENGINE 2
19 920406000 SAFETY HEX NUT M6
21 66351400222 COVER
23 66351400422 COVER
26 66352142502 REAR MIDDLE CONSOLE
33 663514167 SEAT FOR TRACTOR
TM102.17H - LAWNTRACTOR RIDE-ON DOLMAR 102CM pag.2
12 663703005 WASHER 0.4 PM4645S-SE4650HS
15 924806400 WASHER X DPC7000 / 7001/9500/9
19 920406000 SAFETY HEX NUT M6
37 663702724 SAFETY WASHER 15
38 663700719 WASHER 21
40 663521171 RIGHT AXLE SUPPORT
41 920410000 HEX NUT M10
42 663521170 LEFT AXLE SUPPORT
43 663523134 SCREW SFS-TAPTITE M 6 X 12
44 663514701 CORNER JOINT CS-16-M10
46 66351404130 GALVANIZED TRANSVERSAL TIE ROD
47 663702812 SCREW X PM 4645
49 663514042 BRONZINA SPINDLE TM
50 663701011 SCREW, HEX HEAD M 8 X 50
52 663700121 NUT X EM-4113
55 663514386 RIGHT TORSION SPRING
56 663510566 QUICK FIXING WASHER DIAM.
58 66351442430 GALVANIZED PEDAL SUPPORT PIN
60 663514396 FORK
61 663514327 EUROCLASS SECURITY INTERR
62 663700555
69 66351477630 ARTICULATED LEVER WELDED AND GALVANIZED
70 663348988 M8 NUT WITH INTERMEDIATE SECURITY
71 66351468530 GALVANIZED TIE ROD TM102.13
72 663700739 ARTICULATED HEAD 10 X 40
73 663702381 SCREW M 8 X 30
74 663521123 WASHER DIAM. 50
76 66351438730 GALVANIZED SPACER BUSH
77 663702893 ELASTIC RING EM 4016
78 663702574 SHAVING 14 X 20 X 1
79 663704540 WASHER 13
81 66351468830 GALVANIZED STEERING SEGMENT
82 663704739 PIN B DIAMETER 10H 11 X 30
83 663700139 WASHER 10.5 X PM 4645
84 663700209 PIN 3.2 X 16
97 663700201 WASHER 8.4 EM-3309
103 663701006 SCREW M 8 X 20 EM 4016
104 663700150 WASHER 8.4 EM-3309
108 663514224 COMPLETE HEIGHT ADJUSTMENT LEVER
110 663625877 SEGMENT
113 663204285 BUTTON
118 663521361 RELAY 100A FOR TM.
325 66352104640 FRONT WHEEL 13 "X 6.5
326 663521075 PAINTED OSCILLATING AXLE
331 663513010 QUICK FIXING WASHER DIAMETER 16
TM102.17H - LAWNTRACTOR RIDE-ON DOLMAR 102CM pag.3
15 924806400 WASHER X DPC7000 / 7001/9500/9
19 920406000 SAFETY HEX NUT M6
37 663702724 SAFETY WASHER 15
38 663700719 WASHER 21
50 663701011 SCREW, HEX HEAD M 8 X 50
52 663700121 NUT X EM-4113
61 663514327 EUROCLASS SECURITY INTERR
86 662700137 WASHER 6.4
103 663701006 SCREW M 8 X 20 EM 4016
104 663700150 WASHER 8.4 EM-3309
121 663704263 SHAVING WASHER
123 663514313 TAB 3/16 "X3 / 16" X2-1 / 4 "
125 663514081 VERTICAL BEARING
127 663701704 HEX HEAD SCREW
128 663514157 SEMOV BRAKE CABLE T9-75-85
130 663700138 WASHER X EM 4016
132 663514605 BRAKE LEVER RETURN SPRING
138 663700656 WASHER 28 X 10 X PM 4645
141 663514174 KNOB FOR LEVER
143 663514682 LONG INSERTION LEVER TM102
144 663526521 QUICK FIXING WASHER DIAMETER 3MM
145 663514329 MICROSWITCH BUZZER LEV.
147 663521339 BASKET FULL SIGNAL CPL X TM
149 663703892 SCREW, HEX HEAD M 8 X 5
156 663500073 NUT X PM 4040
157 663514239 ANGLED ARTICULATION
160 663701672 FLAT ROUND HEAD SCREW
165 663514337 COVER FOR SWITCH
167 663511693 SCREW PT-KB
173 900208354 SCREW M8 X 35
176 663514728 HYDRO TRANSMISSION TM102.17H-85.13H
184 663514772 BYPASS BLOCK
187 663700303 SCREW X PM 4645
224 663700702 HEX HEAD SCREW M 6 X 25
292 663321126 CAGE NUT M6
335 663514942 LOCKING HEAD TM102
336 66346128830 COMPLETE LOCK TM102
337 663521042 SPRING X BODY LOCK TM102
338 663511249 FAST WASHER TM102
346 66351493630 WELDED BODY BLOCK TM102
347 663317280 CABLE CLAMP
TM102.17H - LAWNTRACTOR RIDE-ON DOLMAR 102CM pag.4
15 924806400 WASHER X DPC7000 / 7001/9500/9
19 920406000 SAFETY HEX NUT M6
43 663523134 SCREW SFS-TAPTITE M 6 X 12
50 663701011 HEX HEAD SCREW M 8 X 50
52 663700121 NUT X EM-4113
70 663348988 M8 NUT WITH INTERMEDIATE SECURITY
86 662700137 WASHER 6.4
97 663700201 WASHER 8.4 EM-3309
103 663701006 SCREW M 8 X 20 EM 4016
104 663700150 WASHER 8.4 EM-3309
130 663700138 WASHER X EM 4016
138 663700656 WASHER 28 X 10 X PM 4645
149 663703892 SCREW, HEX HEAD M 8 X 5
156 663500073 NUT X PM 4040
173 900208354 SCREW M8 X 35
194 663514070 TRACTION INSERTION CABLE
196 663701171 M8 X 30 HEX HEAD SCREW
197 66370108310 WASHER 8.4 REWORKED - FLAT
199 66352109630 ARM TEND. DIAM 16 GALVANIZED
200 66351480430 COMPASS DISTANCE GALVANIZED ARM
201 663522087 SPRING JOINT-BRAKE OF THE BLADE
202 663514398 MEDIAN BELT GUIDE EYEL
236 66351421630 GALVANIZED CENTERING BUSH
237 663514394 BELT GUIDE
352 663514943 TAB 1/4 "X 1/4" X1
353 66351485730 CLUTCH OPERATION SEGMENT - BLADE BRAKE
354 663514876 CLUTCH-BRAKE BLADE
355 663514944 SCREW UNF 7/16 "X 3" 10.9
362 663514987 FLANGE GASKET
366 663700201 WASHER 8.4 EM-3309
369 663701521 SCREW X EM-4113
371 66352127201 RIGHT BELT GUIDE SHEET
TM102.17H - LAWNTRACTOR RIDE-ON DOLMAR 102CM pag.5
19 920406000 SAFETY HEX NUT M6
41 920410000 HEX NUT M10
50 663701011 SCREW, HEX HEAD M 8 X 50
52 663700121 NUT X EM-4113
83 663700139 WASHER 10.5 X PM 4645
97 663700201 WASHER 8.4 EM-3309
107 663700151 WASHER 10.5
127 663701704 HEX HEAD SCREW
130 663700138 WASHER X EM 4016
146 663700147 WASHER 5.3
156 663500073 NUT X PM 4040
196 663701171 HEX HEAD SCREW M8 X 30
201 663522087 SPRING JOINT - BLADE BRAKE
208 66346113601 PAINTED HEIGHT ADJUSTMENT BRACKET
209 663700704 BOLT FOR BLADE 10X30
211 663514159 SPACER WASHER
212 663701626 ELASTIC PLUG 2,5
213 66351425330 GALVANIZED ROTATION PIN
214 663321182 WASHING NOZZLE R 1/2 "
216 663321347 FITTING R 1/2 "
217 663522575 O-RING DIAMETER 10.78 X 2.62
224 663700702 SCREW, HEX HEAD M 6 X 25
228 663700232 HEX NUT M 16
229 663700141 WASHER 17 DIN
233 663700119 HEX NUT M 5
236 66351421630 ZIN CENTERING SLEEVE.
238 66351422030 SPACER WASHER
246 663700137 WASHER A 6.4
250 663700503 BEARING 6205-2RS
251 663514258 SUPPORT BLADES T
257 663514094 SPACER BUSH - 1
258 663701595 KEY 8X7X20
260 663514176 BLADE SUPPORT T9-11-12-13
263 663702254 WASHER
369 663701521 SCREW X EM-4113
374 663703484 SCREW FLAT HEAD CIRC. M5X16
377 663521451 GALVANIZED WELDED PULLEY
380 521208 BLADE DS X TM102.13 / TM102. 17H
381 66351489701 LEFT BLADE DRIVE COVER
382 663521110 WHEEL PIN
383 663514887 WHEEL 125
384 663514877 BELT BLADE T102
385 6632088890005 SPHERICAL HEAD SCREW
388 663514861 FLAT SUSPENSION CABLE T102
TM102.17H - LAWNTRACTOR RIDE-ON DOLMAR 102CM pag.6
15 924806400 WASHER X DPC7000 / 7001/9500/9
19 920406000 SAFETY HEX NUT M6
37 663702724 SAFETY WASHER 15
38 663700719 WASHER 21
52 663700121 NUT X EM-4113
62 663700555
97 663700201 WASHER 8.4 EM-3309
233 663700119 HEX NUT M 5
265 663451000 12V / 17AH BATTERY FOR TRACTORS
266 663451001 BATTERY TERMINAL HOOD
267 663451001 BATTERY TERMINAL HOOD
272 663544600 TANK COVER CPL.
273 663514839 GAS TANK
277 663514335 NUT FIXING THE IGNITION LOCK
278 663514336 SAFETY ROTATION SER.RATURA IGNITION
279 663525315 STARTER BLOCK T9-11-12
280 663514319 FILLING LEVEL ADDER
286 663514382 REMOTE CONTROL IGNITION
287 663701296 SAFETY RING 25 X 1.2
289 663514328 PIVOT SWITCH ILL.
290 663514197 COLLAR COMPASS EP
292 663321126 CAGE NUT M6
293 663514416 LOCKING SHEET
297 663703191 SCREW X EM-4113
TM102.17H - LAWNTRACTOR RIDE-ON DOLMAR 102CM pag.7
12 663703005 WASHER 0.4 PM4645S-SE4650HS
17 663348947 SCREW PT-KB 60 X 20
19 920406000 SAFETY HEX NUT M6
86 662700137 WASHER 6.4
104 663700150 WASHER 8.4 EM-3309
130 663700138 WASHER X EM 4016
309 663703363 SCREW, HEX HEAD M 6 X 35
314 663514183 CROSS BODY SHAFT
316 663703563 SCREW, HEX.HEAD M 6 X 45
366 663700201 WASHER 8.4 EM-3309
391 66352105601 LEFT UPPER
392 663700496 SCREW WITH HEX SOCKET M 6 X 20
393 66352105701 LEFT UPPER
394 663700709 SCREW WITH HEX
395 66352104101 CLOSING CAP
397 66351499401 TUBE BODY 102 PAINT.
398 66351489530 STRUT BODY TRACTOR 102 Z.
399 663514884 LOWER BODY TUBE
400 66351499330 GALVANIZED BODY SPACER BUSH
401 663514885 T102 BASKET SHOCK ABSORBER
402 663701124 BLIND NUT M8
TM102.17H - LAWNTRACTOR RIDE-ON DOLMAR 102CM pag.8
118 663521361 RELAY 100A FOR TM.
320 663521353 DIODE 5A
322 663521365 CABLE 10 MM2 CABLE GROUND
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Dolmar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Dolmar TM102.17H
12 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
CALL US FOR AVAILABILITY AND SHIPPING TIMES
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Drawing Dolmar TM102.17H

Drawing Dolmar TM102.17H

Download (948.96KB)

You might also like

Gasoline Filter for Chainsaw Makita DCS230T
Makita SKU: 163447-0
Gasoline Filter for Chainsaw Makita DCS230T
Gasoline Filter for Chainsaw Makita DCS230T Genuine part for Makita, Gasoline Filter for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following products: - DCS230T - CHAINSAW 22,2cc MAKITA 25CM -...
AVAILABLE €4.49
Details
ignition Switch for Lawn Tractor Alpina K 90
GGP Italy SKU: 118450072/0
ignition Switch for Lawn Tractor Alpina K 90
ignition Switch for Lawn Tractor Alpina K 90 Original part Alpina, ignition Switch for Lawn Tractor ALPINA K 90 - Dolmar TM92.14 - TM-98 14 H2D Part for the following products:...
Last items in stock €31.82
Details
Comments (0)
