Makita

Dolmar Spare Parts for Lawn Mower PM48S

SKU: Dolmar PM48S
€197.39
VAT included

Dolmar Spare Parts for Lawn Mower PM48S

We are DOLMAR original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawn Mower PM48S.
Dolmar Spare Parts for Lawn Mower PM48S
  • Dolmar Spare Parts for Lawn Mower PM48S
  • Dolmar Spare Parts for Lawn Mower PM48S
  • Dolmar Spare Parts for Lawn Mower PM48S
  • Dolmar Spare Parts for Lawn Mower PM48S
Makita

Dolmar Spare Parts for Lawn Mower PM48S

SKU: Dolmar PM48S Condition: New
€197.39
VAT included

Dolmar Spare Parts for Lawn Mower PM48S

We are DOLMAR original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawn Mower PM48S.
settings 74 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
74 spare parts

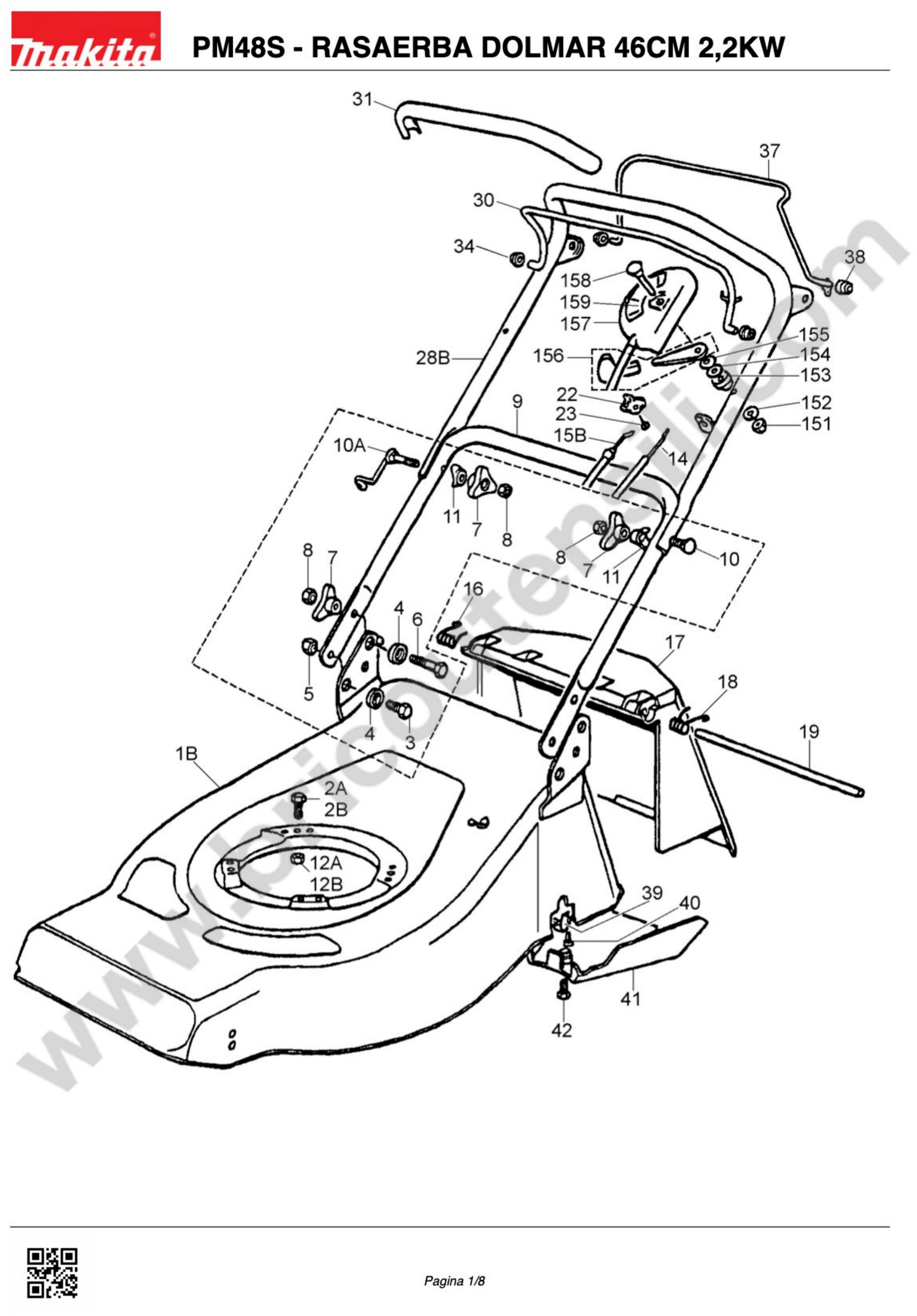

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1B
 photo_cameraImage coming soon 664001505 DECK PM 48S €180.65
2A
 photo_cameraImage coming soon 664793700 SCREW X PM 43 €1.95
3
 photo_cameraImage coming soon 664792610 SCREW X PM 43 €1.32
4
 photo_cameraImage coming soon 664041955 BUSH X PM 43 €2.51
5
 photo_cameraImage coming soon 664155000 NUT X PM 43 €1.43
6
 photo_cameraImage coming soon 664793700 SCREW X PM 43 €1.95
7
 photo_cameraImage coming soon 664399900 KNOB X PM 43 €3.60
8
 photo_cameraImage coming soon 920208000 HEX NUT M8 €1.32
9
 photo_cameraImage coming soon 664006512 HANDLE, LOWER PART EUM430-480 €55.12
10A
 photo_cameraImage coming soon 664003801 SPRING GUIDE X PM 43 €9.24
10
 photo_cameraImage coming soon 664819201 SCREW X PM 43 €2.94
11
 photo_cameraImage coming soon 664680006 WASHER X PM 43 €4.14
12B
 photo_cameraImage coming soon 664155000 NUT X PM 43 €1.43
12A
 photo_cameraImage coming soon 664293201 NUT X PM 43 €1.43
14
 photo_cameraImage coming soon 664007080 CABLE THROTTLE X PM 48S €13.39
15B
 photo_cameraImage coming soon 181000625/0 CABLE, MOTOR BRAKE FOR PLM4100 €11.86
16
 photo_cameraImage coming soon 664450410 SPRING DX X PM 43 €2.51
17
 photo_cameraImage coming soon 664600028 STONE guard X PM 43 €41.87
18
 photo_cameraImage coming soon 664450420 SPRING SX X PM 43 €2.51
19
 photo_cameraImage coming soon 664517906 PIN X PM 43 €7.95
22
 photo_cameraImage coming soon 664981467 PLATE X PM 43 €2.94
28B
 photo_cameraImage coming soon 664007024 UPPER HANDLE PART X PM 48S €46.88
30
 photo_cameraImage coming soon 664003291 MOTOR BRAKE LEVER X PM 43 €37.74
31
 photo_cameraImage coming soon 664291050 HANDGRIP BLACK X PM43-4850S €22.74
34
 photo_cameraImage coming soon 664041966 BUSH EUM430-480 €5.55
37
 photo_cameraImage coming soon 664003288 LEVER, DRIVING X PM 48S €20.12
38
 photo_cameraImage coming soon 322041965/1 BUSHING FOR PLM4601 €1.62
39
 photo_cameraImage coming soon 664545152 PLATE X PM 48S €1.32
40
 photo_cameraImage coming soon 664731350 SCREW X PM 48S €3.23
41
 photo_cameraImage coming soon 664060180 PROTECTION, BELT X PM 48S €10.35
42
 photo_cameraImage coming soon 664727791 SCREW X PM 48S €1.32
153
 photo_cameraImage coming soon 664171005 SPACER X PM 48S €1.32
154
 photo_cameraImage coming soon 664521360 WASHER X PM 48S €1.32
155
 photo_cameraImage coming soon 664508100 WASHER X PM 48S €1.95
157
 photo_cameraImage coming soon 664007080 CABLE THROTTLE X PM 48S €13.39
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
401
 Ring Gear for Lawnmower Dolmar PM48S 664120105 Ring Gear for Lawnmower Dolmar PM48S €13.12
402
 Wheel Guard for Lawnmower Dolmar PM48S 664006846 Wheel Guard for Lawnmower Dolmar PM48S €10.52
403
 photo_cameraImage coming soon 664608600 SEEGER PM 48S €1.43
404
 Pinion Left for Lawnmower Dolmar PM48S 664570120 Pinion Left for Lawnmower Dolmar PM48S €12.33
405
 photo_cameraImage coming soon 664122200 BEARING X PM 48S €4.14
406
 photo_cameraImage coming soon 664019900 O-RING X PM 48S €1.32
408
 photo_cameraImage coming soon 664570110 PINION RIGHT X PM 48S €12.51
410
 photo_cameraImage coming soon 664001143 CABLE, REAR DRIVE X PM 48S €17.74
411
 Gear Box Ass'y for Lawnmower Dolmar PM48S 957003076 Gear Box Ass'y for Lawnmower Dolmar PM48S €178.36
412
 photo_cameraImage coming soon 664601909 PULLEY X PM4850S €4.80
413
 photo_cameraImage coming soon 664645705 PIN X PM 48S €1.64
414
 photo_cameraImage coming soon 664033283 ROD X PM 48S €4.80
415
 photo_cameraImage coming soon 664063800 BELT 484 X EUM430-480 €22.74
416
 photo_cameraImage coming soon 664753000 PIN X PM 48S €1.43
417
 photo_cameraImage coming soon 664041957 BUSHING X PM 48S €14.76
418
 photo_cameraImage coming soon 664450063 SPRING X PM 48S €3.23
419
 photo_cameraImage coming soon 664680009 WASHER X PM 48S €2.14
420
 photo_cameraImage coming soon 664154510 NUT X PM 48S €1.43
421
 photo_cameraImage coming soon 664110230 CAP X PM48S-4850S €3.95
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
251
 photo_cameraImage coming soon 920208000 HEX NUT M8 €1.32
252
 photo_cameraImage coming soon 664583500 SPRING X PM 43 €1.32
253
 photo_cameraImage coming soon 664523070 WASHER X PM 43 €1.32
254
 photo_cameraImage coming soon 664735537 ADJUT PLATE X PM 43 €7.08
255
 photo_cameraImage coming soon 664005082 WHEEL SUPPORT X PM 43 €5.55
256
 photo_cameraImage coming soon 481003285/1 Lever €8.36
258A
 photo_cameraImage coming soon 664521350 WASHER X PM 43 €3.23
259
 photo_cameraImage coming soon 664034508 BUSH X PM 43 €2.51
260B
 photo_cameraImage coming soon 664007311 WHEEL D.170 EUM430-480 €30.57
261
 photo_cameraImage coming soon 664523060 WASHER X PM43 €1.95
262B
 photo_cameraImage coming soon 664155000 NUT X PM 43 €1.43
263
 photo_cameraImage coming soon 664110262 HUB COVER D.170 B. EUM 430 €3.60
264
 photo_cameraImage coming soon 664003279 WHEEL ADJUST LEVER EUM430-480 €30.57
265
 photo_cameraImage coming soon 664789000 SCREW X PM 43 €2.14
266
 photo_cameraImage coming soon 664154330 NUT X PM 43 €2.76
267
 photo_cameraImage coming soon 664007313 WHEEL D.210 EUM430-480 €41.87
268
 photo_cameraImage coming soon 664110265 HUB COVER D.210 B. EUM 430 €3.60
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
501B
 photo_cameraImage coming soon 664465607 BLADE BOSS EUM 430-480 €30.57
502B
 photo_cameraImage coming soon 181004346/3 Blade €14.00
503
 photo_cameraImage coming soon 664160400 ELASTIC WASHER X PM43 €4.56
504
 photo_cameraImage coming soon 664523080 WASHER X PM 43 €2.14
505
 photo_cameraImage coming soon 664735698 SCREW X PM 43 €5.28
506
 photo_cameraImage coming soon 664139100 KEY PM 43 €3.60
552
 Grass Box Upper Part for Lawnmower Dolmar PM48S 664486076 Grass Box Upper Part for Lawnmower Dolmar PM48S €39.48
553
 photo_cameraImage coming soon 664486077 GRASSCATCHER LOWER PART X PM 43 €41.87

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Dolmar Spare Parts for Lawn Mower PM48S

We are DOLMAR original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawn Mower PM48S.

In the following table, look for the model of the Lawn Mower and the respective parts of the code.
Dolmar PM48S
PM48S - LAWNMOWER DOLMAR 46CM 2,2KW pag.1
# Part Num. Description
1B 664001505 DECK PM 48S
2A 664793700 SCREW X PM 43
2B 664691800 SCREW X PM 43
3 664792610 SCREW X PM 43
4 664041955 BUSH X PM 43
5 664155000 NUT X PM 43
6 664793700 SCREW X PM 43
7 664399900 KNOB X PM 43
8 920208000 HEX NUT M8
9 664006512 HANDLE, LOWER PART EUM430-480
10 664819201 SCREW X PM 43
10A 664003801 SPRING GUIDE X PM 43
11 664680006 WASHER X PM 43
12A 664293201 NUT X PM 43
12B 664155000 NUT X PM 43
14 664007080 CABLE THROTTLE X PM 48S
15B 181000625/0 CABLE, MOTOR BRAKE FOR PLM4100
16 664450410 SPRING DX X PM 43
17 664600028 STONE guard X PM 43
18 664450420 SPRING SX X PM 43
19 664517906 PIN X PM 43
22 664981467 PLATE X PM 43
23 664735105 SCREW X PM 43
28B 664007024 HANDLE, UPPER PART X PM 48S
30 664003291 MOTOR BRAKE LEVER X PM 43
31 664291050 HANDGRIP BLACK X PM43-4850S
34 664041966 BUSH EUM430-480
37 664003288 LEVER, DRIVING X PM 48S
38 322041965/1 BUSH PLM4601
39 664545152 PLATE X PM 48S
40 664731350 SCREW X PM 48S
41 664060180 PROTECTION, BELT X PM 48S
42 664727791 SCREW X PM 48S
151 664291000 NUT X PM 48S
152 664581500 SPRING X PM 48S
153 664171005 SPACER X PM 48S
154 664521360 WASHER X PM 48S
155 664508100 WASHER X PM 48S
156 664319302 LEVER AND KNOB X PS 48S
157 664007080 CABLE, THROTTLE X PM 48S
158 664815000 SCREW X PM 48S
159 664356703 LABEL X PM 48S
PM48S - LAWNMOWER DOLMAR 46CM 2,2KW pag.2
401 664120105 RING GEAR COURONNE X PM 48S
402 664006846 WHEEL GUARD X PM 48S
403 664608600 SEEGER PM 48S
404 664570120 PINION LEFT X PM 48S
405 664122200 BEARING X PM 48S
406 664019900 O-RING X PM 48S
408 664570110 PINION RIGHT X PM 48S
409 664170800 SPACER X PM 48S
410 664001143 CABLE, REAR DRIVE X PM 48S
411 957003076 GEAR BOX ASS'Y PM 48S
412 664601909 PULLEY X PM4850S
413 664645705 PIN X PM 48S
414 664033283 ROD X PM 48S
415 664063800 BELT 484 X EUM430-480
416 664753000 PIN X PM 48S
417 664041957 BUSH X PM 48S
418 664450063 SPRING X PM 48S
419 664680009 WASHER X PM 48S
420 664154510 NUT X PM 48S
421 664110230 CAP X PM48S-4850S
PM48S - LAWNMOWER DOLMAR 46CM 2,2KW pag.3
251 920208000 HEX NUT M8
252 664583500 SPRING X PM 43
253 664523070 WASHER X PM 43
254 664735537 ADJUT PLATE X PM 43
255 664005082 WHEEL SUPPORT X PM 43
256 481003285/1 WHEEL ADJUST LEVER PM43
257 664171001 SPACER X PM 43
258 664793701 SCREW X PM 43
258A 664521350 WASHER X PM 43
259 664034508 BUSH X PM 43
260B 664007311 WHEEL D.170 EUM430-480
261 664523060 WASHER X PM43
262B 664155000 NUT X PM 43
263 664110262 HUB COVER D.170 B. EUM 430
264 664003279 WHEEL ADJUST LEVER EUM430-480
265 664789000 SCREW X PM 43
266 664154330 NUT X PM 43
267 664007313 WHEEL D.210 EUM430-480
268 664110265 HUB COVER D.210 B. EUM 430
PM48S - LAWNMOWER DOLMAR 46CM 2,2KW pag.4
501B 664465607 BLADE BOSS EUM 430-480
502B 181004346/3 BLADE PM48 (SX)
503 664160400 SPRING WASHER X PM43
504 664523080 WASHER X PM 43
505 664735698 SCREW X PM 43
506 664139100 KEY PM 43
552 664486076 GRASSCATCHER UPPER PART X PM 43
553 664486077 GRASSCATCHER LOWER PART X PM 43
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Dolmar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Dolmar PM48S
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Dolmar PM48S

Drawing Dolmar PM48S

Download (746.52KB)

You might also like

Electric Lawn Mower Makita 1400W ELM3800 -10% Sale
Makita SKU: ELM3800
Electric Lawn Mower Makita 1400W ELM3800
Electric Lawn Mower Makita 1400W ELM3800 Features: - Innovative Makita Design. - Polypropylene shell with UV and weather resistance. - Easy drainage of the picking basket provided already assembled. - Integrated transport handle. -...
Out-of-Stock €172.32 €191.47
Details
Rubber Belt for Lawnmower Makita PLM5113
Makita SKU: DA00000968
Rubber Belt for Lawnmower Makita PLM5113
Rubber Belt for Lawnmower Makita PLM5113 Genuine replacement part Makita, Rubber Belt V10x885 for Lawnmowers PLM5113 - PLM5113N2 - PM5100S3 - Dolmar PM5101S3. Part for the following products:...
Last items in stock €16.47
Details
Rubber Belt Cover for Lawnmower Makita PLM5113
Makita SKU: 671522001
Rubber Belt Cover for Lawnmower Makita PLM5113
Rubber Belt Cover for Lawnmower Makita PLM5113 Genuine replacement part Makita, Rubber Belt Protective Cover for Lawnmowers PLM5113 - PLM5113N2 - PM5100S3 - Dolmar PM5101S3. Part for the following...
Last items in stock €22.41
Details
Blade for Lawnmower Dolmar PM-46SBC
Makita SKU: 671014610
Blade for Lawnmower Dolmar PM-46SBC
Blade for Lawnmower Dolmar PM-46SBC Genuine replacement part Dolmar, Blade for Lawnmowers PM-46SB - PM-46SBC - PM-46NB - PM-46NBC. Part for the following products: -  PM-46SBC - LAWNMOWER 140CC 46CM DOLMAR - PM-46NB - RASAERBA 140CC...
Last items in stock €30.10
Details
Grass Box Upper Side for Lawnmower Dolmar PM48S
Makita SKU: 664486076
Grass Box Upper Part for Lawnmower Dolmar PM48S
Grass Box Upper Part for Lawnmower Dolmar PM48S Genuine replacement part Dolmar, Grass Box Upper Part for Lawnmower Dolmar PM43 - PM48S Part for the following products: - PM43 - LAWNMOWER DOLMAR 41CM 1,6KW -  PM48S - LAWNMOWER DOLMAR...
Last items in stock €39.48
Details
Gear Box Ass'y for Lawnmower Dolmar PM48S
Makita SKU: 957003076
Gear Box Ass'y for Lawnmower Dolmar PM48S
Gear Box Ass'y for Lawnmower Dolmar PM48S Genuine replacement part Dolmar, Gear Box Ass'y for Lawnmower Dolmar PM480S - PM48S.  Part for the following products:...
Last items in stock €178.36
Details
Ring Gear for Lawnmower Dolmar PM48S
Makita SKU: 664120105
Ring Gear for Lawnmower Dolmar PM48S
Ring Gear for Lawnmower Dolmar PM48S Genuine replacement part Dolmar, Ring Gear for Lawnmower Dolmar PM480S - PM48S.  Part for the following products: - PM480S - LAWNMOWER DOLMAR 46CM 2,2KW -  PM48S - LAWNMOWER DOLMAR 46CM 2,2KW -...
Last items in stock €13.12
Details
Wheel Guard for Lawnmower Dolmar PM48S
Makita SKU: 664006846
Wheel Guard for Lawnmower Dolmar PM48S
Wheel Guard for Lawnmower Dolmar PM48S Genuine replacement part Dolmar, Wheel Guard for Lawnmower Dolmar PM48S.  Part for the following products: -  PM48S - LAWNMOWER DOLMAR 46CM 2,2KW - Code: 664006846
Last items in stock €10.52
Details
Pinion Left for Lawnmower Dolmar PM48S
Makita SKU: 664570120
Pinion Left for Lawnmower Dolmar PM48S
Pinion Left for Lawnmower Dolmar PM48S Genuine replacement part Dolmar, Pinion Left for Lawnmower Dolmar PM48S - PM4655S4 - PM4660S1. Part for the following products: -  PM48S -...
on 7/10 Business Days Approx €12.33
Details
Comments (0)
