Makita

Dolmar Spare Parts for Lawnmower PM5600S3

SKU: Dolmar PM5600S3
€7.73
VAT included

Dolmar Spare Parts for Lawnmower PM5600S3

We have the original Dolmar Spare Parts for Lawnmower PM5600S3, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Lawnmower PM5600S3. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

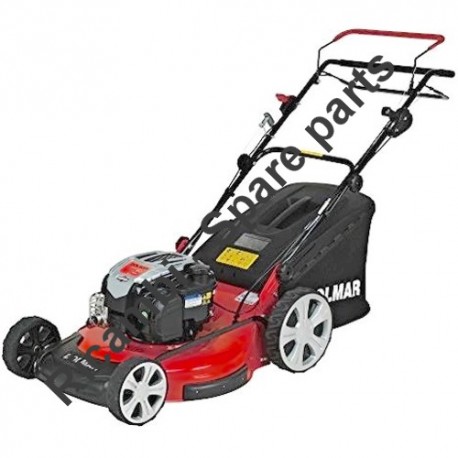

Makita Spare Parts for Lawnmower PM5600S3
  • Makita Spare Parts for Lawnmower PM5600S3
  • Makita Spare Parts for Lawnmower PM5600S3
Makita

Dolmar Spare Parts for Lawnmower PM5600S3

SKU: Dolmar PM5600S3 Condition: New
€7.73
VAT included

Dolmar Spare Parts for Lawnmower PM5600S3

We have the original Dolmar Spare Parts for Lawnmower PM5600S3, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Lawnmower PM5600S3. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 118 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
118 spare parts

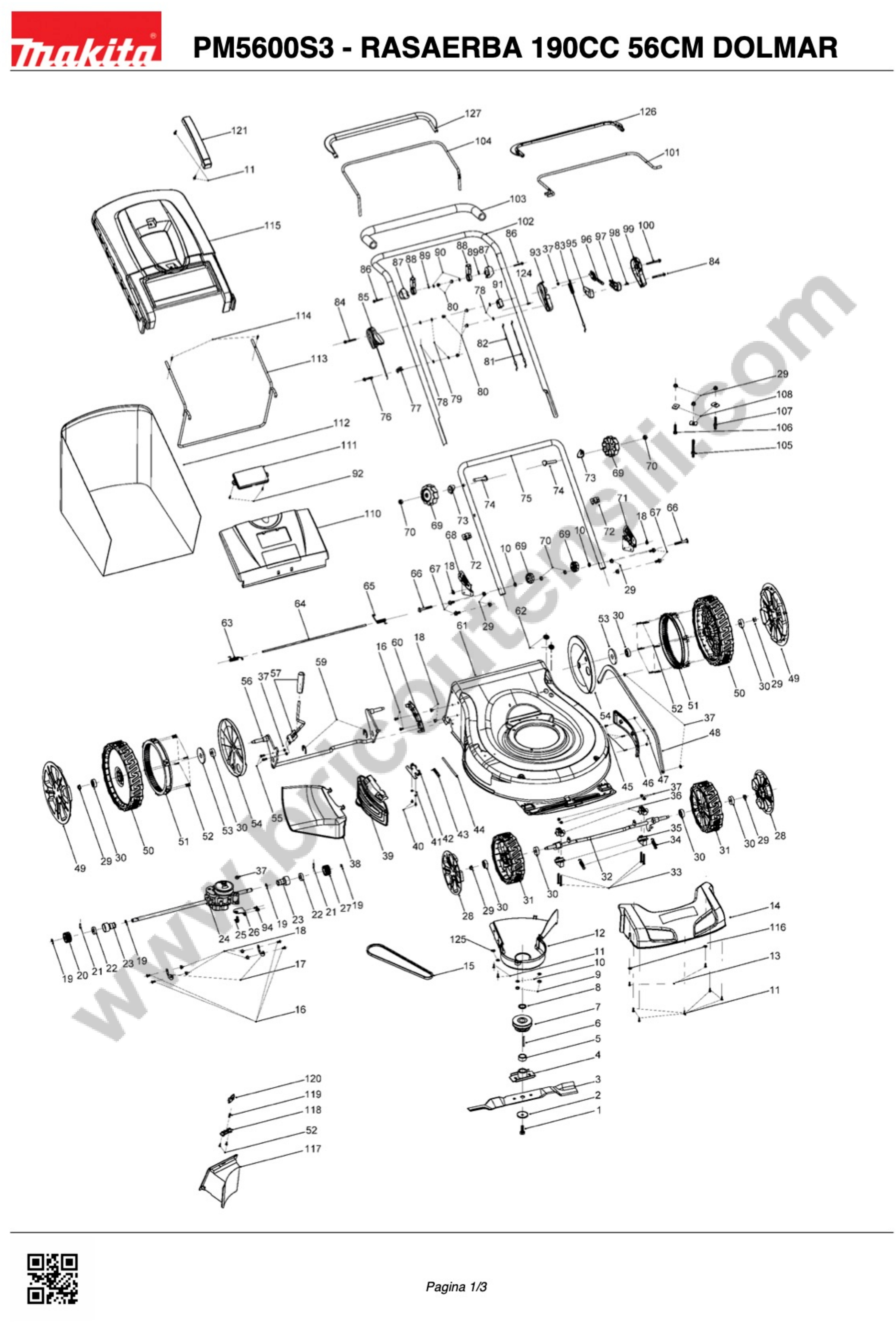

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Blade Tighten Screw for Lawnmover Makita PLM5113 671006062 Blade Tighten Screw for Lawnmover Makita PLM5113 €7.54
2
 photo_cameraImage coming soon 671010730 WASHER D.44,5 / 10,2X2,5 €3.22
3
 Makita PLM5600 Blade 56cm 671002532 Makita PLM5600 Blade 56cm €30.10
4
 Blade Hub for Lawnmover Makita PLM5113 671015252 Blade Hub for Lawnmover Makita PLM5113 €27.21
5
 photo_cameraImage coming soon 671002089 BUSCH X PLM5600 €2.69
6
 photo_cameraImage coming soon 671090002 WOODRUF PLM4110-4610-4611 €2.08
7
 photo_cameraImage coming soon 671004019 PULLEY PLM5600 €68.84
8
 photo_cameraImage coming soon 671002351 WASHER €3.84
9
 photo_cameraImage coming soon 671005008 NUT M8 PLM4110-4610-4611 €2.21
10
 photo_cameraImage coming soon 671007007 WASHERELM €1.47
11
 photo_cameraImage coming soon 671001037 SCREW 5X16 €1.44
12
 photo_cameraImage coming soon 671560001 BELT COVER X PLM5600 €13.85
13
 photo_cameraImage coming soon 671001054 SELF-TAPPING SCREWELM €2.15
14
 photo_cameraImage coming soon 671825001 FRONT COVER PLM5600 €24.35
15
 Makita PLM5600 Rubber Belt 671002065 Makita PLM5600 Rubber Belt €21.98
16
 photo_cameraImage coming soon 671002019 TRIGGER BOLTPLM €2.21
17
 photo_cameraImage coming soon 671001244 ELM4110 PLATE €2.15
18
 photo_cameraImage coming soon 671005024 HEXAGONAL LOCKINGPLM €2.15
19
 photo_cameraImage coming soon 671090020 WASHER PLM4110-4610-4611 €2.06
20
 photo_cameraImage coming soon DA00001091 PINION DX PLM4611 €12.63
21
 photo_cameraImage coming soon 671090001 5X21,5 PIN €2.06
22
 photo_cameraImage coming soon DA00001029 CUSHION FOR ELM4611 €5.28
23
 photo_cameraImage coming soon 671002035 BEARING BOX PM5120-S €13.39
24
 photo_cameraImage coming soon 671502027 TRACTION GROUP X PLM5600 €155.03
25
 photo_cameraImage coming soon 671006181 SCREW M6X17 €2.69
26
 photo_cameraImage coming soon 671002297 PLATE X PLM5600 €4.43
27
 photo_cameraImage coming soon DA00001090 PINION SX PLM4110-4610-4611 €12.63
28
 photo_cameraImage coming soon 671001177 COVER HUB 200 ELM4110 €11.40
29
 photo_cameraImage coming soon 671005028 HEXAGONAL LOCKINGPLM €2.15
30
 photo_cameraImage coming soon 671004012 BEARING 6201Z ELM4110 €13.07
31
 photo_cameraImage coming soon 671020160 WHEEL 200 PLM4110-4610-4611 €29.13
32
 photo_cameraImage coming soon 671002295 FRONT AXLE X PLM5600 €85.14
33
 photo_cameraImage coming soon 671006002 SCREW M6X65 €2.08
34
 photo_cameraImage coming soon 671011087 TENSION SPRING X PLM5600 €2.08
35
 photo_cameraImage coming soon 671076001 PLM5600 SUPPORT €3.13
36
 photo_cameraImage coming soon 671445001 BUSH ELM4110 €2.85
37
 photo_cameraImage coming soon 671005005 LOCKING NUTPLM €2.15
38
 photo_cameraImage coming soon 671065001 LATERAL COVER €24.83
39
 photo_cameraImage coming soon 671406001 COVER €11.07
40
 photo_cameraImage coming soon 671002010 SCREW M5X12 €2.08
41
 photo_cameraImage coming soon 671080040 ELASTIC WASHER €1.44
43
 photo_cameraImage coming soon 671111300 TORSION SPRING €3.23
44
 photo_cameraImage coming soon 671001019 ROOD PM5100S3 €5.28
45
 photo_cameraImage coming soon 671006085 SCREW €1.40
48
 photo_cameraImage coming soon 671002292 CONTROL PLATE X PLM5600 €18.98
49
 photo_cameraImage coming soon 671001322 COVER HUB PM5100S3 €14.76
50
 photo_cameraImage coming soon 671002021 REAR WHEEL PM5100S3 €51.67
51
 Gear for Lawnmover Makita PLM5113 671200010 Gear for Lawnmover Makita PLM5113 €22.41
52
 photo_cameraImage coming soon 671001005 SELF-TAPPING SCREWELM €2.15
53
 photo_cameraImage coming soon 671007065 WASHER 20 PM5120-5120S €3.13
54
 photo_cameraImage coming soon 671251800 INNER WHEEL COVER X PLM5600 €10.18
55
 photo_cameraImage coming soon 671002030 SCREW PM5100S3 €2.14
56
 photo_cameraImage coming soon 671002296 REAR AXIS X PLM5600 €92.13
57
 photo_cameraImage coming soon DA00001077 ADJUSTMENT LEVER X PLM5600 €9.89
59
 photo_cameraImage coming soon 671009003 WASHER D.19X1.5 PLM4611 €2.06
60
 photo_cameraImage coming soon 671010600 ADJUSTMENT PLATE X PLM5600 €7.95
61
 photo_cameraImage coming soon 671001878 DECK €349.55
62
 photo_cameraImage coming soon 671800104 CORD PROTECTING X PLM5600 €1.44
63
 photo_cameraImage coming soon 671011229 SPRING DX €3.13
64
 photo_cameraImage coming soon 671001484 PIN €4.43
65
 photo_cameraImage coming soon 671011228 SPRING SX €3.13
66
 photo_cameraImage coming soon DA00000880 FLAT HEAD BOLT €2.76
67
 photo_cameraImage coming soon 671006064 HEXAGON HEAD BOLTPLM €2.15
68
 photo_cameraImage coming soon 671001829 BRACKET HANDLE RIGHT €14.34
69
 photo_cameraImage coming soon 671530010 PLM5600 KNOB €3.11
70
 photo_cameraImage coming soon 671005023 HEXAGONAL NUT €2.06
71
 photo_cameraImage coming soon 671018270 BRACKET HANDLE, LEFT €12.69
72
 photo_cameraImage coming soon 671814001 BOWDEN CABLE CLAMP €1.95
73
 photo_cameraImage coming soon 671001085 WASHERPLM €2.15
74
 photo_cameraImage coming soon 671006165 SCREW M8X58 €1.95
75
 photo_cameraImage coming soon 671001869 PLM5600 SWITCH HANDLE €50.21
76
 photo_cameraImage coming soon 671006077 SCREW M6X35 PM5120-5120S €1.39
77
 photo_cameraImage coming soon 671001647 CABLE HOOK PM5100S3 €5.09
78
 photo_cameraImage coming soon 671007008 WASHER PLM4110-4610-4611 €2.06
79
 photo_cameraImage coming soon 671008003 WASHER PLM4110-4610-4611 €2.06
80
 photo_cameraImage coming soon 671005016 NUT M6 PLM4110-4610-4611 €2.01
81
 photo_cameraImage coming soon 671001241 MOTOR BRAKE CABLE X PLM5600 €44.84
82
 Control Cable Wheel Drive for Lawnmower Makita PLM5600 671001242 Control Cable Wheel Drive for Lawnmower Makita PLM5600 €46.40
83
 photo_cameraImage coming soon 671001243 TRANSMISSION CABLE X PLM5600 €44.84
84
 photo_cameraImage coming soon 671006082 SCREW €1.43
85
 photo_cameraImage coming soon 671106202 THROTTLE DANDLE PLM5600 €40.40
86
 photo_cameraImage coming soon 671006029 SCREW €1.40
87
 photo_cameraImage coming soon 671990001 PLM5600 SUPPORT €3.13
88
 photo_cameraImage coming soon 671989001 PLM5600 X CONNECTOR €3.13
89
 photo_cameraImage coming soon 671002025 TRIGGER BOLTELM €2.08
90
 photo_cameraImage coming soon 671007070 WASHER €1.40
91
 photo_cameraImage coming soon 671336001 HOLDER PLM4110-4610-4611 €2.06
92
 photo_cameraImage coming soon 671010710 SCREW 4X12 €1.44
93
 photo_cameraImage coming soon 671827001 SWITCH BOX UPPER COVER PLM5600 €4.43
94
 photo_cameraImage coming soon 671006112 LIVES €1.32
95
 photo_cameraImage coming soon 671471002 PLATE PM5100S3 €4.39
96
 photo_cameraImage coming soon 671002279 PLM5600 SWITCH LEVER €5.13
97
 photo_cameraImage coming soon 671471001 PLATE SX PM5100S3 €4.39
98
 photo_cameraImage coming soon DA00000873 SCREWw M4,2X15 ELM 3310-3710 €2.14
99
 photo_cameraImage coming soon 671828001 SWITCH BOX LOWER COVER PLM5600 €4.43
100
 photo_cameraImage coming soon 671006036 SCREW M6X50 €1.32
101
 photo_cameraImage coming soon 671002294 CONTROL LEVER €16.65
104
 photo_cameraImage coming soon 671020120 ENGINE BRAKE LEVER X PLM5600 €32.73
105
 photo_cameraImage coming soon 671003024 SCREW M8X60X17 PLM4110-4610-11 €7.79
106
 photo_cameraImage coming soon 671006025 SCREW M8x35 PLM4110-4610-4611 €2.06
107
 photo_cameraImage coming soon 671003044 SCREW M8X17X35 PLM4110-4610-11 €2.77
108
 photo_cameraImage coming soon 671002106 GASKET PM5120-5120S €1.95
110
 photo_cameraImage coming soon 671004613 REAR FLAP €32.73
111
 photo_cameraImage coming soon 671385001 TRASPARENT WINDOW €4.56
112
 photo_cameraImage coming soon 671137909 PLM5600 GRASS CATCHER €31.07
113
 photo_cameraImage coming soon 671001382 FRAME €56.02
114
 photo_cameraImage coming soon 671001032 SCREW 4,2X18 €1.44
115
 photo_cameraImage coming soon 671409001 GRASS BOX €44.84
116
 photo_cameraImage coming soon 671007004 WASHER 5 €1.40
117
 photo_cameraImage coming soon 671315001 MULCHING KIT PLM5600-PM5600S €26.16
118
 photo_cameraImage coming soon 671317001 PLATE PLM4110-4610-4611 €2.21
119
 photo_cameraImage coming soon 671011005 SCREW PLM4110-4610-4611 €1.47
120
 photo_cameraImage coming soon 671316004 UTTON PLM4110-4610- €2.21
121
 photo_cameraImage coming soon 671384001 BASKET CONTAINER BASKET €6.11
124
 photo_cameraImage coming soon 671001003 SELF-TAPPING SCREWELM €2.15
125
 photo_cameraImage coming soon 671008011 WASHER 5.65 €1.40
126
 photo_cameraImage coming soon 671020110 THROTTLE LEVER X PLM5600 €3.84
127
 photo_cameraImage coming soon 671020120 ENGINE BRAKE LEVER X PLM5600 €32.73
501
 photo_cameraImage coming soon MOTORE 7350101 €257.42

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Dolmar Spare Parts for Lawnmower PM5600S3

Fix Your Lawnmower PM5600S3. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Lawnmower and the respective parts of the code.
Dolmar PM5600S3
PM-5600 S3 - LAWNMOWER 190CC 56CM DOLMAR
# Part Num. Description
1 671006062 BLADE TIGHTEN SCREW PM5100S3
2 671010730 WASHER D.44.5 / 10.2X2.5
3 671002532 BLADE 56CM X PM5600
4 671015252 BLADE BOSS PM5100S3
5 671002089 BLADE SLEEVE X PLM5600
6 671090002 FLAT KEY PLM4110-4610-4611
7 671004019 PULLEY PLM5600
8 671002351 FLAT WASHER
9 671005008 HEX LOCKING NUT M8 PLM4110-4610-4611
10 671007007 WASHER 8 ELM3310-3710
11 671001037 SELF TAPPING SCREW 5X16
12 671560001 BELT COVER X PLM5600
13 671001054 SELF TAPPING SCREW 5X12 ELM3310-3710
14 671825001 FRONT COVER PLM5600
15 671002065 V-BELT X PLM5600
16 671002019 TRIGGER BOLT M6X12 ELM4110
17 671001244 RING OF AXLE FIXING ELM4110
18 671005024 HEX LOCKING NUT M6 ELM4110
19 671090020 SAFETY WASHER PLM4110-4610-4611
20 DA00001091 RIGHT GEAR PLM4611
21 671090001 CYLINDRICAL PIN 5X21.5
22 DA00001029 BEARING FOR ELM4611
23 671002035 BEARING HOUSING PM5120-S
24 671502027 GEAR BOX X PLM5600
25 671006181 SCREW M6X17
26 671002297 FIXING PLATE X PLM5600
27 DA00001090 GEAR WHEEL LEFT PLM4110-4610-4611
28 671001177 WHEEL COVER 200 ELM4110
29 671005028 HEX LOCKING NUT M8 ELM4110
30 671004012 BALL BEARING 6201Z ELM4110
31 671020160 WHEEL ASS'Y 8" 200 PLM4110-4610-4611
32 671002295 FRONT WHEEL AXLE X PLM5600
33 671006002 HEX BOLT M6X65
34 671011087 TENSION SPRING X PLM5600
35 671076001 AXLE SHEATH PLM5600
36 671445001 AXLE SHEATH ELM4110
37 671005005 LOCKING NUT M6 ELM4110
38 671065001 PROTECTION COVER
39 671406001 SIDE DISCHARGE COVER
40 671002010 TRIGGER BOLT M5X12
41 671080040 SPRING WASHER
42 671002183 FIXING PLATE X PLM5600
43 671111300 TORSION SPRING
44 671001019 AXLE PM5100S3
45 671006085 CROSS RECESS BOLT
46 671416001 PROTECTION HOOD X PLM5600
47 671050140 HEX LOCK NUT M14
48 671002292 LINK ROD X PLM5600
49 671001322 WHEEL COVER PM5100S3
50 671002021 WHEEL WHEEL PM5100S3
51 671200010 GEAR WHEEL PM5120-5120S
52 671001005 SELF-TAPPING SCREW M4X16 ELM3310-3710
53 671007065 BIG WASHER 20 PM5120-5120S
54 671251800 INNER WHEEL COVER X PLM5600
55 671002030 TRIGGER BOLT PM5100S3
56 671002296 REAR WHEEL AXLE X PLM5600
57 DA00001077 LEVER HEIGHT ADJUSTMENT CPL X PLM5600
59 671009003 SAFETY WASHER D.19X1.5 PLM4611
60 671010600 SECTOR, HEIGHT ADJUSTMENT X PLM5600
61 671001878 DECK
62 671800104 CORD PROTECTION SHEATH X PLM5600
63 671011229 SPRING, RIGHT
64 671001484 LONG POLE
65 671011228 SPRING, LEFT
66 DA00000880 FLAT HEAD BOLT M8X35 ELM4410
67 671006064 HEX HEAD BOLT M8X6 ELM4110
68 671001829 BRACKET HANDLE RIGHT
69 671530010 STAR KNOB PLM5600
70 671005023 HEXAGONAL NUT M8
71 671018270 BRACKET HANDLE, LEFT
72 671814001 BOWDEN CABLE CLAMP
73 671001085 WASHER ELM4110
74 671006165 FLAT HEAD BOLT M8X58
75 671001869 LOWER HANDLE PLM5600
76 671006077 BOLT M6X35 PM5120-5120S
77 671001647 CABLE HOOK PM5100S3
78 671007008 WASHER 16X8X0,8 PLM4110-4610-4611
79 671008003 SPRING WASHER MM 6,65PLM4110-4610-4611
80 671005016 HEX LOCKING NUT M6 PLM4110-4610-4611
81 671001241 BOWDEN CABLE THREAD MOTOR BRAKE X PLM5600
82 671001242 CONTROL CABLE (WHEEL DRIVE) X PLM5600
83 671001243 CONTROL CABLE(3-GEAR) X PLM5600
84 671006082 HEXAGONAL FLANGE BOLT
85 671106202 THROTTLR HANDLE ASS'Y PLM5600
86 671006029 HEXAGONAL FLANGE BOLT
87 671990001 POSITION FIXING SUPPORT PLM5600
88 671989001 PLUG-IN OF HANDLE X PLM5600
89 671002025 SCREW M4X8 ELM3310-3710
90 671007070 WASHER
91 671336001 FIXED BRACKET PLM4110-4610-4611
92 671010710 SELF-TAPPING SCREW 4X12
93 671827001 SWITCH BOX UPPER COVER PLM5600
94 671006112 HEXAGONAL FLANGE BOLT
95 671471002 GRIP PLATE, RIGHT PM5100S3
96 671002279 SWITCH LEVER PLM5600
97 671471001 GRIP PLATE, LEFT PM5100S3
98 DA00000873 SELF-TAPPING SCREW M4,2X15 ELM 3310-3710
99 671828001 SWITCH BOX LOWER COVER PLM5600
100 671006036 BOLT M6X50
101 671002294 CONTROL LEVER
102 671005139 UPPER HANDLE ASS'Y PLM5600
103 671103101 HANDLE SHEATH X PLM5600
104 671020120 LEVER, MOTOR BRAKE ASS'Y X PLM5600
105 671003024 SPECIAL SCREW M8X60X17 PLM4110-4610-11
106 671006025 HEX BOLT M8X35 PLM4110-4610-4611
107 671003044 SPECIAL SCREW M8X17X35 PLM4110-4610-11
108 671002106 SQUARE GASKET MM 10 PM5120-5120S
110 671004613 REAR FLAP
111 671385001 TRANSPARENT WINDOW
112 671137909 GRASS CATCHER PLM5600
113 671001382 FRAME
114 671001032 BOLT 4,2X18
115 671409001 GRASS-BOX, UPPER
116 671007004 WASHER 5
117 671315001 MULCHING KIT PLM5600-PM5600S
118 671317001 PRESSING PLATE PLM4110-4610-4611
119 671011005 SPRING PLM4110-4610-4611
120 671316004 LOCKING BUTTON PLM4110-4610-
121 671384001 GRASS CATCHER HANDLE
124 671001003 SELF-TAPPING SCREW 4X12 ELM3310-3710
125 671008011 WASHER 5.65
126 671020110 LEVER, DRIVING ASS'Y X PLM5600
127 671020120 LEVER, MOTOR BRAKE ASS'Y X PLM5600
501 ENGINE 675EX/190CC/2.7 KW/3000rpm,B&S, XRQ,DOLMAR
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Dolmar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Dolmar PM5600S3
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Dolmar PM5600S

Diagram Dolmar PM5600S

Download (322.1KB)

You might also like

Blade Hub for Lawnmover Makita PLM5113
Makita SKU: 671015252
Blade Hub for Lawnmover Makita PLM5113
Blade Hub for Lawnmover Makita PLM5113 Genuine replacement part Makita, Blade Hub for Lawnmovers PLM5113 - PLM5600 - PLM5113N2 - Dolmar PM411 - PM460. Part for the...
on 7/10 Business Days Approx €27.21
Details
Gear for Lawnmover Makita PLM5113
Makita SKU: 671200010
Gear for Lawnmover Makita PLM5113
Gear for Lawnmover Makita PLM5113 Genuine replacement part Makita, Gear for Lawnmovers PLM5113 - PLM5600 - PLM5113N2 - Dolmar PM411 - PM460. Part for the following products: - PLM4110 - LAWNMOVER MAKITA 41CM 2,8HP - PLM4120N -...
Last items in stock €22.41
Details
Blade Tighten Screw for Lawnmover Makita PLM5113
Makita SKU: 671006062
Blade Tighten Screw for Lawnmover Makita PLM5113
Blade Tighten Screw for Lawnmover Makita PLM5113 Genuine replacement part Makita, Blade Tighten Screw 3/8X1.57" for Lawnmovers PLM5113 - PLM5600 - PLM5113N2 -...
Usually Ships in: 7/10 Business Days Approx. €7.54
Details
Makita PLM5600 Blade 56cm
Makita SKU: 671002532
Makita PLM5600 Blade 56cm
Makita Lawnmower PLM5600 Blade 56cm Original replacement part Makita, Blade 56cm for Lawnmowers PLM5600 - Dolmar PM5600S3. Part for the following products: - PLM5600 - LAWNMOWER 190CC 56CM MAKITA - PM5600S3 - LAWNMOWER...
Last items in stock €30.10
Details
Makita PLM5600 Rubber Belt
Makita SKU: 671002065
Makita PLM5600 Rubber Belt
Makita Lawnmower PLM5600 Rubber Belt Original replacement part Makita, Rubber Belt for Lawnmowers PLM5600 - Dolmar PM5600S3. Part for the following products: - PLM5600 - LAWNMOWER 190CC 56CM MAKITA - PM5600S3 - LAWNMOWER...
Last items in stock €21.98
Details
Comments (0)
