Dolmar Spare Parts for Hedge Trimmer HT2360D

We are DOLMAR original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Hedge Trimmer HT2360D.

145 spare parts

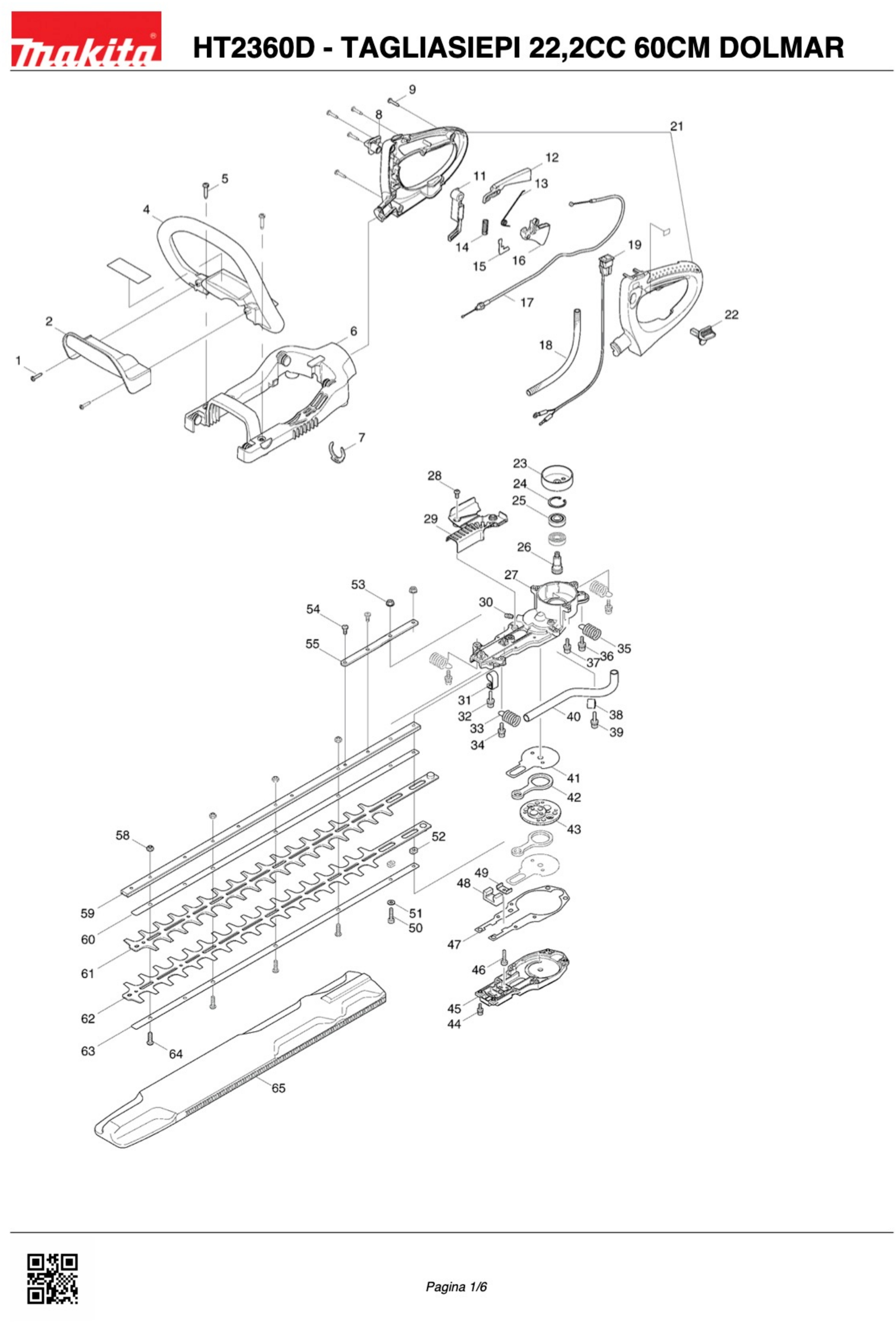

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
1		265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C	€1.46
2	Image coming soon	452322-8 GUARD X EH5000W	€10.70
4	Image coming soon	452321-0 FRONT HANDLE EH5000W	€30.78
5	Image coming soon	266041-8 PT SCREW 5x25	€1.70
6	Image coming soon	452319-7 BASE HANDLE X EH5000W	€18.01
7	Image coming soon	452323-6 RING LOCK 25 X EH5000W	€2.25
8	Image coming soon	452316-3 LOCKING LEVER B X EH5000W	€2.89
9		265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW	€1.46
11	Image coming soon	452314-7 STOP FOR EH5000W	€3.39
12	Image coming soon	452313-9 LEVER B X EH5000W	€3.39
13	Image coming soon	233579-8 TORSION SPRING 8 X EH5000W	€3.39
14	Image coming soon	234204-4 COMPRESSION SPRING 8 X EH5000W	€2.25
15	Image coming soon	413153-0 PLATE X EH5000W	€2.25
16	Image coming soon	452312-1 LEVER A X EH5000W	€3.39
17	Image coming soon	168625-7 THROTTLE CABLE X EH5000W	€10.70
18	Image coming soon	452324-4 PIPE X EH5000W	€4.15
19	Image coming soon	125858-7 SWITCH X EH5000W	€38.69
21	Image coming soon	187049-8 REAR HANDLE X EH5000W	€23.31
22	Image coming soon	452315-5 LOCKING LEVER A X EH5000W	€2.89
23		168567-5 Clutch Drum for Hedgetrimmer Makita EH5000W	€17.67
24	Image coming soon	0031428000 INNER SNAPRING X RBC410/520	€2.77
25	Image coming soon	0600129780 BEARING X EH7500S	€9.20
26	Image coming soon	227247-3 GEAR 9 X EH7500S	€9.20
27		141033-7 Gear Case for Hedgetrimmer Makita EH5000W	€65.20
28	Image coming soon	0119059400 SCREW M5 X 12 X EH7500S	€1.44
29	Image coming soon	451865-7 BAFFLE PLATE X EH7500S	€3.95
30	Image coming soon	243107-1 GREASE NIPPLE EH7500S	€2.15
31	Image coming soon	346253-0 HOLDER X EH7500S	€2.15
32	Image coming soon	922213-2 HEX BOLT M5X12 EBH253L/341U	€1.51
33	Image coming soon	234224-8 COMPRESSION SPRING 15 X EH5000W	€5.55
34	Image coming soon	0119059360 SCREW X EH7500S	€2.15
35		234202-8 Compression Spring 15 for Hedgetrimmer Makita EH5000W	€4.58
36	Image coming soon	0119059360 SCREW X EH7500S	€2.15
37	Image coming soon	0119059870 BOLT X RBC230	€2.89
38	Image coming soon	346252-2 HOLDER X EH7500S	€2.15
39	Image coming soon	922213-2 HEX BOLT M5X12 EBH253L/341U	€1.51
40	Image coming soon	331896-1 PIPE X EH7500S	€6.82
41	Image coming soon	346255-6 PLATE ECCENTRICO X EH7500S	€3.95
42		346251-4 Connect Rod for Hedgetrimmer Makita EH5000W	€9.89
43		227248-1 Gear 43 for Hedge Trimmer Makita EH5000W	€28.89
44	Image coming soon	922128-3 BOLT M4x16 4300BA	€1.44
45		318610-2 Gear Case Cover for Hedgetrimmer Makita EH5000W	€18.48
46	Image coming soon	266573-5 HSS HD BOLT M5X33 EBH341U	€1.51
47	Image coming soon	413137-8 GASKET EH7500S	€3.95
48	Image coming soon	443159-4 SEAL EH7500S	€6.11
49	Image coming soon	346256-4 HOLDER X EH7500S	€3.22
50	Image coming soon	266573-5 HSS HD BOLT M5X33 EBH341U	€1.51
51	Image coming soon	0031105003 WASHER X EH7500S	€1.51
52	Image coming soon	313195-3 SLEEVE 5 X EH7500S	€2.77
53	Image coming soon	0023705000 NUT M5 X PB500R	€1.51
54	Image coming soon	266874-1 SCREW M4X14	€1.51
55	Image coming soon	346663-1 PLATE	€10.70
58	Image coming soon	264036-5 NUT M6-10 X EH7500S	€2.25
59	Image coming soon	331895-3 BLADE GUIDE X EH6000W	€44.42
60	Image coming soon	346258-0 PLATE X EH6000W	€5.09
61		725170-1 Blade for Hedgetrimmer Makita EH6000W	€88.04
62		725170-1 Blade for Hedgetrimmer Makita EH6000W	€88.04
63	Image coming soon	346258-0 PLATE X EH6000W	€5.09
64	Image coming soon	266824-6 SOCKET BUTTON HEAD BOLT M6X20	€1.44
65	Image coming soon	452623-4 BLADE COVER X HT2360D	€9.80

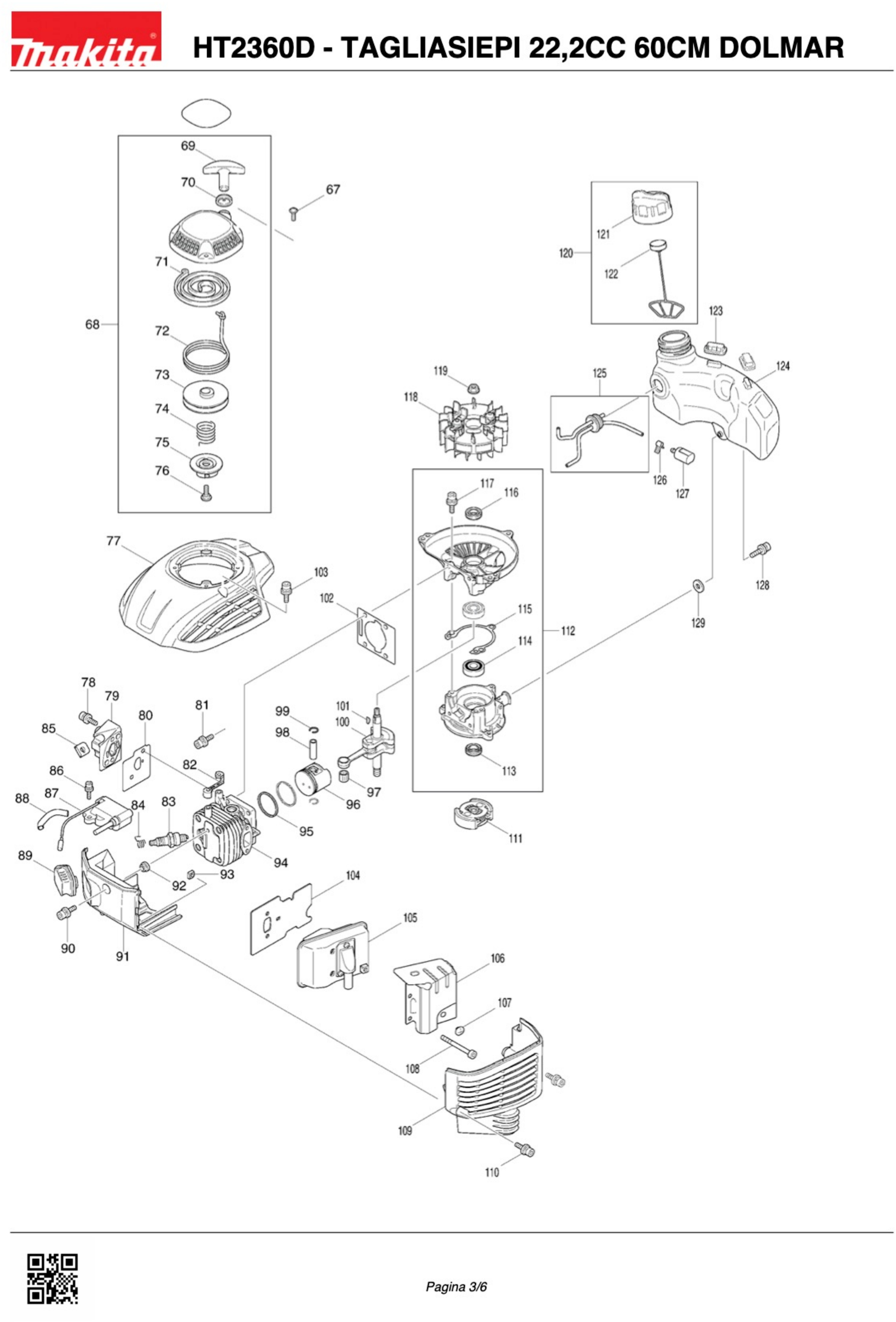

Page 2 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
67	Image coming soon	0150049860 SCREW M4 X 14 X EH7500S	€2.15
68	Image coming soon	125753-1 STARTER CPL	€41.61
69	Image coming soon	5225004020 STARTER KNOB HT2256D	€13.66
71	Image coming soon	232258-5 SPRING AVVIAMENTO EBH252L	€10.36
72	Image coming soon	444028-2 STARTER ROPE EH7500S	€3.95
73	Image coming soon	452402-0 REEL X EH7500S	€11.40
74	Image coming soon	233991-2 SPRING X EH7500S	€7.80
75	Image coming soon	452403-8 CAM X X EH7500S	€8.75
76	Image coming soon	266585-8 SCREW 5X12 EBH252L	€2.18
77	Image coming soon	452949-4 BLOWER HOUSING X HT2475	€15.50
78	Image coming soon	0119059450 SCREW M5 X 18 X EH7500S	€2.15
79	Image coming soon	451911-6 PLATE X EH7500S	€7.80
80	Image coming soon	346268-7 GASKET EH7500S	€5.28
81	Image coming soon	0119059870 BOLT X RBC230	€2.89
82	Image coming soon	452556-3 SPACER X EH7500S	€1.44
83	Image coming soon	0650109950 SPARK PLUG CMR6A X MS251.A	€12.34
84		324891-8 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U	€1.62
85	Image coming soon	S198113530 RUBBER X DBC260	€2.15
86	Image coming soon	922138-0 HS H BOLT M4X20 EBH341U/253L	€9.01
87	Image coming soon	168684-1 IGNITION COIL X EH7500S	€66.69
89	Image coming soon	424302-4 SPARK CAP EH7500S	€3.22
90	Image coming soon	0119059620 SCREW M5 X 18 X EH7500S	€2.25
91	Image coming soon	451860-7 CYLINDER COVER EH7500S	€5.28
92	Image coming soon	5503503001 SPACER X-HT2256D HT2276E	€3.95
94	Image coming soon	140508-3 CYLINDER X EH7500S	€144.08
95	Image coming soon	257334-4 PISTON RING 33	€3.95
96		318858-6 Piston for Brushcutter Dolmar MS26C	€13.46
97	Image coming soon	0610089970 NEEDLE BEARING EH7500S	€6.11
98	Image coming soon	S115323130 PISTON PIN EH7500S	€2.77
99	Image coming soon	234243-4 CAPACITOR CLIP	€1.44
100	Image coming soon	140429-9 CRANK SHAFT X EH7500S	€70.90
101	Image coming soon	S034309031 WOODRUFF EH7500S	€2.15
102	Image coming soon	346267-9 GASKET EH7500S	€2.77
103	Image coming soon	0119059870 BOLT X RBC230	€2.89
104	Image coming soon	346260-3 MUFFLER GASKET EH7500S	€3.95
105	Image coming soon	162530-0 MUFFLER	€78.10
106	Image coming soon	346343-9 MUFFLER COVER	€7.80
107	Image coming soon	0140059962 SCREW M 5 X 6 MS251.4	€1.44
108	Image coming soon	0119059550 SCREW X DBC260U	€2.15
109	Image coming soon	451861-5 MUFFLER COVERA EH7500S	€6.11
110	Image coming soon	0119059620 SCREW M5 X 18 X EH7500S	€2.25
111		141150-3 Clutch Ass'y for Hedgetrimmer Makita EH5000W	€37.08
112	Image coming soon	5231016000 BASE X EH7500S	€105.92
113		213769-9 Oil Seal 10 for Brushcutter Dolmar MS335.4C	€3.20
114	Image coming soon	0600109980 BALL BEARING 6000	€14.77
115	Image coming soon	413139-4 GASKET EH7500S	€2.15
116		213769-9 Oil Seal 10 for Brushcutter Dolmar MS335.4C	€3.20
117	Image coming soon	0119059870 BOLT X RBC230	€2.89
118	Image coming soon	126046-9 FLYWHEEL X EH7500S	€23.31
119	Image coming soon	S020109118 NUT M6 X EH7500S	€1.44
120	Image coming soon	125770-1 TANK CAP CPL EH7500S	€17.15
121	Image coming soon	125840-6 TANK CAP X EH7500S	€22.18
122	Image coming soon	140624-1 ROD X EH7500S	€6.82
123		424080-6 Makita Rubber for Brushcutter EM2651UH	€1.65
124	Image coming soon	451867-3 FUEL TANK X EH7500S	€17.94
125	Image coming soon	168568-3 FUEL TUBE X EH7500S	€6.11
126	Image coming soon	0561059990 HOSE CLAMP XRBC230-310 / 520	€1.89
127	Image coming soon	5266500100 FUEL FILTER EH7500S	€5.28
128	Image coming soon	0119059350 SCREW M5X20 X EH7500S	€2.25
129	Image coming soon	458095-1 SPACER	€1.44

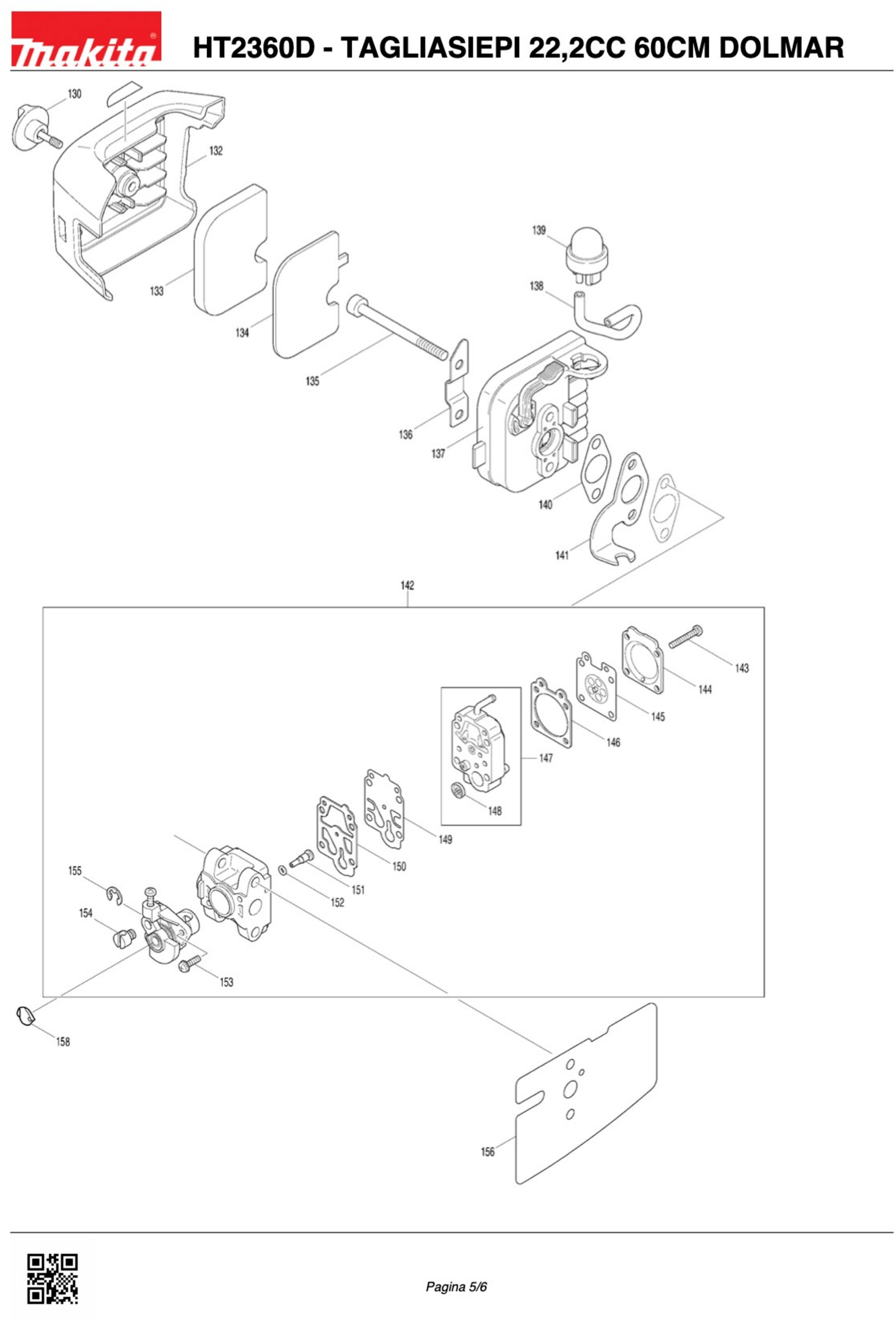

Page 3 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
130	Image coming soon	265791-2 SCREW M4 X EH7500S	€1.44
132	Image coming soon	451859-2 AIR CLEANER COVER EH7500S	€4.56
133	Image coming soon	443157-8 AIR FILTER EH7500S	€2.77
134	Image coming soon	443158-6 AIR FILTER EH7500S	€2.77
136	Image coming soon	345919-9 PLATE EBH253L/EBH341U	€1.47
137	Image coming soon	126029-9 PLATE X EH7500S	€7.80
138	Image coming soon	412097-1 PIPE X EH7500S	€2.15
139		168398-2 Gasoline Primer Pump for Chainsaw Makita DCS230T	€6.24
140	Image coming soon	413158-0 GASKET, CARBURETOR X DBC260U	€1.44
141	Image coming soon	346334-0 CABLE BRACKET X EH7500S	€3.22
142	Image coming soon	168569-1 CARBURETOR X EH7500S	€70.90
144	Image coming soon	5316005030 PRIMER PUMP COVER X RBL250	€13.07
145		168620-7 Makita Diaphragm for EM2651UH	€23.70
146	Image coming soon	5016004130 GASKET X RBL250-RBC225-25	€5.55
147	Image coming soon	140661-5 BODY ASSEMBLY PUMP EH7500S	€36.84
148	Image coming soon	5016004010 JOINT FOR RBC 260/230/310/225	€5.28
149	Image coming soon	WJ00009599 PUMP DIAPHRAGM DCS230T	€13.50
150		442155-9 Makita EBH341U Pump Gasket	€4.06
151	Image coming soon	326005-5 JET EH7500S	€13.07
152	Image coming soon	5246001010 GASKET FOR RBC 260/230/310 /	€6.10
153	Image coming soon	266581-6 SCREW M3X8 EBH341U	€2.18
154	Image coming soon	5236018040 THROTTLE CABLE FORRBC230-260-310-225-	€15.30
155	Image coming soon	5316005120 RING FOR RBC 260/230/310/225/2	€6.10
156	Image coming soon	413147-5 CARBURETOR GASKET EH5000W	€2.89
158	Image coming soon	5259500300 CAP X MS251.4	€3.11

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Dolmar Spare Parts for Hedge Trimmer HT2360D

HT2360D - Hedge Trimmer 22,2CC 60CM DOLMAR pag.1
#	Part NUm.	Description
1	265995-6	* SCREW M4X18 X 6408 / 6221DW
2	452322-8	GUARD X EH5000W
4	452321-0	LOOP HANDLE FOR EH5000W
5	266041-8	TAPPING SCREW PT 5X25
6	452319-7	HANDLE BASE X EH5000W
7	452323-6	STOP RING 25 X EH5000W
8	452316-3	LOCK LEVER B X EH5000W
9	265995-6	* SCREW M4X18 X 6408 / 6221DW
11	452314-7	STOPPER FOR EH5000W
12	452313-9	TRIGGER B X EH5000W
13	233579-8	TORSION SPRING 8 X EH5000W
14	234204-4	COMPRESSION SPRING 8 X EH5000W
15	413153-0	PLATE X EH5000W
16	452312-1	TRIGGER A X EH5000W
17	168625-7	CONTROL CABLE X EH5000W
18	452324-4	CORRUGATED TUBE X EH5000W
19	125858-7	SWITCH ASS'Y X EH5000W
21	187049-8	REAR HANDLE ASS'Y X EH5000W
22	452315-5	LOCK LEVER X EH5000W
23	168567-5	CLUTCH DRUM EH7500S
24	0031428000	INNER SNAP RING X RBC410 / 520
25	0600129780	BALL BEARING X EH7500S
26	227247-3	SPUR GEAR 9 X EH7500S
27	141033-7	GEAR CASE COMPLETE X EH7500S
28	0119059400	SOCKET HEAD BOLT M5 X 12 X EH7500S
29	451865-7	BAFFLE PLATE X EH7500S
30	243107-1	GREASE NIPPLE X EH7500S
31	346253-0	CLAMP X EH7500S
32	922213-2	SOCKET HEAD BOLT M5X12 EBH341U
33	234224-8	COMPRESSION SPRING 15 X EH5000W
34	0119059360	SOCKET HEAD BOLT X EH7500S
35	234202-8	COMPRESSION SPRING 15 X EH7500S
36	0119059360	SOCKET HEAD BOLT X EH7500S
37	0119059870	SOCKET HEAD BOLT X RBC230
38	346252-2	CLAMP X EH7500S
39	922213-2	SOCKET HEAD BOLT M5X12 EBH341U
40	331896-1	PIPE X EH7500S
41	346255-6	FRICTION PLATE X EH7500S
42	346251-4	CONNECTING ROD EH7500S
43	227248-1	SPUR GEAR 43 X EH7500S
44	922128-3	HEX. SOCKET HEAD BOLT M4X16 4300BA
45	318610-2	GEAR CASE COVER EH7500S
46	266573-5	S. H. BOLT M5X33 EBH341U
47	413137-8	GASKET INPUT. EH7500S
48	443159-4	GEAR CASE GASKET FOR EH7500S
49	346256-4	HOLDER X EH7500S
50	266573-5	S. H. BOLT M5X33 EBH341U
51	0031105003	WASHER X EH7500S
52	313195-3	SLEEVE 5 X EH7500S
53	0023705000	FLANGE NUT M5 X PB500R
54	266874-1	SCREW M4X14
55	346663-1	REINFORCING PLATE
58	264036-5	HEX. LOCK NUT M6-10 X EH7500S
59	331895-3	GUIDE BAR X EH6000W
60	346258-0	PLATE X EH6000W
61	725170-1	BLADE X EH6000W
62	725170-1	BLADE X EH6000W
63	346258-0	PLATE X EH6000W
64	266824-6	SOCKET BUTTON HEAD BOLT M6X20
65	452623-4	BLADE COVER X HT2360D
HT2360D - Hedge Trimmer 22,2CC 60CM DOLMAR pag.2
67	0150049860	TAPPING SCREW M4 X 14 X EH7500S
68	125753-1	RECOIL STARTER ASSY.
69	5225004020	STARTER KNOB HT2256D
71	232258-5	SPIRAL SPRING EBH252L
72	444028-2	STARTER ROPE EH7500S
73	452402-0	REEL X EH7500S
74	233991-2	DAMPER SPRING X EH7500S
75	452403-8	CAM PLATE X EH7500S
76	266585-8	SET SCREW 5X12 EBH252L
77	452949-4	BLOWER HOUSING X HT2475
78	0119059450	SOCKET HEAD BOLT M5 X 18 X EH7500S
79	451911-6	INSULATOR PLATE X EH7500S
80	346268-7	INSULATOR GASKET EH7500S
81	0119059870	SOCKET HEAD BOLT X RBC230
82	452556-3	SPACER X EH7500S
83	0650109950	SPARK PLUG CMR6A X MS251.A
84	324891-8	PLUG CAP SPRING PLUG EBH341
85	S198113530	RUBBER BUSHING X DBC260
86	922138-0	SOCKET HEAD BOLT M4X20
87	168684-1	IGNITION COIL X EH7500S
89	424302-4	PLUG CAP EH7500S
90	0119059620	SOCKET HEAD BOLT M5 X 18 X EH7500S
91	451860-7	CYLINDER COVER EH7500S
92	5503503001	SPACER X HT2256D-HT2276E
94	140508-3	CYLINDER CPL. X EH7500S
95	257334-4	PISTON RING 33
96	318858-6	PISTON X DBC260U
97	0610089970	NEEDLE ROLLER BEARING EH7500S
98	S115323130	PISTON PIN EH7500S
99	234243-4	CLIP
100	140429-9	CRANKSHAFT CPL. X EH7500S
101	S034309031	WOODRUFF KEY EH7500S
102	346267-9	CYLINDER GASKET EH7500S
103	0119059870	SOCKET HEAD BOLT X RBC230
104	346260-3	MUFFLER GASKET EH7500S
105	162530-0	MUFFLER
106	346343-9	MUFFLER COVER
107	0140059962	SCREW M 5 X 6 MS251.4
108	0119059550	SOCKET HEAD BOLT X DBC260U
109	451861-5	MUFFLER COVER EH7500S
110	0119059620	SOCKET HEAD BOLT M5 X 18 X EH7500S
111	141150-3	CLUTCH CPL X EH5000W
112	5231016000	CRANKCASE ASSY. X EH7500S
113	213769-9	OIL SEAL 10
114	0600109980	BALL BEARING 6000
115	413139-4	CRANKCASE GASKET EH7500S
116	213769-9	OIL SEAL 10
117	0119059870	SOCKET HEAD BOLT 5X18 X RBC230
118	126046-9	FLYWHEEL ASSY X EH7500S
119	S020109118	NUT M6 X EH7500S
120	125770-1	FUEL TANK CAP ASSEMBLY EH7500S
121	125840-6	FUEL TANK CAP ASSEMBLY X EH7500S
122	140624-1	STRAP CPL. X EH7500S
123	424080-6	VIBRATION DAMPER X DBC260U
124	451867-3	FUEL TANK X EH7500S
125	168568-3	TUBE COMPLETE X EH7500S
126	0561059990	HOSE CLAMP X RBC230-310 / 520
127	5266500100	FUEL FILTER EH7500S
128	0119059350	SOCKET HEAD BOLT M5X20 X EH7500S
129	458095-1	SPACER
HT2360D - Hedge Trimmer 22,2CC 60CM DOLMAR pag.3
130	265791-2	THUMB SCREW M4 X EH7500S
132	451859-2	AIR CLEANER COVER EH7500S
133	443157-8	PREFILTER EH7500S
134	443158-6	AIR FILTER EH7500S
136	345919-9	PLATE EBH341U
137	126029-9	AIR CLEANER PLATE ASS'Y X EH7500S
138	412097-1	TUBE X EH7500S
139	168398-2	PUMP X DCS230T
140	413158-0	GASKET, CARBURETOR X DBC260U
141	346334-0	CABLE BRACKET X EH7500S
142	168569-1	CARBURETOR X EH7500S
144	5316005030	PUMP COVER X RBL250-
145	168620-7	METERING DIAPHRAGM ASS'Y FOR BHX2501
146	5016004130	GASKET X RBL250-RBC225-25
147	140661-5	PUMP BODY ASS'Y EH7500S
148	5016004010	INLET SCREEN X RBC 260/230/310/225
149	WJ00009599	PUMP DIAPHRAGM X DCS230T
150	442155-9	PUMP GASKET EBH341U
151	326005-5	JET EH7500S
152	5246001010	O-RING X RBC 260/230/310
153	266581-6	SCREW M3X8 EBH341U
154	5236018040	THROTTLE CABLE XRBC230-260-310-225-
155	5316005120	SAFETY WASHER X RBC 260/230/310/225/2
156	413147-5	CARBURETOR GASKET EH5000W
158	5259500300	CAP X MS251.4

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Dolmar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Dolmar HT2360D

Available 12 Items

Data sheet

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]

Specific References

Condition New

Download

Drawing Dolmar HT2360D

Download (586.32KB)

Makita SKU: 168398-2

Gasoline Primer Pump for Chainsaw Makita DCS230T

Gasoline Primer Pump for Chainsaw Makita DCS230T Genuine parts for Makita, Gasoline Primer Pump for Chainsaws DCS230T - DCS230TC -DCS231T - DCS231TC - DCS232TC Part for the following products: - DCS230T - CHAINSAW 22,2cc MAKITA...

AVAILABLE €6.24

Details

Makita SKU: 265995-6

Tapping Screw M4X18 for Cordless Drill Makita 6221DW

Tapping Screw M4X18 for Cordless Drill Makita 6221DW Genuine part Makita, Tapping Screw M4X18 for Cordless Drills 6221DW - 6075DW - 6012DWK - 6075DW - 6095DW....

AVAILABLE €1.46

Details

Makita SKU: 324891-8

Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U

Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U Genuine replacement part Makita, Spark Plug Boot Spring Terminal for Brushcutters EBH252L - EBH252U - EBH341L...

AVAILABLE €1.62

Details

Makita SKU: 141033-7

Gear Case for Hedgetrimmer Makita EH5000W

Gear Case for Hedgetrimmer Makita EH5000W Genuine replacement part Makita, Gear Case for Hedgetrimmers EH5000W - EH6000W - EH7500W. Part for the following products: - EH5000W -...

Last items in stock €65.20

Details

Makita SKU: 346251-4

Connect Rod for Hedgetrimmer Makita EH5000W

Connect Rod for Hedgetrimmer Makita EH5000W Genuine replacement part Makita, Connect Rod for Hedgetrimmers EH5000W - EH6000W - EH7500W, EH7500S, EN4950H. Part for the following products: - 196256-2 - ACCEESORY HEDGETRIMMER 53.5CM 135...

Last items in stock €9.89

Details

Makita SKU: 227248-1

Gear 43 for Hedge Trimmer Makita EH5000W

Gear 43 for Hedge Trimmer Makita EH5000W Genuine replacement part Makita, Gear 43 for Hedge Trimmers EH5000W - EH6000W - Dolmar HT2350D - HT2360D. Part for the following products: - 126293-2 - HEDGE TRIMMER X MH246.4D - 196256-2 -...

Last items in stock €28.89

Details

Makita SKU: 725170-1

Blade for Hedgetrimmer Makita EH6000W

Blade for Hedgetrimmer Makita EH6000W Genuine replacement part Makita, Blade 72 cm for Hedgetrimmers EH6000W - Dolmar HT2360D. Part for the following products: - EH6000W - HEDGETRIMMER 22,2CC 60CM MAKITA - HT2360D - HEDGETRIMMER...

Last items in stock €88.04

Details

Makita SKU: 318610-2

Gear Case Cover for Hedgetrimmer Makita EH5000W

Gear Case Cover for Hedgetrimmer Makita EH5000W Genuine replacement part Makita, Gear Case Cover for Hedgetrimmers EH5000W - EH6000W - EH7500W. Part for the following products: - EH5000W - HEDGETRIMMER 22,2CC 50CM MAKITA - EH6000W...

Last items in stock €18.48

Details

Makita SKU: 213769-9

Oil Seal 10 for Brushcutter Dolmar MS335.4C

Oil Seal 10 for Brushcutter Dolmar MS335.4C Genuine replacement part Dolmar, Oil Seal 10 for Brushcutters MS335.4C - MS335.4U - MS-4300.4R - MS-430.4U. Part for the following products: - MS335.4C - BRUSHCUTTER 33,5cc 4T - MS335.4U...

on 7/10 Business Days Approx €3.20

Details

Makita SKU: 168567-5

Clutch Drum for Hedgetrimmer Makita EH5000W

Clutch Drum for Hedgetrimmer Makita EH5000W Genuine replacement part Makita, Clutch Drum for Hedgetrimmers EH5000W - EH6000W - EH7500W. Part for the following products: - EH5000W -...

Last items in stock €17.67

Details

Makita SKU: 141150-3

Clutch Ass'y for Hedgetrimmer Makita EH5000W

Clutch Ass'y for Hedgetrimmer Makita EH5000W Genuine replacement part Makita, Clutch Ass'y for Hedgetrimmers EH5000W - EH6000W - EH7500W. Part for the following products: - EH5000W -...

Last items in stock €37.08

Details

Makita SKU: 234202-8

Compression Spring 15 for Hedgetrimmer Makita EH5000W

Compression Spring 15 for Hedgetrimmer Makita EH5000W Genuine replacement part Makita, Compression Spring 15 for Hedgetrimmers EH5000W - EH6000W - EH7500W. Part for the following products: - ...

on 7/10 Business Days Approx €4.58

Details

Makita SKU: 442155-9

Makita EBH341U Pump Gasket

Makita Gasket for Brushcutter EBH341U Genuine spare part Makita, Pump Gasket for Brushcutters EBH341U - DBC260L - MS350.4C - EX2650LHRH. Part for the following products: - MS350.4C – 34CC-4T BRUSHCUTTER DOLMAR - PB7650.4...

Last items in stock €4.06

Details

Makita SKU: 424080-6

Makita Rubber for Brushcutter EM2651UH

Makita Rubber for Brushcutter EM2651UH Genuine replacement part Makita Dolmar, Fuel Tank Buffer Rubber for Brushcutter EM2651UH - DBC260L. Part for the following products: - Brushcutter Makita EM2651UH - Trimmer Makita...

Last items in stock €1.65

Details

Comments (0)

Cart (0)

Subcategories

Subcategories

Subcategories

Power Tools Spare Parts

Garden Spare Parts

Air Compressor Spare Parts

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

Dolmar Spare Parts for Hedge Trimmer HT2360D

Dolmar Spare Parts for Hedge Trimmer HT2360D

Dolmar Spare Parts for Hedge Trimmer HT2360D

Dolmar Spare Parts for Hedge Trimmer HT2360D

Dolmar Spare Parts for Hedge Trimmer HT2360D

Data sheet

Specific References

Download

Drawing Dolmar HT2360D

You might also like

Products

News

Notes

Our company
