Makita

Dolmar Spare Parts for Petrol Hedge Trimmer HT2256D

SKU: Dolmar HT2256D Condition: New
€1.35
VAT included

Dolmar Spare Parts for Petrol Hedge Trimmer HT2256D

Buy at best price, all the original Dolmar spare parts and accessories that will allow you to repair or maintain your Dolmar Petrol Hedge Trimmer HT2256D in complete safety. Open the PDF of the technical drawing on the page to accurately choose all the spare parts you need to give new life to your Hedge Trimmer.
settings 134 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
134 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

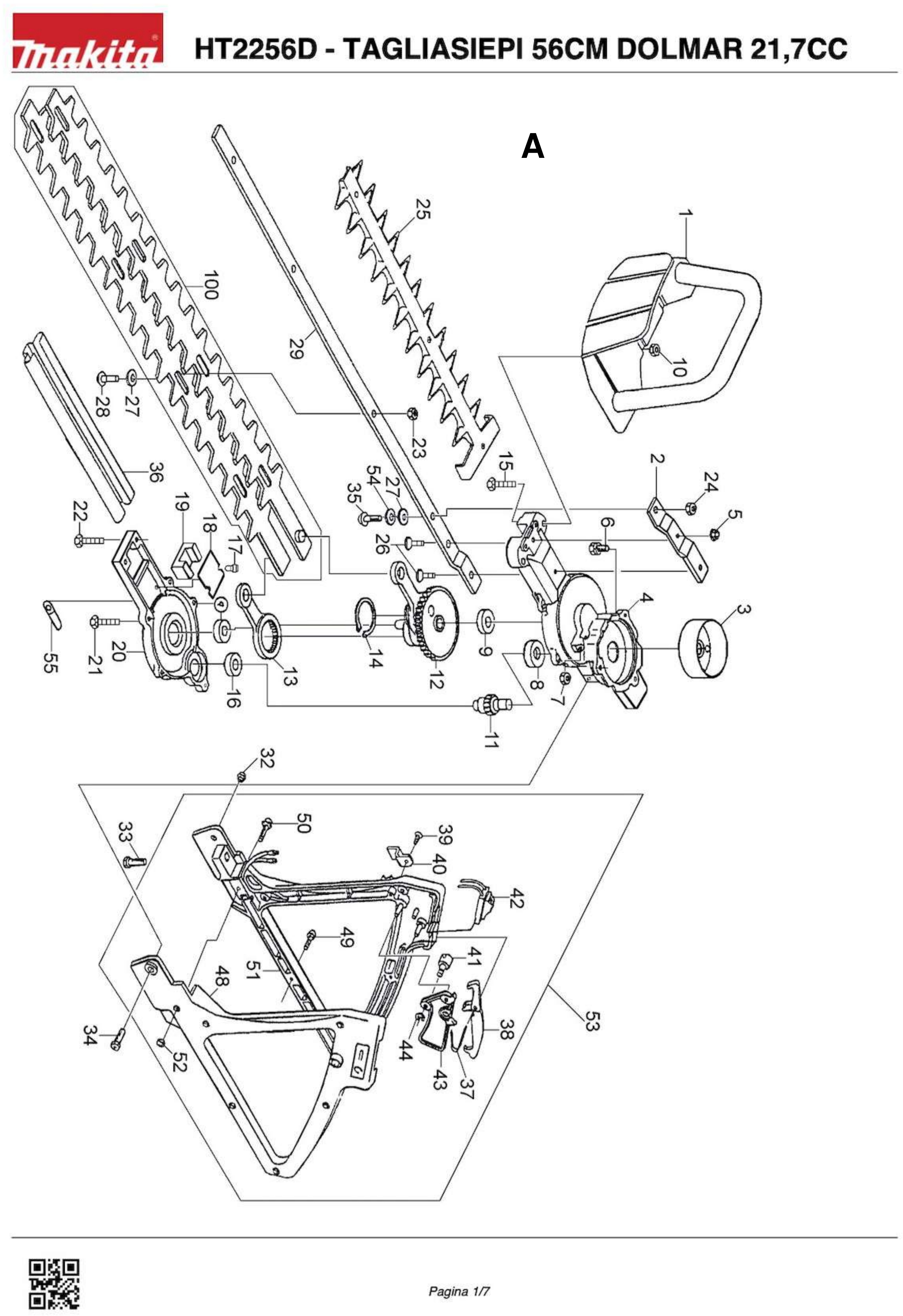

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 1181550000 FRONT HANDLE HT2256D €54.24
2
 photo_cameraImage coming soon 0301080000 REINFORCING PLATE €13.06
3
 photo_cameraImage coming soon 1361410000 DRUM CPL., EH561 HT2256D-HT2276E €25.05
4
 photo_cameraImage coming soon 1181410000 CASE (UPPER) €97.62
5
 photo_cameraImage coming soon 162050000K NUT M5 X HT2256D-HT2276E €1.43
6
 photo_cameraImage coming soon 054060150K HEX. BOLT M6X15 €2.14
7
 photo_cameraImage coming soon 055001000R GREASING NIPPLE M6 €4.56
8
 photo_cameraImage coming soon 354060010K BALL BEARING HT2256D €33.68
9
 photo_cameraImage coming soon 351006080K BALL BEARING 608Z HT2256 €36.80
11
 photo_cameraImage coming soon 1361420000 PINION GEAR HT2256D- €78.04
12
 photo_cameraImage coming soon 1360030000 CRANK GEAR, EH561 HT2256D - €225.46
13
 Conrod for Hedge Trimmer Dolmar HT2256D XOC0000018 Conrod for Hedge Trimmer Dolmar HT2256D €51.26
14
 photo_cameraImage coming soon 283026000K RETAINING RING STW-26 €2.76
15
 photo_cameraImage coming soon 055060350K HEX. BOLT M6X35 €2.10
16
 photo_cameraImage coming soon 351006080K BALL BEARING 608Z HT2256 €36.80
17
 photo_cameraImage coming soon 010030050K PAN HEAD SCREW M3X5 €1.43
18
 photo_cameraImage coming soon 0301100000 CONNECTING ROD HT2256D-HT2276E €10.18
19
 photo_cameraImage coming soon 1181010000 FELT €10.18
20
 photo_cameraImage coming soon 1181040000 CASE (LOWER) €29.13
21
 photo_cameraImage coming soon 054050160K HEX. BOLT M5X16 €2.14
22
 photo_cameraImage coming soon 054050200K HEX. BOLT M5X20 €2.14
23
 photo_cameraImage coming soon 164060000K HEX NUT M6 HT2256D €2.76
24
 photo_cameraImage coming soon 164060000K HEX NUT M6 HT2256D €2.76
25
 photo_cameraImage coming soon 1181520000 BLADE GUARD (W) €14.74
26
 photo_cameraImage coming soon 031050200K FLAT HEAD SCREW M5X20 HT2256D €1.64
27
 photo_cameraImage coming soon 0082500000 WASHER X BLADE SCREW HT2256D- €1.43
28
 photo_cameraImage coming soon 0082470000 BLADE SLIDING SCREW(L=19) €2.52
29
 photo_cameraImage coming soon 1181260000 GUIDE BLADE X HT2256D €75.83
33
 photo_cameraImage coming soon 055060400K HEX. BOLT M6X40 €2.10
34
 photo_cameraImage coming soon 055060500K HEX. BOLT M6X50 €2.10
35
 photo_cameraImage coming soon 0082480000 BLADE SLIDING SCREW(L=22) €3.23
36
 photo_cameraImage coming soon 028002039A BLADE COVER €20.34
37
 photo_cameraImage coming soon 1181540000 LEAF SPRING €7.69
38
 photo_cameraImage coming soon XOC0000033 SPRING €5.13
40
 photo_cameraImage coming soon 1181210000 CABLE HOLDER, EH561 HT2256D €2.69
41
 photo_cameraImage coming soon 1181110000 PIN X HT2256D €14.34
42
 photo_cameraImage coming soon 005044004A SLIDE SWITCH €21.97
43
 photo_cameraImage coming soon 1181150000 LEVER €4.63
48
 photo_cameraImage coming soon 1181500000 LEFT REAR HANDLE (L), EH561 HT2256D €18.98
50
 photo_cameraImage coming soon 017040300K PAN HEAD SCREW M4X30 €1.64
51
 photo_cameraImage coming soon 1181490000 RIGHT REAR HANDLE (R), EH561 HT2256D €24.35
53
 photo_cameraImage coming soon 126493-4 REAR HANDLE X EH561 €56.02
54
 photo_cameraImage coming soon 229060000K SPRING WASHER X HT2256D €2.14
55
 photo_cameraImage coming soon 0566079970 CLAMP X RBC520 €2.14
100
 photo_cameraImage coming soon 6018505400/KIT CUTTING BLADE SET -   HT2256D-HTR5600 €106.04
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

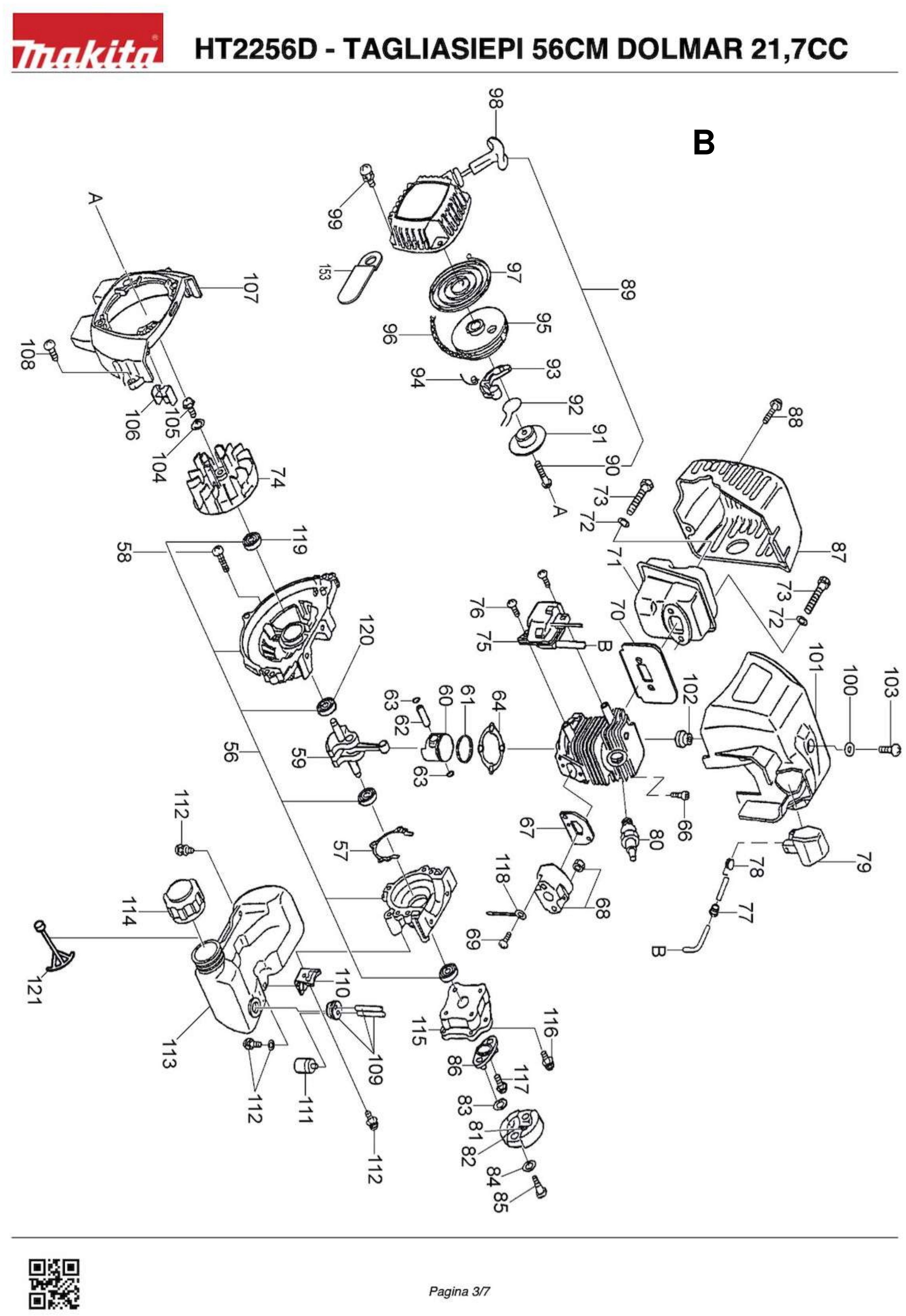

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
56
 photo_cameraImage coming soon 5251003000 ENGINE CRANKCASE CPL X HT2256D €87.61
57
 photo_cameraImage coming soon 424447-8 HOUSING GASKET RBC2510 €2.14
58
 photo_cameraImage coming soon 0140059500 SCREW M5x25 X RBC225-255 €1.43
59
 photo_cameraImage coming soon 5252002002 CRANKSHAFT ASS'Y €87.61
60
 photo_cameraImage coming soon 5212500700 PISTON X RBC221-225 €14.76
61
 photo_cameraImage coming soon 5982500000 PISTON RING X RBC221-225 €3.95
62
 photo_cameraImage coming soon 5212500801 PIN X RBC221-225 €2.76
63
 photo_cameraImage coming soon 233976-8-4 CIRCLIP EBH252L RING (4pcs) €6.01
64
 photo_cameraImage coming soon 442171-1 CYLINDER GASKET RBC2510 €2.76
66
 photo_cameraImage coming soon 0119059730 BOLT X RBC 260/230/225/255 €2.15
67
 photo_cameraImage coming soon 5253500200 INSULATOR GASKET X HT2256D €2.14
68
 photo_cameraImage coming soon 141056-5 INSULATOR COMPLETE €6.81
69
 photo_cameraImage coming soon 0140059500 SCREW M5x25 X RBC225-255 €1.43
70
 photo_cameraImage coming soon 5253500102 MUFFLER GASKET X HT2256D €3.23
71
 photo_cameraImage coming soon 5253010001 EXHAUST MUFFLER €87.61
72
 photo_cameraImage coming soon 0031005000 WASHER X RBC230 / 410 / RBK410 €5.26
73
 photo_cameraImage coming soon 0119059660 BOLT X RBC350-RBC420 €2.76
74
 photo_cameraImage coming soon 5257001010 MAGNETO FLYWHEEL €36.80
75
 photo_cameraImage coming soon 5257001020 IGNITION COIL €159.53
76
 photo_cameraImage coming soon 0140049920 SCREW M4X20 X RBC225-255 €1.43
77
 photo_cameraImage coming soon 5257500300 RUBBER X HT2256D-HT2276E €2.76
78
 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U 324891-8 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U €1.62
79
 photo_cameraImage coming soon 5237503301 SPARK PLUG CAP XRBC225-255 €25.05
80
 photo_cameraImage coming soon 0650149721 SPARK PLUG BMR7A RBK250 €19.05
81
 photo_cameraImage coming soon 5238500500 CLUTCH SPRING X RBC225-255 €2.76
82
 photo_cameraImage coming soon 6252500801 CLUTCH GEAR X RBC225-255 €8.74
83
 photo_cameraImage coming soon 267429-5 WASHER 6 €1.54
84
 photo_cameraImage coming soon 267817-6 WASHER 8 EBH252L €1.46
85
 photo_cameraImage coming soon 266457-7 SCREW M6FOR25 EBH252L €2.76
86
 photo_cameraImage coming soon 6202500000 HOLDER X HT2256D-HT2276E €19.53
87
 photo_cameraImage coming soon 5253500500 MUFFLER COVER X HT2256D €14.76
88
 photo_cameraImage coming soon 0043705160 SCREW ASS Y €1.43
89
 photo_cameraImage coming soon 5255001000 REWIND STARTER ASS Y €22.16
90
 photo_cameraImage coming soon 5255001020 SET SCREW €4.56
91
 photo_cameraImage coming soon 5505001030 FRICTION PLATE €7.79
92
 photo_cameraImage coming soon 5105015050 CLUTCH SPRING X RBC 310/520 €7.79
93
 photo_cameraImage coming soon 5105015020 RATCHET RBC 310 / RBC520 €8.74
94
 photo_cameraImage coming soon 5105015060 RETURN SPRING X RBC310 / RBC520 €3.23
95
 photo_cameraImage coming soon 5025001010 REEL X RBC 310 €13.06
96
 photo_cameraImage coming soon 5235024022 STARTER ROPE RBK250-RBC225-2 €17.13
97
 photo_cameraImage coming soon 232257-7 SPRING SPIRAL EBH341U €17.13
98
 photo_cameraImage coming soon 5225004020 STARTER KNOB HT2256D €13.66
99
 photo_cameraImage coming soon 911218-7 HEAD SCREW CILIND. M5x14 €1.54
100
 photo_cameraImage coming soon 0200070010 WASHER X HT2256D-HT2276E €2.14
101
 photo_cameraImage coming soon 5255501200 CYLINDER COVER (DOLMAR COLOR) €19.53
102
 photo_cameraImage coming soon 5503503001 SPACER X-HT2256D HT2276E €3.95
103
 photo_cameraImage coming soon 0140059490 SCREW X HT2256D-HT2276E €1.43
104
 photo_cameraImage coming soon 0031206000 WASHER G.24 / 35-RBC225-255 €1.43
105
 photo_cameraImage coming soon 0011306160 BOLT X RBC230 / 260/225/255 €1.43
106
 photo_cameraImage coming soon 5215500300 BAFFLE PLATE €2.76
107
 photo_cameraImage coming soon 5255500001 BLOWER HOUSING €41.57
108
 photo_cameraImage coming soon 0043505160 SCREW ASS Y €1.43
109
 photo_cameraImage coming soon 5256012001 TUBE CPL. HT2256D-HT2276E €6.81
110
 photo_cameraImage coming soon 5256002000 TANK PLATE CPL HT2256D €6.81
111
 Gasoline Filter for Chainsaw Makita DCS230T 163447-0 Gasoline Filter for Chainsaw Makita DCS230T €4.49
112
 photo_cameraImage coming soon 0043705160 SCREW ASS Y €1.43
113
 photo_cameraImage coming soon 5256025000 TANK CPL X HT2256D-HT2276 €15.00
114
 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 452920-8 Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 €41.20
115
 photo_cameraImage coming soon 1181240000 SPACER X HT2256D-HT2276E €33.68
116
 photo_cameraImage coming soon 0140059450 SCREW M5X18 X RBK250-RBC225 / 25 €2.14
117
 photo_cameraImage coming soon 6202006000 BOLT FOR RBC310 €2.14
118
 photo_cameraImage coming soon 5607005000 COMPLETE CABLE X RBC350-RBC420-HT225 €6.11
119
 photo_cameraImage coming soon 213628-7 OIL SEAL RBC2510 €2.08
120
 photo_cameraImage coming soon 0600129920 BEARING MS5250 €12.34
121
 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 140436-2 Gasoline/Oil Tank Cap Strap Complete for Brushcutter Makita RBC2110 €8.31
153
 photo_cameraImage coming soon 0566059980 CLAMP X RBC525 €3.95
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

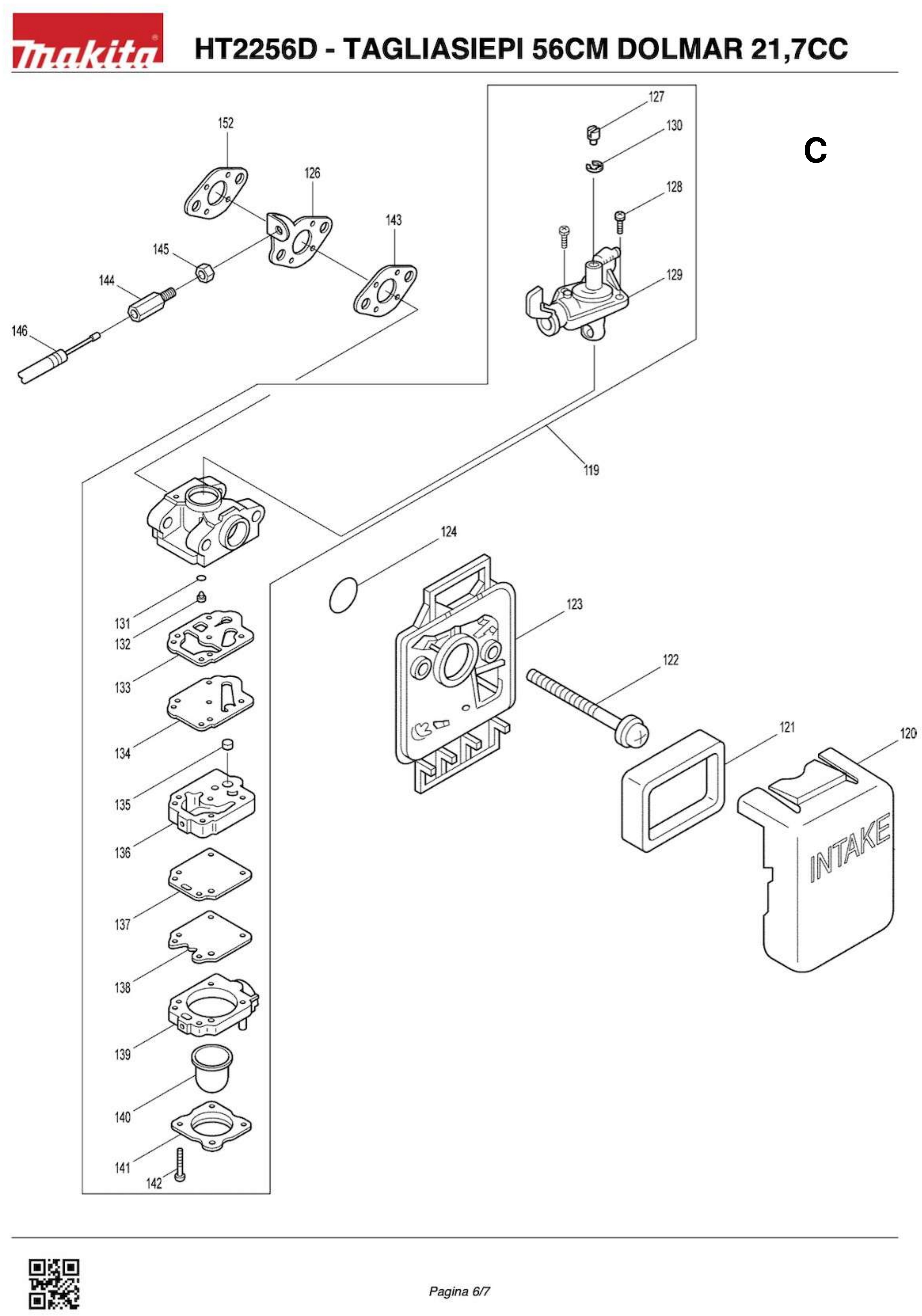

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
119
 photo_cameraImage coming soon 5256032000 CARBURETOR €63.40
120
 photo_cameraImage coming soon 5253020010 AIR CLEANER COVER RBC201 €13.06
121
 Air Filter Element for Brushcutter Makita RBC201 5203004010 Air Filter Element for Brushcutter Makita RBC201 €3.95
122
 photo_cameraImage coming soon 0043305650 SCREW ASS'Y XHT2256D-HT2276E €2.76
123
 photo_cameraImage coming soon 5253003020 AIR CLEANER HOUSING RBC201 €10.18
124
 photo_cameraImage coming soon 5236061000 O-RING RBC201 €2.69
126
 photo_cameraImage coming soon 5256501900 CABLE SUPPORT EH620 €3.13
127
 photo_cameraImage coming soon 5236018040 THROTTLE CABLE FORRBC230-260-310-225- €15.30
128
 photo_cameraImage coming soon 266581-6 SCREW M3X8 EBH341U €2.18
129
 photo_cameraImage coming soon 5256032010 THROTTLE VALVE ASS'Y RBC221/25   X RBL250- €36.80
130
 photo_cameraImage coming soon 5316005120 RING FOR RBC 260/230/310/225/2 €6.10
131
 photo_cameraImage coming soon 5246001010 GASKET FOR RBC 260/230/310 / €6.10
132
 photo_cameraImage coming soon 5026004010 NOZZLE X HT2256D-HT2276E €14.76
133
 photo_cameraImage coming soon 5246001030 PUMP GASKET RBC260-230-310- €6.11
134
 photo_cameraImage coming soon WJ00009599 PUMP DIAPHRAGM DCS230T €13.50
135
 photo_cameraImage coming soon 5016004010 JOINT FOR RBC 260/230/310/225 €5.28
136
 photo_cameraImage coming soon 5256007010 PUMP BODY ASS Y €70.85
137
 photo_cameraImage coming soon 442154-1 SEAL IRIS EBH341U €4.64
138
 photo_cameraImage coming soon 168574-8 CPL DIAPHRAGM EBH341U €27.72
139
 photo_cameraImage coming soon 5236046060 CPL AIR FILTER BODY RBC350 €33.70
140
 Primer Bulb for Blower Makita BHX2501 424314-7 Primer Bulb for Blower Makita BHX2501 €6.90
141
 photo_cameraImage coming soon 5236046050 PUMP COVER FOR RBC350-RBC42 €13.66
142
 photo_cameraImage coming soon 266582-4 SCREW 3x24 EBH341U €2.18
143
 Carburator Gasket for Brushcutter Makita RBC310 442177-9 Carburator Gasket for Brushcutter Makita RBC310 €1.51
144
 photo_cameraImage coming soon 5316020020 SCREW FOR CABLE RBC321 €5.13
145
 photo_cameraImage coming soon 5316005450 NUT RBC260 / 310 €2.85
146
 photo_cameraImage coming soon 0630029830 CONTROL CABLE X EH561 €6.63
152
 Carburator Gasket for Brushcutter Makita RBC310 442177-9 Carburator Gasket for Brushcutter Makita RBC310 €1.51

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

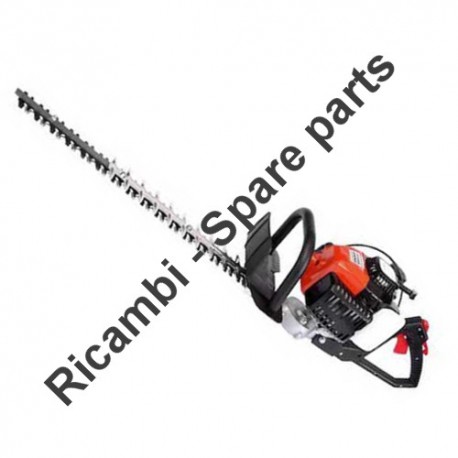

Dolmar Spare Parts for Petrol Hedge Trimmer HT2256D

Buy at best price, all the original Dolmar spare parts and accessories that will allow you to repair or maintain your Dolmar Petrol Hedge Trimmer HT2256D in complete safety. Open the PDF of the technical drawing on the page to accurately choose all the spare parts you need to give new life to your Hedge Trimmer. The Engine hedge trimmer HT2256 is a valuable garden tool, which will allow you to work more comfortably once repaired.

In the following table, look for the model of the Engine Hedge Trimmer and the respective parts of the code.
Dolmar HT2256D

Dolmar Petrol Hedge Trimmer HT2256D
A Pag.1
# Part Num. Description
1 1181550000 FRONT HANDLE
2 0301080000 REINFORCING PLATE
3 1361410000 DRUM COMPLETE
4 1181410000 CASE (UPPER)
5 162050000K FLANGE NUT M5
6 054060150K HEX. BOLT M6X15
7 055001000R GREASING NIPPLE M6
8 354060010K BALL BEARING HT2256D
9 351006080K BALL BEARING 608Z HT2256
10 150060000K HEX. NUT M6
11 1361420000 PINION GEAR
12 1360030000 GEAR CRANK ASS Y
13 XOC0000018 CONNECTING ROD
14 283026000K RETAINING RING STW-26
15 055060350K HEX. BOLT M6X35
16 351006080K BALL BEARING 608Z HT2256
17 010030050K PAN HEAD SCREW M3X5
18 0301100000 ROD SLIDING PLATE
19 1181010000 FELT
20 1181040000 CASE (LOWER)
21 054050160K HEX. BOLT M5X16
22 054050200K HEX. BOLT M5X20
23 164060000K HEX. U-NUT M6
24 164060000K HEX. U-NUT M6
25 1181520000 BLADE GUARD (W)
26 031050200K COUNTERSUNK HEAD SCREW M5 X20
27 0082500000 BLADE SLIDING WASHER
28 0082470000 BLADE SLIDING SCREW(L=19)
29 1181260000 BLADE SUPPORT BAR
32 150060000K HEX. NUT M6
33 055060400K HEX. BOLT M6X40
34 055060500K HEX. BOLT M6X50
35 0082480000 BLADE SLIDING SCREW(L=22)
36 028002039A BLADE COVER
37 1181540000 LEAF SPRING
38 XOC0000033 SPRING
39 112040100K TAPPING SCREW M4X10
40 1181210000 CABLE HOLDER
41 1181110000 WIRE END
42 005044004A SLIDE SWITCH
43 1181150000 LEVER
44 280002500K RETAINING RING ETW 2.5
48 1181500000 REAR HANDLE (L)
49 017040160K PAN HEAD SCREW M4X16
50 017040300K PAN HEAD SCREW M4X30
51 1181490000 REAR HANDLE (R)
52 150040000K HEX. NUT M4
53 126493-4 REAR HANDLE
54 229060000K WAVE WASHER
55 0566079970 CLAMP
100 6018505400/KIT BLADE ASSY
B Pag.2
56 5251003000 CRANKCASE COMPLETE
57 424447-8 CRANKCASE GASKET
58 0140059500 SCREW M5X25
59 5252002002 ECCENTRIC SHAFT
60 5212500700 PISTON
61 5982500000 PISTON RING
62 5212500801 PISTON PIN
63 233976-8-4 CIRLIP
64 442171-1 CYLYNDER GASKET
66 0119059730 SOCKET HEAD BOLT M5X20
67 5253500200 INSULATOR GASKET
68 141056-5 ISOLATOR
69 0140059500 SCREW M5X25
70 5253500102 MUFFLER GASKET
71 5253010001 EXHAUST MUFFLER
72 0031005000 WASHER M5
73 0119059660 SOCKET HEAD BOLT M5X50
74 5257001010 MAGNETO FLYWHEEL
75 5257001020 IGNITION COIL
76 0140049920 SCREW ASS Y M4X20
77 5257500300 GROMMET
78 324891-8 PLUG CAP SPRING, MEM427
79 5237503301 PLUG CAP
80 0650149721 SPARK PLUG BMR7A
81 5238500500 CLUTCH SPRING
82 6252500801 CLUTCH SHOE
83 267429-5 WASHER 6
84 267817-6 WASHER 8, MEM427
85 266457-7 SHOULDER HEX. BOLT M6*25, MEM427
86 6202500000 HOLDER
87 5253500500 MUFFLER COVER
88 0043705160 SCREW ASS Y
89 5255001000 REWIND STARTER ASS Y
90 5255001020 SET SCREW
91 5505001030 FRICTION PLATE
92 5105015050 CLUTCH SPRING
93 5105015020 PAWL
94 5105015060 RETURN SPRING
95 5025001010 STARTER REEL
96 5235024022 STARTER ROPE
97 232257-7 SPIRAL SPRING
98 5225004020 HANDLEBHX2500/PB-250.4
99 911218-7 PAN HEAD SCREW M5X14, EBH252U
100 0200070010 WASHER
101 5255501200 CYLINDER COVER (DOLMAR COLOR)
102 5503503001 SPACER
103 0140059490 SCREW
104 0031206000 WASHER
105 0011306160 BOLT ASS Y
106 5215500300 BAFFLE PLATE
107 5255500001 BLOWER HOUSING
108 0043505160 SCREW ASS Y
109 5256012001 TUBE ASS Y
110 5256002000 TANK PLATE COMPLETE
111 163447-0 FILTER, EBH340U
112 0043705160 SCREW ASS Y
113 5256025000 FUEL TANK COMPLETE
114 452920-8 FUEL CAP
115 1181240000 SPACER
116 0140059450 SCREW M5X18
117 6202006000 BOLT ASS Y
118 5607005000 WIRE COMPLETE (2)
119 213628-7 OIL SEAL
120 0600129920 BALL BEARING 6001 C3
121 140436-2 STRAP COMPLETE
153 0566059980 CLAMP
C Pag.3
119 5256032000 CARBURETOR
120 5253020010 AIR CLEANER COVER
121 5203004010 AIR FILTER
122 0043305650 SCREW ASS Y
123 5253003020 AIR CLEANER HOUSINGCOMPLETE
124 5236061000 O RING
126 5256501900 CABLE BRACKET
127 5236018040 SWIVELBHX2500/PB-250.4
128 266581-6 PAN HEAD SCREW M3X8
129 5256032010 THROTTLE VALVE ASS Y
130 5316005120 RINGBHX2500/PB-250.4
131 5246001010 O RINGBHX2500/PB-250.4
132 5026004010 NOZZLE
133 5246001030 PUMP GASKET
134 WJ00009599 PUMP DIAPHRAGM, DCS230T
135 5016004010 INLET SCREENBHX2500/PB-250.4
136 5256007010 PUMP BODY ASS Y
137 442154-1 METERING DIAPHRAGM GASKET
138 168574-8 METERING DIAPHARGM, EBH341U
139 5236046060 AIR PURGE BODY ASS Y
140 424314-7 PRIMER PUMP
141 5236046050 PRIMER PUMP COVERBHX2500/PB-250.4
142 266582-4 PUMP COVER
143 442177-9 SCREW 3X24
144 5316020020 SCREW CABLE ADJ
145 5316005450 CABLE ADJUST NUT
146 0630029830 CONTROL CABLE
152 442177-9 GASKET
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Dolmar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Dolmar HT2256D
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Dolmar HT2256D

Diagram Dolmar HT2256D

Download (415.01KB)

You might also like

Gasoline Filter for Chainsaw Makita DCS230T
Makita SKU: 163447-0
Gasoline Filter for Chainsaw Makita DCS230T
Gasoline Filter for Chainsaw Makita DCS230T Genuine part for Makita, Gasoline Filter for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following...
AVAILABLE €4.49
Details
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110
Makita SKU: 452920-8
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110
Gasoline/Oil Tank Cap for Brushcutter Makita RBC2110 Genuine part Makita, Gasoline/Oil Tank Cap for Brushcutters RBC2110 - RBC201 - RBC3110 - RBC3210 - RBC2511 - Dolmar MS2501. Part for the...
Last items in stock €41.20
Details
Primer Bulb for Blower Makita BHX2501
Makita SKU: 424314-7
Primer Bulb for Blower Makita BHX2501
Primer Bulb for Blower Makita BHX2501 Genuine replacement part Makita, Primer Bulb for Brushcutters, Hedge Trimmers, Blowers, Engine Pump, Mist Blowers. Part for the following...
AVAILABLE €6.90
Details
Air Filter Element for Brushcutter Makita RBC201
Makita SKU: 5203004010
Air Filter Element for Brushcutter Makita RBC201
Air Filter Element for Brushcutter Makita RBC201 Genuine spare part Makita, Air Filter Element for Brushcutters RBC201 - Hedge Trimmer HT2256D - HT2556D. Part for the following products: -  RBC201 - BRUSHCUTTER 20CC MAKITA -  HT2256D...
on 7/10 Business Days Approx €3.95
Details
Conrod for Hedge Trimmer Dolmar HT2256D
Makita SKU: XOC0000018
Conrod for Hedge Trimmer Dolmar HT2256D
Conrod for Hedge Trimmer Dolmar HT2256D Genuine replacement part Dolmar, Conrod for Hedge Trimmers HT2256D - HT2556D - EH561. Part for the following products: -  HT2256D - HEDGE TRIMMER 56CM...
on 7/10 Business Days Approx. €51.26
Details
Comments (0)
