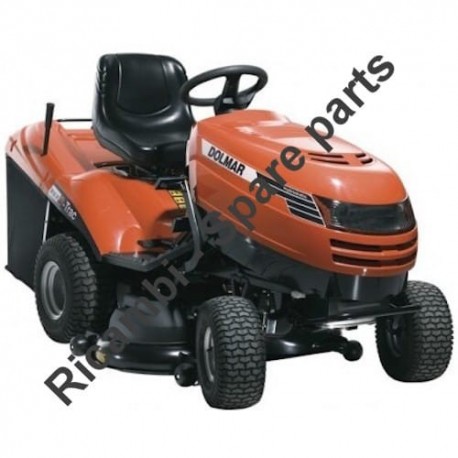

Dolmar Spare Parts for Lawn Tractor TM122.22H2

Name: Dolmar Spare Parts for Lawn Tractor TM122.22H2
Brand: Makita
SKU: Dolmar TM122.22H2
Availability: InStock

SKU: Dolmar TM122.22H2

€1.44

VAT included

Dolmar Spare Parts for Lawn Tractor TM122.22H2

We are DOLMAR original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawn Tractor TM122.22H2.

229 spare parts

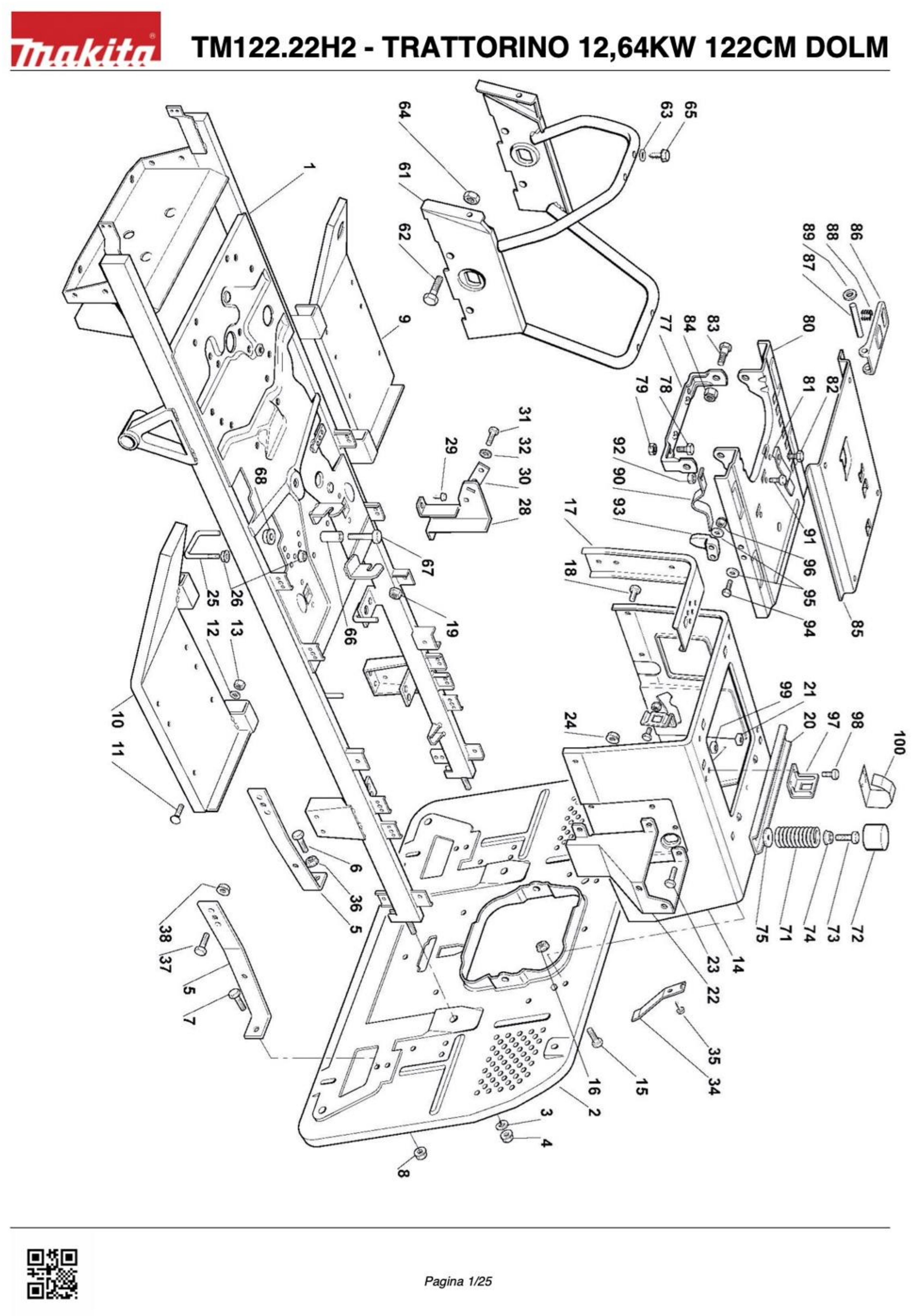

Page 1 View exploded ON DEMAND ONLY

Pos.		Item	Price
4	Image coming soon	12295200/0 NUT FOR RM63.7	€1.30
7	Image coming soon	112793102/0 Screw	€1.64
8	Image coming soon	112293201/0 Nut	€2.46
12	Image coming soon	112523040/0 Washer	€1.63
13	Image coming soon	112154510/0 Nut	€1.66
29	Image coming soon	112735110/0 SCREW FOR RM63.7	€1.86
36	Image coming soon	112293200/0 Nut	€1.74
37	Image coming soon	112793102/0 Screw	€1.64
38	Image coming soon	112293201/0 Nut	€2.46
64	Image coming soon	112293201/0 Nut	€2.46
67	Image coming soon	112691200/0 SCREW FOR TM102.18H	€2.10
68	Image coming soon	112293201/0 Nut	€2.46
74	Image coming soon	112293201/0 Nut	€2.46
79	Image coming soon	112293201/0 Nut	€2.46
84	Image coming soon	12155010/0 NUT FOR RM63.7	€3.09
89	Image coming soon	12604897/0 WASHER	€1.52
91	Image coming soon	664789000 SCREW X PM 43	€2.14
92	Image coming soon	112154330/0 Nut	€1.74
94	Image coming soon	112789020/0 Screw	€1.48
98	Image coming soon	112735110/0 SCREW FOR RM63.7	€1.86

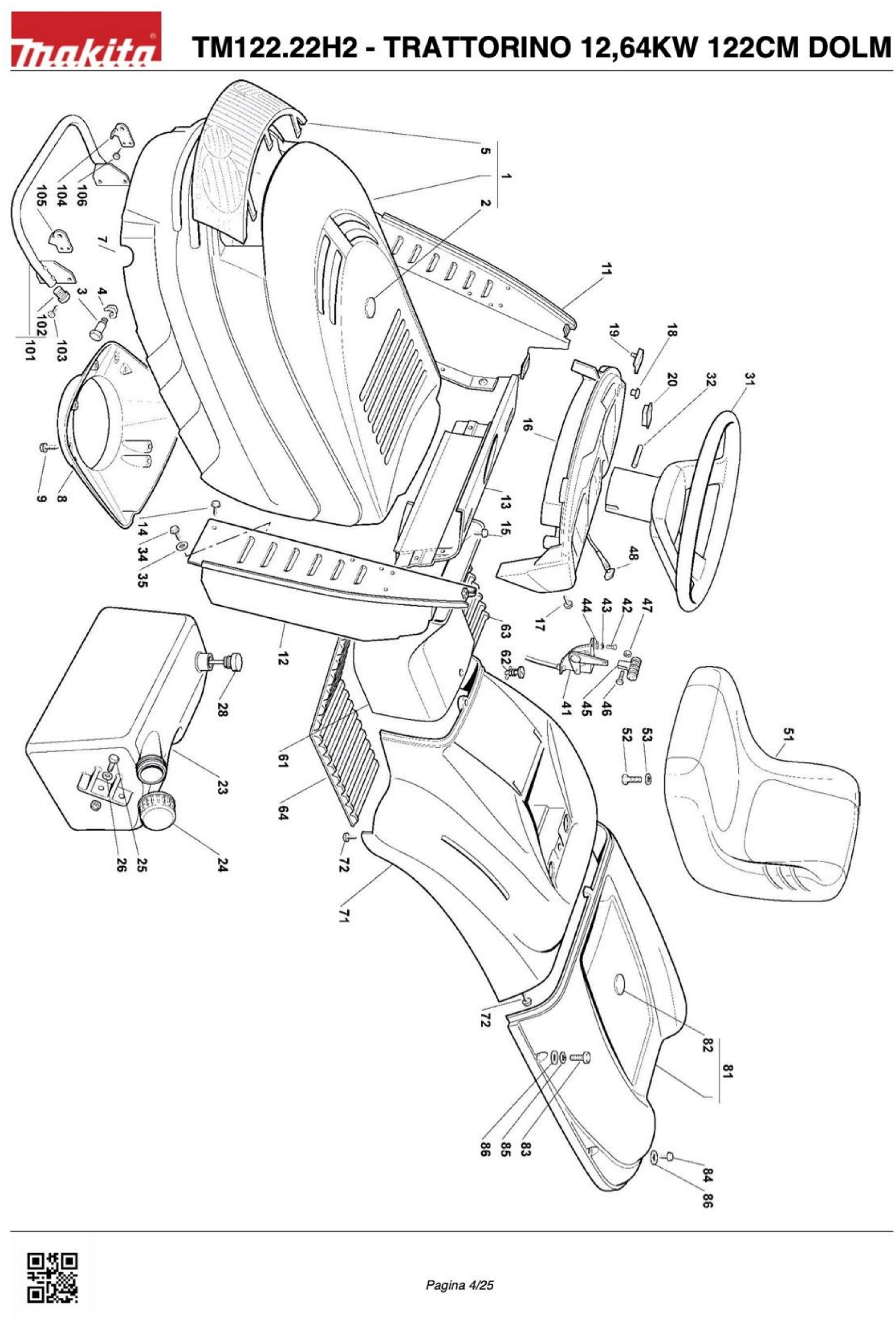

Page 2 View exploded ON DEMAND ONLY

Pos.		Item	Price
1	Image coming soon	82076938/0 UPPER RED COVER TM92.14	€266.83
3	Image coming soon	125510023/1 PIN	€4.56
4	Image coming soon	664436050 PLATE X PM4850S	€1.64
5	Image coming soon	25410859/0 MASK FOR TM92.14	€21.97
9	Image coming soon	12728686/0 Spare Part 12728686/0	€7.89
14	Image coming soon	112735110/0 SCREW FOR RM63.7	€1.86
15	Image coming soon	112735110/0 SCREW FOR RM63.7	€1.86
16	Image coming soon	25120187/0 STARTER LOCK TM102.18H	€43.44
24	Image coming soon	125795000/1 TANK CAP FOR LAWN TRACTORS	€11.13
31	Image coming soon	125961217/1 STEERING WHEEL FOR TM102.16	€97.62
32	Image coming soon	12620299/0 PLUG FOR RM72.13H	€1.62
47	Image coming soon	112290800/0 NUT PM5150S	€1.67
51	Image coming soon	125722468/0 SEAT FOR TM102.18H	€270.93
52	Image coming soon	112793101/0 SCREW X PM4850S	€1.62
53	Image coming soon	112583500/0 Grower	€1.64
72	Image coming soon	112735402/0 SCREW X PM4850S	€1.86
86	Image coming soon	112521331/0 Washer	€2.05

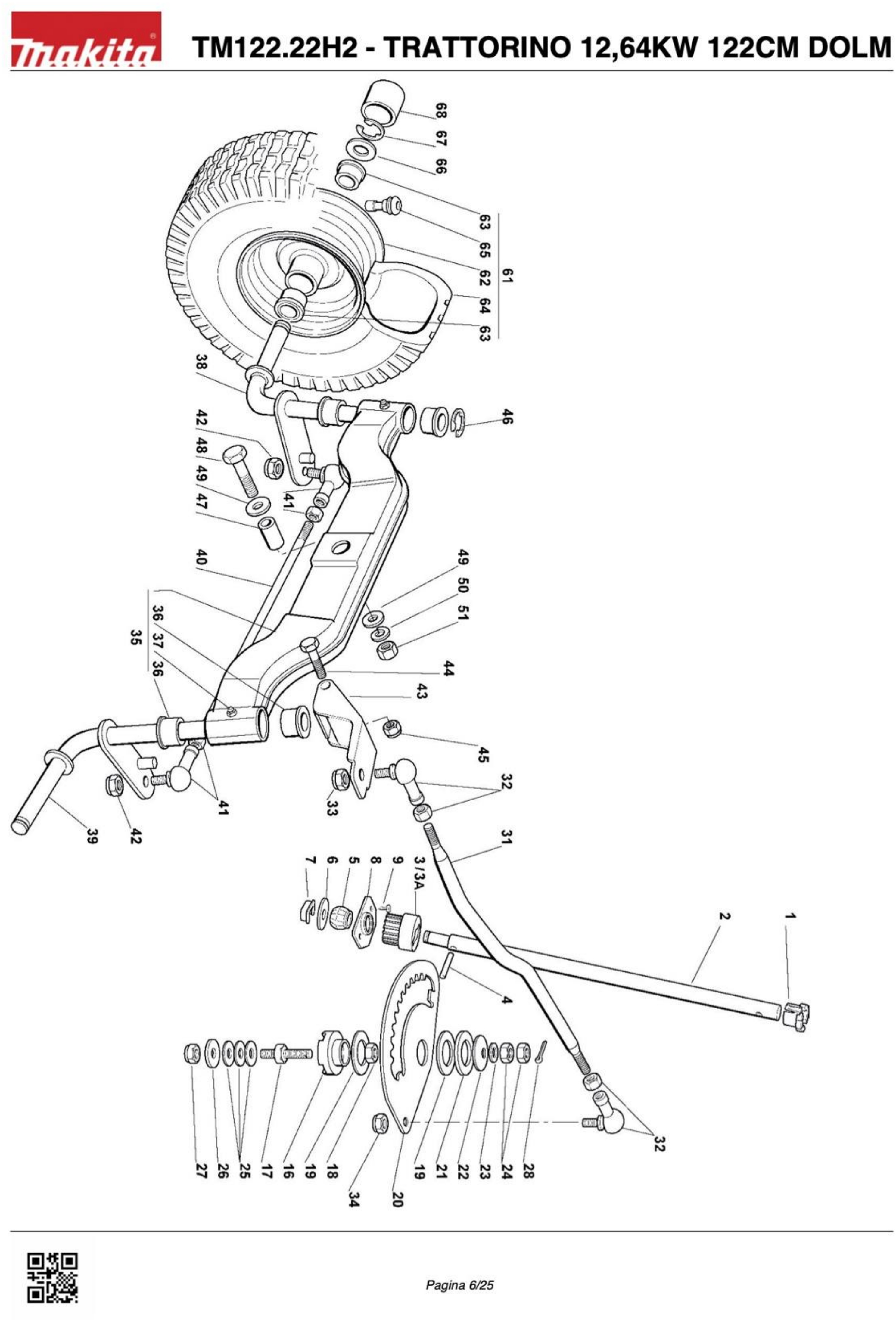

Page 3 View exploded ON DEMAND ONLY

Pos.		Item	Price
3	Image coming soon	125570000/2 STEERING PINION FOR TM102.18H	€12.93
3A	Image coming soon	125570004/0 STEERING PINION FOR TM102.18H	€12.93
18	Image coming soon	12295200/0 NUT FOR RM63.7	€1.30
22	Image coming soon	664160400 ELASTIC WASHER X PM43	€4.56
24	Image coming soon	12295200/0 NUT FOR RM63.7	€1.30
26	Image coming soon	664523080 WASHER X PM 43	€2.14
31	Image coming soon	25033003/1 STEERING ROD FOR TM102.16	€38.94
32	Image coming soon	122746609/0 STEERING JOINT FOR TM122.22H2	€25.39
35	Image coming soon	382034001/3 FRONT FRAME X TM122.22	€190.58
41	Image coming soon	122746609/0 STEERING JOINT FOR TM122.22H2	€25.39
45	Image coming soon	112155000/0 Nut	€1.66
61	Image coming soon	82680007/1 FRONT WHEEL FOR TM102	€190.58
63	Image coming soon	125122200/2 BEARING FOR RM72.13H	€17.31
64	Image coming soon	125590019/0 TIRE WHEEL POST (RIDER)	€86.36
65	Image coming soon	125950000/0 PNEUMATIC VALVE RM72.13H	€6.89
66	Image coming soon	25670005/1 WASHER FOR RM72.13H	€1.69
68	Image coming soon	664110230 CAP X PM48S-4850S	€3.95

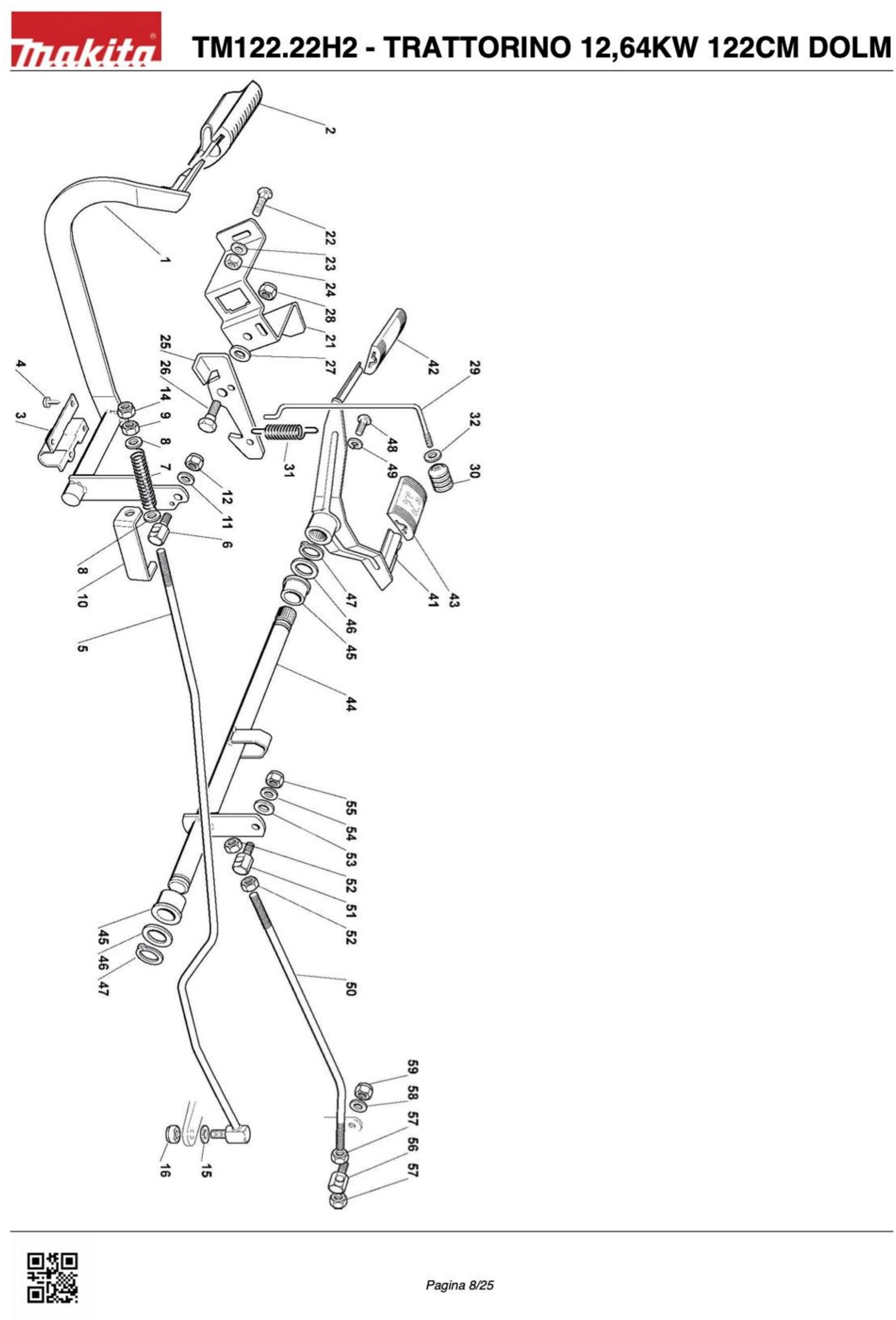

Page 4 View exploded ON DEMAND ONLY

Pos.		Item	Price
9	Image coming soon	12295200/0 NUT FOR RM63.7	€1.30
11	Image coming soon	112521350/0 Washer	€1.74
12	Image coming soon	112155000/0 Nut	€1.66
15	Image coming soon	112521350/0 Washer	€1.74
16	Image coming soon	112155000/0 Nut	€1.66
23	Image coming soon	112523040/0 Washer	€1.63
24	Image coming soon	112154510/0 Nut	€1.66
28	Image coming soon	112155000/0 Nut	€1.66
31	Image coming soon	25430213/0 SPRING	€2.46
52	Image coming soon	112293200/0 Nut	€1.74
54	Image coming soon	112523040/0 Washer	€1.63
55	Image coming soon	112154510/0 Nut	€1.66
57	Image coming soon	112293200/0 Nut	€1.74
58	Image coming soon	112523040/0 Washer	€1.63
59	Image coming soon	112154510/0 Nut	€1.66

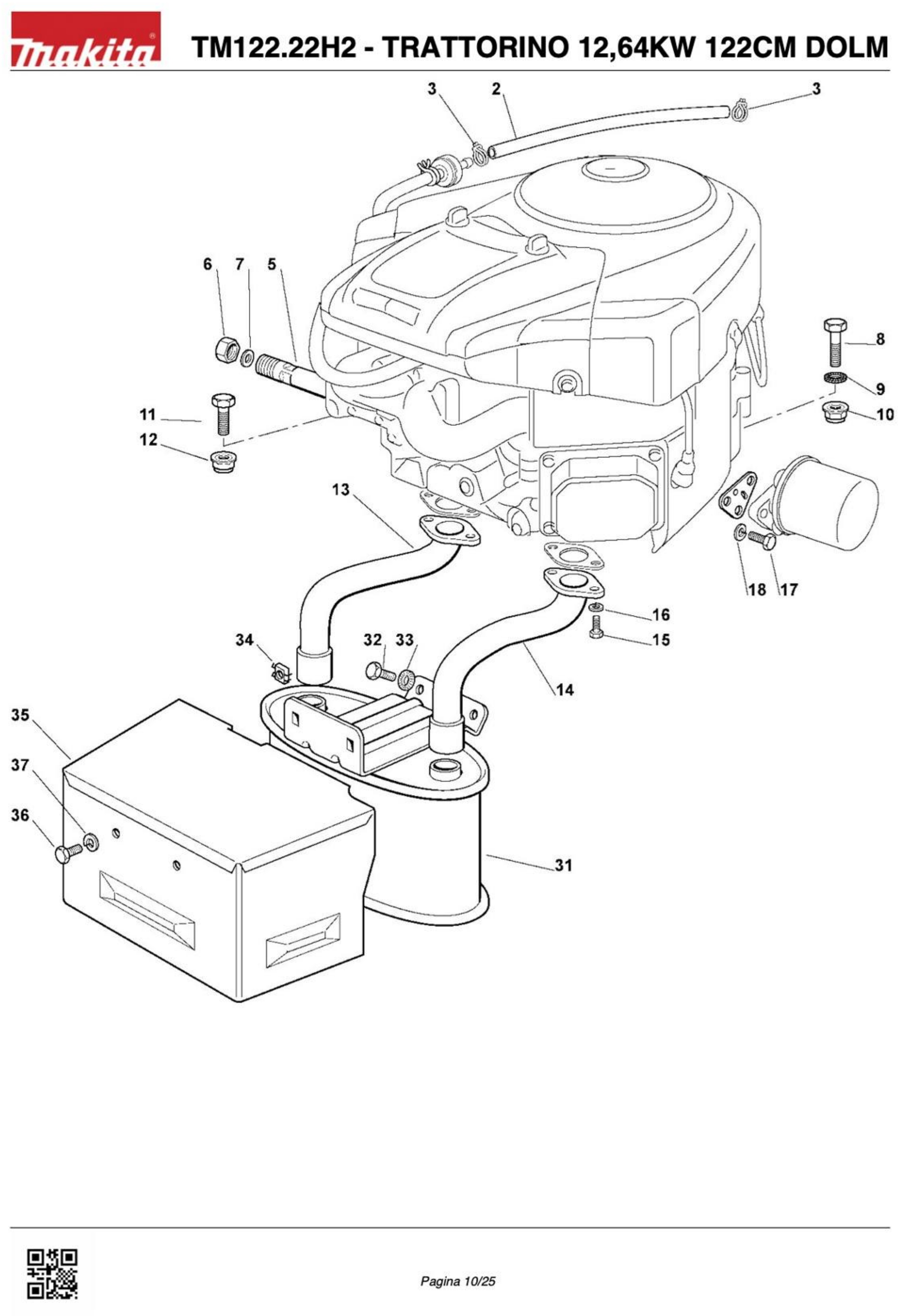

Page 5 View exploded ON DEMAND ONLY

Pos.		Item	Price
10	Image coming soon	12154210/0 NUT FOR RM72.13H	€1.69
12	Image coming soon	12154210/0 NUT FOR RM72.13H	€1.69
16	Image coming soon	112583500/0 Grower	€1.64
32	Image coming soon	112793102/0 Screw	€1.64
34	Image coming soon	12360425/0 NUT FOR TM102.16	€2.10
37	Image coming soon	112583500/0 Grower	€1.64

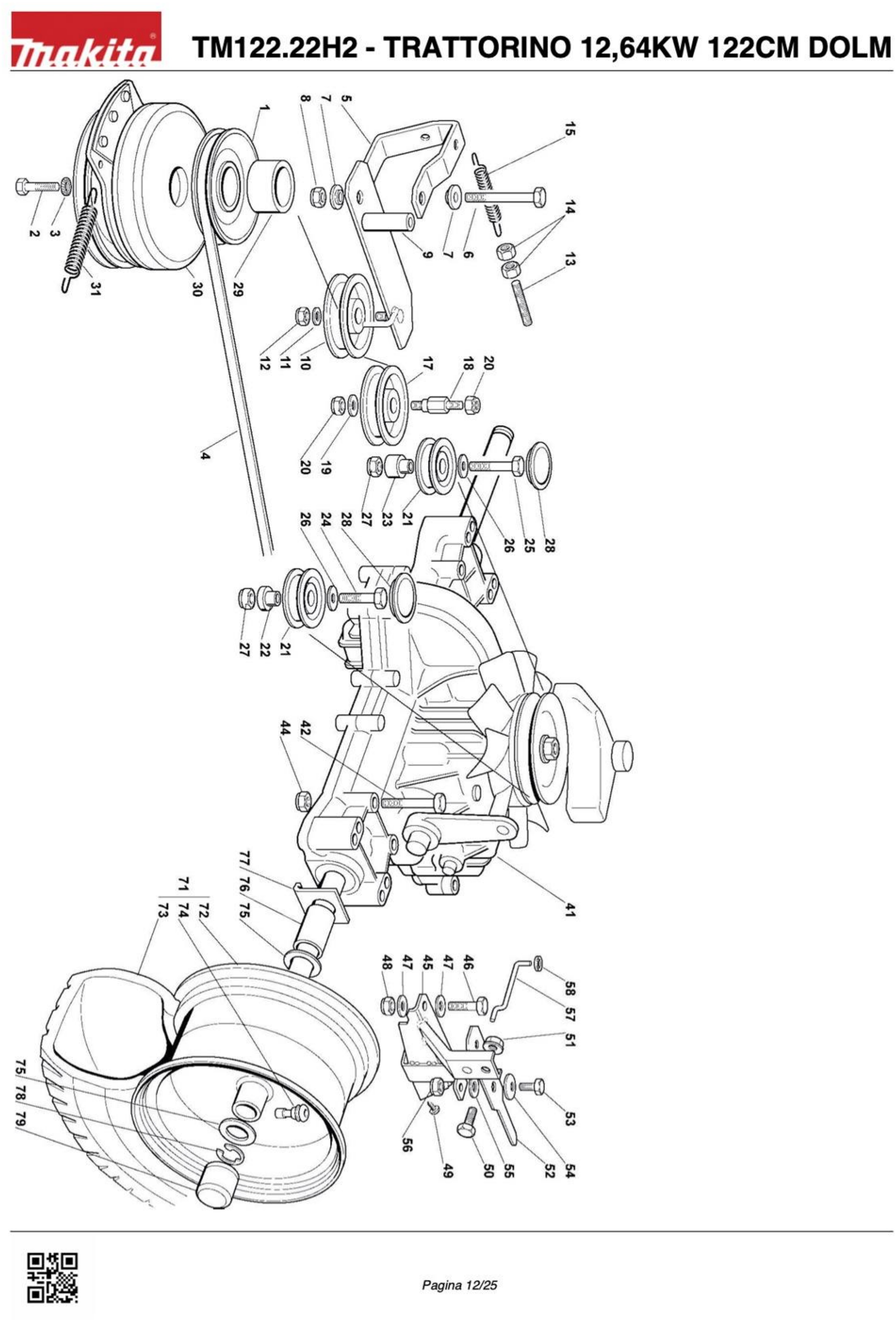

Page 6 View exploded ON DEMAND ONLY

Pos.		Item	Price
1	Image coming soon	25601566/0 PULLEY FOR TM92.14H	€38.94
2	Image coming soon	112737320/0 SCREW	€6.89
3	Image coming soon	112543000/0 WASHER	€1.91
4	Image coming soon	135062020/1 BELT FOR TM92.14H	€79.73
7	Image coming soon	125038002/1 Bushing	€2.10
8	Image coming soon	112155000/0 Nut	€1.66
10	Image coming soon	125601554/0 PULLEY FOR TM92.14	€77.62
11	Image coming soon	112523060/0 WASHER FOR RM63.7	€1.64
12	Image coming soon	112155000/0 Nut	€1.66
14	Image coming soon	112293200/0 Nut	€1.74
15	Image coming soon	25430219/0 SPRING FOR TM102.16	€3.54
17	Image coming soon	125601555/0 PULLEY	€56.17
19	Image coming soon	112523060/0 Washer	€1.53
20	Image coming soon	112155000/0 Nut	€1.66
21		325601570/1 Dolmar Belt Pulley for TM122.22H2	€24.40
22	Image coming soon	125160030/2 PULLEY SPACER TM102.18H	€7.69
23	Image coming soon	125160024/2 SPACER FOR TM102.18H	€9.86
26	Image coming soon	112523060/0 Washer	€1.53
27	Image coming soon	112155000/0 Nut	€1.66
28	Image coming soon	125109521/1 COVER FOR TM102.16	€2.10
30	Image coming soon	118399062/0 CLUTCH FOR TM122.22H2	€487.59
31	Image coming soon	125430210/1 SPRING FOR RM72.13H	€3.46
41	Image coming soon	118400950/1 HIDRO TRANSAXLE COMPL. K46 FFOR TM122.22H2	€1,379.17
42	Image coming soon	112691800/0 Screw	€1.58
44	Image coming soon	12154210/0 NUT FOR RM72.13H	€1.69
46	Image coming soon	112691200/0 SCREW FOR TM102.18H	€2.10
47	Image coming soon	112521350/0 Washer	€1.74
48	Image coming soon	112155000/0 Nut	€1.66
51	Image coming soon	112293201/0 Nut	€2.46
53	Image coming soon	112793102/0 Screw	€1.64
56	Image coming soon	112155000/0 Nut	€1.66
71	Image coming soon	82680003/0 REAR WHEEL FOR TM102	€346.77
73	Image coming soon	25590001/0 WHEEL PNEUMATIC 18X850-8	€243.66
74	Image coming soon	125950000/0 PNEUMATIC VALVE RM72.13H	€6.89
75	Image coming soon	25670005/1 WASHER FOR RM72.13H	€1.69
79	Image coming soon	664110230 CAP X PM48S-4850S	€3.95

Page 7 View exploded ON DEMAND ONLY

Pos.		Item	Price
19	Image coming soon	112293201/0 Nut	€2.46
31	Image coming soon	382318159/0 FRONT RIGHT LEVER TM122.22	€25.39
32	Image coming soon	382318161/0 LEVER FOR TM122.22H2	€27.74
36	Image coming soon	112521350/0 Washer	€1.74
37	Image coming soon	112155000/0 Nut	€1.66
38	Image coming soon	125510056/1 PIN FOR RM63.7	€6.03
39	Image coming soon	12295200/0 NUT FOR RM63.7	€1.30
41	Image coming soon	325670008/1 LOCK WASHER RM63.7	€1.91
43	Image coming soon	382000477/3 FLAT CONTROL LEVER TM102.16	€21.97
44	Image coming soon	112155000/0 Nut	€1.66
46	Image coming soon	112521350/0 Washer	€1.74
47	Image coming soon	112155000/0 Nut	€1.66
54	Image coming soon	112521350/0 Washer	€1.74
55	Image coming soon	664436050 PLATE X PM4850S	€1.64
56	Image coming soon	125510056/1 PIN FOR RM63.7	€6.03
57	Image coming soon	325670008/1 LOCK WASHER RM63.7	€1.91
60	Image coming soon	12295200/0 NUT FOR RM63.7	€1.30
61	Image coming soon	25510070/0 PIN FOR TM122.22H2	€8.61
63	Image coming soon	124487998/0 Cotter Pin	€1.91
66	Image coming soon	112293200/0 Nut	€1.74

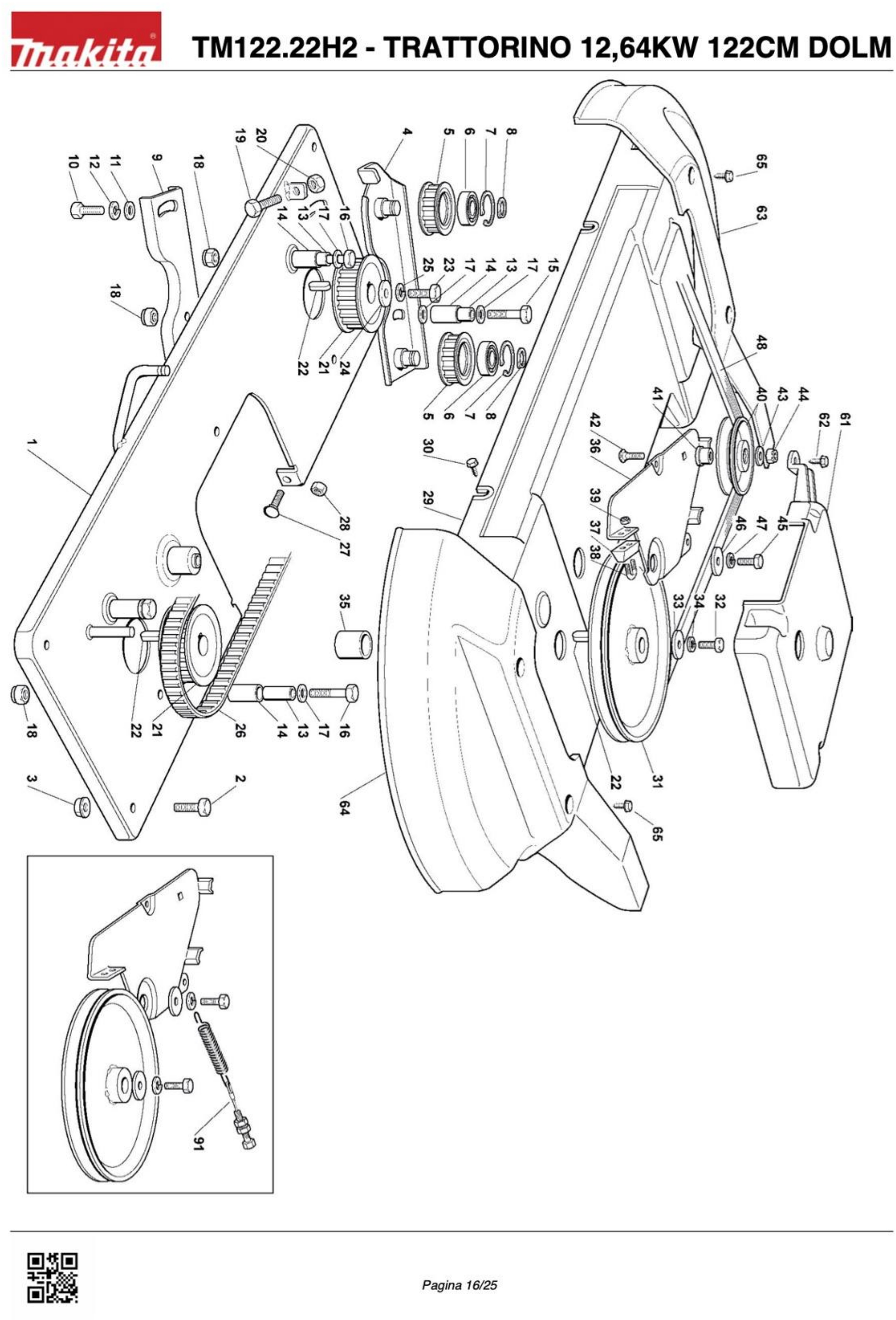

Page 8 View exploded ON DEMAND ONLY

Pos.		Item	Price
3	Image coming soon	112293201/0 Nut	€2.46
4	Image coming soon	382785084/2 SUPPORT FOR TM102.16	€34.78
5	Image coming soon	125601561/0 PULLEY FOR TM122.22H2	€47.78
6	Image coming soon	119216048/0 Bearing	€17.88
9	Image coming soon	325650037/1 PULLEY BRACKET FOR TM102.16	€11.13
10	Image coming soon	112793102/0 Screw	€1.64
11	Image coming soon	112521350/0 Washer	€1.74
12	Image coming soon	112583500/0 Grower	€1.64
13	Image coming soon	125160003/1 SPACER FOR TM102.18H	€3.01
14	Image coming soon	125038000/0 BUSH FOR TM102.16	€1.64
16	Image coming soon	112691200/0 SCREW FOR TM102.18H	€2.10
17	Image coming soon	112521350/0 Washer	€1.74
18	Image coming soon	112155000/0 Nut	€1.66
20	Image coming soon	112293200/0 Nut	€1.74
21	Image coming soon	125601562/0 PULLEY FOR TM122.22H2	€125.52
22	Image coming soon	112139480/0 KEY FOR RM72.13H	€2.87
23	Image coming soon	112793102/0 Screw	€1.64
24	Image coming soon	125670007/0 WASHER	€2.44
25	Image coming soon	112583500/0 Grower	€1.64
26	Image coming soon	135065601/0 TOOTHED BELT FOR TM122	€196.07
29	Image coming soon	25060101/2 BELT COVER TM122.22H2	€25.39
30	Image coming soon	112735110/0 SCREW FOR RM63.7	€1.86
31	Image coming soon	125601549/0 PULLEY	€58.80
32	Image coming soon	112793102/0 Screw	€1.64
33	Image coming soon	125670007/0 WASHER	€2.44
34	Image coming soon	112583500/0 Grower	€1.64
36	Image coming soon	325318119/1 BLADE BRAKE LEVER FOR TM122.22H2	€16.72
37	Image coming soon	125207000/1 BRAKE PAD FOR TM122.22H2	€43.44
38	Image coming soon	125270317/0 FORK FOR TM122.22H2	€3.01
39	Image coming soon	112154330/0 Nut	€1.74
40	Image coming soon	125601555/0 PULLEY	€56.17
41	Image coming soon	125160007/1 SPACER FOR TM92.14	€4.56
43	Image coming soon	112523060/0 Washer	€1.53
44	Image coming soon	112155000/0 Nut	€1.66
45	Image coming soon	112793102/0 Screw	€1.64
47	Image coming soon	112583500/0 Grower	€1.64
48	Image coming soon	135062814/0 BELT FOR TM122.22	€53.38
61	Image coming soon	25600050/0 BELT GUARD TM122.22H2	€9.86
62	Image coming soon	112735403/0 Screw	€1.62
63	Image coming soon	25060104/0 RIGHT CASE FOR TM102.16	€7.69
64	Image coming soon	125060105/0 LEFT CASE FOR TM102.16	€6.62
65	Image coming soon	112735403/0 Screw	€1.62
91	Image coming soon	182004609/0 ENGAGGING CABLE TC 122 WITH CL FOR TM122.22H2	€34.78

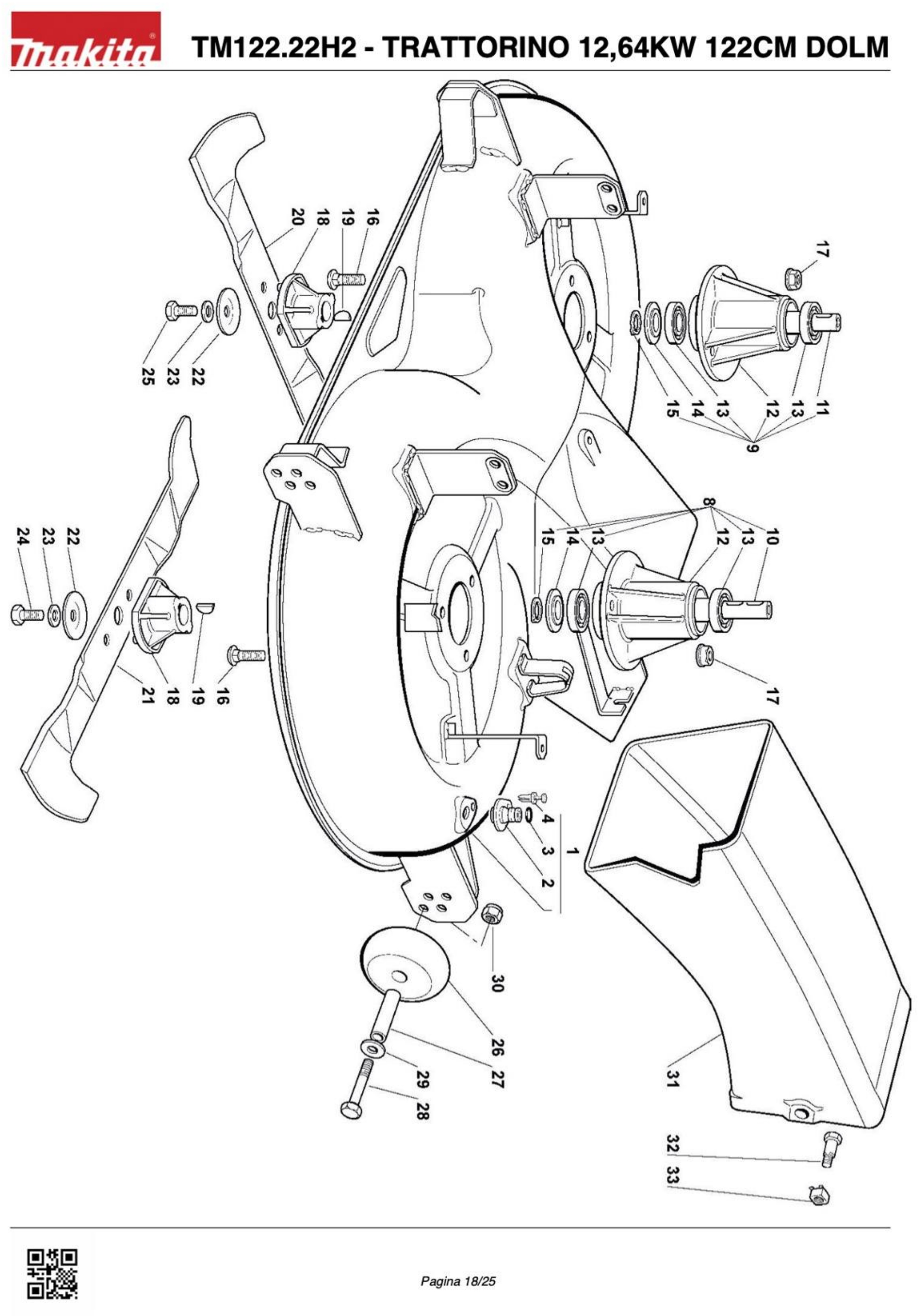

Page 9 View exploded ON DEMAND ONLY

Pos.		Item	Price
1	Image coming soon	382565026/1 DECK SHELL FOR TM122.22H2	€528.94
2	Image coming soon	125033060/0 FITTING	€1.69
3	Image coming soon	19035000/0 RING OR X PM4850S	€4.74
4	Image coming soon	112500030/0 RIVET FOR TM102.16	€1.69
8	Image coming soon	382207200/1 LEFT HUB FOR TM122.22H2	€135.52
9	Image coming soon	382207201/2 SUPPORT SHAFT TC FOR TM122.22H2	€139.97
10	Image coming soon	125020800/1 BLADE SHAFT FOR TM102.16	€71.42
11	Image coming soon	125020801/2 SECOND BLADE SHAFT TM122.22H2	€66.01
12	Image coming soon	125207200/0 BLADE SUPPORT FOR TM102.16	€65.01
13	Image coming soon	119216047/0 BEARING FOR TM102.22H	€40.88
14	Image coming soon	325160501/0 DISK PARAPOLV. FOR TM102.22H	€1.91
16	Image coming soon	112818700/0 SCREW M8X25	€1.91
17	Image coming soon	12154210/0 NUT FOR RM72.13H	€1.69
18	Image coming soon	125463200/0 BLADE SUPPORT FOR TM92.14H	€19.65
19	Image coming soon	664139100 KEY PM 43	€3.60
20	Image coming soon	182004350/0 Blade dx mulching TC 122 (+ wings)	€82.65
21	Image coming soon	182004349/0 Left mulching blade TC 122 (+ wings)	€82.76
22	Image coming soon	664160400 ELASTIC WASHER X PM43	€4.56
23	Image coming soon	664523080 WASHER X PM 43	€2.14
24	Image coming soon	664735694 SCREW FOR TM92.14H	€2.07
25	Image coming soon	112735695/1 SCREW FOR TM102.16	€5.80
26	Image coming soon	182700002/0 DECK LEVEL WHELL TM102.16	€7.69
27	Image coming soon	125510072/1 Pin	€2.46
28	Image coming soon	112692050/0 SCREW FOR TM102.16	€1.91
29	Image coming soon	112523060/0 Washer	€1.53
30	Image coming soon	112293201/0 Nut	€2.46
31	Image coming soon	325108009/1 CONVEYOR TM122.22H2	€99.44
32	Image coming soon	125510051/1 PIN FOR TM102.16	€4.01
33	Image coming soon	12360425/0 NUT FOR TM102.16	€2.10

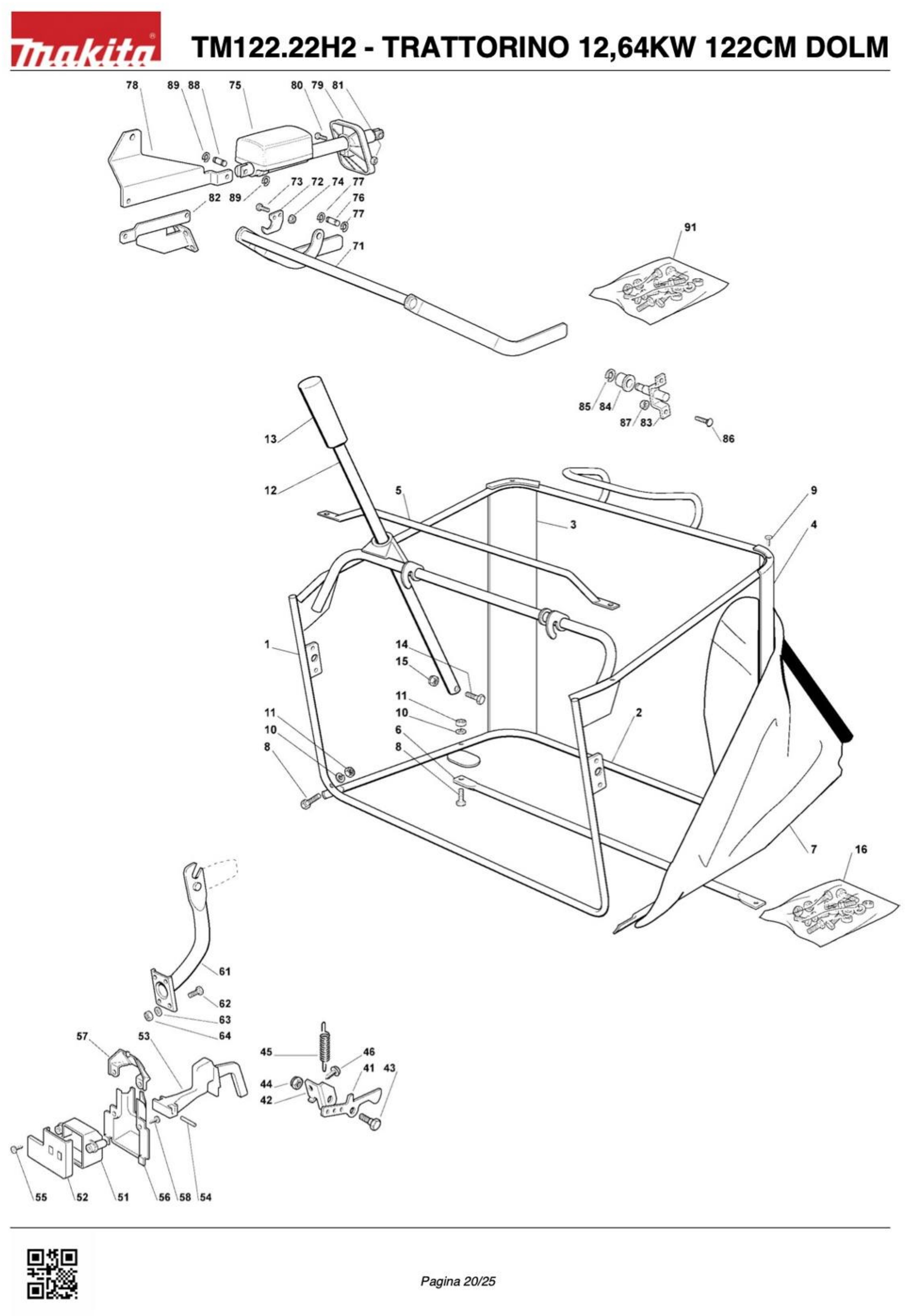

Page 10 View exploded ON DEMAND ONLY

Pos.		Item	Price
1	Image coming soon	82800093/0 MAIN FRAME JUNIOR	€246.93
2	Image coming soon	82800002/2 LOWER FRAME	€58.80
3	Image coming soon	25032001/1 RIGHT CORNER	€21.97
4	Image coming soon	25032002/1 LEFT CORNER	€21.97
5	Image coming soon	382394001/2 GRASSCATCHER FRONT HANDLE TC-T FOR TM102	€16.72
6	Image coming soon	82650038/0 LOWER REINFORCEMENT	€27.74
7	Image coming soon	82106000/2 GRASSBAG TM102.16 / 18H / 122.22H2	€135.52
12	Image coming soon	125869029/1 LEVER FOR BASKET TM102	€34.78
13	Image coming soon	125394508/0 KNOB FOR TM102	€5.09
15	Image coming soon	112154510/0 Nut	€1.66
16	Image coming soon	82180027/1 SCREW SET	€18.89
45	Image coming soon	125430210/1 SPRING FOR RM72.13H	€3.46
53	Image coming soon	25318124/0 LEVER FOR TM102.18H	€2.10
62	Image coming soon	112793102/0 Screw	€1.64
63	Image coming soon	112523060/0 Washer	€1.53
64	Image coming soon	112293201/0 Nut	€2.46
74	Image coming soon	112154510/0 Nut	€1.66
77		112000955/0 Benzing Ring mm 8 for Lawnmower Alpina BL 380 E	€1.50
81	Image coming soon	112154330/0 Nut	€1.74
84	Image coming soon	125690001/0 RUBBER BUSH FOR TM122.22	€11.13
85	Image coming soon	112000956/0 ARRESTON RING FOR TM92.14	€1.62
87	Image coming soon	112293201/0 Nut	€2.46
89		112000955/0 Benzing Ring mm 8 for Lawnmower Alpina BL 380 E	€1.50

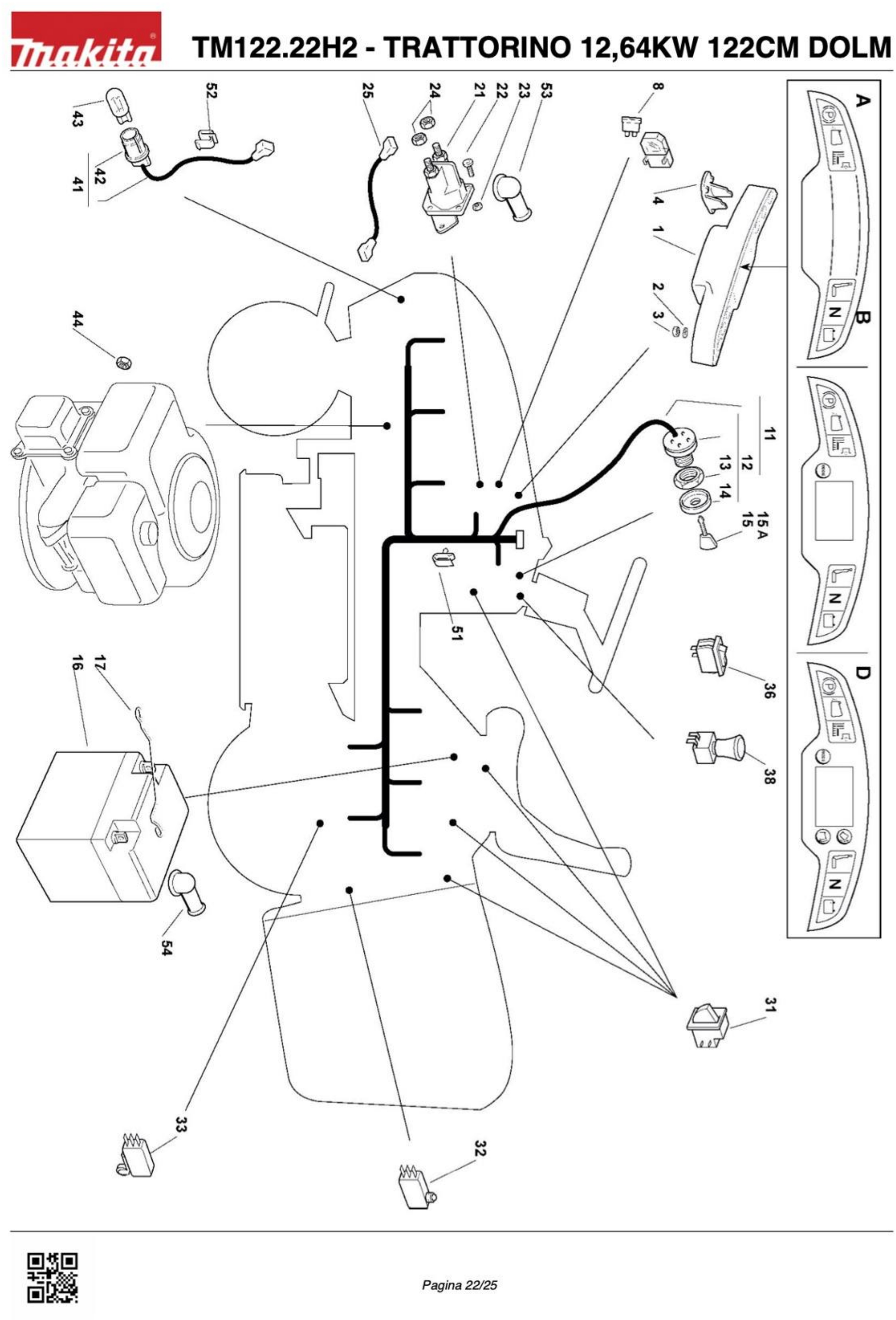

Page 11 View exploded ON DEMAND ONLY

Pos.		Item	Price
1	Image coming soon	82722422/1 CARDS / PROTECTIONS (D) TM102.22H2	€316.77
3	Image coming soon	112154330/0 Nut	€1.74
12	Image coming soon	118450065/1 LIGHTS SWITCH FOR TM102	€38.94

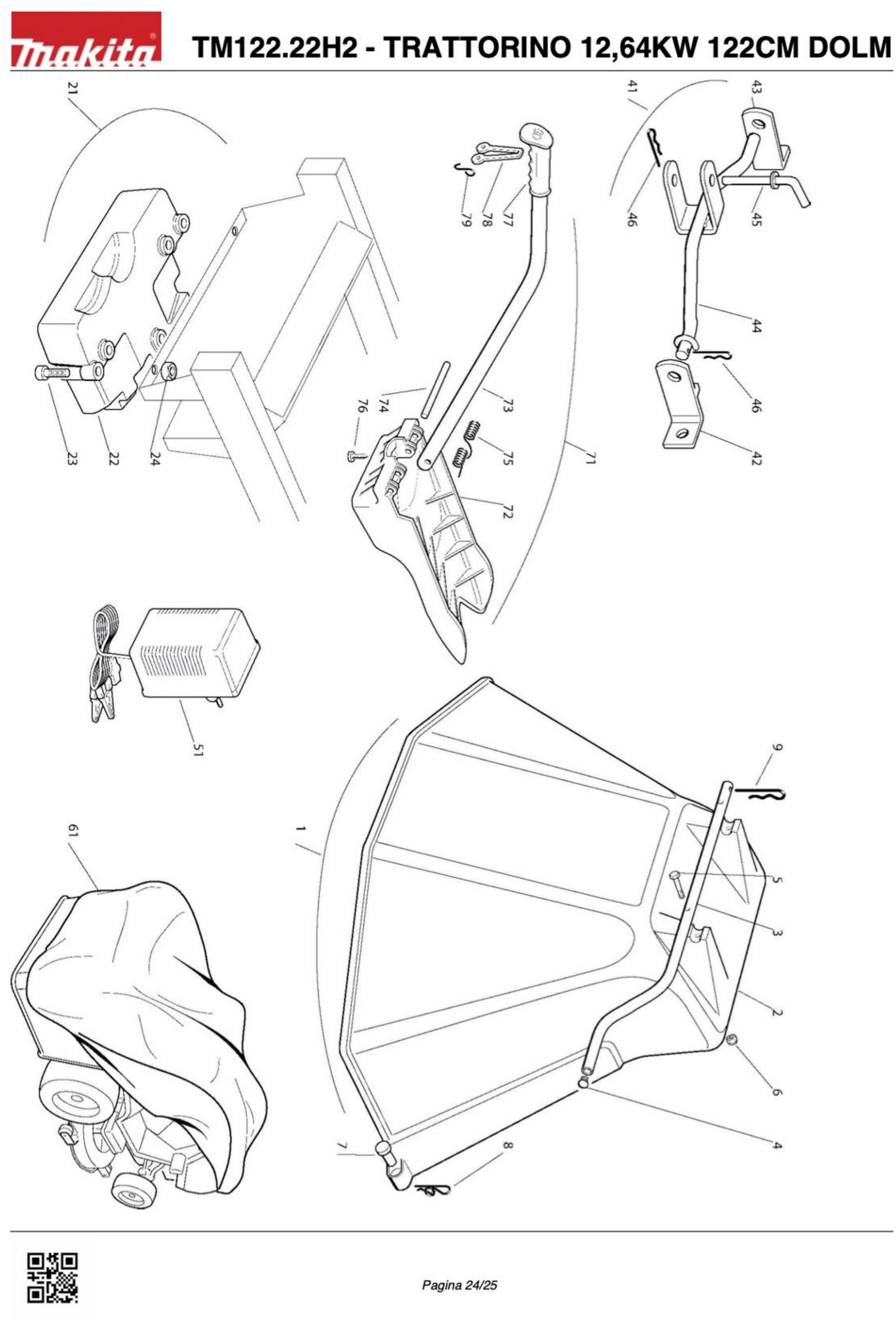

Page 12 View exploded ON DEMAND ONLY

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Dolmar Spare Parts for Lawn Tractor TM122.22H2

TM122.22H2 - LAWN TRACTOR 12,64KW 122CM DOLMAR pag.1
#	Part Num.	Description
1	82800075/0
2	82547039/0
3	12585100/0
4	12295200/0	NUT FOR RM63.7
5	25774273/1
6	12691100/0
7	112793102/0	SCREW FOR RM63.7
8	112293201/0	NUT X PM4850S
9	82510041/1
10	82510043/1
11	12815245/0
12	112523040/0	WASHER X PM4850S
13	112154510/0	NUT X PM4850S
14	25785133/3
15	12791011/0
16	12292102/0
17	25650065/0
18	12791011/0
19	12292102/0
20	25650067/0
21	12360420/0
22	25785137/0
23	12791011/0
24	12292102/0
25	25580019/0
26	12292102/0
28	25785141/0
29	112735110/0	SCREW FOR RM63.7
30	27546019/0
31	12735602/0
32	12581100/0
34	25430238/0
35	12731580/0
36	112293200/0	NUT X PM4850S
37	112793102/0	SCREW FOR RM63.7
38	112293201/0	NUT X PM4850S
61	82650041/1
62	12792611/0
63	12521330/0
64	112293201/0	NUT X PM4850S
65	12731350/0	SCREW X PM4850S
66	22167840/0
67	112691200/0	SCREW FOR TM102.18H
68	112293201/0	NUT X PM4850S
71	25430205/1
72	25122000/2
73	25943001/0
74	112293201/0	NUT X PM4850S
75	12523070/0	WASHER
77	82774207/0
78	12792611/0
79	112293201/0	NUT X PM4850S
80	25785149/2
81	25430203/0
82	12731580/0
83	22524970/2
84	12155010/0	NUT FOR RM63.7
85	25785147/0
86	25318109/0
87	25510000/0
88	25430202/0
89	12604897/0
90	25430223/2
91	664789000	SCREW X PM 43
92	112154330/0	NUT X PM4850S
93	25060033/0
94	112789020/0	SCREW M5X25 FOR PRM0600
95	12521320/0
96	12372550/0
97	25755025/1
98	112735110/0	SCREW FOR RM63.7
99	12437502/0
100	25430255/0
TM122.22H2 - LAWN TRACTOR 12,64KW 122CM DOLMAR pag.2
1	82076938/0	UPPER COVER RED TM92.14
2	25547103/1
3	125510023/1	PIN
4	664436050	PLATE X PM4850S
5	25410859/0	MASK FOR TM92.14
7	25076808/0
8	25108028/0
9	12728686/0
11	82785022/7
12	82785021/6
13	82785137/0
14	112735110/0	SCREW FOR RM63.7
15	112735110/0	SCREW FOR RM63.7
16	25120187/0	STARTER LOCK TM102.18H
17	12728440/0
18	25120200/0
19	25260000/0
20	25120234/0
23	25735111/3
24	125795000/1	TANK CAP FOR LAWN TRACTORS
25	12789197/0
26	12500092/0
28	25290000/0
31	125961217/1	STEERING WHEEL FOR TM102.16
32	12620299/0	PIN FOR RM72.13H
34	12731350/0	SCREW X PM4850S
35	12521330/0
41	82000201/2
42	12788512/0
43	12581200/0
44	12521310/0
45	25394501/0
46	12726388/0	SCREW X PM5150S
47	112290800/0	NUT X PM5150S
48	25090001/2
51	125722468/0	SEAT FOR TM102.18H
52	112793101/0	SCREW X PM4850S
53	112583500/0	WASHER
61	25110099/1
62	25580020/0
63	25110270/0
64	25110260/2
71	25109726/1
72	112735402/0	SCREW X PM4850S
81	82110235/0
82	25547103/1
83	12674701/0	SCREW FOR RM72.13H
84	12729601/1
85	12582101/0
86	112521331/0	WASHER FOR PRM0600
101	82869006/1
102	18566110/0
103	12734995/0
104	25547089/0
105	25547091/0
106	12731580/0
TM122.22H2 - LAWN TRACTOR 12,64KW 122CM DOLMAR pag.3
1	25038004/0
2	25520005/0
3	125570000/2	STEERING PINION FOR TM102.18H
3A	125570004/0	STEERING PINION FOR TM102.18H
4	12622650/0
5	25743000/0
6	12521370/0
7	12436030/0
8	25785213/0
9	12729601/1
16	25040617/0
17	25510065/1
18	12295200/0	NUT FOR RM63.7
19	25670012/0
20	25735507/0	TOOTHED WHEEL FOR TM102.18H
21	25670014/0
22	664160400	SPRING WASHER X PM43
23	12521360/0
24	12295200/0	NUT FOR RM63.7
25	22672150/0	WASHER FOR RM72.13H
26	664523080	WASHER X PM 43
27	12156602/0	SELF-LOCKING NUT RM63.7
28	12141418/0
31	25033003/1	STEERING ROD FOR TM102.16
32	122746609/0	STEERING JOINT FOR TM122.22H2
33	12156602/0	SELF-LOCKING NUT RM63.7
34	12156602/0	SELF-LOCKING NUT RM63.7
35	382034001/3	FRONT FRAME X TM122.22
36	25034002/1
37	12379511/0
38	82230361/0
39	82230359/0
40	25840001/0
41	122746609/0	STEERING JOINT FOR TM122.22H2
42	12156602/0	SELF-LOCKING NUT RM63.7
43	82318185/0
44	12692395/0
45	112155000/0	NUT X PM4850S
46	12001000/0	LOCK RING FOR RM72.13H
47	25160005/0
48	12694100/0
49	12521390/0	WASHER FOR RM63.7
50	12587900/0
51	12295800/0
61	82680007/1	FRONT WHEEL FOR TM102
62	82000590/0
63	125122200/2	BALL BEARING FOR RM72.13H
64	125590019/0	REAR WHEEL TIRE (RIDER)
65	125950000/0	PNEUMATIC VALVE RM72.13H
66	25670005/1	WASHER FOR RM72.13H
67	12001000/0	LOCK RING FOR RM72.13H
68	664110230	CAP X PM48S-4850S
TM122.22H2 - LAWN TRACTOR 12,64KW 122CM DOLMAR pag.4
1	82500011/2
2	25110267/0
3	25547081/1
4	12731601/0
5	82000487/0
6	25510052/0
7	25430236/0
8	12521360/0
9	12295200/0	NUT FOR RM63.7
10	25774275/0
11	112521350/0	WASHER X PM4850S
12	112155000/0	NUT X PM4850S
14	12156602/0	SELF-LOCKING NUT RM63.7
15	112521350/0	WASHER X PM4850S
16	112155000/0	NUT X PM4850S
21	25785143/0
22	12815210/0
23	112523040/0	WASHER X PM4850S
24	112154510/0	NUT X PM4850S
25	25253001/0
26	22524970/2
27	25670011/0	WASHER
28	112155000/0	NUT X PM4850S
29	25033034/0
30	25394509/1
31	25430213/0	SPRING
32	12523020/0	WASHER X PM4850S
41	82500013/0
42	25110265/0
43	25110266/0
44	82000481/0
45	22034523/0
46	22672153/0
47	12609260/0
48	12760600/0
49	12583501/0
50	25033031/0
51	25510054/0
52	112293200/0	NUT X PM4850S
53	12521360/0
54	112523040/0	WASHER X PM4850S
55	112154510/0	NUT X PM4850S
56	25510054/0
57	112293200/0	NUT X PM4850S
58	112523040/0	WASHER X PM4850S
59	112154510/0	NUT X PM4850S
TM122.22H2 - LAWN TRACTOR 12,64KW 122CM DOLMAR pag.5
2	25869016/1
3	18375051/1
5	25598050/0
6	18737849/0
7	18401001/1
8	12691115/0
9	12540260/0
10	12154210/0	NUT FOR RM72.13H
11	12691100/0
12	12154210/0	NUT FOR RM72.13H
13	18738214/0
14	18738215/0
15	12735530/0
16	112583500/0	WASHER
17	12791400/0
18	12582100/0
31	82750003/0
32	112793102/0	SCREW FOR RM63.7
33	12540260/0
34	12360425/0	NUT FOR TM102.16
35	82598005/2
36	12792611/0
37	112583500/0	WASHER
TM122.22H2 - LAWN TRACTOR 12,64KW 122CM DOLMAR pag.6
1	25601566/0	PULLEY FOR TM92.14H
2	112737320/0	SCREW
3	112543000/0	WASHER
4	135062020/1	BELT FOR TM92.14H
5	82318165/1
6	12692000/0
7	125038002/1	BUISH X PM5150S
8	112155000/0	NUT X PM4850S
9	25160027/0
10	125601554/0	PULLEY FOR TM92.14
11	112523060/0	WASHER FOR RM63.7
12	112155000/0	NUT X PM4850S
13	25840010/1
14	112293200/0	NUT X PM4850S
15	25430219/0	SPRING FOR TM102.16
17	125601555/0	PULLEY
18	25510036/1
19	112523060/0	WASHER FOR RM63.7
20	112155000/0	NUT X PM4850S
21	325601570/1	BELT PULLEY
22	125160030/2	PULLEY SPACER TM102.18H
23	125160024/2	SPACER FOR TM102.18H
24	12691115/0
25	12691400/0
26	112523060/0	WASHER FOR RM63.7
27	112155000/0	NUT X PM4850S
28	125109521/1	COVER FOR TM102.16
29	25160021/0
30	118399062/0	CLUTCH FOR TM122.22H2
31	125430210/1	SPRING FOR RM72.13H
41	118400950/1	HIDRO TRANSAXLE COMPL. K46 FFOR TM122.22H2
42	112691800/0	SCREW X PM4850S
44	12154210/0	NUT FOR RM72.13H
45	82785109/0
46	112691200/0	SCREW FOR TM102.18H
47	112521350/0	WASHER X PM4850S
48	112155000/0	NUT X PM4850S
49	12735120/0
50	12792611/0
51	112293201/0	NUT X PM4850S
52	25318157/0
53	112793102/0	SCREW FOR RM63.7
54	12369500/0	WASHER PM4850S
55	25670011/0	WASHER
56	112155000/0	NUT X PM4850S
57	25033033/0
58	12604896/0
71	82680003/0	REAR WHEEL FOR TM102
72	82000592/0
73	25590001/0	WHEEL TIRE 18X850-8
74	125950000/0	PNEUMATIC VALVE RM72.13H
75	25670005/1	WASHER FOR RM72.13H
76	25160023/0
77	25670017/0
78	12001010/0
79	664110230	CAP X PM48S-4850S
TM122.22H2 - LAWN TRACTOR 12,64KW 122CM DOLMAR pag.7
1	82300002/1
2	82318139/0
3	25605000/1
4	25470901/0
5	25510011/0
6	25033002/0
7	25394504/1
8	25430208/0
9	12604899/0	WASHER X PM5150S
10	82000479/0
11	22034523/0
12	25160025/0
13	22672153/0
14	12521410/0
15	12609260/0
16	12620206/0
17	25735506/1
18	12792611/0
19	112293201/0	NUT X PM4850S
31	382318159/0	FRONT RIGHT LEVER TM122.22
32	382318161/0	LEVER FOR TM122.22H2
33	25040605/0
34	25318161/0
35	12691700/0
36	112521350/0	WASHER X PM4850S
37	112155000/0	NUT X PM4850S
38	125510056/1	PIN FOR RM63.7
39	12295200/0	NUT FOR RM63.7
40	12156602/0	SELF-LOCKING NUT RM63.7
41	325670008/1	LOCKING WASHER RM63.7
42	12156602/0	SELF-LOCKING NUT RM63.7
43	382000477/3	FLAT CONTROL LEVER TM102.16
44	112155000/0	NUT X PM4850S
45	25510055/0
46	112521350/0	WASHER X PM4850S
47	112155000/0	NUT X PM4850S
48	25318153/1
50	25033029/0
51	25670011/0	WASHER
52	25510053/1
54	112521350/0	WASHER X PM4850S
55	664436050	PLATE X PM4850S
56	125510056/1	PIN FOR RM63.7
57	325670008/1	LOCKING WASHER RM63.7
58	12156602/0	SELF-LOCKING NUT RM63.7
59	12794980/0
60	12295200/0	NUT FOR RM63.7
61	25510070/0	PIN FOR TM122.22H2
62	12523090/0
63	124487998/0	PIN FOR RM72.13H
64	25430218/0
66	112293200/0	NUT X PM4850S
TM122.22H2 - LAWN TRACTOR 12,64KW 122CM DOLMAR pag.8
1	82547005/1
2	12792611/0
3	112293201/0	NUT X PM4850S
4	382785084/2	SUPPORT FOR TM102.16
5	125601561/0	PULLEY FOR TM122.22H2
6	119216048/0	BALL BEARING
7	12610800/0	SEEGER RING FOR TM122.22H2
8	12609200/0	SEEGER RING FOR TM122.22H2
9	325650037/1	PULLEY BRACKET FOR TM102.16
10	112793102/0	SCREW FOR RM63.7
11	112521350/0	WASHER X PM4850S
12	112583500/0	WASHER
13	125160003/1	SPACER FOR TM102.18H
14	125038000/0	BUSH FOR TM102.16
15	12691700/0
16	112691200/0	SCREW FOR TM102.18H
17	112521350/0	WASHER X PM4850S
18	112155000/0	NUT X PM4850S
19	12793900/0
20	112293200/0	NUT X PM4850S
21	125601562/0	PULLEY FOR TM122.22H2
22	112139480/0	KEY FOR RM72.13H
23	112793102/0	SCREW FOR RM63.7
24	125670007/0	WASHER
25	112583500/0	WASHER
26	135065601/0	TOOTHED BELT FOR TM122
27	12815200/0
28	12292102/0
29	25060101/2	BELT COVER TM122.22H2
30	112735110/0	SCREW FOR RM63.7
31	125601549/0	PULLEY
32	112793102/0	SCREW FOR RM63.7
33	125670007/0	WASHER
34	112583500/0	WASHER
35	25160002/0
36	325318119/1	BLADE BRAKE LEVER FOR TM122.22H2
37	125207000/1	BRAKE PAD FOR TM122.22H2
38	125270317/0	FORK FOR TM122.22H2
39	112154330/0	NUT X PM4850S
40	125601555/0	PULLEY
41	125160007/1	SPACER FOR TM92.14
42	12818900/0
43	112523060/0	WASHER FOR RM63.7
44	112155000/0	NUT X PM4850S
45	112793102/0	SCREW FOR RM63.7
46	12523070/0	WASHER
47	112583500/0	WASHER
48	135062814/0	BELT FOR TM122.22
61	25600050/0	BELT GUARD TM122.22H2
62	112735403/0	SCREW FOR RM63.7
63	25060104/0	RIGHT CASE FOR TM102.16
64	125060105/0	LEFT CASE FOR TM102.16
65	112735403/0	SCREW FOR RM63.7
91	182004609/0	ENGAGGING CABLE TC 122 WITH CL FOR TM122.22H2
TM122.22H2 - LAWN TRACTOR 12,64KW 122CM DOLMAR pag.9
1	382565026/1	DECK SHELL FOR TM122.22H2
2	125033060/0	WASHING FITTING
3	19035000/0	O-RING X PM4850S
4	112500030/0	RIVET FOR TM102.16
8	382207200/1	LEFT HUB FOR TM122.22H2
9	382207201/2	SUPPORT SHAFT TC FOR TM122.22H2
10	125020800/1	BLADE SHAFT FOR TM102.16
11	125020801/2	SECOND BLADE SHAFT TM122.22H2
12	125207200/0	BLADE SHAFT SUPPORT FOR TM102.16
13	119216047/0	BALL BEARING FOR TM102.22H
14	325160501/0	DAST COVER FOR TM102.22H
15	12609260/0
16	112818700/0	SCREW M8X25
17	12154210/0	NUT FOR RM72.13H
18	125463200/0	BLADE HUB FOR TM92.14H
19	664139100	KEY PM 43
20	182004350/0	RIGHT MULCHING BLADE TCP122 FOR TM102.22H2D
21	182004349/0	LEFT MULCHING BLADE TCP122 FOR TM102.22H2D
22	664160400	SPRING WASHER X PM43
23	664523080	WASHER X PM 43
24	664735694	SCREW FOR TM92.14H
25	112735695/1	SCREW FOR TM102.16
26	182700002/0	DECK LEVEL WHELL TM102.16
27	125510072/1	SPACER FOR TM102.16
28	112692050/0	SCREW FOR TM102.16
29	112523060/0	WASHER FOR RM63.7
30	112293201/0	NUT X PM4850S
31	325108009/1	CONVEYOR TM122.22H2
32	125510051/1	PIN FOR TM102.16
33	12360425/0	NUT FOR TM102.16
TM122.22H2 - LAWN TRACTOR 12,64KW 122CM DOLMAR pag.10
1	82800093/0	MAIN FRAME JUNIOR
2	82800002/2	LOWER FRAME
3	25032001/1	RIGHT CORNER
4	25032002/1	LEFT CORNER
5	382394001/2	GRASSCATCHER FRONT HANDLE TC-T FOR TM102
6	82650038/0	LOWER REINFORCEMENT
7	82106000/2	GRASSBAG TM102.16 / 18H / 122.22H2
8	12792099/0
9	12729601/1
10	12582101/0
11	12292100/0
12	125869029/1	LEVER FOR BASKET TM102
13	125394508/0	KNOB FOR TM102
14	12792099/0
15	112154510/0	NUT X PM4850S
16	82180027/1	SCREW SET
41	25774315/0
42	25755031/0
43	25510080/0
44	12292102/0
45	125430210/1	SPRING FOR RM72.13H
46	12735122/0
51	25600041/0
52	25600042/0
53	25318124/0	LEVER FOR TM102.18H
54	12400030/0
55	12728510/0
56	25600047/0
57	25600048/0
58	12728450/0
61	82774245/0
62	112793102/0	SCREW FOR RM63.7
63	112523060/0	WASHER FOR RM63.7
64	112293201/0	NUT X PM4850S
71	82000507/0
72	25774317/0
73	12815210/0
74	112154510/0	NUT X PM4850S
75	18001000/0
76	25510083/0
77	112000955/0	STOP RING FOR RM72.13H
78	25785197/0
79	25600060/0
80	12727795/0
81	112154330/0	NUT X PM4850S
82	82650209/0
83	82785147/0
84	125690001/0	RUBBER BUSH FOR TM122.22
85	112000956/0	LOCKING RING FOR TM92.14
86	12818690/0
87	112293201/0	NUT X PM4850S
88	25510083/0
89	112000955/0	STOP RING FOR RM72.13H
91	82180045/0
TM122.22H2 - LAWN TRACTOR 12,64KW 122CM DOLMAR pag.11
1	82722422/1	CARDS / PROTECTIONS (D) TM102.22H2
2	12521320/0
3	112154330/0	NUT X PM4850S
4	25031501/0
8	33340040/0
11	82040135/0
12	118450065/1	LIGHTS SWITCH FOR TM102
13	18400861/0
14	18565351/0
15	18210016/1	STARTER KEY FOR RM72.13H
15A	118210022/0	STARTER KEY Reference Dolmar TM122.22H2 Available 12 Items Data sheet SHIPPING IN: ON DEMAND ONLY MORE INFO: CALL US FOR AVAILABILITY AND SHIPPING TIMES CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT Specific References Condition New Download Diagram Dolmar TM122.22H2 Diagram Dolmar TM122.22H2 Download (1.66MB) You might also like Makita SKU: 163447-0 Gasoline Filter for Chainsaw Makita DCS230T Gasoline Filter for Chainsaw Makita DCS230T Genuine part for Makita, Gasoline Filter for Chainsaws DCS230T - DCS230TC -DCS231T - DCS231TC - DCS232TC Part for the following... Last items in stock €4.49 Details Makita SKU: 325601570/1 Dolmar Belt Pulley for TM122.22H2 Dolmar Belt Pulley for Lawn Tractor TM122.22H2 Original part Dolmar, Belt pulley for Lawn Tractor TM122.22H2. Part for the following products: - Lawn Tractor TM122.22H2 - Code: 325601570/1 Last items in stock €24.40 Details Comments (0) Write your review Online only Dolmar Spare Parts for Lawn Tractor TM122.22H2 Dolmar Spare Parts for Lawn Tractor TM122.22H2 We are DOLMAR original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawn Tractor TM122.22H2. Quality: Title^* Your name^* Review^* ^* Required fields Dolmar Spare Parts for Lawn Tractor TM122.22H2 100% Newsletter Subscribe to receive our latest offers and news I agree to receive the newsletter and accept the privacy policy Contact us Contact us Address: Bricoutensili Italy Phone: +390883634436 Email: [email protected] Your account Your account Personal info Merchandise returns Orders Credit slips Addresses Vouchers My alerts Become a Seller My blog comments Products Products Specials New products Best Sales News News Terms of Sale Awards Replacements Parts and Accessories Technical Notice About us Notes Notes Contact us Corporate Information Legal Notice Privacy & Cookie Faq Secure payment Technical support Our company Our company Terms of Sale Legal Notice Corporate Information About us Secure payment Contact us Sitemap Contatti Via A.Moro, 44 - 76015 Trinitapoli (BT) Puglia, Italia +39 0883 634436 +39 338.6631160 [email protected] Lun-Ven 11:00-12:00 / 17:00-18:00 Seguici Facebook Twitter Rss YouTube Pinterest Instagram © 2025 Bricoutensili.com - Tutti i diritti riservati. CCIAA Foggia N.155635 / Reg.Impr.1996/223492 / P.Iva IT01835910710 TOP We use cookies to enhance your browsing experience and analyze site traffic. Learn more

Cart (0)

Subcategories

Subcategories

Subcategories

Power Tools Spare Parts

Garden Spare Parts

Air Compressor Spare Parts

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

Dolmar Spare Parts for Lawn Tractor TM122.22H2

Dolmar Spare Parts for Lawn Tractor TM122.22H2

Dolmar Spare Parts for Lawn Tractor TM122.22H2

Dolmar Spare Parts for Lawn Tractor TM122.22H2

Dolmar Spare Parts for Lawn Tractor TM122.22H2

Data sheet

Specific References

Download

Diagram Dolmar TM122.22H2

You might also like

Products

News

Notes

Our company
