Dolmar Spare Parts for Electric Chainsaw ES38A

Name: Dolmar Spare Parts for Electric Chainsaw ES38A
Brand: Makita
SKU: Dolmar ES38A
Availability: InStock

SKU: Dolmar ES38A

€1.44

VAT included

Dolmar Spare Parts for Electric Chainsaw ES38A

Dolmar genuine spare parts or replacement parts for to repair Electric Chainsaw ES38A 1800W 35CM DOLMAR.

Automatic chain lubrication
Chain brake for instant chain stoppage in the event of kickback.
Engine brake
Double lever switch that prevents accidental operations

67 spare parts

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.27
2	Image coming soon	419234-8 SIDE COVER FOR UC3020A	€8.44
3	Image coming soon	191972-1 CARBON BRUSHES CB-132	€6.41
4	Image coming soon	682211-5 BUSH RUBBER UC3020A	€1.26
6	Image coming soon	421938-0 FRONT HANDLE FOR UC3020A	€1.87
7	Image coming soon	266388-0 SCREW 5X16 FOR UC3020A	€1.32
9	Image coming soon	419235-6 PROTECTION FOR THE UC3020A	€6.42
11	Image coming soon	188090-4 MOTOR HOUSING ES33A	€38.94
12		650577-1 Micro Switch for Electric Chainsaws Makita UC3530A - UC4030A	€2.97
13		651922-3 Switch for Polisher Makita SA7000	€32.80
14	Image coming soon	233173-6 SPRING FOR COMPR.4 UC3020A	€1.47
15	Image coming soon	416178-3 RESET BUTTON X UC3020A	€1.47
16	Image coming soon	416708-0 LEVER SWITCH X UC3020A	€1.26
17		645200-1 Capacitor for Angle Grinder Makita GA4530	€2.65
18		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.27
19	Image coming soon	687124-5 CORD CLAMP MT953	€1.47
20		682540-6 Cord Guard JN1601 for Angle Grinder Makita 9015B	€2.72
22		210046-0 Ball Bearing 608ZZ for Chainsaw Makita UC3020A	€2.39
23	Image coming soon	681644-1 INSULATED WASHER for 9227CB	€2.74
24	Image coming soon	594538-0 STATOR FOR UC3020A	€40.04
26		513713-9 Armature Ass'y for Electric Chainsaw Makita UC3020A	€47.22
29		211061-7 Ball Bearing 6000DD NSK for Cordless Drill Makita 6221DW	€8.69
30	Image coming soon	227153-2 GEAR FOR 12 UC3020A	€1.89
31	Image coming soon	931403-6 HEX NUT M8	€1.40

Page 2 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
33	Image coming soon	421934-8 SEAL UC3520-4020	€1.26
34	Image coming soon	419240-3 OIL TANK CHAIN X UC3020A	€3.69
35	Image coming soon	213039-6 RING 6 X AN901	€1.47
36		142001-3 Oil Pump for Chainsaw Makita UC3520A	€3.46
37	Image coming soon	421935-6 PIPE PUMP OIL UC3020A	€1.26
38	Image coming soon	231975-4 SPRING TUBE OIL X DCS230T	€1.47
39	Image coming soon	416274-7 PLUG OIL PIPE X DCS230T	€1.47
41	Image coming soon	158047-9 Linkage CHAIN BRAKE	€4.68
42	Image coming soon	233175-2 SPRING COMPRESSION 9	€2.20
44		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.27
45	Image coming soon	267195-4 WASHER 4 X DCS230T	€1.32
46	Image coming soon	210213500 SPRING BRAKE ES-31A	€11.29
49	Image coming soon	452456-7 CARTER CHAIN BRAKE X UC3020A	€6.75
50	Image coming soon	213039-6 RING 6 X AN901	€1.47
51		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.27
52	Image coming soon	417405-1 CAM FOR UC3020A	€1.47
53	Image coming soon	227154-0 GEAR FOR 43 UC3020A	€8.44
54	Image coming soon	324619-4 SHAFT FOR UC3020A	€5.00
55	Image coming soon	210106-8 BEARING 6001LLB	€2.47
56	Image coming soon	450230-7 ECCENTRIC FOR UC3020A	€1.47
57	Image coming soon	210137-7 BEARING 606ZZ	€1.43
60		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.27
61	Image coming soon	345651-5 HOOK FOR UC3020A	€2.30
63		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.27
64	Image coming soon	221526-1 PINION 3/8 "	€4.05
65	Image coming soon	930108100 WASHER ES-31A SAFETY	€1.43
66		266007-8 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030	€2.03
67		419241-1 Tensioner Screw Pin Cover for Electric Chainsaw Makita UC3020A	€1.63
68		227496-2 Tensioner Screw Gear for Chainsaw Makita UC3551A	€6.00
69		227495-4 Gear 14 for Electric Chainsaw Makita UC3020A	€7.71
70		324620-9 Tensioner Screw for Chainsaw Makita UC3020A	€2.39
71		324621-7 Tensioner Screw Pin for Electric Chainsaw Makita UC3020A	€1.96
73	Image coming soon	233033-2 COMPRESSION SPRING 4 UC4020A	€1.47
74	Image coming soon	216008-6 BALL 4	€1.47
75	Image coming soon	252168-0 NUT M8-13 FOR UC3020A	€4.06
76	Image coming soon	231025-5 COMPRESION SPRING 8 X 8411DW	€1.50
77	Image coming soon	317977-5 LEVER HOLDER FOR UC3020A	€2.20
78	Image coming soon	453061-3 WASHER 20 X UC3020A	€1.47
79	Image coming soon	154763-1 LEVER ADJUSTMENT FOR UC3020A	€2.20
80	Image coming soon	951122-8 PIN EL. 4-28 FOR UC3020A	€1.47
81	Image coming soon	915106-0 BINDING HD SCREW M4 UC4020A	€1.47
82	Image coming soon	253874-0 FLAT WASHER 4	€2.74
83	Image coming soon	419233-0 DIAL 40 UC4020A/3520/3530A/403	€1.47
84		154761-5 Sprocket Cover Complete for Electric Chainsaw Makita UC3020A	€10.71
85	Image coming soon	421960-7 SPONGE UC3020A	€1.26
86	Image coming soon	324685-1 HOSE CLAMP UC3020A	€2.08
89	Image coming soon	135249-4 COVER GEAR ASSEMBLY	€16.92
500	Image coming soon	191H02-6 SAW CHAIN 3/8LP.043" L52 CC D 1 O A3856 D1928	€19.97
501	Image coming soon	191G16-9 Guide bar 14'' / 35cm 3/8''LP 0.043''	€20.99

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Dolmar Spare Parts for Electric Chainsaw ES38A

Dolmar genuine spare parts or replacement parts for to repair Electric Chainsaw ES38A 1800W 35CM DOLMAR.

In the following table, look for the model of the Electric Chainsaw and the respective parts of the code.

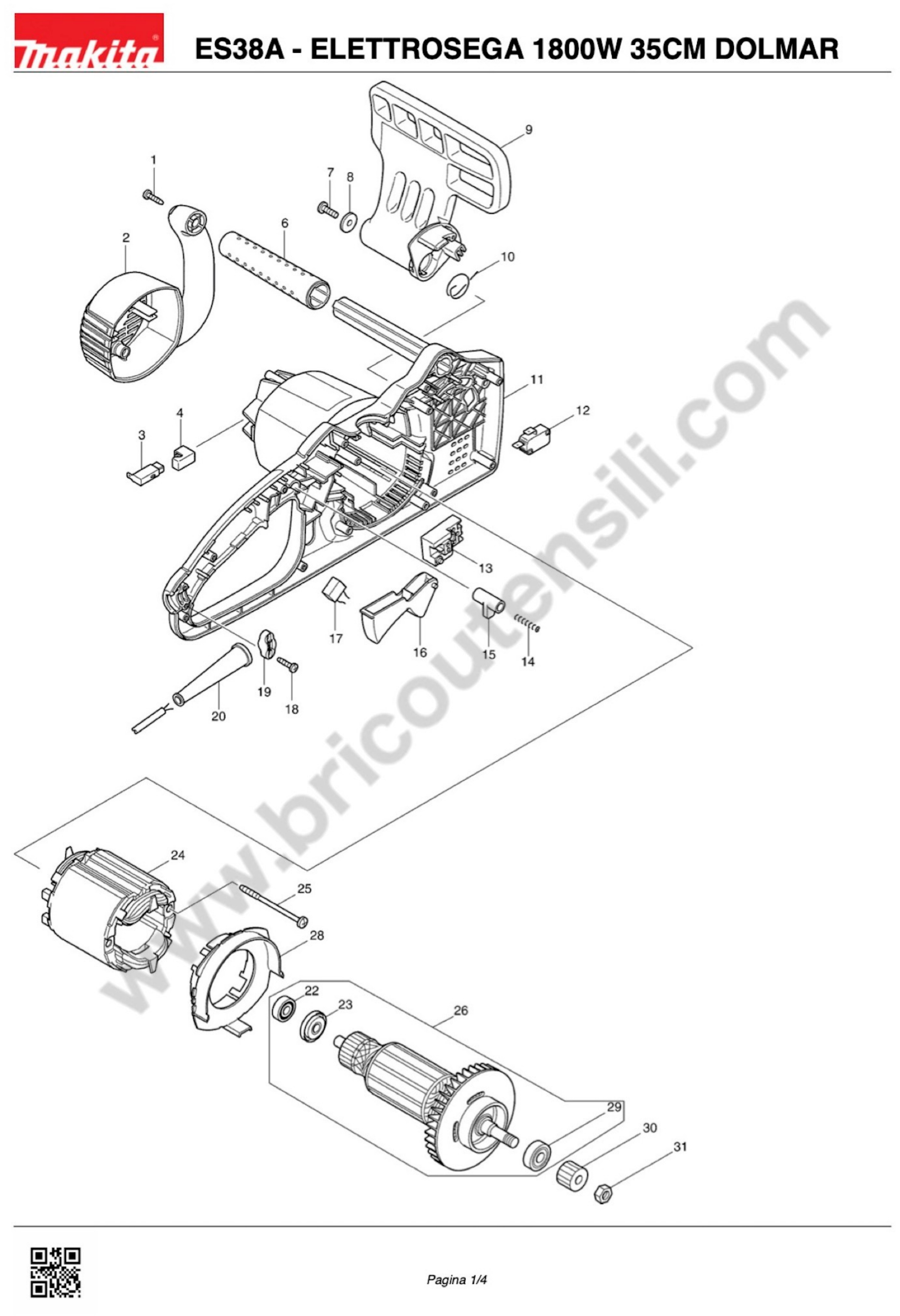

ES38A - ELETTROSEGA 1800W 35CM DOLMAR pag.1
#	Part Num.	Description
1	266326-2	SCREW 4X18 X MT601
2	419234-8	SIDE COVER FOR UC3020A
3	191972-1	CARBON BRUSH CB-132
4	682211-5	RUBBER BUSH FOR UC3020A
6	421938-0	FRONT HANDLE FOR UC3020A
7	266388-0	SCREW 5X16 FOR UC3020A
8	267189-9	WASHER 5 FOR UC3020A
9	419235-6	HAND GUARD FOR UC3020A
10	231640-5	TORSION SPRING 20 FOR UC3020A
11	188090-4	MOTOR HOUSING ES33A
12	650577-1	SWITCH SD-006-BB2AA-AA
13	651922-3	SWITCH TG71B
14	233173-6	COMPRESSION SPRING 4 FOR UC3020A
15	416178-3	RELEASE BUTTON X UC3020A
16	416708-0	SWITCH LEVER X UC3020A
17	645200-1	CAPACITOR
18	266326-2	SCREW 4X18 X MT601
19	687124-5	CABLE CLAMP MT953
20	682540-6	SLEEVE JN1601
22	210046-0	BALL BEARING 608ZZ
23	681644-1	INSULATING WASHER X 9227CB
24	594538-0	FIELD FOR UC3020A
25	266389-8	SCREW 5 X 70 FOR UC3020A
26	513713-9	ARMATURE ASS'Y UC3020A
28	419238-0	DEFLECTOR FOR UC3020A
29	211061-7	BALL BEARING 6000DD 6221DW
30	227153-2	GEAR 12 FOR UC3020A
31	931403-6	HEX NUT M8

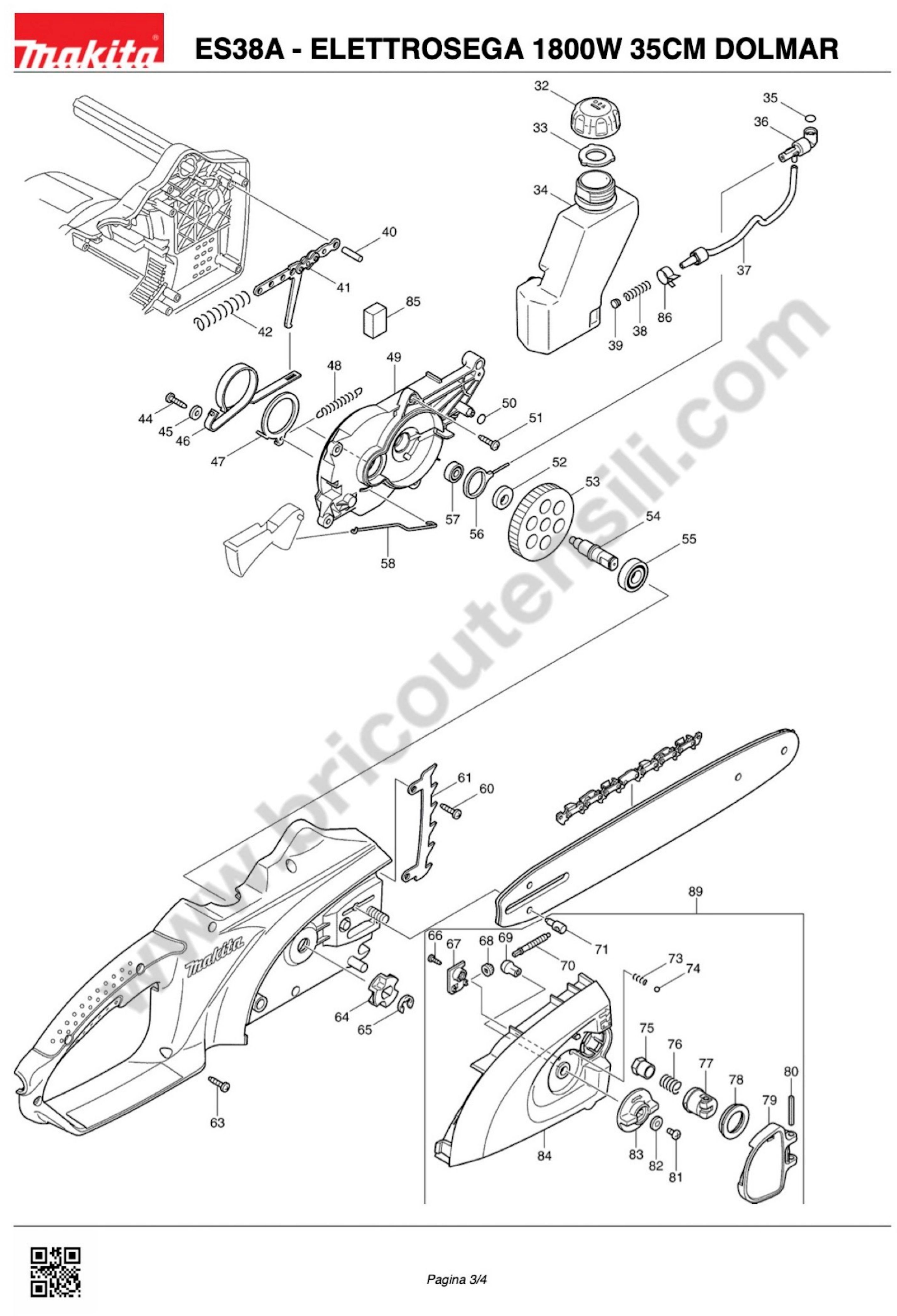

ES38A - ELETTROSEGA 1800W 35CM DOLMAR pag.2
32	135414-5	OIL TANK CAP
33	421934-8	GASKET UC3520-4020
34	419240-3	OIL TANK X UC3020A
35	213039-6	RING 6 X AN901
36	142001-3	OIL PUMP
37	421935-6	OIL PUMP TUBE FOR UC3020A
38	231975-4	OIL HOSE SPRING X DCS230T
39	416274-7	OIL HOSE CAP X DCS230T
40	256021-2	PIN 5 X6300-4
41	158047-9	CHAIN BRAKE LINK
42	233175-2	COMPRESSION SPRING 9
44	266326-2	SCREW 4X18 X MT601
45	267195-4	WASHER 4 X DCS230T
46	210213500	ES-31A BRAKE SPRING
47	344688-9	SUPPORT RING FOR UC3020A
48	231817-2	TENSION SPRING 5 X UC3020A
49	452456-7	CHAIN BRAKE CASE X UC3020A
50	213039-6	RING 6 X AN901
51	266326-2	SCREW 4X18 X MT601
52	417405-1	CAM FOR UC3020A
53	227154-0	GEAR 43 FOR UC3020A
54	324619-4	SHAFT FOR UC3020A
55	210106-8	BEARING 6001LLB
56	450230-7	ECCENTRIC FOR UC3020A
57	210137-7	BALL BEARING 606ZZ
58	324622-5	ROD FOR UC3020A
60	266326-2	SCREW 4X18 X MT601
61	345651-5	SPIKED FOR UC3020A
63	266326-2	SCREW 4X18 X MT601
64	221526-1	REEL FOR UC3020A
65	930108100	ES-31A SAFETY WASHER
66	266007-8	SCREW M3 X10 HP2030
67	419241-1	COVER FOR UC3020A
68	227496-2	GEAR 14 FOR UC3020A
69	227495-4	GEAR 14 FOR UC3020A
70	324620-9	ADJUST SCREW X UC3020A
71	324621-7	ADJUST PIN
73	233033-2	COMPRESSION SPRING 4 FOR UC3020A
74	216008-6	BALL 4
75	252168-0	NUT M8-13 FOR UC3020A
76	231025-5	SPRING INCLUDES. 8 X 8411DW
77	317977-5	LEVER SUPPORT FOR UC3020A
78	453061-3	WASHER 20 X UC3020A
79	154763-1	ADJUST LEVER FOR UC3020A
80	951122-8	PIN EL. 4-28 FOR UC3020A
81	915106-0	SCREW M4X8 FOR UC3020A
82	253874-0	FLAT WASHER 4
83	419233-0	KNOB 40 FOR UC3020A
84	154761-5	SPROKET COVER FOR UC3020A
85	421960-7	SPONGE FOR UC3020A
86	324685-1	HOSE CLAMP FOR UC3020A
89	135249-4	SPROCKET COVER ASSEMBLED
500	191H02-6	SAW CHAIN 3/8LP.043" L52 CC D 1 O A3856 D1928
501	191G16-9	GUIDE BAR 14 1 D1788
