Dolmar Spare Parts for Brusch Cutter MS5700U

Name: Dolmar Spare Parts for Brusch Cutter MS5700U
Brand: Makita
SKU: Dolmar MS5700U
Availability: InStock

SKU: Dolmar MS5700U

€2.76

VAT included

Dolmar Spare Parts for Bruschcutter MS5700U

We have the original DOLMAR Spare Parts for Bruschcutter MS5700U, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Bruschcutter MS5700U. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

198 spare parts

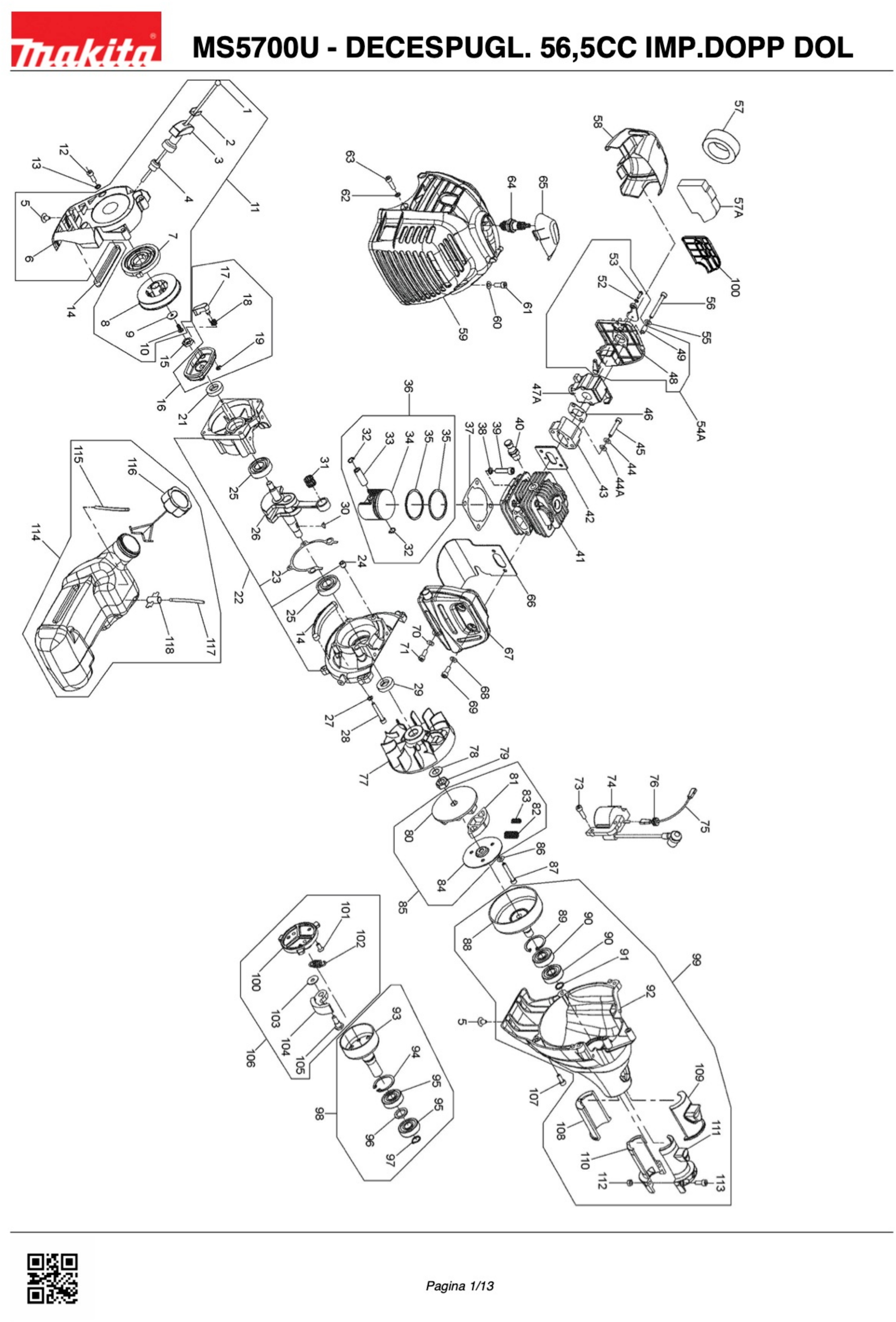

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
1	Image coming soon	BB630070 STARTING ROPE	€2.68
2	Image coming soon	BB510190 PLATE STOP ROPE	€1.41
3	Image coming soon	BB724740 START CUTTER C / PIASTR.FERMO FUN.	€7.15
4	Image coming soon	BB091640 STOPPED FOR ROPE	€2.97
5		BB543600 Engine QUICK Grommet Support for Brushcutter Makita BBC5700	€1.42
6	Image coming soon	BB724300 STARTER COVER	€26.71
7	Image coming soon	BB180240 SPRING STARTING	€9.90
8		BB541320 Starter Pulley for Brushcutter Makita BBC5700	€20.50	Not available for order
9	Image coming soon	BB090720 FLAT WASHER D.4,3 X 16	€1.41
10	Image coming soon	BB030800 TCB SCREW M 4 X 10	€1.41
11		BB730050 Starter Assembly for Brushcutter Makita BBC5700	€51.94	Not available for order
12	Image coming soon	BB030410 SCREW TCEI M 5 X 18	€1.41
13	Image coming soon	BB090780 FLAT WASHER 5.3 X 10 X 1	€1.41
14	Image coming soon	BB541340 RUBBER TANK	€1.41
15	Image coming soon	BB060370 NUT M 9 X 25.1	€2.68
16		BB730080 Starter Cup for Brushcutter Makita BBC5700	€19.59	Not available for order
17		BB541330 Starter Pawl for Brushcutter Makita BBC451	€3.50
18	Image coming soon	BB180200 RATCHET SPRING	€2.68
21	Image coming soon	BB240370 SEALING RING 15X26X7	€14.34
22	Image coming soon	BB721430 CARTER MOTOR ASSEMBLY	€155.11
23	Image coming soon	BB240260 SEAL CARTER	€2.08
24	Image coming soon	BB420200 PLUG CENTRING CARTER D.8X10	€1.41
25	Image coming soon	BB270070 6202 BEARING	€11.08
26	Image coming soon	BB751600 CRANKSHAFT	€174.93
27	Image coming soon	BB090150 LOCK WASHER 5,1	€1.41
28	Image coming soon	BB030620 SCREW TCEI M 5 X 35	€1.41
29	Image coming soon	BB240030 SEALING RING 15X26X7	€7.58
30	Image coming soon	BB420030 TAB AMERICAN 10X3,7X3	€2.08
31		BB270050 Needle Bearing for Brushcutter Makita BBC5700	€12.65
32	Image coming soon	BB150040 PIN LOCKING RING D.10	€4.43
33	Image coming soon	BB420040 PISTON PIN D.10X30	€5.14
34		BB480970 Dolmar MS5700C Piston	€33.72
35	Image coming soon	BB150350 PISTON RING D.46	€8.91
36		BB723100 Piston Assy mm 46 for Brushcutter Makita BBC5700	€58.20	Not available for order
37		BB240270 Cylinder Gasket for Brushcutter Dolmar MS4520B	€2.20
38	Image coming soon	BB090620 WASHER SCHNORR D.6,4	€1.41
39	Image coming soon	BB030630 SCREW TCEI M 6 X 25	€1.41
40		BB752340 Engine Decompresso for Brushcutter Makita BBC5700	€21.88
41		BB480960 Cilinder mm 46 for Brushcutter Makita BBC5700	€162.57
42		BB240290 Intake Manifold Gasket for Brushcutter Makita BBC5700	€2.20
43	Image coming soon	BB541270 COLLECTOR CARB.WT	€12.70
44A	Image coming soon	BB090780 FLAT WASHER 5.3 X 10 X 1	€1.41
44	Image coming soon	BB090800 WASHER SCHNORR D.5,3	€1.41
45	Image coming soon	BB030070 SCREW TE M 5 X 30	€1.41
46	Image coming soon	BB240130 SEAL CARBURETOR	€1.41
48		BB726390 Air Filter Holder for Brushcutter Makita BBC5700	€19.17	Not available for order
49	Image coming soon	BB091630 BUSHING	€1.41
52		BB120270 Ring for Auger Makita BBA520	€1.30
53	Image coming soon	BB031140 SCREW M 3 X 8	€1.33
54A		BB726390 Air Filter Holder for Brushcutter Makita BBC5700	€19.17	Not available for order
55	Image coming soon	BB090830 WAVY WASHER D. 5,3	€1.41
56	Image coming soon	BB030500 SCREW TCEI M 5 X 45	€2.54
57		BB332100 Walbro Carburator Air Filter for Brushcutter Makita BBC5700	€6.36
59		BB543090/R Makita Cylinder Cover for BBC5700	€19.90
60	Image coming soon	BB090780 FLAT WASHER 5.3 X 10 X 1	€1.41
61	Image coming soon	BB030680 SCREW TCEI M 5 X 14	€1.41
62	Image coming soon	BB090780 FLAT WASHER 5.3 X 10 X 1	€1.41
63	Image coming soon	BB030620 SCREW TCEI M 5 X 35	€1.41
64	Image coming soon	BB451060 RCJ4 CANDLE	€6.64
66		BB240500 Muffler Gasket for Brushcutter Makita BBC5700	€6.69	Not available for order
67		BB752350 Muffler for Brushcutter Makita BBC5700	€44.98	Not available for order
68	Image coming soon	BB090830 WAVY WASHER D. 5,3	€1.41
69	Image coming soon	BB030410 SCREW TCEI M 5 X 18	€1.41
70	Image coming soon	BB090830 WAVY WASHER D. 5,3	€1.41
71	Image coming soon	BB030680 SCREW TCEI M 5 X 14	€1.41
73	Image coming soon	BB031150 SCREW M 5 X 20	€1.33
74		BB450930 Capacitive Ignition Coil for Brushcutter Makita BBC5700	€95.37
75	Image coming soon	BB450340 CABLE MASS X COIL	€5.14
76	Image coming soon	BB541510 X WIRE CABLE MASS	€1.41
77	Image coming soon	BB450280 FLYWHEEL FOR N39 / 57	€85.18
78	Image coming soon	BB091000 WAVY WASHER D.10,5	€1.41
79	Image coming soon	BB060300 NUT M 8 X 10	€1.41
80	Image coming soon	BB780080 SUPP.CEPPI FRIZ. N31 / 52	€22.96
81	Image coming soon	BB780020 CLUTCH LOCK N31 / 52	€10.45
82	Image coming soon	BB180040 EXTERNAL CLUTCH SPRING	€1.97
83	Image coming soon	BB180030 INTERNAL CLUTCH SPRING	€1.97
84	Image coming soon	BB510200 THREADED SPRING DISC	€4.18
85	Image coming soon	BB721390 CLUTCH FULL SINT.	€56.04
86	Image coming soon	BB090830 WAVY WASHER D. 5,3	€1.41
87	Image coming soon	BB030620 SCREW TCEI M 5 X 35	€1.41
89	Image coming soon	BB120070 RING SEEGER 32I UNI 7437	€1.41
90	Image coming soon	BB270240 6201-ZZ BEARING	€10.45
91	Image coming soon	BB120020 RING 12E UNI 7435-75	€1.33
92	Image coming soon	BB480980 HOUSING CLUTCH	€42.29
99	Image coming soon	BB724100 SUPP GROUP. AND DRUM CLUTCH	€118.77
100		BB726390 Air Filter Holder for Brushcutter Makita BBC5700	€19.17	Not available for order
107	Image coming soon	BB030380 SCREW TCEI M 5 X 16	€1.33
108	Image coming soon	BB543220 HOUSING	€5.61
109	Image coming soon	BB543210 HOUSING	€5.61
110	Image coming soon	BB481000 LOWER SPACER	€5.61
111	Image coming soon	BB480990 SUPERIOR SPACER	€5.61
112	Image coming soon	BB060100 NUT M 5 FOR 4	€1.40
113	Image coming soon	BB030410 SCREW TCEI M 5 X 18	€1.41
114		BB724110 Fuel Tank Ass'y for Brushcutter Dolmar MS4520B	€46.20
115	Image coming soon	BB542520 PIPE RECOVERY	€6.19
117	Image coming soon	BB542460 FUEL HOSE	€6.19
118	Image coming soon	BB330820 FILTER MIX PESCANTE	€5.94

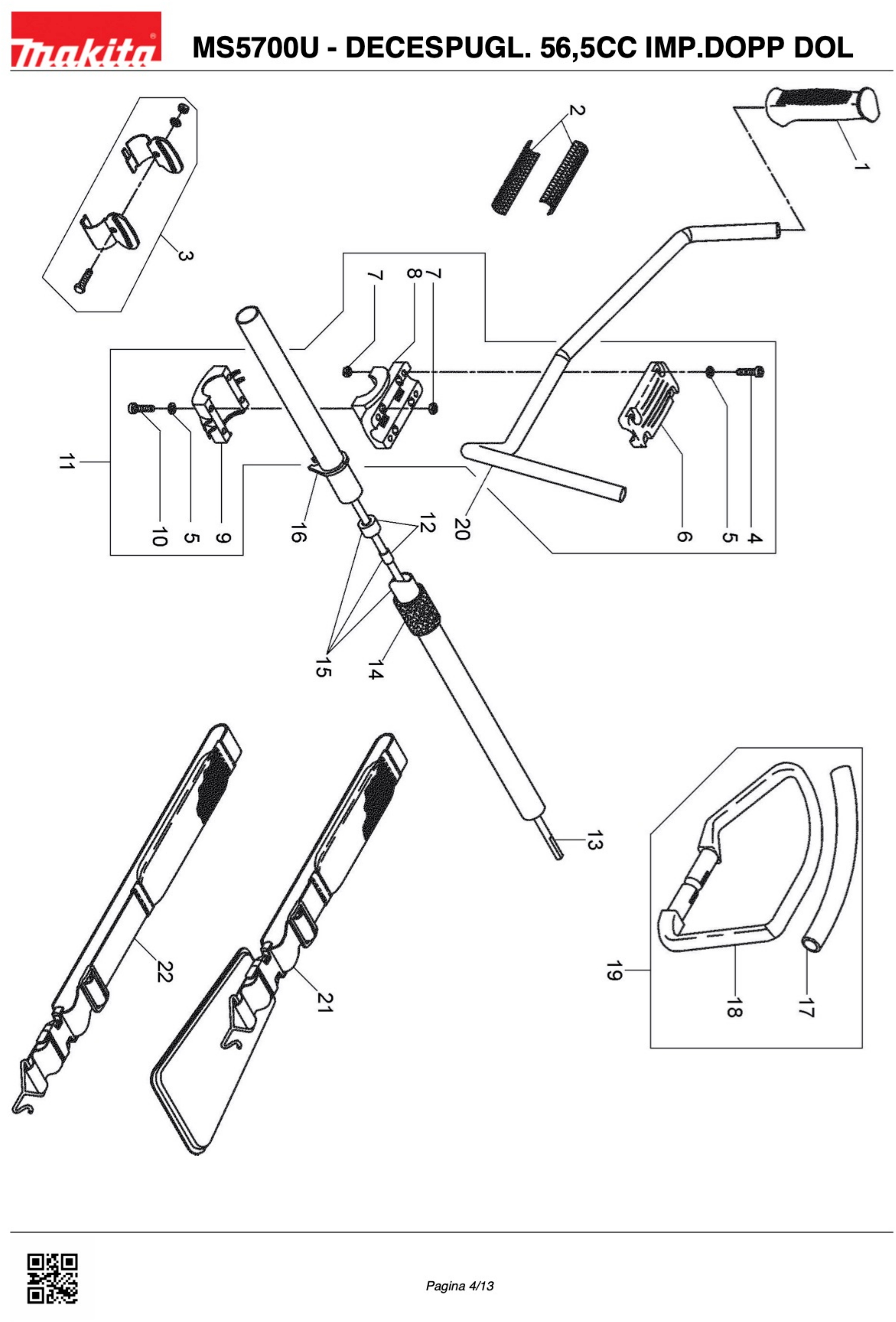

Page 2 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	BB543490 NEW HANDLEBAR HANDLEBAR	€7.15
2	Image coming soon	BB511030 SPACER	€1.40
3	Image coming soon	BB750920 CUTTING ATTACK	€8.03
4	Image coming soon	BB030630 SCREW TCEI M 6 X 25	€1.41
5	Image coming soon	BB090040 FLAT WASHER D.6,4	€1.33
6	Image coming soon	BB542450 CRUISE SUPPORT HAT	€4.18
8	Image coming soon	BB542440 CRUISE SUPPORT BODY	€5.61
9	Image coming soon	BB542430 HORSE CROSS BODY	€4.85
10	Image coming soon	BB030810 SCREW TCEI M 6 X 40	€1.33
11	Image coming soon	BB722620 NYLON CUBE HANDLEBAR SUPPORT	€13.52
12	Image coming soon	BB751640 BUSH	€2.97
13	Image coming soon	BB391030 RIGID DRIVE SHAFT	€42.29
14	Image coming soon	BB540420 ANTI-BUSH D.27	€4.18
16	Image coming soon	BB540690 GAS CONTROL CABLE SUPPORT	€2.69
17	Image coming soon	BB570530 TUBE RUBBER X IMPUGN.ANT.	€4.18
18	Image coming soon	BB542420 ANTIVIBRANTE CONTROL REG.	€10.45
19	Image coming soon	BB722830 HANDLE	€17.17
20	Image coming soon	BB570670 HANDBAG X EBC NBC	€32.49
21	Image coming soon	BB751620 SUSPENDER WITH PROTECTION	€13.52
22	Image coming soon	BB751580 SUSPENDERS	€10.45

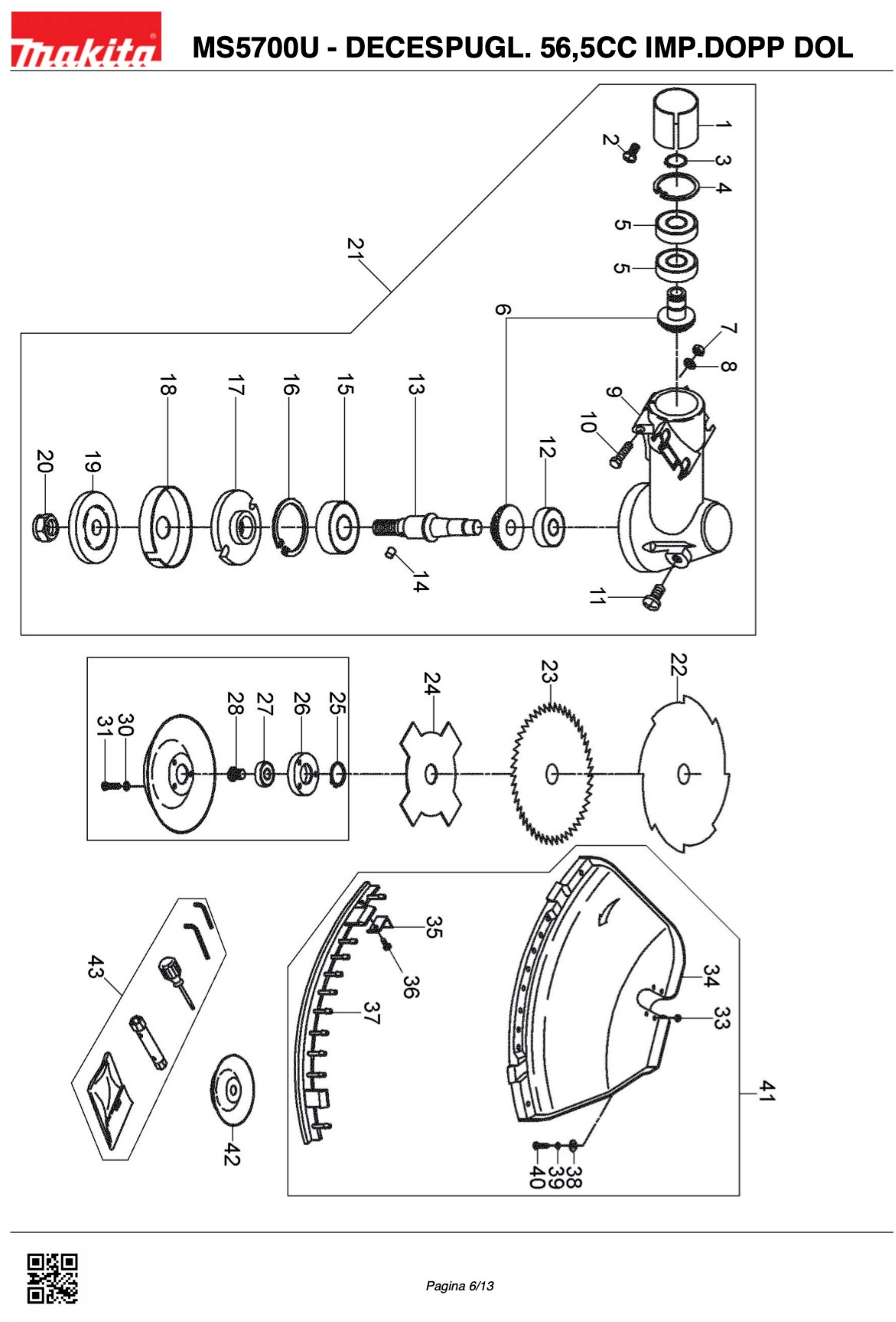

Page 3 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
1	Image coming soon	BB090020 CASE BOWL	€2.97
2	Image coming soon	BB030800 TCB SCREW M 4 X 10	€1.41
3	Image coming soon	BB120020 RING 12E UNI 7435-75	€1.33
4	Image coming soon	BB120010 SEEGER RING 28I UNI 7437	€1.40
5	Image coming soon	BB270010 6001-ZZ BEARING	€15.70
6	Image coming soon	BB723380 KIT GEAR GAR BOX	€80.30
7	Image coming soon	BB060060 NUT M 6 X 5	€1.33
8	Image coming soon	BB090010 LOCK WASHER 6,1 D.	€1.41
9	Image coming soon	BB480470 CONICA COVER CASE D.27	€47.36
10	Image coming soon	BB030010 SCREW TE M 6 X 30	€1.33
11	Image coming soon	BB031080 SCREW CAP	€1.33
12	Image coming soon	BB270020 BALL BEARING 6000	€9.34
13	Image coming soon	BB390010 SPINDLE	€22.96
14		BB420010 Lock Pin for Brushcutter Dolmar MS4520B	€1.44	Not available for order
15	Image coming soon	BB270030 BALL BEARING 6202-2RS	€13.52
16	Image coming soon	BB120030 RING SEEGER 35I UNI 7437	€1.33
17	Image coming soon	BB091560 DISC PORTABLE D.50	€13.52
19	Image coming soon	BB090070 FLANGE	€7.15
20	Image coming soon	BB060470 NUT M 10 FOR 1 FOR 12	€2.08
21		BB722760 Gear Case Ass'y for Brushcutter Dolmar MS4520B	€204.97
22	Image coming soon	P-47400 8 TEETH BLADE	€13.42
23	Image coming soon	P-47341 BLADE 48 TEETH (255X1.4X25.4) MM	€14.31
24	Image coming soon	P-47391 4 TEETH BLADE (255X1.4X25.4) MM	€12.30
25	Image coming soon	BB120050 RING SEEGER 15E UNI 7435-75	€1.41
26	Image coming soon	BB480060 HOLDER BEARING	€9.34
27	Image coming soon	BB270060 6002-ZZ BEARING	€11.08
28	Image coming soon	BB060160 NUT M10X1	€3.63
30	Image coming soon	BB090010 LOCK WASHER 6,1 D.	€1.41
31	Image coming soon	BB030050 SCREW TE M 6 X 12	€1.33
33	Image coming soon	BB060100 NUT M 5 FOR 4	€1.40
34		BB542410 Safety Guard for Brushcutter Makita BBC4510	€15.20
36		BB030820 Srew 3,9x16 for Brushcutter Makita BBC4510	€1.35
38	Image coming soon	BB091360 WASHER 5.5 X 15 X 1.6	€1.33
39	Image coming soon	BB090150 LOCK WASHER 5,1	€1.41
40	Image coming soon	BB030830 SCREW M 5 X 12	€1.33
41	Image coming soon	P-47335 PARASASSI PROTECTION AUCTION D.27	€21.85
42	Image coming soon	P-47282 CUP	€3.44
43	Image coming soon	BB720330 SERVICE KEYS KIT	€22.96

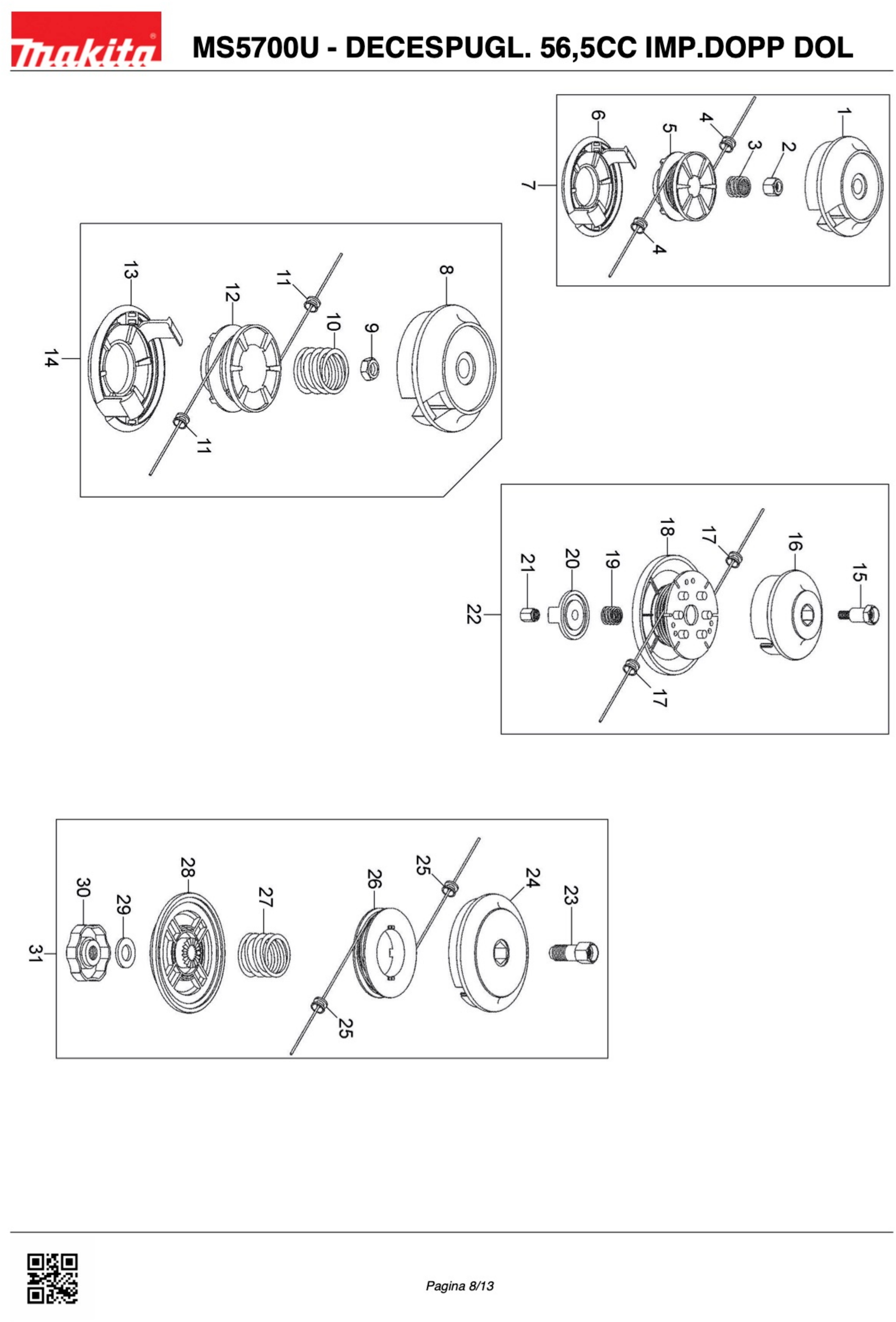

Page 4 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	BB543260 UPPER COVER FLASH LIGHT	€11.07
3	Image coming soon	BB180370 SPRING FOR HEAD FLASH LIGHT	€2.69
4	Image coming soon	BB091350 GUIDE WIRE BUSHING FOR HEAD	€2.69
5	Image coming soon	BB543280 REEL FOR HEAD FLASH LIGHT	€8.50
6	Image coming soon	BB543270 FLASH LIGHT FLANGE	€7.58
7	Image coming soon	P-47313 HEAD TAP AND GO M10FOR1.0F	€11.88
8	Image coming soon	BB542180 UPPER COVER FOR HEAD FLASH RAPID	€11.07
10	Image coming soon	BB180180 SPRING FOR AUTOMATIC HEAD	€2.69
11	Image coming soon	BB091350 GUIDE WIRE BUSHING FOR HEAD	€2.69
12	Image coming soon	P-47254 REEL FOR HEAD P-47422	€6.77
13	Image coming soon	BB542190 FLANGE	€7.58
14	Image coming soon	P-47422 HEAD TAP AND GO M10FOR1.0F	€14.92
15	Image coming soon	BB391510 NUT X HEAD FLASH QUICK	€9.34
16	Image coming soon	BB543460 TOP TEST.QUICK COVER	€7.15
17	Image coming soon	BB091350 GUIDE WIRE BUSHING FOR HEAD	€2.69
18	Image coming soon	BB724140 REEL X FLASH QUICK	€9.34
19	Image coming soon	BB180110 SPRING X FLASH AND QUICK TEST	€1.97
20	Image coming soon	BB543430 QUICK TAPE PUMP	€1.97
21	Image coming soon	BB091600 NUT QUICK FLASH HEAD INF.X	€2.97
22	Image coming soon	P-47416 MANUAL HEAD M10X1.0F	€12.30
24	Image coming soon	BB541110 SUPERIOR TEST.FLASH COVER	€9.34
25	Image coming soon	BB091350 GUIDE WIRE BUSHING FOR HEAD	€2.69
26	Image coming soon	BB540340 BOBINA X TEST FLASH S / FILO	€2.97
27	Image coming soon	BB180110 SPRING X FLASH AND QUICK TEST	€1.97
28	Image coming soon	BB541100 LOWER TEST.FLASH COVER	€7.15
29	Image coming soon	BB090590 WASHER X M16 17X30X3	€1.33
30	Image coming soon	BB480310 POMOLO X HEAD SIN	€4.85
31	Image coming soon	P-47307 MANUAL HEAD M10X1.0F	€13.52

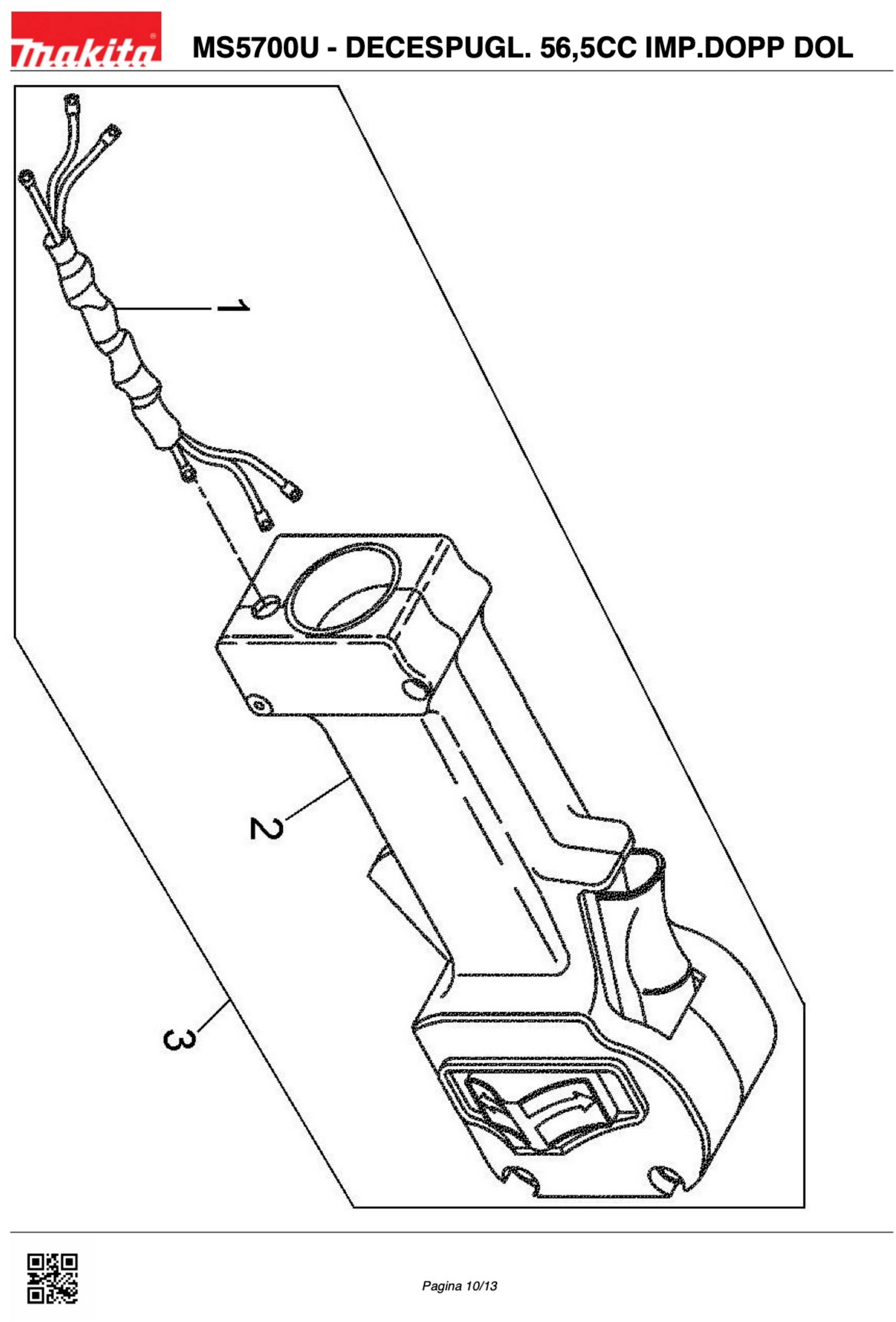

Page 5 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Pos.		Item	Price
4	Image coming soon	BB751060 CABLE GAS GROUP	€12.40
5	Image coming soon	BB721440 CPL MANOPLE. X HANDLEBAR	€25.62
6	Image coming soon	BB727820 HANDLEBAR	€27.74

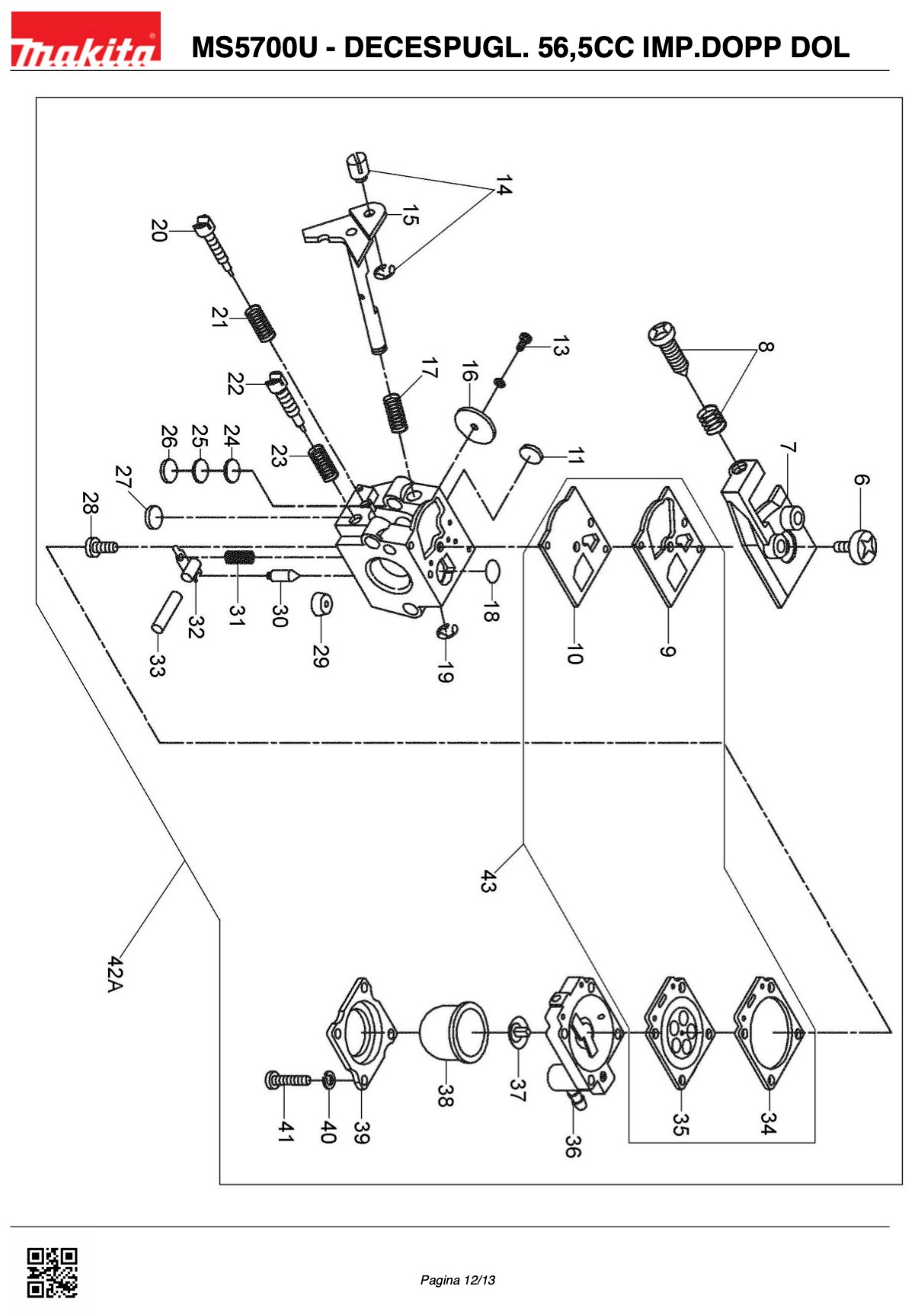

Page 6 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
6	Image coming soon	BB96-166 SCREW COP. PUMP WT	€1.41
7	Image coming soon	BB21-353 COVER PUMP WT	€6.64
8	Image coming soon	BB96-647 SCREW SPRING + X ADJUST. MINIMUM	€1.41
9	Image coming soon	BB92-225 SEAL PUMP MIXTURE	€2.68
10	Image coming soon	BB95-118 MEMBRANE PUMP WT	€4.43
11	Image coming soon	BB88-131 STOPPER	€1.41
13	Image coming soon	BB96-142 BUTTERFLY VALVE SCREW WT	€1.41
14	Image coming soon	BB52-548 PIN WT101	€3.85
15	Image coming soon	BB30-1140 BUTTERFLY SHAFT	€12.70
16	Image coming soon	BB34-158 THROTTLE	€3.85
17	Image coming soon	BB98-234 VALVE SPRING RECALL	€2.08
18	Image coming soon	BB140-70 FUEL FILTER INPUT	€2.08
19	Image coming soon	BB16-71 RING SECURITY	€2.68
20	Image coming soon	BB102-330 SCREW ADJUSTMENT MINIMUM WT	€5.14
21	Image coming soon	BB98-404 SPRING ADJUSTMENT MINIMUM	€2.08
22	Image coming soon	BB102-3066 SCREW ADJUSTMENT MAXIMUM WT	€50.23
23	Image coming soon	BB98-405 SPRING ADJUSTMENT MAXIMUM	€2.08
24	Image coming soon	BB140-69 SCREEN WASHER VALVE	€1.41
25	Image coming soon	BB16-42 RETAINING RING	€2.08
26	Image coming soon	BB88-119 STOPPER	€1.41
27	Image coming soon	BB88-171 PLUG CIRCUIT MINIMUM	€1.41
28	Image coming soon	BB96-156 SCREW AXIS ROCKER	€1.41
29	Image coming soon	BB84-613 VALVE SEAT	€5.14
30	Image coming soon	BB82-75 NEEDLE VALVE	€5.14
31	Image coming soon	BB98-387 METER SPRING	€2.08
32	Image coming soon	BB166-48 ROCKER	€2.08
33	Image coming soon	BB144-77 ROCKER SHAFT	€1.41
34	Image coming soon	BB92-251 GASKET WT	€2.68
35		BB95-526 Diaphragm for Brushcutter Dolmar MS4520B	€7.81
36	Image coming soon	BB5-2694 AIR FILTER HOUSING	€3.85
37	Image coming soon	BB176-64 CONTROL VALVE	€3.14
38	Image coming soon	BB188-12 SEAL	€7.58
39	Image coming soon	BB21-404 PUMP COVER PRIMER	€8.62
40	Image coming soon	BB090190 LOCK WASHER D.3,1	€1.41
41	Image coming soon	BB96-578 COVER SCREW DIAPHRAGM	€2.08

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Dolmar Spare Parts for Bruschcutter MS5700U

Fix Your Bruschcutter MS5700U. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Brush Cutter and the respective parts of the code.

MS5700U - BRUSHCUTTER 57CC DOLMAR pag.1
#	Part Num.	Description
1	BB630070	STARTER ROPE
2	BB510190	ROPE LOCKING PLATE
3	BB724740	STARTER HANDLE WITH ROPE STOP PLATE
4	BB091640	LOCKING ROPE
5	BB543600	ENGINE RUBBER holder
6	BB724300	STARTER COVER
7	BB180240	STARTER SPRING
8	BB541320	STARTER PULLEY
9	BB090720	FLAT WASHER D.4,3 X 16
10	BB030800	SCREW TCB M 4 X 10
11	BB730050	STARTER assy WHITE (BLACK) BBK570P02P4ER MACCH
12	BB030410	SCREW TCEI M 5 X 18
13	BB090780	FLAT WASHER 5.3 X 10 X 1
14	BB541340	TANK RUBBER
15	BB060370	NUT M 9 X 1.25
16	BB730080	REEL SUPPORT (2P017 MACHINE)
17	BB541330	STARTER PAWL
18	BB180200	STARTER SPRING
19	BB120160	LOCKING RING D4
21	BB240370	SEAL RING 15X26X7
22	BB721430	ENGINE CASE ASSEMBLED
23	BB240260	CRANKCASE GASKET
24	BB420200	CRANKCASE CENTERING PIN D.8X10
25	BB270070	BEARING 6202
26	BB751600	CRANKSHAFT
27	BB090150	GROWER WASHER 5.1
28	BB030620	SCREW TCEI M 5 X 35
29	BB240030	SEAL RING 15X26X7
30	BB420030	KEY 10X3,7X3
31	BB270050	NEEDLE BEARING PB K10X14X13FKI-V1
32	BB150040	CIRCLIP D.10
33	BB420040	PISTON PIN D.10X30
34	BB480970	PISTON DIAM. 46
35	BB150350	PISTON RING D.46
36	BB723100	PISTON ASSY D.46
37	BB240270	CYLINDER GASKET
38	BB090620	SCHNORR WASHER D.6,4
39	BB030630	SCREW TCEI M 6 X 25
40	BB752340	DECOMPRESSOR X N39 / 57E ENGINES
41	BB480960	CYLINDER DIAM. 46
42	BB240290	MANIFOLD GASKET
43	BB541270	CARBURATOR INTAKE MANIFOLD WT
44	BB090800	SCHNORR WASHER D.5,3
44A	BB090780	FLAT WASHER 5.3 X 10 X 1
45	BB030070	SCREW TE M 5 X 30
46	BB240130	CARBURETOR GASKET
47A	BB331650A	CARBURETOR FOR BBK4500
48	BB726390	COMPLETE AIR FILTER SUPPORT
49	BB091630	SPACER BUSH
52	BB120270	RING
53	BB031140	SCREW M 3 X 8
54A	BB726390	COMPLETE AIR FILTER SUPPORT
55	BB090830	WAVE WASHER D. 5.3
56	BB030500	SCREW TCEI M 5 X 45
57	BB332100	AIR FILTER X WALBRO CARBURETOR
57A	BB332250	AIR FILTER DBC5700
58	BB543180/R	FILTER COVER RED
59	BB543090/R	ENGINE CYLINDER COVER
60	BB090780	FLAT WASHER 5.3 X 10 X 1
61	BB030680	SCREW TCEI M 5 X 14
62	BB090780	FLAT WASHER 5.3 X 10 X 1
63	BB030620	SCREW TCEI M 5 X 35
64	BB451060	SPARK PLUG RCJ4
65	BB543200/R	CANDLE COVER RED
66	BB240500	MUFFLER GASKET
67	BB752350	MUFFLER
68	BB090830	WAVE WASHER D. 5.3
69	BB030410	SCREW TCEI M 5 X 18
70	BB090830	WAVE WASHER D. 5.3
71	BB030680	SCREW TCEI M 5 X 14
73	BB031150	SCREW M 5 X 20
74	BB450930	CAPACITIVE IGNITION COIL FOR N39 / 57
75	BB450340	EARTH CABLE FOR COIL
76	BB541510	EARTH WIRE BUSH
77	BB450280	MAGNET FLYWHEEL FOR N39 / 57
78	BB091000	WAVE WASHER D.10.5
79	BB060300	NUT M 10 X 8
80	BB780080	CLUTCH ARMS HOLDER N31 / 52
81	BB780020	CLUTCH ARM N31 / 52
82	BB180040	OUTER CLUTCH SPRING
83	BB180030	INNER CLUTCH SPRING
84	BB510200	PERFORATED SHOE SHOULDER DISC
85	BB721390	CLUTCH ASSY
86	BB090830	WAVE WASHER D. 5.3
87	BB030620	SCREW TCEI M 5 X 35
88	BB751300	CLUTCH DRUM
89	BB120070	SEEGER 32I UNI 7437 RING
90	BB270240	BEARING 6201-ZZ
91	BB120020	RING SEEGER 12E UNI 7435-75
92	BB480980	CLUTCH HOUSING
99	BB724100	TRASMISSION SUPPORT AND CLUTCH DRUM
100	BB726390	COMPLETE AIR FILTER SUPPORT
107	BB030380	SCREW TCEI M 5 X 16
108	BB543220	LOWER HALF-SHELL
109	BB543210	UPPER HALF-SHELL
110	BB481000	LOWER SPACER
111	BB480990	UPPER SPACER
112	BB060100	NUT M 5 X 4
113	BB030410	SCREW TCEI M 5 X 18
114	BB724110	FUEL TANK ASS'Y FOR ENGINE
115	BB542520	RECOVERY TUBE
116	BB723740	COMPLETE TANK CAP
117	BB542460	FUEL LINE
118	BB330820	INTAKE FILTER
MS5700U - BRUSHCUTTER 57CC DOLMAR pag.2
1	BB543490	NEW TYPE HANDLEBAR KNOB
2	BB511030	THICKNESS X HANDLE SUPPORT M
3	BB750920	BELT JOINT
4	BB030630	SCREW TCEI M 6 X 25
5	BB090040	FLAT WASHER D.6,4
6	BB542450	CROSS SUPPORT CAP
8	BB542440	CROSS SUPPORT BODY
9	BB542430	CROSS BODY
10	BB030810	SCREW TCEI M 6 X 40
11	BB722620	COMPLETE NYLON HANDLEBAR SUPPORT
12	BB751640	BUSH
13	BB391030	TRANSMISSION SHAFT
14	BB540420	ANTIVIBRATION BUSHING D.27
15	BB750540	CPOMPLETE RUBBER TUBE
16	BB540690	GAS CONTROL CABLE SUPPORT
17	BB570530	RUBBER HOSE X FRONT HANDLE
18	BB542420	ADJUST ANTIVIBRATION HANDLE
19	BB722830	HANDLE WITH SHEATH
20	BB570670	HANDLEBAR X EBC NBC
21	BB751620	HARNESS WITH PROTECTION
22	BB751580	HARNESS
MS5700U - BRUSHCUTTER 57CC DOLMAR pag.3
1	BB090020	BUSHING FOR CASE
2	BB030800	SCREW TCB M 4 X 10
3	BB120020	RING SEEGER 12E UNI 7435-75
4	BB120010	SEEGER 28I UNI 7437 RING
5	BB270010	BEARING 6001-ZZ
6	BB723380	GEAR CASE SET
7	BB060060	NUT M 6 X 5
8	BB090010	GROWER WASHER D. 6.1
9	BB480470	GEAR CASE D.27
10	BB030010	SCREW TE M 6 X 30
11	BB031080	GREASE CAP SCREW
12	BB270020	BEARING 6000
13	BB390010	GEAR CASESHAFT X D.27
14	BB420010	LOCKING PIN
15	BB270030	BEARING 6202-2RS
16	BB120030	RING SEEGER 35I UNI 7437
17	BB091560	DISC HOLDER RING D.50
18	BB510180	UPPER FLANGE
19	BB090070	DISC FIXING FLANGE X D.27
20	BB060470	SELF LOCKING NUT M 10 X 1 X 12
21	BB722760	GEAR CASE ASSY FOR BBC4500
22	P-47400	8-TEETH BLADE
23	P-47341	48 TEETH BLADE (255X1.4X25.4) MM
24	P-47391	4 TEETH BLADE (255X1.4X25.4) MM
25	BB120050	RING SEEGER 15E UNI 7435-75
26	BB480060	BEARING SUPPORT
27	BB270060	BEARING 6002-ZZ
28	BB060160	CUP SUPPORT FIXING NUT M10X1
30	BB090010	GROWER WASHER D. 6.1
31	BB030050	SCREW TE M 6 X 12
33	BB060100	NUT M 5 X 4
34	BB542410	SAFETY GUARD
35	BB729200	COVER GUARD WITH BLADE
36	BB030820	SCREW 3.9 X 16
37	BB729200	COVER GUARD WITH BLADE
38	BB091360	WASHER 5.5 X 15 X 1.6
39	BB090150	GROWER WASHER 5.1
40	BB030830	SCREW M 5 X 12
41	P-47335	STONE GUARD GUARD D.27
42	P-47282	FIXED SUPPORT CUP
43	BB720330	SERVICE KEYS KIT
MS5700U - BRUSHCUTTER 57CC DOLMAR pag.4
1	BB543260	FLASH LIGHT UPPER COVER
3	BB180370	SPRING FOR FLASH LIGHT HEAD
4	BB091350	BUSH GUIDE WIRE X HEAD
5	BB543280	COIL X FLASH LIGHT HEAD
6	BB543270	FLASH LIGHT STOP FLANGE
7	P-47313	BEAT HEAD AND GO M10X1.0F
8	BB542180	RAPID FLASH HEAD UPPER COVER
10	BB180180	SPRING X AUTOMATIC HEAD
11	BB091350	BUSH GUIDE WIRE X HEAD
12	P-47254	REEL FOR HEAD P-47422
13	BB542190	LOCKING FLANGE RAPID HEAD
14	P-47422	BEAT HEAD AND GO M10X1.0F
15	BB391510	NUT X FLASH QUICK HEAD
16	BB543460	UPPER COVER QUICK HEAD
17	BB091350	BUSH GUIDE WIRE X HEAD
18	BB724140	REEL X FLASH QUICK
19	BB180110	SPRING X FLASH HEAD AND QUICK
20	BB543430	QUICK HEAD KNOB
21	BB091600	LOWER NUT X FLASH QUICK HEAD
22	P-47416	MANUAL HEAD M10X1.0F
23	BB390540	NUT X FLASH HEAD
24	BB541110	FLASH HEAD UPPER COVER
25	BB091350	BUSH GUIDE WIRE X HEAD
26	BB540340	REEL X FLASH HEAD S / WIRE
27	BB180110	SPRING X FLASH HEAD AND QUICK
28	BB541100	LOWER COVER TEST.FLASH
29	BB090590	WASHER X M16 17X30X3
30	BB480310	KNOB X LEFT HEAD
31	P-47307	MANUAL HEAD M10X1.0F
MS5700U - BRUSHCUTTER 57CC DOLMAR pag.5
4	BB751060	THROTTLE CABLE ASSY
5	BB721440	HANDLEBAR KNOB COMPLETE
6	BB727820	HANDLEBAR
MS5700U - BRUSHCUTTER 57CC DOLMAR pag.6
6	BB96-166	SCREW COVER PUMP WT
7	BB21-353	COVER PUMP WT
8	BB96-647	SCREW + SPRING X MINIMUM ADJUST
9	BB92-225	FUEL PUMP GASKET
10	BB95-118	PUMP MEMBRANE WT
11	BB88-131	PLUG
13	BB96-142	BUTTERFLY VALVE SCREW WT
14	BB52-548	PIN WT101
15	BB30-1140	BUTTERFLY ROD
16	BB34-158	THROTTLE
17	BB98-234	SPRING VALVE
18	BB140-70	FUEL INLET FILTER
19	BB16-71	SECURITY RING
20	BB102-330	MINIMUM ADJUST SCREW WT
21	BB98-404	MINIMUM ADJUST SPRING
22	BB102-3066	SCREW ADJUST MAXIMUM WT
23	BB98-405	MAXIMUM ADJUST SPRING
24	BB140-69	VALVE SCREEN WASHER
25	BB16-42	STOP RING
26	BB88-119	PLUG
27	BB88-171	MINIMUM CIRCUIT CAP
28	BB96-156	SCREW SHAFT AXLE
29	BB84-613	VALVE SEAT
30	BB82-75	NEEDLE VALVE
31	BB98-387	SPRING VALVE BALANCING SPRING
32	BB166-48	ROCKER
33	BB144-77	ROCKER AXLE
34	BB92-251	DIAPHRAGM MEMBRANE GASKET WT
35	BB95-526	DIAPHRAGM MEMBRANE
36	BB5-2694	AIR FILTER BODY
37	BB176-64	CONTROL VALVE
38	BB188-12	SEAL
39	BB21-404	PRIMER PUMP COVER
40	BB090190	GROWER WASHER D.3,1
41	BB96-578	MEMBRANE COVER SCREW
42A	BB331650A	CARBURETOR FOR BBK4500
43	BBD10-WAT	MEMBRANE KIT X WT 362,364,397

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Dolmar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Dolmar MS5700U

Available 12 Items

Data sheet

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]

Specific References

Condition New

Download

Drawing Dolmar MS5700U

Download (1.56MB)

Makita SKU: 163447-0

Gasoline Filter for Chainsaw Makita DCS230T

Gasoline Filter for Chainsaw Makita DCS230T Genuine part for Makita, Gasoline Filter for Chainsaws DCS230T - DCS230TC -DCS231T - DCS231TC - DCS232TC Part for the following...

Last items in stock €4.49

Cart (0)

Subcategories

Subcategories

Subcategories

Power Tools Spare Parts

Garden Spare Parts

Air Compressor Spare Parts

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

Dolmar Spare Parts for Brusch Cutter MS5700U

Dolmar Spare Parts for Bruschcutter MS5700U

Dolmar Spare Parts for Brusch Cutter MS5700U

Dolmar Spare Parts for Bruschcutter MS5700U

Dolmar Spare Parts for Bruschcutter MS5700U

Data sheet

Specific References

Download

Drawing Dolmar MS5700U

You might also like
