Makita

Dolmar Spare Parts for Lawn Mower PM4600S

SKU: Dolmar PM4600S
€7.73
VAT included

Dolmar Spare Parts for Lawn Mower PM4600S

We are DOLMAR original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawn Mower PM4600S.
Dolmar Spare Parts for Lawn Mower PM4600S
  • Dolmar Spare Parts for Lawn Mower PM4600S
  • Dolmar Spare Parts for Lawn Mower PM4600S
Makita

Dolmar Spare Parts for Lawn Mower PM4600S

SKU: Dolmar PM4600S Condition: New
€7.73
VAT included

Dolmar Spare Parts for Lawn Mower PM4600S

We are DOLMAR original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawn Mower PM4600S.
settings 97 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
97 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

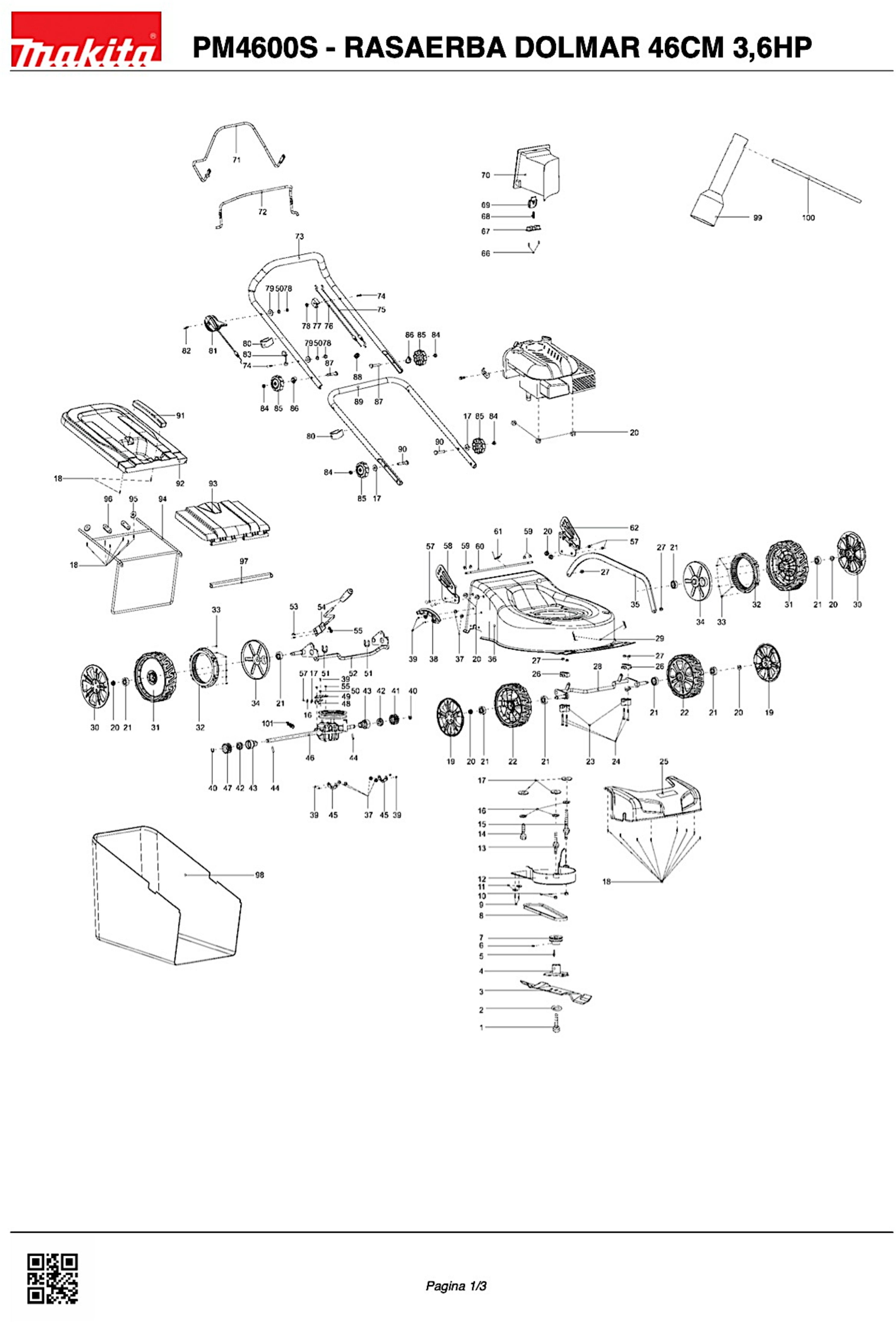

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Blade Tighten Screw for Lawnmover Makita PLM5113 671006062 Blade Tighten Screw for Lawnmover Makita PLM5113 €7.54
2
 photo_cameraImage coming soon 671010730 WASHER D.44,5 / 10,2X2,5 €3.22
3
 Blade for Lawnmower Dolmar PM-46SBC 671014610 Blade for Lawnmower Dolmar PM-46SBC €30.10
4
 Blade Hub for Lawnmover Makita PLM5113 671015252 Blade Hub for Lawnmover Makita PLM5113 €27.21
5
 photo_cameraImage coming soon 671090002 WOODRUF PLM4110-4610-4611 €2.08
6
 photo_cameraImage coming soon 671003005 SCREW M6X10 PLM4110-4610-4611 €2.14
7
 photo_cameraImage coming soon 671004002 PULLEY PLM4110-4610-4611 €22.18
8
 Rubber Belt 762MM for Lawnmower Makita ELM4611 671002043 Rubber Belt 762MM for Lawnmower Makita ELM4611 €19.79
9
 photo_cameraImage coming soon 671001045 SCREW PLM4110-4610-4611 €2.15
10
 photo_cameraImage coming soon 671005008 NUT M8 PLM4110-4610-4611 €2.21
11
 photo_cameraImage coming soon 671002075 WASHER 12/4 €2.21
12
 photo_cameraImage coming soon 671580013 BELT COVER PLM4110-4610-11 €16.65
13
 photo_cameraImage coming soon 671003044 SCREW M8X17X35 PLM4110-4610-11 €2.77
14
 photo_cameraImage coming soon 671006025 SCREW M8x35 PLM4110-4610-4611 €2.06
15
 photo_cameraImage coming soon 671003024 SCREW M8X60X17 PLM4110-4610-11 €7.79
16
 photo_cameraImage coming soon 671008002 SPRING RINGPLM €2.15
17
 photo_cameraImage coming soon 671007007 WASHERELM €1.47
18
 photo_cameraImage coming soon 671001054 SELF-TAPPING SCREWELM €2.15
19
 photo_cameraImage coming soon 671001176 COVER 175 ELM4110 €11.40
20
 photo_cameraImage coming soon 671005028 HEXAGONAL LOCKINGPLM €2.15
21
 photo_cameraImage coming soon 671004012 BEARING 6201Z ELM4110 €13.07
22
 photo_cameraImage coming soon 671020150 WHEEL 175 PLM4110-4610-4611 €21.55
23
 photo_cameraImage coming soon 671418001 BUSH ELM4110 €3.31
24
 photo_cameraImage coming soon 671002028 TRIGGER BOLTPLM €2.21
25
 photo_cameraImage coming soon 671659001 FRONT PANEL PLM4110-4610-4611 €40.44
26
 photo_cameraImage coming soon 671445001 BUSH ELM4110 €2.85
27
 photo_cameraImage coming soon 671005005 LOCKING NUTPLM €2.15
28
 photo_cameraImage coming soon 671001439 FRONT AXLE PLM4110-4610-11 €57.70
29
 photo_cameraImage coming soon 671011125 EXTENSION SPRINGPLM €2.77
30
 photo_cameraImage coming soon 671001177 COVER HUB 200 ELM4110 €11.40
31
 photo_cameraImage coming soon 671020300 REAR WHEEL 200MM €44.86
32
 photo_cameraImage coming soon DA00000602 WHEEL GEAR PLM4110-4610 €8.51
33
 photo_cameraImage coming soon 671001005 SELF-TAPPING SCREWELM €2.15
34
 photo_cameraImage coming soon 671650010 INTERNAL WHEEL COVER €6.57
35
 photo_cameraImage coming soon 671001440 JUNCTION PLM4110-4610-4611 €22.18
36
 photo_cameraImage coming soon 671001217 RED FRAME X PM460 €282.38
37
 photo_cameraImage coming soon 671005024 HEXAGONAL LOCKINGPLM €2.15
38
 photo_cameraImage coming soon 671001018 PLATE ADJUSTMENTAL.ELM4110 €5.28
39
 photo_cameraImage coming soon 671002019 TRIGGER BOLTPLM €2.21
40
 photo_cameraImage coming soon 671090020 WASHER PLM4110-4610-4611 €2.06
41
 photo_cameraImage coming soon DA00001090 PINION SX PLM4110-4610-4611 €12.63
42
 photo_cameraImage coming soon DA00001029 CUSHION FOR ELM4611 €5.28
43
 photo_cameraImage coming soon DA00000610 BEARING BOX €7.58
44
 photo_cameraImage coming soon 671090001 5X21,5 PIN €2.06
45
 photo_cameraImage coming soon 671001244 ELM4110 PLATE €2.15
46
 photo_cameraImage coming soon 671502016 TRANSMISSION PLM4110-4610 €142.26
47
 photo_cameraImage coming soon DA00001091 PINION DX PLM4611 €12.63
48
 photo_cameraImage coming soon DA00000915 FIXING PLATE 2 €4.56
49
 photo_cameraImage coming soon 671001460 PLATE PLM4110-4610-4611 €2.14
50
 photo_cameraImage coming soon 671008003 WASHER PLM4110-4610-4611 €2.06
51
 photo_cameraImage coming soon 671009003 WASHER D.19X1.5 PLM4611 €2.06
52
 photo_cameraImage coming soon 671144602 REAR AXLE PLM4110-4610 €85.67
53
 photo_cameraImage coming soon 671002029 TRIGGER BOLTPLM €2.15
54
 photo_cameraImage coming soon DA00001073 HEIGHT ADJUST LEVER €16.65
55
 photo_cameraImage coming soon 671005011 HEXAGONAL LOCKINGPLM €2.21
57
 photo_cameraImage coming soon 671006064 HEXAGON HEAD BOLTPLM €2.15
58
 photo_cameraImage coming soon 671001213 SUPPORT SX RED PM410 €24.69
59
 photo_cameraImage coming soon 671009017 BRAKE RING ELM4110 €2.21
60
 photo_cameraImage coming soon 671001518 SUPPORT PLM4110-4610-4611 €7.02
61
 photo_cameraImage coming soon 671011101 ELM4110 SPRING €2.85
62
 photo_cameraImage coming soon 671001212 SUPPORT DX RED PM410 €24.35
66
 photo_cameraImage coming soon 671001003 SELF-TAPPING SCREWELM €2.15
67
 photo_cameraImage coming soon 671317001 PLATE PLM4110-4610-4611 €2.21
68
 photo_cameraImage coming soon 671011005 SCREW PLM4110-4610-4611 €1.47
69
 photo_cameraImage coming soon 671316004 UTTON PLM4110-4610- €2.21
70
 photo_cameraImage coming soon 671660001 MULCHING PLM4610-PM4600S CAP €18.05
71
 photo_cameraImage coming soon 671001454 LEVER, DRIVING PLM €21.55
72
 photo_cameraImage coming soon 671001448 ENGINE BRAKE LEFT PM4110-4610 €21.55
73
 photo_cameraImage coming soon 671002003 UPPER HANDLE PM410 €55.36
74
 photo_cameraImage coming soon 671006011 SCREW M6X35 PLM4110-4610-4611 €2.14
75
 photo_cameraImage coming soon 671001113 MOTOR BRAKE CABLE PLM4611 €44.84
76
 photo_cameraImage coming soon 671001123 CABLE €50.66
77
 photo_cameraImage coming soon 671336001 HOLDER PLM4110-4610-4611 €2.06
78
 photo_cameraImage coming soon 671005016 NUT M6 PLM4110-4610-4611 €2.01
79
 photo_cameraImage coming soon 671007008 WASHER PLM4110-4610-4611 €2.06
80
 photo_cameraImage coming soon 671177001 CABLE CLIPPLM €2.03
81
 photo_cameraImage coming soon 671001137 THROTTLE CABLE PLM4110-4610 €20.12
82
 photo_cameraImage coming soon 671006059 SCREW M6x50 PLM4110-4610-4611 €2.14
83
 photo_cameraImage coming soon 671001120 HOOK CABLE HOOK €2.80
84
 photo_cameraImage coming soon 671005023 HEXAGONAL NUT €2.06
85
 photo_cameraImage coming soon 671530010 PLM5600 KNOB €3.11
86
 photo_cameraImage coming soon 671001085 WASHERPLM €2.15
87
 photo_cameraImage coming soon 671006004 FLAT HEAD BOLTPLM €2.77
88
 photo_cameraImage coming soon 671178001 CABLE PLM4110-4610-4611 €2.15
89
 photo_cameraImage coming soon 671001453 LOWER HANDLE PLM4110-4610-4611 €50.44
90
 photo_cameraImage coming soon DA00000880 FLAT HEAD BOLT €2.76
91
 photo_cameraImage coming soon 671454001 HANDLE BAG ELM4410 €5.43
92
 photo_cameraImage coming soon 671467001 COVER BAG PLM4110-4610 €41.61
93
 photo_cameraImage coming soon 671468001 COVER PLM4110-4610-4611 €47.57
94
 photo_cameraImage coming soon 671001443 FRAME BAG PLM4110-4610-4611 €53.25
95
 photo_cameraImage coming soon 671001436 TIGHTEN PRESSING PLAPLM €2.21
96
 photo_cameraImage coming soon 671001203 PRESSING PLATE OFPLM €2.21
97
 photo_cameraImage coming soon 671001353 PLATE PLM4110-4610-4611 €3.31
98
 photo_cameraImage coming soon DA00000966 GRASS BAG EM460S €74.12
99
 photo_cameraImage coming soon 671001078 KEY 21MM PLM4110-4610-4611 €5.13
100
 photo_cameraImage coming soon 671001079 LEVER X KEY 21 PLM4110-4610 €6.57
101
 photo_cameraImage coming soon 671011180 TENSION SPRING €5.35

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Dolmar Spare Parts for Lawn Mower PM4600S

We are DOLMAR original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawn Mower PM4600S.

In the following table, look for the model of the Lawn Mower and the respective parts of the code.
Dolmar PM4600S
PM4600S - RASAERBA DOLMAR 46CM 3,6HP
# Part Num. Description
1 671006062 BLADE TIGHTEN SCREW PM5100S3
2 671010730 WASHER D.44.5 / 10.2X2.5
3 671014610 BLADE FOR PM4602S - PM4602S3
4 671015252 BLADE BOSS PM5100S3
5 671090002 KEY PLM4110-4610-4611
6 671003005 SCREW M6X10 PLM4110-4610-4611
7 671004002 PULLEY PLM4110-4610-4611
8 671002043 RUBBER BELT 762MM PLM4110-4610
9 671001045 SCREW PLM4110-4610-4611
10 671005008 NUT M8 PLM4110-4610-4611
11 671002075 WASHER 12/4
12 671580013 BELT COVER PLM4110-4610-11
13 671003044 SCREW M8X17X35 PLM4110-4610-11
14 671006025 SCREW M8X35 PLM4110-4610-4611
15 671003024 SCREW M8X60X17 PLM4110-4610-11
16 671008002 ELM4110 WASHER
17 671007007 WASHER 8 ELM3310-3710
18 671001054 SCREW 5X12 ELM3310-3710
19 671001176 HUB COVER 175 ELM4110
20 671005028 NUT M8 ELM4110
21 671004012 BEARING 6201Z ELM4110
22 671020150 WHEEL 175 PLM4110-4610-4611
23 671418001 BRONZE BUSH ELM4110
24 671002028 SCREW M6X45 ELM4110
25 671659001 FRONT PANEL PLM4110-4610-4611
26 671445001 BRONZE BUSH ELM4110
27 671005005 NUT M6 ELM4110
28 671001439 FRONT AXLE PLM4110-4610-11
29 671011125 SPRING ELM4110
30 671001177 HUB COVER 200 ELM4110
31 671020300 REAR WHEEL 200MM
32 DA00000602 WHEEL GEAR PLM4110-4610
33 671001005 SCREW M4X16 ELM3310-3710
34 671650010 WHEEL INNER COVER
35 671001440 JOINT PLM4110-4610-4611
36 671001217 RED FRAME X PM460
37 671005024 NUT M6 ELM4110
38 671001018 HEIGHT ADJUST PLATE ELM4110
39 671002019 SCREW M6X12 ELM4110
40 671090020 PLM4110-4610-4611 WASHER
41 DA00001090 SPROCKET SX PLM4110-4610-4611
42 DA00001029 BEARING FOR ELM4611
43 DA00000610 BEARING BOX
44 671090001 PLUG 5X21.5
45 671001244 PLATE ELM4110
46 671502016 TRANSMISSION PLM4110-4610
47 DA00001091 RATCHET WHEEL RIGHT PLM4611
48 DA00000915 FIXING PLATE 2
49 671001460 PLATE PLM4110-4610-4611
50 671008003 WASHER PLM4110-4610-4611
51 671009003 WASHER D.19X1.5 PLM4611
52 671144602 REAR AXLE PLM4110-4610
53 671002029 SCREW M5X12 ELM4110
54 DA00001073 HEIGHT ADJUST LEVER
55 671005011 NUT M5 ELM4110
57 671006064 SCREW M8X6 ELM4110
58 671001213 LEFT SUPPORT RED PM410
59 671009017 BRAKE RING ELM4110
60 671001518 SUPPORT PLM4110-4610-4611
61 671011101 SPRING ELM4110
62 671001212 RIGHT SUPPORT RED PM410
66 671001003 SCREW 4X12 ELM3310-3710
67 671317001 PLATE PLM4110-4610-4611
68 671011005 SPRING PLM4110-4610-4611
69 671316004 LOCK BUTTON PLM4110-4610-
70 671660001 MULCHING PLM4610-PM4600S CAP
71 671001454 TRACTION LEVER PLM4110-4610
72 671001448 ENGINE BRAKE LEVER PM4110-4610
73 671002003 UPPER HANDLE PM410
74 671006011 SCREW M6X35 PLM4110-4610-4611
75 671001113 MOTOR BRAKE CABLE PLM4611
76 671001123 CABLE
77 671336001 SUPPORT PLM4110-4610-4611
78 671005016 NUT M6 PLM4110-4610-4611
79 671007008 PLM4110-4610-4611 WASHER
80 671177001 CABLE SUPPORT ELM4110
81 671001137 THROTTLE CABLE PLM4110-4610
82 671006059 SCREW M6X50 PLM4110-4610-4611
83 671001120 HOOK CABLE HOOK
84 671005023 NUT M8
85 671530010 KNOB PLM5600
86 671001085 ELM4110 WASHER
87 671006004 SCREW M8X52
88 671178001 CABLE BUH PLM4110-4610-4611
89 671001453 LOWER HANDLE PLM4110-4610-4611
90 DA00000880 SCREW M8X35 ELM4410
91 671454001 GRASS BAG HANDLE ELM4410
92 671467001 GRASS BAG COVER PLM4110-4610
93 671468001 COVER PLM4110-4610-4611
94 671001443 FBAG RAME PLM4110-4610-4611
95 671001436 WASHER ELM4110
96 671001203 PLATE ELM4110
97 671001353 PLATE PLM4110-4610-4611
98 DA00000966 GRASS BAG EM460S
99 671001078 KEY 21MM PLM4110-4610-4611
100 671001079 KEY LEVER 21 PLM4110-4610
101 671011180 SPRING TRAZ PM4600S
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Dolmar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Dolmar PM4600S
10 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Dolmar PM4600S

Drawing Dolmar PM4600S

Download (385.95KB)

You might also like

Electric Lawn Mower Makita 1400W ELM3800 -10% Sale
Makita SKU: ELM3800
Electric Lawn Mower Makita 1400W ELM3800
Electric Lawn Mower Makita 1400W ELM3800 Features: - Innovative Makita Design. - Polypropylene shell with UV and weather resistance. - Easy drainage of the picking basket provided already assembled. - Integrated transport handle. -...
Out-of-Stock €172.32 €191.47
Details
Rubber Belt for Lawnmower Makita PLM5113
Makita SKU: DA00000968
Rubber Belt for Lawnmower Makita PLM5113
Rubber Belt for Lawnmower Makita PLM5113 Genuine replacement part Makita, Rubber Belt V10x885 for Lawnmowers PLM5113 - PLM5113N2 - PM5100S3 - Dolmar PM5101S3. Part for the following products:...
Last items in stock €16.47
Details
Rubber Belt Cover for Lawnmower Makita PLM5113
Makita SKU: 671522001
Rubber Belt Cover for Lawnmower Makita PLM5113
Rubber Belt Cover for Lawnmower Makita PLM5113 Genuine replacement part Makita, Rubber Belt Protective Cover for Lawnmowers PLM5113 - PLM5113N2 - PM5100S3 - Dolmar PM5101S3. Part for the following...
Last items in stock €22.41
Details
Blade for Lawnmower Dolmar PM-46SBC
Makita SKU: 671014610
Blade for Lawnmower Dolmar PM-46SBC
Blade for Lawnmower Dolmar PM-46SBC Genuine replacement part Dolmar, Blade for Lawnmowers PM-46SB - PM-46SBC - PM-46NB - PM-46NBC. Part for the following products: -  PM-46SBC - LAWNMOWER 140CC 46CM DOLMAR - PM-46NB - RASAERBA 140CC...
Last items in stock €30.10
Details
Rubber Belt 762MM for Lawnmower Makita ELM4611
Makita SKU: 671002043
Rubber Belt 762MM for Lawnmower Makita ELM4611
Rubber Belt 762MM for Lawnmower Makita ELM4611 Genuine part Makita, Rubber Belt 762MM V10X790 FOR Lawnmower Makita ELM4611 - PLM4611 - PLM4621 - Dolmar PM4600S...
Last items in stock €19.79
Details
Blade Tighten Screw for Lawnmover Makita PLM5113
Makita SKU: 671006062
Blade Tighten Screw for Lawnmover Makita PLM5113
Blade Tighten Screw for Lawnmover Makita PLM5113 Genuine replacement part Makita, Blade Tighten Screw 3/8X1.57" for Lawnmovers PLM5113 - PLM5600 - PLM5113N2 -...
Usually Ships in: 7/10 Business Days Approx. €7.54
Details
Comments (0)
