Dolmar Spare Parts for Lawn Mower PM5360S3

SKU: Dolmar PM5360S3
€1.33
VAT included

Dolmar Spare Parts for Lawn Mower PM5360S3

DOLMAR service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Lawn Mower PM5360S3.
Dolmar Spare Parts for Lawn Mower PM5360S3
  • Dolmar Spare Parts for Lawn Mower PM5360S3

Dolmar Spare Parts for Lawn Mower PM5360S3

SKU: Dolmar PM5360S3 Condition: New
€1.33
VAT included

Dolmar Spare Parts for Lawn Mower PM5360S3

DOLMAR service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Lawn Mower PM5360S3.
settings 154 spare parts

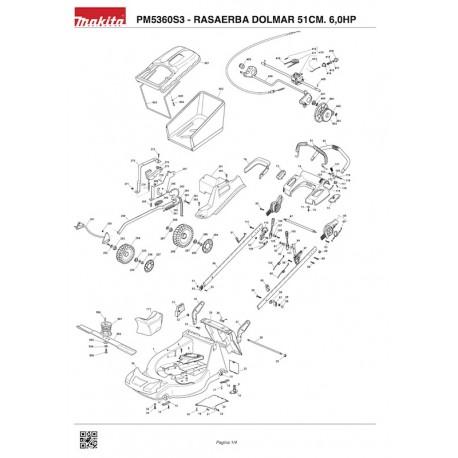

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

122 spare parts

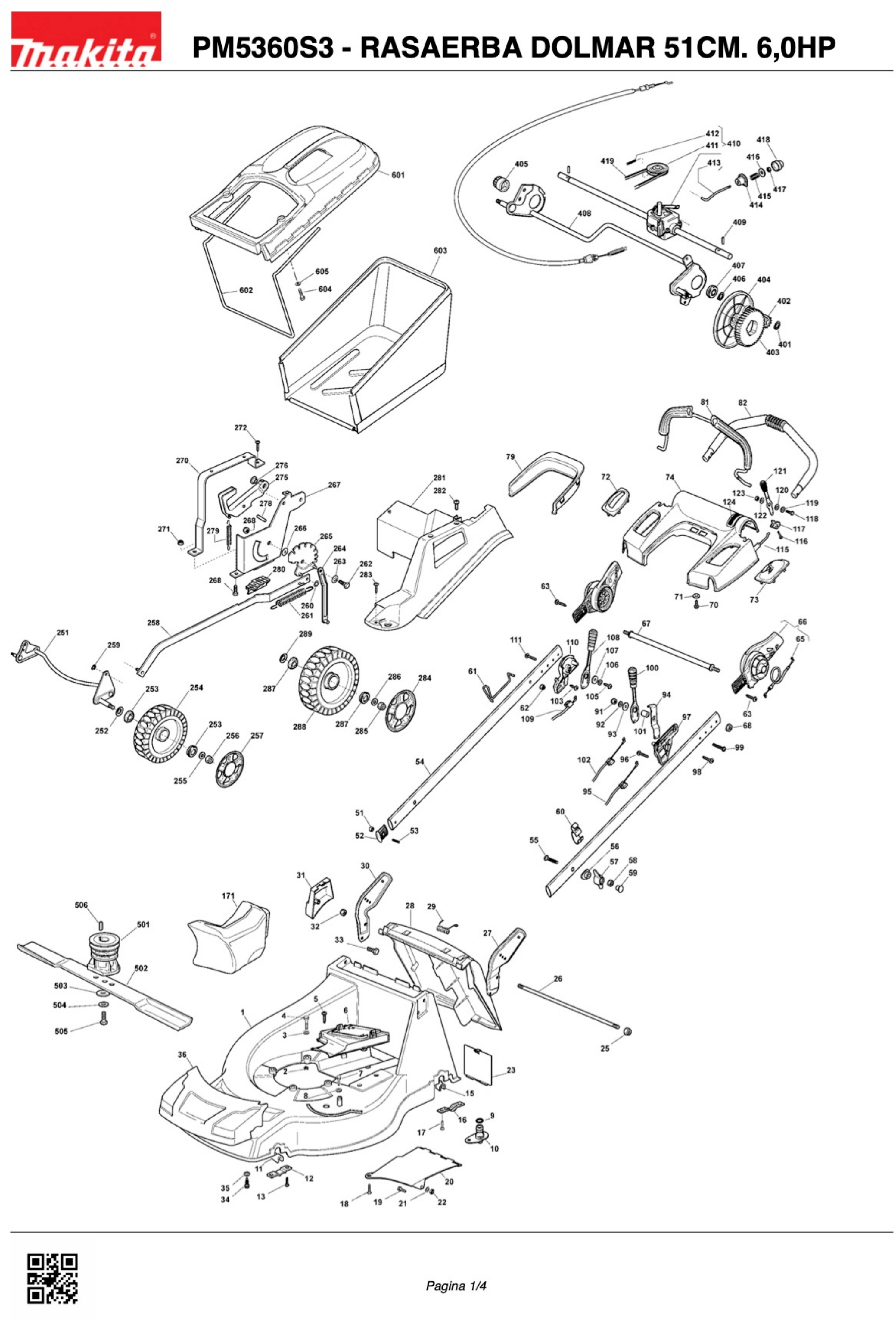

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 12155000/0 NUT X PM4850S €1.37
3
photo_cameraImage coming soon 112521350/0 Washer €1.74
4
photo_cameraImage coming soon 112691800/0 Screw €1.58
5
photo_cameraImage coming soon 112728522/0 SCREW X PM4850S €1.63
6
photo_cameraImage coming soon 22060200/1 BELT COVER €3.18
8
photo_cameraImage coming soon 112523040/0 Washer €1.63
9
photo_cameraImage coming soon 19035000/0 RING OR X PM4850S €4.74
10
photo_cameraImage coming soon 122034000/0 PM4850S WASH WATER CONNECTION €1.62
11
photo_cameraImage coming soon 664038400 BUSH X PM4850S €3.95
15
photo_cameraImage coming soon 322038407/0 Bearing Busch €1.62
16
photo_cameraImage coming soon 22545147/0 PIASTRINA €1.67
19
photo_cameraImage coming soon 664789000 SCREW X PM 43 €2.14
20
photo_cameraImage coming soon 322108205/0 PM4850S X CONVEYOR €10.26
22
photo_cameraImage coming soon 112154330/0 Nut €1.74
23
photo_cameraImage coming soon 664595352 INSPECTION DOOR X PM4850S €5.24
25
photo_cameraImage coming soon 12155000/0 NUT X PM4850S €1.37
26
photo_cameraImage coming soon 22517856/1 Pin FULCRO PROTEZIONE USCITA NP-PAN 05/06 €4.25
27
photo_cameraImage coming soon 22778397/1 Bracket Handle SX NEW POWER CTF + BUR €10.24
28
photo_cameraImage coming soon 381008050/0 Stone Guard Black €29.85
29
Grass Bag Cover Spring for Lawnmower Alpina PRO 50 AMK 122451000/0 Grass Bag Cover Spring for Lawnmower Alpina PRO 50 AMK €4.93
30
photo_cameraImage coming soon 22778396/1 Spare Part 22778396/1 €2.26
31
photo_cameraImage coming soon 22601001/0 GUARD X PM5150S €2.34
32
photo_cameraImage coming soon 12155000/0 NUT X PM4850S €1.37
33
photo_cameraImage coming soon 112793301/0 Screw €1.94
34
photo_cameraImage coming soon 112735402/0 SCREW X PM4850S €1.86
35
photo_cameraImage coming soon 112523040/0 Washer €1.63
36
photo_cameraImage coming soon 322226109/0 COVER FOR PLM4811 €11.87
51
photo_cameraImage coming soon 112154510/0 Nut €1.66
53
photo_cameraImage coming soon 12789450/0 SCREW FOR PLM4811 €4.74
56
photo_cameraImage coming soon 22680012/0 WASHER FOR PM5360S3 €1.94
57
photo_cameraImage coming soon 322399821/0 KNOB FOR PLM4811 €1.52
58
photo_cameraImage coming soon 112293200/0 Nut €1.74
59
photo_cameraImage coming soon 664999072 NUT COVER FOR PLM4811 €1.52
61
photo_cameraImage coming soon 22430316/0 SPRING FOR PLM4811 €9.05
62
photo_cameraImage coming soon 112154330/0 Nut €1.74
63
photo_cameraImage coming soon 12728692/0 Screw AUTOFILETTANTE PT WN1411 KA50X20 €1.37
65
photo_cameraImage coming soon 664000750 CABLE FOR PM5365S3 PRO €31.90
66
photo_cameraImage coming soon 381745002/1 JOINT FOR PM5365S3P €53.91
67
photo_cameraImage coming soon 122608537/1 BAR FOR PLM4811 €25.44
68
photo_cameraImage coming soon 112293201/0 Nut €2.46
70
photo_cameraImage coming soon 12728691/0 Screw AUTOFILETTANTE EJOT PT WN1411 KA40X16 €1.37
71
photo_cameraImage coming soon 112523040/0 Washer €1.63
74
photo_cameraImage coming soon 322120186/1 HANDLE COVER PM5365S3PRO €17.33
81
photo_cameraImage coming soon 81003325/0 THROTTLE LEVER PM5365S3PRO €28.75
91
photo_cameraImage coming soon 112154330/0 Nut €1.74
95
photo_cameraImage coming soon 181000751/0 MOTOR BRAKE CABLE PLM4811 €20.15
96
photo_cameraImage coming soon 12728527/0 Screw AUTOFILETTANTE TC TORX RAPID FIX 4X35 ZNB €2.52
98
photo_cameraImage coming soon 12728702/0 Screw AUTOFILETTANTE TC TORX K50X40 €1.37
99
photo_cameraImage coming soon 12727798/0 Screw TCB TORX M5X60 ACC.8.8 ZNB €1.37
100
photo_cameraImage coming soon 81007226/0 LEVER FOR PM5360S3 €7.89
102
photo_cameraImage coming soon 381030016/0 TRACTION CABLE PM5365S3PRO €35.70
103
photo_cameraImage coming soon 12728527/0 Screw AUTOFILETTANTE TC TORX RAPID FIX 4X35 ZNB €2.52
105
photo_cameraImage coming soon 12728686/0 Spare Part 12728686/0 €7.89
107
photo_cameraImage coming soon 22680013/0 Washer CONTENIMENTO LEVA TRAZIONE €1.37
108
photo_cameraImage coming soon 81007226/0 LEVER FOR PM5360S3 €7.89
109
photo_cameraImage coming soon 381000749/1 GEAR SHIFT CABLE FOR PM5360S3 €28.75
111
photo_cameraImage coming soon 12728693/0 Screw AUTOFILETTANTE EJOT PT WN1411 KB40X7 €1.37
115
photo_cameraImage coming soon 664007160 THROTTLE CABLE PM 48S €8.61
116
photo_cameraImage coming soon 112735105/0 Screw €1.67
117
photo_cameraImage coming soon 322981467/0 PLATE X PM4850S €1.62
119
photo_cameraImage coming soon 112530060/0 Washer €2.05
120
photo_cameraImage coming soon 112523040/0 Washer €1.63
122
photo_cameraImage coming soon 112523040/0 Washer €1.63
123
photo_cameraImage coming soon 112154510/0 Nut €1.66
171
photo_cameraImage coming soon 322140224/0 Mulching deflector €34.44
251
photo_cameraImage coming soon 381002801/1 FRONT AXLE FOR PM4850S €36.92
252
photo_cameraImage coming soon 112530150/0 ELASTIC WASHER X PM4850S €1.62
253
photo_cameraImage coming soon 664122200 BEARING X PM 48S €4.14
254
photo_cameraImage coming soon 664007317 WHEEL D = 170 X PM4850S €16.72
255
photo_cameraImage coming soon 112521350/0 Washer €1.74
256
photo_cameraImage coming soon 12155000/0 NUT X PM4850S €1.37
257
photo_cameraImage coming soon 22110503/0 HUB COVER FOR PM4860S €2.26
258
photo_cameraImage coming soon 81001134/0 PM5150S X COMMAND ROD €29.66
261
photo_cameraImage coming soon 122446187/0 SPRING X PM4850S €5.79
262
photo_cameraImage coming soon 122529662/0 PIN X PM5150S €2.02
264
photo_cameraImage coming soon 381001269/0 REAR ROD AXLE X PM5150S €3.73
265
photo_cameraImage coming soon 81000479/0 SECTOR OF ADJUST X PM5150S €15.82
266
photo_cameraImage coming soon 322672152/0 WASHER X PM4850S €1.62
267
photo_cameraImage coming soon 322785109/0 SUPPORT X PM5150S €5.57
268
photo_cameraImage coming soon 112793301/0 Screw €1.94
270
photo_cameraImage coming soon 322785113/0 HANDLE SUPPORT X PM5150S €2.78
271
photo_cameraImage coming soon 112293201/0 Nut €2.46
275
photo_cameraImage coming soon 322393611/2 HANDLE X PM5150S €3.80
276
photo_cameraImage coming soon 125038002/1 Bushing €2.10
278
photo_cameraImage coming soon 112622640/0 PIN X PM5150S €1.38
279
photo_cameraImage coming soon 22446175/0 SPRING X PM5150S €1.56
280
photo_cameraImage coming soon 122570200/0 PLATE X PM5150S €1.38
281
photo_cameraImage coming soon 322060144/3 CASING REGULATION X PM4850S €10.72
283
photo_cameraImage coming soon 112728519/0 SCREW €1.62
284
photo_cameraImage coming soon 22110504/0 HUB COVER FOR PM4860S €2.77
285
photo_cameraImage coming soon 12155000/0 NUT X PM4850S €1.37
286
photo_cameraImage coming soon 112521350/0 Washer €1.74
287
photo_cameraImage coming soon 664122200 BEARING X PM 48S €4.14
288
photo_cameraImage coming soon 664007318 WHEEL D = 210 X PM4850S €27.74
289
photo_cameraImage coming soon 112530150/0 ELASTIC WASHER X PM4850S €1.62
401
Seeger D.12 for Self Propelled Lawnmower Alpina BL 510 SHQ 112608600/0 Seeger D.12 for Self Propelled Lawnmower Alpina BL 510 SHQ €1.58
402
Drive Gear Left Side for Self Propelled Lawnmower Dolmar PM5150S 122570120/1 Drive Gear Left Side for Self Propelled Lawnmower Dolmar PM5150S €10.25
403
Ring Gear for Lawnmower Dolmar PM48S 664120105 Ring Gear for Lawnmower Dolmar PM48S €13.12
404
photo_cameraImage coming soon 664600091 GUARD WHEELS PM4850S €6.62
405
Drive Gear Right Side for Self Propelled Lawnmower Dolmar PM5150S 122570110/1 Drive Gear Right Side for Self Propelled Lawnmower Dolmar PM5150S €10.25
406
Seeger D.12 for Self Propelled Lawnmower Alpina BL 510 SHQ 112608600/0 Seeger D.12 for Self Propelled Lawnmower Alpina BL 510 SHQ €1.58
407
photo_cameraImage coming soon 119216035/0 Bearing €4.51
408
photo_cameraImage coming soon 381002811/0 REAR AXLE WHEEL X PM4850S €31.86
409
Gear Box Pin for Self Propelled Lawnmover Alpina BL 510 SHQ 122753000/0 Gear Box Pin for Self Propelled Lawnmover Alpina BL 510 SHQ €1.72
410
photo_cameraImage coming soon 664003080 TRACTION GROUP €647.41
411
photo_cameraImage coming soon 22601908/0 PULLEY FOR PM5365S3PRO €3.67
412
photo_cameraImage coming soon 664645705 PIN X PM 48S €1.64
413
photo_cameraImage coming soon 122033282/1 Adjustment rod €6.52
414
photo_cameraImage coming soon 664041957 BUSHING X PM 48S €14.76
415
photo_cameraImage coming soon 122450063/0 Spring €1.66
417
photo_cameraImage coming soon 112154510/0 Nut €1.66
418
photo_cameraImage coming soon 664110230 CAP X PM48S-4850S €3.95
419
photo_cameraImage coming soon 135064197/0 Belt €20.15
501
photo_cameraImage coming soon 122465607/3 Hub With Pulley, Crankshaft Ø 22.2 €13.91
502
photo_cameraImage coming soon 181004381/1 Blade Standard €20.31
503
photo_cameraImage coming soon 664160400 ELASTIC WASHER X PM43 €4.56
504
photo_cameraImage coming soon 664523080 WASHER X PM 43 €2.14
505
Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga 112735698/0 Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga €1.92
506
photo_cameraImage coming soon 664139100 KEY PM 43 €3.60
601
photo_cameraImage coming soon 322486102/0 Bag Upper Part €26.03
602
photo_cameraImage coming soon 22608526/0 FRAME FOR PM4855SA BASKET €13.52
603
Grass Bag for Self-Propelled Lawnmower Alpina PRO 50 ASK 181002212/0 Grass Bag for Self-Propelled Lawnmower Alpina PRO 50 ASK €60.40

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Dolmar Spare Parts for Lawn Mower PM5360S3

DOLMAR service center and original spare parts Worldwide Distributor

. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Lawn Mower PM5360S3.

In the following table, look for the model of Lawn Mower and the respective parts of the code.
Dolmar PM5360S3

PM5360S3 - LAWNMOWER DOLMAR 51CM. 6,0HP
# Part Num. Description
1 81003546/0
2 12155000/0 NUT X PM4850S
3 112521350/0 WASHER X PM4850S
4 112691800/0 SCREW X PM4850S
5 112728522/0 SCREW X PM4850S
6 22060200/1 BELT COVER
7 12729600/0 SCREW X PM4850S
8 112523040/0 WASHER X PM4850S
9 19035000/0 RING OR X PM4850S
10 122034000/0 PM4850S WASHING WATER CONNECTION
11 664038400 BRONZINA X PM4850S
12 22545156/0 PLATE X PM4850S
13 12731350/0 SCREW X PM4850S
15 322038407/0 RUBBER BUSH FOR PM4860
16 22545147/0 PIASTRINA
17 12731350/0 SCREW X PM4850S
18 12729600/0 SCREW X PM4850S
19 664789000 SCREW X PM 43
20 322108205/0 CONVEYOR X PM4850S
21 12523020/0 WASHER X PM4850S
22 112154330/0 NUT X PM4850S
23 664595352 DOOR CLOSED X PM4850S
25 12155000/0 NUT X PM4850S
26 22517856/1 PERNO FULCRO PROTEZIONE USCITA NP-PAN 05/06
27 22778397/1 STAFFA MANICO SX NEW POWER CTF + BUR
28 381008050/0 STONE GUARD FOR PM5365S3
29 122451000/0 SPRING
30 22778396/1
31 22601001/0 PROTECTION X PM5150S
32 12155000/0 DADO AUTOBLOCCANTE M8 BASSO UNI 7474 ACC..6S ZNB X PM4850S
33 112793301/0 SCREW X PM5150S
34 112735402/0 SCREW X PM4850S
35 112523040/0 WASHER X PM4850S
36 322226109/0 COVER FOR PLM4811
51 112154510/0 NUT X PM4850S
52 22820071/0 TAPPO CHIUSURA MANICO OVALE DEALER
53 12789450/0 SCREW FOR PLM4811
54 22498105/0
55 12819110/0 SCREW FOR PLM4811
56 22680012/0 WASHER FOR PM5360S3
57 322399821/0 KNOB FOR PLM4811
58 112293200/0 NUT X PM4850S
59 664999072 NUT COVER FOR PLM4811
60 22192003/0 FASCETTA ANCORAGGIO CAVI MANICO OVALE DEALER
61 22430316/0 SPRING FOR PLM4811
62 112154330/0 NUT X PM4850S
63 12728692/0 VITE AUTOFILETTANTE PT WN1411 KA50X20
65 664000750 CABLE FOR PM5365S3 PRO
66 381745002/1 JOINT FOR PM5365S3P
67 122608537/1 BAR FOR PLM4811
68 112293201/0 NUT X PM4850S
70 12728691/0 VITE AUTOFILETTANTE EJOT PT WN1411 KA40X16
71 112523040/0 WASHER X PM4850S
72 22557164/0
73 22557163/0
74 322120186/1 HANDLE COVER PM5365S3PRO
79 22109544/0
81 81003325/0 THROTTLE LEVER PM5365S3PRO
82 81006670/0
91 112154330/0 NUT X PM4850S
92 12523020/0 WASHER X PM4850S
93
94 22551657/0
95 181000751/0 MOTOR BRAKE CABLE PLM4811
96 12728527/0 VITE AUTOFILETTANTE TC TORX RAPID FIX 4X35 ZNB
97 22785231/0
98 12728702/0 VITE AUTOFILETTANTE TC TORX K50X40
99 12727798/0 VITE TCB TORX M5X60 ACC.8.8 ZNB
100 81007226/0 LEVER FOR PM5360S3
101 22171007/0
102 381030016/0 TRACTION CABLE PM5365S3PRO
103 12728527/0 VITE AUTOFILETTANTE TC TORX RAPID FIX 4X35 ZNB
105 12728686/0
106 12523020/0 WASHER X PM4850S
107 22680013/0 RONDELLA CONTENIMENTO LEVA TRAZIONE
108 81007226/0 LEVER FOR PM5360S3
109 381000749/1 GEAR SHIFT CABLE FOR PM5360S3
110 22785232/0
111 12728693/0 VITE AUTOFILETTANTE EJOT PT WN1411 KB40X7
115 664007160 PM 48S ACCELERATOR CABLE
116 112735105/0 SCREW X PM4850S
117 322981467/0 PLATE X PM4850S
118 12791500/0 SCREW X PM4850S
119 112530060/0 ELASTIC WASHER PM4850S
120 112523040/0 WASHER X PM4850S
121 81007225/0
122 112523040/0 WASHER X PM4850S
123 112154510/0 NUT X PM4850S
124 14361912/0
171 322140224/0 MULCHING DEFLECTOR FOR PLM4811
251 381002801/1 FRONT WHEEL AXLE FOR PM4850S
252 112530150/0 ELASTIC WASHER X PM4850S
253 664122200 BEARING X PM 48S
254 664007317 WHEEL D = 170 X PM4850S
255 112521350/0 WASHER X PM4850S
256 12155000/0 NUT X PM4850S
257 22110503/0 HUB COVER FOR PM4860S
258 81001134/0 COMMAND ROD X PM5150S
259 12000930/0 ELASTIC RING X PM4850S
260 12604899/0 WASHER X PM5150S
261 122446187/0 SPRING X PM4850S
262 122529662/0 PIN X PM5150S
263 22672151/0 WASHER X PM4850S
264 381001269/0 REAR AXLE ROD X PM5150S
265 81000479/0 REGULATION SECTOR X PM5150S
266 322672152/0 WASHER X PM4850S
267 322785109/0 HEIGHT ADJUSTMENT SUPPORT X PM5150S
268 112793301/0 SCREW X PM5150S
270 322785113/0 HANDLE SUPPORT X PM5150S
271 112293201/0 NUT X PM4850S
272 12729600/0 SCREW X PM4850S
275 322393611/2 HANDLE X PM5150S
276 125038002/1 BUSCHING X PM5150S
278 112622640/0 PIN X PM5150S
279 22446175/0 SPRING X PM5150S
280 122570200/0 POSITION PLATE X PM5150S
281 322060144/3 CARTER ADJUSTMENT X PM4850S
282 12728520/0 SCREW X PM4850S
283 112728519/0 SCREW X PM5150S
284 22110504/0 HUB COVER FOR PM4860S
285 12155000/0 NUT X PM4850S
286 112521350/0 WASHER X PM4850S
287 664122200 BEARING X PM 48S
288 664007318 WHEEL D = 210 X PM4850S
289 112530150/0 ELASTIC WASHER X PM4850S
401 112608600/0 STOP RING FOR PM4850S
402 122570120/1 LEFT PINION X PM4850S
403 664120105 RING GEAR X PM 48S
404 664600091 WHEEL PROTECTION PM4850S
405 122570110/1 PINION DX X PM4850S
406 112608600/0 STOP RING FOR PM4850S
407 119216035/0 BEARING X PM4850S
408 381002811/0 REAR WHEEL AXLE X PM4850S
409 122753000/0 PLUG PM4850S
410 664003080 TRACTION GROUP
411 22601908/0 PULLEY FOR PM5365S3PRO
412 664645705 PLUG X PM 48S
413 122033282/1 ADJUSTMENT BAR FOR PLM5110
414 664041957 BUSHING X PM 48S
415 122450063/0 SPRING X PM4850S
416 22680009/0 WASHER X PM4850S
417 112154510/0 NUT X PM4850S
418 664110230 CAP X PM48S-4850S
419 135064197/0 BELT FOR PM5360 S3
501 122465607/3 BLADE SUPPORT D22.2
502 181004381/1 STANDARD BLADE 51 CM FOR PM5360S3
503 664160400 ELASTIC WASHER X PM43
504 664523080 WASHER X PM 43
505 112735698/0 SCREW FOR PLM4100
506 664139100 TAB PM 43
601 322486102/0 TOP SECTION FOR PM5360S3
602 22608526/0 FRAME FOR PM4855SA BASKET
603 181002212/0 GRASS BAG PM5360S3
604 12728680/0 SCREW FOR ELM4100
605 12523050/0 WASHER FOR ELM41
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Dolmar PM5360S3
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Dolmar PM5360S

Drawing Dolmar PM5360S

Download (331KB)

You might also like

Electric Lawn Mower Makita 1400W ELM3800 -10% Sale
Makita SKU: ELM3800
Electric Lawn Mower Makita 1400W ELM3800 Features: - Innovative Makita Design. - Polypropylene shell with UV and weather resistance. - Easy drainage of the picking basket provided already assembled. - Integrated transport handle. -...
Available in 7/10 days €172.32 €191.47
Makita SKU: 663701429
Washer D.26,38x6,5x3,30 mm for Lawnmover Dolmar PM4645 Genuine replacement part Dolmar, Special Washer D.26,38x6,5x3,30 mm for Lawnmovers PM4645 -  PM4645S - PM4645SE - PM4650HS - PM5355S. Part for the following products: - PM4645 -...
AVAILABLE €2.17
Makita SKU: 664120105
Ring Gear for Lawnmower Dolmar PM48S Genuine replacement part Dolmar, Ring Gear for Lawnmower Dolmar PM480S - PM48S.  Part for the following products: - PM480S - LAWNMOWER DOLMAR 46CM 2,2KW -  PM48S - LAWNMOWER DOLMAR 46CM 2,2KW -...
Last items in stock €13.12
GGP Italy SKU: 181002212/0
Grass Bag for Self-Propelled Lawnmower Alpina PRO 50 ASK Original replacement part Alpina, Grass Bag, Black Canvass Without Logo for Self-Propelled Lawnmower PRO 50 ASK - PRO 55 ASK3. Part for the following products: -  Self-Propelled...
Last items in stock €60.40
Comments (0)
