Makita

Dolmar Spare Parts for Electric Chainsaw ES34TLC

SKU: Dolmar ES34TLC
€11.29
VAT included

Dolmar Spare Parts for Electric Chainsaw ES34TLC

Fix Your Electric Chainsaw ES34TLC. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Dolmar Spare Parts for Electric Chainsaw ES34TLC
  • Dolmar Spare Parts for Electric Chainsaw ES34TLC
  • Dolmar Spare Parts for Electric Chainsaw ES34TLC
  • Dolmar Spare Parts for Electric Chainsaw ES34TLC
Makita

Dolmar Spare Parts for Electric Chainsaw ES34TLC

SKU: Dolmar ES34TLC Condition: New
€11.29
VAT included

Dolmar Spare Parts for Electric Chainsaw ES34TLC

Fix Your Electric Chainsaw ES34TLC. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 64 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
60 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

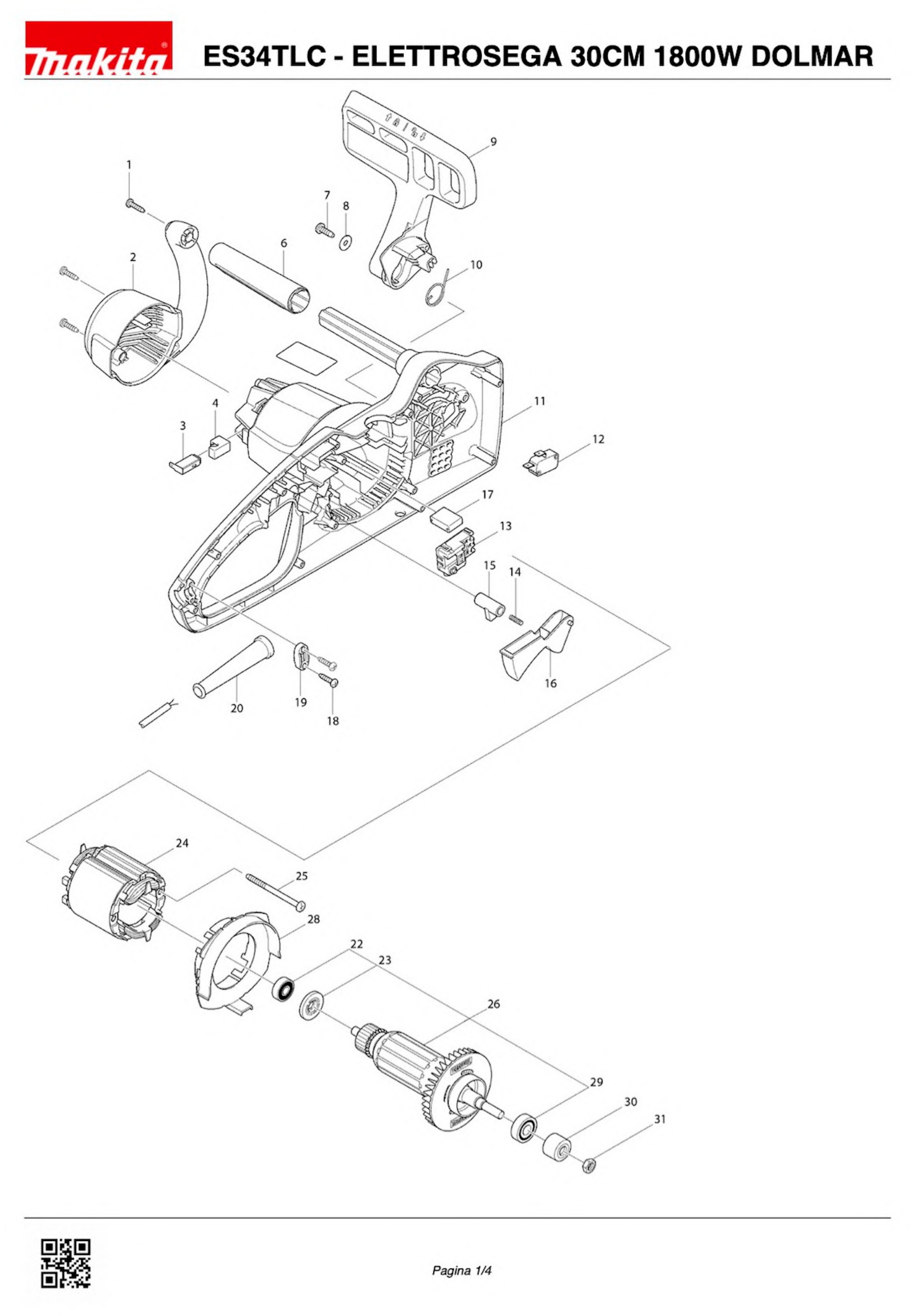

Esploso pagina 1
Pos. Item Price Buy
1
 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.47
2
 photo_cameraImage coming soon 454725-2 BACK COVER €8.78
3
 photo_cameraImage coming soon 191972-1 CARBON BRUSHES CB-132 €6.41
4
 photo_cameraImage coming soon 682211-5 BUSH RUBBER UC3020A €1.26
6
 photo_cameraImage coming soon 424600-6 JACK FRONT €3.11
7
 photo_cameraImage coming soon 266388-0 SCREW 5X16 FOR UC3020A €1.44
8
 photo_cameraImage coming soon 253807-5 WASHER 5 6012D / HD / 62/63 / 64DW €1.42
9
 photo_cameraImage coming soon 142279-8 PROTECTION FRONT €8.41
11
 photo_cameraImage coming soon 187784-8 HOUSING MOTOR €48.95
12
 Micro Switch for Electric Chainsaws Makita UC3530A - UC4030A 650577-1 Micro Switch for Electric Chainsaws Makita UC3530A - UC4030A €2.97
13
 photo_cameraImage coming soon 650716-3 SWITCH TGC31B €16.65
14
 photo_cameraImage coming soon 233173-6 SPRING FOR COMPR.4 UC3020A €1.47
15
 photo_cameraImage coming soon 416178-3 RESET BUTTON X UC3020A €1.47
16
 photo_cameraImage coming soon 455185-1 SWITCH €3.11
17
 photo_cameraImage coming soon 645149-5 CAPACITOR X 4350CT €1.61
19
 photo_cameraImage coming soon 687124-5 CORD CLAMP MT953 €1.47
20
 Cord Guard JN1601 for Angle Grinder Makita 9015B 682540-6 Cord Guard JN1601 for Angle Grinder Makita 9015B €2.72
22
 Ball Bearing 608ZZ for Chainsaw Makita UC3020A 210046-0 Ball Bearing 608ZZ for Chainsaw Makita UC3020A €2.39
23
 photo_cameraImage coming soon 681644-1 INSULATED WASHER for 9227CB €2.74
24
 photo_cameraImage coming soon 594538-0 STATOR FOR UC3020A €40.04
26
 photo_cameraImage coming soon 513893-1 ARMATURE €71.70
29
 Ball Bearing 6000DD NSK for Cordless Drill Makita 6221DW 211061-7 Ball Bearing 6000DD NSK for Cordless Drill Makita 6221DW €8.69
30
 photo_cameraImage coming soon 227153-2 GEAR FOR 12 UC3020A €1.89
31
 photo_cameraImage coming soon 931403-6 HEX NUT M8 €1.40
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

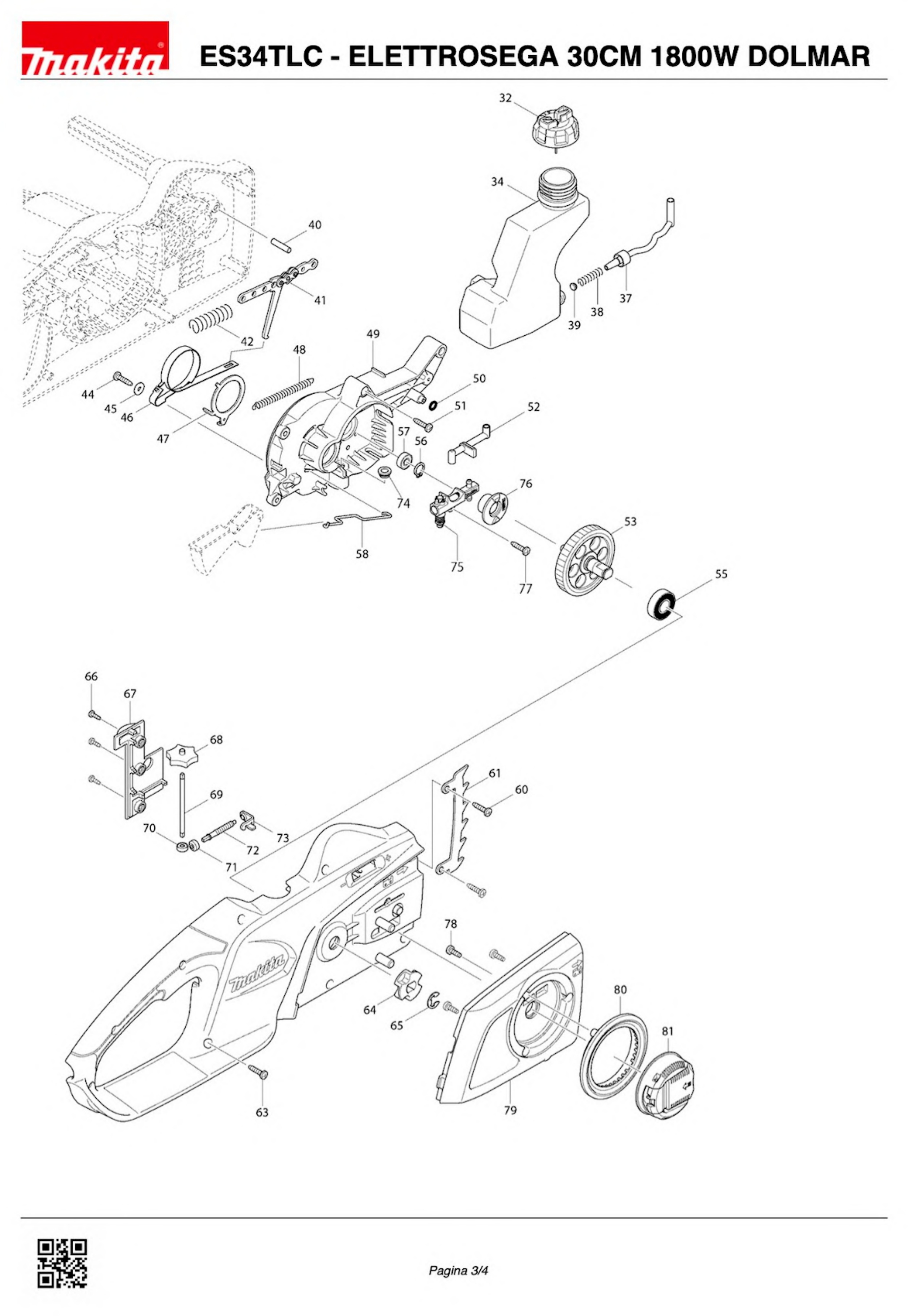

Esploso pagina 2
Pos. Item Price Buy
32
 photo_cameraImage coming soon 142282-9 TANK CAP CPL €5.13
34
 photo_cameraImage coming soon 454729-4 OIL TANK €4.46
37
 photo_cameraImage coming soon 424602-2 OIL PIPE €2.41
38
 photo_cameraImage coming soon 231975-4 SPRING TUBE OIL X DCS230T €1.47
39
 photo_cameraImage coming soon 416274-7 PLUG OIL PIPE X DCS230T €1.47
40
 photo_cameraImage coming soon 268238-5 PIN 5 EBH341U €1.44
41
 photo_cameraImage coming soon 158047-9 Linkage CHAIN ​​BRAKE €4.68
42
 photo_cameraImage coming soon 233175-2 SPRING COMPRESSION 9 €2.20
45
 photo_cameraImage coming soon 267195-4 WASHER 4 X DCS230T €1.47
46
 photo_cameraImage coming soon 210213500 SPRING BRAKE ES-31A €11.29
47
 photo_cameraImage coming soon 346739-4 RING BRAKE €1.61
49
 photo_cameraImage coming soon 454720-2 HOUSING BEARING €8.78
50
 photo_cameraImage coming soon 213017-6 RING 6 AN621 €1.79
52
 photo_cameraImage coming soon 424601-4 CONNECTOR €1.61
53
 photo_cameraImage coming soon 135615-5 GEAR 43 €22.08
55
 photo_cameraImage coming soon 210106-8 BEARING 6001LLB €2.47
56
 photo_cameraImage coming soon 961006-2 RETAINING RING S10 €2.17
57
 Bearing 696ZZ FOR Angle Grinder Makita GA4530 210033-9 Bearing 696ZZ FOR Angle Grinder Makita GA4530 €3.35
58
 photo_cameraImage coming soon 326359-0 LEVERAGE €1.61
61
 photo_cameraImage coming soon 345651-5 HOOK FOR UC3020A €2.30
64
 photo_cameraImage coming soon 221526-1 PINION 3/8 " €4.05
65
 photo_cameraImage coming soon 930108100 WASHER ES-31A SAFETY €1.43
66
 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 266007-8 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 €2.07
67
 Tension Cover for Electric Chainsaw Makita UC3041A 454727-8 Tension Cover for Electric Chainsaw Makita UC3041A €1.30
68
 Dial 30 for Electric Chainsaw Makita UC3041A 454726-0 Dial 30 for Electric Chainsaw Makita UC3041A €1.69
69
 Tensioner Gear Rod for Electric Chainsaw Makita UC3041A 326360-5 Tensioner Gear Rod for Electric Chainsaw Makita UC3041A €1.92
70
 Tensioner Screw Gear for Chainsaw Makita UC3551A 227496-2 Tensioner Screw Gear for Chainsaw Makita UC3551A €7.99
72
 Tensioner Screw for Chainsaw Makita UC3020A 324620-9 Tensioner Screw for Chainsaw Makita UC3020A €2.39
73
 Tension Slide for Electric Chainsaw Makita UC3041A 346859-4 Tension Slide for Electric Chainsaw Makita UC3041A €3.03
74
 photo_cameraImage coming soon 424603-0 CABLE €1.61
75
 Oil Pump for Electric Chainsaw Makita UC3041A 142156-4 Oil Pump for Electric Chainsaw Makita UC3041A €23.90
76
 photo_cameraImage coming soon 221427-3 WORM €7.00
78
 photo_cameraImage coming soon 266427-6 SCREW 4X12 MT923 €1.46
79
 Sprocket Cover Complete for Electric Chainsaw Makita UC3041A 142281-1 Sprocket Cover Complete for Electric Chainsaw Makita UC3041A €10.71
80
 photo_cameraImage coming soon 454728-6 COVER €1.61
81
 Sprocket Cover Nut Complete for Electric Chainsaw Makita UC3041A 142235-8 Sprocket Cover Nut Complete for Electric Chainsaw Makita UC3041A €15.38

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Dolmar Spare Parts for Electric Chainsaw ES34TLC

Fix Your Electric Chainsaw ES34TLC. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Electric Chainsaw and the respective parts of the code.
Electric Chainsaw ES34TLC

Electric Chainsaw ES34TLC
# Part Num. Description
1 266326-2 TAPPING SCREW PT 4X18, MT951
2 454725-2 REAR COVER
3 191972-1 CARBON BRUSH CB-132
4 682211-5 RUBBER SLEEVE, UC3020A
6 424600-6 FRONT GRIP
7 266388-0 TAPPING SCREW 5*70, UC3020A
8 253807-5 FLAT WASHER 5, LS0714
9 142279-8 FRONT HAND GUARD COMPLETE
10 231640-5 TORSION SPRING 20, UC3020A
11 187784-8 HOUSING MOTOR
12 650577-1 MICRO SWITCH, UC3020A
13 650716-3 SWITCH TGC31B
14 233173-6 COMPRESSION SPRING 4, UC3020A
15 416178-3 LOCK OFF BUTTON, UC3020A
16 455185-1 SWITCH
17 645149-5 CAPACITOR, 4350FCT
18 266326-2 TAPPING SCREW PT 4X18, MT951
19 687124-5 CORD CLAMP, MT951
20 682540-6 CORD GUARD 9.3-90, LS1040
22 210046-0 BALL BEARING 608ZZ
23 681644-1 RESIN WASHER, MT110
24 594538-0 FIELD ASSY 220-240V, UC3020A
25 266389-8 TAPPING SCREW 5*70, UC3020A
26 513893-1 ARMATURE ASS'Y 220-240V
28 419238-0 BAFFLE PLATE, UC3020A
29 211061-7 BALL BEARING 6000LLB, 6220D
30 227153-2 SPUR GEAR 12, UC3020A
31 931403-6 HEX NUT, 2012NB
32 142282-9 TANK CAP COMPLETE
34 454729-4 OIL TANK
37 424602-2 OIL TUBE
38 231975-4 SPRING, DCS230T
39 416274-7 CAP, UC3020A
40 268238-5 PIN5, MEM426
41 158047-9 LINK PLATE COMPLETE, UC3020A
42 233175-2 COMPRESSION SPRING 9, UC3020A
44 266326-2 TAPPING SCREW PT 4X18, MT951
45 267195-4 FLAT WASHER 4, UC3020A
46 210213500 JARRU PANTA UC3020ES-33A
47 346739-4 BRAKE RING
48 231817-2 TENSION SPRING 5, UC3020A
49 454720-2 BEARING HOUSING
50 213017-6 O RING 6, 5277NB
51 266326-2 TAPPING SCREW PT 4X18, MT951
52 424601-4 CONNECTOR
53 135615-5 SPUR GEAR 43 ASS'Y
55 210106-8 BALL BEARING 6001LLB, UC3020A-K
56 961006-2 RETAINING RING S-10, JR300VT
57 210033-9 BALL BEARING 696ZZ, 9535NB
58 326359-0 ROD
60 266326-2 TAPPING SCREW PT 4X18, MT951
61 345651-5 SPIKE BUMPER, UC3020A
63 266326-2 TAPPING SCREW PT 4X18, MT951
64 221526-1 SPROCKET, UC3020A
65 930108100 LUKITUSLEVY
66 266007-8 TAPPING SCREW, 16G341A
67 454727-8 TENSION COVER
68 454726-0 DIAL 30
69 326360-5 SHAFT
70 227496-2 SPIRAL BEVEL GEAR 14, UC3020A
71 227496-2 SPIRAL BEVEL GEAR 14, UC3020A
72 324620-9 ADJUST SCREW, UC3020A
73 346859-4 TENSION SLIDE
74 424603-0 GROMMET
75 142156-4 OIL PUMP COMPLETE
76 221427-3 WORM GEAR
77 266326-2 TAPPING SCREW PT 4X18, MT951
78 266427-6 TAPPING SCREW 4X12
79 142281-1 SPROCKET COVER COMPLETE
80 454728-6 COVER
81 142235-8 NUT COMPLETE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Dolmar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Dolmar ES34TLC
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Dolmar ES34TLC

Diagram Dolmar ES34TLC

Download (325.54KB)
