Makita

Dolmar Spare Parts for Backpack Bruschcutter MS-4300.4R

SKU: Dolmar MS-4300.4R Condition: New
€31.63
VAT included

Dolmar Spare Parts for Backpack Bruschcutter MS-4300.4R

DOLMAR service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Backpack Bruschcutter 43CC 4T DOLMAR MS-4300.4R.
settings 255 spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Shipped on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
255 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

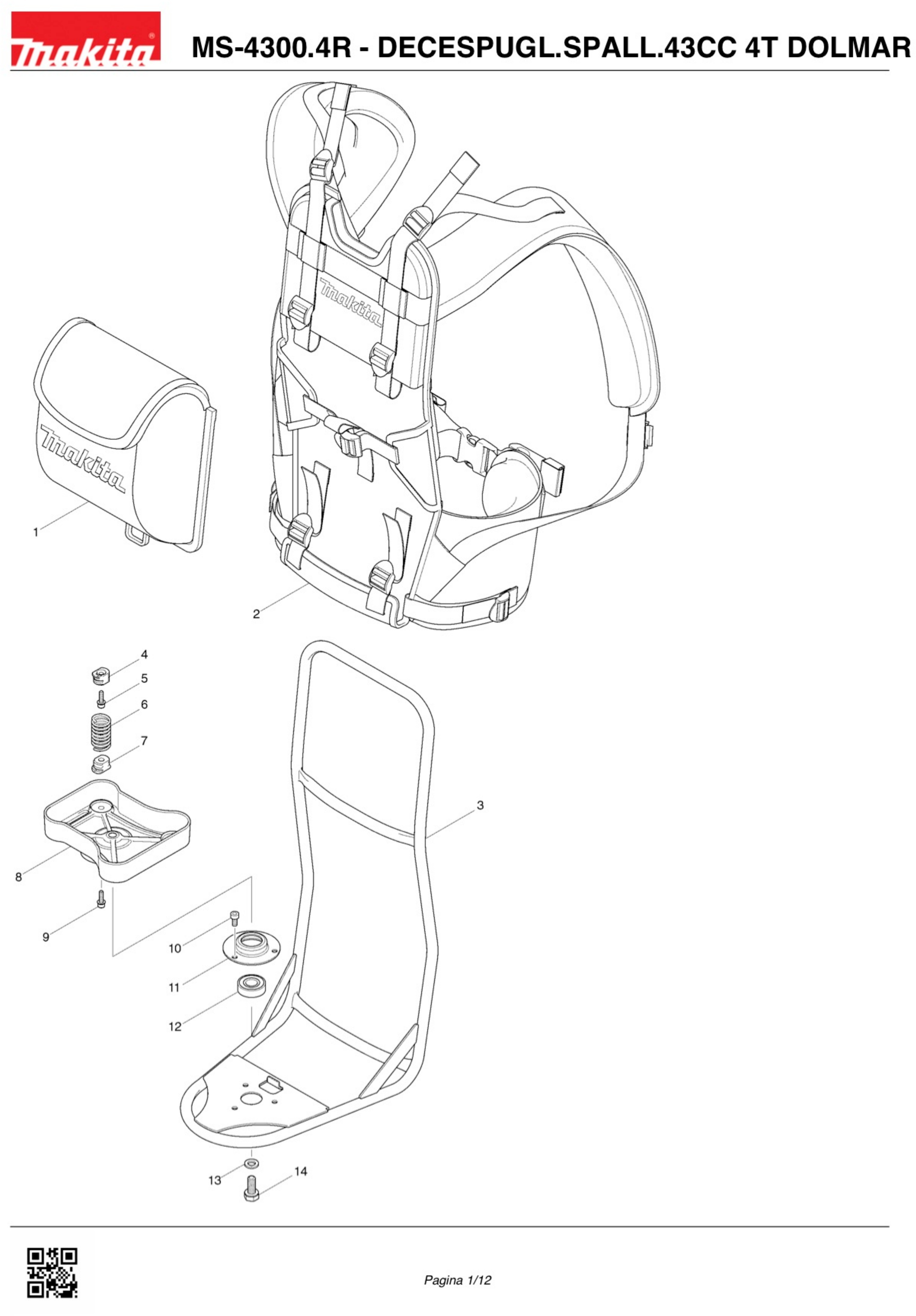

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 166137-4 BAG X MS4300.4R €29.82
2
 photo_cameraImage coming soon 126514-2 HARNESS X MS4300.4R €338.28
3
 photo_cameraImage coming soon 165752-1 FRAME X EM4350RH €40.98
4
 photo_cameraImage coming soon 455305-7 SUPPORT SPRING EM4350RH €2.46
5
 photo_cameraImage coming soon 922228-9 SCREW M5X18 EBH341U €1.44
6
 photo_cameraImage coming soon 234346-4 COMPRESSION SPRING 17 €1.29
7
 photo_cameraImage coming soon 455306-5 SUPPORT SPRING B €2.87
8
 photo_cameraImage coming soon 319181-2 SUPPORT X EM4350RH €40.98
9
 photo_cameraImage coming soon 922228-9 SCREW M5X18 EBH341U €1.44
10
 photo_cameraImage coming soon 922312-0 BOLT M6 X 12 €1.33
11
 photo_cameraImage coming soon 346816-2 BEARING CASE X EM4350RH €5.45
12
 photo_cameraImage coming soon 211220-3 BEARING 6202ZZ €6.07
13
 photo_cameraImage coming soon 941251-5 FLAT WASHER 10 €1.36
14
 photo_cameraImage coming soon 921541-2 HEXAGONAL BOLT M10X25 €1.92
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

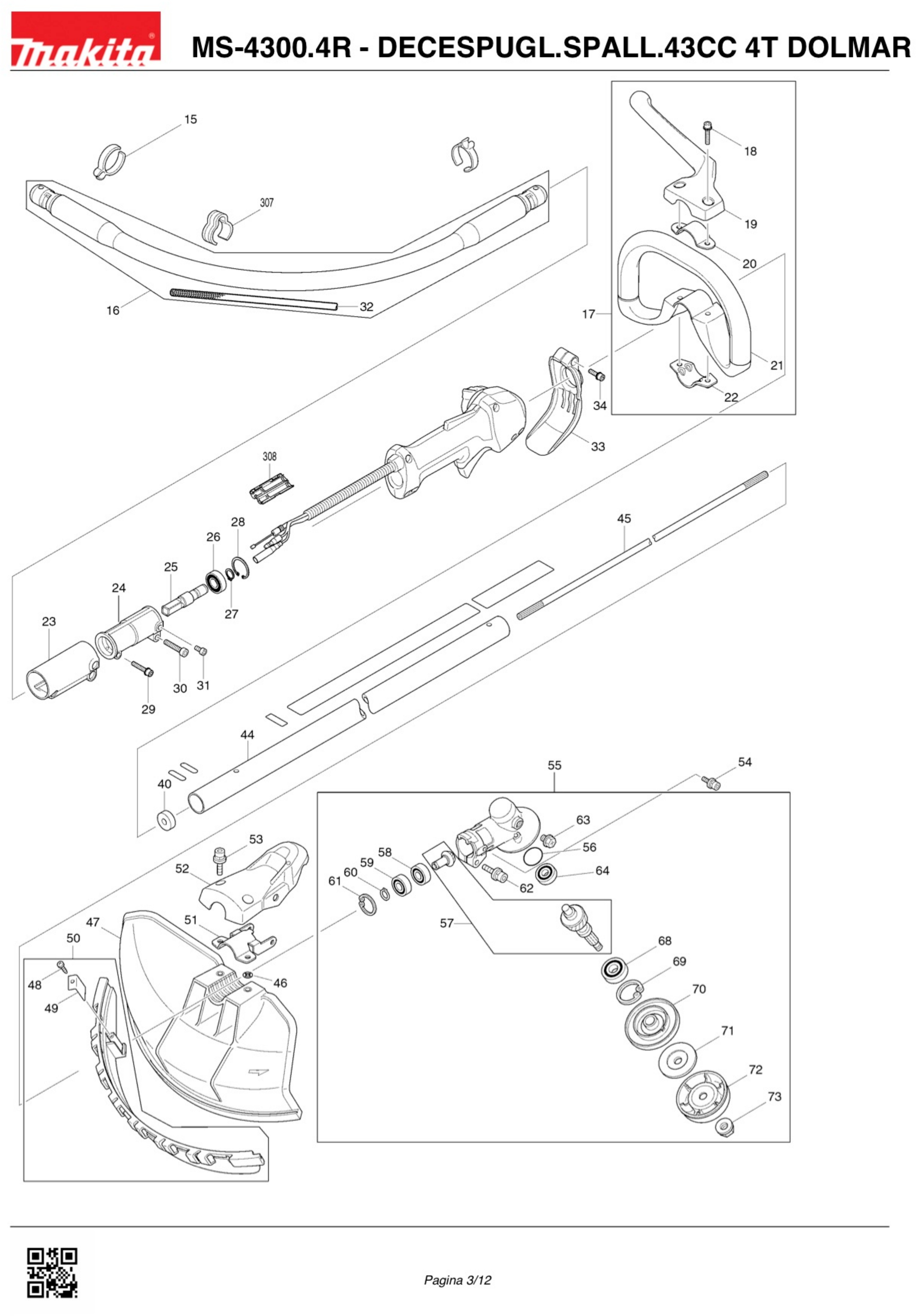

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
15
 photo_cameraImage coming soon 417764-3 HOLDER 10-33 €1.29
16
 photo_cameraImage coming soon 126510-0 FLEXIBLE SHAFT X EM4350RH €123.92
17
 photo_cameraImage coming soon 196897-4 COMPLETE HANDLE X EM4350RH €26.92
18
 photo_cameraImage coming soon 922244-1 SCREW M5X25 €2.65
19
 photo_cameraImage coming soon 455316-2 COVER X EM4350RH €6.12
20
 photo_cameraImage coming soon 346468-9 CLAMP 33 BUX360Z €1.42
21
 photo_cameraImage coming soon 455315-4 HARNESS X EM4350RH €11.61
22
 photo_cameraImage coming soon 346817-0 FLANGE 28 X EM4350RH €4.09
23
 photo_cameraImage coming soon 424646-2 TUBE SUPPORT COVER X EM4350RH €6.94
24
 photo_cameraImage coming soon 319182-0 TUBE SUPPORT EM4350RH €36.93
25
 photo_cameraImage coming soon 326436-8 SPINDLE X EM4350RH €19.70
26
 photo_cameraImage coming soon 211148-5 BALL BEARING 6001LLB X GD0800C €7.78
27
 Retaining Ring S12 for Power Tools Makita 961052-5 Retaining Ring S12 for Power Tools Makita €1.40
28
 photo_cameraImage coming soon 961108-4 RETAINING RING S-28 €2.12
29
 photo_cameraImage coming soon 922248-3 SCREW M5X28 €1.29
30
 photo_cameraImage coming soon 922352-8 SCREW M6X30 €1.44
31
 photo_cameraImage coming soon 922212-4 SCREW M5x12 €1.44
32
 photo_cameraImage coming soon 326447-3 INTERNAL FLEXIBLE SHAFT €139.92
33
 photo_cameraImage coming soon 455304-9 PROTECTION €10.13
34
 photo_cameraImage coming soon 922228-9 SCREW M5X18 EBH341U €1.44
40
 photo_cameraImage coming soon 443146-3 FELT RING EBH341U €1.44
44
 photo_cameraImage coming soon 142838-8 DRIVE SHAFT X EM4350RH €56.92
45
 photo_cameraImage coming soon 326574-6 DRIVE SHAFT EM4350RH €93.98
46
 photo_cameraImage coming soon 413143-3 WASHER MS335.4C €1.44
47
 photo_cameraImage coming soon 452259-9 PROTECTOR EBH341U €17.14
48
 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.27
49
 photo_cameraImage coming soon 347050-7 BLADE €1.40
50
 photo_cameraImage coming soon 135753-3 LOWER PROTECTION €12.69
51
 photo_cameraImage coming soon 346072-4 PROTECTOR CLAMP EBH341U €2.77
52
 photo_cameraImage coming soon 451090-0 PROTECTOR COVER EBH341U €6.11
53
 photo_cameraImage coming soon 266579-3 SCREW M6X30 MS335.4C €1.57
54
 photo_cameraImage coming soon 266865-2 SCREW M5X14 €1.44
55
 Gear Case Ass'y for Brushcutter Dolmar MS335.4C 123835-3 Gear Case Ass'y for Brushcutter Dolmar MS335.4C €79.05
56
 Gasket 32 for Hex Collar Power Scrapers Makita HK1800 - HK1810 213459-4 Gasket 32 for Hex Collar Power Scrapers Makita HK1800 - HK1810 €1.43
57
 photo_cameraImage coming soon 187644-4 GEAR CASE EM4350RH €31.97
58
 photo_cameraImage coming soon 210059-1 BEARING 6000 HR2010 €11.29
59
 photo_cameraImage coming soon 211062-5 BEARING 6000 X9524NB €7.81
60
 photo_cameraImage coming soon 961006-2 RETAINING RING S10 €1.32
61
 Retaining Ring R26 for Angle Grinder and Milling Machines Makita 962105-3 Retaining Ring R26 for Angle Grinder and Milling Machines Makita €1.32
62
 photo_cameraImage coming soon 922353-6 SCREW M6x30 HM1202C €1.46
63
 photo_cameraImage coming soon 265590-2 HEX BOLT M8x10 EBH253L/EBH341U €1.32
64
 photo_cameraImage coming soon 210081-8 BALL BEARING 629ZZ EBH341U €4.56
68
 photo_cameraImage coming soon 210116-5 BALL BEARING 6201LLU EBH341U €8.75
69
 Retaining Ring R32 for Powertools Makita 962151-6 Retaining Ring R32 for Powertools Makita €1.43
70
 Lower Flange for Brushcutter Dolmar MS-4300.4R 332114-0 Lower Flange for Brushcutter Dolmar MS-4300.4R €10.70
71
 photo_cameraImage coming soon 346355-2 CLAMP WASHER EBH253L/EBH341U €13.89
72
 photo_cameraImage coming soon 168526-9 CUP EBH253L/EBH341U/BBC231URD €6.83
73
 photo_cameraImage coming soon 264025-0 HEX NUT M10-17 EBH251U.BBC231 €3.22
307
 photo_cameraImage coming soon 455588-9 HOOK €2.46
308
 photo_cameraImage coming soon 455934-6 CONNECTOR PROTECTION EM4350RH €2.45
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

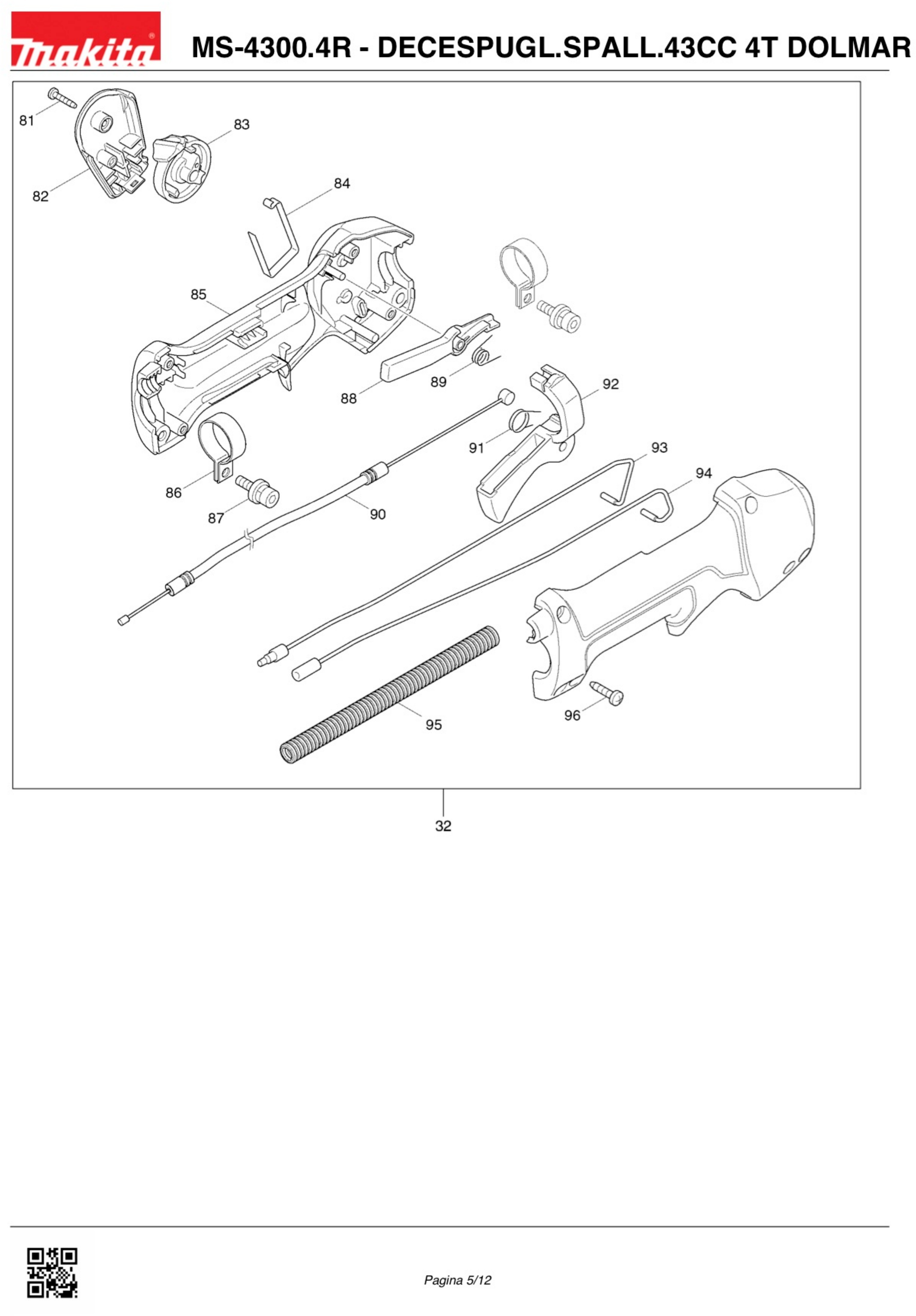

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
32
 photo_cameraImage coming soon 126512-6 CONTROL LEVER EM4350RH €69.19
81
 photo_cameraImage coming soon 266130-9 SCREW 3X16 X 6203/13 / 6313DW €1.46
82
 photo_cameraImage coming soon 451595-0 SWITCH COVER MS335.4C €2.18
83
 photo_cameraImage coming soon 451594-2 SWITCH LEVER MS335.4C €2.18
84
 photo_cameraImage coming soon 232251-9 LEAF SPRING EBH341U/EM2651LH €1.46
85
 photo_cameraImage coming soon 188831-8 LEVER CONTROLS HOSING MS335.4C €15.87
86
 photo_cameraImage coming soon 346249-1 CLAMP 28 MS335.4C €2.03
87
 photo_cameraImage coming soon 922218-2 SCREW M5x14 EBH341U €1.53
88
 photo_cameraImage coming soon 451593-4 BLOCK LEVER MS335.4C €2.18
89
 photo_cameraImage coming soon 233541-3 TORSION SPRING 7 EBH341U €2.18
90
 photo_cameraImage coming soon 168871-2 THROTTLE CABLE X EM4350RH €6.07
91
 photo_cameraImage coming soon 233540-5 SPRING TWIST 11 EBH341U €1.46
92
 photo_cameraImage coming soon 451592-6 THROTTLE LEVER MS335.4C P04 €3.28
93
 photo_cameraImage coming soon 632D64-6 WIRING CABLE X EM4350RH €2.46
94
 photo_cameraImage coming soon 632D65-4 WIRING CABLE X EM4350RH €2.46
95
 photo_cameraImage coming soon 455311-2 SHEATH X EM4350RH €2.46
96
 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.27
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

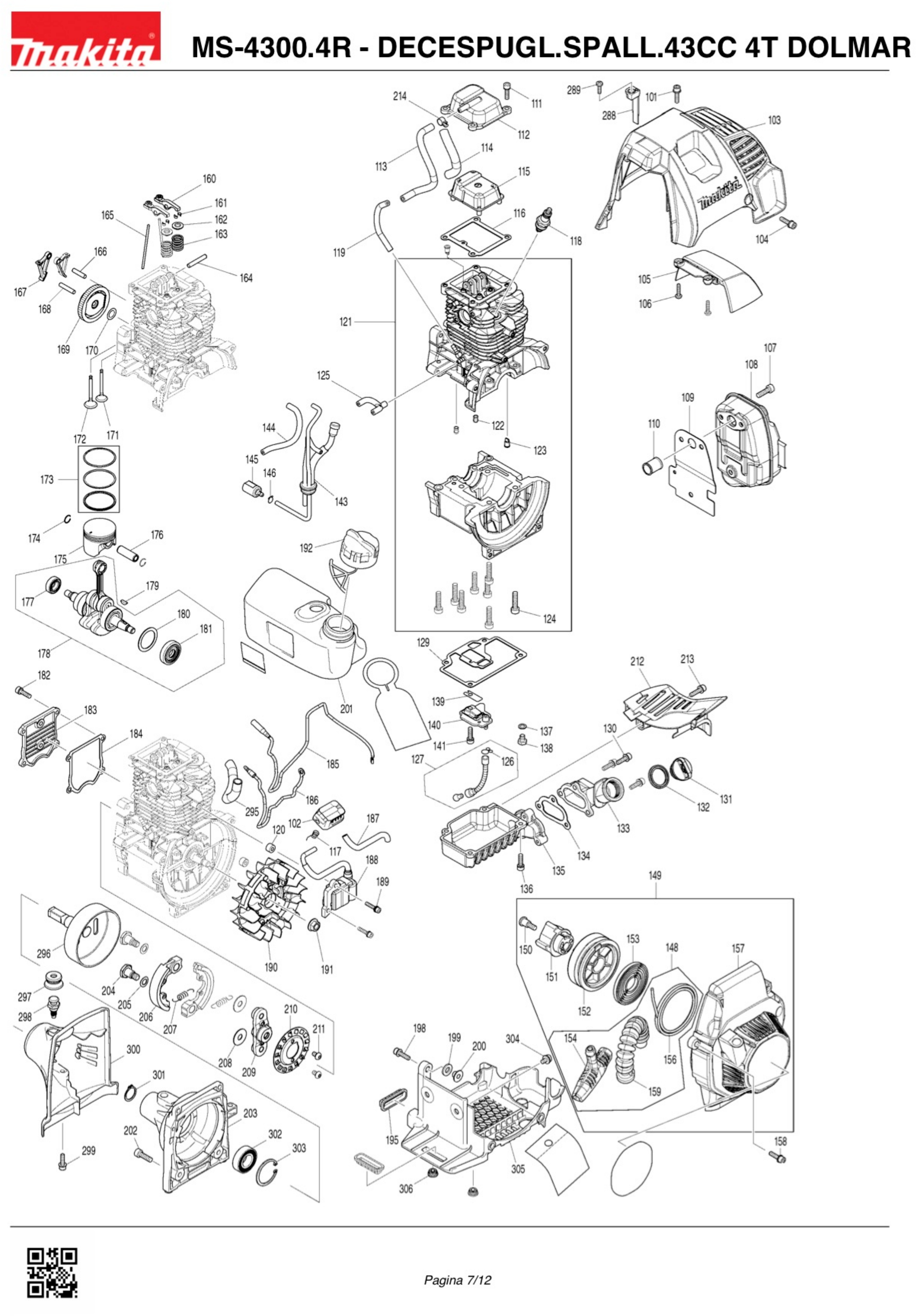

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
101
 Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T 922233-6 Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T €1.32
102
 photo_cameraImage coming soon 424302-4 SPARK CAP EH7500S €3.22
103
 photo_cameraImage coming soon 455108-9 CYLINDER COVER RED €22.18
104
 Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T 922233-6 Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T €1.32
105
 photo_cameraImage coming soon 453536-2 MUFFLER COVER X EM4351UH €6.11
106
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
107
 photo_cameraImage coming soon 922332-4 SCREW M6X20 X SC161 €1.44
108
 photo_cameraImage coming soon 168715-6 MUFFLER X EM4351UH €17.14
109
 photo_cameraImage coming soon 346574-0 GASKET FOR EXHAUST EM4351UH €2.14
110
 photo_cameraImage coming soon 331987-8 SPACER X EM4351UH €2.14
111
 photo_cameraImage coming soon 922226-3 SCREW M 5 X 18 X 4341FCT €3.76
112
 photo_cameraImage coming soon 318850-2 HEAD COVER EM4351UH €10.18
113
 photo_cameraImage coming soon 422091-5 TUBE 5-160 EM4351UH €2.77
114
 photo_cameraImage coming soon 454424-6 HOSE X EM4351UH €1.44
115
 photo_cameraImage coming soon 453529-9 COVER INT. HEAD EM4351UH €2.77
116
 photo_cameraImage coming soon 162335-8 HEAD GASKET EM4351UH €3.22
117
 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U 324891-8 Spark Plug Boot Spring Terminal for Brushcutter Makita EBH341U €1.62
118
 photo_cameraImage coming soon 0650109950 SPARK PLUG CMR6A X MS251.A €12.34
119
 photo_cameraImage coming soon 422090-7 TUBE 3-85 X EM4351UH €2.14
120
 photo_cameraImage coming soon 452049-0 SPACER EX2650LH €1.44
121
 photo_cameraImage coming soon 197493-1 CYLINDER X EM4350RH €159.74
122
 photo_cameraImage coming soon 424200-2 SPACKER EM2651LH/EBH251L/341U €1.46
123
 photo_cameraImage coming soon 424201-0 CONTROL VALVE EBH341U €3.28
124
 photo_cameraImage coming soon 922342-1 SCREW M6X25 EX2650LH €1.44
125
 photo_cameraImage coming soon 422099-9 BREATHER TUBE EX2650LH €3.22
126
 photo_cameraImage coming soon 282020-8 HOSE CLAMP EM2651LH/EBH251L/ €1.44
127
 photo_cameraImage coming soon 424301-6 OIL TUBE EX2650LH €4.56
129
 Oil Case Gasket for Brushcutter Dolmar MS-4300.4R 162337-4 Oil Case Gasket for Brushcutter Dolmar MS-4300.4R €4.46
130
 photo_cameraImage coming soon 266760-6 SCREW M5X18 €1.44
131
 photo_cameraImage coming soon 452047-4 OIL TANK CAP BHX2501 €2.14
132
 photo_cameraImage coming soon 424343-0 GASKET X BHX2501 €1.44
133
 photo_cameraImage coming soon 453538-8 OIL TUBE X EM4351UH €4.56
134
 photo_cameraImage coming soon 162338-2 GASKET EM4351UH €2.14
135
 photo_cameraImage coming soon 318854-4 OIL CUP EM4351UH €22.18
136
 photo_cameraImage coming soon 922226-3 SCREW M 5 X 18 X 4341FCT €3.76
137
 photo_cameraImage coming soon 346305-7 GASKET EX2650LH €1.44
138
 photo_cameraImage coming soon 266611-3 SCREW M6X8 EX2650LH €1.44
139
 photo_cameraImage coming soon 346398-4 PLATE X EM4351UH €2.14
140
 photo_cameraImage coming soon 135638-3 CHECK PLATE X EM4350RH €5.45
141
 photo_cameraImage coming soon 922226-3 SCREW M 5 X 18 X 4341FCT €3.76
143
 photo_cameraImage coming soon 168876-2 FUEL TUBE X EM4350RH €19.70
144
 photo_cameraImage coming soon 412129-4 TUBE 3-105 X EM4350RH €2.03
145
 photo_cameraImage coming soon 163518-3 FUEL FILTER EX2650LH €5.28
146
 photo_cameraImage coming soon 282020-8 HOSE CLAMP EM2651LH/EBH251L/ €1.44
148
 photo_cameraImage coming soon 123632-7 CABLE STARTING HANDLE €25.87
149
 photo_cameraImage coming soon 126524-9 COMPLETE START-UP X EM4350RH €115.05
150
 photo_cameraImage coming soon SG00000029 SCREW 6X12 €93.98
151
 photo_cameraImage coming soon 455433-8 CAM X EM4350RH €93.98
152
 photo_cameraImage coming soon SG00000028 REEL FOR ROPE EM4350RH €25.87
153
 photo_cameraImage coming soon SG00000014 STARTER SPRING EM4351UH €19.54
154
 photo_cameraImage coming soon 454522-6 STARTER KNOB EA3600F €3.13
156
 photo_cameraImage coming soon SG00000031 STARTER ROPE X EM4350RH €2.48
157
 photo_cameraImage coming soon 455423-1 STARTER CARTER X EM4350RH €69.84
158
 Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T 922233-6 Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T €1.32
159
 photo_cameraImage coming soon 424673-9 PROTECTION X EM4350RH €6.94
160
 photo_cameraImage coming soon 126116-4 ROCKER X EM4351UH €5.28
161
 photo_cameraImage coming soon 331990-9 CUP X EM4351UH €1.44
162
 photo_cameraImage coming soon 331991-7 LOCKING X EM4351UH €2.14
163
 photo_cameraImage coming soon 234238-7 COMPRESSION SPRING 11 €2.77
164
 photo_cameraImage coming soon 256200-2 PIN 5 PER 2704 €1.46
165
 photo_cameraImage coming soon 256866-8 ROD 2.5 EBH341U €1.44
166
 photo_cameraImage coming soon 268238-5 PIN 5 EBH341U €1.44
167
 photo_cameraImage coming soon 313236-5 CAM X EM4351UH ROCKER €2.77
168
 photo_cameraImage coming soon 256186-0 PIN 5 MS43 ** / ** EM43 €1.44
169
 photo_cameraImage coming soon 126571-0 CAM GEAR €33.70
170
 photo_cameraImage coming soon 261127-3 TEFLON WASHER 10 X PW5000CH €1.44
171
 photo_cameraImage coming soon 326575-4 MUFFLER VALVE X EM4351UH €10.18
172
 photo_cameraImage coming soon 326157-2 INTAKE VALVE EM4351UH €6.11
173
 photo_cameraImage coming soon 196667-1 PISTON RINGS €33.70
174
 Piston Pin Circlip for Brushcutter Makita RBC410 233983-1 Piston Pin Circlip for Brushcutter Makita RBC410 €1.55
175
 Piston Set for Brushcutter Dolmar MS-4300.4R 197455-9 Piston Set for Brushcutter Dolmar MS-4300.4R €20.54
176
 photo_cameraImage coming soon 268285-6 PISTON PIN EM4351UH €3.22
177
 photo_cameraImage coming soon 213685-5 OIL SEAL 12 X EM4351UH €11.40
178
 Crankshaft Ass'y for Brushcutter Dolmar MS-4300.4R 126121-1 Crankshaft Ass'y for Brushcutter Dolmar MS-4300.4R €62.99
179
 photo_cameraImage coming soon 254040-2 WOODRUFF KEY 3 EM2651LH/EBH341 €4.02
180
 Flat Washer 26 for Petrol Brushcutter Dolmar MS335.4C - MS-4300.4R 267425-3 Flat Washer 26 for Petrol Brushcutter Dolmar MS335.4C - MS-4300.4R €1.60
181
 Oil Seal 12 for Brushcutter Dolmar MS335.4C 213537-0 Oil Seal 12 for Brushcutter Dolmar MS335.4C €5.29
182
 photo_cameraImage coming soon 266086-6 SCREW M5X16 WITH BRAKES THREADS €1.44
183
 photo_cameraImage coming soon 318856-0 SIDE COVER EM4351UH €3.22
184
 photo_cameraImage coming soon 162334-0 COMPLETE GASKET. X EM4351UH €2.14
185
 photo_cameraImage coming soon 632D66-2 WIRING CABLE X EM4350RH €2.46
186
 photo_cameraImage coming soon 632D67-0 WIRING CABLE X EM4350RH €2.46
187
 photo_cameraImage coming soon 444021-6 GROMMET EX2650LH €1.44
188
 Makita EM4351UH Ignition Coil 168714-8 Makita EM4351UH Ignition Coil €59.71
189
 photo_cameraImage coming soon 266602-4 SCREW M4X20 EX2650LH €1.44
190
 photo_cameraImage coming soon 126122-9 FLYWHEEL X EM4351UH €36.83
191
 photo_cameraImage coming soon 264039-9 FLANGED NUT EX2650LH €1.44
192
 photo_cameraImage coming soon 125728-0 TANK CAP CPL EX2650LH €22.18
195
 photo_cameraImage coming soon 424081-4 GROMMET X DBC260U €1.44
198
 Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T 922233-6 Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T €1.32
199
 photo_cameraImage coming soon 261152-4 WASHER 8 €1.44
200
 photo_cameraImage coming soon 331988-6 SPACER X EM4351UH €2.14
201
 photo_cameraImage coming soon 455308-1 FUEL TANK EM4350RH €19.70
202
 photo_cameraImage coming soon 922332-4 SCREW M6X20 X SC161 €1.44
203
 photo_cameraImage coming soon 319180-4 CLUTCH HOUSING X EM4350RH €56.30
204
 photo_cameraImage coming soon 266597-1 SCREW M8 €3.95
205
 photo_cameraImage coming soon 267832-0 WAVY WASHER 10 EBH341U €1.44
206
 photo_cameraImage coming soon 313238-1 CLUTCH ARM X EM4351UH €7.81
207
 photo_cameraImage coming soon 232290-9 TENSION SPRING 5 X EM4351UH €3.95
208
 photo_cameraImage coming soon 267428-7 WASHER 8 €3.22
209
 photo_cameraImage coming soon 313239-9 CLUTCH SPRING X EM4351UH €11.40
210
 photo_cameraImage coming soon 346576-6 FLYWHEEL PLATE X EM4351UH €2.14
211
 photo_cameraImage coming soon 266461-6 SCREW M5X8 X AT450H €1.44
212
 photo_cameraImage coming soon 453530-4 MUFFLER PROTECTION EM4351UH €4.56
213
 photo_cameraImage coming soon 266760-6 SCREW M5X18 €1.44
214
 photo_cameraImage coming soon 345918-1 CLAMP EBH341U €1.46
288
 photo_cameraImage coming soon 455102-1 PLATE €2.14
289
 photo_cameraImage coming soon 266385-6 SCREW 4x14 GA9020 €1.44
295
 photo_cameraImage coming soon 455317-0 SHEATH X EM4350RH €1.29
296
 photo_cameraImage coming soon 168857-6 CLUTCH DRUM X EM4350RH €15.22
297
 photo_cameraImage coming soon 424659-3 SCREW COVER X EM4350RH €2.87
298
 photo_cameraImage coming soon 168873-8 SCREW €4.69
299
 photo_cameraImage coming soon 922228-9 SCREW M5X18 EBH341U €1.44
300
 photo_cameraImage coming soon 455307-3 CLUTCH COVER EM4350 €32.68
301
 Makita Power Tools Ext DIN471 Circlip-17 961057-5 Makita Power Tools Ext DIN471 Circlip-17 €1.47
302
 photo_cameraImage coming soon 211338-0 BEARING 6003LLU EBH341U €12.13
303
 photo_cameraImage coming soon 962153-2 RETAINING RING R35 €2.08
304
 photo_cameraImage coming soon 911209-8 SCREW M5X10 €1.29
305
 photo_cameraImage coming soon 455310-4 LOWER COVER X EM4350RH €32.68
306
 photo_cameraImage coming soon 424556-3 FILTER COVER €1.36

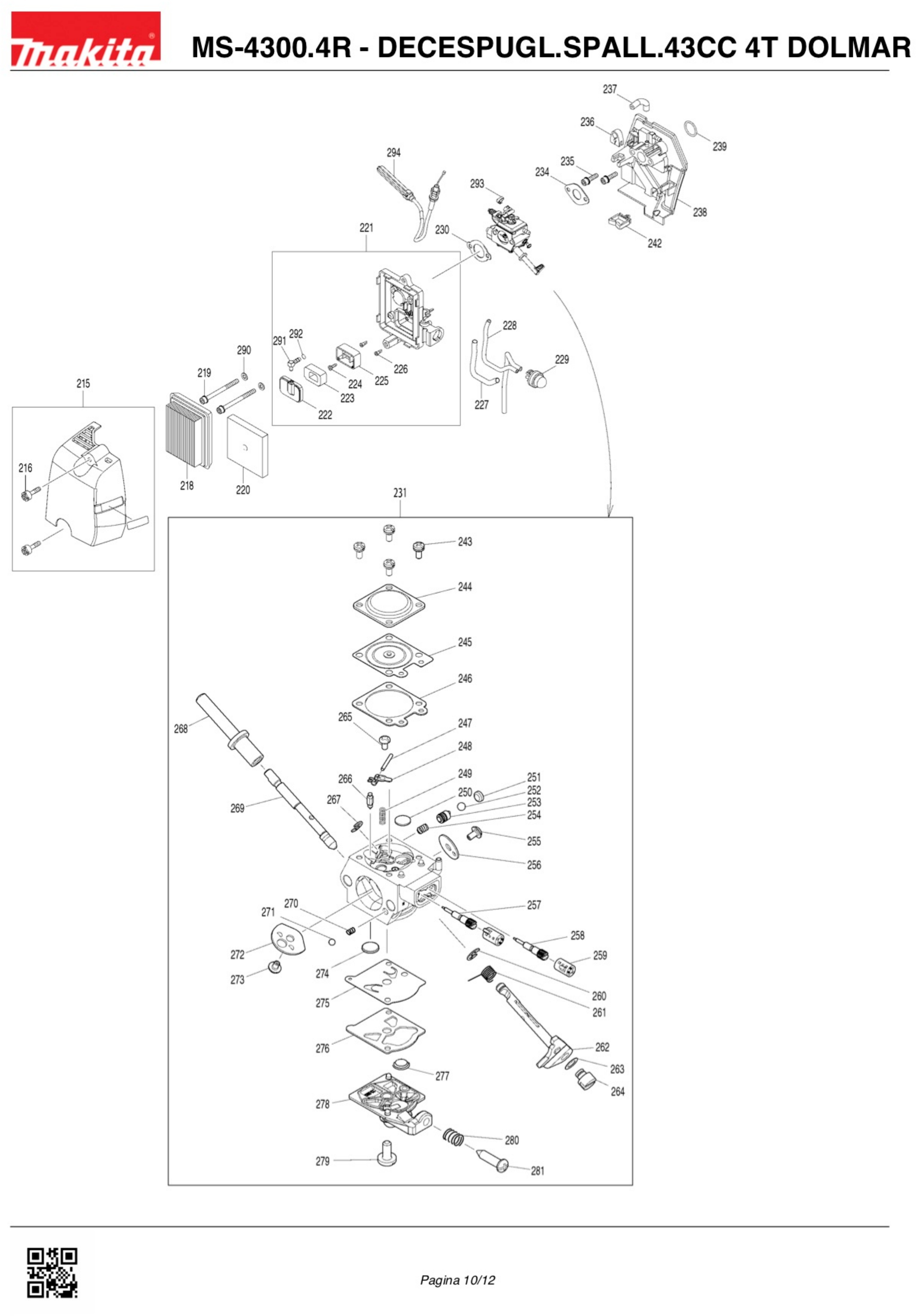

Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
215
 photo_cameraImage coming soon 126523-1 AIR FILTER COVER EM4350RH €11.40
216
 photo_cameraImage coming soon 266743-6 SCREW M5X20 €2.14
218
 photo_cameraImage coming soon 442181-8 AIR FILTER EM4351UH €17.14
219
 photo_cameraImage coming soon 266601-6 SCREW M5X60 €2.14
220
 photo_cameraImage coming soon 443196-8 AIR FILTER X EM4350RH €1.44
221
 photo_cameraImage coming soon 126563-9 AIR FILTER SUPPORT EM4350RH €36.93
222
 photo_cameraImage coming soon 162371-4 SEPARATOR X EM4350RH €7.84
223
 photo_cameraImage coming soon 352020-3 SEPARATOR EX2650LH €6.11
224
 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 266007-8 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 €2.03
225
 photo_cameraImage coming soon 453865-3 SEPARATOR BOX EX2650LH €3.95
226
 photo_cameraImage coming soon 424316-3 VALVE EBH341U €5.38
227
 photo_cameraImage coming soon 454425-4 TUBE 6-100 X EM4351UH €1.44
228
 photo_cameraImage coming soon 422074-5 PIPE 3-120 X EM4351UH €2.14
229
 Gasoline Primer Pump for Chainsaw Makita DCS230T 168398-2 Gasoline Primer Pump for Chainsaw Makita DCS230T €6.24
230
 photo_cameraImage coming soon 442196-5 CARBURETOR GASKET EM4351P01 €1.44
231
 photo_cameraImage coming soon 126561-3 CARBURETOR X EM4350RH €93.98
234
 photo_cameraImage coming soon 442197-3 CARBURETOR GASKET EM4351P01 €1.44
235
 photo_cameraImage coming soon 266814-9 SCREW M5X20 RBC2510 €1.44
236
 photo_cameraImage coming soon 424489-2 RUBBER X EM4351UH €1.44
237
 photo_cameraImage coming soon 422080-0 PIPE 3-35 X EM4351UH €1.44
238
 photo_cameraImage coming soon 142851-6 INSULATING PLATE X EM4350RH €51.19
239
 photo_cameraImage coming soon 213642-3 RING 18 X EM4351UH €1.44
242
 photo_cameraImage coming soon 451825-9 CLAMP EX2650LH €1.44
243
 photo_cameraImage coming soon WJ00096589 PS32CTLC SCREW €2.77
244
 Cover-Metering Diaphragm for Chainsaw Makita DCS230T WJ00021158 Cover-Metering Diaphragm for Chainsaw Makita DCS230T €3.04
245
 Makita Diaphragm for EM2651UH 168620-7 Makita Diaphragm for EM2651UH €23.70
246
 photo_cameraImage coming soon 442183-4 GASKET X RBL250-RBC225-25 €5.28
247
 photo_cameraImage coming soon WJ00014477 PIN DCS230T €2.77
248
 photo_cameraImage coming soon WJ00016648 LEVER DCS230T €3.22
249
 photo_cameraImage coming soon WJ00983248 SPRING X EM4350RH €1.44
250
 photo_cameraImage coming soon 5416036160 FILTER X EM4350RH €2.14
251
 photo_cameraImage coming soon WJ00088229 PS32CTLC CAP €1.44
252
 photo_cameraImage coming soon 5806084330 BALL X EM4350RH €2.77
253
 photo_cameraImage coming soon WJ00160593 PISTON X EM4350RH €13.07
254
 photo_cameraImage coming soon WJ00983305 SPRING AT EM4350RH €2.14
255
 photo_cameraImage coming soon WJ00963240 SCREW €1.44
256
 photo_cameraImage coming soon WJ00343562 THROTTLE VALVE EM4350RH €5.28
257
 photo_cameraImage coming soon WJ01023345 SCREW H €6.83
258
 photo_cameraImage coming soon WJ01023344 MINIMUM SCREW X EM4350RH €6.83
259
 photo_cameraImage coming soon WJ00025162 HOOD X EM4350RH €2.14
260
 photo_cameraImage coming soon 257964-1 RETAINING RING E3 EBH341U €4.02
261
 photo_cameraImage coming soon WJ00098494 SPRING - PS32 €2.77
262
 photo_cameraImage coming soon WJ00224392 AIR LEVER SHAFT X EM4350RH €13.07
263
 photo_cameraImage coming soon 413140-9 WASHER EBH341U €2.18
264
 photo_cameraImage coming soon 5246001210 SCREW ADJUSTMENT X DBC260U €3.95
265
 photo_cameraImage coming soon 5016004110 SCREW €2.77
266
 photo_cameraImage coming soon WJ00008282 VALVE DCS230T €10.18
267
 photo_cameraImage coming soon WJ00001673 RING RETAINING PS32CTLC €1.44
268
 photo_cameraImage coming soon WJ00183585 AIR LEVER X EM4350RH €5.28
269
 photo_cameraImage coming soon WJ00044456 AIR LEVER SHAFT X EM4350RH €8.75
270
 photo_cameraImage coming soon 5806122210 SPRING €2.14
271
 photo_cameraImage coming soon 5806122220 BALL X EM4350RH €2.14
272
 photo_cameraImage coming soon WJ00343175 AIR VALVE X EM4350RH €3.54
273
 photo_cameraImage coming soon WJ00096475 75 SCREW PS32CTLC €1.44
274
 photo_cameraImage coming soon 352010-6 EBH252L FILTER €2.82
275
 Upper Carburator Diaphram Gasket for Chainsaw Dolmar PS32CTLC WJ00009589 Upper Carburator Diaphram Gasket for Chainsaw Dolmar PS32CTLC €20.00
277
 photo_cameraImage coming soon 234183-6 SPRING 65-9 EBH341U €4.02
278
 photo_cameraImage coming soon WJ00213867 PUMP COVER X EM4350RH €9.12
279
 photo_cameraImage coming soon WJ00096166 PS32CTLC SCREW €2.77
280
 photo_cameraImage coming soon 5416036120 SPRING X EM4350RH €1.92
281
 photo_cameraImage coming soon 5416036130 ADJUSTING SCREW X EM4350RH €2.46
290
 photo_cameraImage coming soon 267485-5 WASHER 5 €1.44
291
 photo_cameraImage coming soon 168719-8 JOINT X EM4350RH €3.54
292
 photo_cameraImage coming soon 213021-5 RETAINING RING 5 X LS1013 €2.17
293
 photo_cameraImage coming soon 286284-6 PLUG X MS251.4 €2.87
294
 photo_cameraImage coming soon 168872-0 CABLE X EM4350RH €10.13

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Dolmar Spare Parts for Backpack Bruschcutter MS-4300.4R

DOLMAR service center and original spare parts Worldwide Distributor

. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Backpack Bruschcutter 43CC 4T DOLMAR MS-4300.4R.

In the following table, look for the model of the Brush Cutter and the respective parts of the code.
Dolmar MS-4300.4R

BACKPACK BRUSHCUTTER 43CC 4T DOLMAR MS-4300.4R pag.1
# Part Num. Description
1 166137-4 BAG X MS4300.4R
2 126514-2 HARNESS X MS4300.4R
3 165752-1 FRAME X EM4350RH
4 455305-7 SUPPORT SPRING EM4350RH
5 922228-9 SCREW M5X18 EBH341U
6 234346-4 COMPRESSION SPRING 17
7 455306-5 SUPPORT SPRING B
8 319181-2 SUPPORT X EM4350RH
9 922228-9 SCREW M5X18 EBH341U
10 922312-0 BOLT M6 X 12
11 346816-2 BEARING CASE X EM4350RH
12 211220-3 BEARING 6202ZZ
13 941251-5 FLAT WASHER 10
14 921541-2 HEXAGONAL BOLT M10X25
BACKPACK BRUSHCUTTER 43CC 4T DOLMAR MS-4300.4R pag.2
15 417764-3 SUPPORT 10-33 X EM4350RH
16 126510-0 FLEXIBLE SHAFT X EM4350RH
17 196897-4 COMPLETE HANDLE X EM4350RH
18 922244-1 SCREW M5X25
19 455316-2 COVER X EM4350RH
20 346468-9 CLAMP 33 BUX360Z
21 455315-4 HARNESS X EM4350RH
22 346817-0 FLANGE 28 X EM4350RH
23 424646-2 TUBE SUPPORT COVER X EM4350RH
24 319182-0 TUBE SUPPORT EM4350RH
25 326436-8 SPINDLE X EM4350RH
26 211148-5 BEARING 6001LLB X GD0800C
27 961052-5 RETAINER RING S12
28 961108-4 RETAINER RING S-28
29 922248-3 SCREW M5X28
30 922352-8 SCREW M6X30
31 922212-4 SCREW M5X12
32 326447-3 INTERNAL FLEXIBLE SHAFT
33 455304-9 PROTECTION
34 922228-9 SCREW M5X18 EBH341U
40 443146-3 FELT RING 8 EBH341U
44 142838-8 DRIVE SHAFT X EM4350RH
45 326574-6 DRIVE SHAFT EM4350RH
46 413143-3 WASHER MS335.4C
47 452259-9 PROTECTION EBH341U
48 266326-2 SCREW 4X18 X MT601
49 347050-7 BLADE
50 135753-3 LOWER PROTECTION
51 346072-4 BASE SUPPORT PROTECTION EBH341U
52 451090-0 PROTECTION SUPPORT EBH341U
53 266579-3 SCREW M6X30 MS335.4C
54 266865-2 SCREW M5X14
55 123835-3 GEAR BOX ASSEMBLY
56 213459-4 GASKET 32 X HR3850B
57 187644-4 GEAR CASE EM4350RH
58 210059-1 BEARING 6000 HR2010
59 211062-5 BEARING 6000 X9524NB
60 961006-2 RETAINER RING S10
61 962105-3 RETAINER RING R26
62 922353-6 SCREW M6 X30 X HM1202C
63 265590-2 SCREW M8X10 EBH341U
64 210081-8 BEARING 629ZZ EBH341U
68 210116-5 BEARING 6201LLU EBH341U
69 962151-6 RETAINER RING R32
70 332114-0 INTERNAL FLANGE X EM4350RH
71 346355-2 EXTERNAL FLANGE
72 168526-9 CUP EBH341U
73 264025-0 NUT M10-17 EBH341U
307 455588-9 HOOK
308 455934-6 CONNECTOR PROTECTION EM4350RH
BACKPACK BRUSHCUTTER 43CC 4T DOLMAR MS-4300.4R pag.3
32 126512-6 CONTROL LEVER EM4350RH
81 266130-9 SCREW 3X16 X 6203/13 / 6313DW
82 451595-0 SWITCH COVER MS335.4C
83 451594-2 SWITCH LEVER MS335.4C
84 232251-9 PLATE SPRING EBH341U
85 188831-8 CONTROLS LEVER CASE MS335.4C
86 346249-1 CLAMP 28 MS335.4C
87 922218-2 SCREW M5X14 EBH341U
88 451593-4 LOCKING LEVER MS335.4C
89 233541-3 TORSION SPRING 7 EBH341U
90 168871-2 THROTTLE CABLE X EM4350RH
91 233540-5 TORSION SPRING 11 EBH341U
92 451592-6 THROTTLE LEVER MS335.4C
93 632D64-6 WIRING CABLE X EM4350RH
94 632D65-4 WIRING CABLE X EM4350RH
95 455311-2 SHEATH X EM4350RH
96 266326-2 SCREW 4X18 X MT601
BACKPACK BRUSHCUTTER 43CC 4T DOLMAR MS-4300.4R pag.4
101 922233-6 HEX SOCKET HD BOLT M5X20 X DCS230T
102 424302-4 SPARK PLUG CAP EH7500S
103 455108-9 CYLINDER COVER RED
104 922233-6 HEX SOCKET HD BOLT M5X20 X DCS230T
105 453536-2 MUFFLER COVER X EM4351UH
106 265995-6 SCREW M4X18 X 6408 / 6221DW
107 922332-4 SCREW M6X20 X SC161
108 168715-6 MUFFLER X EM4351UH
109 346574-0 GASKET FOR EXHAUST EM4351UH
110 331987-8 SPACER X EM4351UH
111 922226-3 SCREW M 5 X 18 X 4341FCT
112 318850-2 HEAD COVER EM4351UH
113 422091-5 TUBE 5-160 EM4351UH
114 454424-6 HOSE X EM4351UH
115 453529-9 COVER INT. HEAD EM4351UH
116 162335-8 HEAD GASKET EM4351UH
117 324891-8 SPARK PLUG CAP SPRING EBH341
118 0650109950 SPARK PLUG CMR6A X MS251.A
119 422090-7 TUBE 3-85 X EM4351UH
120 452049-0 SPACER EX2650LH
121 197493-1 CYLINDER X EM4350RH
122 424200-2 SPACER EBH341U
123 424201-0 CONTROL VALVE EBH341U
124 922342-1 SCREW M6X25 EX2650LH
125 422099-9 BREATHER TUBE EX2650LH
126 282020-8 HOSE EBH341U
127 424301-6 OIL TUBE EX2650LH
129 162337-4 GASKET OIL COVER EM4351U
130 266760-6 SCREW M5X18
131 452047-4 OIL TANK CAP X BHX2501
132 424343-0 GASKET X BHX2501
133 453538-8 OIL TUBE X EM4351UH
134 162338-2 GASKET EM4351UH
135 318854-4 OIL CUP EM4351UH
136 922226-3 SCREW M 5 X 18 X 4341FCT
137 346305-7 GASKET EX2650LH
138 266611-3 SCREW M6X8 EX2650LH
139 346398-4 PLATE X EM4351UH
140 135638-3 CHECK PLATE X EM4350RH
141 922226-3 SCREW M 5 X 18 X 4341FCT
143 168876-2 FUEL TUBE X EM4350RH
144 412129-4 TUBE 3-105 X EM4350RH
145 163518-3 PETROL FILTER EX2650LH
146 282020-8 HOSE EBH341U
148 123632-7 CABLE STARTING HANDLE
149 126524-9 COMPLETE START-UP X EM4350RH
150 SG00000029 SCREW 6X12
151 455433-8 CAM X EM4350RH
152 SG00000028 REEL FOR ROPE EM4350RH
153 SG00000014 STARTER SPRING EM4351UH
154 454522-6 STARTER KNOB EA3600F
156 SG00000031 STARTER ROPE X EM4350RH
157 455423-1 STARTER CARTER X EM4350RH
158 922233-6 SCREW M5 X 20 X DCS230T
159 424673-9 PROTECTION X EM4350RH
160 126116-4 ROCKER X EM4351UH
161 331990-9 CUP X EM4351UH
162 331991-7 LOCKING X EM4351UH
163 234238-7 COMPRESSION SPRING 11
164 256200-2 BRUSH 5 FOR 2704
165 256866-8 PIN 2.5 EBH341U
166 268238-5 PIN 5 EBH341U
167 313236-5 CAM X EM4351UH ROCKER
168 256186-0 PIN 5 MS43 ** / EM43 **
169 126571-0 CAM GEAR
170 261127-3 TEFLON WASHER 10 X PW5000CH
171 326575-4 MUFFLER VALVE X EM4351UH
172 326157-2 INTAKE VALVE EM4351UH
173 196667-1 PISTON RINGS
174 233983-1 CIRCLIP EBH341
175 197455-9 PISTON SET
176 268285-6 PISTON PIN EM4351UH
177 213685-5 OIL SEAL 12 X EM4351UH
178 126121-1 CRANKSHAFT X EM4351UH
179 254040-2 KEY 3 EBH341U
180 267425-3 WASHER 26 EBH341U
181 213537-0 OIL SEAL 12 EBH341U
182 266086-6 BOLT M5X16 JR3020
183 318856-0 SIDE COVER EM4351UH
184 162334-0 COMPLETE GASKET. X EM4351UH
185 632D66-2 WIRING CABLE X EM4350RH
186 632D67-0 WIRING CABLE X EM4350RH
187 444021-6 TUBE EX2650LH
188 168714-8 COIL X EM4351UH
189 266602-4 SCREW M4X20 EX2650LH
190 126122-9 FLYWHEEL X EM4351UH
191 264039-9 FLANGED NUT EX2650LH
192 125728-0 TANK CAP, EX2650LH
195 424081-4 GROMMET X DBC260U
198 922233-6 SCREW M5 X 20 X DCS230T
199 261152-4 WASHER 8
200 331988-6 SPACER X EM4351UH
201 455308-1 FUEL TANK EM4350RH
202 922332-4 SCREW M6X20 X SC161
203 319180-4 CLUTCH HOUSING X EM4350RH
204 266597-1 SCREW M8
205 267832-0 WAVY WASHER 10 EBH341U
206 313238-1 CLUTCH ARM X EM4351UH
207 232290-9 TENSION SPRING 5 X EM4351UH
208 267428-7 WASHER 8
209 313239-9 CLUTCH SPRING X EM4351UH
210 346576-6 FLYWHEEL PLATE X EM4351UH
211 266461-6 SCREW M5X8 X AT450H
212 453530-4 MUFFLER PROTECTION EM4351UH
213 266760-6 SCREW M5X18
214 345918-1 HOSE EBH341U
288 455102-1 PLATE
289 266385-6 SCREW 4X14 FOR GA9020
295 455317-0 SHEATH X EM4350RH
296 168857-6 CLUTCH DRUM X EM4350RH
297 424659-3 SCREW COVER X EM4350RH
298 168873-8 SCREW
299 922228-9 SCREW M5X18 EBH341U
300 455307-3 CLUTCH COVER EM4350
301 961057-5 RING RING S17
302 211338-0 BEARING 6003LLU EBH341U
303 962153-2 LOCKING RING R35
304 911209-8 SCREW M5X10
305 455310-4 LOWER COVER X EM4350RH
306 424556-3 FILTER COVER
BACKPACK BRUSHCUTTER 43CC 4T DOLMAR MS-4300.4R pag.5
215 126523-1 AIR FILTER COVER EM4350RH
216 266743-6 SCREW M5X20
218 442181-8 AIR FILTER EM4351UH
219 266601-6 SCREW M5X60
220 443196-8 AIR FILTER X EM4350RH
221 126563-9 AIR FILTER SUPPORT EM4350RH
222 162371-4 SEPARATOR X EM4350RH
223 352020-3 SEPARATOR EX2650LH
224 266007-8 SCREW M3 X10 HP2030
225 453865-3 SEPARATOR BOX EX2650LH
226 424316-3 CHECK VALVE EBH341U
227 454425-4 TUBE 6-100 X EM4351UH
228 422074-5 TUBE 3-120 X EM4351UH
229 168398-2 PRIMING PUMP X DCS230T
230 442196-5 CARBURETOR GASKET EM4351P01
231 126561-3 CARBURETOR X EM4350RH
234 442197-3 CARBURETOR GASKET EM4351P01
235 266814-9 SCREW M5X20 RBC2510
236 424489-2 RUBBER X EM4351UH
237 422080-0 TUBE 3-35 X EM4351UH
238 142851-6 INSULATING PLATE X EM4350RH
239 213642-3 RING 18 X EM4351UH
242 451825-9 CLAMP EX2650LH
243 WJ00096589 SCREW PS32CTLC
244 WJ00021158 COVER-METERING DIAPHRAGM X DCS230T
245 168620-7 DIAPHRAGM FOR BHX2501
246 442183-4 GASKET X RBL250-RBC225-25
247 WJ00014477 PIN / DCS230T
248 WJ00016648 LEVER X DCS230T
249 WJ00983248 SPRING X EM4350RH
250 5416036160 FILTER X EM4350RH
251 WJ00088229 CAP PS32CTLC
252 5806084330 BALL X EM4350RH
253 WJ00160593 PISTON X EM4350RH
254 WJ00983305 SPRING AT EM4350RH
255 WJ00963240 SCREW
256 WJ00343562 THROTTLE VALVE EM4350RH
257 WJ01023345 SCREW H
258 WJ01023344 MINIMUM SCREW X EM4350RH
259 WJ00025162 HOOD X EM4350RH
260 257964-1 LOCKING RING E3 EBH341U
261 WJ00098494 SPRING PS32CTLC
262 WJ00224392 AIR LEVER SHAFT X EM4350RH
263 413140-9 WASHER EBH341U
264 5246001210 ADJUSTING SCREW X DBC260U
265 5016004110 SCREW
266 WJ00008282 VALVE X DCS230T
267 WJ00001673 LOCKING RING PS32CTLC
268 WJ00183585 AIR LEVER X EM4350RH
269 WJ00044456 AIR LEVER SHAFT X EM4350RH
270 5806122210 SPRING
271 5806122220 BALL X EM4350RH
272 WJ00343175 AIR VALVE X EM4350RH
273 WJ00096475 SCREW PS32CTLC
274 352010-6 FILTER EBH252L
275 WJ00009589 PUMP DIAPHRAGM PS32CTLC
276 5016004040 GASKET X EM4350RH
277 234183-6 SPRING 65-9 EBH341U
278 WJ00213867 PUMP COVER X EM4350RH
279 WJ00096166 SCREW PS32CTLC
280 5416036120 SPRING X EM4350RH
281 5416036130 ADJUSTING SCREW X EM4350RH
290 267485-5 WASHER 5
291 168719-8 JOINT X EM4350RH
292 213021-5 LOCKING RING 5 X LS1013
293 286284-6 PLUG X MS251.4
294 168872-0 CABLE X EM4350RH
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Dolmar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Dolmar MS-4300.4R
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Dolmar MS-4300.4R

Drawing Dolmar MS-4300.4R

Download (1.31MB)

You might also like

Muffler Gasket for Brushcutter Makita BBC5700
Makita SKU: BB240500
Muffler Gasket for Brushcutter Makita BBC5700
Muffler Gasket for Brushcutter Makita BBC5700 Genuine replacement part Makita, Muffler Gasket for Brushcutters BBC4510 - BBC5700 - BBC5710 - BBK4500 - Dolmar MS4520B - MS4520C. Parts...
AVAILABLE €6.69
Details
Muffler for Brushcutter Makita BBC5700
Makita SKU: BB752350
Muffler for Brushcutter Makita BBC5700
Muffler for Brushcutter Makita BBC5700 Genuine spare part Makita, Muffler for Brushcutters BBC4510 - BBC5700 - BBC5710 - BBK4500 - BBK5700. Part for the following products:...
Out-of-Stock €44.98
Details
Spark Plug Cap for Brushcutter Makita EBH341U
Makita SKU: 424105-6
Spark Plug Cap for Brushcutter Makita EBH341U
Spark Plug Cap for Brushcutter Makita EBH341U Genuine replacement part Makita, Spark Plug Cap for Brushcutters EBH252L - EBH252U - EBH341L - EBH341R - EM4340 - EM4340L - EBH341U. Part for the following products: - EBH252L -...
AVAILABLE €1.62
Details
Lower Flange for Brushcutter Dolmar MS-4300.4R
Makita SKU: 332114-0
Lower Flange for Brushcutter Dolmar MS-4300.4R
Lower Flange for Brushcutter Dolmar MS-4300.4R Genuine replacement part Dolmar, Lower Flange for Brushcutters MS-430.4C - MS-430.4U - MS-4300.4R - MS-4300.4U - MS335.4C - MS335.4U. Part for the following products: -  MS-430.4U -...
on 10 Business Days Approx. €10.70
Details
Gear Case Ass'y for Brushcutter Dolmar MS335.4C
Makita SKU: 123835-3
Gear Case Ass'y for Brushcutter Dolmar MS335.4C
Gear Case Ass'y for Brushcutter Dolmar MS335.4C Genuine replacement part Dolmar, Gear Case Assembly for Brushcutters MS335.4C - MS335.4U - MS-4300.4R - MS-430.4U. Part for the following products: -  MS-4300.4R - BACKPACK BRUSHCUTTER...
Last items in stock €79.05
Details
Cover-Metering Diaphragm for Chainsaw Makita DCS230T
Makita SKU: WJ00021158
Cover-Metering Diaphragm for Chainsaw Makita DCS230T
Cover-Metering Diaphragm for Chainsaw Makita DCS230T Genuine part Makita, Cover-Metering Diaphragm for Chainsaws DCS230T - DCS231T - DCS232T - Dolmar PS220TH - PS221TH - PS222TH. Part for the following products: -  DCS231T - CHAINSAW...
on 7/10 Business Days Approx €3.04
Details
Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T
Makita SKU: 922233-6
Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T
Hex Socket HD Bolt M5x20 for Chainsaw Makita DCS230T Genuine part Makita, Hex Socket HD Bolt M5x20, for Chainsaws DCS230T - DCS231T - DCS232T - Dolmar PS220TH - PS221TH - PS222TH. Part for the following products: -  DCS231T - CHAINSAW...
on 7/10 Business Days Approx €1.32
Details
Oil Seal 12 for Brushcutter Dolmar MS335.4C
Makita SKU: 213537-0
Oil Seal 12 for Brushcutter Dolmar MS335.4C
Oil Seal 12 for Brushcutter Dolmar MS335.4C Genuine replacement part Dolmar, Oil Seal 12 for Brushcutters MS335.4C - MS335.4U - MS-4300.4R - MS-430.4U. Part for the following products: -  MS-430.4U - BRUSHCUTTER 43CC 4T DOLMAR -...
Last items in stock €5.29
Details
Crankshaft Ass'y for Brushcutter Dolmar MS-4300.4R
Makita SKU: 126121-1
Crankshaft Ass'y for Brushcutter Dolmar MS-4300.4R
Crankshaft Ass'y for Brushcutter Dolmar MS-4300.4R Genuine replacement part Dolmar, Crankshaft Ass'y for Brushcutters MS-430.4U - MS-4300.4R - MS-430.4C - MS335.4U. Part for the following products: -  MS-430.4U - BRUSHCUTTER 43CC 4T...
on 10 Business Days Approx. €62.99
Details
Piston Set for Brushcutter Dolmar MS-4300.4R
Makita SKU: 197455-9
Piston Set for Brushcutter Dolmar MS-4300.4R
Piston Set for Brushcutter Dolmar MS-4300.4R Genuine replacement part Dolmar, Piston Set for Brushcutters MS-430.4U - MS-4300.4R - MS-430.4C - MS335.4U. Part for the following products: -  MS-430.4U - BRUSHCUTTER 43CC 4T DOLMAR -...
Last items in stock €20.54
Details
Makita EM4351UH Ignition Coil
Makita SKU: 168714-8
Makita EM4351UH Ignition Coil
Makita Ignition Coil for Brushcutter EM4351UH Genuine replacement part Makita, Ignition Coil for Brushcutters MS-4300.4R - MS-430.4U - EM4350LH - EM4350RH. Part for the following products: - MS-4300.4R - BACKPACK...
AVAILABLE €59.71
Details
Comments (0)
