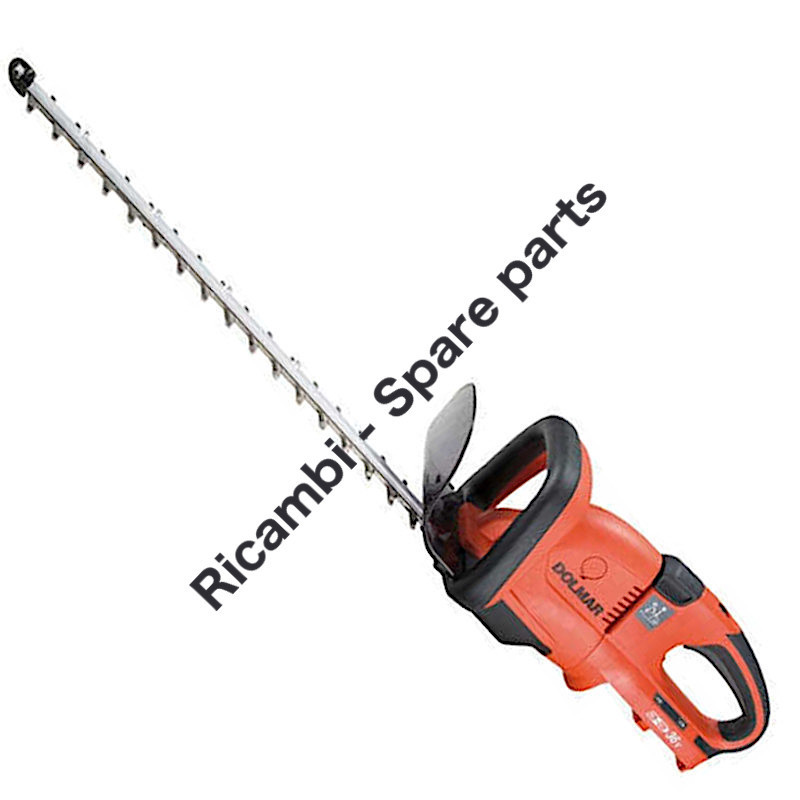

DOLMAR Cordless Hedge Trimmer AH3756 Spare Parts
Fix Your DOLMAR AH3756 CORDLESS HEDGE TRIMMER. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.
In the following table, look for the model of Chainsaw and the respective parts of the code.
| DOLMAR CORDLESS HEDGE TRIMMER AH3756 Pag.1 |
| # |
Part Num. |
Description |
Specification / Notes |
| 1 |
660265995 |
TAPPING SCREW |
4X18 |
| 12 |
660452164 |
COVER |
|
| 13 |
660455093 |
LOCK-OFF-LEVER |
|
| 14 |
660455091 |
SWITCH LEVER |
A |
| 15 |
650730-9 |
SWITCH |
TG72BD-6 |
| 16 |
660187881 |
HANDLE, SET |
INC. 16 |
| 16 |
263005-3 |
RUBBER PIN |
6 |
| 16 |
803N80-7 |
INDICATION LABEL |
|
| 17 |
688163-8 |
LINE FILTER |
|
| 18 |
688165-4 |
LINE FILTER |
|
| 19 |
660644808 |
TERMINAL |
|
| 10 |
271427-3 |
DIAL |
28 |
| 11 |
255058-6 |
RIVET |
2 |
| 12 |
233002-3 |
COMPRESSION SPRING |
3 |
| 13 |
233117-6 |
COMPRESSION SPRING |
6 |
| 14 |
660452162 |
LOCK LEVER |
|
| 15 |
660455092 |
SLIDER |
|
| 16 |
660187881 |
HANDLE, SET |
INC. 6 |
| 16 |
263005-3 |
RUBBER PIN |
4 |
| 16 |
803N80-7 |
INDICATION LABEL |
|
| 17 |
265995-6 |
TAPPING SCREW |
4X18 |
| 18 |
815P93-8 |
NAME PLATE |
AH-3756 |
| 19 |
452146-2 |
HOLDER CAP COVER |
|
| 20 |
643941-3 |
BRUSH HOLDER CAP |
|
| 21 |
660194928 |
CARBON BRUSH |
2 PCS/SET (CB-442) |
| 22 |
265995-6 |
TAPPING SCREW |
4X18 |
| 23 |
660187880 |
HOUSING SET |
AH-3756 INC. 29 |
| 23 |
263025-7 |
RUBBER PIN |
4 |
| 24 |
265995-6 |
TAPPING SCREW |
4X18 |
| 25 |
660644511 |
BRUSH HOLDER |
|
| 26 |
644512-9 |
BRUSH HOLDER |
|
| 27 |
620274-3 |
CONTROLLER |
|
| 28 |
650730-9 |
SWITCH |
TG72BD-6 |
| 29 |
660187880 |
HOUSING SET |
AH-3756 INC. 23 |
| 29 |
660263025 |
RUBBER PIN |
4 |
| 30 |
638020-0 |
YOKE UNIT |
|
| 31 |
211022-7 |
BALL BEARING |
607ZZ |
| 32 |
519261-6 |
ARMATURE ASSY. |
36V INC. 31,33,34 |
| 33 |
660240045 |
FAN |
55 |
| 34 |
211062-5 |
BALL BEARING |
6000 2Z |
| 35 |
140604-7 |
GEAR HOUSING CPL |
|
| 35 |
263002-9 |
RUBBER PIN |
4 |
| 36 |
265999-8 |
TAPPING SCREW |
4X25 |
| 37 |
660452161 |
SWITCH LEVER |
B |
| 38 |
660452158 |
FRONT GRIP |
|
| 39 |
452147-0 |
PROTECTOR |
|
| 40 |
265995-6 |
TAPPING SCREW |
4X18 |
| 41 |
443142-1 |
DUST GUARD |
|
| 42 |
660211032 |
BALL BEARING |
608ZZ |
| 43 |
253835-0 |
FLAT WASHER |
8 |
| 44 |
140536-8 |
GEAR CPL. |
|
| 45 |
660194672 |
SHEAR BLADE CPL. |
|
| 45 |
660252184 |
NUT |
M5-8 |
| 45 |
660257717 |
SLEEVE |
5 |
| 45 |
265181-9 |
TRUSS HEAD SCREW |
M5X20 |
| 45 |
345205-8 |
GUARD |
|
| 45 |
911208-0 |
PAN HEAD SCREW |
M5X10 |
| 45 |
660188605 |
OIL VESSEL SET |
|
| 46 |
346325-1 |
PLATE |
|
| 47 |
253835-0 |
FLAT WASHER |
8 |
| 48 |
660211032 |
BALL BEARING |
608ZZ |
| 49 |
660265182 |
PAN HEAD SCREW |
M5X25 |
| 50 |
660452156 |
UNDER COVER |
|
| 51 |
660911138 |
PAN HEAD SCREW |
M4X20 |
| DOLMAR CORDLESS HEDGE TRIMMER AH3756 Pag.2 |
| Pos. |
Part Num. |
Description |
Specification / Notes |
| A01 |
660450491 |
BLADE COVER |
|
| A02 |
660195594 |
BATTERY CHARGER |
LG-184 |
| A03 |
660122210 |
BATTERY SET |
AP-183 |
| E01 |
891003-3 |
LABEL |
SOUND 93DB |
