DOLMAR

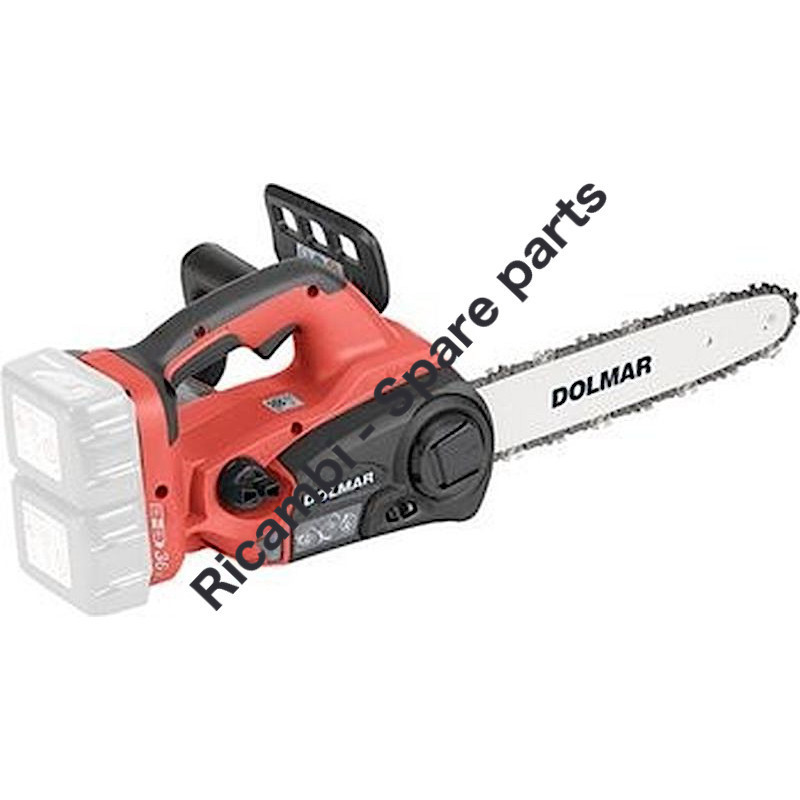

DOLMAR Cordless Chainsaw AS3731 Parts

SKU: DOLMAR AS3731
€2.71
VAT included

DOLMAR Cordless Chainsaw AS3731 Spare Parts

Fix Your DOLMAR AS3731 300MM CORDLESS CHAIN SAW. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.

Makita Cordless Chainsaw AS3731 Parts
  • New
  • Makita Cordless Chainsaw AS3731 Parts
  • DOLMAR Cordless Chainsaw AS3731 Parts Diagram
  • DC18RC
  • DC18RD
DOLMAR

DOLMAR Cordless Chainsaw AS3731 Parts

SKU: DOLMAR AS3731 Condition: New
€2.71
VAT included

DOLMAR Cordless Chainsaw AS3731 Spare Parts

Fix Your DOLMAR AS3731 300MM CORDLESS CHAIN SAW. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.

settings 118 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
118 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

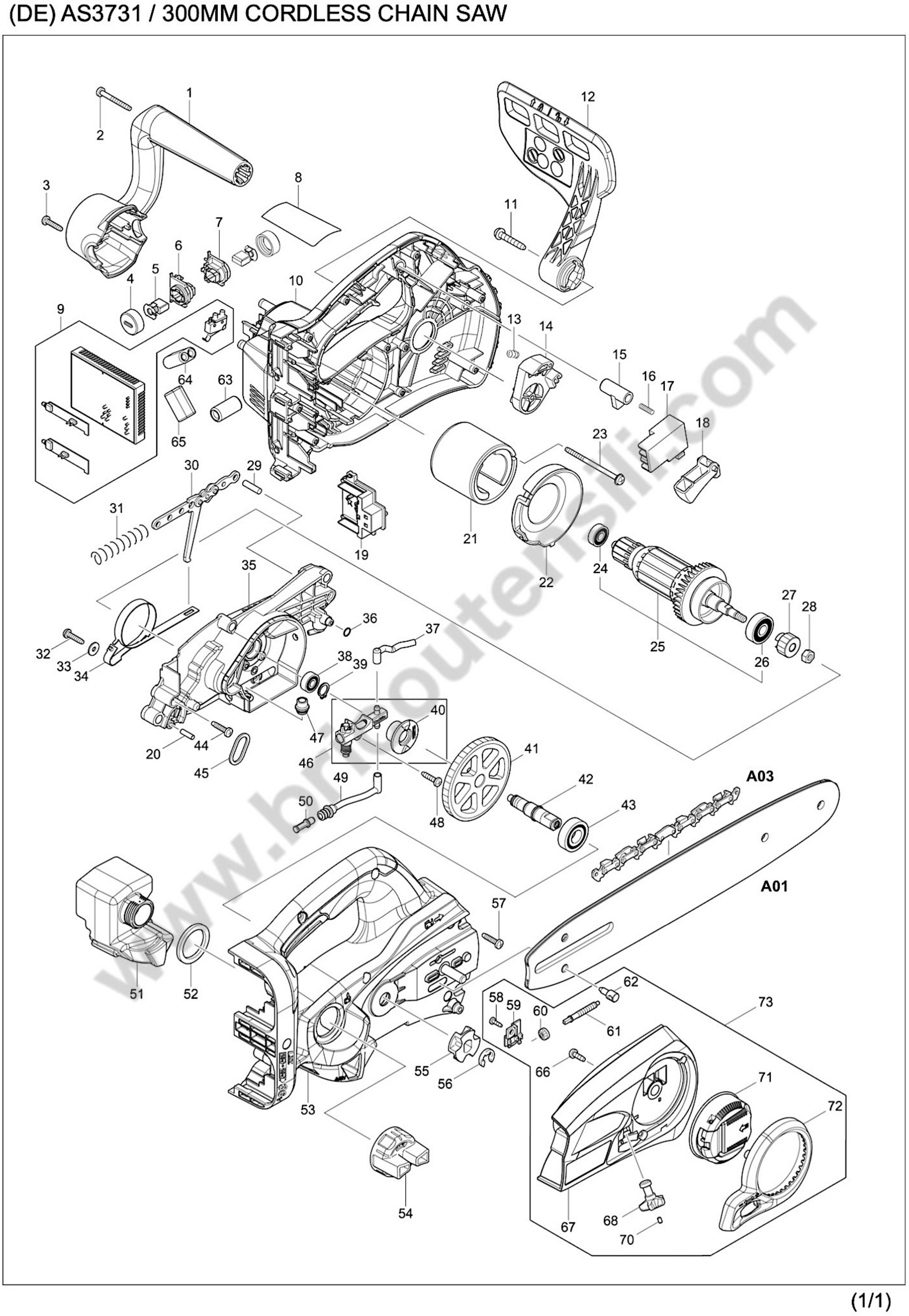

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
A01-1
 photo_cameraImage coming soon 165426-4 GUIDE BAR 12 €19.78
A01
 photo_cameraImage coming soon 165426-4 GUIDE BAR 12 €19.78
A04-1B
 photo_cameraImage coming soon 195584-2 DC18RC FAST CHARGER €162.20
A03
 photo_cameraImage coming soon 196740-7 SAW CHAIN SET €19.78
A04-1D
 photo_cameraImage coming soon 196933-6 DC18RD TWO-PORT FAST CHARGER €300.68
A05-1D
 photo_cameraImage coming soon 197599-5 DC18RC FAST CHARGER €187.21
A05-1B
 photo_cameraImage coming soon 197599-5 DC18RC FAST CHARGER €187.21
A05B
 photo_cameraImage coming soon 197599-5 DC18RC FAST CHARGER €187.21
C10
 Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.32
C10
 photo_cameraImage coming soon 263005-3 PIN RUBBER 6 €1.32
C20
 photo_cameraImage coming soon 414377-1 NOZZLE €2.03
1
 photo_cameraImage coming soon 451972-6 FRONT HANDLE X BUC250 €19.41
2
 photo_cameraImage coming soon 266053-1 PT SCREW 4X35 JN1601 10PK €1.32
3
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.32
4-1
 photo_cameraImage coming soon 643829-7 PLUG BRUSH HOLDER BSS611R €1.32
4
 photo_cameraImage coming soon 643941-3 PLUG BRUSH X 5621RDW €4.44
5
 photo_cameraImage coming soon 194928-3 CHARCOALS CB-442 €4.44
6-1
 photo_cameraImage coming soon 643538-8 BRUSH HOLDER €3.83
6
 photo_cameraImage coming soon 644514-5 BRUSH HOLDER POST. €3.83
7-1
 photo_cameraImage coming soon 643537-0 BRUSH HOLDER €1.98
7
 photo_cameraImage coming soon 644513-7 BRUSH HOLDER ANT. €3.83
9
 photo_cameraImage coming soon 620275-1 REGULATOR €199.03
11
 photo_cameraImage coming soon 266173-1 SCREW PT 5X30 €1.32
12
 photo_cameraImage coming soon 142836-2 SAFE HANDS €19.41
13
 photo_cameraImage coming soon 231298-0 SPRING COMPRES.X HM 1500 €1.32
14
 photo_cameraImage coming soon 451973-4 SUPPORT X PARAMANO BUC250 €8.63
15
 photo_cameraImage coming soon 416178-3 RESET BUTTON X UC3020A €1.32
16
 photo_cameraImage coming soon 233173-6 SPRING FOR COMPR.4 UC3020A €1.32
17
 photo_cameraImage coming soon 650730-9 SWITCH TG72BD-6 €22.06
18
 photo_cameraImage coming soon 450212-9 LEVER SWITCH. X BUC121R €3.11
19
 photo_cameraImage coming soon 644808-8 X-TERMINAL BLS713 BHP451 €5.99
20
 photo_cameraImage coming soon 256184-4 PIN 4 €1.32
21
 photo_cameraImage coming soon 638571-3 STATOR MAGNET PERMAN.BSS61 €12.94
22
 photo_cameraImage coming soon 451970-0 DEFLETTORE X BUC250 €5.16
23
 photo_cameraImage coming soon 266292-3 SCREW 4 X 65 X BJR240 €2.03
24
 Ball Bearing 607 ZZ for Impact Drill Maktek MT601 210062-2 Ball Bearing 607 ZZ for Impact Drill Maktek MT601 €2.03
25
 photo_cameraImage coming soon 519268-2 ARMATURE 36V X BUC250 €70.74
26
 Bearing 629DD FOR Angle Grinder Makita GA4530 211092-6 Bearing 629DD FOR Angle Grinder Makita GA4530 €8.63
27
 photo_cameraImage coming soon 227252-0 GEAR 16 X BUC250 €19.41
28
 Armature Nut M6 for Angle Grinder Makita 9554NB 252186-8 Armature Nut M6 for Angle Grinder Makita 9554NB €1.32
29
 Piston Pin for Stonecutter Makita HK0500 256123-4 Piston Pin for Stonecutter Makita HK0500 €3.11
30
 photo_cameraImage coming soon 158047-9 Linkage CHAIN ​​BRAKE €4.44
31
 photo_cameraImage coming soon 233175-2 SPRING COMPRESSION 9 €2.03
32-1
 photo_cameraImage coming soon 265620-9 TAPPING SCREW 4X18 €1.32
32
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.32
33
 photo_cameraImage coming soon 267195-4 WASHER 4 X DCS230T €1.32
34
 photo_cameraImage coming soon 168321-7 BRAKE BAND €4.44
35
 photo_cameraImage coming soon 142573-8 Bearing housing €24.94
36
 photo_cameraImage coming soon 213039-6 RING 6 X AN901 €1.32
37
 photo_cameraImage coming soon 422058-3 OIL PIPE FITTING X BUC250 €2.65
38
 photo_cameraImage coming soon 210028-2 BEARING 606ZZ €2.03
39
 photo_cameraImage coming soon 961006-2 RETAINING RING S10 €1.32
40
 photo_cameraImage coming soon 221427-3 WORM €6.70
41
 photo_cameraImage coming soon 227251-2 GEAR 73 X BUC250 €11.27
42
 photo_cameraImage coming soon 326417-2 POST €3.83
43
 photo_cameraImage coming soon 210109-2 BEARING 6001DDW X BSS611R €2.65
43-1
 photo_cameraImage coming soon 210163-6 BALL BEARING 6001DDW €2.65
44
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.32
45
 photo_cameraImage coming soon 310593-2 HOOK €2.65
46-2
 Oil Pump for Electric Chainsaw Makita UC3041A 142156-4 Oil Pump for Electric Chainsaw Makita UC3041A €24.94
46-1B
 Oil Pump for Electric Chainsaw Makita UC3041A 142156-4 Oil Pump for Electric Chainsaw Makita UC3041A €24.94
46-1A
 Oil Pump for Electric Chainsaw Makita UC3041A 142156-4 Oil Pump for Electric Chainsaw Makita UC3041A €24.94
46-1D
 Oil Pump for Electric Chainsaw Makita UC3041A 142156-4 Oil Pump for Electric Chainsaw Makita UC3041A €24.94
46A
 photo_cameraImage coming soon 196419-0 OIL PUMP SET €29.01
46B
 photo_cameraImage coming soon 196419-0 OIL PUMP SET €29.01
47
 photo_cameraImage coming soon 424629-2 CABLE €2.65
48
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.32
49
 photo_cameraImage coming soon 422057-5 OIL PIPE X BUC250 €3.11
49-1
 photo_cameraImage coming soon 422313-3 Connector AS3625 Buc250Rd €3.11
50
 photo_cameraImage coming soon 450437-5 FILTER X BUC250R €11.27
51
 photo_cameraImage coming soon 455121-7 OIL TANK €17.02
52
 photo_cameraImage coming soon 424326-0 SPONGE FOR BUC250 €1.32
54-1
 photo_cameraImage coming soon 140L60-3 Housing Set Buc250Rd €6.70
54
 Complete Oil Tank Cap for Cordless Chainsaws Makita DUC252Z-DUC122RFE 158810-0 Complete Oil Tank Cap for Cordless Chainsaws Makita DUC252Z-DUC122RFE €6.70
55
 photo_cameraImage coming soon 221526-1 PINION 3/8 " €3.83
56
 photo_cameraImage coming soon 961014-3 RETAINING RING E-8 €1.32
57
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.32
58
 photo_cameraImage coming soon 266020-6 SCREW M4 X 12 €1.32
59
 photo_cameraImage coming soon 454818-5 PROTECTION €1.32
60
 Tensioner Screw Gear for Chainsaw Makita UC3551A 227496-2 Tensioner Screw Gear for Chainsaw Makita UC3551A €5.99
61
 Tensioner Screw for Chainsaw Makita UC3551A 326372-8 Tensioner Screw for Chainsaw Makita UC3551A €1.32
62
 Tensioner Screw Pin for Chainsaw Makita UC3551A 326310-0 Tensioner Screw Pin for Chainsaw Makita UC3551A €1.32
63
 photo_cameraImage coming soon 688161-2 FILTER LINE €1.32
64
 photo_cameraImage coming soon 688172-7 FILTER LINE €1.32
65
 photo_cameraImage coming soon 688172-7 FILTER LINE €1.32
66
 photo_cameraImage coming soon 266020-6 SCREW M4 X 12 €1.32
67
 photo_cameraImage coming soon 142572-0 SPROCKET COVER COMPLETE €22.05
68
 photo_cameraImage coming soon 142665-3 GEAR €5.16
70
 Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.32
71
 Sprocket Cover Nut Complete for Electric Chainsaw Makita UC3041A 142235-8 Sprocket Cover Nut Complete for Electric Chainsaw Makita UC3041A €10.07
72
 photo_cameraImage coming soon 454819-3 PROTECTION €1.32
74
 Compression Spring 6 for Petrol Chainsaw Makita EA3200S35A 234207-8 Compression Spring 6 for Petrol Chainsaw Makita EA3200S35A €1.32
75
 photo_cameraImage coming soon 452666-6 PLUG OIL PIPE PS32CTLC €1.32
75-1
 photo_cameraImage coming soon 452666-6 PLUG OIL PIPE PS32CTLC €1.32
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

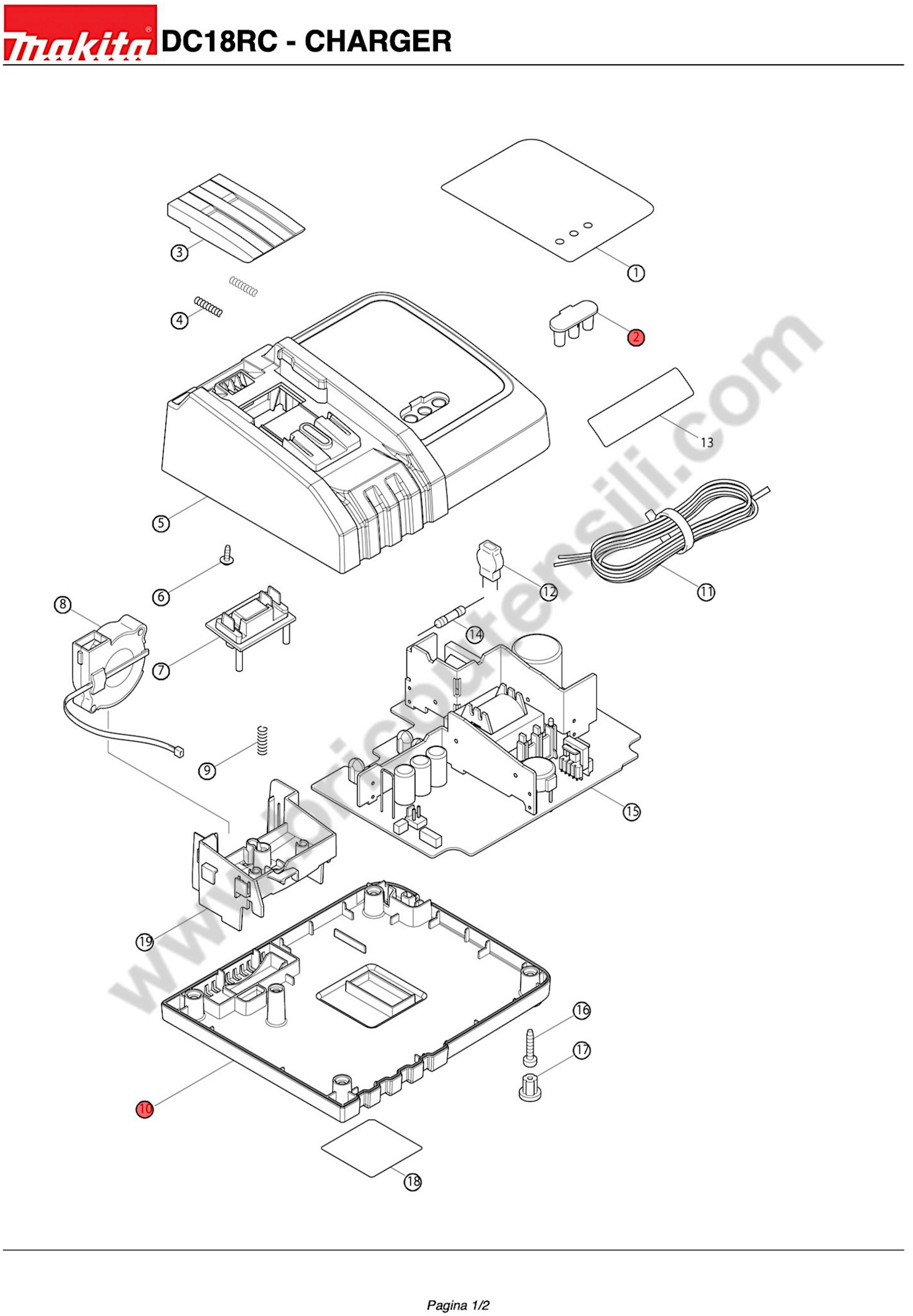

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 452661-6 LED LENS / LED SCREEN €3.83
3
 photo_cameraImage coming soon 419569-7 TERMINAL COVER FOR DC18RA €11.27
4
 photo_cameraImage coming soon 231474-6 COMPRESSION SPRING 4 FOR DC14SC €1.32
5
 photo_cameraImage coming soon 140824-3 HOUSING COMPLETE €29.01
6
 photo_cameraImage coming soon 266278-7 TAPPING SCREW 3X10 FOR DC14SC €1.32
7
 photo_cameraImage coming soon 638987-2 TERMINAL UNIT FOR DC18RC €63.28
8
 photo_cameraImage coming soon 638499-5 FAN FOR DC24SA €24.94
9
 photo_cameraImage coming soon 233194-8 COMPRESSION SPRING FOR UC120DW €1.32
10
 photo_cameraImage coming soon 452860-0 HOUSING BASE FOR DC18RC €41.46
11
 photo_cameraImage coming soon 667985-9 POWER SUPPLY CORD 0.75-2-2.0 €7.67
12
 photo_cameraImage coming soon 647306-1 VARISTOR FOR LG124 €3.33
14
 photo_cameraImage coming soon 652800-0 FUSE €4.44
15
 photo_cameraImage coming soon 620120-0 PRINTED CIRCUIT BOARD FOR DC18RC €143.84
16
 photo_cameraImage coming soon 265B01-9 SCREW 4X20 €2.03
17
 photo_cameraImage coming soon 286255-3 CAP 13 X DC24SA P01 €1.32
19
 photo_cameraImage coming soon 452861-8 FAN BASE FOR DC18RC €33.56
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

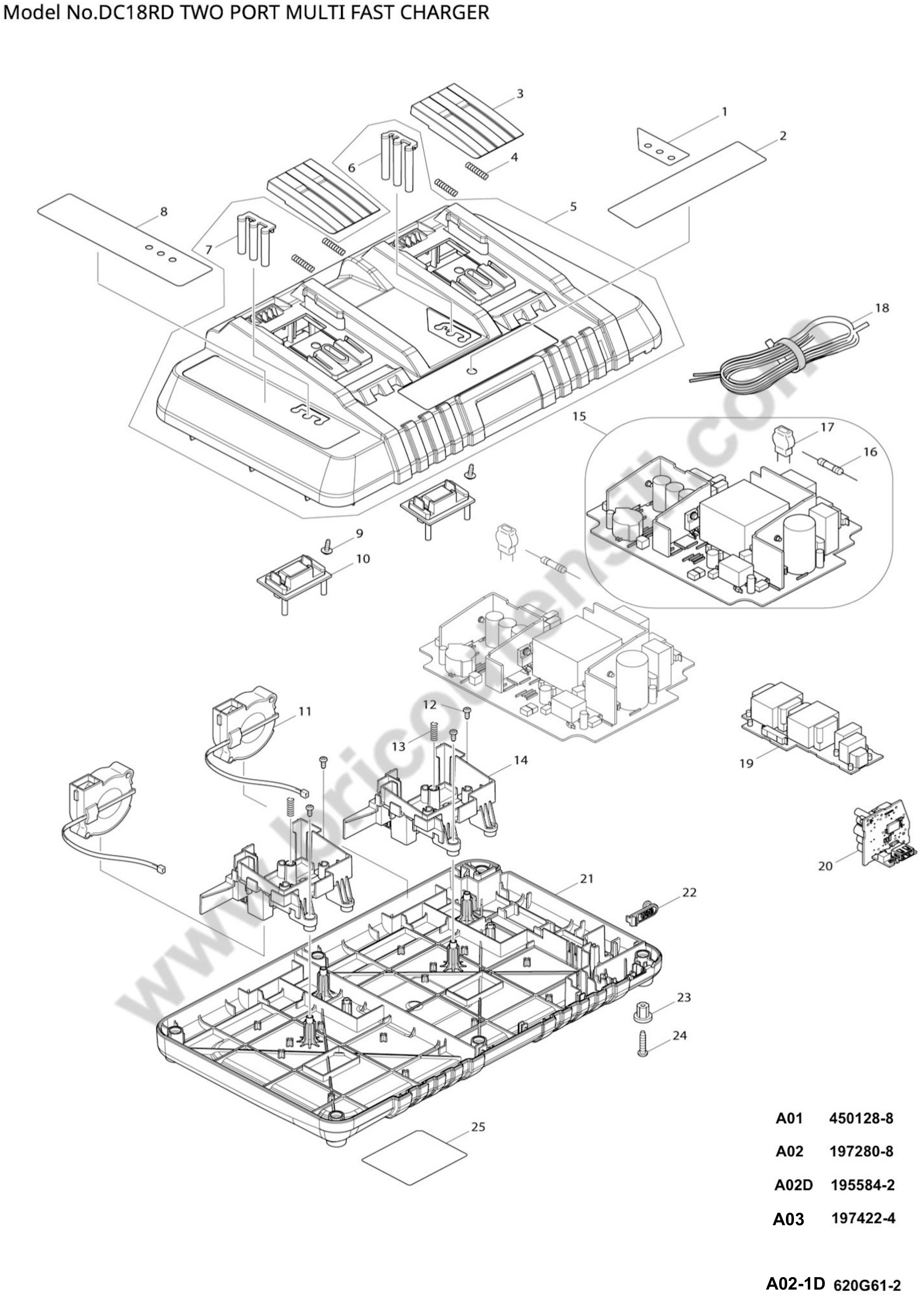

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
A02D
 photo_cameraImage coming soon 195584-2 DC18RC FAST CHARGER €162.20
A02
 photo_cameraImage coming soon 197280-8 BATTERY BL1840B SET €146.96
A03
 photo_cameraImage coming soon 197422-4 197422-4 €147.56
A01
 photo_cameraImage coming soon 450128-8 BATTERY COVER €0.49
A021-D
 photo_cameraImage coming soon 620G61-2 620265-4 €145.44
1
 photo_cameraImage coming soon 804Y51-3 804Y51-3 €11.27
2
 photo_cameraImage coming soon 804Y52-1 Etichetta logo Makita €2.44
3
 photo_cameraImage coming soon 455546-5 455546-5 €29.01
4
 photo_cameraImage coming soon 231474-6 COMPRESSION SPRING 4 FOR DC14SC €1.32
5
 photo_cameraImage coming soon 142845-1 MOTOR HOUSING €159.42
6
 photo_cameraImage coming soon 455402-9 455402-9 €4.44
7
 photo_cameraImage coming soon 455401-1 455401-1 €4.44
8
 photo_cameraImage coming soon 804Y47-4 804Y47-4 €11.27
9
 photo_cameraImage coming soon 266278-7 TAPPING SCREW 3X10 FOR DC14SC €1.32
10
 photo_cameraImage coming soon 632E11-3 CHARGER TERMINAL UNIT DC18RD €63.28
11
 photo_cameraImage coming soon 638499-5 FAN FOR DC24SA €24.94
12
 photo_cameraImage coming soon 266764-8 266764-8 €2.03
13
 photo_cameraImage coming soon 233194-8 COMPRESSION SPRING FOR UC120DW €1.32
14
 photo_cameraImage coming soon 455399-2 455399-2 €24.94
15
 photo_cameraImage coming soon 620120-0 PRINTED CIRCUIT BOARD FOR DC18RC €143.84
16
 photo_cameraImage coming soon 652800-0 FUSE €4.44
17
 photo_cameraImage coming soon 647306-1 VARISTOR FOR LG124 €3.33
18
 photo_cameraImage coming soon 667708-5 667708-5 €11.27
19
 photo_cameraImage coming soon 620324-4 620324-4 €51.56
20
 photo_cameraImage coming soon 620326-0 620326-0 €24.94
020-1
 photo_cameraImage coming soon 620412-7 USB CIRCUIT €29.01
21
 photo_cameraImage coming soon 455398-4 455398-4 €105.73
022-1
 photo_cameraImage coming soon 412817-3 412817-3 €3.83
22
 photo_cameraImage coming soon 455403-7 455403-7 €4.44
23
 photo_cameraImage coming soon 286255-3 CAP 13 X DC24SA P01 €1.32
24
 photo_cameraImage coming soon 266426-8 266426-8 €1.32
25
 photo_cameraImage coming soon 850E35-9 Targhetta €0.00 Not available for order

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

DOLMAR Cordless Chainsaw AS3731 Spare Parts

Fix Your DOLMAR AS3731 300MM CORDLESS CHAIN SAW. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.

In the following table, look for the model of Chainsaw and the respective parts of the code.
Makita AS3731 300MM CORDLESS CHAIN SAW

DOLMAR AS3731 300MM CORDLESS CHAIN SAW PARTS LIST Pag.1
# Part Num. Description I/C E/C No. Close No.
1 451972-6 FRONT HANDLE
2 266053-1 TAPPING SCREW 4X35
3 265995-6 TAPPING SCREW 4X18
4 643941-3 BRUSH HOLDER CAP Z39174
4-1 643829-7 HOLDER CAP O Z39174
5 194928-3 CARBON BRUSH CB-442
6 644514-5 BRUSH HOLDER Z39174
6-1 643538-8 BRUSH HOLDER O Z39174
7 644513-7 BRUSH HOLDER Z39174
7-1 643537-0 BRUSH HOLDER O Z39174
8 815R35-4 AS-3731 NAME PLATE
9 620275-1 CONTROLLER DB934
9-1 620G61-2 CONTROLLER < DB934
10 187883-6 HOUSING SET
C10 263005-3 RUBBER PIN 6
11 266173-1 TAPPING SCREW 5X30
12 142836-2 FRONT HAND GUARD COMPLETE
C10 804P18-7 CAUTION LABEL
13 231298-0 COMPRESSION SPRING 6
14 451973-4 HAND GUARD SUPPORT
15 416178-3 LOCK-OFF BUTTON DA686
15-1 413908-3 LOCK OFF BUTTON < DA686
16 233173-6 COMPRESSION SPRING 4
17 650730-9 SWITCH TG72BD-6
18 450212-9 SWITCH LEVER
19 644808-8 TERMINAL
20 256184-4 PIN 4
21 638571-3 YOKE UNIT
22 451970-0 BAFFLE PLATE
23 266292-3 TAPPING SCREW 4X65
24 210062-2 BALL BEARING 607ZZ
25 519268-2 ARMATURE ASS'Y 36V
26 211092-6 BALL BEARING 629DDW
27 227252-0 SPUR GEAR 16
28 252186-8 HEX. NUT M6
29 256123-4 PIN 5
30 158047-9 LINK PLATE COMPLETE
31 233175-2 COMPRESSION SPRING 9
32 265995-6 TAPPING SCREW 4X18 C1478
32-1 265620-9 TAPPING SCREW FLANGE 4X18 S C1478
33 267195-4 FLAT WASHER 4 C1478
34 168321-7 BRAKE BAND
35 142573-8 BEARING HOUSING COMPLETE
C10 263002-9 RUBBER PIN 4
C20 414377-1 NOZZLE
36 213039-6 O RING 6
37 422058-3 CONNECTOR
38 210028-2 BALL BEARING 606ZZ
39 961006-2 RETAINING RING S-10
40 221427-3 WORM GEAR
41 227251-2 SPUR GEAR 73
42 326417-2 SPINDLE
43 210109-2 BALL BEARING 6001DDW
43-1 210163-6 BALL BEARING 6001DDW B4446
44 265995-6 TAPPING SCREW 4X18 O B4446
45 310593-2 HANGER
46A 196419-0 OIL PUMP SET A5303
46B 196419-0 OIL PUMP SET A5303
46-1A 142156-4 OIL PUMP COMPLETE < A5303 D4444
46-1B 142156-4 OIL PUMP COMPLETE < A5303 D4444
46-1D 142156-4 OIL PUMP COMPLETE D4444
46-2 142156-4 OIL PUMP COMPLETE O D4444
47 424629-2 GROMMET
48 265995-6 TAPPING SCREW 4X18
49 422057-5 CONNECTOR C3896
49-1 422313-3 CONNECTOR S C3896
50 450437-5 FILTER C3896
51 455121-7 OIL TANK
52 424326-0 SPONGE SHEET
53 187883-6 HOUSING SET
C10 263005-3 RUBBER PIN 6
54 158810-0 TANK CAP COMPLETE C6904
54-1 140L60-3 TANK CAP COMPLETE O C6904
55 221526-1 SPROCKET
56 961014-3 STOP RING E-8
57 265995-6 TAPPING SCREW 4X18
58 266020-6 TAPPING SCREW 4X12
59 454818-5 COVER
60 227496-2 STRAIGHT BEVEL GEAR 14
61 326372-8 ADJUST SCREW
62 326310-0 ADJUST PIN
63 688161-2 LINE FILTER
64 688172-7 LINE FILTER
65 688172-7 LINE FILTER
66 266020-6 TAPPING SCREW 4X12
67 142572-0 SPROCKET COVER COMPLETE
68 142665-3 DRIVE GEAR COMPLETE
70 263002-9 RUBBER PIN 4
71 142235-8 NUT COMPLETE
72 454819-3 NUT COVER
73 196780-5 SPROCKET COVER SET
74 234207-8 COMPRESSION SPRING 6 S C3896
75 452666-6 NIPPLE S C3896 DA680
75-1 452666-6 NIPPLE O DA680
A01 165426-4 GUIDE BAR 12 D1788
A01-1 165426-4 GUIDE BAR 12 O D1788
A02 419289-3 CHAIN COVER
A03 196740-7 SAW CHAIN SET
A04B LG184 LG-184 FAST CHARGER SET B2507
A04D LG184X2 LG-184 X2 FAST CHARGER SET B2508
A04-1B 195584-2 DC18RC FAST CHARGER O B2507
A04-1D 196933-6 DC18RD TWO PORT FAST CHARGER O B2508
A05B 197599-5 BATTERY AP-183 SET A5588
A05-1B 197599-5 BATTERY AP-183 SET O A5588 B2506
A05-1D 197599-5 BATTERY AP-183 SET B2506
A05-2B 196015-4 BATTERY BL1830 SET O B2506 B2535
A05-2D 196015-4 BATTERY BL1830 SET O B2506 B2535
A05-3B 197600-6 BATTERY BL1830B SET < B2535 C4176
A05-3D 197600-6 BATTERY BL1830B SET < B2535 C4176
A05-4B 197600-6 BATTERY BL1830B SET O C4176
A05-4D 197600-6 BATTERY BL1830B SET O C4176
A06 197820-2 SPIKE BUMPER SET B2670
E01 891805-7 SOUND 98DB LABEL
E04 817D83-5 CAUTION TAG C1375 D9511
E04-1 8039U0-8 CAUTION TAG < D9511
Dolmar DC18RC - CHARGER Pag.2
# Part Num. Description
2 452661-6  LED LENS / LED SCREEN
3 419569-7  TERMINAL COVER FOR DC18RA
4 231474-6  COMPRESSION SPRING 4 FOR DC14SC
5 140824-3  HOUSING COMPLETE
6 266278-7  TAPPING SCREW 3X10 FOR DC14SC
7 638987-2  TERMINAL UNIT FOR DC18RC
8 638499-5  FAN FOR DC24SA
9 233194-8  COMPRESSION SPRING FOR UC120DW
10 452860-0  HOUSING BASE FOR DC18RC
11 667985-9  POWER SUPPLY CORD 0.75-2-2.0
12 647306-1  VARISTOR FOR LG124
14 652800-0  FUSE
15 620120-0  PRINTED CIRCUIT BOARD FOR DC18RC
16 265B01-9  SCREW 4X20
17 286255-3  CAP 13 FOR DC24SA
19 452861-8  FAN BASE FOR DC18RC
DOLMAR DC18RD TWO PORT MULTI FAST CHARGER Pag.3
# Oart Num. Description
1 804Y51-3 Indication label
2 804Y52-1 Makita logo label
3 455546-5 Terminal cover
4 231474-6 Compression spring 4
5 142845-1 Charger case complete
6 455402-9 Lens B
7 455401-1 Lens A
8 804Y47-4 Charging condition label
9 266278-7 Flange tapping screw 3X10
10 632E11-3 Terminal unit
11 638499-5 Sirocco fan
12 266764-8 Pan head tapping screw 3X8
13 233194-8 Compression spring 4
14 455399-2 Terminal base
15 620120-0 Charging circuit
16 652800-0 Fuse
17 647306-1 Varistor
18 667708-5 Power supply cord
19 620324-4 Filter circuit
20 620326-0 USB circuit
020-1 620412-7 USB circuit
21 455398-4 Charger case cover
22 455403-7 USB cover
022-1 412817-3 Cover
23 286255-3 Cap 13
24 266426-8 Pan head tapping screw 4X20
25 850E35-9 Name plate DC18RD
A01 450128-8 Battery cover
A02 197280-8 Battery BL1850B set
A02D 195584-2 Battery BL1840B set
A03 197422-4 Battery BL1860B set
A02-1D 620G61-2 Battery BL1840B set
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s DOLMAR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to DOLMAR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DOLMAR AS3731
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Dolmar AS3731 Parts Drawing

Dolmar AS3731 Parts Drawing

Download (1.34MB)

You might also like

Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A
Makita SKU: 453786-9
Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A
Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A Genuine replacement part Makita, Cam Plate for Chainsaw Makita EA3200S40B - EA3201S35A - Dolmar PS32C/35 - PS32CTLC. Parts for the...
on 7/10 Business Days Approx. €4.63
Details
Guide Plate for Chainsaw Dolmar PS32C/35
Makita SKU: 346518-0
Guide Plate for Chainsaw Dolmar PS32C/35
Guide Plate for Chainsaw Dolmar PS32C/35 Genuine parts Dolmar, Guide Plate for Chainsaw PS32C/35 - Chainsaw 33CC 35CM-1,1MM - PS35C/40 - Chainsaw 35CC 40CM - Makita EA3200S40B - EA3201S35A -EA3500S40B Part for the following products:...
AVAILABLE €6.23
Details
Fuel Hose for Chaisaws Makita EA3201S35A
Makita SKU: 424456-7
Fuel Hose for Chaisaws Makita EA3201S35A
Fuel Hose for Chaisaws Makita EA3201S35A Genuine parts Makita, Fuel Hose for Chaisaws Makita EA3200S35A - EA3200S40B - EA3201S35A - Dolmar PS32C/35 - PS32CTLC Parts for the following products: - EA3200S35A - CHAISAW 33CC 35CM MAKITA -...
AVAILABLE €16.31
Details
Air Cleaner for Chaisaw Makita EA3201S35A
Makita SKU: 423414-0
Air Cleaner for Chaisaw Makita EA3201S35A
Air Cleaner for Chaisaw Makita EA3201S35A Genuine parts Makita, Air Cleaner for Chaisaws Makita EA3200S35A - EA3200S40B - EA3201S35A - Dolmar PS32C/35 - PS32CTLC Parts for the following products: - EA3200S35A - CHAISAW 33CC 35CM...
AVAILABLE €3.87
Details
Upper Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC
Makita SKU: WJ00092225
Upper Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC
Upper Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC Genuine part Dolmar, Upper Carburator Cover Gasket for Chainsaws Dolmar PS32CTLC - PS32C/35 - Makita  EA3200S40B - EA3201S35A Part for the following products: - PS32C/35 -...
AVAILABLE €3.87
Details
Lower Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC
Makita SKU: WJ00092192
Lower Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC
Lower Carburator Cover Gasket for Chainsaw Dolmar PS32CTLC Genuine parts Dolmar, Lower Carburator Cover Gasket for Chainsaws PS32CTLC - PS222TH - PS220THC - PS221TH - PS221THC - PS222TH - PS222THC Part for the following products: -...
AVAILABLE €5.97
Details
Gasoline Primer Pump for Chainsaw Makita DCS230T
Makita SKU: 168398-2
Gasoline Primer Pump for Chainsaw Makita DCS230T
Gasoline Primer Pump for Chainsaw Makita DCS230T Genuine parts for Makita, Gasoline Primer Pump for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following products: - DCS230T - CHAINSAW 22,2cc MAKITA...
AVAILABLE €6.24
Details
Gasoline Filter for Chainsaw Makita DCS230T
Makita SKU: 163447-0
Gasoline Filter for Chainsaw Makita DCS230T
Gasoline Filter for Chainsaw Makita DCS230T Genuine part for Makita, Gasoline Filter for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following products: - DCS230T - CHAINSAW 22,2cc MAKITA 25CM -...
AVAILABLE €4.49
Details
Makita Label for Chainsaw Makita DCS230T
Makita SKU: 810075-9
Makita Label for Chainsaw Makita DCS230T
Makita Label for Chainsaw Makita DCS230T Genuine parts for Makita, Makita Label for Chainsaws DCS230T - EA3200S35A - EA3201S35A Part for the following products: - Chainsaw Makita DCS230T -...
AVAILABLE €2.84
Details
Venting Valve for Chainsaw Dolmar PS32CTLC
Makita SKU: 168504-9
Venting Valve for Chainsaw Dolmar PS32CTLC
Venting Valve for Chainsaw Dolmar PS32CTLC Genuine part Dolmar, Venting Valve for Chainsaws Dolmar PS32CTLC - PS32C/35 - PS3400TH - PS350C - PS420C - PS460 - PS4605...
on 7/10 Business Days Approx €3.70
Details
Worm Screw for Chainsaw Makita EA3201S35A
Makita SKU: 452035-1
Worm Screw for Chainsaw Makita EA3201S35A
Worm Screw for Chainsaw Makita EA3201S35A Genuine part Makita, Worm Screw for Chainsaws Makita EA3201S35A - EA3200S40B - EA3500S40B - Dollmar PS32C/35 - PS32CTLC - PS35C/40. Part for the following products: - EA3201S35A - CHAINSAW...
Usually Ships in: 7/10 Business Days Approx. €5.30
Details
Clutch Drum Ass'y for Chainsaw Makita EA3200S
Makita SKU: 140M30-8
Clutch Drum Ass'y for Chainsaw Makita EA3200S
Clutch Drum Ass'y for Chainsaw Makita EA3200S Genuine replacement part Makita, Clutch Drum Ass'y for Chainsaws EA3200S - EA3200S35A - EA3200S40B - EA3201S35A - Dolmar PS32C/35...
Usually Ships in: 7/10 Business Days Approx. €16.90
Details
Oil Pump Repair Kit for Chainsaw Dolmar PS43/38
Makita SKU: 030245070
Oil Pump Repair Kit for Chainsaw Dolmar PS43/38
Oil Pump Repair Kit for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Oil Pump Repair Kit, for Chainsaws PS43/38 - PS43/45 - 110I/38 - 110I/45 - 115I/38 - 115I/45. Part for...
Usually Ships in: 7/10 Business Days Approx. €22.12
Details
Suction Line Oil for Chainsaw Dolmar PS6400HS
Makita SKU: 038245020
Suction Line Oil for Chainsaw Dolmar PS6400HS
Suction Line Oil for Chainsaw Dolmar PS6400HS Genuine part Dolmar, Suction Line Oil Complete for Chainsaws PS6400HS/45 - PS7310/50 - PS7900HS - PS7910. Part for the following products: -  PS6400HS/45 - CHAINSAW 64CC DOLMAR 45CM -...
on 7/10 Business Days Approx. €29.47
Details
Cable Drum for Chainsaw Dolmar PS6400HS
Makita SKU: 038162024
Cable Drum for Chainsaw Dolmar PS6400HS
Cable Drum for Chainsaw Dolmar PS6400HS Genuine part Dolmar, Cable Drum Complete for Chainsaws PS6400HS/45 - PS7310/50 - PS7900HS - PS7910. Part for the following products: -  PS6400HS/45 - CHAINSAW 64CC DOLMAR 45CM -  PS7310/50 -...
on 7/10 Business Days Approx €24.71
Details
Oil Pump Drive Gear for Chainsaw Dolmar PS6400HS
Makita SKU: 038245031
Oil Pump Drive Gear for Chainsaw Dolmar PS6400HS
Oil Pump Drive Gear for Chainsaw Dolmar PS6400HS Genuine part Dolmar, Oil Pump Drive Gear (Worm Screw) for Chainsaws PS6400HS/45 - PS7310/50 - PS7900HS - PS7910. Part for the following products:...
Usually Ships in: 7/10 Business Days Approx. €19.28
Details
Oil/Fuel Tank Cap for Chainsaw Dolmar PS33/35
Makita SKU: 010114050
Oil/Fuel Tank Cap for Chainsaw Dolmar PS33/35
Oil/Fuel Tank Cap for Chainsaw Dolmar PS33/35 Genuine part Dolmar, Oil/Fuel Tank Cap for Chainsaws PS33 - PS6400HS/45 - PS7310/50 - PS7900HS - PS7910/50. Part for the following products: -  PS33/35 - CHAINSAW 33CC DOLMAR 35CM -...
on 7/10 Business Days Approx €9.60
Details
Choke Shaft for Chainsaw Dolmar PS6400HS
Makita SKU: 038155052
Choke Shaft for Chainsaw Dolmar PS6400HS
Choke Shaft for Chainsaw Dolmar PS6400HS Genuine part Dolmar, Choke Shaft for Chainsaws PS6400HS/45 - PS7310/50 - PS7900HS - PS7910. Part for the following products: -  PS6400HS/45 - CHAINSAW 64CC DOLMAR 45CM -  PS7310/50 - CHAINSAW...
on 7/10 Business Days Approx €5.56
Details
Clutch Drum for Chainsaw Dolmar PS6400HS
Makita SKU: 957223092
Clutch Drum for Chainsaw Dolmar PS6400HS
Clutch Drum for Chainsaw Dolmar PS6400HS Genuine part Dolmar, Clutch Drum for Chainsaws PS6400HS/45 - PS7310/50 - PS7900HS - PS7910. Part for the following products: -  PS6400HS/45 - CHAINSAW 64CC DOLMAR 45CM -  PS7310/50 - CHAINSAW...
on 7/10 Business Days Approx. €28.74
Details
Rim Sprocket 3/8" 7 Teeth for Chainsaw Dolmar PS6400HS
Makita SKU: 119224070
Rim Sprocket 3/8" 7 Teeth for Chainsaw Dolmar PS6400HS
Rim Sprocket 3/8" 7 Teeth for Chainsaw Dolmar PS6400HS Genuine part Dolmar, Rim Sprocket 3/8" 7 Teeth for Chainsaws PS6400HS/45 - PS7310/50 - PS7900HS - PS7910. Part for the following products: -  PS6400HS/45 - CHAINSAW 64CC DOLMAR...
on 7/10 Business Days Approx. €10.21
Details
Makita EK8100WS Repair Kit Filter
Makita SKU: 010114020
Makita EK8100WS Repair Kit Filter
Repair Kit Filter for Power Cutter Makita EK8100WS Genuine spare part Makita, Repair Kit Filter for Petrol Power Cutter EK8100WS. Part for the following products: -  EK8100WS - POWER CUTTER 81CC 400mm - 109.SB -...
Last items in stock €39.14
Details
Dolmar PS6400HS/45 Crankcase Gasket
Makita SKU: 038111043
Dolmar PS6400HS/45 Crankcase Gasket
Dolmar PS6400HS/45 Crankcase Gasket Genuine replacement part Dolmar, Crankcase Gasket for PS6400HS/45 - PS7310/50 - PS7900HS/45 - PS7900HS/50 - PS7910/50. Parts for the following products: - EA7900P50E - CHAINSAW 79CC 50CM 3/8"...
AVAILABLE €6.13
Details
Makita EA7900P50E AIR FILTER KIT
Makita SKU: 957173400
Makita EA7900P50E AIR FILTER KIT
Makita Special Air Filter Kit for Chaisaw EA7900P50E Genuine parts Makita, Special Air Filter Kit PS/DCS640 for Chaisaws Makita EA7900P50E. Parts for the following products: - MAKITA CHAISAW EA7900P50E - Code: 957173400
Last items in stock €162.79
Details
MAKITA DCS6401 Guide Plate
Makita SKU: 038111030
MAKITA DCS6401 Guide Plate
MAKITA Guide Plate for Chainsaw DCS6401 Genuine part Makita, Guide Plate for Chainsaws DCS6401-45 - PS7310/50 - EA7900P50E. Part for the following products: - DCS6401-45 - CHAINSAW MAKITA - PS7310/50 - CHAINSAW DOLMAR -...
Last items in stock €5.61
Details
Comments (0)
