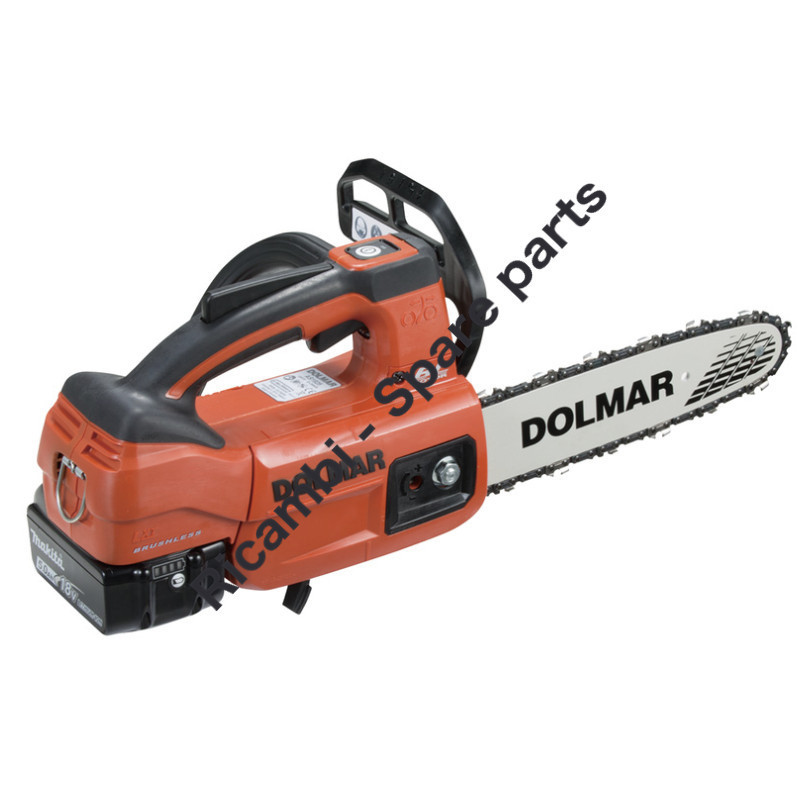

Dolmar Parts for Cordless Chainsaw AS1925

Name: Dolmar Parts for Cordless Chainsaw AS1925
Brand: Makita
SKU: Dolmar AS1925
Availability: InStock

SKU: Dolmar AS1925

€0.10

VAT included

Dolmar Spare Parts for Cordless Chainsaw AS1925

Original Dolmar Spare Parts for AS1925 Cordless Chain Saw.
Parts designed to ensure maximum cutting efficiency and operational safety.
The spare parts range includes a wide variety of structural, mechanical, and electrical components essential for the maintenance and repair of the power too

New
Out-of-Stock

Dolmar Parts for Cordless Chainsaw AS1925

SKU: Dolmar AS1925 Condition: New

€0.10

VAT included

Dolmar Spare Parts for Cordless Chainsaw AS1925

76 spare parts

1 exploded view

Download Exploded PDF

Quantity

Out-of-Stock

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS

MORE INFO:: [email protected]

Original Product Manufacturer warranty included

Technical Support Our team helps you choose

Secure and guaranteed payments

76 spare parts

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
A01	Image coming soon	191G14-3 GUIDE BAR 10 SET	€22.27
A03-1	Image coming soon	191H00-0 CHAIN LOOP 90PX-1,1MM 3/8"40 LINKS	€14.84
F06	Image coming soon	195923-6 ROUND FILE 4.5 SET	€25.01
C10	Image coming soon	263005-3 PIN RUBBER 6	€1.32
A02	Image coming soon	452094-5 Guide Bar Case 452094-5	€2.20
A04	Image coming soon	782023-7 WRENCH 13-16	€3.37
F06-1	Image coming soon	D-70954 FILE HOLDER SET 4.5MM(11/64")	€11.42
1	Image coming soon	458490-5 SIDE HANDLE	€6.00
2	Image coming soon	183J28-4 Housing set	€36.71
3		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.27
4	Image coming soon	266041-8 PT SCREW 5x25	€1.24
5	Image coming soon	168508-1 TANK CAP A3600F	€3.83
6	Image coming soon	213355-6 O-RING 25 EA3601F/DUC353	€1.50
7		421959-2 Oil Tank Gasket for Electric Chainsaws Makita UC3530A - UC4030A	€1.32
8	Image coming soon	140A75-4 OIL TANK COMPLETE	€19.42
9	Image coming soon	422271-3 CONNECTOR A	€2.03
10	Image coming soon	422272-1 CONNECTOR B	€2.03
11	Image coming soon	450437-5 FILTER X BUC250R	€11.29
12	Image coming soon	424612-9 RUBBER	€1.32
13	Image coming soon	266041-8 PT SCREW 5x25	€1.24
14	Image coming soon	458489-0 MOTOR HOUSING	€3.83
15	Image coming soon	142857-4 OIL PUMP COMPLETE	€22.06
16		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.27
17	Image coming soon	210026-6 BALL BEARING 696ZZ	€3.83
18	Image coming soon	961006-2 RETAINING RING S10	€1.32
19	Image coming soon	221428-1 WORM GEAR	€3.83
20	Image coming soon	619518-6 ROTOR	€87.55
22		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.27
23	Image coming soon	629378-8 STATOR COMPLETE	€57.57
24	Image coming soon	210059-1 BEARING 6000 HR2010	€11.29
25		962105-3 Retaining Ring R26 for Angle Grinder and Milling Machines Makita	€1.32
26	Image coming soon	458498-9 Catch lever	€1.24
27	Image coming soon	651365-9 SWITCH C3JW-6BM-P	€29.04
28	Image coming soon	233476-8 COMPRESSION SPRING 4	€1.32
29	Image coming soon	458496-3 Switch lever	€1.24
30	Image coming soon	632L49-0 SWITCH UNIT	€10.07
31	Image coming soon	632L48-2 SWITCH UNIT	€17.02
32	Image coming soon	140A76-2 Controller complete	€212.59
032-1	Image coming soon	140P58-4 Controller complete	€212.59
33	Image coming soon	140A72-0 Front hand guard complete	€5.16
34	Image coming soon	232453-7 COMPRESSION SPRING 3	€1.32
35	Image coming soon	310879-4 HAND GUARD GUIDE	€1.32
36	Image coming soon	643874-2 TERMINAL	€5.16
37	Image coming soon	347377-5 HOOK SUPPORT	€1.32
38	Image coming soon	281222-3 HOOK	€1.32
39	Image coming soon	183J28-4 Housing set	€36.71
40	Image coming soon	422270-5 GROMET	€1.32
41	Image coming soon	227620-7 DRIVE GEAR	€2.03
42	Image coming soon	227634-6 STRAIGHT BEVEL GEAR 14	€3.83
43	Image coming soon	455241-7 CLAMP SCREW	€1.32
44	Image coming soon	347376-7 TENSION SLIDE	€1.24
044-1	Image coming soon	347569-6 Tension slide	€1.32
45	Image coming soon	327120-8 ADJUST SCREW	€2.50
045-1	Image coming soon	327900-2 Adjust screw	€2.27
46		227496-2 Tensioner Screw Gear for Chainsaw Makita UC3551A	€6.00
47	Image coming soon	455242-5 CLAMP SCREW	€1.32
48	Image coming soon	458492-1 Housing R cover	€3.11
49		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.27
50	Image coming soon	140A74-6 LINK PLATE COMPLETE	€3.83
51	Image coming soon	232452-9 COMPRESSION SPRING 7	€1.24
051-1	Image coming soon	232599-9 COMPRESSION SPRING 7	€1.32
52	Image coming soon	347372-5 BRAKE BAND	€4.44
53	Image coming soon	161871-1 BRAKE DRUM COMPLETE	€10.07
54	Image coming soon	213060-5 O-RING 10	€1.27
054-1	Image coming soon	213A41-5 O-ring 10	€0.67
55	Image coming soon	199063-2 Sprocket 6 set	€5.66
56	Image coming soon	961013-5 RING RITEGNOXJN3200	€2.03
57	Image coming soon	347374-1 Guide plate L	€1.92
057-1	Image coming soon	347567-0 GUIDE PLATE L	€1.32
58	Image coming soon	347373-3 CHAIN CATCHER	€1.32
59	Image coming soon	266905-6 H.L. SOCKET HEAD BOLT M5X12	€1.32
60	Image coming soon	266388-0 SCREW 5X16 FOR UC3020A	€1.32
61		266007-8 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030	€2.03
62	Image coming soon	347375-9 GUIDE PLATE R	€1.24
062-1	Image coming soon	347568-8 Guide plate R	€1.32
63	Image coming soon	458494-7 Sprocket cover	€6.32
063-1	Image coming soon	459772-8 Sprocket cover	€7.67
64	Image coming soon	161870-3 Flange nut complete	€6.00
064-1	Image coming soon	162494-8 FRANGE NUT COMPLETE	€6.00
65	Image coming soon	458499-7 NUT COVER	€2.03
70	Image coming soon	422310-9 CHIP GUIDE	€1.32

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Dolmar Spare Parts for Cordless Chainsaw AS1925

DOLMAR CORDLESS CHAINSAW AS1925 PARTS LIST
#	Part Num.	Description
1	458490-5	Side handle
2	183J28-4	Housing set
C10	263005-3	Rubber pin 6
002-1	183U68-8	Housing set
3	266326-2	Binding head tapping screw 4X18
003-1	265867-9	Binding head tapping screw 4X18
4	266041-8	Binding head tapping screw 5X25
5	168508-1	Tank cap complete
6	213355-6	O-ring 25
7	421959-2	Sponge seal
8	140A75-4	Oil tank complete
9	422271-3	Connector A
10	422272-1	Connector B
11	450437-5	Filter
12	424612-9	Grommet
13	266041-8	Binding head tapping screw 5X25
14	458489-0	Motor housing
15	142857-4	Oil pump complete
16	266326-2	Binding head tapping screw 4X18
016-1	265867-9	Binding head tapping screw 4X18
17	210026-6	Ball bearing 696ZZ
18	961006-2	Retaining ring (EXT) S-10
19	221428-1	Worm gear
20	619518-6	Rotor
22	266326-2	Binding head tapping screw 4X18
022-1	265867-9	Binding head tapping screw 4X18
23	629378-8	Stator complete
24	210059-1	Ball bearing 6000DDW
25	962105-3	Retaining ring (INT) R-26
26	458498-9	Catch lever
27	651365-9	Switch C3JW-6BM-P
28	233476-8	Compression spring 4
29	458496-3	Switch lever
30	632L49-0	Switch unit
31	632L48-2	Switch unit
32	140A76-2	Controller complete
C10	810D46-0	Switch label
032-1	140P58-4	Controller complete
032-2	141161-2	Controller complete
33	140A72-0	Front hand guard complete
C10	816U31-3	Caution label
34	232453-7	Compression spring 3
35	310879-4	Hand guard guide
035-1	313379-3	Hand guard guide
36	643874-2	Terminal
37	347377-5	Hook support
38	281222-3	Hook
39	183J28-4	Housing set
039-1	183U68-8	Housing set
40	422270-5	Grommet
41	227620-7	Drive gear
42	227634-6	Straight bevel gear 14
43	455241-7	Clamp screw
44	347376-7	Tension slide
044-1	347569-6	Tension slide
45	327120-8	Adjust screw
045-1	327900-2	Adjust screw
46	227496-2	Straight bevel gear 14
47	455242-5	Clamp screw
48	458492-1	Housing R cover
49	266326-2	Binding head tapping screw 4X18
049-1	265867-9	Binding head tapping screw 4X18
50	140A74-6	Link plate complete
51	232452-9	Compression spring 7
051-1	232599-9	Compression spring 7
52	347372-5	Brake band
53	161871-1	Brake drum complete
053-1	313498-5	Brake drum
54	213060-5	O-ring 10
054-1	213A41-5	O-ring 10
55	199063-2	Sprocket 6 set
56	961013-5	Stop ring (EXT) E-7
57	347374-1	Guide plate L
057-1	347567-0	Guide plate L
58	347373-3	Chain catcher
59	266905-6	Hexalobular socket head bolt M5X12
60	266388-0	Binding head tapping screw 5X16
060-1	265074-4	Tapping screw 5X16
61	266007-8	Binding head tapping screw 3X10
62	347375-9	Guide plate R
062-1	347568-8	Guide plate R
63	458494-7	Sprocket cover
063-1	459772-8	Sprocket cover
64	161870-3	Flange nut complete
064-1	162494-8	Flange nut complete
65	458499-7	Nut cover
66	854G56-5	Name plate AS1925
67	816U22-4	Model No. label AS1925
68	854G57-3	Serial No. label AS1925
70	422310-9	Chip guide
A01	191G14-3	Guide bar 25cm, 3/8", 1.1mm, 40 links
A02	452094-5	Guide bar case
A03	199075-5	Saw chain set
A03-1	191H00-0	Saw chain 90PX-1,1MM 3/8"40 LINKS
A04	782023-7	Wrench 13-16
A04-1	782042-3	BOX WRENCH 13
A09	831315-2	Accessory bag
E01	805011-8	Sound 103DB label
E02	803900-8	Caution tag
E02-1	8062D6-4	Caution tag
F03	199075-5	Saw chain set
F06	195923-6	Round file 4.5 set
F06-1	D-70954	FILE HOLDER SET 4.5MM

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Dolmar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Dolmar AS1925

Data sheet

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]

Specific References

Condition New

Download

Dolmar AS1925 Parts Drawing

Download (991.23KB)
