Dolmar parts for AS3835 Cordless Chainsaw

Name: Dolmar parts for AS3835 Cordless Chainsaw
Brand: Makita
SKU: Dolmar PS220TH - PS220THC
Availability: InStock

SKU: Dolmar PS220TH - PS220THC

€0.10

VAT included

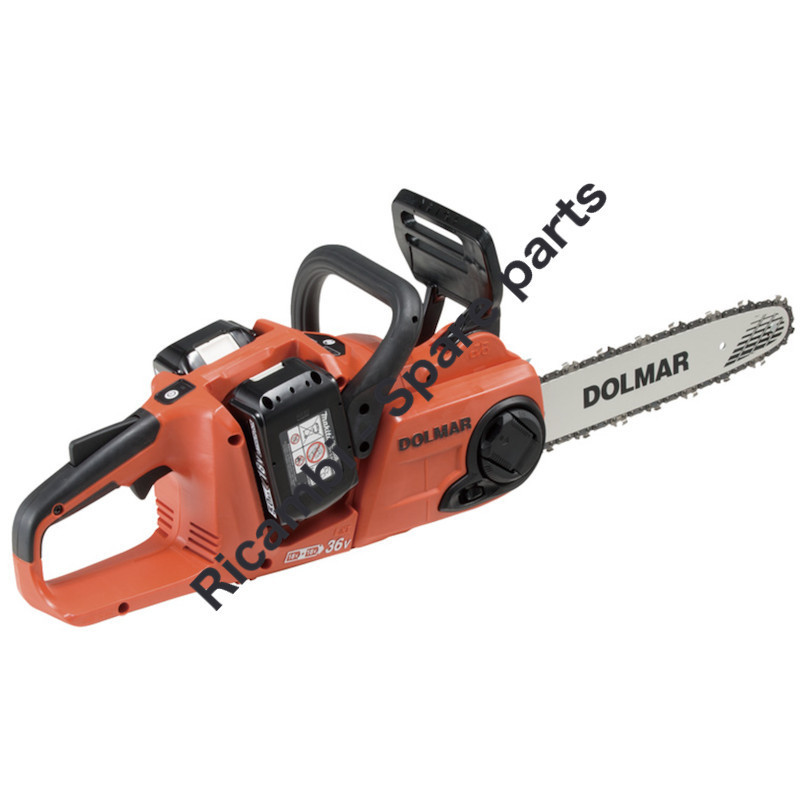

Dolmar Genuine spare parts for AS3835 Cordless Chainsaw (350mm)

Professional cordless chainsaw equipped with a 350mm guide bar. It features an efficient motor with rotor/stator assembly, automatic lubrication via a dedicated oil pump, and integrated safety systems, including a mechanical chain brake and chain catcher. Designed to ensure easy handling and cutting precision.

Dolmar parts for AS3835 Cordless Chainsaw

New
Out-of-Stock

Dolmar parts for AS3835 Cordless Chainsaw

SKU: Dolmar PS220TH - PS220THC Condition: New

€0.10

VAT included

Dolmar Genuine spare parts for AS3835 Cordless Chainsaw (350mm)

54 spare parts

2 exploded views

Download Exploded PDF

Quantity

Out-of-Stock

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS

MORE INFO:: [email protected]

Original Product Manufacturer warranty included

Technical Support Our team helps you choose

Secure and guaranteed payments

54 spare parts

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
2	Image coming soon	183F36-1 HOUSING SET	€150.39
3		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.27
4	Image coming soon	457007-1 FRONT HANDLE	€19.42
5		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.27
6	Image coming soon	457013-6 CATCH LEVER DUC353	€2.65
7	Image coming soon	457006-3 SWITCH LEVER DUC353	€2.65
8	Image coming soon	232318-3 TORSION SPRING 10 DUC353	€3.83
9	Image coming soon	650781-2 SWITCH C3JW-6B-P DUC353	€29.04
10	Image coming soon	457010-2 HOUSING L COVER DUC353	€2.65
11		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.27
12	Image coming soon	183F15-9 TERMINAL BOX SET DUC353	€10.07
13		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.27
14	Image coming soon	183F15-9 TERMINAL BOX SET DUC353	€10.07
15		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.27
16	Image coming soon	643874-2 TERMINAL	€5.16
17	Image coming soon	519411-3 ROTOR ASSY DUC353	€159.53
18	Image coming soon	210028-2 BEARING 606ZZ	€1.92
19	Image coming soon	592H45-5 STATOR ASSY DUC353	€199.13
20	Image coming soon	210059-1 BEARING 6000 HR2010	€11.29
21		962105-3 Retaining Ring R26 for Angle Grinder and Milling Machines Makita	€1.32
22		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.27
23	Image coming soon	257402-3 SLEEVE 10 DUC353	€1.32
24	Image coming soon	144254-0 CONTROLLER DUC353	€268.01
25		168399-0 Complete Oil Tank Cap for Chainsaw Makita DCS230T	€3.61
26	Image coming soon	457022-5 FRONT HAND GUARD	€16.37
28	Image coming soon	183F36-1 HOUSING SET	€150.39
29		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.27
30	Image coming soon	911233-1 HEAD SCREW M5X20 3600H	€1.32
31		142156-4 Oil Pump for Electric Chainsaw Makita UC3041A	€24.95
32		424904-6 Connector (B) for Battery Chainsaw Makita DUC353Z	€6.00
33	Image coming soon	452666-6 PLUG OIL PIPE PS32CTLC	€1.32
34		234207-8 Compression Spring 6 for Petrol Chainsaw Makita EA3200S35A	€1.32
35		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.27
36	Image coming soon	424903-8 CONNECTOR A DUC353	€6.70
37	Image coming soon	632H47-0 SWITCH UNIT	€19.42
38	Image coming soon	231298-0 SPRING COMPRES.X HM 1500	€1.32
39		163448-8 Link Plate Complete for Chainsaw Makita DCS230T	€6.70
40	Image coming soon	232319-1 COMPRESSION SPRING 9	€3.11
41		345454-7 Brake Band for Chainsaw Makita DCS230T	€10.07
42	Image coming soon	267195-4 WASHER 4 X DCS230T	€1.32
43		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.27
44	Image coming soon	221427-3 WORM	€6.70
45	Image coming soon	161526-8 BRAKE DRUM COMPLETE	€60.90
46	Image coming soon	221464-7 SPROCKET 6	€2.65
47	Image coming soon	961013-5 RING RITEGNOXJN3200	€2.03
48	Image coming soon	457005-5 HOUSING R COVER	€17.02
49		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.27
50	Image coming soon	347078-5 SPIKE BUMPER	€6.70
51		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.27
52	Image coming soon	347079-3 CHAIN CATCHER	€5.16
53		266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530	€1.27
54	Image coming soon	346694-0 GUIDE PLATE ES A3600F	€2.03
55	Image coming soon	266166-8 TRILOBULAR SCREW M3XM8 X 6908DW	€1.32
56	Image coming soon	346699-0 GUIDE PLATE CS EA3600F	€2.65
57		227496-2 Tensioner Screw Gear for Chainsaw Makita UC3551A	€6.00
58		326310-0 Tensioner Screw Pin for Chainsaw Makita UC3551A	€1.32
59	Image coming soon	326312-6 ADJUST SCREW	€2.03
60	Image coming soon	266427-6 SCREW 4X12 MT923	€1.32
61		142235-8 Sprocket Cover Nut Complete for Electric Chainsaw Makita UC3041A	€10.07
62	Image coming soon	454519-5 NUT COVER	€2.03
63	Image coming soon	457001-3 SPROCKET COVER	€16.06
64	Image coming soon	142288-7 WHEEL COMPLETE	€3.11
65	Image coming soon	213060-5 O-RING 10	€1.27

Page 2 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
A11	Image coming soon	198259-2 SPROCKET 9 1/4" - CARVING	€7.67
A06	Image coming soon	510090010 TIE STRAP WITH RIVETS .043"	€2.03
A05	Image coming soon	510090030 SAFETY TIE STRAP .043"	€1.32
A04	Image coming soon	511291752 CHAIN BAR 35 CM	€32.12

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Dolmar Genuine spare parts for AS3835 Cordless Chainsaw (350mm)

DOLMAR AS3835 350MM CORDLESS CHAIN SAW PARTS LIST Pag.1
#	Part Num.	Description
1	810R19-7	AS3835 MODEL NO. LABEL
2	183F36-1	HOUSING SET
3	266326-2	TAPPING SCREW 4X18
4	457007-1	FRONT HANDLE
5	266326-2	TAPPING SCREW 4X18
6	457013-6	CATCH LEVER
7	457006-3	SWITCH LEVER
8	232318-3	TORSION SPRING 10
9	650781-2	SWITCH C3JW-6B-P
10	457010-2	HOUSING L COVER
11	266326-2	TAPPING SCREW 4X18
12	183F15-9	TERMINAL BOX SET
13	266326-2	TAPPING SCREW 4X18
14	183F15-9	TERMINAL BOX SET
15	266326-2	TAPPING SCREW 4X18
16	643874-2	TERMINAL
17	519411-3	ROTOR ASS'Y
18	210028-2	BALL BEARING 606ZZ
19	592H45-5	STATOR ASS'Y
20	210059-1	BALL BEARING 6000DDW
21	962105-3	RETAINING RING R-26
22	266326-2	TAPPING SCREW 4X18
23	257402-3	SLEEVE 10
24	144254-0	CONTROLLER COMPLETE
25	168399-0	TANK CAP COMPLETE
26	457022-5	FRONT HAND GUARD
27	852V66-6	AS3835 NAME PLATE
28	183F36-1	HOUSING SET
29	266326-2	TAPPING SCREW 4X18
30	911233-1	PAN HEAD SCREW M5X20
31	142156-4	OIL PUMP COMPLETE
32	424904-6	CONNECTOR B
33	452666-6	NIPPLE
34	234207-8	COMPRESSION SPRING 6
35	266326-2	TAPPING SCREW 4X18
36	424903-8	CONNECTOR A
37	632H47-0	SWITCH UNIT
38	231298-0	COMPRESSION SPRING 6
39	163448-8	LINK PLATE COMPLETE
40	232319-1	COMPRESSION SPRING 9
41	345454-7	BRAKE BAND
42	267195-4	FLAT WASHER 4
43	266326-2	TAPPING SCREW 4X18
44	221427-3	WORM GEAR
45	161526-8	BRAKE DRUM COMPLETE
46	221464-7	SPROCKET 6
47	961013-5	STOP RING E-7
48	457005-5	HOUSING R COVER
49	266326-2	TAPPING SCREW 4X18
50	347078-5	SPIKE BUMPER
51	266326-2	TAPPING SCREW 4X18
52	347079-3	CHAIN CATCHER
53	266326-2	TAPPING SCREW 4X18
54	346694-0	GUIDE PLATE ES
55	266166-8	TAPPING SCREW CT 3X8
56	346699-0	GUIDE PLATE CS
57	227496-2	STRAIGHT BEVEL GEAR 14
58	326310-0	ADJUST PIN
59	326312-6	ADJUST SCREW
60	266427-6	TAPPING SCREW 4X12
61	142235-8	NUT COMPLETE
62	454519-5	NUT COVER
63	457001-3	SPROCKET COVER
64	142288-7	WHEEL COMPLETE
65	213060-5	O RING 10
Accessories Pag.2
A02	165427-2	Saw guide bar 3/8" 1.1 mm 35 cm (0.043") 14")
A03	419289-3	Chain guard 36 cm Dolmar
A11	198259-2	Sprocket 1/4" Z=9
A07	412025471	Armored guide bar 1/4" 25 cm (10")
A06	510090010	Outer plate with rivet 3/8"
A05	510090030	Shear plate 3/8" 1.1 mm (0.043")
A04	511291752	Saw chain 3/8" 1.1 mm 35 cm (0.043") 14")
A08	512466760	Saw chain 1/4" 25 cm (10")
A09	558466000	Shear plate 1/4" 1.3 mm (0.050")
A10	558466010	Outer plate with rivet 1/4"
