Makita

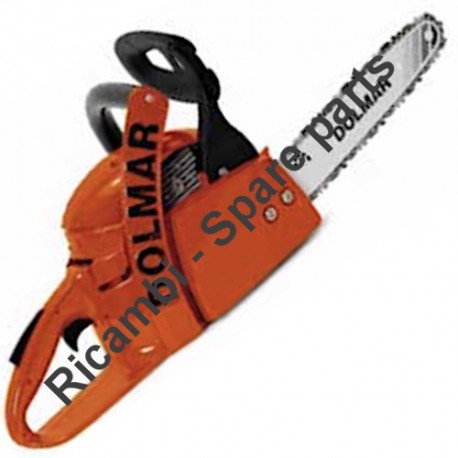

Dolmar Spare Parts for Chainsaw PS43/38

SKU: Dolmar PS43/38
€2.73
VAT included

Dolmar Spare Parts for Chainsaw PS43/38

We have the original Spares DOLMAR for Chainsaw PS43/38 - 43CC, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Chainsaw PS43/38 - 43CC. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Dolmar Spare Parts for Chainsaw PS43/38
  • Dolmar Spare Parts for Chainsaw PS43/38
  • Dolmar Spare Parts for Chainsaw PS43/38
  • Dolmar Spare Parts for Chainsaw PS43/38
  • Dolmar Spare Parts for Chainsaw PS43/38
  • Dolmar Spare Parts for Chainsaw PS43/38
  • Dolmar Spare Parts for Chainsaw PS43/38
  • Dolmar Spare Parts for Chainsaw PS43/38
  • Dolmar Spare Parts for Chainsaw PS43/38
  • Dolmar Spare Parts for Chainsaw PS43/38
  • Dolmar Spare Parts for Chainsaw PS43/38
  • Dolmar Spare Parts for Chainsaw PS43/38
Makita

Dolmar Spare Parts for Chainsaw PS43/38

SKU: Dolmar PS43/38 Condition: New
€2.73
VAT included

Dolmar Spare Parts for Chainsaw PS43/38

We have the original Spares DOLMAR for Chainsaw PS43/38 - 43CC, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Chainsaw PS43/38 - 43CC. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 178 spare parts
description 10 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
168 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

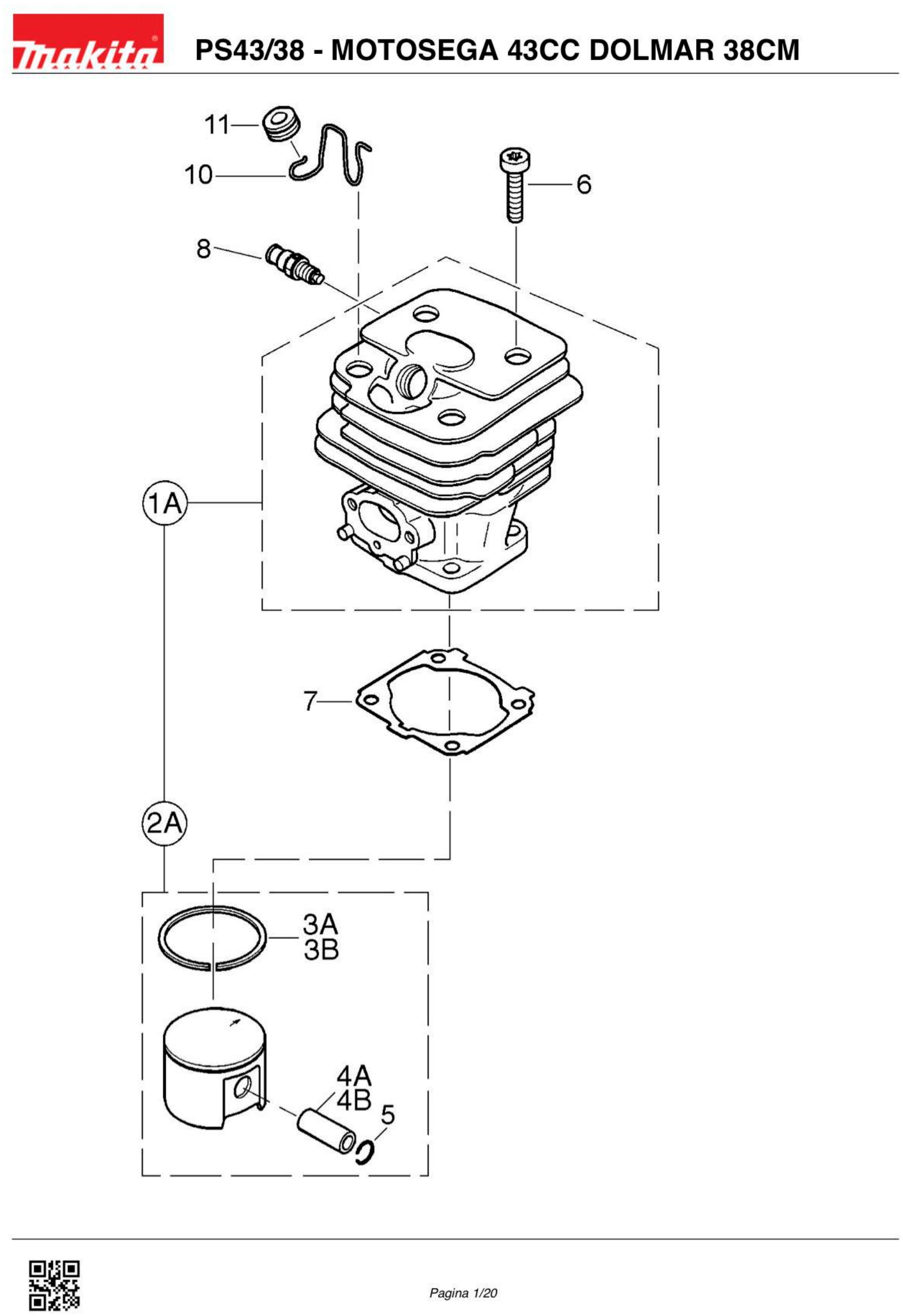

Esploso pagina 1
Pos. Item Price Buy
1A
 photo_cameraImage coming soon 027130050 PISTON + CYLINDER CPL €204.68
2A
 photo_cameraImage coming soon 032132011 PISTON DIAMETER 40MM €93.33
3A
 photo_cameraImage coming soon 021132230 PISTON RING FOR 40MM PISTON. €18.98
4B
 photo_cameraImage coming soon 001132010 PISTON €24.35
5
 photo_cameraImage coming soon 020132050 SPRING RING C10X0,8 430/4300I/ €1.40
6
 photo_cameraImage coming soon 266476-3 SCREW M5X20 (TORX) €1.47
7
 photo_cameraImage coming soon 965525042 GASKET €3.13
10
 photo_cameraImage coming soon 001142012 CRAMP DCS430/520/4300I/5200I/ €2.69
11
 photo_cameraImage coming soon 965401011 RUBBER BUSHING DCS330S/390/430 €2.69
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

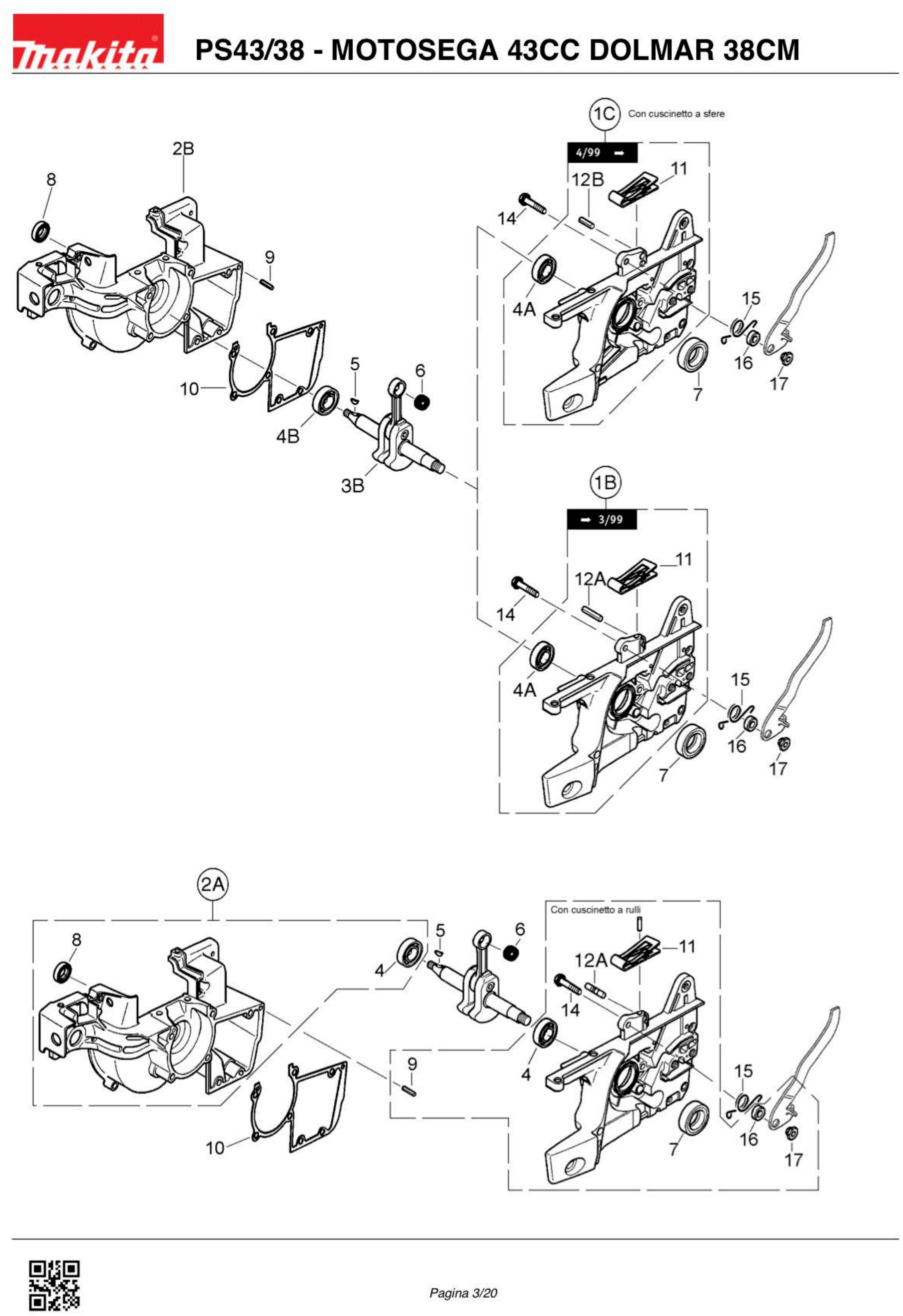

Esploso pagina 2
Pos. Item Price Buy
1B
 photo_cameraImage coming soon 027111144 CARTER CLUTCH SIDE X PS540 €110.18
2A
 photo_cameraImage coming soon 020111203 CARTER SIDE FLYWHEEL X 115 €139.89
2B
 photo_cameraImage coming soon 027111171 CARTER SIDE FLYWHEEL X PS 540 €103.69
3B
 photo_cameraImage coming soon 027120010 CRANKSHAFT DCS430/431/4300I/5 €349.55
4A
 photo_cameraImage coming soon 211154-0 BALL BEARING 6202 €6.29
4B
 photo_cameraImage coming soon 960102131 BALL BEARING 6201 €20.92
10
 photo_cameraImage coming soon 965525002 GASKET DCS430/520/4300I/5200I €5.12
11
 photo_cameraImage coming soon 027213320 LEAF SPRING DCS430/520/4300I/5 €3.13
12A
 photo_cameraImage coming soon 934950160 CLAMPING SLEEVE €1.40
14
 photo_cameraImage coming soon 027213520 HEX HEAD SCREW DCS430/520/4300 €1.40
15
 photo_cameraImage coming soon 027213270 SPRING DCS430/520/4300I/5200I €2.69
16
 photo_cameraImage coming soon 027213510 RING DCS430/520/4300I/5200I €2.69
17
 photo_cameraImage coming soon 027213500 SHOULDER NUT DCS430/520/4300I/ €4.43
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

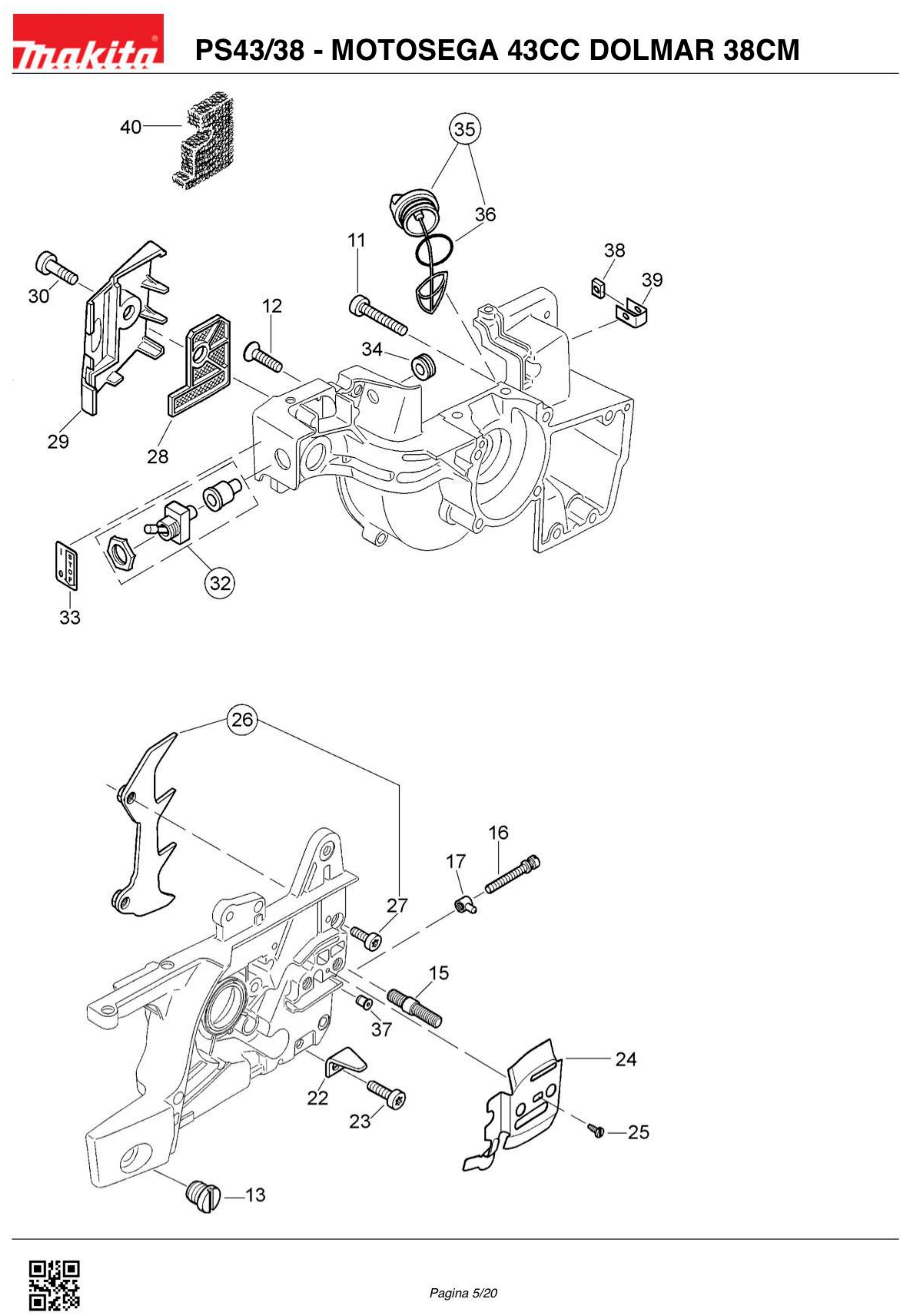

Esploso pagina 3
Pos. Item Price Buy
11
 photo_cameraImage coming soon 908005305 SCREW M5x30 (TORX) €2.08
12
 photo_cameraImage coming soon 908105204 COUNTERSUNK SCREW M5X20 €1.36
13
 photo_cameraImage coming soon 001111012 SCREW M12X1 €2.16
15
 photo_cameraImage coming soon 905808305 GUDGEON M8X30 430/520/4300I/52 €2.08
16
 photo_cameraImage coming soon 389213081 SCREW €3.84
23
 photo_cameraImage coming soon 266946-2 SCREW M5X12 (TORX) €1.40
24
 photo_cameraImage coming soon 020111172 GUIDE PLATE 430/520/4300I/5200 €3.84
25
 photo_cameraImage coming soon 915135100 FILLISTER (TORX)HEAD SCREW 3,5 €1.40
26
 photo_cameraImage coming soon 020250020 COMPLETE TOOTHED BAR €16.65
27
 photo_cameraImage coming soon 266474-7 SCREW M5X8 (TORX) €1.47
28
 photo_cameraImage coming soon 020173011 PREFILTER DCS430/520/4300I/520 €3.13
29
 photo_cameraImage coming soon 020173026 COVER €3.31
30
 photo_cameraImage coming soon 266947-0 H.L. SOCKET HEAD BOLT M5X14 €1.40
32
 photo_cameraImage coming soon 957605112 SHORT CIRCUIT SWITCH ASSY 430/ €12.69
33
 photo_cameraImage coming soon 980113841 LABEL DCS430/520/4300I/5200I/6 €1.40
35
 Oil Tank Plug Cpl. for Chainsaw Dolmar PS43/38 010114032 Oil Tank Plug Cpl. for Chainsaw Dolmar PS43/38 €10.20 Not available for order
36
 photo_cameraImage coming soon 963100051 GASKET DCS430/520/6000I/6800I €5.62
37
 photo_cameraImage coming soon 010245010 AIR VENT VALVE DCS6000I/9010 €9.89
38
 photo_cameraImage coming soon 921905004 NUT €1.40
39
 photo_cameraImage coming soon 020111070 CRAMP DCS430/520/4300I/5200I €2.69
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

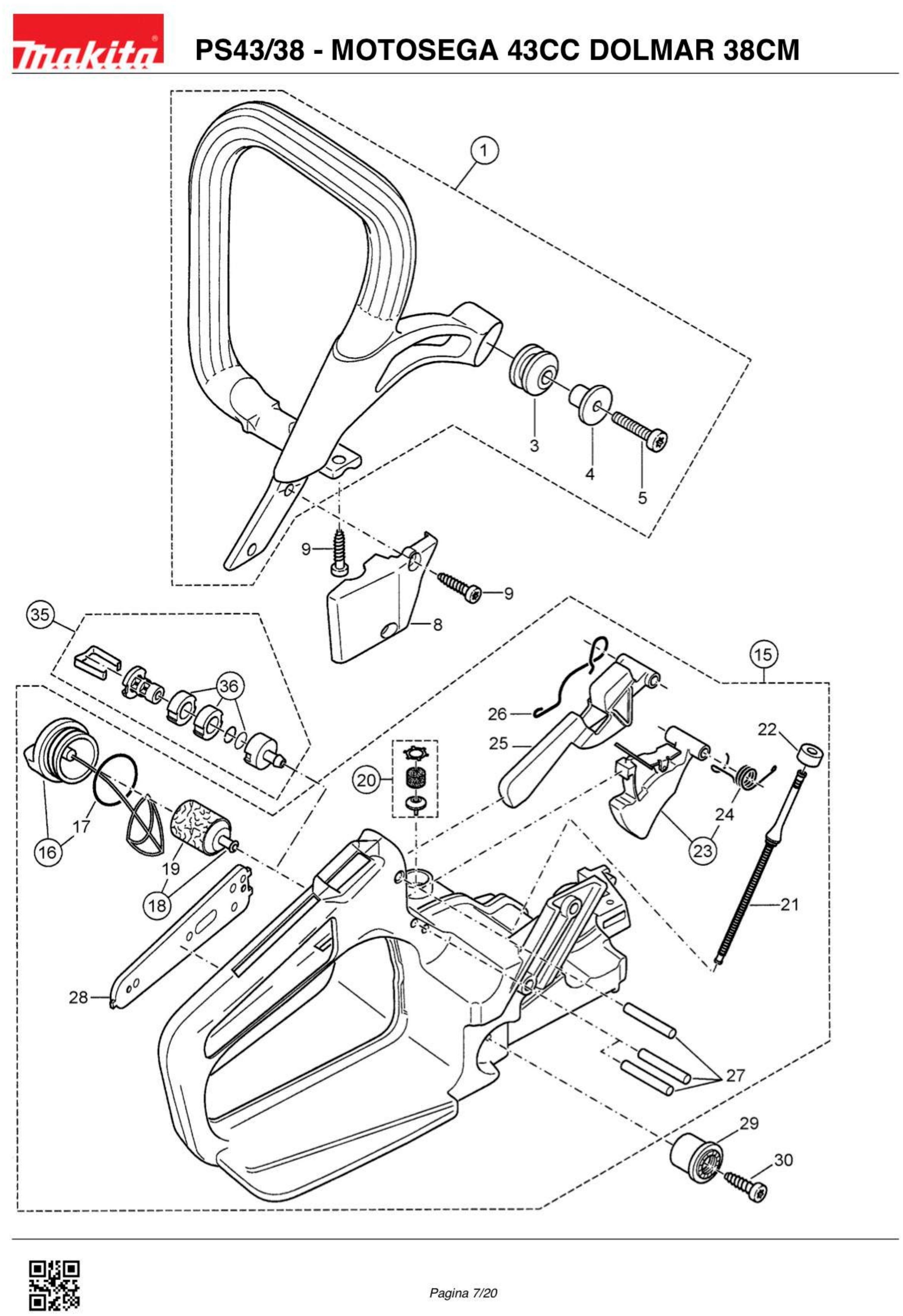

Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 957310027 TUBULAR HANDLE GROUP €73.56
3
 Rubber Buffer for Petrol Chainsaw Dolmar PS45/40 965403491 Rubber Buffer for Petrol Chainsaw Dolmar PS45/40 €2.53
4
 photo_cameraImage coming soon 021114051 FIXING BUSH DCS430/431/4300I/5 €2.08
8
 photo_cameraImage coming soon 020310013 COVER €4.43
9
 photo_cameraImage coming soon 266478-9 SCREW 5,5X16 (TORX) €1.47
15
 photo_cameraImage coming soon 020114005 TANK PS52 €93.33
16
 photo_cameraImage coming soon 965451901 CAP ASSY DCS / PS9010 €11.07
17
 photo_cameraImage coming soon 963232045 PACKING RING DCS430/520/4300I/ €2.09
18
 Makita EK8100WS Fuel Filter 163532-9 Makita EK8100WS Fuel Filter €6.76
19
 photo_cameraImage coming soon 963601240 FELT €8.86
20
 photo_cameraImage coming soon 957114011 TANK VALVE €4.70
21
 photo_cameraImage coming soon 965404460 FUEL LINE DCS430/520/4300I/520 €8.50
22
 photo_cameraImage coming soon 965404521 SEAL €2.09
23
 photo_cameraImage coming soon 020117291 THROTTLE LEVER €13.31
24
 photo_cameraImage coming soon 020117273 SPRING DCS430/520/4300I/5200I €1.40
25
 Throttle Catch Lever for Chainsaw Dolmar PS43/38 020117301 Throttle Catch Lever for Chainsaw Dolmar PS43/38 €3.20
26
 photo_cameraImage coming soon 020117160 BEND SPRING DCS430/520/4300I/5 €3.13
27
 photo_cameraImage coming soon 935932320 CYLINDRICAL PIN DCS430/520/430 €2.08
28
 photo_cameraImage coming soon 020114053 PLATE FOR HANDLE €2.02
29
 Makita DCS43/38 Rubber Buffer 965403282 Makita DCS43/38 Rubber Buffer €7.73
30
 photo_cameraImage coming soon 913447134 SELF-CUTTING SCREW 4,7X13 DCS4 €1.40
Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

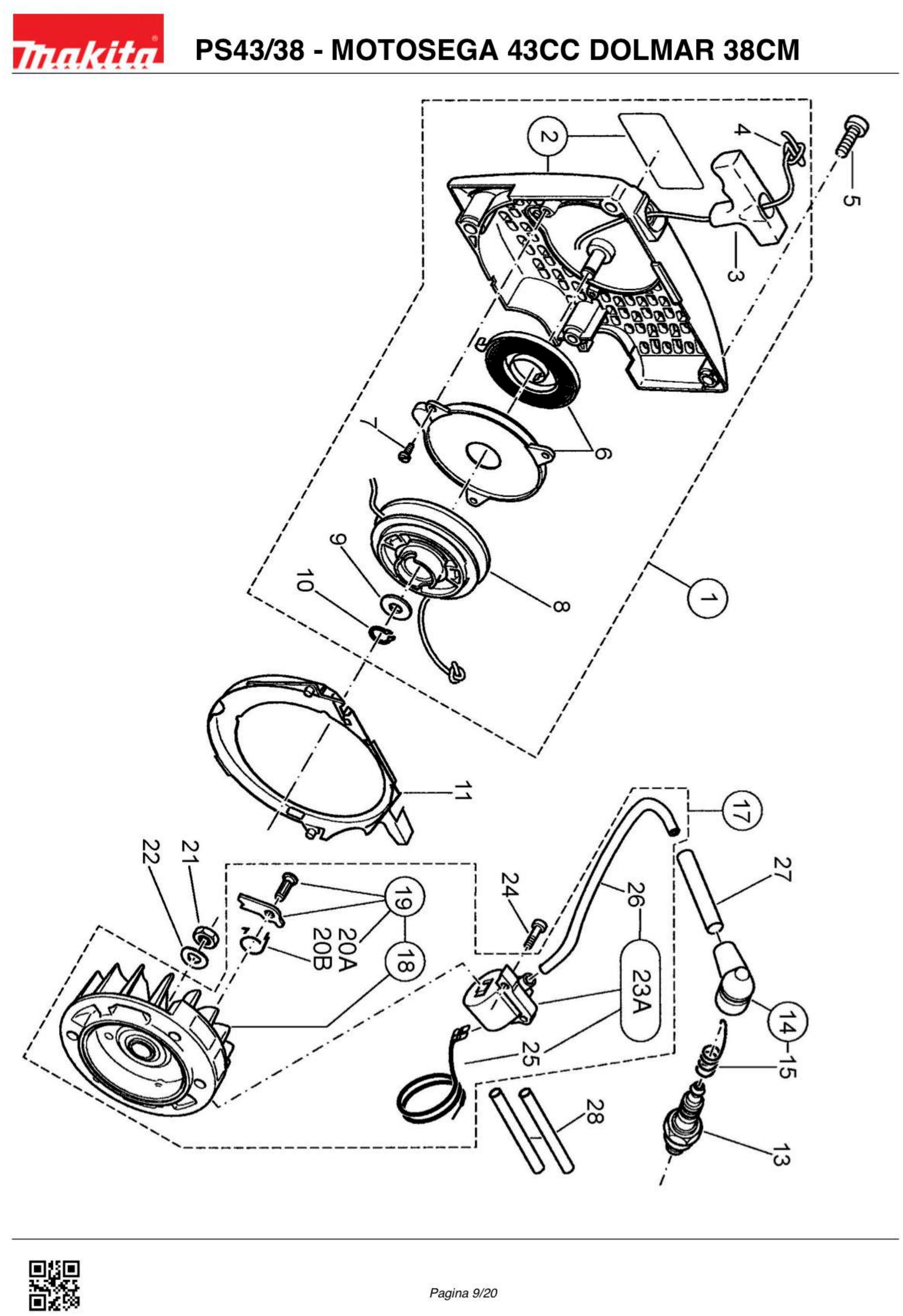

Esploso pagina 5
Pos. Item Price Buy
1
 photo_cameraImage coming soon 027160010 STARTER CARTER X 110-115 €113.10
2
 photo_cameraImage coming soon 020112180 COMPLETE FAN HOUSING €21.54
3
 photo_cameraImage coming soon 965402262 STARTER GRIP DCS6000I/9010 €8.50
4
 photo_cameraImage coming soon 108164020 STARTER ROPE 38-1/2" €8.03
5
 photo_cameraImage coming soon 266605-8 SCREW M5X16 PS32CTLC €1.43
6
 photo_cameraImage coming soon 020163031 REWIND SPRING IN HOU DCS430 €11.07
8
 photo_cameraImage coming soon 027162070 CABLE DRUM €16.65
9
 photo_cameraImage coming soon 924108400 DISC 8,4 DCS430/520/4300I/5200 €2.08
10
 photo_cameraImage coming soon 929108080 SAFETY DISC 8X0,8 DCS430/520/4 €1.40
11
 photo_cameraImage coming soon 020112010 AIR DUCT DCS430/520/4300I/5200 €5.13
13
 photo_cameraImage coming soon 965603021 NGK SPARK PLUG BPMR7A €5.56
14
 photo_cameraImage coming soon 957604260 SPARK PLUG CAP CPL. €4.51
15
 photo_cameraImage coming soon 965604180 SPRING DCS330S/390/430/520/430 €2.20
17
 photo_cameraImage coming soon 027140001 IGNITION GROUP €174.83
18
 photo_cameraImage coming soon 027141021 COMPLETE POLAR WHEEL €193.46
19
 photo_cameraImage coming soon 181166050 NOTTOLINO STARTING COMPL. €205.23
20A
 photo_cameraImage coming soon 122166020 SPRING 12,8 DCS430/520/4300I/5 €1.40
21
 photo_cameraImage coming soon 264022-6 NUT €1.43
22
 photo_cameraImage coming soon 926208001 SPRING WASHER 8 €1.47
23A
 photo_cameraImage coming soon 020143031 IGNITION COIL (DUCATI) €92.13
24
 photo_cameraImage coming soon 266607-4 SCREW M5X20 PS32CTLC €1.43
25
 photo_cameraImage coming soon 001147000 SHORT CIRCUIT CABLE (DUCATI) 4 €9.89
26
 photo_cameraImage coming soon 970310200 POWER CABLE 1m €7.58
27
 photo_cameraImage coming soon 970502110 INSULATING HOSE M DCS4630/5030 €6.76
28
 Insulating Hose for Chainsaw Dolmar PS43/38 970502050 Insulating Hose for Chainsaw Dolmar PS43/38 €3.96
Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

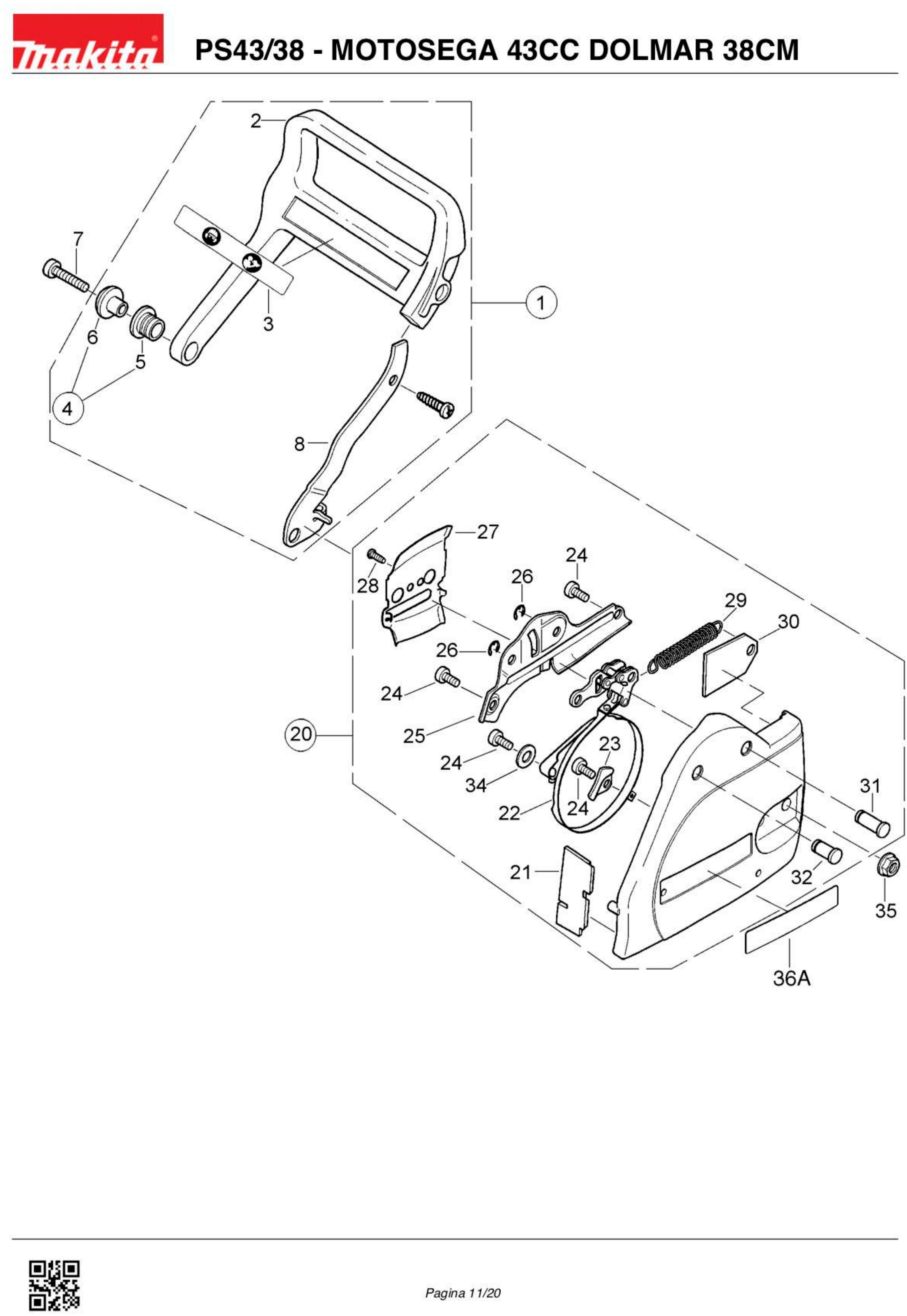

Esploso pagina 6
Pos. Item Price Buy
1
 photo_cameraImage coming soon 027213452 HAND GUARD €68.84
2
 photo_cameraImage coming soon 027213462 HAND GUARD DCS430/431/4300I/52 €32.73
3
 photo_cameraImage coming soon 810449-4 LABEL €1.47
4
 photo_cameraImage coming soon 027213430 SERIES OF BUSHING €12.69
5
 photo_cameraImage coming soon 027213150 RUBBER BUSH DCS430/520/4300I/5 €2.69
6
 photo_cameraImage coming soon 027213161 BUSH €7.58
20
 photo_cameraImage coming soon 027213572 CHAIN BRAKE €83.85
21
 photo_cameraImage coming soon 027213280 PROTECTION COVER DCS430/520/43 €2.08
22
 photo_cameraImage coming soon 027213050 BRAKE SPRING WITH LEVER CPL DC €28.31
23
 photo_cameraImage coming soon 027213352 BRAKE SHEET €3.66
24
 photo_cameraImage coming soon 913205125 TAPPING LENS SCREW M5X12 DCS43 €2.08
25
 photo_cameraImage coming soon 027213111 COVER PLATE DCS430/520/4300I/5 €5.13
26
 photo_cameraImage coming soon 927304000 E'CLIP DCS4630/5030/5031/DCS46 €1.47
27
 photo_cameraImage coming soon 027111042 GUIDE PLATE €2.53
29
 photo_cameraImage coming soon 027213120 SPRING DCS430/520/4300I/5200I €2.69
30
 photo_cameraImage coming soon 027213560 RUBBER PLATE €1.40
31
 photo_cameraImage coming soon 027213130 SHAFT FOR BRAKE LEVER DCS430/5 €2.69
32
 photo_cameraImage coming soon 027213140 SHAFT FOR LEVER DCS430/520/430 €2.69
34
 photo_cameraImage coming soon 924500049 WASHER DCS430/520/4300I/5200I €1.40
35
 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 264055-1 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 €1.48
Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

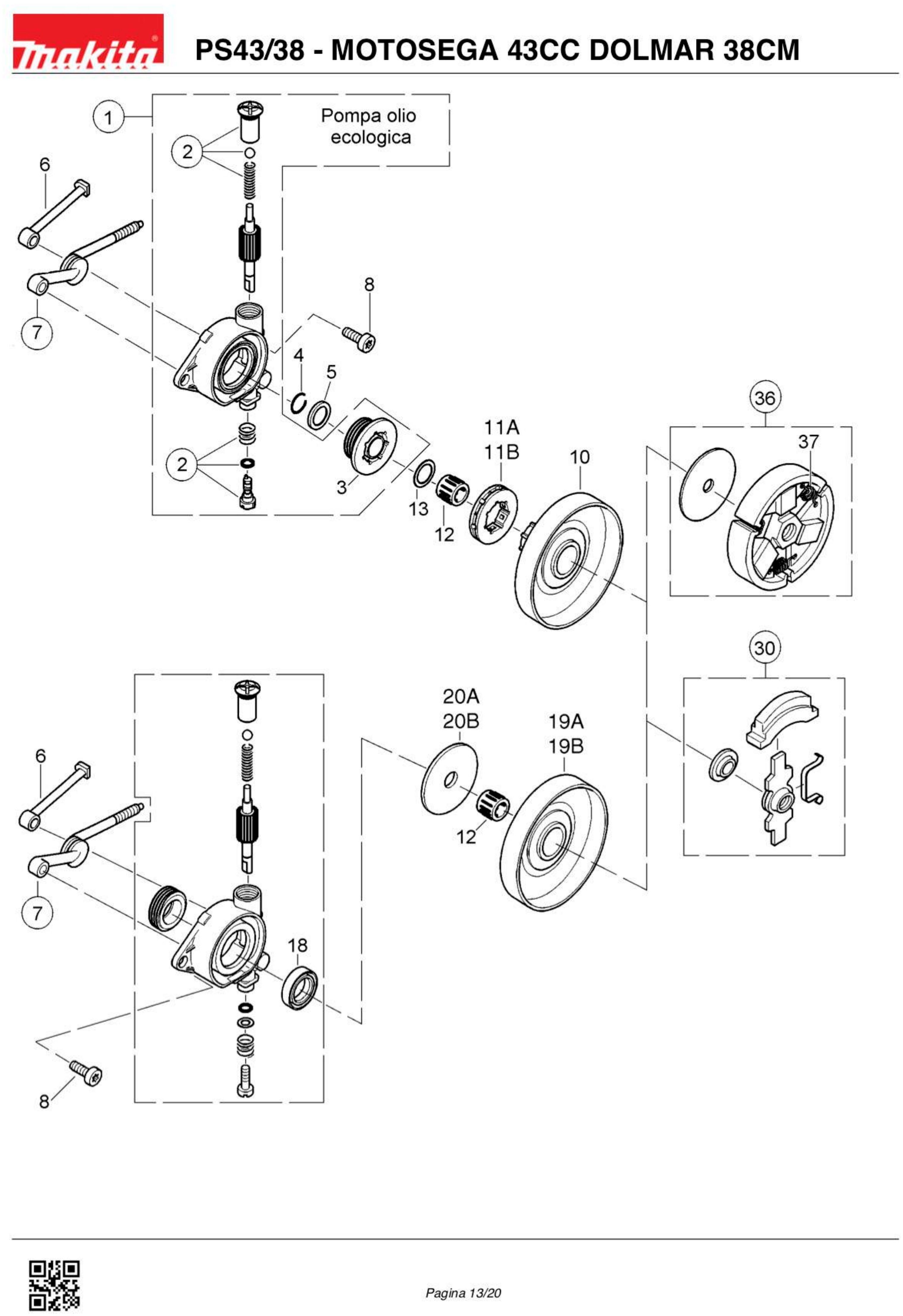

Esploso pagina 7
Pos. Item Price Buy
1
 Oil Pump Assy for Chainsaw Dolmar PS43/38 027245161 Oil Pump Assy for Chainsaw Dolmar PS43/38 €88.72
2
 Oil Pump Repair Kit for Chainsaw Dolmar PS43/38 030245070 Oil Pump Repair Kit for Chainsaw Dolmar PS43/38 €22.12
3
 Worm Screw for Chainsaws Makita DCS43/38 027245010 Worm Screw for Chainsaws Makita DCS43/38 €16.31
4
 photo_cameraImage coming soon 234366-8 SNAP RING A 1616X1 €2.50
5
 photo_cameraImage coming soon 346872-2 SNAP RING €3.13
6
 Oil Pressure Line for Chainsaw Dolmar PS43/38 020245020 Oil Pressure Line for Chainsaw Dolmar PS43/38 €4.50
7
 Oil Suction Line for Chainsaw Dolmar PS43/38 020245041 Oil Suction Line for Chainsaw Dolmar PS43/38 €10.07
10
 photo_cameraImage coming soon 027223101 CLUTCH DRUM €28.31
11A
 Rim Sprocket .325" for Chainsaw Dolmar PS43/38 020224070 Rim Sprocket .325" for Chainsaw Dolmar PS43/38 €10.10
11B
 photo_cameraImage coming soon 026224010 PINION 3/8 " €10.09
12
 photo_cameraImage coming soon 962210025 NEEDLE CAGE DCS430/520/4300I/5 €8.50
13
 photo_cameraImage coming soon 027245021 STOP DISC DCS430/431/4300I/520 €3.02
18
 photo_cameraImage coming soon 962900040 SEAL RING 15 / 23X3 €5.32
19B
 photo_cameraImage coming soon 020223210 CLUTCH DRUM €12.37
19A
 photo_cameraImage coming soon 957223110 CLUTCH DRUM €32.73
20B
 photo_cameraImage coming soon 001245350 DISC DCS430 €2.89
30
 photo_cameraImage coming soon 957180030 CLUTCH GROUP 109-115 €32.73
37
 photo_cameraImage coming soon 181184020 TENSION SPRING €2.69
Page 8 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

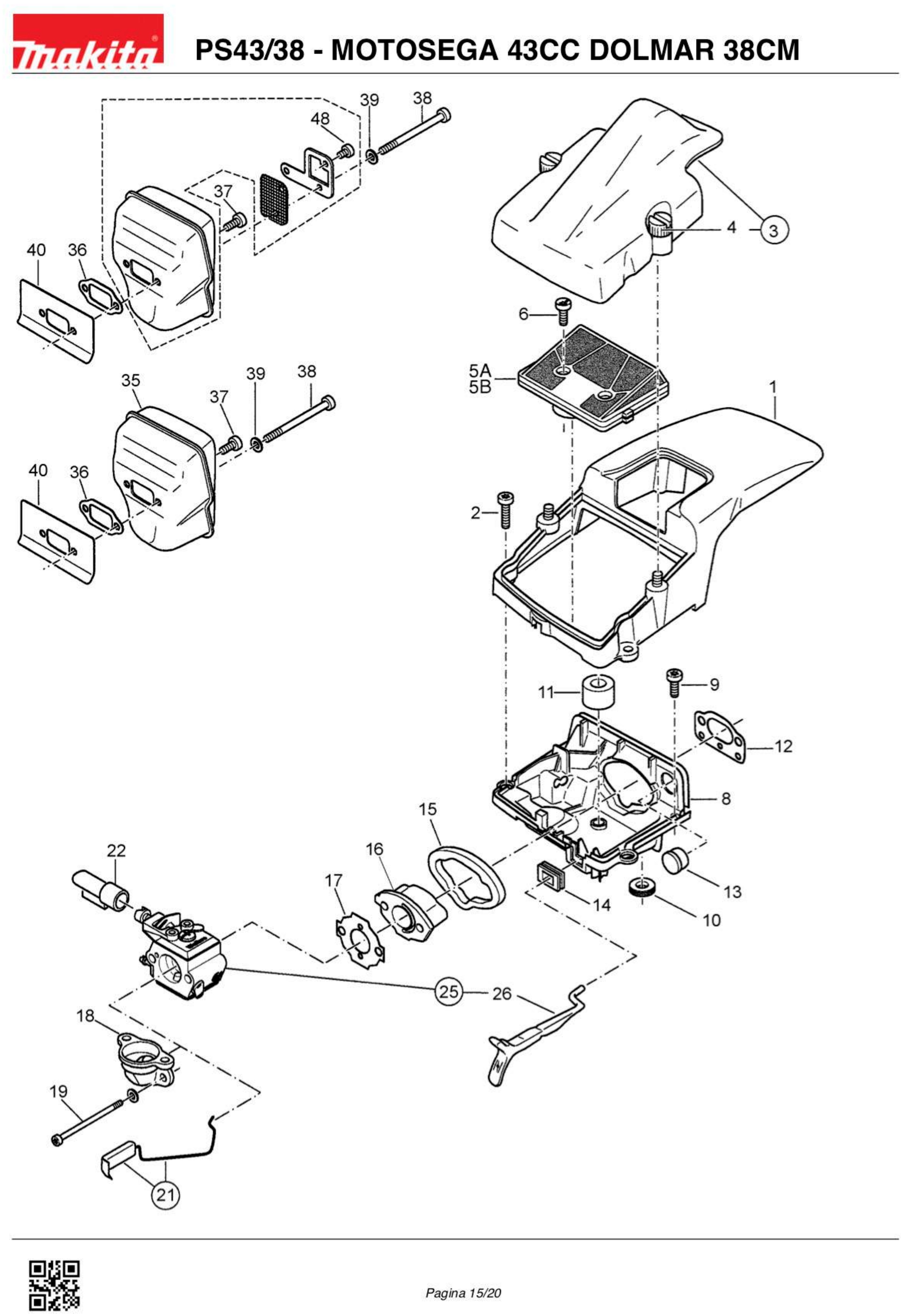

Esploso pagina 8
Pos. Item Price Buy
1
 photo_cameraImage coming soon 027118155 COMPLETE FILTER CASING €32.28
3
 photo_cameraImage coming soon 020118121 COMPLETE CARTER €16.65
4
 photo_cameraImage coming soon 001118062 NUT €3.84
5A
 photo_cameraImage coming soon 020173202 AIR FILTER CPL (NYLON) DCS430/ €32.73
5B
 photo_cameraImage coming soon 020173300 COMPLETE AIR FILTER €17.22
8
 photo_cameraImage coming soon 027118010 FUND €44.74
10
 photo_cameraImage coming soon 965401024 RUBBER BUSH DCS430/520/4300I/5 €3.13
11
 photo_cameraImage coming soon 965404780 GASKETDCS430/431/4300I/520/52 €2.69
12
 photo_cameraImage coming soon 965525032 GASKET DCS4320/520/4300I/5200I €3.13
13
 photo_cameraImage coming soon 965404230 'PLUG (CARBURETOR HEATING) DCS €1.40
14
 Rubber Bush for Chainsaw Dolmar PS43/38 965404410 Rubber Bush for Chainsaw Dolmar PS43/38 €2.33
15
 photo_cameraImage coming soon 965404341 GASKET €1.40
16
 photo_cameraImage coming soon 020131043 INTER MEDIATE FLANGE €6.35
17
 Thermal Flange Gasket for Chaisaw Dolmar PS3400TH/30 965524023 Thermal Flange Gasket for Chaisaw Dolmar PS3400TH/30 €4.80
18
 photo_cameraImage coming soon 020171100 CONNECTING MUFF DCS430/520/430 €7.58
19
 photo_cameraImage coming soon 908205658 'FILLISTER HEAD SCREW M5X65 €3.13
21
 photo_cameraImage coming soon 020117281 THROTTLE LINKAGE CO DCS430/52 €7.58
22
 photo_cameraImage coming soon 020118030 GUIDE PIECE €2.08
25
 photo_cameraImage coming soon 957151102 CARBURETOR WT-76 COMPLETE PS52 €106.81
26
 photo_cameraImage coming soon 027150840 AIR VALVE LEVER PS52 €3.46
35
 photo_cameraImage coming soon 020174160 MUFFLER €40.40
36
 photo_cameraImage coming soon 346304-9 SEAL MUFFLER PS32CTLC €1.43
38
 photo_cameraImage coming soon 908205625 FILLISTER HEAD SCREW M5X62 €2.08
39
 photo_cameraImage coming soon 928405000 SPRING WASHER €5.43
40
 photo_cameraImage coming soon 020174171 PROTECTION €3.09
Page 9 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

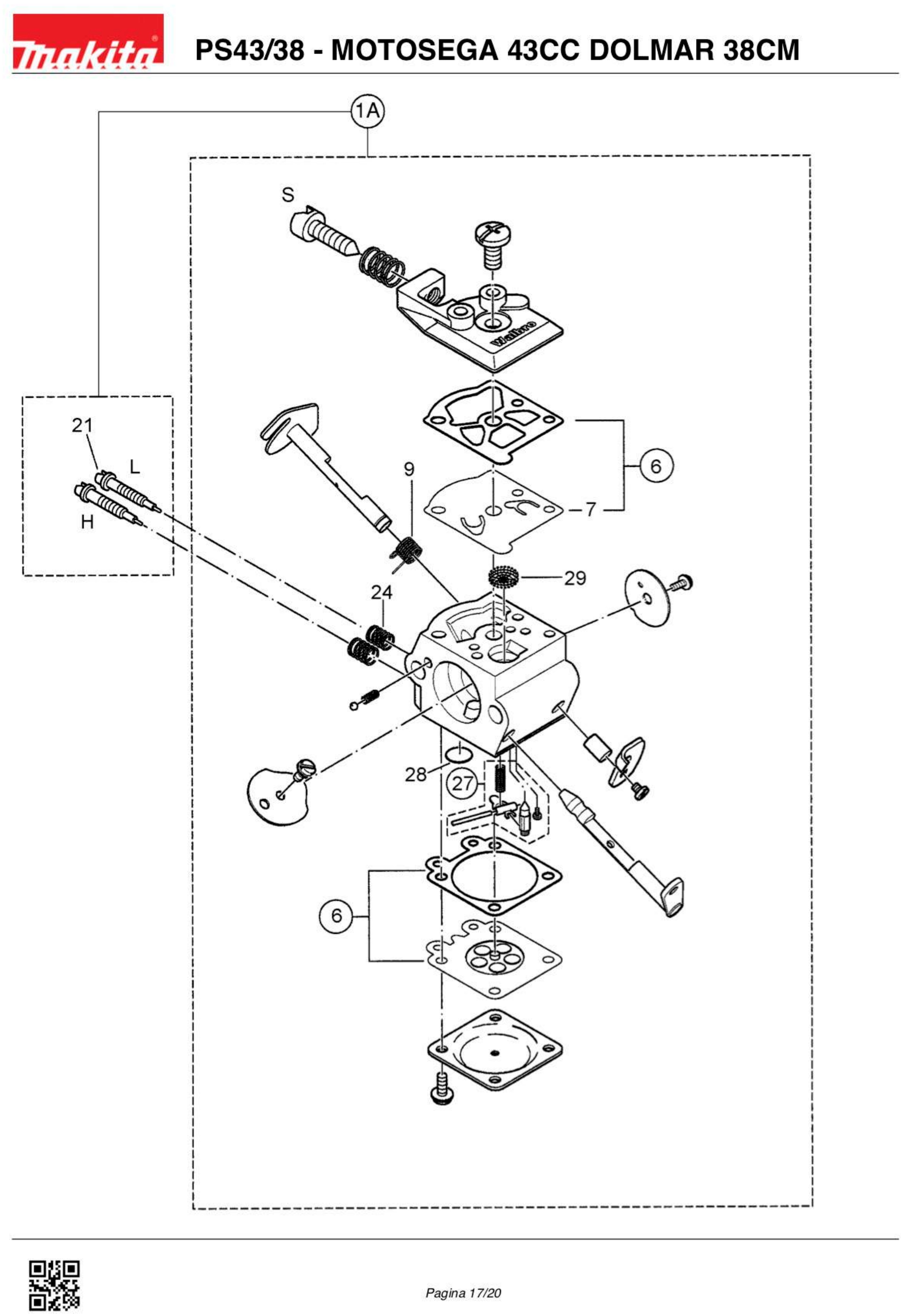

Esploso pagina 9
Pos. Item Price Buy
6
 photo_cameraImage coming soon 021151540 GASKETS SERIES €24.36
7
 photo_cameraImage coming soon 021151150 PUMP DIAPHR RUBBER DCS430/431/ €11.07
9
 photo_cameraImage coming soon 001151310 SPRING DCS330S/390/430/520/DCS €2.69
21
 photo_cameraImage coming soon 001151470 IDLING ADJUSTM.SCREW (L) 330S/ €9.89
24
 photo_cameraImage coming soon 021151480 SPRING (L) DPC6430/7331/8132/ €3.14
27
 photo_cameraImage coming soon 957150040 SET OF CONTROL PIECES 330S/390 €19.00
28
 photo_cameraImage coming soon 144150030 COVER DISC DCS430/520 €2.69
29
 photo_cameraImage coming soon 021151180 SCREEN €3.85
Page 10 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

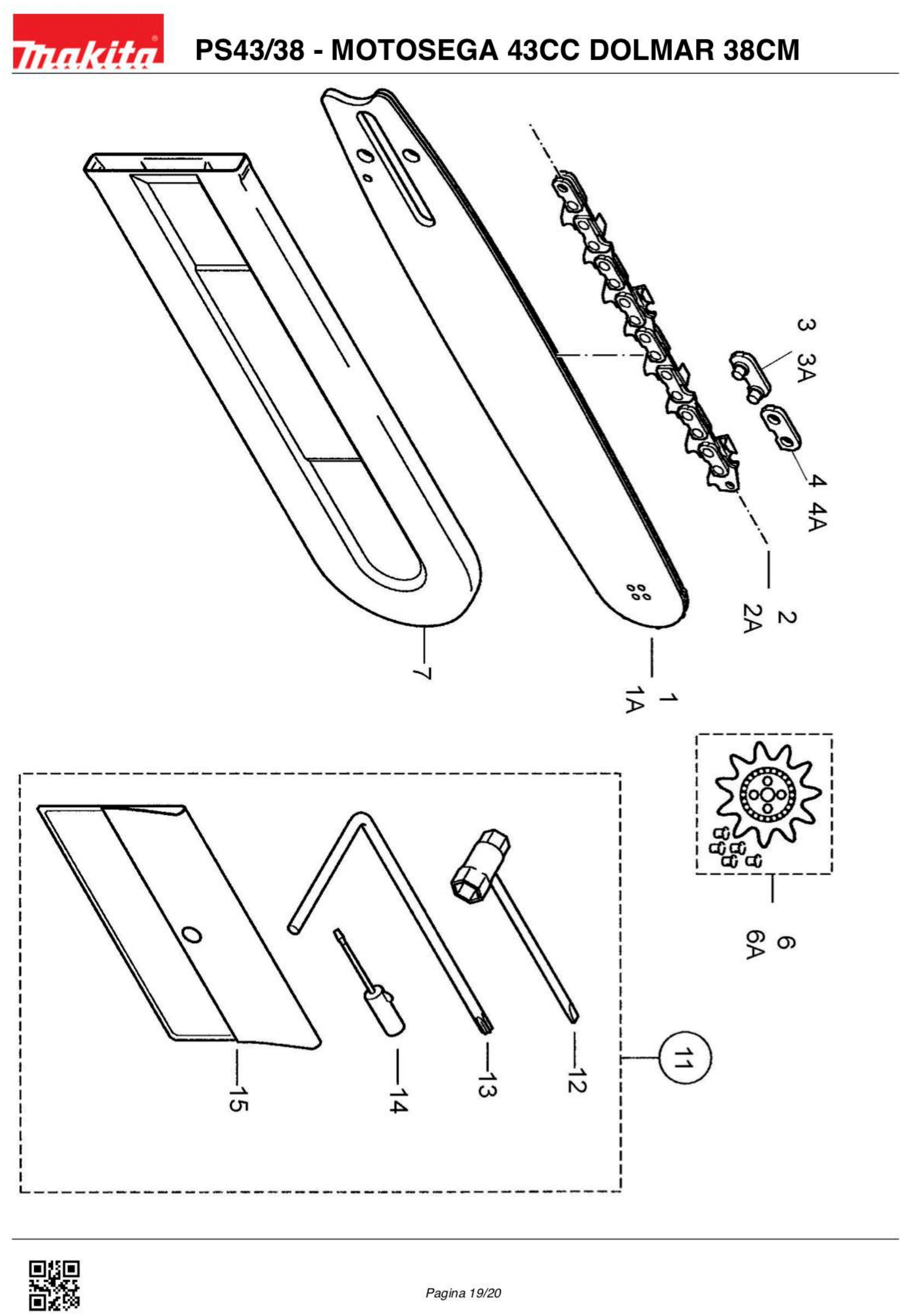

Esploso pagina 10
Pos. Item Price Buy
1
 photo_cameraImage coming soon 415038631 38CM BAR, THICKNESS 1.5M €43.52
3
 photo_cameraImage coming soon 558083010 JERSEY JUNCTION 0.325 " €2.08
4
 photo_cameraImage coming soon 558083000 GUY STEP 0325 " €1.40
6A
 photo_cameraImage coming soon 415325710 PINION BAR 0.325 " €44.84
7
 photo_cameraImage coming soon 952020650 BAR PROTECTION 38/45 CM €9.52
11
 photo_cameraImage coming soon 957004002 SERIES TOOLS DCS430 €16.96
12
 photo_cameraImage coming soon 941719133 UNIVERSAL KEY 19/13 €5.15
13
 photo_cameraImage coming soon 782025-3 TORX KEY €2.18
15
 Plastic Bag for Chainsaws Dolmar 950004001 Plastic Bag for Chainsaws Dolmar €2.53

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Dolmar Spare Parts for Chainsaw PS43/38

We have the original Spares DOLMAR for Chainsaw PS43/38 - 43CC, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Chainsaw PS43/38 - 43CC. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Chainsaw and the respective parts of the code.
Dolmar PS43/38

PS43/38 - CHAINSAW 43CC DOLMAR 38CM pag.1
# Part Num. Description
1A 027130050 PISTON + CYLINDER CPL
2A 032132011 PISTON DIAMETER 40MM
3A 021132230 PISTON RING FOR 40MM PISTON.
4B 001132010 PIN / DCS430
5 020132050 ELASTIC RING C10X0,8
6 266476-3 SCREW M5X20 (TORX)
7 965525042 SEAL
10 001142012 CLAMP
11 965401011 RUBBER BUSHING
PS43/38 - CHAINSAW 43CC DOLMAR 38CM pag.2
1B 027111144 CARTER CLUTCH SIDE X PS540
1C 027111144 CARTER CLUTCH SIDE X PS540
2A 020111203 CARTER SIDE FLYWHEEL X 115
2B 027111171 CARTER SIDE FLYWHEEL X PS 540
3B 027120010 CRANK SHAFT CPL
4A 211154-0 BEARING 6202
4B 960102131 BALL BEARING 6201
5 9 39620371 KEY 2.0X3.7
6 9 62211030 NEEDLE BEARING
7 2 13814-0 RADIAL GASKET 15 / 24X7
8 2 13141-5 SEAL
9 9 36430160 PIN 3X16 PS350C-420C
10 965525002 SEAL
11 027213320 FLAT SPRING
12A 934950160 RUBBER BUSHING 5 X 16 X DCS430
12B 934950160 RUBBER BUSHING 5 X 16 X DCS430
14 027213520 HEX HEAD SCREW
15 027213270 SPRING
16 027213510 RING
17 027213500 NUT WITH SHOULDER
PS43/38 - CHAINSAW 43CC DOLMAR 38CM pag.3
11 908005305 SCREW M5X30 (TORX)
12 908105204 SCREW M5X20 (TORX)
13 001111012 SCREW M12X1
15 905808305 STUD M8X30
16 389213081 SCREW
17 1213020 NUT WITH PLUG
22 20111082 CHAIN CATCHER
23 266946-2 SCREW M5X12 (TORX)
24 020111172 GUIDE PLATE
25 915135100 SCREW 3,5 X 9.5
26 020250020 COMPLETE TOOTHED BAR
27 266474-7 SCREW M5X8 (TORX)
28 020173011 PRE FILTER
29 020173026 COVER
30 266947-0 TORX SCREW
32 957605112 COMPLETE SHORT CIRCUIT SWITCH
33 980113841 IGNITION LABEL
34 965401011 RUBBER BUSHING
35 010114032 COMPLETE OIL TANK CAP
36 963100051 SEAL
37 010245010 AIR VALVE X PS6000I-6800I
38 921905004 NUT
39 020111070 CLAMP
40 020173061 FILTER
PS43/38 - CHAINSAW 43CC DOLMAR 38CM pag.4
1 957310027 TUBULAR HANDLE GROUP
3 965403491 RUBBER DAMPER
4 021114051 FIXING COMPASS
5 908005305 SCREW M5X30 (TORX)
8 020310013 COVER
9 266478-9 SCREW 5,5X16 (TORX)
15 020114005 TANK PS52
16 965451901 CAP ASSY DCS / PS9010
17 963232045 GASKET OR32X4.5
18 163532-9 FILTER
19 963601240 FELT
20 957114011 TANK VALVE
21 965404460 FUEL LINE
22 965404521 SEAL
23 020117291 THROTTLE LEVER
24 020117273 SPRING
25 020117301 LOCKING LEVER
26 020117160 SPRING
27 935932320 CYLINDRICAL PIN
28 020114053 PLATE FOR HANDLE
29 965403282 RUBBER BUFFER
30 913447134 CYLINDRICAL SCREW X TORX SHEET
PS43/38 - CHAINSAW 43CC DOLMAR 38CM pag.5
1 027160010 STARTER CARTER X 110-115
2 020112180 COMPLETE FAN HOUSING
3 965402262 STARTER HANDLE X DCS9000
4 108164020 STARTER ROPE 3,5X980MM
5 266605-8 SCREW M5X16 PS32CTLC
6 020163031 STARTER SPRING
7 915135100 SCREW 3,5 X 9.5
8 027162070 STARTER DRUM
9 924108400 WASHER 8.4
10 929108080 SAFETY WASHER 8X0.8
11 020112010 AIR CONDUCT
13 965603021 SPARK PLUG NGK BPMR7A
14 957604260 SPARK PLUG CAP
15 965604180 SPRING
17 027140001 IGNITION GROUP
18 027141021 COMPLETE POLAR WHEEL
19 181166050 STARTER PAWL COMPLETE
20A 122166020 TORSION SPRING
21 264022-6 NUT
22 926208001 ELASTIC WASHER 8
23A 020143031 IGNITION COIL (DUCATI)
24 266607-4 SCREW M5X20 PS32CTLC
25 001147000 SHORT CIRCUIT CABLE
26 970310200 IGNITION CABLE 1mt
27 970502110 INSULATION TUBE 6 / 0.5 (M)
28 970502050 ISOLATION PIPE (M)
PS43/38 - CHAINSAW 43CC DOLMAR 38CM pag.6
1 027213452 HAND GUARD
2 027213462 SAFETY HANDLE
3 810449-4 LABEL
4 027213430 SERIES OF BUSHING
5 027213150 RUBBER BUSHING
6 027213161 BUSHING
7 266476-3 SCREW M5X20 (TORX)
8 27213221 RELEASE LEVER
20 027213572 CHAIN BRAKE
21 027213280 PROTECTION COVER
22 027213050 BRAKE SPRING WITH COMPLETE LEVER
23 027213352 BRAKE SHEET
24 913205125 SCREW 5 X 12 X DCS430
25 027213111 COVER PLATE
26 927304000 SAFETY WASHER 4
27 027111042 GUIDE PLATE
28 915135100 SCREW 3,5 X 9.5
29 027213120 SPRING
30 027213560 PLATE
31 027213130 ROD FOR BRAKE LEVER
32 027213140 ROD FOR LEVER
34 924500049 WASHER 5.2X12X1
35 264055-1 NUT M8
PS43/38 - CHAINSAW 43CC DOLMAR 38CM pag.7
1 027245161 OIL PUMP ASSY
2 030245070 OIL PUMP REPAIR KIT
3 027245010 WORM SCREW
4 234366-8 CHECK RING 16X1
5 346872-2 LOCK RING
6 020245020 OIL DELIVERY LINE
7 020245041 INTAKE LINE FOR OIL
8 266946-2 SCREW M5X12 (TORX)
10 027223101 DRUM CLUTCH
11A 020224070 SPROKET 0,325"
11B 026224010 SPROKET 3/8 "
12 962210025 NEEDLE BEARING
13 027245021 RING
18 962900040 SEAL RING 15 / 23X3
19A 957223110 CLUTCH DRUM
19B 020223210 CLUTCH DRUM
20B 001245350 DISC DCS430
30 957180030 CLUTCH GROUP 109-115
36 957180030 CLUTCH GROUP 109-115
37 181184020 SPRING
PS43/38 - CHAINSAW 43CC DOLMAR 38CM pag.8
1 027118155 COMPLETE FILTER CASING
2 266605-8 SCREW M5X16 PS32CTLC
3 020118121 COMPLETE CARTER
4 001118062 NUT M5
5A 020173202 COMPLETE AIR FILTER (NYLON)
5B 020173300 COMPLETE AIR FILTER
6 266947-0 TORX SCREW
8 027118010 FUND
9 266474-7 SCREW M5X8 (TORX)
10 965401024 THREAD RUBBER
11 965404780 SEAL
12 965525032 SEAL
13 965404230 CAP (CARBURETOR HEATING)
14 965404410 RUBBER BUSH
15 965404341 SEAL
16 020131043 INTERMEDIATE FLANGE
17 965524023 SEAL
18 020171100 CONNECTION SLEEVE
19 908205658 THREADED SCREW
21 020117281 COMPLETE THROTTLE LINKAGE
22 020118030 GUIDE
25 957151102 CARBURETOR WT-76 COMPLETE PS52
26 027150840 AIR VALVE LEVER PS52
35 020174160 MUFFLER
36 346304-9 GASKET SEAL PS32CTLC
37 266474-7 SCREW M5X8 (TORX)
38 908205625 SCREW M5X62
39 928405000 ELASTIC WASHER
40 020174171 PROTECTION
PS43/38 - CHAINSAW 43CC DOLMAR 38CM pag.9
1A 957151102 CARBURETOR WT-76 COMPLETE PS52
6 021151540 GASKETS SERIES
7 021151150 PUMP DIAPHRAGM
9 001151310 SPRING
21 001151470 MINIMUM ADJUSTING SCREW (L)
24 021151480 SPRING (L)
27 957150040 SERIES CONTROL PARTS
28 144150030 WASHER COVER
29 021151180 PETROL FILTER
PS43/38 - CHAINSAW 43CC DOLMAR 38CM pag.10
1 415038631 38CM BAR, THICKNESS 1.5M
3 558083010 JOINTED JERSEY 0.325 "
4 558083000 TIE PITCH 0.325 "
6A 415325710 BAR PINION 0.325 "
7 952020650 BAR PROTECTION 38/45 CM
11 957004002 TOOLS SERIES DCS430
12 941719133 UNIVERSAL KEY 19/13
13 782025-3 TORX KEY
14 783012-5 SCREWDRIVER FOR CARBURETOR
15 950004001 PLASTIC HOUSING
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Dolmar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Dolmar PS43/38
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Dolmar PS43/38

Drawing Dolmar PS43/38

Download (1.19MB)

You might also like

Set Diaphram Gasket for Chainsaws Dolmar PS350C-420C
Makita SKU: 957151220
Set Diaphram Gasket for Chainsaws Dolmar PS350C-420C
Set Diaphram Gasket for Chainsaws Dolmar PS350C-420C Genuine parts Dolmar, Set Diaphram Gasket for Chainsaws Dolmar PS420SC/38 - PS420SC/45 Part for the following products: - Chainsaw Dolmar PS420SC/38 - Chainsaw Dolmar PS420SC/45 -...
Last items in stock €40.61
Details
Worm Screw for Chainsaw Dolmar PS4600S-5000
Makita SKU: 450956-1
Worm Screw for Chainsaw Dolmar PS4600S-5000
Worm Screw for Chainsaw Dolmar PS4600S-5000 Genuine part Dolmar, Worm Screw for Chainsaw Dolmar PS4600S-5000 - PS460/45 - PS4600S/38 - PS5000/45 - Makita DCS5000/38 - DCS5000/45 Part for the following products: - DCS3501/40 -...
Last items in stock €18.99
Details
Gasoline Filter for Chainsaw Makita DCS230T
Makita SKU: 163447-0
Gasoline Filter for Chainsaw Makita DCS230T
Gasoline Filter for Chainsaw Makita DCS230T Genuine part for Makita, Gasoline Filter for Chainsaws DCS230T - DCS230TC -DCS231T -  DCS231TC - DCS232TC  Part for the following...
Last items in stock €4.49
Details
Intake Manifold for Chainsaw Dolmar PS420SC
Makita SKU: 195131040
Intake Manifold for Chainsaw Dolmar PS420SC
Intake Manifold for Chainsaw Dolmar PS420SC Genuine parts Dolmar, Intake Manifold for Chainsaws Dolmar PS350C/40 - PS350SC/40 - PS420C/38 - PS420C/45 - PS420SC/38 - PS420SC/45 Part for the following products: - DCS3501/40 - CHAINSAW...
Last items in stock €29.38
Details
Oil Pump Assy for Chainsaw Dolmar PS43/38
Makita SKU: 027245161
Oil Pump Assy for Chainsaw Dolmar PS43/38
Oil Pump Assy for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Oil Pump Assy for Chainsaws PS43/38 - PS43/45 - 110I/38 - 110I/45 - 115I/38 - 115I/45. Part for the following...
on 7/10 Business Days Approx €88.72
Details
Oil Pressure Line for Chainsaw Dolmar PS43/38
Makita SKU: 020245020
Oil Pressure Line for Chainsaw Dolmar PS43/38
Oil Pressure Line for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Oil Pressure Line for Chainsaws PS43/38 - PS43/45 - 115I/38 - 115I/45 -  PS52/45 - DCS520/45. Part...
Last items in stock €4.50
Details
Oil Suction Line for Chainsaw Dolmar PS43/38
Makita SKU: 020245041
Oil Suction Line for Chainsaw Dolmar PS43/38
Oil Suction Line for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Oil Suction Line for Chainsaws PS43/38 - PS43/45 - 115I/38 - 115I/45 -  PS52/45...
Last items in stock €10.07
Details
Throttle Catch Lever for Chainsaw Dolmar PS43/38
Makita SKU: 020117301
Throttle Catch Lever for Chainsaw Dolmar PS43/38
Throttle Catch Lever for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Throttle Catch Lever for Chainsaws PS43/38 - PS43/45 - 110I/38 - 110I/45 - 115I/38 - 115I/45. Part for the following products: - PS43/38 - CHAINSAW 43CC...
Last items in stock €3.20
Details
Insulating Hose for Chainsaw Dolmar PS43/38
Makita SKU: 970502050
Insulating Hose for Chainsaw Dolmar PS43/38
Insulating Hose for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Insulating Hose Lenght 1 Mt, for Chainsaws PS43/38 - PS43/45 - 110I/38 - 110I/45 - 115I/38 - 115I/45. Part for the following products: - PS43/38 - CHAINSAW...
Last items in stock €3.96
Details
Oil Pump Repair Kit for Chainsaw Dolmar PS43/38
Makita SKU: 030245070
Oil Pump Repair Kit for Chainsaw Dolmar PS43/38
Oil Pump Repair Kit for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Oil Pump Repair Kit, for Chainsaws PS43/38 - PS43/45 - 110I/38 - 110I/45 - 115I/38 - 115I/45. Part for...
Usually Ships in: 7/10 Business Days Approx. €22.12
Details
Rim Sprocket .325" for Chainsaw Dolmar PS43/38
Makita SKU: 020224070
Rim Sprocket .325" for Chainsaw Dolmar PS43/38
Rim Sprocket .325" for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Rim Sprocket .325" ,T 8 for Chainsaws PS43/38 - PS43/45 - 110I/38 - 110I/45 - 115I/38 - 115I/45. Part for...
Last items in stock €10.10
Details
Oil Tank Plug Cpl. for Chainsaw Dolmar PS43/38
Makita SKU: 010114032
Oil Tank Plug Cpl. for Chainsaw Dolmar PS43/38
Oil Tank Plug Cpl. for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Oil Tank Plug Cpl. for Chainsaws PS43/38 - PS43/45 - 110I/38 - 110I/45 - 115I/38 - 115I/45. Part for the...
Available in 7/10 days €10.20
Details
Rubber Bush for Chainsaw Dolmar PS43/38
Makita SKU: 965404410
Rubber Bush for Chainsaw Dolmar PS43/38
Rubber Bush for Chainsaw Dolmar PS43/38 Genuine replacement part Dolmar, Rubber Bush for Chainsaws PS43/38 - PS43/45 - 110I/38 - 110I/45 - 115I/38 - 115I/45. Part for the following products: -  PS43/38 - CHAINSAW 43CC DOLMAR -...
on 7/10 Business Days Approx €2.33
Details
Makita DCS43/38 Rubber Buffer
Makita SKU: 965403282
Makita DCS43/38 Rubber Buffer
Makita DCS43/38 Rubber Buffer Genuine part Makita, Rubber Buffer for Chainsaws Dolmar 109/38 - 109/45 - 110I/38 - 110I/45 - 111/38 - 111/45 - 115I/38 - 115I/45 -...
AVAILABLE €7.73
Details
Comments (0)
