Makita

Dolmar Spare Parts for Chainsaw PS4605/45

SKU: Dolmar PS4605/45
€7.80
VAT included

Dolmar Spare Parts for Chainsaw PS4605/45

DOLMAR Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Chainsaw PS4605/45 - 45,6CC 45CM DOLMAR.
Dolmar Spare Parts for Chainsaw PS4605/45
  • Dolmar Spare Parts for Chainsaw PS4605/45
  • Dolmar Spare Parts for Chainsaw PS4605/45
  • Dolmar Spare Parts for Chainsaw PS4605/45
  • Dolmar Spare Parts for Chainsaw PS4605/45
  • Dolmar Spare Parts for Chainsaw PS4605/45
  • Dolmar Spare Parts for Chainsaw PS4605/45
  • Dolmar Spare Parts for Chainsaw PS4605/45
Makita

Dolmar Spare Parts for Chainsaw PS4605/45

SKU: Dolmar PS4605/45 Condition: New
€7.80
VAT included

Dolmar Spare Parts for Chainsaw PS4605/45

DOLMAR Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Chainsaw PS4605/45 - 45,6CC 45CM DOLMAR.
settings 165 spare parts
description 6 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
165 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

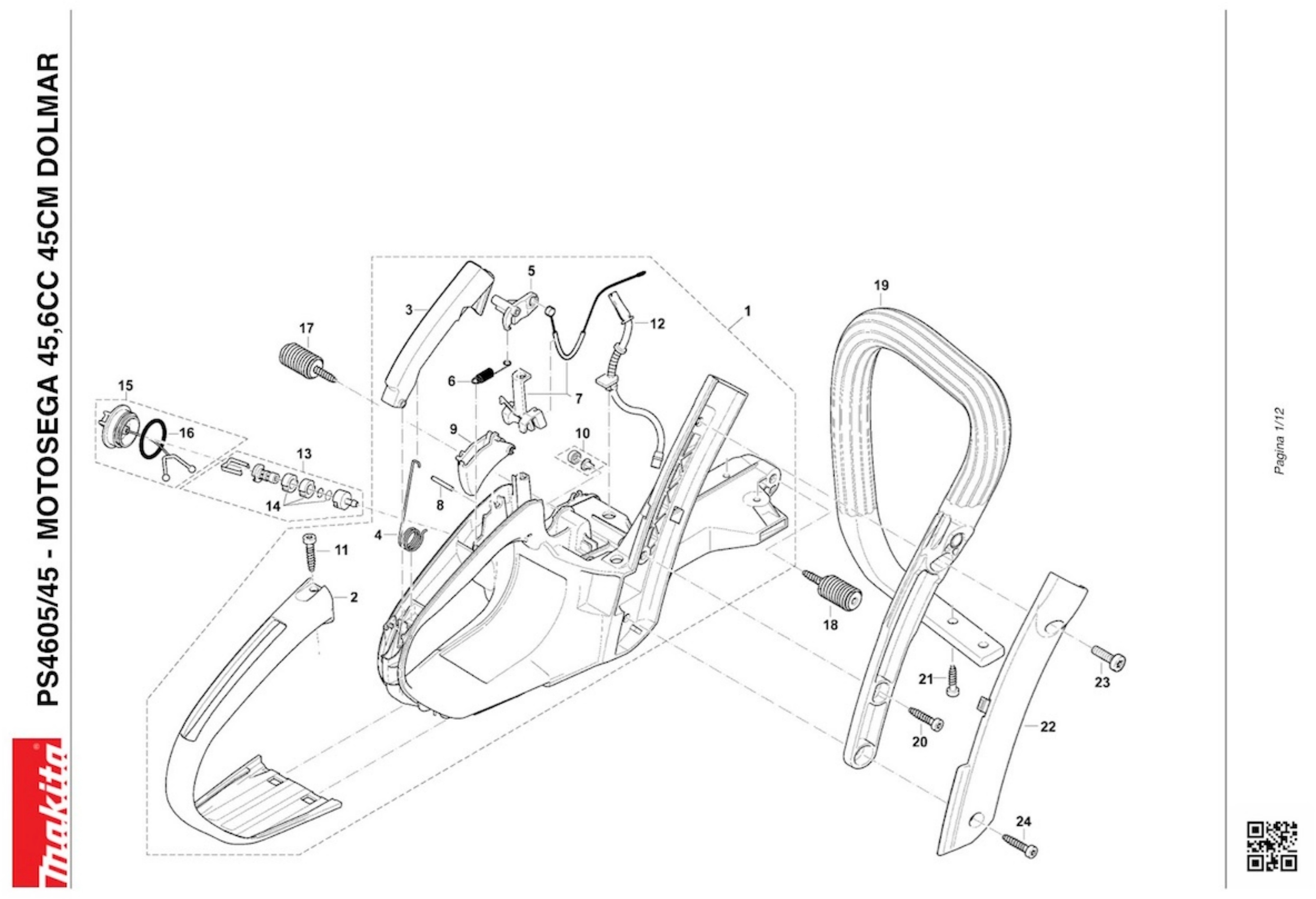

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 181114105 TANK RED PS4600S-5000 €126.04
2
 photo_cameraImage coming soon 181117050 REAR HANDLE DCS4600S / 5000 €17.65
3
 photo_cameraImage coming soon 181117132 CATCH LEVER PS4605-5105 €6.29
4
 photo_cameraImage coming soon 181117031 SPRING FOR PS-460/500 €3.31
5
 photo_cameraImage coming soon 181117081 X JOINT LEVER FOR PS-460/500 €6.29
6
 photo_cameraImage coming soon 181117111 SPRING X PLATE €1.47
7
 photo_cameraImage coming soon 010117050 MODIFICATION SET DCS4600S €19.37
8
 photo_cameraImage coming soon 935930240 CYLINDRICAL PIN 3X24 DCS4630/5 €2.84
9
 photo_cameraImage coming soon 181117121 THROTTLE LEVER €6.29
10
 photo_cameraImage coming soon 957114061 VALVE KIT X DCS6401 €9.01
11
 Screw 5,5X20 (TORX) for Chainsaw Dolmar PS4600S 913455204 Screw 5,5X20 (TORX) for Chainsaw Dolmar PS4600S €2.15
12
 photo_cameraImage coming soon 181114065 FUEL LINE DCS4600S / 5000 €17.65
13
 Makita EK8100WS Fuel Filter 163532-9 Makita EK8100WS Fuel Filter €6.76
14
 Makita EK8100WS Repair Kit Filter 010114020 Makita EK8100WS Repair Kit Filter €39.14
15
 photo_cameraImage coming soon 168823-3 TANK CAP PS32CTLC €2.73
16
 photo_cameraImage coming soon 213080-9 RING 29.5 PS32CTLC €5.43
17
 photo_cameraImage coming soon 181114301 DAMPER PS4605 / 5105 €20.12
19
 photo_cameraImage coming soon 181310200 HANDLE TUBE DCS4600S €77.36
21
 photo_cameraImage coming soon 266478-9 SCREW 5,5X16 (TORX) €1.47
22
 photo_cameraImage coming soon 181114051 COVER FRONT HANDLE RED €20.12
23
 photo_cameraImage coming soon 908006205 M6X20 SCREW €2.20
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

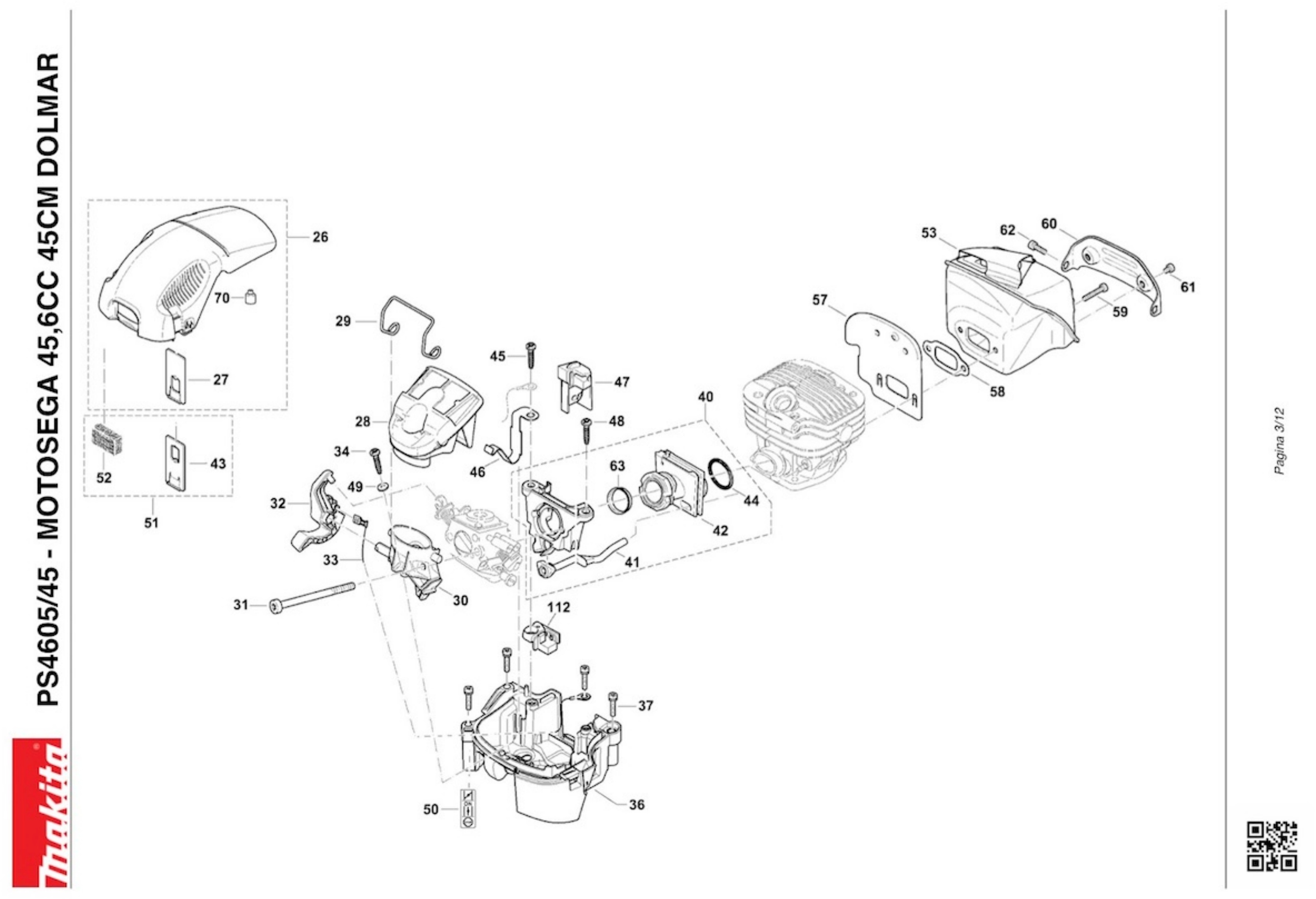

Esploso pagina 2
Pos. Item Price Buy
26
 photo_cameraImage coming soon 181118220 FILTER COVER BLACK PS4605 €42.14
27
 photo_cameraImage coming soon 181118060 PLATE LOCKING DCS4600S €4.06
28
 photo_cameraImage coming soon 181173090 AIR FILTER NYLON PS5000 / 5105 €30.02
29
 photo_cameraImage coming soon 181171050 LEVER FOR AIR DCS4600S €4.51
31
 photo_cameraImage coming soon 266480-2 SCREW €1.47
32
 photo_cameraImage coming soon 181155020 STARTER DCS4600S / 5000 €5.43
33
 photo_cameraImage coming soon 970311550 CABLE MASS DCS4600S-5000 €7.02
36
 photo_cameraImage coming soon 181131160 BOTTOM RED PS4605-5105-5105D €53.26
37
 photo_cameraImage coming soon 908805205 SCREW M5 + WASHER PS6400 / 7300 €34.71
40
 photo_cameraImage coming soon 181171160 FLANGE KPL. PS4605-5105 €65.36
41
 photo_cameraImage coming soon 181131090 PIPE DCS4600S-5000 €17.65
42
 Intake Manifold for Chainsaw Dolmar PS4600S 181131040 Intake Manifold for Chainsaw Dolmar PS4600S €41.64
43
 photo_cameraImage coming soon 181118160 INSERT (SNOW) PS4605 €11.29
44
 photo_cameraImage coming soon 181131070 RING DCS4600S-5000 €4.06
46
 photo_cameraImage coming soon 181155060 CONTACT SPRING PS4605 €6.76
47
 photo_cameraImage coming soon 181155030 GUIDE DCS4600S-5000 €5.43
49
 photo_cameraImage coming soon 928405000 SPRING WASHER €5.43
50
 photo_cameraImage coming soon 980114928 LABEL STARTER FOR PS-460/500 €3.92
51
 photo_cameraImage coming soon 957173250 SNOW FILTER SET PS4605-5105 €12.95
52
 photo_cameraImage coming soon 181173250 PRE-FILTER SPONGE X PS €3.20
53
 photo_cameraImage coming soon 181174102 MUFFLER PS-460/500 €73.02
57
 photo_cameraImage coming soon 181174062 COOLING PLATE PS4605-5105 €2.84
58
 Muffler Gasket for Chainsaws Dolmar PS4600S-5000 181174050 Muffler Gasket for Chainsaws Dolmar PS4600S-5000 €3.99
59
 photo_cameraImage coming soon 266476-3 SCREW M5X20 (TORX) €1.47
60
 photo_cameraImage coming soon 181174091 MUFFLER HOLDER €9.01
61
 photo_cameraImage coming soon 266474-7 SCREW M5X8 (TORX) €1.47
63
 photo_cameraImage coming soon 346413-4 SOCKET 17 PS32CTLC €1.47
70
 photo_cameraImage coming soon 181118070 DAMPER PAD DCS4600S €5.43
112
 photo_cameraImage coming soon 181131140 RUBBER BUSH PS4605-5105 €2.73
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

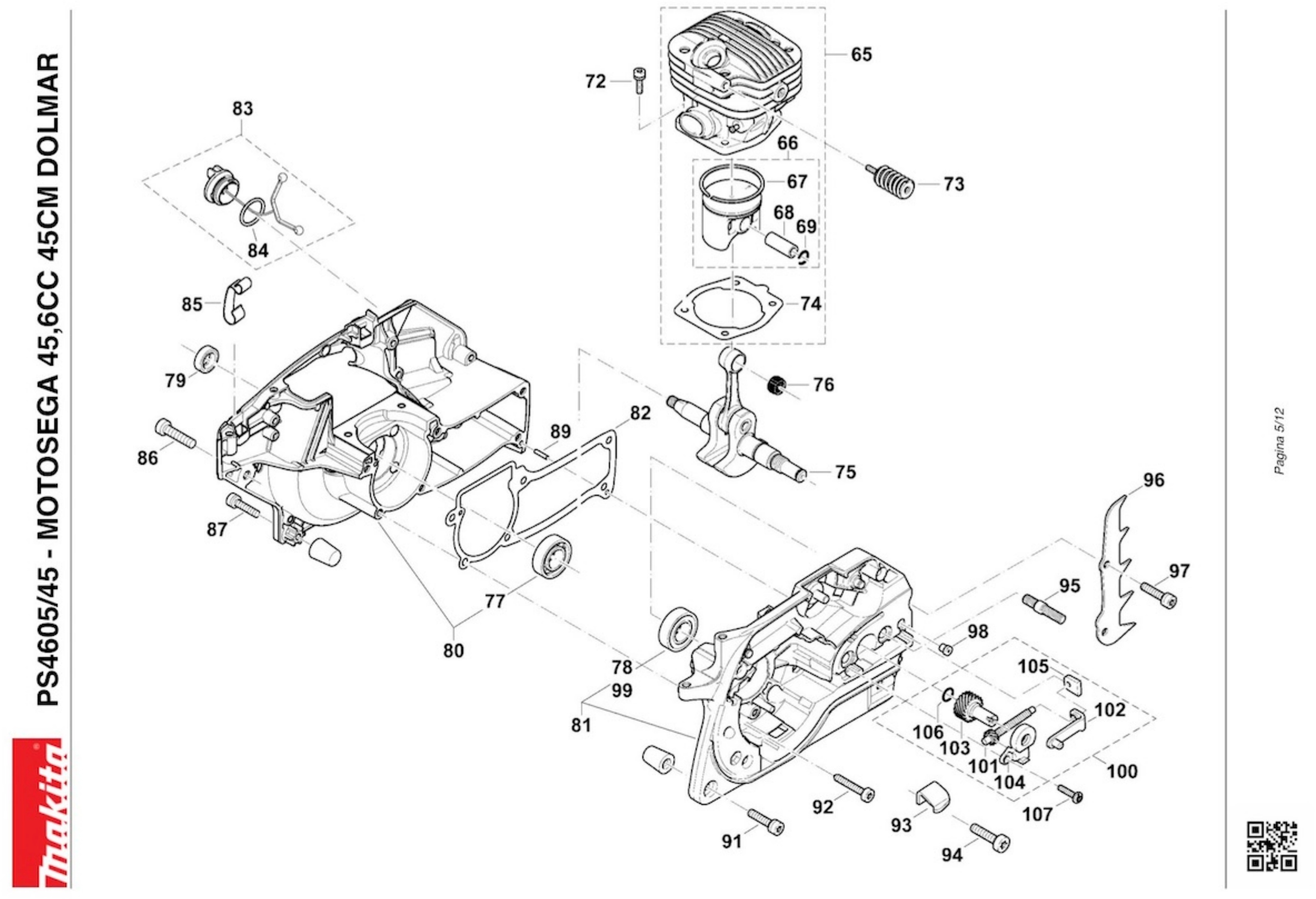

Esploso pagina 3
Pos. Item Price Buy
65
 photo_cameraImage coming soon 180130216 CYLINDER AND PISTON DIAM.43 €338.40
66
 photo_cameraImage coming soon 180132064 PISTON DIAM.43MM €100.54
67
 photo_cameraImage coming soon 180132080 PISTON RING DIAM 43 €24.70
68
 photo_cameraImage coming soon 181132090 PISTON PIN PS4605-5105 €30.02
69
 photo_cameraImage coming soon 181132050 RING PIN 12X1 €2.20
72
 photo_cameraImage coming soon 908805235 SCREW M5X23 PS4605-5105-5105D €2.34
73
 photo_cameraImage coming soon 181114401 DAMPER PS4605-5105 €20.12
74
 Cylinder Gasket for Chainsaw Dolmar PS500C/45 181131133 Cylinder Gasket for Chainsaw Dolmar PS500C/45 €3.67
75
 photo_cameraImage coming soon 181120102 CRANKSHAFT DCS4600S / 5000 €251.96
76
 Conrod Needle Bearing for Chainsaw Dolmar PS500C/45 962210103 Conrod Needle Bearing for Chainsaw Dolmar PS500C/45 €6.56
77
 photo_cameraImage coming soon 211154-0 BALL BEARING 6202 €6.29
78
 Ball Bearing 6203 C3 for Chainsaws Dolmar PS-460/500 960123159 Ball Bearing 6203 C3 for Chainsaws Dolmar PS-460/500 €36.47
79
 photo_cameraImage coming soon 213141-5 SEAL €6.29
80
 photo_cameraImage coming soon 181111154 CRANKC. M. SIDE RED PS4605-5105 €197.39
81
 photo_cameraImage coming soon 181111142 CRANKC. CL. SIDE RED €232.41
82
 Crankcase Gasket for Chainsaws Dolmar PS-460/500 181111061 Crankcase Gasket for Chainsaws Dolmar PS-460/500 €5.24
83
 photo_cameraImage coming soon 170114100 TANK CAP COMPLETE PS4605-5105 €10.48
84
 photo_cameraImage coming soon 963225030 RING X PS3400 / 3400TH €2.84
85
 photo_cameraImage coming soon 181118050 PLATE FIXING DCS4600S €4.06
89
 photo_cameraImage coming soon 936430160 PIN 3X16 PS350C-420C €2.20
93
 Chain Catch for Chainsaws Dolmar PS4600S/38-45 181111050 Chain Catch for Chainsaws Dolmar PS4600S/38-45 €7.19
95
 photo_cameraImage coming soon 905808210 PRISONER M8X21 PS-460/500 €6.29
96
 photo_cameraImage coming soon 181250011 HOOK FOR PS-460/500 €20.12
98
 Venting Valve for Chainsaw Dolmar PS32CTLC 168504-9 Venting Valve for Chainsaw Dolmar PS32CTLC €3.70
100
 photo_cameraImage coming soon 181213300 CHAIN TENSIONER DCS4600S-5000 €42.85
101
 photo_cameraImage coming soon 227743-1 GEAR 11 €22.84
102
 photo_cameraImage coming soon 181213240 SLED DCS4600S-5000 €11.29
103
 photo_cameraImage coming soon 226693-7 PINION DCS4600S-500 €18.81
104
 photo_cameraImage coming soon 452667-4 COVER €9.01
105
 photo_cameraImage coming soon 181213260 NUT DCS4600S-5000 €2.69
106
 photo_cameraImage coming soon 963207020 SEAL 7 €2.84
107
 photo_cameraImage coming soon 908705125 SCREW M5X12 €1.47
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

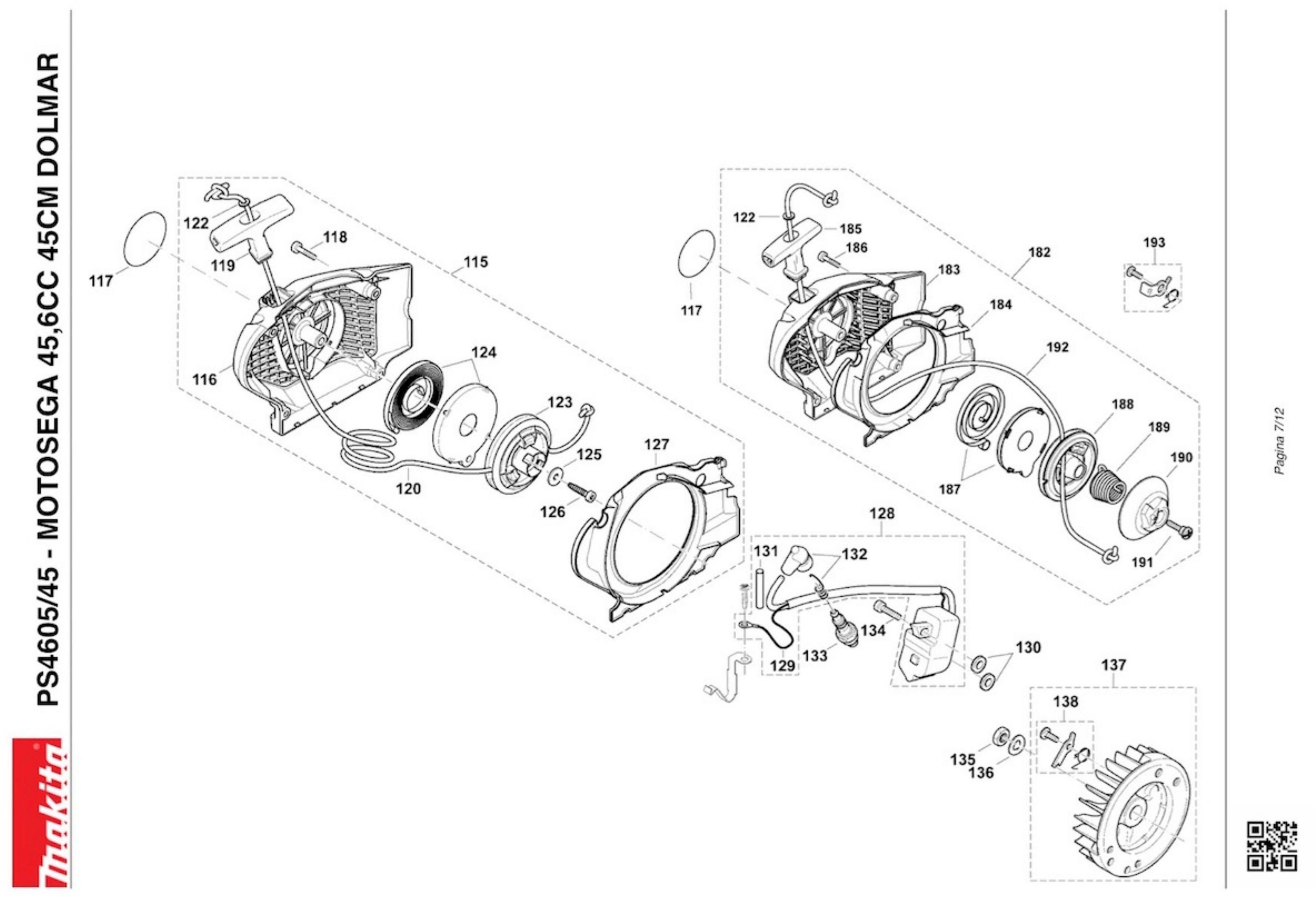

Esploso pagina 4
Pos. Item Price Buy
115
 photo_cameraImage coming soon 181160160 STARTER CPL RED PS4605 €77.33
116
 photo_cameraImage coming soon 181112021 STARTER CARTER RED PS4605-5105 €97.73
117
 photo_cameraImage coming soon 980115497 LABEL PS4605-5105-5105D €5.01
119
 photo_cameraImage coming soon 001161020 STARTER WHEEL DPC7311 €7.80
120
 photo_cameraImage coming soon 108164020 STARTER ROPE 38-1/2" €8.03
123
 photo_cameraImage coming soon 181162150 REEL FOR ROPE DCS4600S €22.19
124
 photo_cameraImage coming soon 181163020 REWINDING SPRING DCS4600S €22.84
125
 photo_cameraImage coming soon 924605510 WASHER 5.5/18X1.6 €13.46
127
 photo_cameraImage coming soon 181118110 DEFLECTOR PS4605-5105-5105D €6.42
128
 Electronic Coil Assy for Chainsaws Dolmar PS4605 - PS5105 181143212 Electronic Coil Assy for Chainsaws Dolmar PS4605 - PS5105 €140.45
129
 photo_cameraImage coming soon 181147050 CABLE REEL DCS4600S / 5000 €148.40
130
 photo_cameraImage coming soon 451462-9 INSULATING WASHER €2.84
131
 photo_cameraImage coming soon 970502110 INSULATING HOSE M DCS4630/5030 €6.76
132
 photo_cameraImage coming soon 957604260 SPARK PLUG CAP CPL. €4.51
133
 photo_cameraImage coming soon 965603021 NGK SPARK PLUG BPMR7A €5.56
135
 photo_cameraImage coming soon 264022-6 NUT €1.43
136
 photo_cameraImage coming soon 926208001 SPRING WASHER 8 €1.47
137
 photo_cameraImage coming soon 181141105 FLYWHEEL CPL. DCS4600S-5000 €187.83
138
 photo_cameraImage coming soon 181166050 NOTTOLINO STARTING COMPL. €205.23
182
 photo_cameraImage coming soon 181160201 STARTER ASSY. RED €109.11
183
 photo_cameraImage coming soon 181112060 STARTER RED CARTER €73.02
184
 photo_cameraImage coming soon 181118120 AIR GUIDE PLATE €4.58
185
 Makita EK8100 Starter Grip 452458-3 Makita EK8100 Starter Grip €5.20
186
 photo_cameraImage coming soon 266607-4 SCREW M5X20 PS32CTLC €1.43
187
 photo_cameraImage coming soon 181163050 REWIND SPRING €12.33
188
 photo_cameraImage coming soon 181162020 REEL FOR ROPE €22.84
189
 photo_cameraImage coming soon 234193-3 SPRING EASY-START €13.46
190
 photo_cameraImage coming soon 181163090 GUIDE FOR EASY START €4.06
191
 photo_cameraImage coming soon 266616-3 SCREW X EASY START €1.85
192
 photo_cameraImage coming soon 181164020 CABLE STARTER 3,5MMX1100 €3.20
193
 photo_cameraImage coming soon 185166100 STARER PAWL CPL €25.80
Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

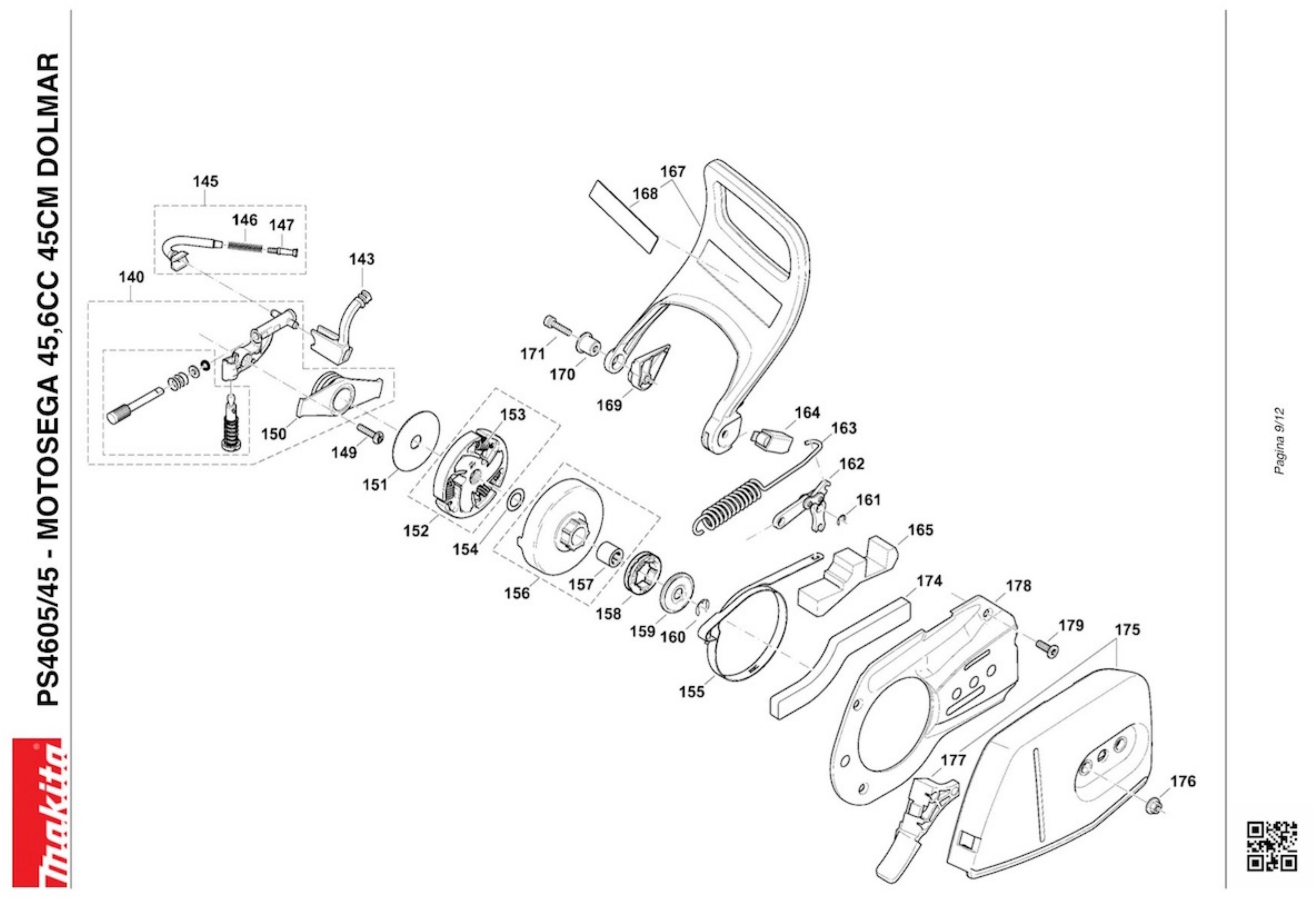

Esploso pagina 5
Pos. Item Price Buy
140
 photo_cameraImage coming soon 181245251 OIL PUMP DCS4600S-5000 €104.92
143
 photo_cameraImage coming soon 424178-9 PRESSURE LINE DCS4600S €20.12
145
 photo_cameraImage coming soon 168645-1 SUCTION HOSE PS32CTLC €6.06
146
 photo_cameraImage coming soon 231975-4 SPRING TUBE OIL X DCS230T €1.47
147
 photo_cameraImage coming soon 001245020 HOSE STEM €1.47
150
 Worm Screw for Chainsaw Dolmar PS4600S-5000 450956-1 Worm Screw for Chainsaw Dolmar PS4600S-5000 €18.99
151
 photo_cameraImage coming soon 001182042 DISC GUIDE PS350C / 420C €3.91
152
 photo_cameraImage coming soon 168510-4 CLUTCH ASSY. DCS4600S-5000 €27.21
153
 photo_cameraImage coming soon 181184010 CLUTCH SPRING DCS4600S-5000 €2.73
154
 photo_cameraImage coming soon 181224090 SHIM PS4605-5105-5105D €1.47
155
 photo_cameraImage coming soon 346029-5 BRAKE BAND SPRING €20.12
156
 Clutch Drum for Chainsaws Dolmar PS4600S - PS5000 181223200 Clutch Drum for Chainsaws Dolmar PS4600S - PS5000 €33.73
157
 photo_cameraImage coming soon 962300009 ROLLER BEARING DCS4600S €11.29
158
 photo_cameraImage coming soon 181224040 RIM SPROCKET 325", Z=7, SM DCS4600S-5000 €16.98
159
 Washer 29 for Chainsaw Dolmar PS6100/45 267820-7 Washer 29 for Chainsaw Dolmar PS6100/45 €7.53 Not available for order
160
 photo_cameraImage coming soon 259045-7 DISC X DCS6401 €1.47
161
 photo_cameraImage coming soon 927304000 E'CLIP DCS4630/5030/5031/DCS46 €1.47
162
 photo_cameraImage coming soon 181213100 LEVERAGE DCS4600S-5000 €21.75
163
 photo_cameraImage coming soon 181213020 SPRING PS4605-5105-5105D €6.06
164
 photo_cameraImage coming soon 181213170 X PROTECTION GUIDE DCS4600S €20.12
165
 Foam Sponge for Chainsaws Dolmar PS-460/500 181213371 Foam Sponge for Chainsaws Dolmar PS-460/500 €7.83
167
 photo_cameraImage coming soon 181213161 HAND PROTECTION DCS4600S-5000 €42.85
168
 photo_cameraImage coming soon 810449-4 LABEL €1.47
169
 photo_cameraImage coming soon 181213310 SPACER DCS4600S-5000 €4.06
170
 photo_cameraImage coming soon 325604-0 BUSHING DCS4600S-5000 €18.98
174
 Foam Sponge Insert for Chainsaws Dolmar PS-460/500 181213400 Foam Sponge Insert for Chainsaws Dolmar PS-460/500 €6.23
175
 Sprocket Guard for Chaisaw Dolmar PS460/45 957213200 Sprocket Guard for Chaisaw Dolmar PS460/45 €32.09
176
 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 264055-1 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 €1.48
177
 Splinterguard for Chainsaw Dolmar PS-460/500 957213220 Splinterguard for Chainsaw Dolmar PS-460/500 €10.40
178
 Sprocket Cover for Chainsaws Dolmar PS4600S-5000 181213191 Sprocket Cover for Chainsaws Dolmar PS4600S-5000 €14.24
179
 photo_cameraImage coming soon 908105126 SCREW M.5X12 X UH4520-5520-7020 €2.20
Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

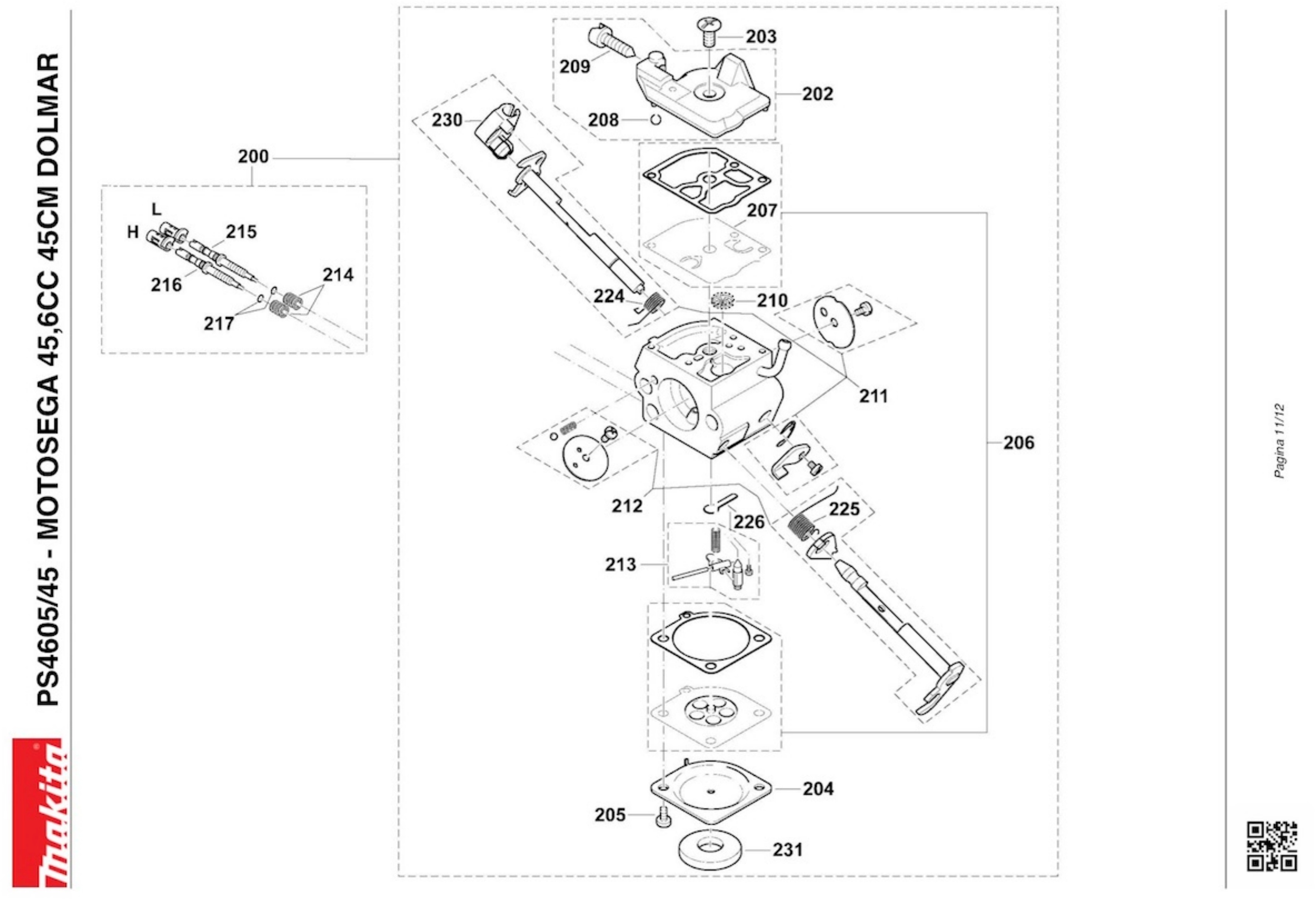

Esploso pagina 6
Pos. Item Price Buy
200
 Carburator for Chainsaws Dolmar PS4600S-5000 181153101 Carburator for Chainsaws Dolmar PS4600S-5000 €177.46
202
 photo_cameraImage coming soon 181153030 TOP COVER DCS4600S €34.71
203
 photo_cameraImage coming soon 038153360 SCREW DCS4630/5030/5031/4600/5 €4.06
204
 photo_cameraImage coming soon 181153040 COVER DIAPHRAGM DCSS4600S €20.12
206
 photo_cameraImage coming soon 181153020 KIT seal DCS4600S-5000 €37.93
207
 photo_cameraImage coming soon 181153050 IRIS DCS4600S-5000 €9.01
208
 photo_cameraImage coming soon 038153210 FRICTION BALL DCS4630/5030/31/ €4.06
209
 photo_cameraImage coming soon 181153070 SCREW X DCS4600S S-5000 €10.48
210
 photo_cameraImage coming soon 036153040 SCREEN X PS 34 €5.43
211
 photo_cameraImage coming soon 957153090 THROTTLE VALVE €42.85
212
 photo_cameraImage coming soon 957153080 SHAFT THROTTLE DCS4600S €47.56
213
 photo_cameraImage coming soon 957153070 CONTROL PARTS DCS4630/5030/503 €42.85
214
 photo_cameraImage coming soon 028153480 SPRING FOR PS-460/500 €4.06
215
 photo_cameraImage coming soon 181153180 SCREW DCS4600S L-5000 €30.02
216
 photo_cameraImage coming soon 181153190 SCREW DCS4600S H-5000 €30.02
217
 photo_cameraImage coming soon 181153220 WASHER FOR PS-460/500 €4.70
224
 photo_cameraImage coming soon 181153110 VALVE SPRING THROTTLE €4.06
225
 photo_cameraImage coming soon 181153160 VALVE SPRING SHAFT ACCEL. €4.70
226
 photo_cameraImage coming soon 181153210 PLATE CARBURETOR DCS4600S €4.06
230
 photo_cameraImage coming soon 038155012 RETAINING CLIP PS4605-5105-5105D €2.84
231
 photo_cameraImage coming soon 965402995 SEAL DCS4600S-5000 €2.84

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Dolmar Spare Parts for Chainsaw PS4605/45

DOLMAR Original spare parts

 at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Chainsaw PS4605/45 - 45,6CC 45CM DOLMAR.

In the following table, look for the model of Chainsaw and the respective parts of the code.
Dolmar PS4605/45

PS4605/45 - CHAINSAW 45,6CC 45CM DOLMAR - PAG. 1
# Part Num. Description
1 181114105 RED TANK PS4600S-5000
2 181117050 BACK HANDLE DCS4600S / 5000
3 181117132 STOP LEVER PS4605-5105
4 181117031 SPRING FOR PS-460/500
5 181117081 JOINT X LEVER FOR PS-460/500
6 181117111 SPRING X PLATE
7 010117050 THROTTLE CABLE DCS4600S
8 935930240 PIN X DCS6401
9 181117121 THROTTLE LEVER
10 957114061 VALVE KIT X DCS6401
11 913455204 SCREW 5.5X20 (TORX)
12 181114065 FUEL LINE DCS4600S / 5000
13 163532-9 FILTER
14 010114020 FILTER KIT X HP-450
15 168823-3 ANK CAP PS32CTLC T
16 213080-9 RING 29.5 PS32CTLC
17 181114301 DAMPER PS4605 / 5105
18 181114301 DAMPER PS4605 / 5105
19 181310200 TUBULAR HANDLE DCS4600S
20 913455204 SCREW 5.5X20 (TORX)
21 266478-9 SCREW 5,5X16 (TORX)
22 181114051 FRONT HANDLE COVER RED
23 908006205 SCREW M6X20
24 913455204 SCREW 5.5X20 (TORX)
PS4605/45 - CHAINSAW 45,6CC 45CM DOLMAR - PAG. 2
26 181118220 FILTER COVER BLACK PS4605
27 181118060 CLOSING PLATE DCS4600S
28 181173090 AIR FILTER NYLON PS5000 / 5105
29 181171050 AIR FILTER LEVER DCS4600S
30 010117050 THROTTLE CABLE DCS4600S
31 266480-2 SCREW
32 181155020 STARTER DCS4600S / 5000
33 970311550 GROUND WIRE DCS4600S-5000
34 266478-9 SCREW 5,5X16 (TORX)
36 181131160 BASE RED PS4605-5105-5105D
37 908805205 SCREW M5 + WASHER PS6400 / 7300
40 181171160 INTERMEDIATE FLANGE PS4605-5105
41 181131090 TUBE DCS4600S-5000
42 181131040 SUCTION HOSE DCS6400S
43 181118160 CLOSING PLATE PS4605
44 181131070 RING DCS4600S-5000
45 266478-9 SCREW 5,5X16 (TORX)
46 181155060 CONTACT PLATE PS4605
47 181155030 GUIDE DCS4600S-5000
48 266478-9 SCREW 5,5X16 (TORX)
49 928405000 WAVE WASHER
50 980114928 Labels. START. FOR PS-460/500
51 957173250 PRE FILTER CPL PS4605-5105
52 181173250 PRE-FILTER SPONGE X PS
53 181174102 MUFFLER FOR PS-460/500
57 181174062 INSULATING PLATE PS4605-5105
58 181174050 GASKET DCS4600S-5000
59 266476-3 SCREW M5X20 (TORX)
60 181174091 MUFFLER SUPPORT
61 266474-7 SCREW M5X8 (TORX)
62 908805205 SCREW M5 + WASHER PS6400 / 7300
63 346413-4 BUSHING 17 PS32CTLC
70 181118070 DAMPER DCS4600SP
112 181131140 RUBBER BUSHING PS4605-5105
PS4605/45 - CHAINSAW 45,6CC 45CM DOLMAR - PAG. 3
65 180130216 CYLINDER AND PISTON DIAM.43
66 180132064 PISTON DIAM.43MM
67 180132080 PISTON RING DIAM 43
68 181132090 PISTON PIN PS4605-5105
69 181132050 PIN 12X1
72 908805235 SCREW M5X23 PS4605-5105-5105D
73 181114401 DAMPER PS4605-5105
74 181131133 SEAL
75 181120102 CRANKSHAFT DCS4600S / 5000
76 962210103 NEEDLE BEARING 10X13X12.5
77 211154-0 BALL BEARING 6202
78 960123159 BALL BEARING 6203 C3
79 213141-5 SEAL
80 181111154 CARTER FLYING SIDE PS4605-5105
81 181111142 CARTER CLUTCH SIDE
82 181111061 CRANKCASE GASKET FOR PS-460/500
83 170114100 TANK CAP PS4605-5105
84 963225030 RING X PS3400 / 3400TH
85 181118050 FIXING PLATE DCS4600S
86 908006205 SCREW M6X20
87 908805205 SCREW M5 + WASHER PS6400 / 7300
89 936430160 PIN 3X16 PS350C-420C
91 908805205 SCREW M5 + WASHER PS6400 / 7300
92 266476-3 SCREW M5X20 (TORX)
93 181111050 TOOTH DCS4600S-5000
94 908006205 SCREW M6X20
95 905808210 STUD M8X21 PS-460/500
96 181250011 SPIKED BUMPER FOR PS-460/500
97 908805205 SCREW M5 + WASHER PS6400 / 7300
98 168504-9 PS32CTLC VENT VALVE
99 960123159 BALL BEARING 6203 C3
100 181213300 CHAIN TENSIONER DCS4600S-5000
101 227743-1 SCREW FOR CHAIN TENSIONER 11
102 181213240 SLEDGE DCS4600S-5000
103 226693-7 PINION DCS4600S-500
104 452667-4 COVER
105 181213260 NUT DCS4600S-5000
106 963207020 GASKET 7
107 908705125 SCREW M5X12
PS4605/45 - CHAINSAW 45,6CC 45CM DOLMAR - PAG. 4
115 181160160 STARTER CPL RED PS4605
116 181112021 STARTER CARTER RED PS4605-5105
117 980115497 LABEL PS4605-5105-5105D
118 908805205 SCREW M5 + WASHER PS6400 / 7300
119 001161020 STARTER WHEEL DPC7311
120 108164020 STARTER ROPE 3.5X980MM
122 928405000 ELASTIC WASHER
123 181162150 COIL FOR ROPE DCS4600S
124 181163020 RECOIL SPRING DCS4600S
125 924605510 WASHER ES-31A
126 913455204 SCREW 5.5X20 (TORX)
127 181118110 DEFLECTOR PS4605-5105-5105D
128 181143212 IGNITION COIL PS4605-5105 BLACK
129 181147050 CABLE COIL DCS4600S / 5000
130 451462-9 INSULATING WASHER
131 970502110 INSULATION TUBE 6 / 0,5 (M)
132 957604260 COMPLETE CANDLE HAT
133 965603021 SPARK PLUG NGK BPMR7A
134 908805205 SCREW M5 + WASHER PS6400 / 7300
135 264022-6 NUT
136 926208001 WAVE WASHER 8
137 181141105 FLYWHEEL DCS4600S-5000
138 181166050 STARTER PAWL COMPL.
182 181160201 CPL STARTER RED
183 181112060 CARTER STARTER RED
184 181118120 DEFLECTOR
185 452458-3 STARTER GRIP
186 266607-4 SCREW M5X20 PS32CTLC
187 181163050 RECOIL SPRING
188 181162020 COIL FOR ROPE
189 234193-3 EASY START SPRING
190 181163090 GUIDE FOR EASY START
191 266616-3 SCREW X EASY START
192 181164020 3.5MMX1100 STARTER ROPE
193 185166100 STARTER PAWL CPL
PS4605/45 - CHAINSAW 45,6CC 45CM DOLMAR - PAG. 5
140 181245251 OIL PUMP DCS4600S-5000
143 424178-9 DCS4600S OIL DUCT
145 168645-1 SUCTION TUBE PS32CTLC
146 231975-4 OIL TUBE SPRING X DCS230T
147 001245020 TUBE
149 908705125 SCREW M5X12
150 450956-1 WORM SSCREW DCS4600S-5000
151 001182042 DISC GUIDE PS350C / 420C
152 168510-4 CLUTCH DCS4600S-5000
153 181184010 CLUTCH SPRING DCS4600S-5000
154 181224090 SPACER PS4605-5105-5105D
155 346029-5 BRAKE BAND SPRING
156 181223200 DRIVE CLUTCH DCS4600S-5000
157 962300009 NEEDLE BEARING DCS4600S
158 181224040 PINION DCS4600S-5000
159 267820-7 SPACER DISC PS350C-420C
160 259045-7 RING X DCS6401
161 927304000 RETAINER WASHER 4
162 181213100 DCS4600S-5000 LEVERAGE
163 181213020 SPRING PS4605-5105-5105D
164 181213170 GUIDE X PROTECTION DCS4600S
165 181213371 SPONGE FOR PS-460/500
167 181213161 HAND PROTECTION DCS4600S-5000
168 810449-4 LABEL
169 181213310 SPACER DCS4600S-5000
170 325604-0 BUSHING DCS4600S-5000
171 908805205 SCREW M5 + WASHER PS6400 / 7300
174 181213400 SPONGE INSERT FOR PS
175 957213200 CHAIN CARTER (RED)
176 264055-1 NUT M8
177 957213220 CHIPS GUARD FOR PS-460/500
178 181213191 SPROCKET COVER DCS4600S-5000
179 908105126 SCREW M.5X12 X UH4520-5520-7020
PS4605/45 - CHAINSAW 45,6CC 45CM DOLMAR - PAG. 6
200 181153101 CARBURETOR DCS4600S-5000
202 181153030 TOP COVER DCS4600S
203 038153360 SCREW X DCS6401
204 181153040 DIAPHRAG COVER DCSS4600S
206 181153020 GASKET KIT DCS4600S-5000
207 181153050 DIAPHRAGM DCS4600S-5000
208 038153210 BALL X PS6400
209 181153070 SCREW S X DCS4600S-5000
210 036153040 FILTER X PS 34
211 957153090 ACCELERATOR VALVE
212 957153080 ACCELERATOR SHAFT DCS4600S
213 957153070 CONTROL PARTS X PS6400
214 028153480 SPRING FOR PS-460/500
215 181153180 SCREW L DCS4600S-5000
216 181153190 SCREW H DCS4600S-5000
217 181153220 WASHER FOR PS-460/500
224 181153110 ACCELERATOR VALVE SPRING
225 181153160 ACCELERATOR SHAFT VALVE SPRING
226 181153210 CARBURETOR PLATE DCS4600S
230 038155012 FIXING PS4605-5105-5105D
231 965402995 GASKET DCS4600S-5000
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Domar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Dolmar PS4605/45
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Dolmar PS4605/45

Diagram Dolmar PS4605/45

Download (881.51KB)

You might also like

Covcer Pinion Carter for Chainsaws Dolmar PS4600S-5000
Makita SKU: 181213191
Sprocket Cover for Chainsaws Dolmar PS4600S-5000
Sprocket Cover for Chainsaws Dolmar PS4600S-5000 Genuine parts Dolmar, Sprocket Cover for Chainsaws Dolmar PS4600S-5000 - PS460/45 - PS4600S/38 - PS5000/45 - Makita DCS5000/38 - DCS5000/45 Part for the following products: - PS460/45 -...
AVAILABLE €14.24
Details
Splinterguard for Chainsaw Dolmar PS-460/500
Makita SKU: 957213220
Splinterguard for Chainsaw Dolmar PS-460/500
Splinterguard for Chainsaw Dolmar PS-460/500 Genuine parts Makita, Splinterguard for Chainsaw Dolmar PS-460/500 - PS460/45 - PS4605/45 - PS500C/45 - PS5105C/45 - EA5000P38D Parts for the following products: - PS460/45 - CHAINSAW 46CC...
AVAILABLE €10.40
Details
Worm Screw for Chainsaw Dolmar PS4600S-5000
Makita SKU: 450956-1
Worm Screw for Chainsaw Dolmar PS4600S-5000
Worm Screw for Chainsaw Dolmar PS4600S-5000 Genuine part Dolmar, Worm Screw for Chainsaw Dolmar PS4600S-5000 - PS460/45 - PS4600S/38 - PS5000/45 - Makita DCS5000/38 - DCS5000/45 Part for the following products: - DCS3501/40 -...
Last items in stock €18.99
Details
Foam Sponge for Chainsaws Dolmar PS-460/500
Makita SKU: 181213371
Foam Sponge for Chainsaws Dolmar PS-460/500
Foam Sponge for Chainsaws Dolmar PS-460/500 Genuine parts Dolmar, Foam Sponge for Chainsaws Dolmar PS-460/500 - PS460/45 - PS4600S/38 - PS5000/45 - Makita DCS5000/38 - DCS5000/45 Part for the following products: - PS460/45 - CHAISAW...
AVAILABLE €7.83
Details
Foam Sponge Insert for Chainsaws Dolmar PS-460/500
Makita SKU: 181213400
Foam Sponge Insert for Chainsaws Dolmar PS-460/500
Foam Sponge Insert for Chainsaws Dolmar PS-460/500 Genuine parts Dolmar, Foam Sponge Insert for Chainsaws Dolmar PS-460/500 - PS460/45 - PS4600S/38 - PS5000/45 - Makita DCS5000/38 - DCS5000/45 Part for the following products: -...
Last items in stock €6.23
Details
Muffler Gasket for Chainsaws Dolmar PS4600S-5000
Makita SKU: 181174050
Muffler Gasket for Chainsaws Dolmar PS4600S-5000
Muffler Gasket for Chainsaws Dolmar PS4600S-5000 Genuine parts Dolmar, Muffler Gasket for Chainsaws Dolmar PS4600S-5000 - PS460/45 - PS4600S/38 - PS5000/45 - Makita DCS5000/38 - DCS5000/45 Part for the following products: - PS460/45 -...
AVAILABLE €3.99
Details
Retaining Tooth Chainsaws Dolmar PS4600S/38-45
Makita SKU: 181111050
Chain Catch for Chainsaws Dolmar PS4600S/38-45
Chain Catch for Chainsaws Dolmar PS4600S/38-45 Genuine parts Dolmar, Chain Catch for Chainsaws PS460/45 - PS4600S/38 - PS4600S/45 - PS4605/45 - PS500/45 - PS5000/38 - PS5000/45 - PS5000D/45 - PS500C/45 - PS5105/45 Part for the...
Last items in stock €7.19
Details
Sprocket Guard for Chaisaw Dolmar PS460/45
Makita SKU: 957213200
Sprocket Guard for Chaisaw Dolmar PS460/45
Sprocket Guard for Chaisaw Dolmar PS460/45 Genuine parts Dolmar, Sprocket Guard for Chaisaw Dolmar PS460/45 - PS4605/45 - PS500/45 - PS500C/45 - PS5105/45 - PS5105D/45 Part for the following products: - PS460/45 - CHAINSAW 46CC DOLMAR...
Last items in stock €32.09
Details
Cylinder Gasket for Chainsaw Dolmar PS500C/45
Makita SKU: 181131133
Cylinder Gasket for Chainsaw Dolmar PS500C/45
Cylinder Gasket for Chainsaw Dolmar PS500C/45 Genuine part Dolmar, Cylinder Gasket for Chainsaws Dolmar PS500C/45 - PS4600S/38 - PS4605/45 - PS5000/38 - PS5000/45...
Last items in stock €3.67
Details
Conrod Needle Bearing for Chainsaw Dolmar PS500C/45
Makita SKU: 962210103
Conrod Needle Bearing for Chainsaw Dolmar PS500C/45
Conrod Needle Bearing for Chainsaw Dolmar PS500C/45 Genuine part Dolmar, Conrod Needle Bearing 10X13X12,5 for Chainsaws Dolmar PS500C/45 - PS4600S/38 - PS4605/45 - PS5000/38 - PS5000/45 - PS5105/45 - PS5105D/45 Part for the following...
AVAILABLE €6.56
Details
Venting Valve for Chainsaw Dolmar PS32CTLC
Makita SKU: 168504-9
Venting Valve for Chainsaw Dolmar PS32CTLC
Venting Valve for Chainsaw Dolmar PS32CTLC Genuine part Dolmar, Venting Valve for Chainsaws Dolmar PS32CTLC - PS32C/35 - PS3400TH - PS350C - PS420C - PS460 - PS4605...
on 7/10 Business Days Approx €3.70
Details
Intake Manifold for Chainsaw Dolmar PS4600S
Makita SKU: 181131040
Intake Manifold for Chainsaw Dolmar PS4600S
Intake Manifold for Chainsaw Dolmar PS4600S Genuine replacement part Dolmar, Intake Manifold for Chainsaws PS4600S - PS4605 - PS5000 - PS5105. Part for the following products: - PS460/45...
Last items in stock €41.64
Details
Clutch Drum for Chainsaws Dolmar PS4600S - PS5000
Makita SKU: 181223200
Clutch Drum for Chainsaws Dolmar PS4600S - PS5000
Clutch Drum for Chainsaws Dolmar PS4600S - PS5000 Genuine replacement part Dolmar, Clutch Drum for Chainsaws PS4600S - PS4605 - PS5000 - PS5105C - PS6100. Part for the following products: - PS4600S/38 - CHAINSAW 46cc DOLMAR 38CM -...
Last items in stock €33.73
Details
Carburator for Chainsaws Dolmar PS4600S-5000
Makita SKU: 181153101
Carburator for Chainsaws Dolmar PS4600S-5000
Carburator for Chainsaws Dolmar PS4600S-5000 Genuine parts Dolmar, Carburator for Chainsaws Dolmar PS4600S-5000 - PS460/45 - PS4600S/38 - PS5000/45 - Makita DCS5000/38 - DCS5000/45 Part for the following products: -  Chainsaw...
Last items in stock €177.46
Details
Crankcase Gasket for Chainsaws Dolmar PS-460/500
Makita SKU: 181111061
Crankcase Gasket for Chainsaws Dolmar PS-460/500
Crankcase Gasket for Chainsaws Dolmar PS-460/500 Genuine parts Dolmar, Crankcase Gasket for Chainsaws Dolmar PS-460/500 - PS460/45 - PS4600S/38 - PS5000/45 - Makita DCS5000/38 - DCS5000/45 Part for the following products: -  DCS460/45...
Last items in stock €5.24
Details
Ball Bearing 6203 C3 for Chainsaws Dolmar PS-460/500
Makita SKU: 960123159
Ball Bearing 6203 C3 for Chainsaws Dolmar PS-460/500
Ball Bearing 6203 C3 for Chainsaws Dolmar PS-460/500 Genuine parts Dolmar, Ball Bearing 6203 C3 for Chainsaws Dolmar PS-460/500 - PS460/45 - PS4600S/38 - PS5000/45 - Makita DCS5000/38 - DCS5000/45. Part for the following products: -...
Last items in stock €36.47
Details
Makita EK8100WS Repair Kit Filter
Makita SKU: 010114020
Makita EK8100WS Repair Kit Filter
Repair Kit Filter for Power Cutter Makita EK8100WS Genuine spare part Makita, Repair Kit Filter for Petrol Power Cutter EK8100WS. Part for the following products: -  EK8100WS - POWER CUTTER 81CC 400mm - 109.SB -...
Last items in stock €39.14
Details
Makita EK8100 Starter Grip
Makita SKU: 452458-3
Makita EK8100 Starter Grip
Starter Grip for Power Cutter Makita EK8100 Genuine spare part Makita, Starter Grip for Petrol Power Cutter EK8100 - EK8100WS. Part for the following products: - DPC8132 - POWER CUTTER 81CC 400mm MAK - ...
AVAILABLE €5.20
Details
Comments (0)
