Dolmar Spare Parts for Chainsaw PS500/45

SKU: Dolmar PS500/45
€3.72
VAT included

Dolmar Spare Parts for Chainsaw PS500/45

DOLMAR Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Chainsaw PS500/45.
Dolmar Spare Parts for Chainsaw PS500/45
  • Dolmar Spare Parts for Chainsaw PS500/45
  • Dolmar Spare Parts for Chainsaw PS500/45
  • Dolmar Spare Parts for Chainsaw PS500/45
  • Dolmar Spare Parts for Chainsaw PS500/45
  • Dolmar Spare Parts for Chainsaw PS500/45
  • Dolmar Spare Parts for Chainsaw PS500/45
  • Dolmar Spare Parts for Chainsaw PS500/45
  • Dolmar Spare Parts for Chainsaw PS500/45

Dolmar Spare Parts for Chainsaw PS500/45

SKU: Dolmar PS500/45 Condition: New
€3.72
VAT included

Dolmar Spare Parts for Chainsaw PS500/45

DOLMAR Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Chainsaw PS500/45.
settings 177 spare parts
description 7 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

176 spare parts

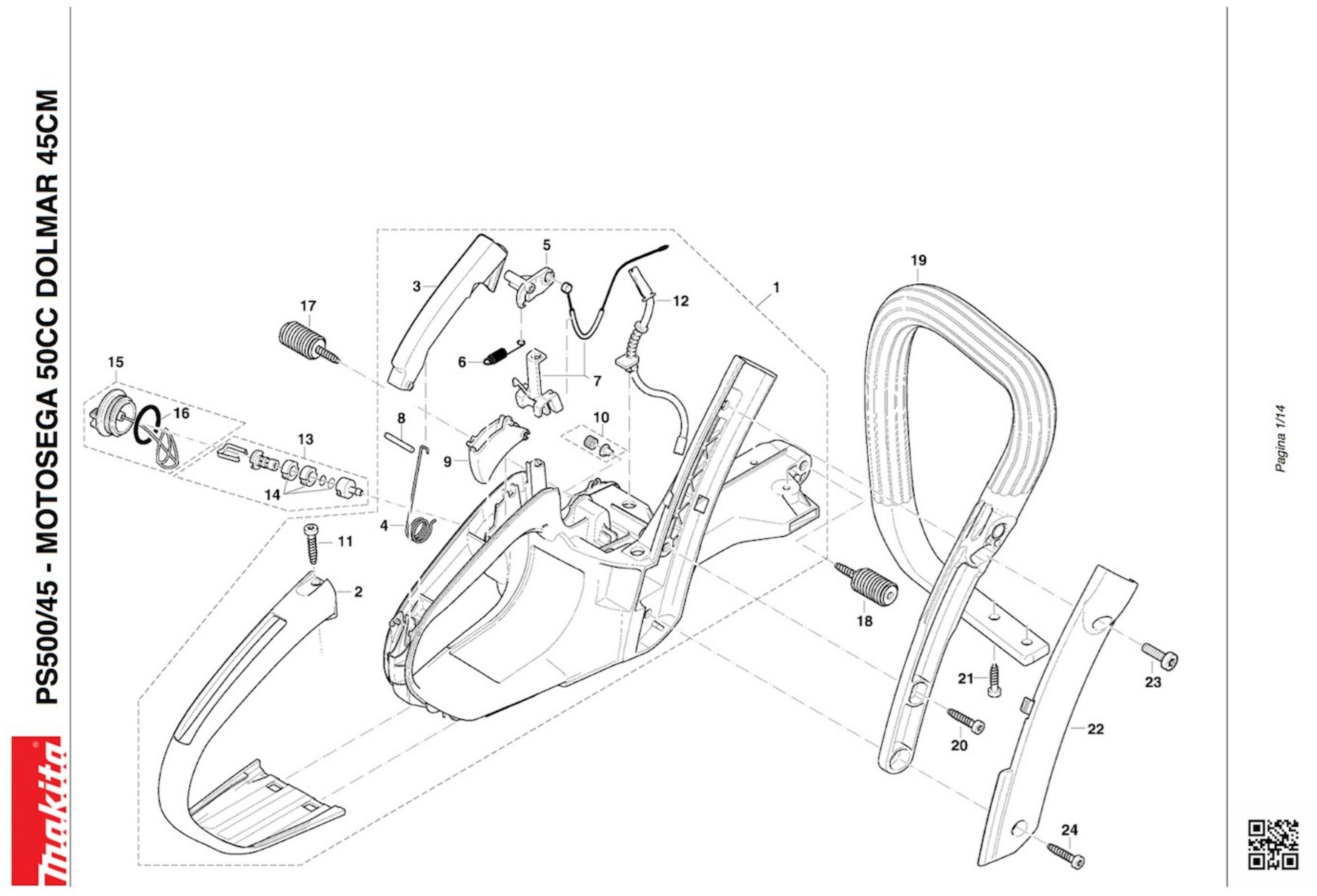

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 181114105 TANK RED PS4600S-5000 €126.04
2
photo_cameraImage coming soon 181117050 REAR HANDLE DCS4600S / 5000 €17.65
3
photo_cameraImage coming soon 181117131 RELEASE LEVER FOR PS-460/500 €4.77
4
photo_cameraImage coming soon 181117031 SPRING FOR PS-460/500 €3.31
5
photo_cameraImage coming soon 181117081 X JOINT LEVER FOR PS-460/500 €6.29
6
photo_cameraImage coming soon 181117111 SPRING X PLATE €1.47
7
photo_cameraImage coming soon 010117050 MODIFICATION SET DCS4600S €19.37
8
photo_cameraImage coming soon 935930240 CYLINDRICAL PIN 3X24 DCS4630/5 €2.84
9
photo_cameraImage coming soon 181117121 THROTTLE LEVER €6.29
10
photo_cameraImage coming soon 957114061 VALVE KIT X DCS6401 €9.01
11
Screw 5,5X20 (TORX) for Chainsaw Dolmar PS4600S 913455204 Screw 5,5X20 (TORX) for Chainsaw Dolmar PS4600S €2.15
12
photo_cameraImage coming soon 181114065 FUEL LINE DCS4600S / 5000 €17.65
13
Makita EK8100WS Fuel Filter 163532-9 Makita EK8100WS Fuel Filter €6.76
14
Makita EK8100WS Repair Kit Filter 010114020 Makita EK8100WS Repair Kit Filter €39.14
15
photo_cameraImage coming soon 168823-3 TANK CAP PS32CTLC €2.73
16
photo_cameraImage coming soon 213080-9 RING 29.5 PS32CTLC €5.43
17
photo_cameraImage coming soon 181114301 DAMPER PS4605 / 5105 €20.12
19
photo_cameraImage coming soon 181310200 HANDLE TUBE DCS4600S €77.36
21
photo_cameraImage coming soon 266478-9 SCREW 5,5X16 (TORX) €1.47
22
photo_cameraImage coming soon 181114051 COVER FRONT HANDLE RED €20.12
23
photo_cameraImage coming soon 908006205 M6X20 SCREW €2.20

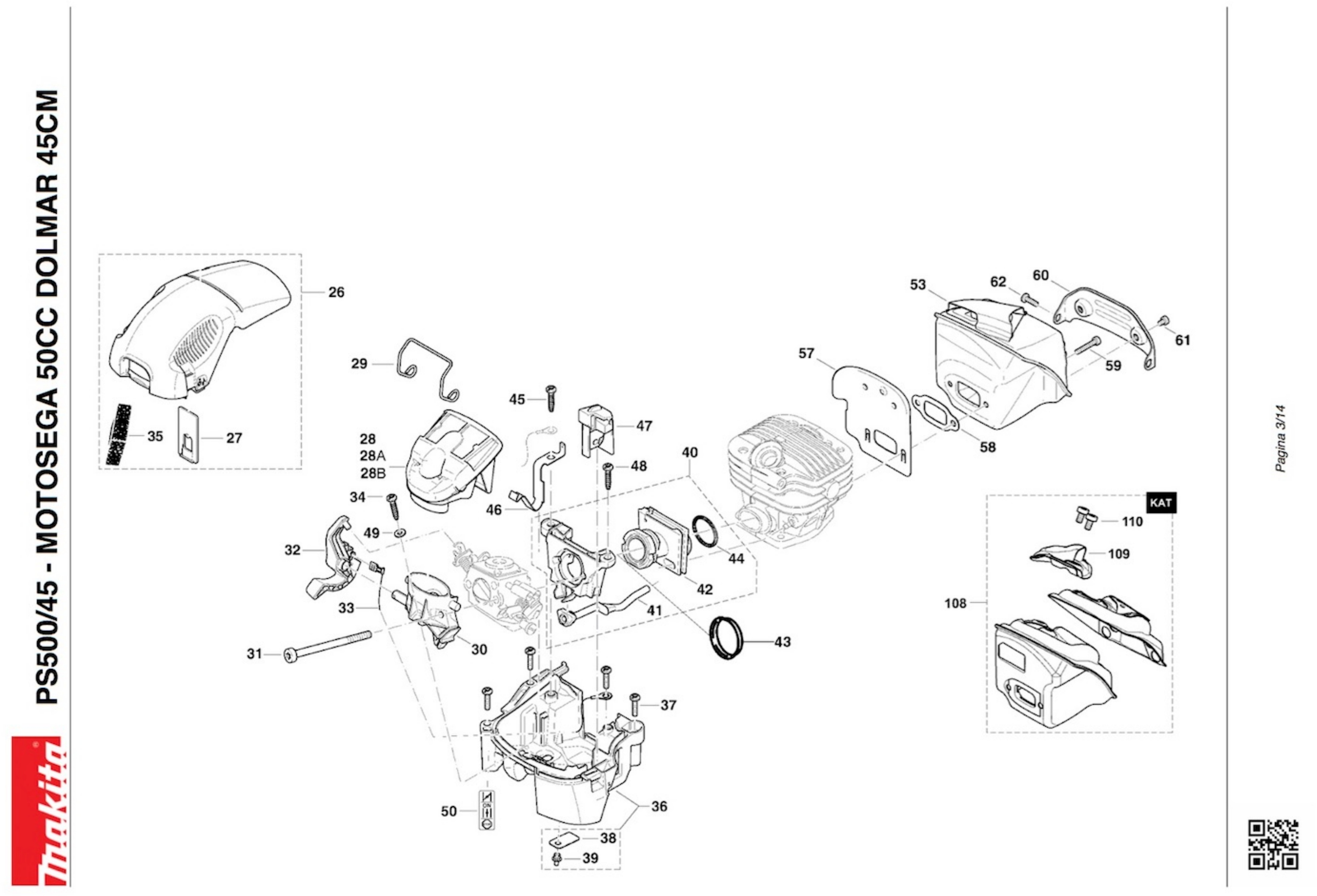

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
26
photo_cameraImage coming soon 181118261 FILTER COVER RED PS500C €59.42
27
photo_cameraImage coming soon 181118060 PLATE LOCKING DCS4600S €4.06
28A
photo_cameraImage coming soon 181173090 AIR FILTER NYLON PS5000 / 5105 €30.02
28
photo_cameraImage coming soon 181173190 AIR DCS4600S / 5000 €30.02
28B
photo_cameraImage coming soon 181173240 AIR FILTER NYLON END €30.02
29
photo_cameraImage coming soon 181171050 LEVER FOR AIR DCS4600S €4.51
31
photo_cameraImage coming soon 266480-2 SCREW €1.47
32
photo_cameraImage coming soon 181155020 STARTER DCS4600S / 5000 €5.43
33
photo_cameraImage coming soon 970311550 CABLE MASS DCS4600S-5000 €7.02
35
photo_cameraImage coming soon 181173250 PRE-FILTER SPONGE X PS €3.20
36
photo_cameraImage coming soon 181131102 FUND (RED) FOR PS-460/500 €51.73
37
photo_cameraImage coming soon 266476-3 SCREW M5X20 (TORX) €1.47
38
photo_cameraImage coming soon 038118110 RUBBER FLAP DCS64/79 PS64/79 €2.84
39
photo_cameraImage coming soon 938650062 RIVET DCS6400/7900 PS6400/790 €1.47
40
photo_cameraImage coming soon 181171150 INTERMEDIATE FLANGE DCS4600S €65.36
41
photo_cameraImage coming soon 181131090 PIPE DCS4600S-5000 €17.65
42
Intake Manifold for Chainsaw Dolmar PS4600S 181131040 Intake Manifold for Chainsaw Dolmar PS4600S €41.64
43
photo_cameraImage coming soon 346413-4 SOCKET 17 PS32CTLC €1.47
44
photo_cameraImage coming soon 181131070 RING DCS4600S-5000 €4.06
46
photo_cameraImage coming soon 181155010 CONTACT PLATE €7.02
47
photo_cameraImage coming soon 181155030 GUIDE DCS4600S-5000 €5.43
49
photo_cameraImage coming soon 928405000 SPRING WASHER €5.43
50
photo_cameraImage coming soon 980114928 LABEL STARTER FOR PS-460/500 €3.92
53
photo_cameraImage coming soon 181174102 MUFFLER PS-460/500 €73.02
57
photo_cameraImage coming soon 181174061 INSULATING PLATE FOR PS-460/500 €6.81
58
Muffler Gasket for Chainsaws Dolmar PS4600S-5000 181174050 Muffler Gasket for Chainsaws Dolmar PS4600S-5000 €3.99
60
photo_cameraImage coming soon 181174091 MUFFLER HOLDER €9.01
61
photo_cameraImage coming soon 266474-7 SCREW M5X8 (TORX) €1.47
62
photo_cameraImage coming soon 908905165 SCREW M5X16 FOR PS-460/500 €2.14
108
photo_cameraImage coming soon 181174301 MUFFLER CATALITIC PS500 €142.72
109
photo_cameraImage coming soon 181174470 COVER PS500 / C €24.83

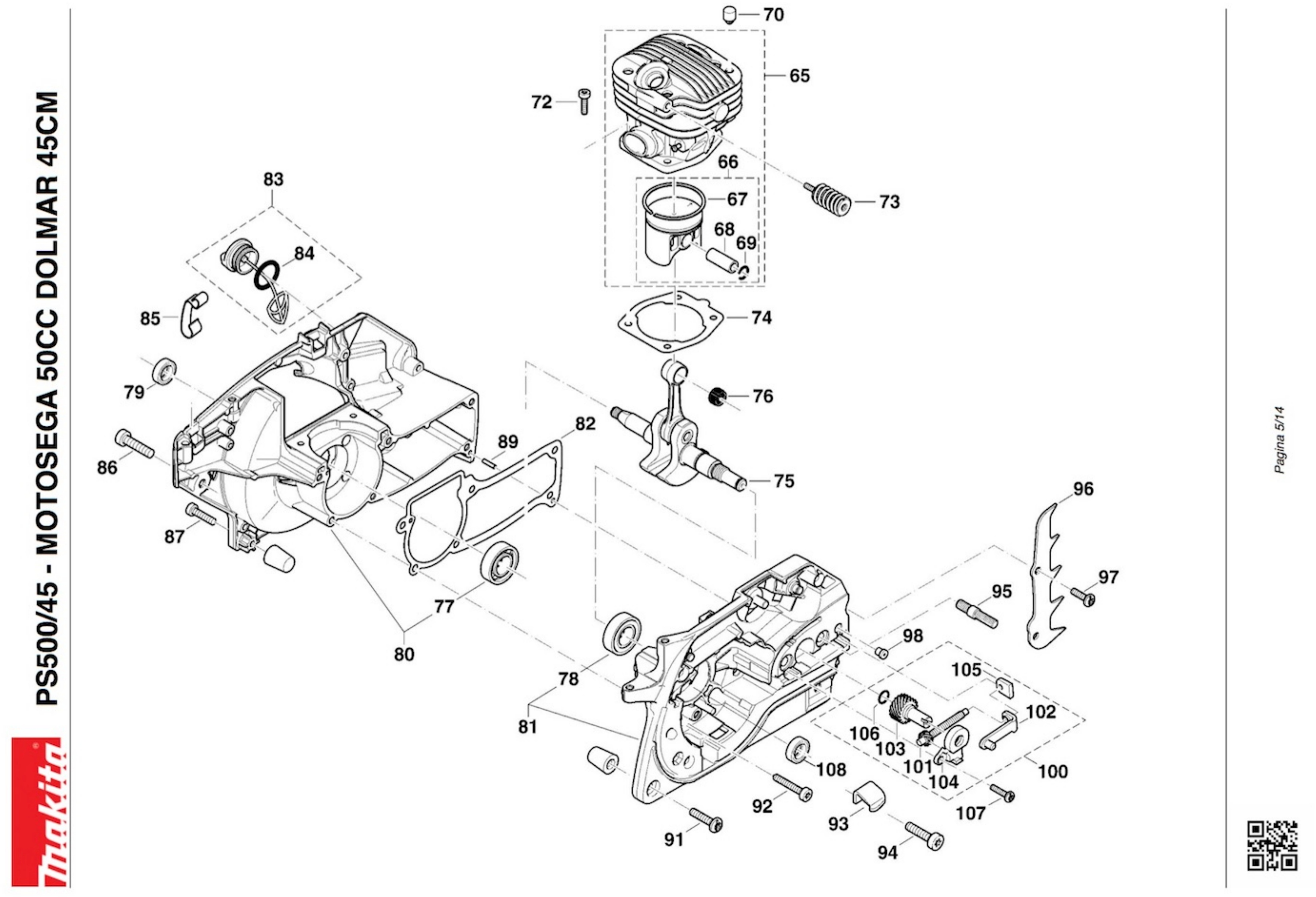

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
65
Cylinder - Piston Set for Chainsaw Dolmar PS500C/45 179130215 Cylinder - Piston Set for Chainsaw Dolmar PS500C/45 €237.67
66
Piston Cpl for Chainsaw Dolmar PS5000/45 181132064 Piston Cpl for Chainsaw Dolmar PS5000/45 €104.93
67
Piston Ring for Chainsaw Dolmar PS500C/45 181132080 Piston Ring for Chainsaw Dolmar PS500C/45 €27.58
68
photo_cameraImage coming soon 181132040 PISTON PIN DCS4600S / 5000 €29.17
69
photo_cameraImage coming soon 181132050 RING PIN 12X1 €2.20
70
photo_cameraImage coming soon 181118070 DAMPER PAD DCS4600S €5.43
72
photo_cameraImage coming soon 266960-8 SCREW X DCS6401 €1.43
73
photo_cameraImage coming soon 181114401 DAMPER PS4605-5105 €20.12
74
Cylinder Gasket for Chainsaw Dolmar PS500C/45 181131133 Cylinder Gasket for Chainsaw Dolmar PS500C/45 €3.67
75
photo_cameraImage coming soon 181120102 CRANKSHAFT DCS4600S / 5000 €251.96
76
Conrod Needle Bearing for Chainsaw Dolmar PS500C/45 962210103 Conrod Needle Bearing for Chainsaw Dolmar PS500C/45 €6.56
77
photo_cameraImage coming soon 211154-0 BALL BEARING 6202 €6.29
78
Ball Bearing 6203 C3 for Chainsaws Dolmar PS-460/500 960123159 Ball Bearing 6203 C3 for Chainsaws Dolmar PS-460/500 €36.47
79
photo_cameraImage coming soon 213141-5 SEAL €6.29
80
photo_cameraImage coming soon 179111150 CARTER FLYWHEEL SIDE (RED) €106.26
81
photo_cameraImage coming soon 179111140 CARTER CLUTCH SIDE (RED) €106.26
82
Crankcase Gasket for Chainsaws Dolmar PS-460/500 181111061 Crankcase Gasket for Chainsaws Dolmar PS-460/500 €5.24
83
Complete Oil Tank Cap for Chainsaw Makita DCS230T 168399-0 Complete Oil Tank Cap for Chainsaw Makita DCS230T €4.28
84
photo_cameraImage coming soon 963225030 RING X PS3400 / 3400TH €2.84
85
photo_cameraImage coming soon 181118050 PLATE FIXING DCS4600S €4.06
89
photo_cameraImage coming soon 936430160 PIN 3X16 PS350C-420C €2.20
93
Chain Catch for Chainsaws Dolmar PS4600S/38-45 181111050 Chain Catch for Chainsaws Dolmar PS4600S/38-45 €7.19
95
photo_cameraImage coming soon 905808210 PRISONER M8X21 PS-460/500 €6.29
96
photo_cameraImage coming soon 181250011 HOOK FOR PS-460/500 €20.12
98
Venting Valve for Chainsaw Dolmar PS32CTLC 168504-9 Venting Valve for Chainsaw Dolmar PS32CTLC €3.70
100
photo_cameraImage coming soon 181213300 CHAIN TENSIONER DCS4600S-5000 €42.85
101
photo_cameraImage coming soon 227743-1 GEAR 11 €22.84
102
photo_cameraImage coming soon 181213240 SLED DCS4600S-5000 €11.29
103
photo_cameraImage coming soon 226693-7 PINION DCS4600S-500 €18.81
104
photo_cameraImage coming soon 452667-4 COVER €9.01
105
photo_cameraImage coming soon 181213260 NUT DCS4600S-5000 €2.69
106
photo_cameraImage coming soon 963207020 SEAL 7 €2.84

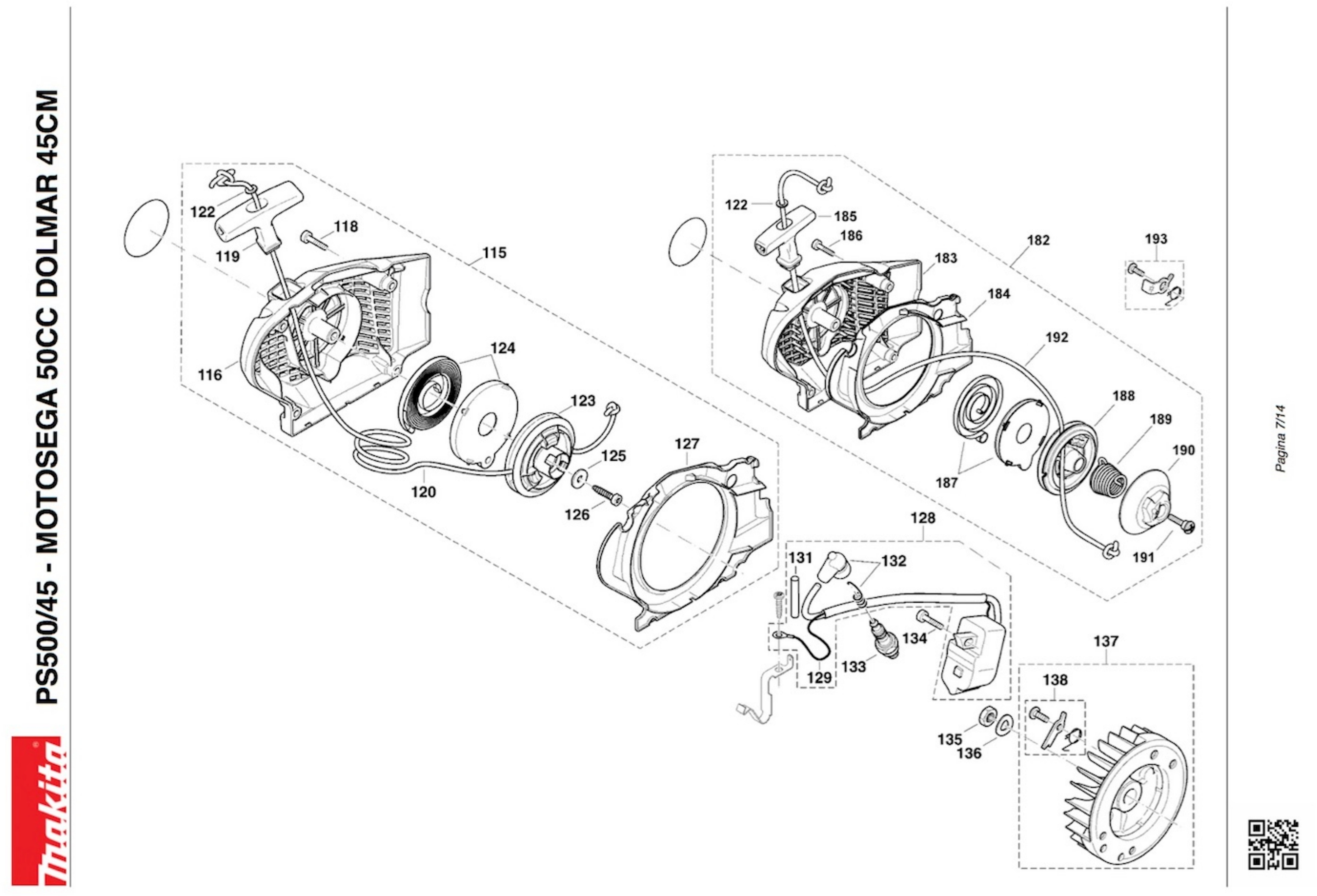

Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
115
photo_cameraImage coming soon 181160101 STARTER CPL RED PS4600S €94.94
116
photo_cameraImage coming soon 181112011 RED START CARTER €33.73
119
photo_cameraImage coming soon 001161020 STARTER WHEEL DPC7311 €7.80
120
photo_cameraImage coming soon 108164020 STARTER ROPE 38-1/2" €8.03
123
photo_cameraImage coming soon 181162150 REEL FOR ROPE DCS4600S €22.19
124
photo_cameraImage coming soon 181163020 REWINDING SPRING DCS4600S €22.84
125
photo_cameraImage coming soon 924605510 WASHER 5.5/18X1.6 €13.46
127
photo_cameraImage coming soon 181118041 BAFFLE DCS4600S-5000 €9.01
128
Electronic Coil Assy for Chainsaws Dolmar PS4605 - PS5105 181143212 Electronic Coil Assy for Chainsaws Dolmar PS4605 - PS5105 €140.45
129
photo_cameraImage coming soon 181147050 CABLE REEL DCS4600S / 5000 €148.40
131
photo_cameraImage coming soon 970502110 INSULATING HOSE M DCS4630/5030 €6.76
132
photo_cameraImage coming soon 957604260 SPARK PLUG CAP CPL. €4.51
133
photo_cameraImage coming soon 965603021 NGK SPARK PLUG BPMR7A €5.56
135
photo_cameraImage coming soon 264022-6 NUT €1.43
136
photo_cameraImage coming soon 926208001 SPRING WASHER 8 €1.47
137
photo_cameraImage coming soon 181141105 FLYWHEEL CPL. DCS4600S-5000 €187.83
138
photo_cameraImage coming soon 181166050 NOTTOLINO STARTING COMPL. €205.23
182
photo_cameraImage coming soon 181160155 STARTING CPL RED €109.11
183
photo_cameraImage coming soon 181112060 STARTER RED CARTER €73.02
185
Makita EK8100 Starter Grip 452458-3 Makita EK8100 Starter Grip €5.20
186
photo_cameraImage coming soon 266607-4 SCREW M5X20 PS32CTLC €1.43
187
photo_cameraImage coming soon 181163050 REWIND SPRING €12.33
188
photo_cameraImage coming soon 181162020 REEL FOR ROPE €22.84
189
photo_cameraImage coming soon 234193-3 SPRING EASY-START €13.46
190
photo_cameraImage coming soon 181163090 GUIDE FOR EASY START €4.06
191
photo_cameraImage coming soon 266616-3 SCREW X EASY START €1.85
192
photo_cameraImage coming soon 181164020 CABLE STARTER 3,5MMX1100 €3.20
193
photo_cameraImage coming soon 185166100 STARER PAWL CPL €25.80

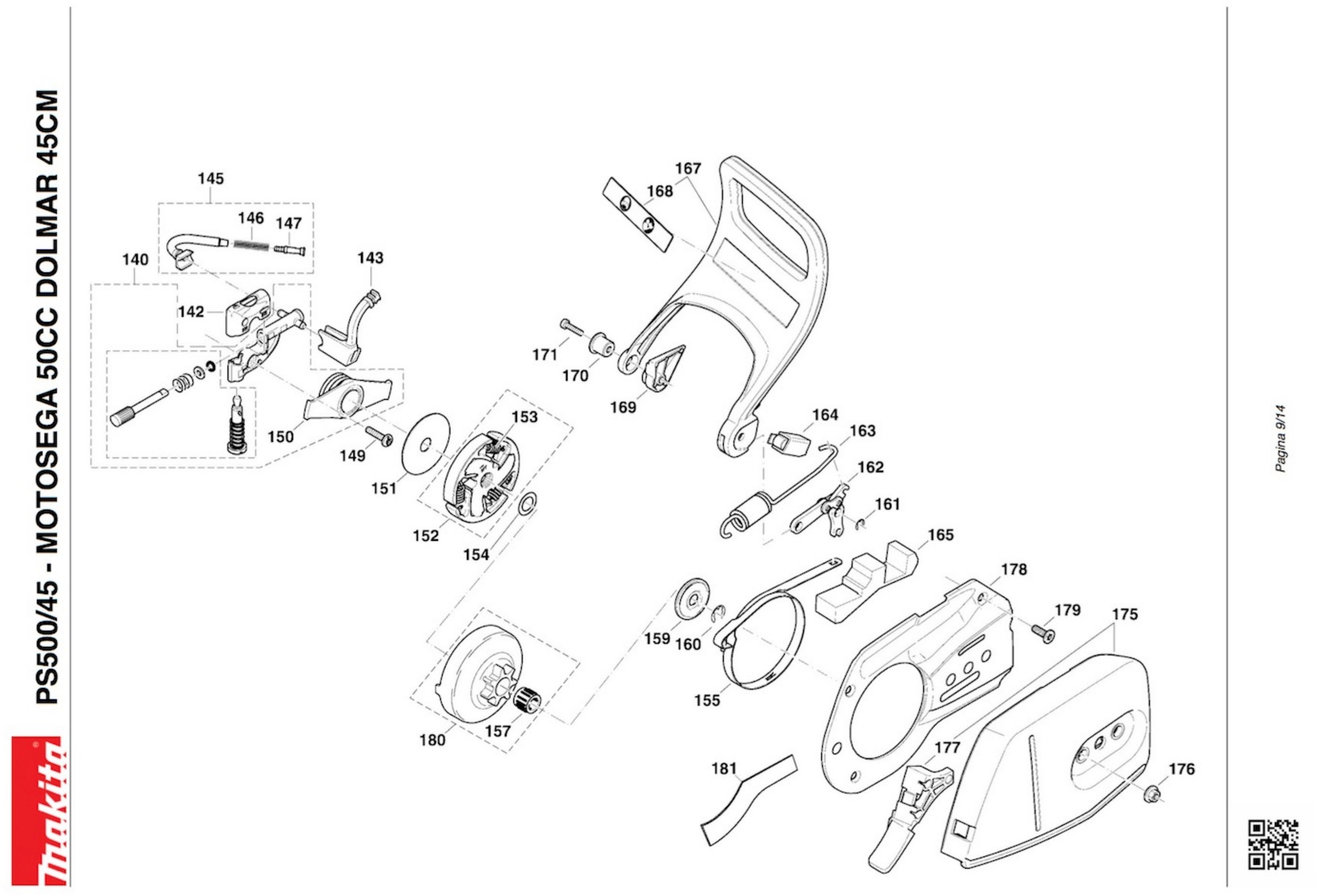

Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
140
photo_cameraImage coming soon 181245251 OIL PUMP DCS4600S-5000 €104.92
142
photo_cameraImage coming soon 181245140 COVER BODY PUMP DCS4600S €4.56
143
photo_cameraImage coming soon 424178-9 PRESSURE LINE DCS4600S €20.12
145
photo_cameraImage coming soon 168645-1 SUCTION HOSE PS32CTLC €6.06
146
photo_cameraImage coming soon 231975-4 SPRING TUBE OIL X DCS230T €1.47
147
photo_cameraImage coming soon 001245020 HOSE STEM €1.47
150
Worm Screw for Chainsaw Dolmar PS4600S-5000 450956-1 Worm Screw for Chainsaw Dolmar PS4600S-5000 €18.99
151
photo_cameraImage coming soon 001182042 DISC GUIDE PS350C / 420C €3.91
152
photo_cameraImage coming soon 168510-4 CLUTCH ASSY. DCS4600S-5000 €27.21
153
photo_cameraImage coming soon 181184010 CLUTCH SPRING DCS4600S-5000 €2.73
154
photo_cameraImage coming soon 21224011 SPACER €1.88
155
photo_cameraImage coming soon 346029-5 BRAKE BAND SPRING €20.12
157
photo_cameraImage coming soon 962300009 ROLLER BEARING DCS4600S €11.29
159
Washer 29 for Chainsaw Dolmar PS6100/45 267820-7 Washer 29 for Chainsaw Dolmar PS6100/45 €7.53 Not available for order
160
photo_cameraImage coming soon 259045-7 DISC X DCS6401 €1.47
161
photo_cameraImage coming soon 927304000 E'CLIP DCS4630/5030/5031/DCS46 €1.47
162
photo_cameraImage coming soon 181213100 LEVERAGE DCS4600S-5000 €21.75
163
photo_cameraImage coming soon 181213023 SPRING TENSION X PS6100 €2.20
164
photo_cameraImage coming soon 181213170 X PROTECTION GUIDE DCS4600S €20.12
165
Foam Sponge for Chainsaws Dolmar PS-460/500 181213371 Foam Sponge for Chainsaws Dolmar PS-460/500 €7.83
167
photo_cameraImage coming soon 181213161 HAND PROTECTION DCS4600S-5000 €42.85
168
photo_cameraImage coming soon 810449-4 LABEL €1.47
169
photo_cameraImage coming soon 181213310 SPACER DCS4600S-5000 €4.06
170
photo_cameraImage coming soon 325604-0 BUSHING DCS4600S-5000 €18.98
175
Sprocket Guard for Chaisaw Dolmar PS460/45 957213200 Sprocket Guard for Chaisaw Dolmar PS460/45 €32.09
176
Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 264055-1 Nut M8 for Petrol Chainsaw Dolmar PS35C/40 - PS500/45 €1.48
177
Splinterguard for Chainsaw Dolmar PS-460/500 957213220 Splinterguard for Chainsaw Dolmar PS-460/500 €10.40
178
Sprocket Cover for Chainsaws Dolmar PS4600S-5000 181213191 Sprocket Cover for Chainsaws Dolmar PS4600S-5000 €14.24
179
photo_cameraImage coming soon 908105126 SCREW M.5X12 X UH4520-5520-7020 €2.20
180
photo_cameraImage coming soon 181223312 DRUM CLUTCH 325 "Z = 7 €37.93
181
Foam Sponge Insert for Chainsaws Dolmar PS-460/500 181213400 Foam Sponge Insert for Chainsaws Dolmar PS-460/500 €6.23

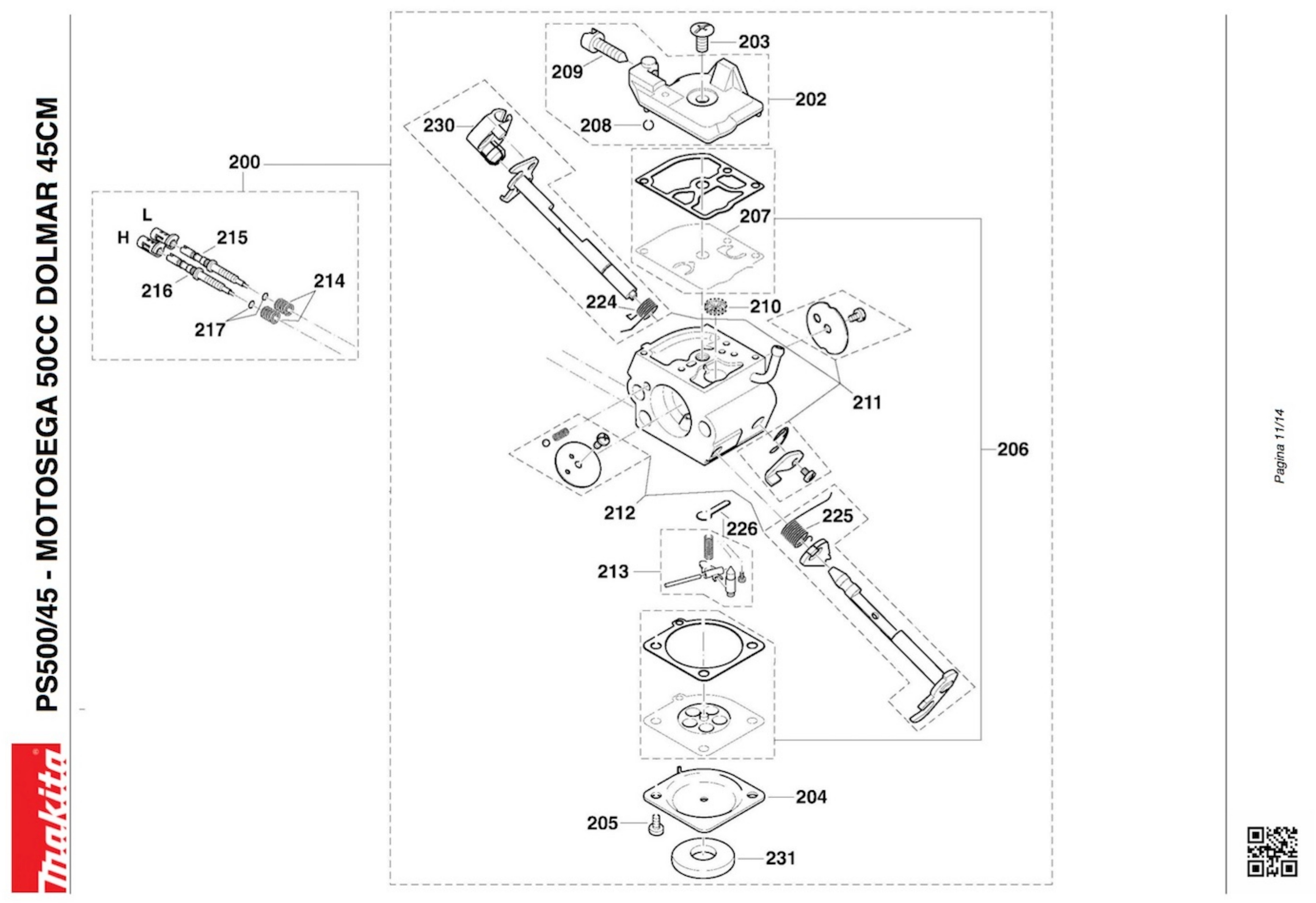

Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
200
Carburator for Chainsaws Dolmar PS4600S-5000 181153101 Carburator for Chainsaws Dolmar PS4600S-5000 €177.46
202
photo_cameraImage coming soon 181153030 TOP COVER DCS4600S €34.71
203
photo_cameraImage coming soon 038153360 SCREW DCS4630/5030/5031/4600/5 €4.06
204
photo_cameraImage coming soon 181153040 COVER DIAPHRAGM DCSS4600S €20.12
205
photo_cameraImage coming soon 001153020 SCREW DCS4630/5030/5031/DCC300 €28.57
206
photo_cameraImage coming soon 181153020 KIT seal DCS4600S-5000 €37.93
207
photo_cameraImage coming soon 181153050 IRIS DCS4600S-5000 €9.01
208
photo_cameraImage coming soon 038153210 FRICTION BALL DCS4630/5030/31/ €4.06
209
photo_cameraImage coming soon 181153070 SCREW X DCS4600S S-5000 €10.48
210
photo_cameraImage coming soon 036153040 SCREEN X PS 34 €5.43
211
photo_cameraImage coming soon 957153090 THROTTLE VALVE €42.85
212
photo_cameraImage coming soon 957153080 SHAFT THROTTLE DCS4600S €47.56
213
photo_cameraImage coming soon 957153070 CONTROL PARTS DCS4630/5030/503 €42.85
214
photo_cameraImage coming soon 028153480 SPRING FOR PS-460/500 €4.06
215
photo_cameraImage coming soon 181153180 SCREW DCS4600S L-5000 €30.02
216
photo_cameraImage coming soon 181153190 SCREW DCS4600S H-5000 €30.02
217
photo_cameraImage coming soon 181153220 WASHER FOR PS-460/500 €4.70
224
photo_cameraImage coming soon 181153110 VALVE SPRING THROTTLE €4.06
225
photo_cameraImage coming soon 181153160 VALVE SPRING SHAFT ACCEL. €4.70
226
photo_cameraImage coming soon 181153210 PLATE CARBURETOR DCS4600S €4.06
230
photo_cameraImage coming soon 038155012 RETAINING CLIP PS4605-5105-5105D €2.84
231
photo_cameraImage coming soon 965402995 SEAL DCS4600S-5000 €2.84

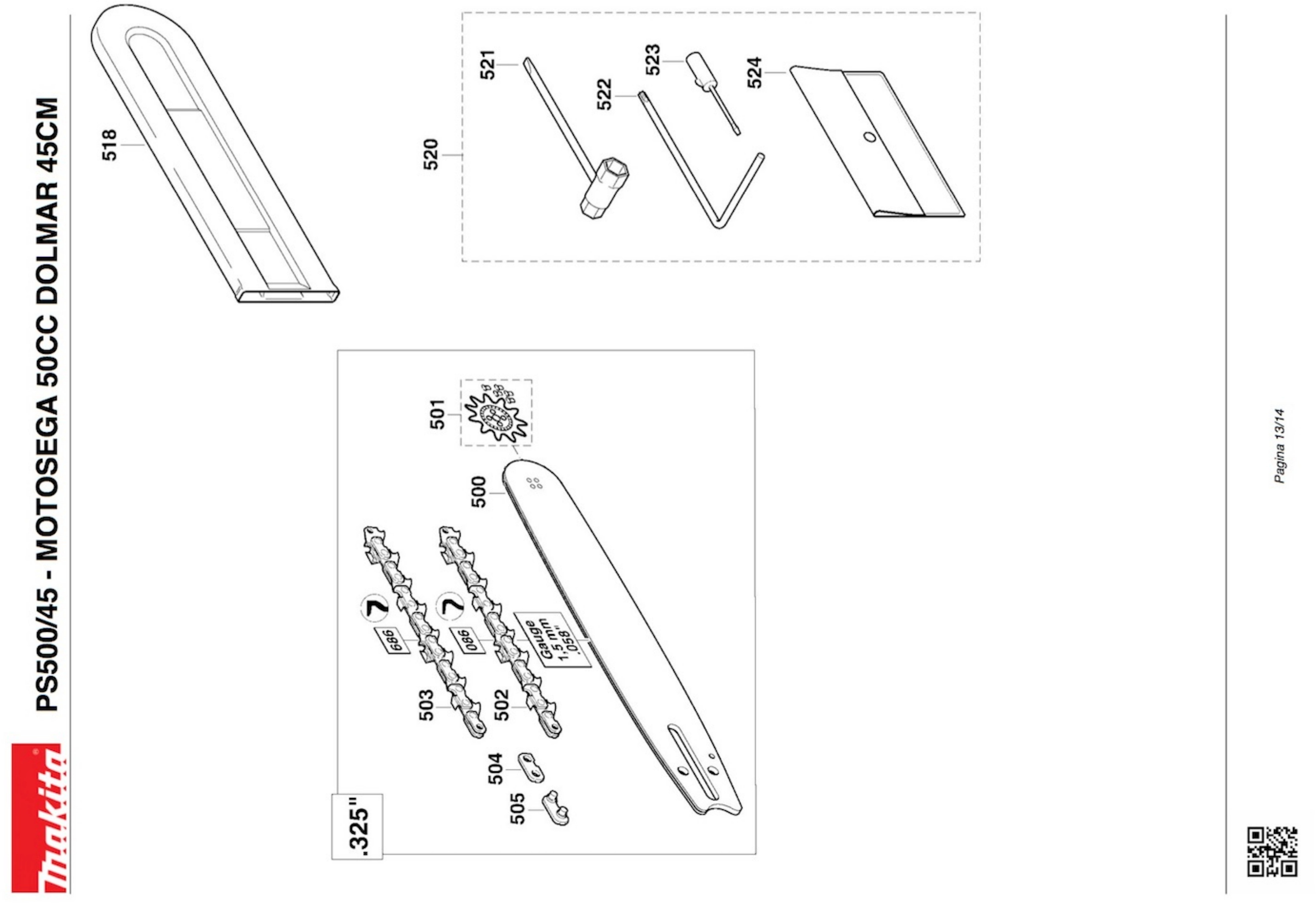

Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
500
photo_cameraImage coming soon 415045631 45CM SPES.1,5 GUIDE STAR €52.34
501
photo_cameraImage coming soon 415325710 PINION BAR 0.325 " €44.84
502
photo_cameraImage coming soon 528086772 CHAIN SAW 72 €33.94
503
photo_cameraImage coming soon 514686772 POWER MATCH CHAIN SAW 45CM 0.325 " €41.03
504
photo_cameraImage coming soon 558083000 GUY STEP 0325 " €1.40
505
photo_cameraImage coming soon 558083010 JERSEY JUNCTION 0.325 " €2.08
518
photo_cameraImage coming soon 952010140 CHAIN PROTECTION 40 cm €6.17
520
photo_cameraImage coming soon 957004002 SERIES TOOLS DCS430 €16.96
521
photo_cameraImage coming soon 941719133 UNIVERSAL KEY 19/13 €5.15
522
photo_cameraImage coming soon 782025-3 TORX KEY €2.18
524
Plastic Bag for Chainsaws Dolmar 950004001 Plastic Bag for Chainsaws Dolmar €2.53

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Dolmar Spare Parts for Chainsaw PS500/45

DOLMAR Original spare parts

 at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Chainsaw PS500/45.

In the following table, look for the model of the Chainsaw and the respective parts of the code.
Dolmar PS500/45

Chainsaw PS500/45 Pag.1
# Part Num. Description
1 181114105 RED TANK PS4600S-5000
2 181117050 REAR HANDLE DCS4600S / 5000
3 181117131 UNLOCK LEVER FOR PS-460/500
4 181117031 SPRING FOR PS-460/500
5 181117081 JOINT LEVER FOR PS-460/500
6 181117111 SPRING PLATE
7 010117050 THROTTLE CABLE DCS4600S
8 935930240 PIN X DCS6401
9 181117121 THROTTLE LEVER
10 957114061 VALVE KIT X DCS6401
11 913455204 SCREW 5.5X20 (TORX)
12 181114065 FUEL LINE DCS4600S / 5000
13 163532-9 FILTER
14 010114020 REPAIR FILTER KIT X HP-450
15 168823-3 PS32CTLC TANK CAP
16 213080-9 RING 29.5 PS32CTLC
17 181114301 DAMPER PS4605 / 5105
18 181114301 DAMPER PS4605 / 5105
19 181310200 TUBULAR HANDLE DCS4600S
20 913455204 SCREW 5.5X20 (TORX)
21 266478-9 SCREW 5,5X16 (TORX)
22 181114051 FRONT RED HANDLE COVER
23 908006205 SCREW M6X20
24 913455204 SCREW 5.5X20 (TORX)
Chainsaw PS500/45 Pag.2
26 181118261 RED FILTER COVER PS500C
27 181118060 DCS4600S CLOSING PLATE
28 181173190 AIR FILTER DCS4600S / 5000
28A 181173090 AIR FILTER NYLON PS5000 / 5105
28B 181173240 NYLON AIR FILTER
29 181171050 AIR FILTER LEVER DCS4600S
30 010117050 THROTTLE CABLE DCS4600S
31 266480-2 SCREW
32 181155020 STARTER DCS4600S / 5000
33 970311550 EARTH CABLE DCS4600S-5000
34 266478-9 SCREW 5,5X16 (TORX)
35 181173250 PRE-FILTER SPONGE X PS
36 181131102 BACKGROUND (RED) FOR PS-460/500
37 266476-3 SCREW M5X20 (TORX)
38 038118110 RUBBER PLATE X DCS6401
39 938650062 STOPPED X DCS6401
40 181171150 INTERMEDIATE FLANGE DCS4600S
41 181131090 TUBE DCS4600S-5000
42 181131040 SUCTION HOSE DCS6400S
43 346413-4 BUSH 17 PS32CTLC
44 181131070 RING DCS4600S-5000
45 266478-9 SCREW 5,5X16 (TORX)
46 181155010 CONTACT PLATE
47 181155030 DCS4600S-5000 GUIDE
48 266478-9 SCREW 5,5X16 (TORX)
49 928405000 ELASTIC WASHER
50 980114928 LABEL START. FOR PS-460/500
53 181174102 MUFFLER PS-460/500
57 181174061 ISOLATE PLATE. FOR PS-460/500
58 181174050 GASKET DCS4600S-5000
59 266476-3 SCREW M5X20 (TORX)
60 181174091 MUFFLER HOLDER
61 266474-7 SCREW M5X8 (TORX)
62 908905165 SCREW M5X16 FOR PS-460/500
108 181174301 CATALYTIC MUFFLER PS500
109 181174470 COVER PS500 / C
110 266474-7 SCREW M5X8 (TORX)
Chainsaw PS500/45 Pag.3
65 179130215 CYLINDER AND PISTON D45
66 181132064 PISTON DIAM.45MM DCS4600-5000
67 181132080 PISTON RING 45 mm
68 181132040 DCS4600S / 5000 PISTON PIN
69 181132050 12X1 CIRCLIP
70 181118070 DCS4600S DAMPER CAP
72 266960-8 SCREW X DCS6401
73 181114401 DAMPER PS4605-5105
74 181131133 SEAL
75 181120102 CRANKSHAFT DCS4600S / 5000
76 962210103 NEEDLE BEARING 10X13X12.5
77 211154-0 BALL BEARING 6202
78 960123159 BALL BEARING 6203 C3
79 213141-5 SEAL OIL
80 179111150 CRANKCASE (RED)
81 179111140 CRANKCASE (RED)
82 181111061 CRANKCASE GASKET FOR PS-460/500
83 168399-0 TANK CAP X DCS230T
84 963225030 RING X PS3400 / 3400TH
85 181118050 FIXING PLATE DCS4600S
86 908006205 SCREW M6X20
87 266476-3 SCREW M5X20 (TORX)
89 936430160 PIN 3X16 PS350C-420C
91 266476-3 SCREW M5X20 (TORX)
92 266476-3 SCREW M5X20 (TORX)
93 181111050 RETAINING TOOTH DCS4600S-5000
94 908006205 SCREW M6X20
95 905808210 PRISONER M8X21 PS-460/500
96 181250011 HOOK FOR PS-460/500
97 908905165 SCREW M5X16 FOR PS-460/500
98 168504-9 PS32CTLC VALVE
100 181213300 CHAIN TENSIONER DCS4600S-5000
101 227743-1 SCREW FOR CHAIN TENSIONER 11
102 181213240 SLEIGH DCS4600S-5000
103 226693-7 PINION DCS4600S-500
104 452667-4 COVER
105 181213260 NUT DCS4600S-5000
106 963207020 GASKET 7
107 908905165 SCREW M5X16 FOR PS-460/500
108 960123159 BEARING 6203 C3
Chainsaw PS500/45 Pag.4
115 181160101 STARTER CPL RED PS4600S
116 181112011 RED START CARTER
118 266476-3 SCREW M5X20 (TORX)
119 001161020 STARTER WHEEL DPC7311
120 108164020 STARTING ROPE 3.5X980MM
122 928405000 ELASTIC WASHER
123 181162150 REEL FOR ROPE DCS4600S
124 181163020 REWINDING SPRING DCS4600S
125 924605510 WASHER ES-31A
126 913455204 SCREW 5.5X20 (TORX)
127 181118041 BAFFLE DCS4600S-5000
128 181143212 COIL PS4605-5105
129 181147050 CABLE COIL DCS4600S / 5000
131 970502110 INSOLATOR TUBE 6 / 0,5 (M)
132 957604260 SPARK PLUG CAP
133 965603021 SPARK PLUG BPMR7A
134 266476-3 SCREW M5X20 (TORX)
135 264022-6 NUT
136 926208001 ELASTIC WASHER 8
137 181141105 FLYWHEEL DCS4600S-5000
138 181166050 STARER PAWL CPL
182 181160155 RED CPL STARTER
183 181112060 RED STARTER CARTER
184 181118041 BAFFLE DCS4600S-5000
185 452458-3 STARTER KNOB
186 266607-4 SCREW M5X20 PS32CTLC
187 181163050 REWINDING SPRING
188 181162020 REEL FOR ROPE
189 234193-3 EASY START SPRING
190 181163090 GUIDE FOR EASY START
191 266616-3 SCREW EASY START
192 181164020 3.5MMX1100 STARTING ROPE
193 185166100 STARER PAWL CPL
Chainsaw PS500/45 Pag.5
140 181245251 OIL PUMP DCS4600S-5000
142 181245140 PUMP BODY COVER DCS4600S
143 424178-9 DCS4600S OIL DUCT
145 168645-1 SUCTION TUBE PS32CTLC
146 231975-4 SPRING OF OIL TUBE X DCS230T
147 001245020 TUBE
149 908905165 SCREW M5X16 FOR PS-460/500
150 450956-1 WORM DCS4600S-5000
151 001182042 DISC GUIDE PS350C / 420C
152 168510-4 CLUTCH DCS4600S-5000
153 181184010 CLUTCH SPRING DCS4600S-5000
154 21224011 SPACER
155 346029-5 BRAKE BAND SPRING
157 962300009 NEEDLE BEARING DCS4600S
159 267820-7 PS350C-420C SPACER DISC
160 259045-7 RING X DCS6401
161 927304000 SAFETY WASHER 4
162 181213100 DCS4600S-5000 LEVERAGE
163 181213023 SPRING TENSION X PS6100
164 181213170 PROTECTION GUIDE DCS4600S
165 181213371 SPONGE FOR PS-460/500
167 181213161 HAND PROTECTION DCS4600S-5000
168 810449-4 LABEL
169 181213310 SPACER DCS4600S-5000
170 325604-0 BUSH DCS4600S-5000
171 266476-3 SCREW M5X20 (TORX)
175 957213200 SPROCKET GUARD (RED)
176 264055-1 NUT M8
177 957213220 GUARD FOR PS-460/500
178 181213191 COVER PINION DCS4600S-5000
179 908105126 SCREW M.5X12 X UH4520-5520-7020
180 181223312 DRUM CLUTCH 325 "Z = 7
181 181213400 SPONGE INSERT FOR PS
Chainsaw PS500/45 Pag.6
200 181153101 CARBURETOR DCS4600S-5000
202 181153030 TOP COVER DCS4600S
203 038153360 SCREW X DCS6401
204 181153040 DCSS4600S DIAPHRAG COVER
205 001153020 SCREW
206 181153020 GASKET KIT DCS4600S-5000
207 181153050 DIAPHRAGM DCS4600S-5000
208 038153210 BALL X PS6400
209 181153070 SCREW S X DCS4600S-5000
210 036153040 FILTER X PS 34
211 957153090 TROTTLE VALVE
212 957153080 THROTTLE SHAFT DCS4600S
213 957153070 CONTROL PARTS X PS6400
214 028153480 SPRING FOR PS-460/500
215 181153180 SCREW L DCS4600S-5000
216 181153190 SCREW H DCS4600S-5000
217 181153220 WASHER FOR PS-460/500
224 181153110 THROTTLE VALVE SPRING
225 181153160 SPRING SHAFT VALVE THROTTLE
226 181153210 CARBURETOR PLATE DCS4600S
230 038155012 FIXING PS4605-5105-5105D
231 965402995 GASKET DCS4600S-5000
Chainsaw PS500/45 Pag.7
500 415045631 45CM SPES.1,5 GUIDE STAR
501 415325710 PINION BARRA 0,325 "
502 528086772 CHAIN SAW 72
503 514686772 POWER MATCH CHAIN SAW 45CM 0.325 "
504 558083000 ROD STEP 0.325 "
505 558083010 JUNCTION JERSEY 0.325 "
518 952010140 CHAIN BAR PROTECTION
520 957004002 DCS430 TOOL SERIES
521 941719133 UNIVERSAL KEY 19/13
522 782025-3 TORX KEY
523 783012-5 SCREWDRIVER FOR CARBURETTOR
524 950004001 PLASTIC CASE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Dolmar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Dolmar PS500/45
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Dolmar PS500/45

Diagram Dolmar PS500/45

Download (1.24MB)

You might also like

Makita SKU: 168399-0
Complete Oil Tank Cap for Chainsaw Makita DCS230T Genuine part Makita, Oil Tank Cap Ass'y for Chainsaws DCS230T - DCS230TC - DCS231T - DCS232T - DCS3400TH - DCS3410TH - DCS460 Part for the...
AVAILABLE €4.28
Makita SKU: 181131040
Intake Manifold for Chainsaw Dolmar PS4600S Genuine replacement part Dolmar, Intake Manifold for Chainsaws PS4600S - PS4605 - PS5000 - PS5105. Part for the following products: - PS460/45...
Last items in stock €41.64
Makita SKU: 181153101
Carburator for Chainsaws Dolmar PS4600S-5000 Genuine parts Dolmar, Carburator for Chainsaws Dolmar PS4600S-5000 - PS460/45 - PS4600S/38 - PS5000/45 - Makita DCS5000/38 - DCS5000/45 Part for the following products: -  Chainsaw...
Last items in stock €177.46
Makita SKU: 179130215
Cylinder - Piston Set for Chainsaw Dolmar PS500C/45 Genuine part Dolmar, Cylinder - Piston Set for Chainsaws Dolmar PS500C/45 - PS500C/45 - Makita DCS500/45 - DCS5121/45. Part for the following...
Last items in stock €237.67
Makita SKU: 181111061
Crankcase Gasket for Chainsaws Dolmar PS-460/500 Genuine parts Dolmar, Crankcase Gasket for Chainsaws Dolmar PS-460/500 - PS460/45 - PS4600S/38 - PS5000/45 - Makita DCS5000/38 - DCS5000/45 Part for the following products: -  DCS460/45...
Last items in stock €5.24
Makita SKU: 181132064
Piston Cpl for Chainsaw Dolmar PS5000/45 Genuine parts Dolmar, Piston Assembly for Complete Dolmar PS5000/45 - PS500C/45 - PS5105C/45 - Makita DCS500/45.  Part for the following products: -  PS500/45 - MOTOSEGA 50CC DOLMAR 45CM -...
on 7/10 Business Days Approx. €104.93
Makita SKU: 960123159
Ball Bearing 6203 C3 for Chainsaws Dolmar PS-460/500 Genuine parts Dolmar, Ball Bearing 6203 C3 for Chainsaws Dolmar PS-460/500 - PS460/45 - PS4600S/38 - PS5000/45 - Makita DCS5000/38 - DCS5000/45. Part for the following products: -...
Last items in stock €36.47
Makita SKU: 010114020
Repair Kit Filter for Power Cutter Makita EK8100WS Genuine spare part Makita, Repair Kit Filter for Petrol Power Cutter EK8100WS. Part for the following products: -  EK8100WS - POWER CUTTER 81CC 400mm - 109.SB -...
Last items in stock €39.14
Comments (0)
