DeWalt Power Tools

Dewalt D27113 Type 1 Mitre Saw Parts

SKU: DEWALT D27113 Tipo 1
€1.93
VAT included

Dewalt D27113 Type 1 Table Top Mitre Saw Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Dewalt D27113 Type 1 Table Top Mitre Saw Spare Parts.
Dewalt D27113 Type 1 Mitre Saw Parts
  • Online only
  • Dewalt D27113 Type 1 Mitre Saw Parts
  • Dewalt D27113 Type 1 Mitre Saw Parts Diagram - Table

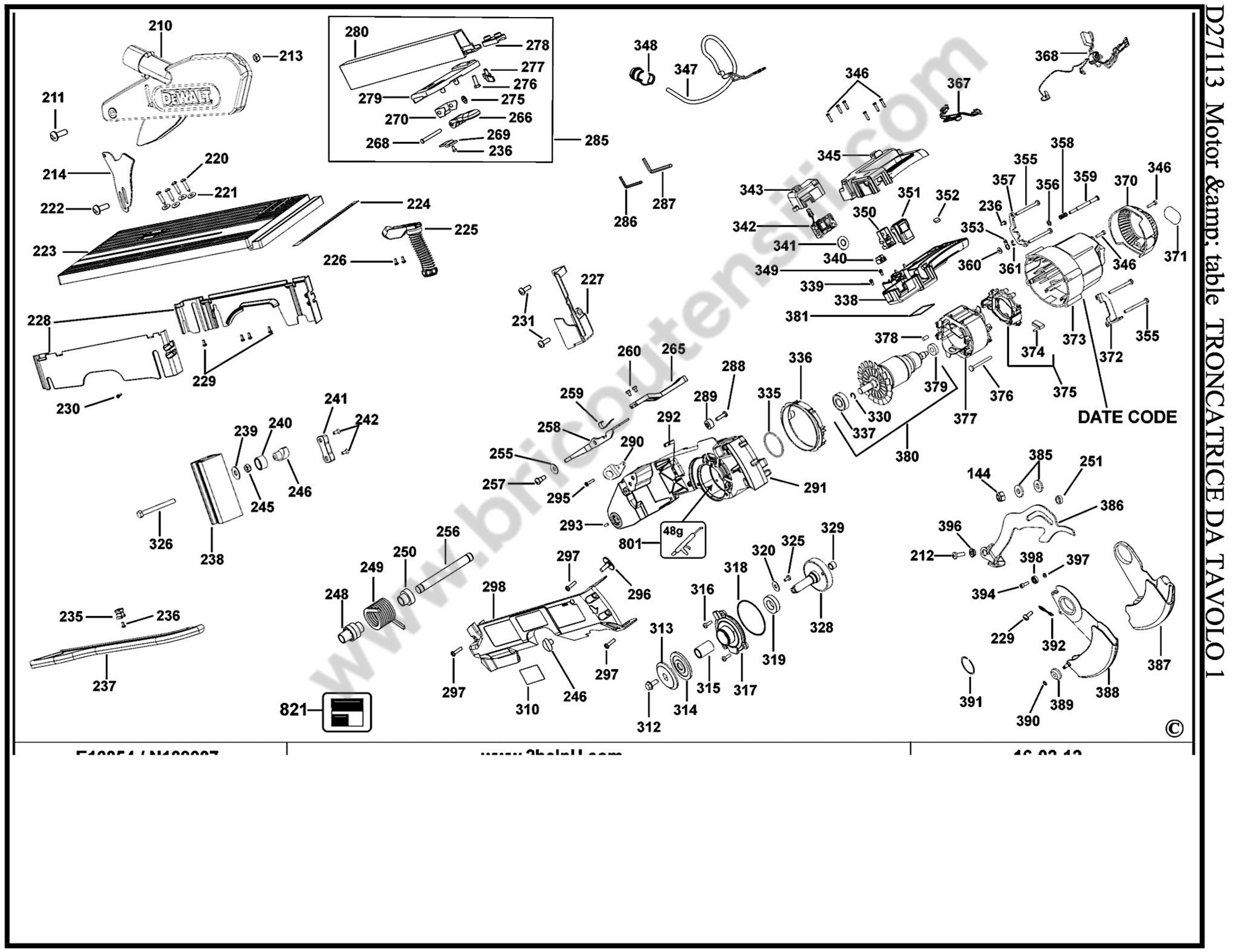

  • Dewalt D27113 Type 1 Mitre Saw Parts Diagram - Motor
DeWalt Power Tools

Dewalt D27113 Type 1 Mitre Saw Parts

SKU: DEWALT D27113 Tipo 1 Condition: New
€1.93
VAT included

Dewalt D27113 Type 1 Table Top Mitre Saw Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Dewalt D27113 Type 1 Table Top Mitre Saw Spare Parts.
settings 299 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
294 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

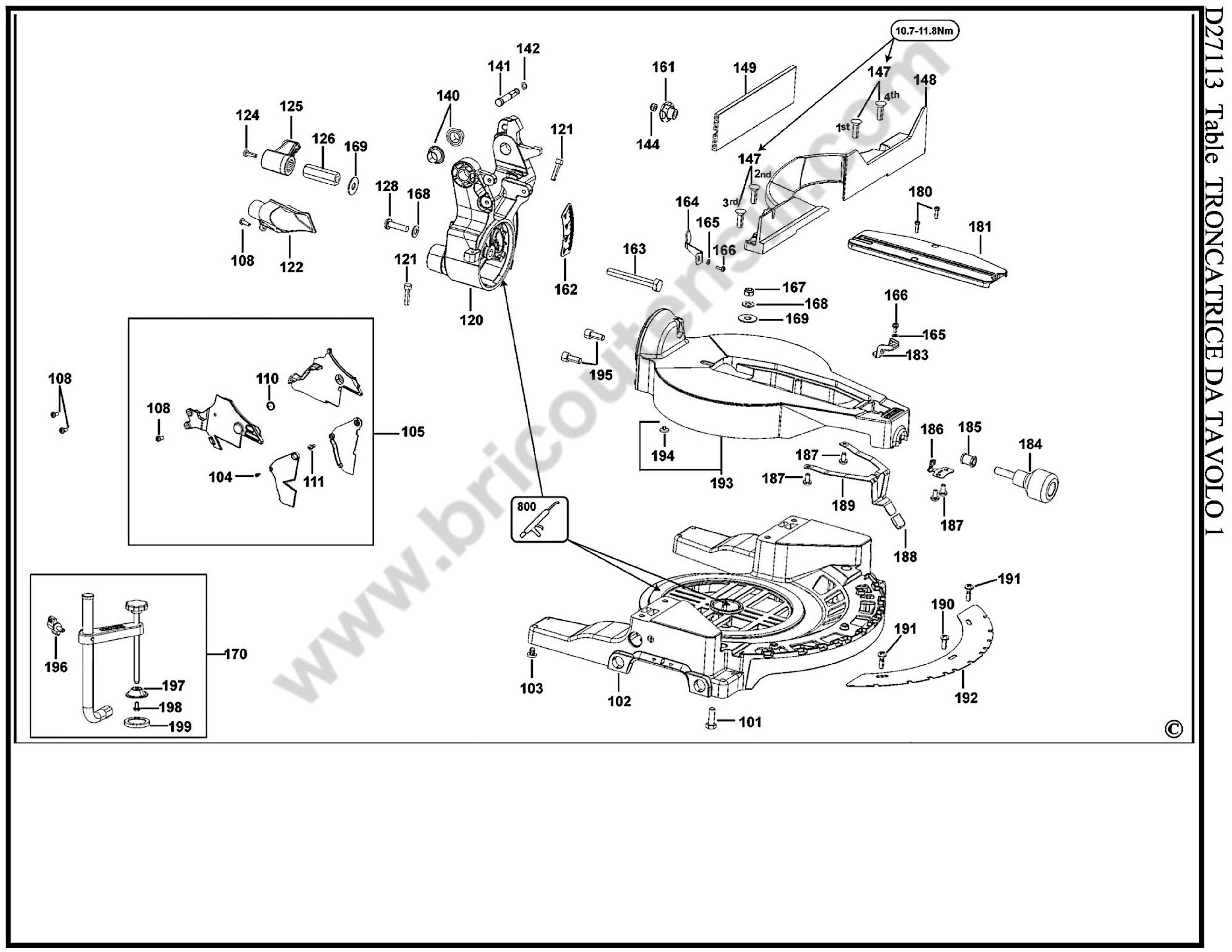

Esploso pagina 1
Pos. Item Price Buy
101
 photo_cameraImage coming soon 860085-19 SCREW €2.03
102
 photo_cameraImage coming soon N140117 BASE SA €277.21
103
 photo_cameraImage coming soon 153612-00 FOOT €1.88
104
 photo_cameraImage coming soon 330045-05 SCREW €2.03
105
 photo_cameraImage coming soon N140118 GUARD SA €101.66
108
 photo_cameraImage coming soon 330045-23 SCREW €2.03
110
 photo_cameraImage coming soon N053752 SPRING TORSION €3.00
111
 photo_cameraImage coming soon 153639-00 SCREW €2.03
120
 photo_cameraImage coming soon N140119 TRUNNION €143.95
121
 photo_cameraImage coming soon 391346-00 SCREW €1.88
122
 photo_cameraImage coming soon N056425 DUST PORT €6.56
124
 photo_cameraImage coming soon 330045-14 SCREW EMS 705 €2.03
125
 photo_cameraImage coming soon 397080-00 HANDLE €5.00
126
 photo_cameraImage coming soon 397089-00 NUT €7.90
128
 photo_cameraImage coming soon 612008-00 SCREW €3.24
140
 photo_cameraImage coming soon N083191 BUSH €2.27
141
 photo_cameraImage coming soon N170479 LOCKING PIN €9.90
142
 DeWalt D27112 Table Top Mitre Saw O-Ring 943030-00 DeWalt D27112 Table Top Mitre Saw O-Ring €2.09
144
 photo_cameraImage coming soon 860092-00 NUT €1.88
147
 photo_cameraImage coming soon 098105-03 SCREW €6.56
148
 photo_cameraImage coming soon N140120 BACK FENCE €105.36
149
 photo_cameraImage coming soon N140121 FENCE €77.44
161
 photo_cameraImage coming soon 653947-00 KNOB €3.00
162
 photo_cameraImage coming soon N065550 SCALE €3.45
163
 photo_cameraImage coming soon 638875-00 BOLT €5.88
164
 photo_cameraImage coming soon N065549 POINTER €7.90
165
 photo_cameraImage coming soon 249233-00 WASHER €1.88
166
 photo_cameraImage coming soon 330045-05 SCREW €2.03
167
 photo_cameraImage coming soon 860092-05 NUT €2.03
168
 photo_cameraImage coming soon 613270-00 WASHER €2.27
169
 photo_cameraImage coming soon 153781-00 WASHER €2.76
170
 photo_cameraImage coming soon N140122 CLAMP SA €55.89
180
 photo_cameraImage coming soon 330045-06 SCREW €1.88
181
 photo_cameraImage coming soon N045946 INSERT €13.22
183
 photo_cameraImage coming soon 398693-00 POINTER €7.90
184
 photo_cameraImage coming soon 145439-10 KNOB €5.88
187
 photo_cameraImage coming soon 330045-55 SCREW €1.88
188
 photo_cameraImage coming soon 148611-00 COVER €2.56
190
 photo_cameraImage coming soon 330045-23 SCREW €2.03
191
 photo_cameraImage coming soon 604987-00 SCREW €1.88
192
 photo_cameraImage coming soon 391292-01 DETENT €81.00
193
 photo_cameraImage coming soon N140123 TABLE ROTARY €183.50
194
 photo_cameraImage coming soon 640146-00 PAD €2.56
195
 photo_cameraImage coming soon 860093-07 SCREW €1.88
196
 photo_cameraImage coming soon 147107-02 KNOB LOWER €3.00
197
 photo_cameraImage coming soon 630068-00 Harness Support €5.88
198
 photo_cameraImage coming soon 330045-55 SCREW €1.88
199
 photo_cameraImage coming soon 630085-00 GRIP INCLUD.48 €2.56
210
 photo_cameraImage coming soon N095523 GUARD UPPER €37.22
211
 photo_cameraImage coming soon 612282-00 SCREW €5.88
212
 photo_cameraImage coming soon 330045-23 SCREW €2.03
213
 photo_cameraImage coming soon 860083-15 NUT €1.88
214
 photo_cameraImage coming soon N095520 RIVING KNIFE €22.32
220
 photo_cameraImage coming soon 860084-24 SCREW €1.88
221
 photo_cameraImage coming soon 860074-02 WASHER €1.88
222
 photo_cameraImage coming soon 330045-32 SCREW €2.11
223
 photo_cameraImage coming soon N114229 TABLE €151.88
224
 photo_cameraImage coming soon 637807-00 SCALE €5.45
225
 DeWalt D27113 Led Light N142445 DeWalt D27113 Led Light €79.77
226
 photo_cameraImage coming soon 330045-55 SCREW €1.88
227
 photo_cameraImage coming soon N052767 GUARD REAR €13.22
228
 photo_cameraImage coming soon N142446 GUARD SA €31.00
229
 photo_cameraImage coming soon 330045-05 SCREW €2.03
230
 photo_cameraImage coming soon 330013-02 SCREW €1.61
231
 photo_cameraImage coming soon 330045-55 SCREW €1.88
235
 photo_cameraImage coming soon 391358-01 HOLDER €3.00
236
 photo_cameraImage coming soon 860094-02 SCREW €2.03
237
 photo_cameraImage coming soon 860610-01 PUSHROD €12.11
238
 photo_cameraImage coming soon N054742 COLUMN €27.23
239
 photo_cameraImage coming soon 153781-00 WASHER €2.76
240
 photo_cameraImage coming soon 606362-01 BUSH €2.56
241
 photo_cameraImage coming soon N082707 WEDGE €5.00
242
 photo_cameraImage coming soon N124653 SCREW €1.88
245
 photo_cameraImage coming soon 860092-05 NUT €2.03
246
 photo_cameraImage coming soon 941756-00 KNOB €3.73
248
 photo_cameraImage coming soon 639383-00 SPACER €3.45
249
 photo_cameraImage coming soon 633290-04 TORSION SPRING €31.00
250
 photo_cameraImage coming soon 642980-00 SPACER €3.94
251
 photo_cameraImage coming soon N144184 FOLLOWER €5.45
255
 photo_cameraImage coming soon 153655-00 WASHER €1.88
256
 photo_cameraImage coming soon 397128-00 PIVOTED SHAFT €7.90
257
 photo_cameraImage coming soon 153639-00 SCREW €2.03
258
 photo_cameraImage coming soon 637193-00 LEVER €9.90
259
 photo_cameraImage coming soon 637289-00 SPRING €5.45
260
 photo_cameraImage coming soon 949894-02 SCREW €1.88
265
 DeWalt D27112 Type 1 Lever Lock 637338-00 DeWalt D27112 Type 1 Lever Lock €4.06
266
 photo_cameraImage coming soon 605794-00 LEVER LOCK €40.79
268
 photo_cameraImage coming soon 605795-00 CLEVIS PIN €2.56
269
 photo_cameraImage coming soon 605798-00 POINTER €2.56
270
 photo_cameraImage coming soon 605796-00 BRACKET €2.11
275
 photo_cameraImage coming soon 392948-00 WASHER CLAMP €1.88
276
 photo_cameraImage coming soon 612008-00 SCREW €3.24
277
 photo_cameraImage coming soon 862427-00 KNOB €4.60
278
 photo_cameraImage coming soon 637805-00 PLATE €12.11
279
 photo_cameraImage coming soon 634738-00 BRACKET €12.11
280
 DeWalt D27111 Upper Fence 637806-00 DeWalt D27111 Upper Fence €43.01
285
 photo_cameraImage coming soon 869231-04 FENCE €164.55
286
 photo_cameraImage coming soon 385567-03 KEY €5.00
287
 photo_cameraImage coming soon 385567-04 KEY €4.11
288
 photo_cameraImage coming soon 330045-33 SCREW €2.27
289
 photo_cameraImage coming soon 385756-01 BUSH €3.45
290
 photo_cameraImage coming soon 624195-01 BRACKET €3.45
291
 photo_cameraImage coming soon N142447 ARM €236.17
292
 photo_cameraImage coming soon N144183 STUD €9.90
293
 photo_cameraImage coming soon 150075-00 SCREW €2.11
295
 photo_cameraImage coming soon 330045-13 SCREW €1.88
296
 photo_cameraImage coming soon 625857-00 SCREW.SPECIAL €3.00
297
 photo_cameraImage coming soon 330045-15 SCREW €1.88
298
 photo_cameraImage coming soon N052443 COVER €20.12
310
 photo_cameraImage coming soon 641845-00 BRAND LABEL €4.92
312
 DeWalt D27111 Blade Bolt 647776-00 DeWalt D27111 Blade Bolt €2.23
313
 DeWalt D27111 Clamp Outer Flange 604765-00 DeWalt D27111 Clamp Outer Flange €9.44
314
 DeWalt D27111 Washer Inner Clamp 616319-00 DeWalt D27111 Washer Inner Clamp €12.62
314
 photo_cameraImage coming soon N186624 INNER FLANGE SA €31.00
315
 photo_cameraImage coming soon N186624 INNER FLANGE SA €31.00
316
 photo_cameraImage coming soon 330045-14 SCREW EMS 705 €2.03
317
 photo_cameraImage coming soon N052765 GEARCASE COVER €46.56
318
 photo_cameraImage coming soon 616979-01 O-RING €2.03
319
 photo_cameraImage coming soon 330003-69 BEARING €13.22
320
 photo_cameraImage coming soon 939625-00 WASHER €1.88
325
 photo_cameraImage coming soon 330045-49 SCREW €1.88
326
 photo_cameraImage coming soon 949702-19 SCREW €2.56
328
 photo_cameraImage coming soon N142448 GEAR & SPINDLE SA €115.66
329
 photo_cameraImage coming soon 386780-00 BEARING €5.89
330
 photo_cameraImage coming soon 930098-00 RETAINER €2.03
335
 DeWalt D27112 O-Ring 696519-00 DeWalt D27112 O-Ring €2.09
336
 photo_cameraImage coming soon 391375-00 BAFFLE FANS €5.40
337
 DeWalt D27111 Bearing Ball 330003-13 DeWalt D27111 Bearing Ball €12.47
338
 photo_cameraImage coming soon N600857 HANDLE SA €55.89
339
 photo_cameraImage coming soon 330045-05 SCREW €2.03
340
 photo_cameraImage coming soon 326057-00 TERMINAL BLOCK €2.56
341
 photo_cameraImage coming soon 650889-00 BUSH €2.11
342
 photo_cameraImage coming soon N142449 SA POWER SUPPLY €92.55
343
 photo_cameraImage coming soon N600857 HANDLE SA €55.89
345
 photo_cameraImage coming soon N600857 HANDLE SA €55.89
346
 photo_cameraImage coming soon 330019-13 Torx Screw €2.03
347
 photo_cameraImage coming soon 330120-00 CORDSET LH (EURO) €29.44
348
 photo_cameraImage coming soon 615851-00 BUSHING €7.90
349
 photo_cameraImage coming soon 330045-08 SCREW €1.88
350
 photo_cameraImage coming soon 653767-00 FELT €1.88
350
 photo_cameraImage coming soon 868320-00 COVER €6.56
351
 photo_cameraImage coming soon N060327 SWITCH €34.12
352
 photo_cameraImage coming soon 650855-00 FELT €2.03
353
 photo_cameraImage coming soon 393071-00 PLATE €2.03
355
 photo_cameraImage coming soon 98094-55 SCREW M5 X 55mm T25 €1.88
356
 photo_cameraImage coming soon 860073-07 WASHERS M6 €2.03
357
 photo_cameraImage coming soon N052769 BRACKET €6.56
358
 photo_cameraImage coming soon 868082-00 SPRING €2.03
359
 photo_cameraImage coming soon 650846-00 LOCK PIN €5.45
360
 photo_cameraImage coming soon 653767-00 FELT €1.88
361
 photo_cameraImage coming soon 860322-00 CIRCLIP €2.03
367
 photo_cameraImage coming soon N102137 SET OF LEAD WIRES LH €13.22
368
 photo_cameraImage coming soon N141826 CAPACITOR SA €20.12
370
 DeWalt D27112 Type 1 End Cap 391933-00 DeWalt D27112 Type 1 End Cap €6.54
371
 photo_cameraImage coming soon N625165 LABEL €2.27
372
 photo_cameraImage coming soon 650828-00 BRACKET €9.90
373
 photo_cameraImage coming soon 391317-00 FIELDCASE €24.13
374
 DeWalt D27113 Brush Pair 659512-00 DeWalt D27113 Brush Pair €22.98
375
 photo_cameraImage coming soon N463392 BRUSH HOLDER SA €65.23
376
 photo_cameraImage coming soon 330019-19 SCREW €2.27
377
 photo_cameraImage coming soon N142441 FIELD 230V €96.25
378
 photo_cameraImage coming soon 145312-00 PLUG €2.03
379
 DeWalt Ball Bearing 608RS N110359 N110359 DeWalt Ball Bearing 608RS N110359 €3.84
380
 photo_cameraImage coming soon N142443 ARMATURES 230V €161.05
381
 photo_cameraImage coming soon N136387 LABEL €3.00
385
 photo_cameraImage coming soon N154416 WASHER €3.45
386
 photo_cameraImage coming soon N052766 LINK €22.32
387
 photo_cameraImage coming soon N045949 GUARD €14.56
388
 photo_cameraImage coming soon N045948 GUARD €60.78
390
 photo_cameraImage coming soon 604728-00 LOCK RING €1.88
391
 photo_cameraImage coming soon 629745-00 CIRCLIP €2.56
392
 photo_cameraImage coming soon N110617 SPRING €3.45
394
 photo_cameraImage coming soon 860093-10 SCREW €1.88
396
 photo_cameraImage coming soon 146740-02 SLEEVE €1.88
397
 photo_cameraImage coming soon 860073-01 WASHER €1.88
398
 photo_cameraImage coming soon 949719-04 BEARING €5.45
801
 photo_cameraImage coming soon 5140061-28 GREASE €55.89
821
 photo_cameraImage coming soon N102177 BOARD €9.90
Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 2
Pos. Item Price Buy
210
 photo_cameraImage coming soon N095523 GUARD UPPER €37.22
211
 photo_cameraImage coming soon 612282-00 SCREW €5.88
213
 photo_cameraImage coming soon 860083-15 NUT €1.88
214
 photo_cameraImage coming soon N095520 RIVING KNIFE €22.32
220
 photo_cameraImage coming soon 860084-24 SCREW €1.88
221
 photo_cameraImage coming soon 860074-02 WASHER €1.88
222
 photo_cameraImage coming soon 330045-32 SCREW €2.11
223
 photo_cameraImage coming soon N114229 TABLE €151.88
224
 photo_cameraImage coming soon 637807-00 SCALE €5.45
225
 DeWalt D27113 Led Light N142445 DeWalt D27113 Led Light €79.77
227
 photo_cameraImage coming soon N052767 GUARD REAR €13.22
228
 photo_cameraImage coming soon N142446 GUARD SA €31.00
230
 photo_cameraImage coming soon 330013-02 SCREW €1.61
235
 photo_cameraImage coming soon 391358-01 HOLDER €3.00
236
 photo_cameraImage coming soon 860094-02 SCREW €2.03
237
 photo_cameraImage coming soon 860610-01 PUSHROD €12.11
238
 photo_cameraImage coming soon N054742 COLUMN €27.23
240
 photo_cameraImage coming soon 606362-01 BUSH €2.56
241
 photo_cameraImage coming soon N082707 WEDGE €5.00
242
 photo_cameraImage coming soon N124653 SCREW €1.88
246
 photo_cameraImage coming soon 941756-00 KNOB €3.73
248
 photo_cameraImage coming soon 639383-00 SPACER €3.45
249
 photo_cameraImage coming soon 633290-04 TORSION SPRING €31.00
250
 photo_cameraImage coming soon 642980-00 SPACER €3.94
251
 photo_cameraImage coming soon N144184 FOLLOWER €5.45
255
 photo_cameraImage coming soon 153655-00 WASHER €1.88
256
 photo_cameraImage coming soon 397128-00 PIVOTED SHAFT €7.90
258
 photo_cameraImage coming soon 637193-00 LEVER €9.90
259
 photo_cameraImage coming soon 637289-00 SPRING €5.45
260
 photo_cameraImage coming soon 949894-02 SCREW €1.88
265
 DeWalt D27112 Type 1 Lever Lock 637338-00 DeWalt D27112 Type 1 Lever Lock €4.06
266
 photo_cameraImage coming soon 605794-00 LEVER LOCK €40.79
268
 photo_cameraImage coming soon 605795-00 CLEVIS PIN €2.56
269
 photo_cameraImage coming soon 605798-00 POINTER €2.56
270
 photo_cameraImage coming soon 605796-00 BRACKET €2.11
275
 photo_cameraImage coming soon 392948-00 WASHER CLAMP €1.88
277
 photo_cameraImage coming soon 862427-00 KNOB €4.60
278
 photo_cameraImage coming soon 637805-00 PLATE €12.11
279
 photo_cameraImage coming soon 634738-00 BRACKET €12.11
280
 DeWalt D27111 Upper Fence 637806-00 DeWalt D27111 Upper Fence €43.01
285
 photo_cameraImage coming soon 869231-04 FENCE €164.55
286
 photo_cameraImage coming soon 385567-03 KEY €5.00
287
 photo_cameraImage coming soon 385567-04 KEY €4.11
288
 photo_cameraImage coming soon 330045-33 SCREW €2.27
289
 photo_cameraImage coming soon 385756-01 BUSH €3.45
290
 photo_cameraImage coming soon 624195-01 BRACKET €3.45
291
 photo_cameraImage coming soon N142447 ARM €236.17
292
 photo_cameraImage coming soon N144183 STUD €9.90
293
 photo_cameraImage coming soon 150075-00 SCREW €2.11
295
 photo_cameraImage coming soon 330045-13 SCREW €1.88
296
 photo_cameraImage coming soon 625857-00 SCREW.SPECIAL €3.00
297
 photo_cameraImage coming soon 330045-15 SCREW €1.88
298
 photo_cameraImage coming soon N052443 COVER €20.12
310
 photo_cameraImage coming soon 641845-00 BRAND LABEL €4.92
312
 DeWalt D27111 Blade Bolt 647776-00 DeWalt D27111 Blade Bolt €2.23
313
 DeWalt D27111 Clamp Outer Flange 604765-00 DeWalt D27111 Clamp Outer Flange €9.44
314
 DeWalt D27111 Washer Inner Clamp 616319-00 DeWalt D27111 Washer Inner Clamp €12.62
314
 photo_cameraImage coming soon N186624 INNER FLANGE SA €31.00
317
 photo_cameraImage coming soon N052765 GEARCASE COVER €46.56
318
 photo_cameraImage coming soon 616979-01 O-RING €2.03
319
 photo_cameraImage coming soon 330003-69 BEARING €13.22
320
 photo_cameraImage coming soon 939625-00 WASHER €1.88
325
 photo_cameraImage coming soon 330045-49 SCREW €1.88
326
 photo_cameraImage coming soon 949702-19 SCREW €2.56
328
 photo_cameraImage coming soon N142448 GEAR & SPINDLE SA €115.66
329
 photo_cameraImage coming soon 386780-00 BEARING €5.89
330
 photo_cameraImage coming soon 930098-00 RETAINER €2.03
335
 DeWalt D27112 O-Ring 696519-00 DeWalt D27112 O-Ring €2.09
336
 photo_cameraImage coming soon 391375-00 BAFFLE FANS €5.40
337
 DeWalt D27111 Bearing Ball 330003-13 DeWalt D27111 Bearing Ball €12.47
338
 photo_cameraImage coming soon N600857 HANDLE SA €55.89
340
 photo_cameraImage coming soon 326057-00 TERMINAL BLOCK €2.56
341
 photo_cameraImage coming soon 650889-00 BUSH €2.11
342
 photo_cameraImage coming soon N142449 SA POWER SUPPLY €92.55
346
 photo_cameraImage coming soon 330019-13 Torx Screw €2.03
347
 photo_cameraImage coming soon 330120-00 CORDSET LH (EURO) €29.44
348
 photo_cameraImage coming soon 615851-00 BUSHING €7.90
349
 photo_cameraImage coming soon 330045-08 SCREW €1.88
350
 photo_cameraImage coming soon 653767-00 FELT €1.88
350
 photo_cameraImage coming soon 868320-00 COVER €6.56
351
 photo_cameraImage coming soon N060327 SWITCH €34.12
352
 photo_cameraImage coming soon 650855-00 FELT €2.03
353
 photo_cameraImage coming soon 393071-00 PLATE €2.03
355
 photo_cameraImage coming soon 98094-55 SCREW M5 X 55mm T25 €1.88
356
 photo_cameraImage coming soon 860073-07 WASHERS M6 €2.03
357
 photo_cameraImage coming soon N052769 BRACKET €6.56
358
 photo_cameraImage coming soon 868082-00 SPRING €2.03
359
 photo_cameraImage coming soon 650846-00 LOCK PIN €5.45
361
 photo_cameraImage coming soon 860322-00 CIRCLIP €2.03
367
 photo_cameraImage coming soon N102137 SET OF LEAD WIRES LH €13.22
368
 photo_cameraImage coming soon N141826 CAPACITOR SA €20.12
370
 DeWalt D27112 Type 1 End Cap 391933-00 DeWalt D27112 Type 1 End Cap €6.54
371
 photo_cameraImage coming soon N625165 LABEL €2.27
372
 photo_cameraImage coming soon 650828-00 BRACKET €9.90
373
 photo_cameraImage coming soon 391317-00 FIELDCASE €24.13
374
 DeWalt D27113 Brush Pair 659512-00 DeWalt D27113 Brush Pair €22.98
375
 photo_cameraImage coming soon N463392 BRUSH HOLDER SA €65.23
376
 photo_cameraImage coming soon 330019-19 SCREW €2.27
377
 photo_cameraImage coming soon N142441 FIELD 230V €96.25
378
 photo_cameraImage coming soon 145312-00 PLUG €2.03
379
 DeWalt Ball Bearing 608RS N110359 N110359 DeWalt Ball Bearing 608RS N110359 €3.84
380
 photo_cameraImage coming soon N142443 ARMATURES 230V €161.05
381
 photo_cameraImage coming soon N136387 LABEL €3.00
385
 photo_cameraImage coming soon N154416 WASHER €3.45
386
 photo_cameraImage coming soon N052766 LINK €22.32
387
 photo_cameraImage coming soon N045949 GUARD €14.56
388
 photo_cameraImage coming soon N045948 GUARD €60.78
390
 photo_cameraImage coming soon 604728-00 LOCK RING €1.88
391
 photo_cameraImage coming soon 629745-00 CIRCLIP €2.56
392
 photo_cameraImage coming soon N110617 SPRING €3.45
394
 photo_cameraImage coming soon 860093-10 SCREW €1.88
396
 photo_cameraImage coming soon 146740-02 SLEEVE €1.88
397
 photo_cameraImage coming soon 860073-01 WASHER €1.88
398
 photo_cameraImage coming soon 949719-04 BEARING €5.45
801
 photo_cameraImage coming soon 5140061-28 GREASE €55.89
821
 photo_cameraImage coming soon N102177 BOARD €9.90

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Dewalt D27113 Type 1 Table Top Mitre Saw Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Dewalt D27113 Type 1 Table Top Mitre Saw Spare Parts.

In the following table, look for the model of the hammer and the respective parts of the code.

Dewalt D27113 Type 1 Table Top Mitre Saw Spare Parts
DEWALT TABLE TOP MITRE SAW D27113 Type 1 GB Parts List
# Part Num. Description
101 860085-19 SCREW
102 N140117 BASE SA
103 153612-00 FOOT
104 330045-05 SCREW
105 N140118 GUARD SA
108 330045-23 SCREW
110 N053752 SPRING TORSION
111 153639-00 SCREW
120 N140119 TRUNNION
121 391346-00 SCREW
122 N056425 DUST PORT
124 330045-14 SCREW
125 397080-00 HANDLE
126 397089-00 NUT
128 612008-00 SCREW
140 N083191 BUSH
141 N170479 LOCKING PIN
142 943030-00 O RING
144 860092-00 NUT
147 098105-03 SCREW
148 N140120 BACK FENCE
149 N140121 FENCE
161 653947-00 KNOB
162 N065550 SCALE
163 638875-00 BOLT
164 N065549 POINTER
165 249233-00 WASHER
166 330045-05 SCREW
167 860092-05 NUT
168 613270-00 WASHER
169 153781-00 WASHER
170 N140122 CLAMP SA
180 330045-06 SCREW
181 N045946 INSERT
183 398693-00 POINTER
184 145439-10 KNOB
185 146733-00 CLAMP
186 391357-00 CLAMP
187 330045-55 SCREW
188 148611-00 COVER
189 146745-00 SPRING
190 330045-23 SCREW
191 604987-00 SCREW
192 391292-01 DETENT
193 N140123 TABLE ROTARY
194 640146-00 PAD
195 860093-07 SCREW
196 147107-02 KNOB LOWER
197 630068-00 SUPPORT
198 330045-55 SCREW
199 630085-00 GRIP
210 N095523 GUARD UPPER
211 612282-00 SCREW
212 330045-23 SCREW
213 860083-15 NUT
214 N095520 RIVING KNIFE
220 860084-24 SCREW
221 860074-02 WASHER
222 330045-32 SCREW
223 N114229 TABLE
224 637807-00 SCALE
225 N142445 LED LIGHT
226 330045-55 SCREW
227 N052767 GUARD REAR
228 N142446 GUARD SA
229 330045-05 SCREW
230 330013-02 SCREW
231 330045-55 SCREW
235 391358-01 HOLDER
236 860094-02 SCREW
237 860610-01 PUSHROD
238 N054742 COLUMN
239 153781-00 WASHER
240 606362-01 BUSHING
241 N082707 WEDGE
242 N124653 SCREW
245 860092-05 NUT
246 941756-00 KNOB
248 639383-00 SPACER
249 633290-04 SPRING TORSION
250 642980-00 SPACER
251 N144184 FOLLOWER
255 153655-00 WASHER
256 397128-00 PIVOT SHAFT
257 153639-00 SCREW
258 637193-00 LEVER
259 637289-00 SPRING
260 949894-02 SCREW
265 637338-00 LEVER LOCK
266 605794-00 LEVER LOCK
268 605795-00 CLEVIS PIN
269 605798-00 POINTER
270 605796-00 BRACKET
275 392948-00 WASHER CLAMP
276 612008-00 SCREW
277 862427-00 KNOB
278 637805-00 PLATE
279 634738-00 BRACKET
280 637806-00 FENCE
285 869231-04 FENCE SA
286 385567-03 KEY
287 385567-04 KEY
288 330045-33 SCREW
289 385756-01 BUSH
290 624195-01 BRACKET
291 N142447 ARM
292 N144183 STUD
293 150075-00 SCREW
295 330045-13 SCREW
296 625857-00 SCREW.SPECIAL
297 330045-15 SCREW
298 N052443 COVER
310 641845-00 BRAND LABEL
312 647776-00 BLADE BOLT
313 604765-00 CLAMP OUTER
314 616319-00 WASHER INNER CLAMP
314 N186624 INNER FLANGE SA
315 N186624 INNER FLANGE SA
315 N186624 INNER FLANGE SA
316 330045-14 SCREW
317 N052765 GEARCASE COVER
318 616979-01 O RING
319 330003-69 BEARING
320 939625-00 WASHER
325 330045-49 SCREW
326 949702-19 SCREW
328 N142448 GEAR & SPINDLE SA
329 386780-00 BEARING
330 930098-00 RETAINER
335 696519-00 RING
336 391375-00 BAFFLE
337 330003-13 BEARING BALL
338 N600857 HANDLE SA
339 330045-05 SCREW
340 326057-00 TERMINAL BLOCK
341 650889-00 BUSHING
342 N142449 SA POWER SUPPLY
343 N600857 HANDLE SA
345 N600857 HANDLE SA
346 330019-13 SCREW
347 330060-85 CORDSET
348 615851-00 BUSHING
349 330045-08 SCREW
350 868320-00 COVER
350 653767-00 FELT
351 N060327 SWITCH
352 650855-00 FELT
353 393071-00 PLATE
355 98094-55 SCREW
356 860073-07 WASHER M6
357 N052769 BRACKET
358 868082-00 SPRING
359 650846-00 LOCK PIN
360 653767-00 FELT
361 860322-00 CIRCLIP
367 N102137 SET OF LEAD WIRES
368 N141826 CAPACITOR SA
370 391933-00 END CAP
371 N625165 BRAND LABEL
372 650828-00 BRACKET
373 391317-00 FIELDCASE
374 659512-00 BRUSH PAIR
375 N463392 BRUSH HOLDER SA
376 330019-19 SCREW
377 N142441 FIELD 230V
378 145312-00 PLUG
379 N110359 BEARING
379 N110359 BEARING
380 N142443 ARMATURE 230V
381 N136387 LABEL
385 N154416 WASHER
386 N052766 LINK
387 N045949 GUARD
388 N045948 GUARD
389 146774-00 ROLLER - DISCONTINUED
390 604728-00 LOCKING RING
391 629745-00 CIRCLIP
392 N110617 SPRING
394 860093-10 SCREW
396 146740-02 SLEEVE
397 860073-01 WASHER
398 949719-04 BEARING
801 5140061-28 GREASE
821 N102178 RATING PLATE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s DEWALT websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to DEWALT brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DEWALT D27113 Tipo 1
6 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

DEWALT D27113-1 Parts Diagram

DEWALT D27113-1 Parts Diagram

Download (839.33KB)

You might also like

DeWalt D27112 Type 1 End Cap
DeWalt Power Tools SKU: 391933-00
DeWalt D27112 Type 1 End Cap
DeWalt D27112 Type 1 End Cap Genuine replacement part DeWALT, End Cap for Dewalt D27112 Type 1 Table Top Mitre Saw. Part for the following items: -  Dewalt D27112 Type 1 Table Top Mitre Saw -...
on 7/10 Business Days Approx. €6.54
Details
DeWalt D27112 Type 1 Lever Lock
DeWalt Power Tools SKU: 637338-00
DeWalt D27112 Type 1 Lever Lock
DeWalt D27112 Type 1 Lever Lock Genuine replacement part DeWALT, Lever Lock for Dewalt D27112 Type 1 Table Top Mitre Saw. Part for the following items: -  Dewalt D27112 Type 1 Table Top Mitre Saw -...
Last items in stock €4.06
Details
DeWalt D27112 Table Top Mitre Saw Dust Port
DeWalt Power Tools SKU: 654313-00
DeWalt D27112 Table Top Mitre Saw Dust Port
DeWalt D27112 Table Top Mitre Saw Dust Port Genuine replacement part DeWALT, Dust Port for Table Top Mitre Saw D27111 - D27112. Part for the following items: - Table Top Mitre Saw D27112 Tipo 1 - Table Top Mitre Saw D27112...
Last items in stock €24.85
Details
DeWalt D27112 Table Top Mitre Saw Switch
DeWalt Power Tools SKU: 640985-00
DeWalt D27112 Table Top Mitre Saw Switch
DeWalt D27112 Table Top Mitre Saw Switch Genuine replacement part DeWALT, Switch ON-OFF for Table Top Mitre Saw D27111 - D27112. Part for the following items: - Table Top Mitre Saw D27112 Tipo 1 - Table Top Mitre Saw D27112...
Last items in stock €32.24
Details
DeWalt D27112 Table Top Mitre Saw Locking Pin
DeWalt Power Tools SKU: 649653-00
DeWalt D27112 Table Top Mitre Saw Locking Pin
DeWalt D27112 Table Top Mitre Saw Locking Pin Genuine replacement part DeWALT, Locking Pin for Table Top Mitre Saw D27111 - D27112. Part for the following items: - Table Top Mitre Saw D27112 Tipo 1 - Table Top Mitre Saw...
AVAILABLE €9.52
Details
DeWalt D27112 Table Top Mitre Saw O-Ring
DeWalt Power Tools SKU: 943030-00
DeWalt D27112 Table Top Mitre Saw O-Ring
DeWalt D27112 Table Top Mitre Saw Locking Pin O-Ring Genuine replacement part DeWALT, Locking Pin O-Ring for Table Top Mitre Saw D27111 - D27112. Part for the following items: - Table Top Mitre Saw D27112 Tipo 1 - Table...
build View Spare Parts
DeWalt D27112 Table Top Mitre Saw Brush & Lead Set
DeWalt Power Tools SKU: 381028-08
DeWalt D27112 Table Top Mitre Saw Brush & Lead Set
DeWalt D27112 Table Top Mitre Saw Brush & Lead Set Genuine replacement part DeWALT, Carbon Brush & Lead Set for Table Top Mitre Saw D27112. Part for the following items: - Table Top Mitre Saw D27112 Tipo 1 - Table Top Mitre...
Last items in stock €37.17
Details
DeWalt D27112 Table Top Mitre Saw Disc Guard Kit
DeWalt Power Tools SKU: N102812
DeWalt D27112 Table Top Mitre Saw Disc Guard Kit
DeWalt D27112 Table Top Mitre Saw Disc Guard Kit Genuine replacement part DeWALT, Disc Guard Kit for Table Top Mitre Saw D27111 - D27112. Part for the following items: - Table Top Mitre Saw D27112 Tipo 1 - Table Top...
Last items in stock €86.25
Details
DeWalt D27111 Table Insert
DeWalt Power Tools SKU: N714363
DeWalt D27111 Table Insert
DeWalt D27111 Table Insert Genuine replacement part DeWALT, Table Insert for Table Top Mitre Saw D27111 - D27112. Part for the following items: - T able Top Mitre Saw D27111 Tipo 1 - Table Top Mitre Saw D27112 Tipo 1 - Table...
Last items in stock €8.58
Details
DeWalt D27111 Fence
DeWalt Power Tools SKU: 634736-00
DeWalt D27111 Fence
DeWalt D27111 Fence Genuine replacement part DeWALT, Fence for Table Top Mitre Saw D27111 - D27112. Part for the following items: - T able Top Mitre Saw D27111 Tipo 1 - Table Top Mitre Saw D27112 Tipo 1 - Table Top...
Last items in stock €11.47
Details
DeWalt Ball Bearing 608RS N110359
DeWalt Power Tools SKU: N110359
DeWalt Ball Bearing 608RS N110359
DeWalt Ball Bearing 608RS N110359 Genuine replacement part DeWALT, Ball Bearing 608RS for Demolition Hammer D25733K - D25614K - D25831K. Part for the following items: - DEWALT DW433 - DEWALT D27112 TIPO 1 - DEWALT D27112 TIPO 3...
on 7/10 Business Days Approx. €3.84
Details
DeWalt D27111 Upper Table Guide
DeWalt Power Tools SKU: 637806-00
DeWalt D27111 Upper Fence
DeWalt D27111 Upper Fence Genuine replacement part DeWALT, Upper Working Table Fence for Table Top Mitre Saw D27111 - D27112. Part for the following items: - T able Top Mitre Saw D27111 Tipo 1 - Table Top Mitre Saw D27112 Tipo...
Last items in stock €43.01
Details
DeWalt D27111 Washer Inner Clamp
DeWalt Power Tools SKU: 616319-00
DeWalt D27111 Washer Inner Clamp
DeWalt D27111 Washer Inner Clamp Genuine replacement part DeWALT, Washer Inner Clamp for Table Top Mitre Saw D27111 - D27112. Part for the following items: - T able Top Mitre Saw D27111 Tipo 1 - Table Top Mitre Saw D27112...
Last items in stock €12.62
Details
DeWalt D27111 Clamp Outer Flange
DeWalt Power Tools SKU: 604765-00
DeWalt D27111 Clamp Outer Flange
DeWalt D27111 Clamp Outer Flange Genuine replacement part DeWALT, Washer Inner Clamp for Table Top Mitre Saw D27111 - D27112. Part for the following items: - T able Top Mitre Saw D27111 Tipo 1 - Table Top Mitre Saw D27112...
Last items in stock €9.44
Details
DeWalt D27111 Blade Bolt
DeWalt Power Tools SKU: 647776-00
DeWalt D27111 Blade Bolt
DeWalt D27111 Blade Bolt Genuine replacement part DeWALT, Blade Bolt for Table Top Mitre Saw D27111 - D27112. Part for the following items: - T able Top Mitre Saw D27111 Tipo 1 - Table Top Mitre Saw D27112 Tipo 1 -...
Last items in stock €2.23
Details
DeWalt D27113 Carbon Brush Set
DeWalt Power Tools SKU: 659512-00
DeWalt D27113 Brush Pair
DeWalt D27113 Type 1 Carbon Brush Pair Genuine replacement part DeWALT, Carbon Brush Pair for Table Top Mitre Saw D27113 Type 1. Part for the following items: - Dewalt D27113 Type 1 Table Top Mitre Saw -...
Last items in stock €22.98
Details
DeWalt D27112 O-Ring
DeWalt Power Tools SKU: 696519-00
DeWalt D27112 O-Ring
DeWalt D27112 O-Ring Genuine replacement part DeWALT, O-Ring for Table Top Mitre Saw D27112 - D27113. Part for the following items: - Table Top Mitre Saw D27112 Tipo 1 - Table Top Mitre Saw D27112 Tipo 3 -  Table...
AVAILABLE €2.09
Details
DeWalt D27111 Bearing Ball
DeWalt Power Tools SKU: 330003-13
DeWalt D27111 Bearing Ball
DeWalt D27111 Bearing Ball Genuine replacement part DeWALT, Bearing Ball 6202RS for Table Top Mitre Saw D27111 - D27112 - D27113. Part for the following items: - T able Top Mitre Saw D27111 Tipo 1 - Table Top Mitre Saw...
AVAILABLE €12.47
Details
DeWalt D27113 Led Light
DeWalt Power Tools SKU: N142445
DeWalt D27113 Led Light
DeWalt D27113 Led Light Ass'y Genuine replacement part DeWALT, Led Light Ass'y for Table Top Mitre Saw D27113 Type 1. Part for the following items: - Dewalt D27113 Type 1 Table Top Mitre Saw - Code: N142445
Last items in stock €79.77
Details
Comments (0)
