DEWALT D28111 Type 3 Angle Grinder Parts

SKU: DEWALT D28111 Type 3
€10.26
VAT included

DEWALT D28111 Type 3 Angle Grinder Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for D28111 Type 3 Angle Grinder Spare Parts.
DEWALT D28111 Type 3 Angle Grinder Parts
  • Online only
  • DEWALT D28111 Type 3 Angle Grinder Parts
  • DEWALT D28111 Type 3 Angle Grinder Parts Diagram
DeWalt Power Tools

DEWALT D28111 Type 3 Angle Grinder Parts

SKU: DEWALT D28111 Type 3 Condition: New
€10.26
VAT included

DEWALT D28111 Type 3 Angle Grinder Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for D28111 Type 3 Angle Grinder Spare Parts.
settings 49 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
49 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

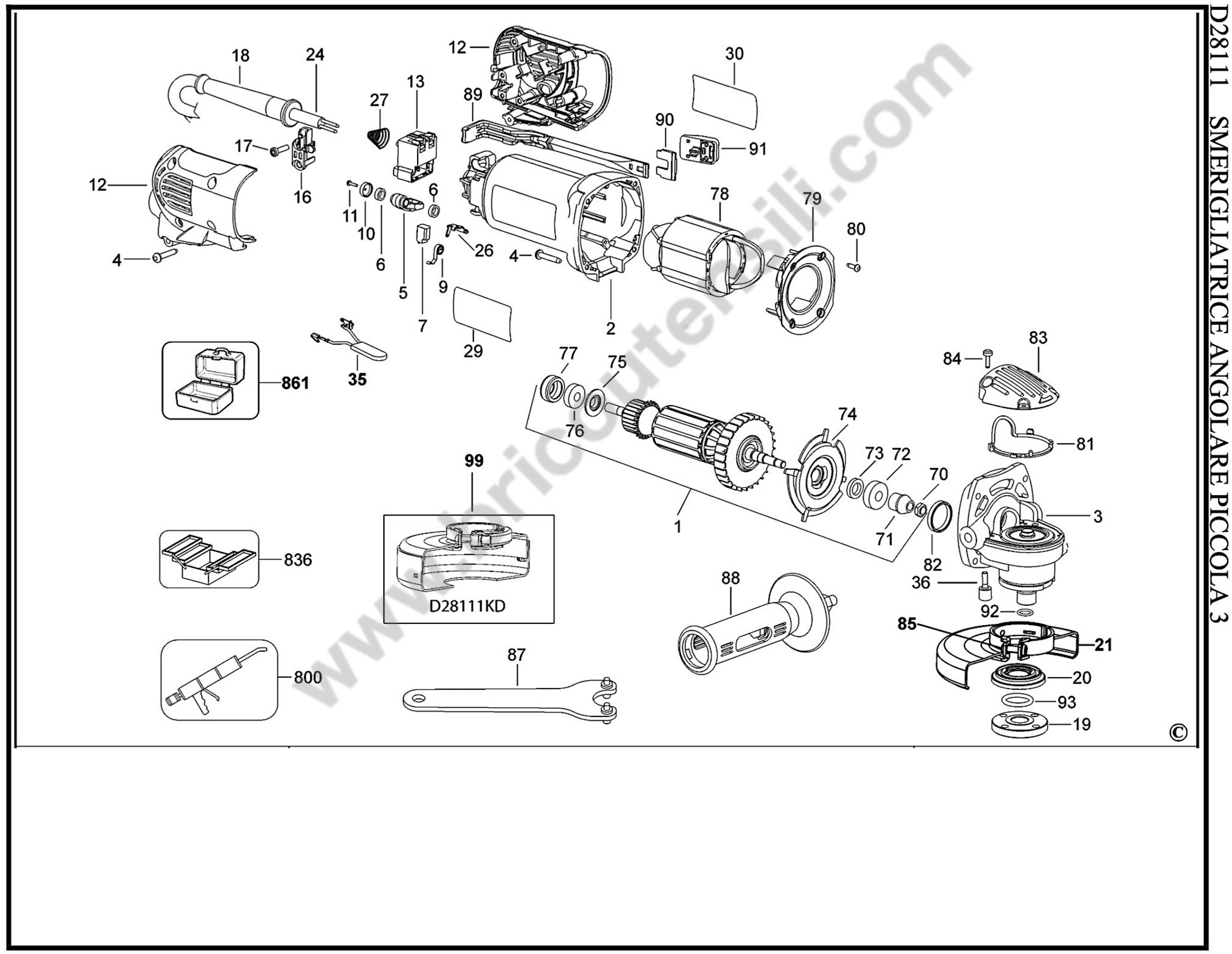

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 650994-00 FIELDCASE €9.68
3
 photo_cameraImage coming soon N074217 GEARCASE SA €48.88
4
 photo_cameraImage coming soon 330065-31 Plastic Screw €1.97
5
 photo_cameraImage coming soon 648743-00 ARM €4.31
6
 photo_cameraImage coming soon 623592-00 FELT SEAL €1.97
7
 DEWALT D28011 Type 3 Angle Grinder Brush, Pair 230V 1003860-00 DEWALT D28011 Type 3 Angle Grinder Brush, Pair 230V €13.48
9
 photo_cameraImage coming soon 623589-00 Carbon Brush Spring For D281 Series €1.97
10
 photo_cameraImage coming soon 623591-00 BRUSH CAP €1.97
11
 photo_cameraImage coming soon 593685-00 SCREW €1.97
13
 DEWALT D28011 Type 3 Angle Grinder Switch SA 641889-01 DEWALT D28011 Type 3 Angle Grinder Switch SA €12.49
16
 photo_cameraImage coming soon 636963-00 CORD CLAMP €1.97
17
 photo_cameraImage coming soon 330019-03 SCREW EMS 705 €1.97
18
 photo_cameraImage coming soon N542553 CORD PROTECTOR - NO LONGER AVAILABLE €5.31
18
 photo_cameraImage coming soon N918736 CORD GUARD €2.21
19
 Outer Flange for DW821 Small Angle Grinder 622613-02 Outer Flange for DW821 Small Angle Grinder €8.02
20
 photo_cameraImage coming soon 633257-00SV RECIEVE WASHER €8.29
21
 photo_cameraImage coming soon N041731 GUARD SA €9.68
24
 photo_cameraImage coming soon 562226-59 CORDSET LH (EURO) €11.54
26
 photo_cameraImage coming soon 623593-00 TERMINAL €2.21
27
 photo_cameraImage coming soon 628396-00 SPRING €1.29
30
 photo_cameraImage coming soon 635892-00 BRAND LABEL €1.97
35
 DEWALT D28011 Type 3 Angle Grinder Chake SA 637543-00 DEWALT D28011 Type 3 Angle Grinder Chake SA €7.20
36
 photo_cameraImage coming soon N033051 SCREW €1.93
70
 photo_cameraImage coming soon 604484-00 Nut €1.97
71
 photo_cameraImage coming soon 623564-00 PINION €13.87
72
 photo_cameraImage coming soon 605040-11 BEARING BALL €5.72
73
 photo_cameraImage coming soon 623617-00 FELT SEAL €1.97
74
 photo_cameraImage coming soon N422242 RETAINER €2.91
75
 photo_cameraImage coming soon 623613-00 WASHER €1.97
76
 DeWalt DW818 Small Angle Grinder Bearing 607LUT 605040-02 DeWalt DW818 Small Angle Grinder Bearing 607LUT €5.57
77
 photo_cameraImage coming soon 641823-00 Sleeve €1.97
79
 photo_cameraImage coming soon 650997-00 BAFFLE FANS €2.91
80
 photo_cameraImage coming soon 330065-25 SCREW €2.03
81
 photo_cameraImage coming soon 623618-00 GASKET €3.15
82
 photo_cameraImage coming soon 611492-00 SLEEVE €1.97
83
 photo_cameraImage coming soon 623562-00 GEARCASE COVER €6.37
84
 photo_cameraImage coming soon 385676-01 SCREW €1.97
85
 photo_cameraImage coming soon 631609-03 SCREW €1.97
87
 photo_cameraImage coming soon 401680-00 WRENCH €6.88
88
 DeWalt DWE4056 Side Handle N401305 DeWalt DWE4056 Side Handle €9.44
89
 DEWALT D28011 Type 3 Angle Grinder Switch Link 626999-00 DEWALT D28011 Type 3 Angle Grinder Switch Link €3.43
90
 photo_cameraImage coming soon 644326-00 BAR LOCKING €1.97
91
 DEWALT D28011 Type 3 Angle Grinder Button, Start 623608-00 DEWALT D28011 Type 3 Angle Grinder Button, Start €2.34
92
 photo_cameraImage coming soon 633045-00 O RING €1.97
93
 photo_cameraImage coming soon 633043-00 O RING €2.21
99
 photo_cameraImage coming soon N042786 GUARD SA €54.27
800
 photo_cameraImage coming soon 583534-00 Grease 50 Gms €319.29
836
 photo_cameraImage coming soon 233804-36 DRIVER €49.72
861
 photo_cameraImage coming soon 638758-00 KIT BOX €46.72

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

DEWALT D28111 Type 3 Angle Grinder Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for D28111 Type 3 Angle Grinder Spare Parts.

In the following table, look for the model of the hammer and the respective parts of the code.
D28111 Type 3 Angle Grinder Spare Parts
DEWALT D28111 SMALL ANGLE GRINDER Type 3 Parts List
#
Part Num.
 Description
1
623584-16
 ARMATURE 230V
2
650994-00
 FIELDCASE
3
N074217
 GEARCASE SA
4
330065-31
 PLASTIC SCREW
5
648743-00
 ARM
6
623592-00
 FELT SEAL
7
 BRUSH PAIR 230V
9
623589-00
 BRUSH SPRING
10
623591-00
 BRUSH CAP
11
593685-00
 SCREW
12
625243-05
 HANDLE SA
13
 SWITCH SA
16
636963-00
 CORD CLAMP
17
330019-03
 SCREW
18
N918736
 CORD PROTECTOR
18
N542553
 CORD PROTECTOR
19
 OUTER FLANGE
20
633257-00SV
 INNER FLANGE SA
21
N041731
 GUARD SA
24
562226-58
 CORDSET (M/PLUG) GB
26
623593-00
 TERMINAL
27
628396-00
 SPRING
29
N040055
 RATING PLATE
30
635892-00
 BRAND LABEL
35
 CHOKE SA
36
N033051
 SCREW
70
604484-00
 NUT
71
623564-00
 PINION
72
605040-11
 BEARING,BALL
73
623617-00
 FELT SEAL
74
N422242
 RETAINER
75
623613-00
 WASHER
76
 BEARING
77
641823-00
 SLEEVE
78
624764-04
 FIELD 230V 220-240V
79
650997-00
 BAFFLE FAN
80
330065-25
 SCREW
81
623618-00
 GASKET
82
611492-00
 SLEEVE
83
623562-00
 GEARCASE COVER
84
385676-01
 SCREW
85
631609-03
 SCREW
87
401680-00
 WRENCH
88
 Side Handle
89
 LINK D28111 D28139 D28110 D28011 DWEN201
90
644326-00
 BAR LOCKING
91
 BUTTON START
92
633045-00
 O RING
93
633043-00
 O RING
99
N042786
 GUARD SA
800
583534-00
 GREASE 50 GRAMS - NYE RHEOLUB 380G1
836
233804-36
 DRIVER
861
638758-00
 KITBOX
