DeWalt Power Tools

DEWALT D28492 Type 2 Parts

SKU: DEWALT D28492 Type 2
€1.65
VAT included

DEWALT D28492 Type 2 Angle Grinder Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for D28492 Angle Grinder Spare Parts.
DEWALT D28492 Type 2 Parts
  • Online only
  • DEWALT D28492 Type 2 Parts
  • DEWALT D28492 Type 2 Parts - Parts Diagram
DeWalt Power Tools

DEWALT D28492 Type 2 Parts

SKU: DEWALT D28492 Type 2 Condition: New
€1.65
VAT included

DEWALT D28492 Type 2 Angle Grinder Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for D28492 Angle Grinder Spare Parts.
settings 60 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
60 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

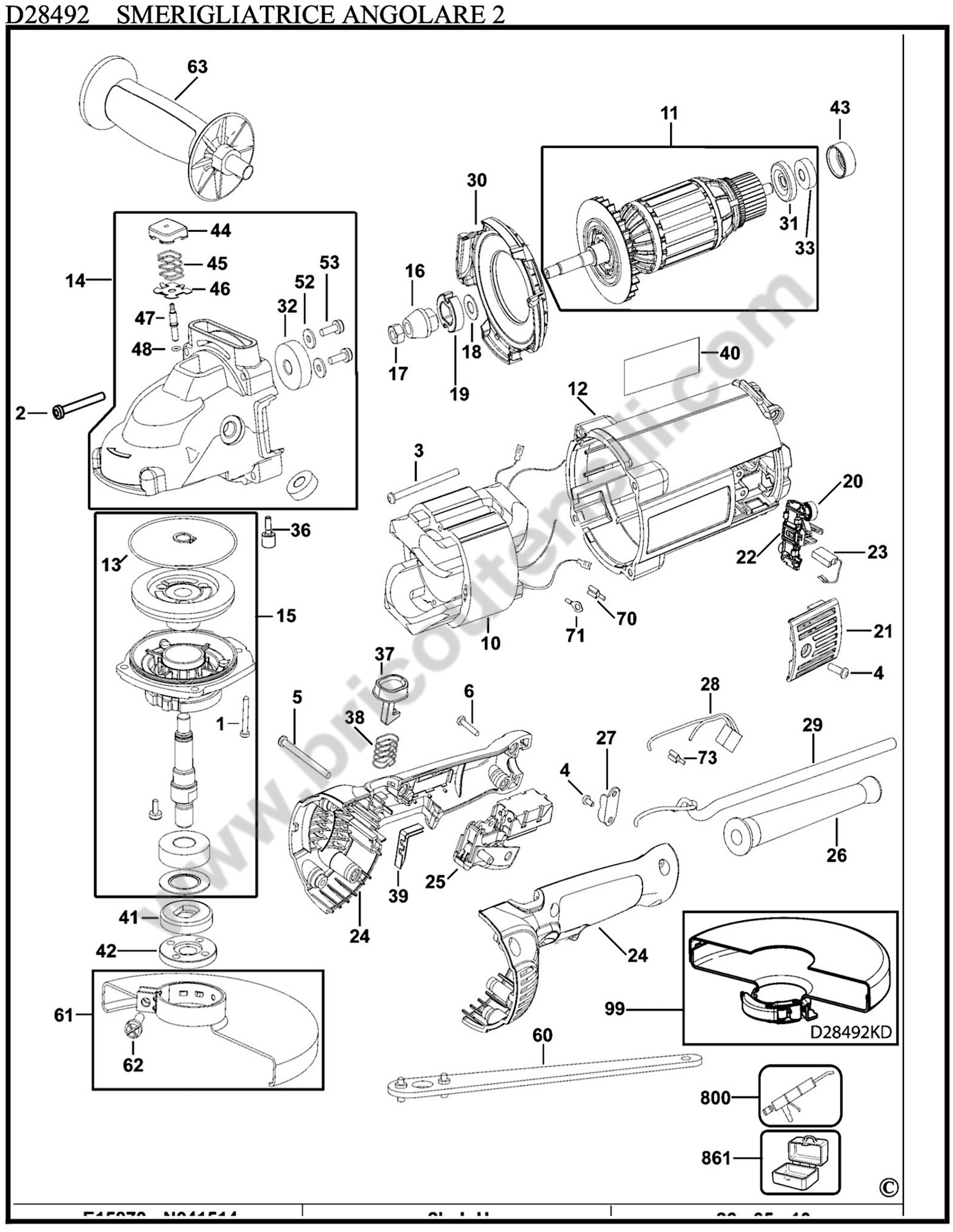

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 330045-14 SCREW EMS 705 €2.03
2
 photo_cameraImage coming soon 330019-26 SCREW €1.73
3
 photo_cameraImage coming soon 330019-19 SCREW €2.27
4
 photo_cameraImage coming soon 330019-11 SCREW, FOR PLASTIC 4.55 X 13 T20 €1.73
5
 photo_cameraImage coming soon 330019-50 SCREW €1.88
6
 photo_cameraImage coming soon 330019-32 SCREW €1.88
10
 photo_cameraImage coming soon 617004-04 FIELD 115V €86.78
10
 photo_cameraImage coming soon N513676 FIELD 230V €147.66
11
 photo_cameraImage coming soon N467980 ARMATURE SA €115.83
12
 DeWalt DWE490 Field Case 393239-01 DeWalt DWE490 Field Case €27.57
13
 photo_cameraImage coming soon 397031-00 O-RINGS €1.73
14
 photo_cameraImage coming soon N074214 GEARCASE SA €60.78
15
 photo_cameraImage coming soon N074213 GEARCASE COVER SA €65.23
16
 photo_cameraImage coming soon 629729-00 PINION 6K €22.32
18
 photo_cameraImage coming soon 639681-00 WASHER €1.98
19
 photo_cameraImage coming soon 632702-00 COLLAR €5.00
20
 photo_cameraImage coming soon 609987-00 BRUSH SPRING €2.35
20
 photo_cameraImage coming soon 645650-00 BRUSH SPRING €1.93
21
 photo_cameraImage coming soon 394387-01 BRUSH COVER €4.35
22
 DeWalt D28492 Brush Holder SA 617001-00 DeWalt D28492 Brush Holder SA €12.47
22
 photo_cameraImage coming soon 629976-00 BRUSH HOLDER SA 115V €8.56
23
 DeWalt D28492 Carbon Brush Set 392574-03 DeWalt D28492 Carbon Brush Set €24.95
23
 photo_cameraImage coming soon N025285 BRUSH 120V €8.56
24
 photo_cameraImage coming soon 636499-00 HANDLE AND COVER €31.00
25
 DeWalt Angle Grinder DWE490 Type 1 Switch Assembly N035342 DeWalt Angle Grinder DWE490 Type 1 Switch Assembly €25.12
26
 photo_cameraImage coming soon 330005-11 CORD PROTECTOR €5.88
26
 photo_cameraImage coming soon 604118-00 CORD GUARD €5.45
27
 photo_cameraImage coming soon 604119-00 CORD CLAMP €1.73
28
 DeWalt DWE490 Capacitor 632218-00 DeWalt DWE490 Capacitor €1.77
29
 photo_cameraImage coming soon 562226-65 CORDSET LH (EURO) €27.23
30
 photo_cameraImage coming soon 631350-00 BAFFLE FAN €3.55
31
 DeWalt DWE490 Shield Dust 393238-00 DeWalt DWE490 Shield Dust €1.99
32
 photo_cameraImage coming soon N389509 BALL BEARING €6.77
33
 DeWalt Ball Bearing 608RS N110359 N110359 DeWalt Ball Bearing 608RS N110359 €3.84
36
 photo_cameraImage coming soon N033051 SCREW €1.93
37
 Button Lock-Off for DWE490 Angle Grinder 636503-00 Button Lock-Off for DWE490 Angle Grinder €1.78
38
 photo_cameraImage coming soon 636502-00 SPRING €1.73
39
 photo_cameraImage coming soon 641929-00 COVER €2.16
40
 photo_cameraImage coming soon N041513 RATING PLATE 230V €2.16
40
 photo_cameraImage coming soon N041519 RATING PLATE 115V €2.16
41
 photo_cameraImage coming soon 403150-01 INNER FLANGE €7.79
42
 photo_cameraImage coming soon 401678-05 OUTER FLANGE €7.79
43
 photo_cameraImage coming soon 609970-00 SLEEVE INSULATING €1.73
44
 photo_cameraImage coming soon 630553-00 CAPACITOR €1.73
45
 photo_cameraImage coming soon 638328-00 SPRING €1.73
46
 photo_cameraImage coming soon 635908-00 RETAINER €1.73
47
 photo_cameraImage coming soon 634589-00 PIN €3.55
48
 photo_cameraImage coming soon 750831 O RING €1.73
52
 photo_cameraImage coming soon 640591-00 WASHER €1.73
53
 photo_cameraImage coming soon 330045-67 SCREW €1.73
60
 photo_cameraImage coming soon 635261-00 WRENCH PIN €6.77
61
 photo_cameraImage coming soon N036839 GUARD SA €31.00
62
 DeWalt DWE490 Type 1 Screw M8x35 N082712 DeWalt DWE490 Type 1 Screw M8x35 €1.78
63
 DeWalt DWE490 Type 1 Side Handle 651858-01 DeWalt DWE490 Type 1 Side Handle €13.65
70
 photo_cameraImage coming soon 612273-00 TERMINAL €1.73
71
 photo_cameraImage coming soon 610057-00 TERMINAL €1.73
73
 photo_cameraImage coming soon 053650-00 TERMINAL €1.73
99
 photo_cameraImage coming soon N038672 GUARD ASSEMBLY Type A Cutting Guard 230mm €69.89
800
 photo_cameraImage coming soon 583534-00 Grease 50 Gms €319.29
861
 photo_cameraImage coming soon 644490-00 KITBOX €72.93

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

DEWALT D28492 Type 2 Angle Grinder Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for D28492 Angle Grinder Spare Parts.

In the following table, look for the model of the hammer and the respective parts of the code.
D28492 Angle Grinder Spare Parts
DeWalt D28492 Angle Grinder - Type 2 spares and parts
# Part Num. Description
1 330045-14 SCREW M5X16 T25
2 330019-26 SCREW M5.28 X42
3 330019-19 SCREW, PLASTITE
4 330019-11 SCREW M4.55x13 T20
5 330019-50 SCREW PLSTC THD FORM M4.55X13 T20
6 330019-32 SCREW,PLASTITE
10 N513676 FIELD 230V
10 617004-04 FIELD 115V
11 N467980 ARMATURE SA 230V
11 638001-01 ARMATURE SA 112V
12 393239-01 FIELD CASE
13 397031-00 TOROIDAL RING
14 N074214 GEARCASE SA
15 N074213 GEARCASE COVER SA
16 629729-00 PINION 6K
17 330015-03 NUT M8x1.25
18 639681-00 WASHER
19 632702-00 COLLAR
20 609987-00 BRUSH SPRING
20 645650-00 BRUSH SPRING
21 394387-01 DOOR, BRUSH
22 617001-00 BRUSH HOLDER SA 230V
22 629976-00 BRUSH HOLDER SA 115V
23 392574-03 BRUSH SET CUT OFF 230 V
23 N025285 BRUSH 120V
24 636499-00 HANDLE AND COVER
25 N035342 SWITCH SA
26 604118-00 CORD PROTECTOR
26 330005-11 CORD PROTECTOR
27 604119-00 CORD CLAMP
28 632218-00 CAPACITOR
29 562226-65 CORDSET (EURO)
29 562226-67 CORDSET
30 631350-00 RADIAL FAN BAFFLE
31 393238-00 SHIELD DUST
32 N389509 BEARING, BALL, CW MFG
33 N110359 BEARING 608
36 N033051 SCREW STOP
37 636503-00 BUTTON LOCK-OFF
38 636502-00 SPRING
39 641929-00 COVER
40 N041513 RATING PLATE 230V
40 N041519 RATING PLATE 115V
41 403150-01 WASHER, CLAMP, INNER
42 401678-05 WASHER OUTER CLAMP PAINTED
43 609970-00 CUP, RUBBER
44 630553-00 SPINDLE LOCK BUTTON
45 638328-00 SPINDLE LOCK SPRING
46 635908-00 SPINDLE LOCK RETAINING PLATE
47 634589-00 SPINDLE LOCK PIN
48 750831 O RING (SPINDLE LOCK)
52 640591-00 WASHER PLAIN
53 330045-67 SCREW
60 635261-00 WRENCH PIN
61 N036839 GUARD SA
62 N082712 SCREW M8 X 35
63 651858-01 SIDE HANDLE
70 612273-00 TERMINAL
71 610057-00 TERMINAL
73 053650-00 TERMINAL
99 N038672 GUARD ASSEMBLY Type A Cutting Guard 230mm
800 583534-00 GREASE 50 GRAMS - NYE RHEOLUB 380G1
861 644490-00 KITBOX
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
