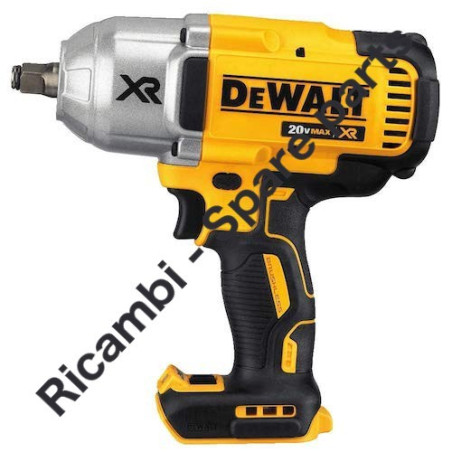

DeWalt DCF899 Type-1 Impact Wrench Parts

SKU: DCF899 - DCF899H Type 1
€38.33
VAT included

DeWalt DCF899 Type-1 Impact Wrench Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DCF899 Type 1 Impact Wrench1.
DeWalt DCF899 Type-1 Impact Wrench Parts
  • Online only
  • DeWalt DCF899 Type-1 Impact Wrench Parts
  • DeWalt DCF899 Type-1 Impact Wrench Parts - Drawing
DeWalt Power Tools

DeWalt DCF899 Type-1 Impact Wrench Parts

SKU: DCF899 - DCF899H Type 1 Condition: New
€38.33
VAT included

DeWalt DCF899 Type-1 Impact Wrench Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DCF899 Type 1 Impact Wrench1.
settings 20 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
20 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

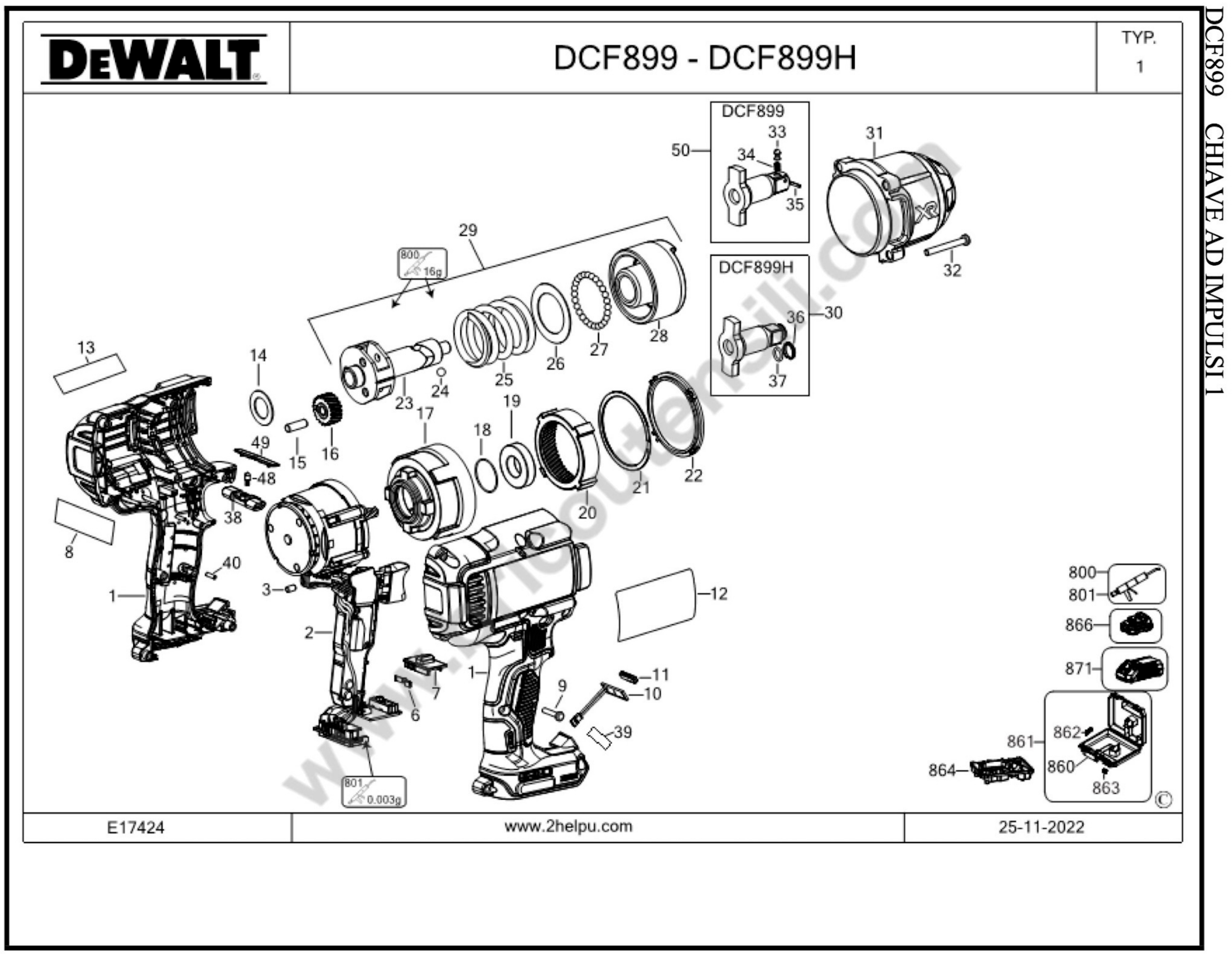

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
C20
 photo_cameraImage coming soon 252126-6 NUT M4-7 X BHS630 €1.47
C10
 photo_cameraImage coming soon 263005-3 PIN RUBBER 6 €1.32
C30
 photo_cameraImage coming soon 931002-4 HEX. NUT M3 €1.38
001
 photo_cameraImage coming soon 266130-9 SCREW 3X16 X 6203/13 / 6313DW €1.46
3
 photo_cameraImage coming soon N186764 RUBBER PAD €1.88
007
 photo_cameraImage coming soon 911008-8 SCREW M3 X 8 X 1050DW €1.38
9
 photo_cameraImage coming soon 90611830 SCREW €1.93
010
 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 266007-8 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 €2.03
013
 photo_cameraImage coming soon 941051-3 FLAT WASHER 4 €1.38
016
 photo_cameraImage coming soon 256098-7 PLUG 5 X LC1230 €2.07
020
 photo_cameraImage coming soon 941152-7 FLAT WASHER 6 €1.46
036
 photo_cameraImage coming soon 231294-8 SPRING 6 X5012B €1.53
40
 photo_cameraImage coming soon N071836 SCREW €1.83
48
 DeWalt Detent for Hammer D25333K 326467-00 DeWalt Detent for Hammer D25333K €4.50
051
 photo_cameraImage coming soon 652069-6 M3x6 SCREW €1.43
052
 photo_cameraImage coming soon 266490-9 SCREW 2X6 €1.43
800
 photo_cameraImage coming soon N017298 GREASE €127.36
861
 photo_cameraImage coming soon N279261 TOOL BOX DCH253NT €89.86
863
 photo_cameraImage coming soon P910190 LATCH METAL €5.45
871
 photo_cameraImage coming soon N450536 BATTERY CHARGER DCS565P2-QW / DCB115 €138.04

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

DeWalt DCF899 Type-1 Impact Wrench Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DCF899 Type 1 Impact Wrench1.

Open PDF Drawing in this page to check spare parts you need.
DCF899 Type 1 Impact Wrench

DeWalt DCF899 Type 1 Impact Wrench Spare Parts
# Part Num. Description
1 N371919 CLAMSHELL SET
2 N578553 MOTOR & SWITCH SA
3 N186764 RUBBER PAD
6 N392855 DETENT SPRING
7 N393603 SELECTOR
8 N404526 LABEL
9 90611830 SCREW, PLASTIC THREAD FORM M3.5 X 19 T1
10 N231799 LED LIGHT
11 N394333 LENS
12 N380108 RATING PLATE
12 N380158 RATING PLATE
13 N237999 LABEL
14 N114027 WASHER
15 N194994 PIN
16 N389396 GEAR
17 N363283 GEARCASE
18 N411414 O RING
19 N158641 BEARING
20 N389398 GEAR
21 N389400 RING
22 N410641 SEAL
23 NA109167 IMPACTOR
24 618844-00 BALL STEEL
25 N377938 SPRING
26 N377515 WASHER THRUST
27 000475-00 BALL STEEL 3/16"
28 N377373 CARRIER
29 N851243 IMPACTOR
30 N866411 ANVIL ASSEMBLYDCF899H
31 N866410 ANVIL ASSEMBLYDCF899H
31 N866411 ANVIL ASSEMBLYDCF899H
32 NA002385 SREW
33 N020802 DETENT
34 038769-00 SPRING
35 099205-07 ROLLPIN
36 086947-00 CIRCLIP
37 050056-00 RING
38 N137055 ACTUATOR FWD/REV
39 N408083 LABEL
40 N071836 ROLL PIN 2.5 X 10.9
48 326467-00 DETENT
49 N419514 DETENT
50 N880093 SERVICE KIT
800 N017298 GREASE G-2008 Molykote
801 NA218891 GREASE
802 NA360289 GREASE 50G
860 H1400196008 HANDLE
861 N279261 KITBOX DWST1-17807
862 H1500082520 LATCH
863 P910190 LATCH (Better Latch - C)
866 N394624 BATTERY 18V - 5.0AH - 90WH
871 N450536 CHARGER 10.8V - 18V
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s DEWALT websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to DEWALT brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
