DEWALT D25133K-QS Rotary Hammer Type 1 Parts

SKU: DEWALT D25133K-QS Tipo 1
€1.93
VAT included

DEWALT D25133K-QS Rotary Hammer Type 1 Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for D25133K-QS Rotary Hammer Type 1.
DEWALT D25133K-QS Rotary Hammer Type 1 Parts
  • Online only
  • DEWALT D25133K-QS Rotary Hammer Type 1 Parts
  • DEWALT D25133K-QS Rotary Hammer Type 1 Parts - Drawing
  • DEWALT D25133K-QS Rotary Hammer Type 1 Parts - Drawing 1

DEWALT D25133K-QS Rotary Hammer Type 1 Parts

SKU: DEWALT D25133K-QS Tipo 1 Condition: New
€1.93
VAT included

DEWALT D25133K-QS Rotary Hammer Type 1 Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for D25133K-QS Rotary Hammer Type 1.
settings 133 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

121 spare parts

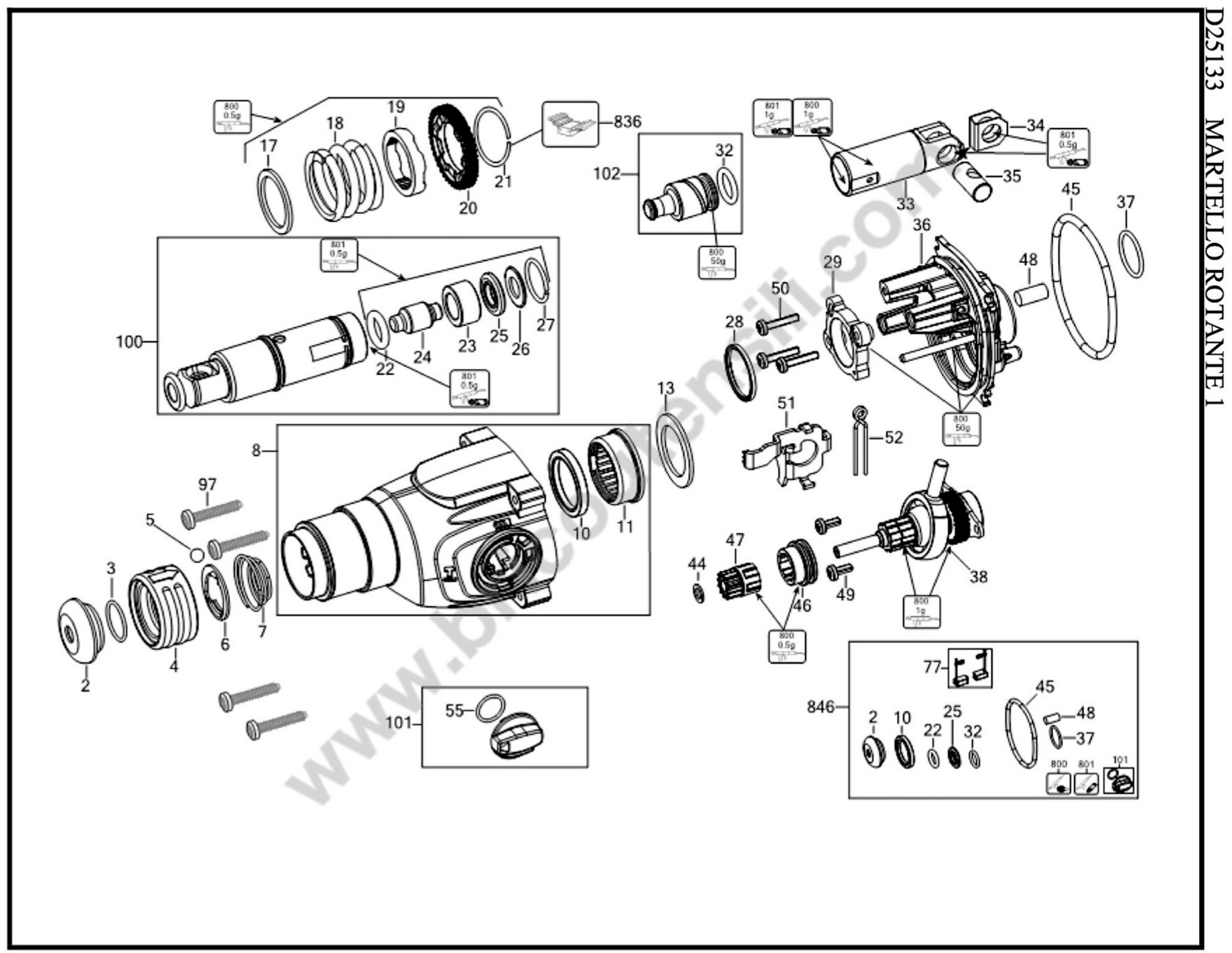

Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
1
photo_cameraImage coming soon N325879 SCREW €1.83
2
DeWalt DCH333 Housing Front Cap 323489-00 DeWalt DCH333 Housing Front Cap €3.34
3
DeWALT D25033K Ring Snap 21 579212-00 DeWALT D25033K Ring Snap 21 €2.17
5
DeWalt D27111 Steel Ball 583890-00 DeWalt D27111 Steel Ball €3.08
6
DeWALT D25033K SDS Ball Plate 578387-00 DeWALT D25033K SDS Ball Plate €3.10
7
DeWALT D25333K Tube Spring 871690 DeWALT D25333K Tube Spring €2.08
8
photo_cameraImage coming soon N417731 HOUSING SA €26.44
9
photo_cameraImage coming soon 330065-16 SCREW €1.83
10
DeWALT D25012K Type 1 Rotary Hammer Seal 327141-06 DeWALT D25012K Type 1 Rotary Hammer Seal €6.06
11
photo_cameraImage coming soon N020023 BEARING SPINDLE €9.62
13
photo_cameraImage coming soon 1005788-00 WASHER €2.49
17
photo_cameraImage coming soon N899980 WASHER,NEEDLE BEARING >=WK15 2021 €2.05
18
photo_cameraImage coming soon N264677 SPRING €3.99
19
photo_cameraImage coming soon NA014716 O-RING >=WK15 2021 €14.14
20
photo_cameraImage coming soon NA012069 GEAR >=WK15 2021 €15.66
21
DeWALT D25033K Type 1 Rotary Hammer Locking Ring N406151 DeWALT D25033K Type 1 Rotary Hammer Locking Ring €1.78
21
photo_cameraImage coming soon N869110 LOCK RING >=WK15 2021 €1.83
22
photo_cameraImage coming soon N394276 0-RING €2.92
23
photo_cameraImage coming soon N470388 TUBE GUIDE €5.45
25
O-Ring 1005808-00 O-Ring €3.99
25
photo_cameraImage coming soon 580990-00 RING RAM CATCHER €3.00
26
photo_cameraImage coming soon 327087-00 WASHER €5.00
26
photo_cameraImage coming soon N531681 WASHER FROM wk32-2017 €5.71
27
photo_cameraImage coming soon N294259 RING €1.83
28
photo_cameraImage coming soon N267565 RING €2.49
29
photo_cameraImage coming soon N417745 BEARING €7.68
32
DeWALT D25033K Type 1 Rotary Hammer O-Ring N264642 DeWALT D25033K Type 1 Rotary Hammer O-Ring €3.85
33
photo_cameraImage coming soon N425231 PISTON €19.53
34
photo_cameraImage coming soon 1005842-00 WASHER €1.83
35
photo_cameraImage coming soon N325041 BEARING SPINDLE €4.86
36
photo_cameraImage coming soon N495931 HOUSING BEARING €26.44
37
photo_cameraImage coming soon N264673 O RING 22X2 €1.83
38
photo_cameraImage coming soon N418018 INTERSHAFT SA €59.01
44
photo_cameraImage coming soon 1005844-00 WASHGER €1.83
45
photo_cameraImage coming soon N264672 O RING 68X4 €2.05
46
photo_cameraImage coming soon N417853 COLLAR €5.30
47
photo_cameraImage coming soon N417859 GEAR €12.84
48
photo_cameraImage coming soon 1005812-00 FELT €1.83
49
photo_cameraImage coming soon N445171 SCREW €1.83
50
photo_cameraImage coming soon 324006-15 SCREW €1.88
51
photo_cameraImage coming soon NA048777 PLATE €5.30
52
photo_cameraImage coming soon 1005795-00 SPRING €1.83
55
DeWALT D25333K Type 2 O-Ring 21,56x17,53x1,7MM N091381-00 DeWALT D25333K Type 2 O-Ring 21,56x17,53x1,7MM €1.78
61
photo_cameraImage coming soon N481043 MOTOR HOUSING €12.84
64
photo_cameraImage coming soon N418023 FIELD 120V €36.14
64
photo_cameraImage coming soon N484765 FIELD 230V FR DATE CD WK32 2016 €39.60
64
photo_cameraImage coming soon N489766 SERVICE KIT 230V TO DATE CD WK32 2016 €54.27
65
photo_cameraImage coming soon N245239 WASHER €2.05
66
photo_cameraImage coming soon 1005895-00 BALL BEARING €4.86
67
DeWalt D25601K Demolition Hammer Bearing 608DW 330003-60 DeWalt D25601K Demolition Hammer Bearing 608DW €6.54
68
photo_cameraImage coming soon N344965 BAFFLE €4.86
69
photo_cameraImage coming soon N476768 RUBBER PAD €1.83
70
photo_cameraImage coming soon N442577 RING €1.83
71
photo_cameraImage coming soon N442578 VOVER BEARING €1.83
72
photo_cameraImage coming soon 1005894-00 CAPACITOR CLIP €1.83
73
photo_cameraImage coming soon N418033 BRUSH HOLDER SA €30.10
73
photo_cameraImage coming soon N418034 BRUSH HOLDER SA €30.10
77
DeWALT D25033K Type 1 Rotary Hammer Brush Pair 230V N418039 DeWALT D25033K Type 1 Rotary Hammer Brush Pair 230V €18.83
77
photo_cameraImage coming soon N418040 BRUSH PAIR 120V €11.76
78
photo_cameraImage coming soon N415820 ASS. HANDLE SIDE €21.67
79
photo_cameraImage coming soon 798846-02 DEPTH STOP €3.00
84
photo_cameraImage coming soon N086775 SCREW €1.83
84
photo_cameraImage coming soon N475466 SCREW €1.83
85
photo_cameraImage coming soon N418013 HANDLE SIDE SA €15.66
88
DeWALT Rotary Hammer D25333K Type 2 Switch 240V N364920 DeWALT Rotary Hammer D25333K Type 2 Switch 240V €37.99
88
photo_cameraImage coming soon N364921 SWITCH 115V €33.13
89
photo_cameraImage coming soon 320842-19 CAPACITOR €3.00
90
photo_cameraImage coming soon 329301-00 CLAMP, CORD €1.83
91
Power Cord for Hammer Hammer DeWalt D25003K 1005757-00 Power Cord for Hammer Hammer DeWalt D25003K €20.72 Not available for order
92
photo_cameraImage coming soon 403395-00 CORD PROTECTOR €5.45
93
DeWalt D25481 Screw TX 4x18 330065-08 DeWalt D25481 Screw TX 4x18 €1.94
94
photo_cameraImage coming soon 1005879-00 LEAD BLUE €2.05
95
photo_cameraImage coming soon NA032293 LEAD SA €2.05
97
photo_cameraImage coming soon N476832 SCREW €1.83
101
photo_cameraImage coming soon N417861 SELECTOR ZSB €15.66
102
photo_cameraImage coming soon N418035 RAM SA €15.66
103
photo_cameraImage coming soon N418030 ARMATURE 115/120V €59.01
103
photo_cameraImage coming soon N566901 ARMATURES 230V €67.86
105
photo_cameraImage coming soon NA049706 RATING PLATE €1.83
800
DeWalt Grease Renolit Paragon EP 1/2 90Gr. 870889-02 DeWalt Grease Renolit Paragon EP 1/2 90Gr. €21.10
801
photo_cameraImage coming soon 487130-04 GREASE 10 GMS €9.90
836
photo_cameraImage coming soon 1003959-99 SERVICE TOOLING KIT €58.37
836
photo_cameraImage coming soon 1003960-99 SERVICE TOOLING KIT €82.10
836
photo_cameraImage coming soon 596005-99 SERVICE TOOLING KIT €151.22
846
photo_cameraImage coming soon N418448 SERVICE KIT 230V €59.01
846
photo_cameraImage coming soon N418466 SERVICE KIT 120V €107.98
861
photo_cameraImage coming soon N440493 KITBOX €54.27

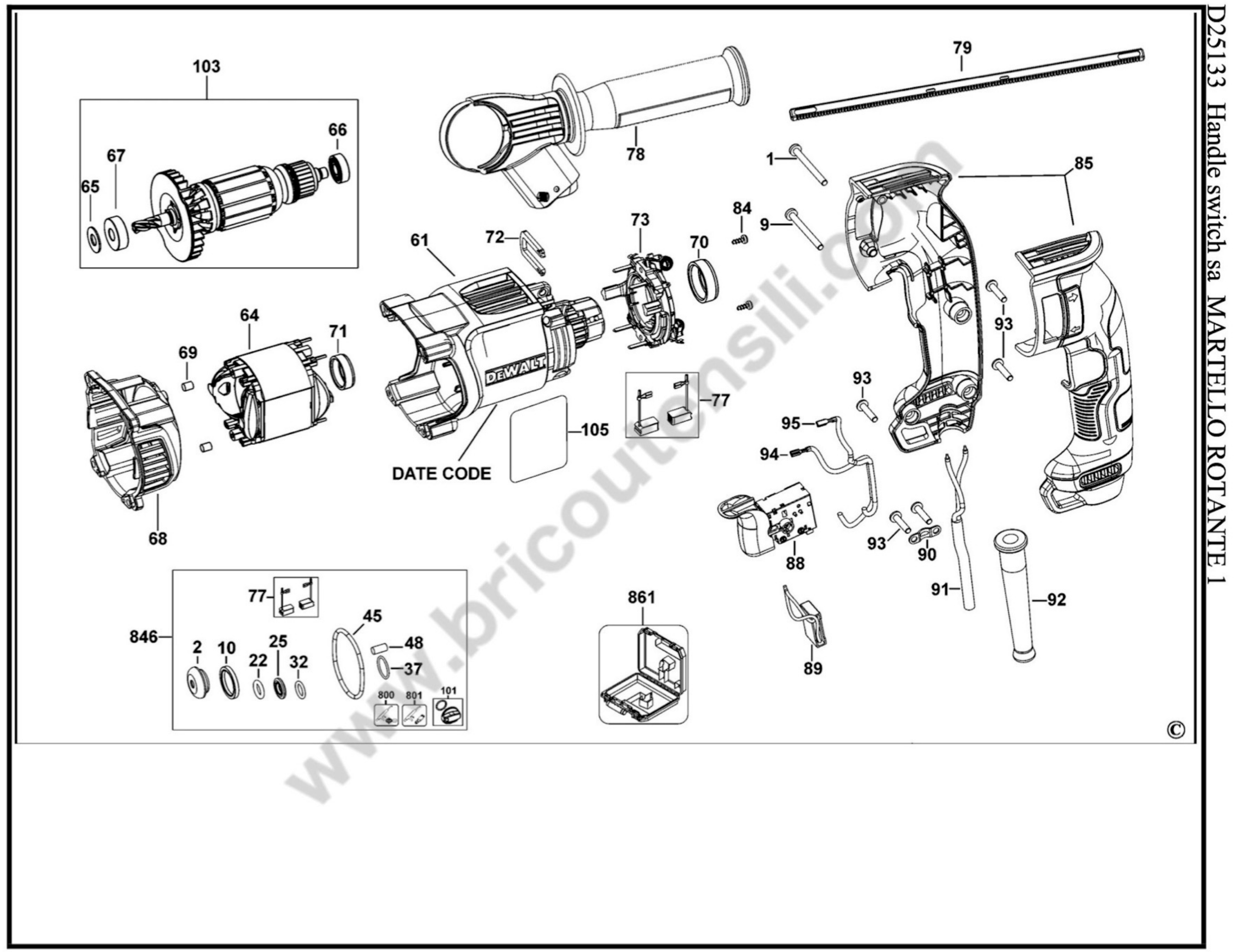

Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
1
photo_cameraImage coming soon N325879 SCREW €1.83
9
photo_cameraImage coming soon 330065-16 SCREW €1.83
61
photo_cameraImage coming soon N481043 MOTOR HOUSING €12.84
64
photo_cameraImage coming soon N418023 FIELD 120V €36.14
64
photo_cameraImage coming soon N484765 FIELD 230V FR DATE CD WK32 2016 €39.60
64
photo_cameraImage coming soon N489766 SERVICE KIT 230V TO DATE CD WK32 2016 €54.27
65
photo_cameraImage coming soon N245239 WASHER €2.05
66
photo_cameraImage coming soon 1005895-00 BALL BEARING €4.86
67
DeWalt D25601K Demolition Hammer Bearing 608DW 330003-60 DeWalt D25601K Demolition Hammer Bearing 608DW €6.54
68
photo_cameraImage coming soon N344965 BAFFLE €4.86
69
photo_cameraImage coming soon N476768 RUBBER PAD €1.83
70
photo_cameraImage coming soon N442577 RING €1.83
71
photo_cameraImage coming soon N442578 VOVER BEARING €1.83
72
photo_cameraImage coming soon 1005894-00 CAPACITOR CLIP €1.83
73
photo_cameraImage coming soon N418033 BRUSH HOLDER SA €30.10
73
photo_cameraImage coming soon N418034 BRUSH HOLDER SA €30.10
78
photo_cameraImage coming soon N415820 ASS. HANDLE SIDE €21.67
79
photo_cameraImage coming soon 798846-02 DEPTH STOP €3.00
84
photo_cameraImage coming soon N086775 SCREW €1.83
84
photo_cameraImage coming soon N475466 SCREW €1.83
85
photo_cameraImage coming soon N418013 HANDLE SIDE SA €15.66
88
DeWALT Rotary Hammer D25333K Type 2 Switch 240V N364920 DeWALT Rotary Hammer D25333K Type 2 Switch 240V €37.99
88
photo_cameraImage coming soon N364921 SWITCH 115V €33.13
89
photo_cameraImage coming soon 320842-19 CAPACITOR €3.00
90
photo_cameraImage coming soon 329301-00 CLAMP, CORD €1.83
91
Power Cord for Hammer Hammer DeWalt D25003K 1005757-00 Power Cord for Hammer Hammer DeWalt D25003K €20.72 Not available for order
92
photo_cameraImage coming soon 403395-00 CORD PROTECTOR €5.45
93
DeWalt D25481 Screw TX 4x18 330065-08 DeWalt D25481 Screw TX 4x18 €1.94
94
photo_cameraImage coming soon 1005879-00 LEAD BLUE €2.05
95
photo_cameraImage coming soon NA032293 LEAD SA €2.05
103
photo_cameraImage coming soon N418030 ARMATURE 115/120V €59.01
103
photo_cameraImage coming soon N566901 ARMATURES 230V €67.86
105
photo_cameraImage coming soon NA049706 RATING PLATE €1.83
861
photo_cameraImage coming soon N440493 KITBOX €54.27

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

DEWALT D25133K-QS Rotary Hammer Type 1 Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for D25133K-QS Rotary Hammer Type 1.

In the following table, look for the model of the hammer and the respective parts of the code.
D25133K-QS Rotary Hammer Type 1

DeWalt D25133K-QS Rotary Hammer Type 1 Spare Parts
# Part Num. Description
1 N325879 SCREW
2 323489-00 CAP
3 579212-00 RING SNAP 21
4 NA098071 TUBE From WK15 2021 to WK19 2022
4 NA073152 TUBE From WK15 2021 to WK19 2022
5 583890-00 BALL 7.0
6 578387-00 SDS BALL PLATE (WASHER SDS 1.4MM)
7 871690 SPRING BEVEL
8 N417731 HOUSING SA
9 330065-16 SCREW
10 327141-06 SEAL
11 N020023 NEEDLE BEARING
13 1005788-00 WASHER
17 N899980 WASHER,NEEDLE BEARING >=WK15 2021
17 NA419837 SHAFT SA <WK15 2021
18 N264677 SPRING
19 NA014716 O-RING >=WK15 2021
19 NA419837 SHAFT SA <WK15 2021
20 NA012069 GEAR >=WK15 2021
20 NA419837 SHAFT SA <WK15 2021
21 N406151 LOCKING RING
21 N869110 LOCK RING >=WK15 2021
21 NA419837 SHAFT SA <WK15 2021
22 N394276 O-RING
23 N470388 TUBE GUIDE FROM wk32-2017
23 N470388 TUBE GUIDE TO wk32-2017
24 N417744 BEAT PIECE
25 1005808-00 RING TO wk32-2017
25 580990-00 O-RING FROM wk32-2017
26 N531681 WASHER FROM wk32-2017
26 327087-00 WASHER TO wk32-2017
27 N294259 RING SNAP 22.5
28 N267565 RING
29 N417745 BEARING
32 N264642 O RING 14X3
33 N425231 PISTON
34 1005842-00 WASHER U SHAPE
35 N325041 CROSS BOLT
36 N495931 HOUSING BEARING
37 N264673 O RING 22X2
38 N418018 INTERSHAFT SA
44 1005844-00 WASHER INTERSHAFT FRONT
45 N264672 O RING 68X4
46 N417853 COLLAR
47 N417859 GEARS
48 1005812-00 FELT
49 N445171 SCREW
50 324006-15 SCREW ,TAPTITE M4X20 ANU LOCK
51 NA048777 PLATE
52 1005795-00 SPRING
55 N091381-00 O-RING
61 N481043 HOUSING MOTOR FR DATE CD WK32 2016
61 N271819 HOUSING MOTOR TO DATE CD WK32 2016
64 N418023 FIELD 120V
64 N484765 FIELD 230V FR DATE CD WK32 2016
64 N489766 SERVICE KIT 230V TO DATE CD WK32 2016
65 N245239 WASHER
66 1005895-00 BEARING
67 330003-60 BEARING
68 N344965 BAFFLE
69 N476768 RUBBER PAD FR DATE CD WK32 2016
70 N442577 RING
71 N442578 BEARING COVER
72 1005894-00 CLIP
73 N418034 BRUSH HOLDER SA 120V
73 N418033 BRUSH HOLDER SA
77 N418040 BRUSH PAIR 120V
77 N418039 BRUSH PAIR 230V
78 N415820 ASS. HANDLE SIDE
79 798846-02 DEPTH STOP
84 N475466 SCREW FR DATE CD WK32 2016
84 N086775 SCREW TO DATE CD WK32 2016
85 N418013 HANDLE SIDE SA
88 N364921 SWITCH 115V
88 N364920 SWITCH 240V to wk46 2012
89 320842-19 CAPACITOR
90 329301-00 CLAMP, CORD
91 1005757-00 CORDSET (EURO)
92 403395-00 CORD PROTECTOR
93 330065-08 SCREW M4x18 T20
94 1005879-00 LEAD BLUE
95 NA032293 LEAD SA
97 N476832 SCREW
100 NA098108 SPINDLE SA >=WK19 2022
100 NA098071 SPINDLE SA From WK15 2021 to WK19 2022
100 NA419837 SPINDLE SA <WK15 2021
101 N417861 SELECTOR SA
102 N418035 RAM SA
103 N418030 ARMATURE 115/120V
103 N566901 ARMATURE 230V
105 NA049706 RATING PLATE
800 870889-02 RENOLIT PARAGON EP 1/2 90GR
801 487130-04 GREASE,GLK FLUID, 10G SACHET - SERVICE
836 596005-99 SERVICE TOOLING KIT
836 1003959-99 S.T.CIRCLIP REMOVER
836 1003960-99 S.T.CIRCLIP REMOVER
846 N418448 SERVICE KIT 230V
846 N418466 SERVICE KIT 120V
861 N440493 KITBOX
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s DEWALT websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to DEWALT brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DEWALT D25133K-QS Tipo 1
6 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

DEWALT D25133K-QS Type 1 Drawing

DEWALT D25133K-QS Type 1 Drawing

Download (682.61KB)

You might also like

DeWalt Power Tools SKU: 327141-06
DeWALT D25012K Type 1 Rotary Hammer Seal Genuine replacement part DeWALT, Seal for Rotary Hammer D25012K - D25033K Type 1. Part for the following items: -  Rotary Hammer SDS-PLUS D25033K Tipo 1 -  Rotary...
on 7/10 Business Days Approx. €6.06
DeWalt Power Tools SKU: N166238
DeWALT D25033K Type 1 Rotary Hammer Switch Genuine replacement part DeWALT, Switch 240V for Rotary Hammer D25033K Type 1. Part for the following items: -  Rotary Hammer SDS-PLUS D25033K Tipo 1 -  Rotary...
Last items in stock €29.03
DeWalt Power Tools SKU: 330003-60
DeWalt D25601K Demolition Hammer Bearing 608DW Genuine replacement part DeWALT, Ball Bearing 608DW for Demolition Hammer D25601K - D25831K. Part for the following items: - Demolition Hammer D25601K tipo 1 Modello:...
Last items in stock €6.54
DeWalt Power Tools SKU: 330065-08
DeWalt D25481 Demolition Hammer Screw TX 4x18 Genuine replacement part DeWALT, Screw TX 4x18 for Demolition Hammer D25481. Part for the following items: - Demolition Hammer D25481 Modello: D25481-QS - Demolition Hammer D25614K...
on 7/10 Business Days Approx. €1.94
DeWalt Power Tools SKU: 870889-02
DeWalt Grease Renolit Paragon EP 1/2 90Gr. Genuine replacement part DeWALT, Grease Renolit Paragon EP 1/2 90Gr. for Demolition Hammers DeWalt - Black&Decker. Part for the following items: - Demolition Hammer D25481 Modello:...
Last items in stock €21.10
DeWalt Power Tools SKU: 871690
DeWALT D25333K Rotary Hammer Spring Bevel Genuine replacement part DeWALT, Tube Spring Bevel (Chuck Cover Spring) for Rotary Hammer DeWALT D25333K Type 2. Part for the following products: - Rotary Hammer DeWALT D25333K...
Last items in stock €2.08
DeWalt Power Tools SKU: 323489-00
DeWalt DCH333 Housing Front Cap Genuine replacement part DeWALT, Housing Front Cap for Rotary Hammer DCH333. Part for the following items: - DEWALT DCH333 ROTARY HAMMER TYPE 1 - DEWALT D25333K Tipo 2 - DEWALT D25003K Tipo 3...
Last items in stock €3.34
DeWalt Power Tools SKU: 578387-00
DeWALT D25033K SDS Ball Plate Genuine replacement part DeWALT, SDS Ball Plate (WASHER SDS 1.4M™M) for Rotary Hammer D25033K Type 1. Part for the following items: - DEWALT D25333K Tipo 2 - DEWALT D25033K Tipo 1 -...
Last items in stock €3.10
DeWalt Power Tools SKU: 579212-00
DeWALT D25033K Ring Snap 21 Genuine replacement part DeWALT, Ring Snap 21 for Rotary Hammer D25033K Type 1. Part for the following items: - DEWALT D25333K Tipo 2 - DEWALT D25033K Tipo 1 - DEWALT D25012K Tipo 1 -...
Last items in stock €2.17
DeWalt Power Tools SKU: 583890-00
DeWalt D27111 Steel Ball Genuine replacement part DeWALT, Steel Ball D.7 mm for Hammer DCH214 - D25333K. Part for the following items: -  Hammer DEWALT DCH214 Type 1 -  Hammer DEWALT D25333K Type 2...
AVAILABLE €3.08
Comments (0)
